As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 427 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

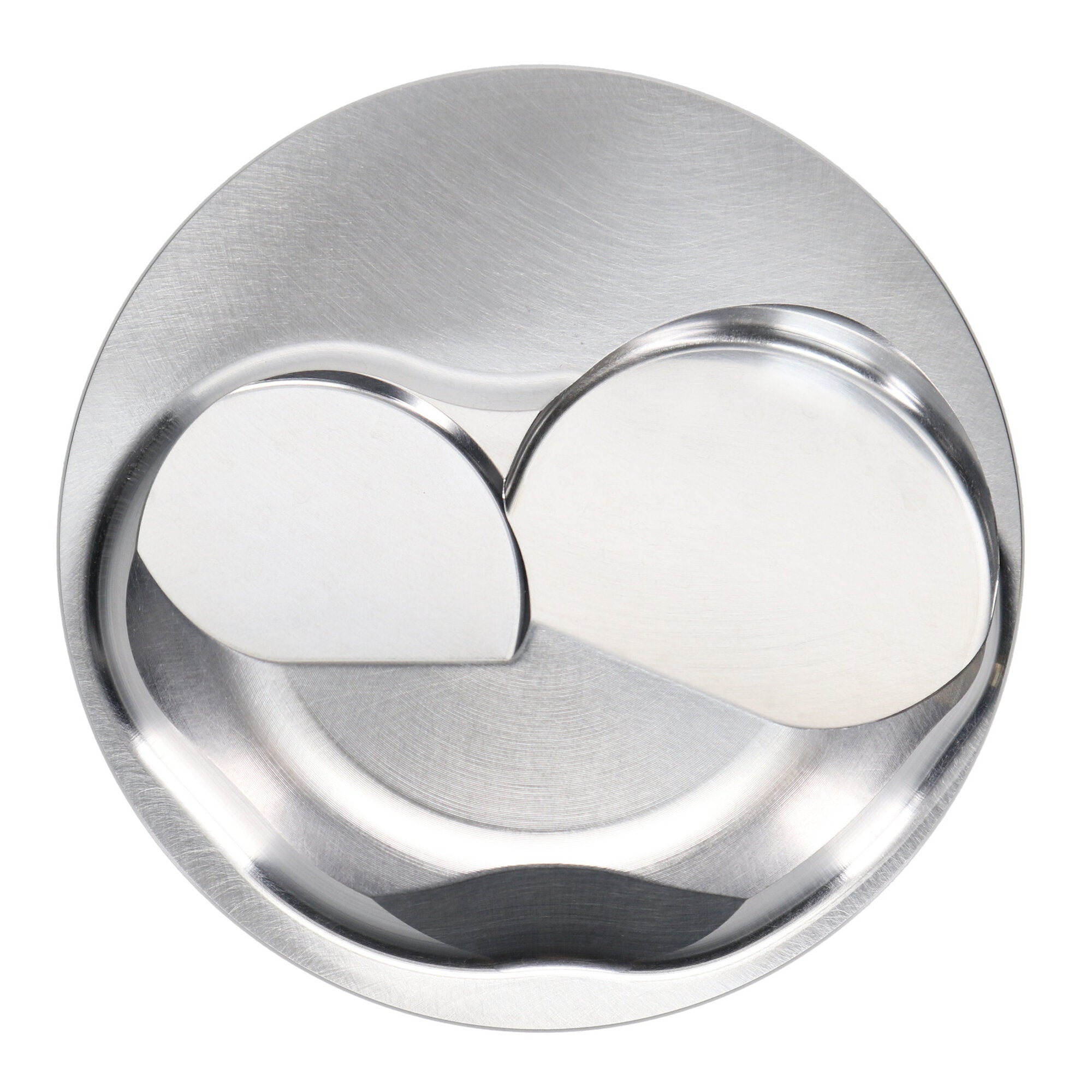

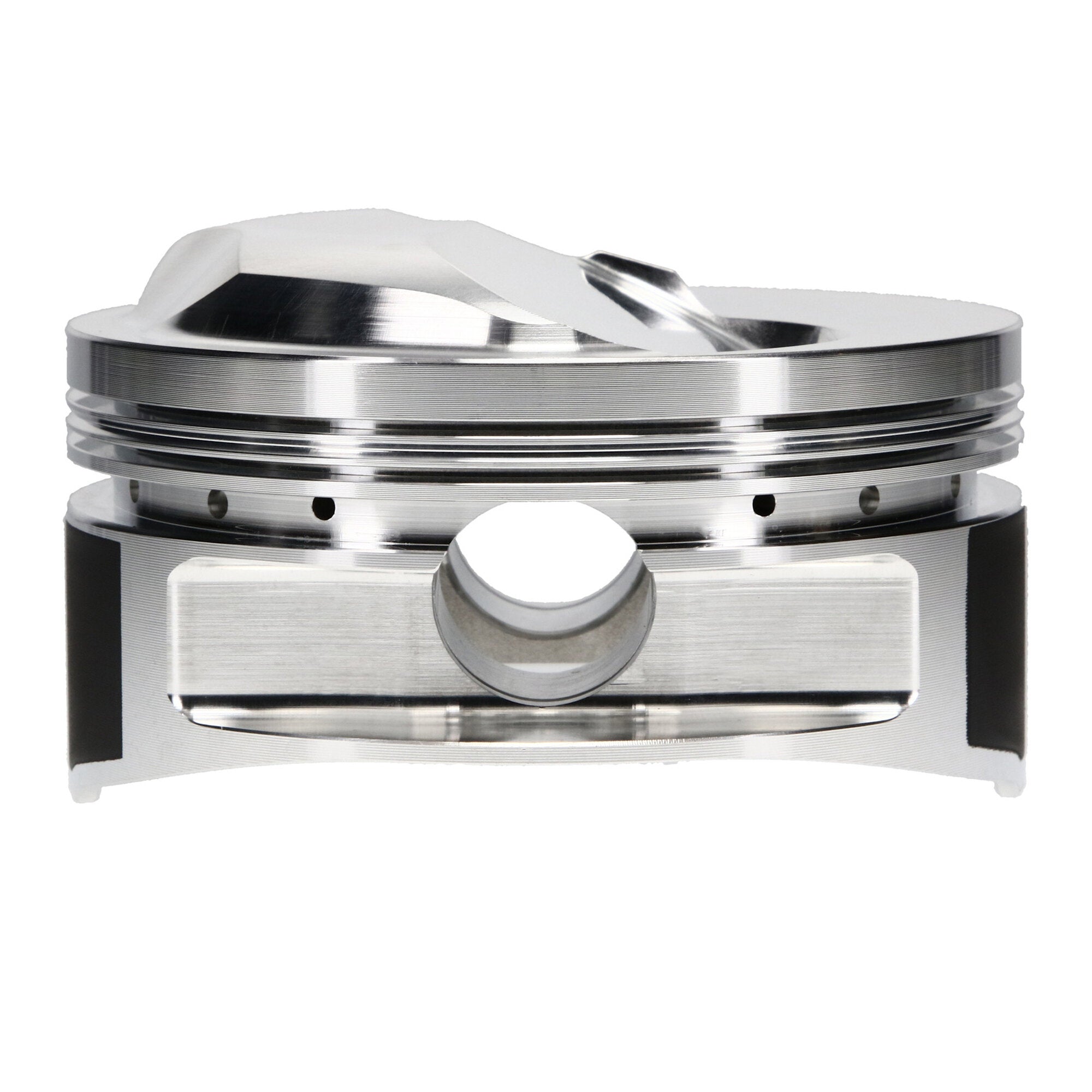

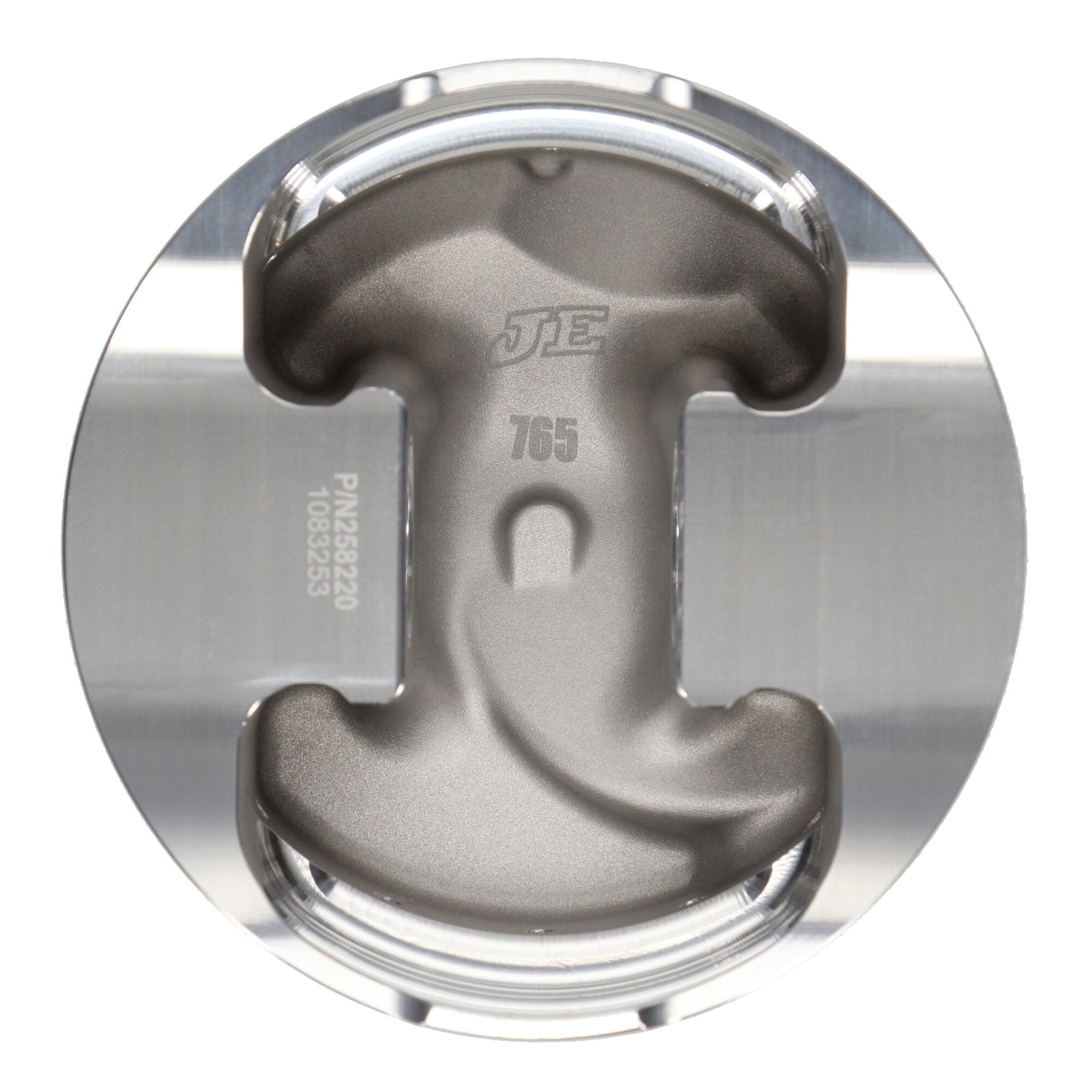

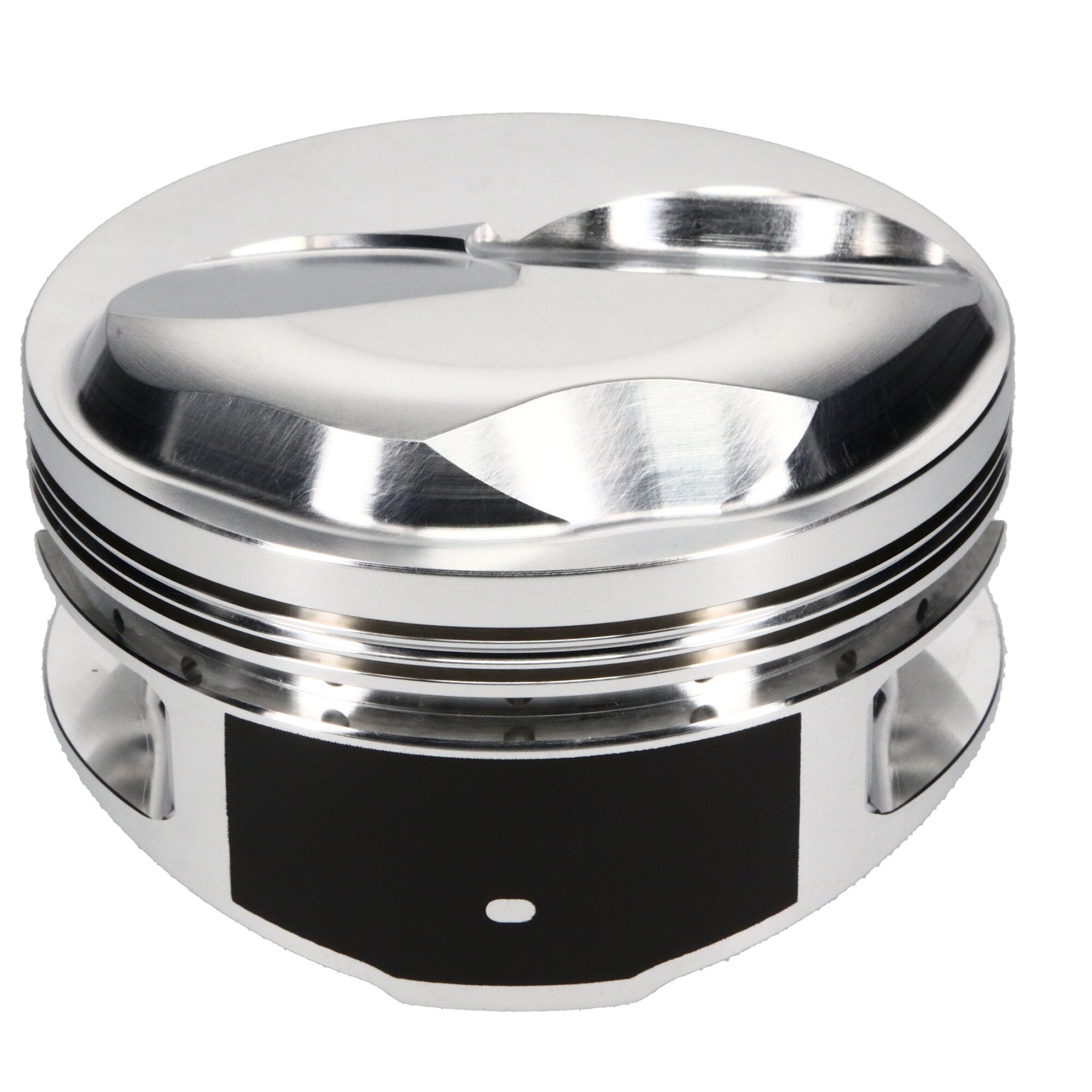

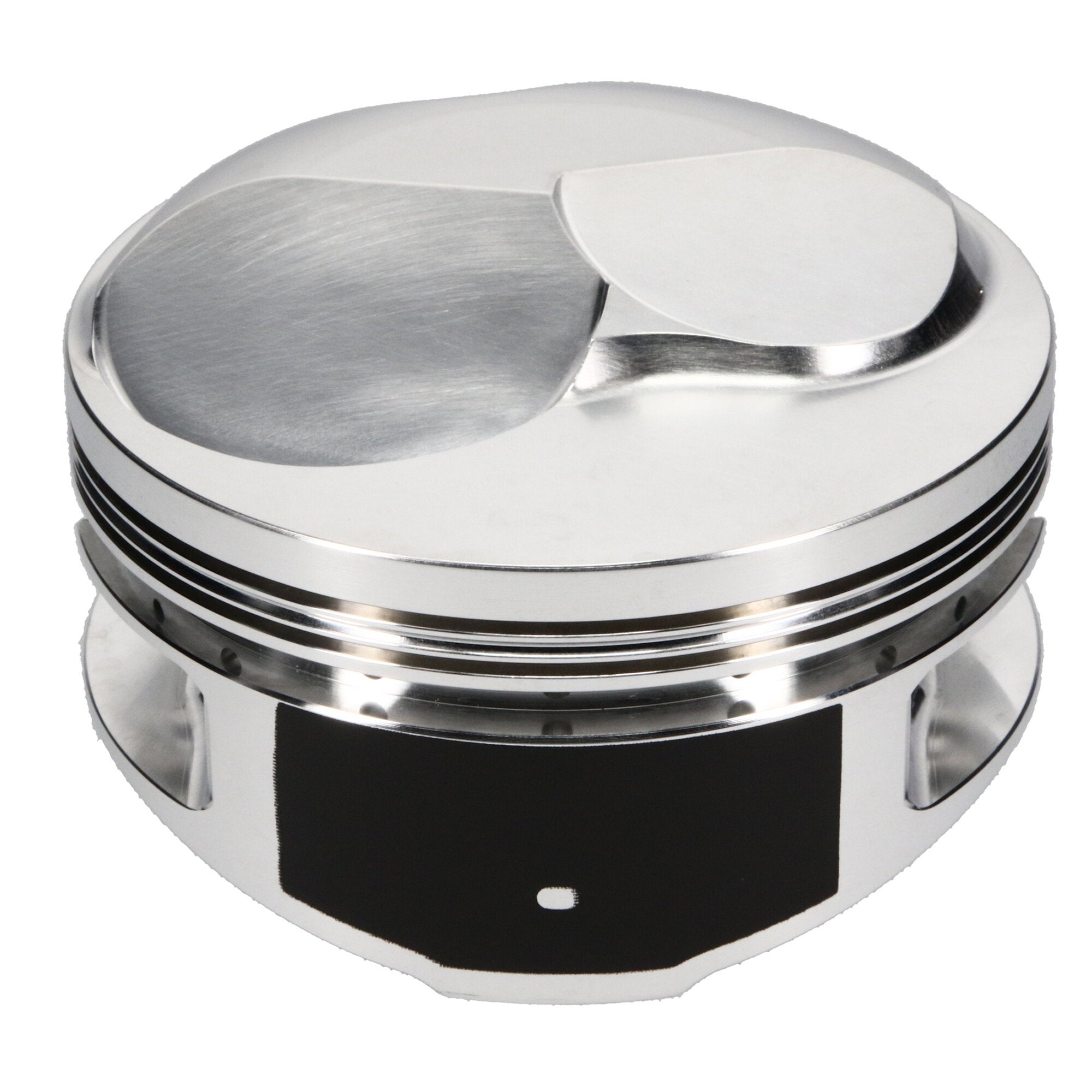

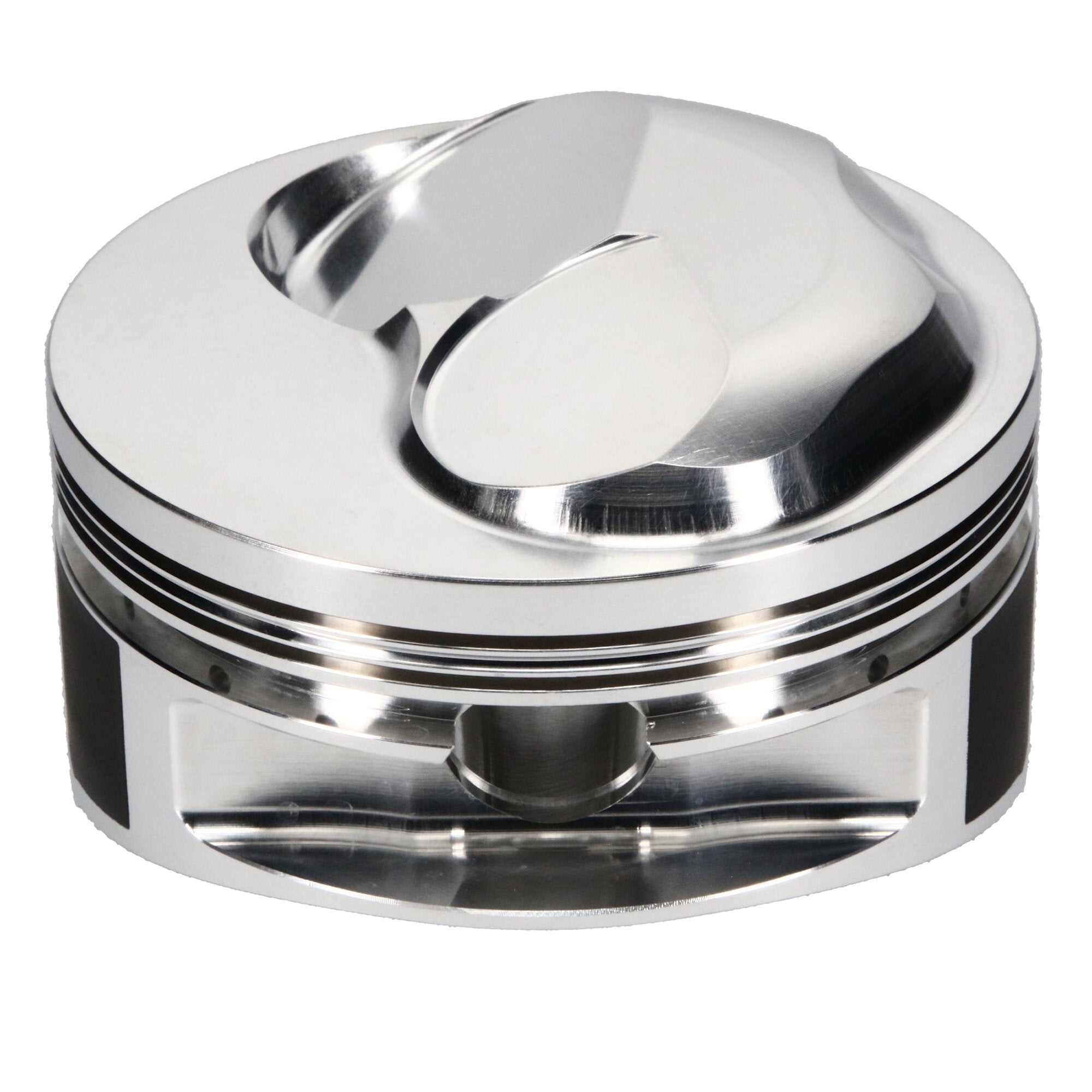

Piston Set, 2618, Dome, 4.350 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.350 in. Bore, 1.395 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 427, 4.350 Bore, Dome, Set of 8 |
| Cylinder Head |
OPEN CHAMBER |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Big Block |
| Piston Volume |
47.00 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.350 in. Bore - 1.395 in. CH, 47.00 CC |
| Out of Stock Message |
Call for Availability |
| Add-On |
990-2930-15-51S |
| Add-On |
990-042-CS |
| Industry |
Automotive |
| Add-On |
J10008-4350-5 |
| Piston Pin Length |
2.930 |
| Ring Set Included |
No |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Bore Diameter |
4.350 |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Piston Head Type |
Dome |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Oil Ring Thickness |
0.188 |
| Ringset Included |
No |
| Engine Type |
ICE |
| Forging Type |
Round |
| Second Compression Ring Thickness |
0.0640 |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.990 |
| Piston Quantity |
8 |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Average Weight |
619 |
| Make |
CHEVROLET |
| Title |
JE Pistons - Chevrolet, Big Block, 4.350 in. Bore, Piston Kit |
| Compression Height |
1.395 |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
