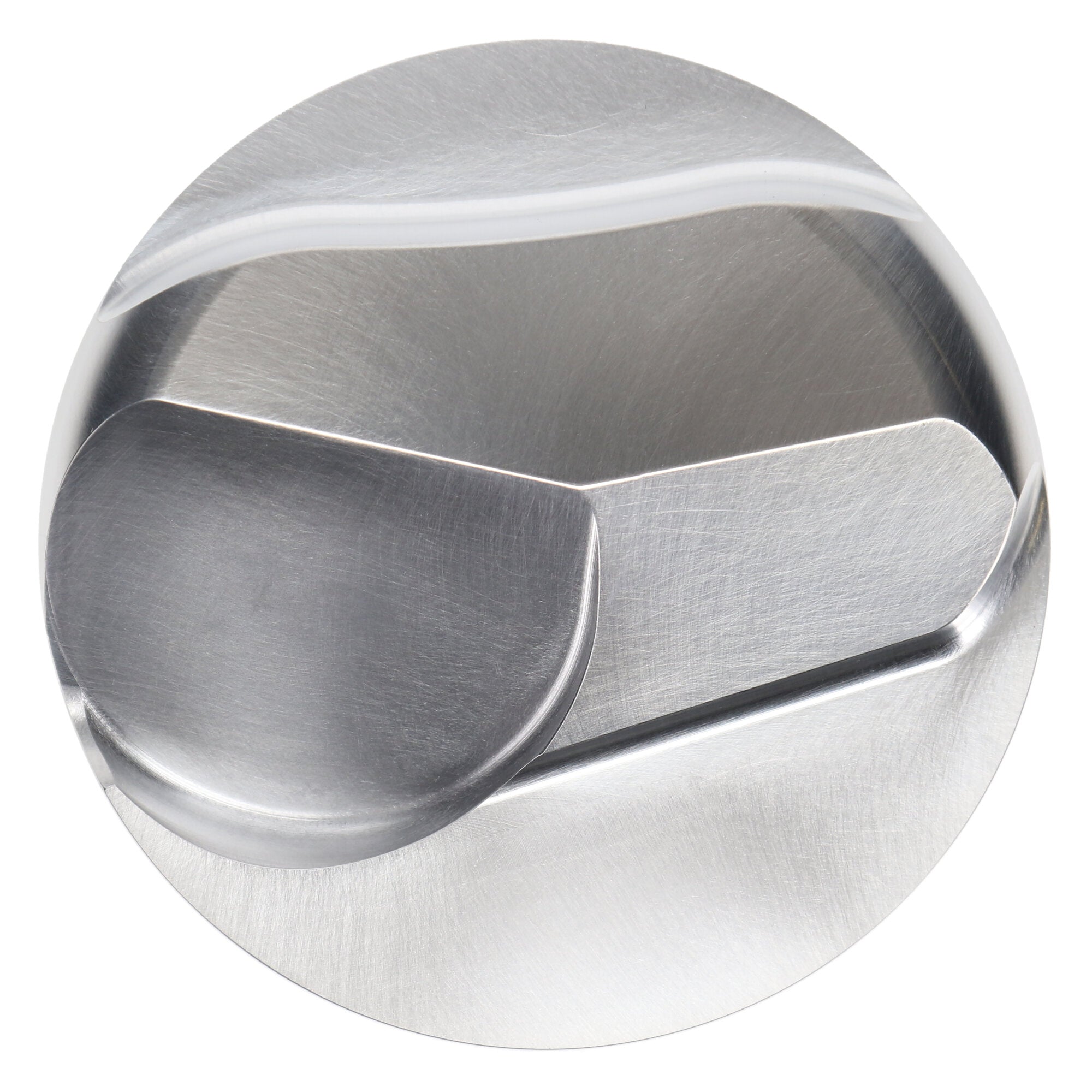

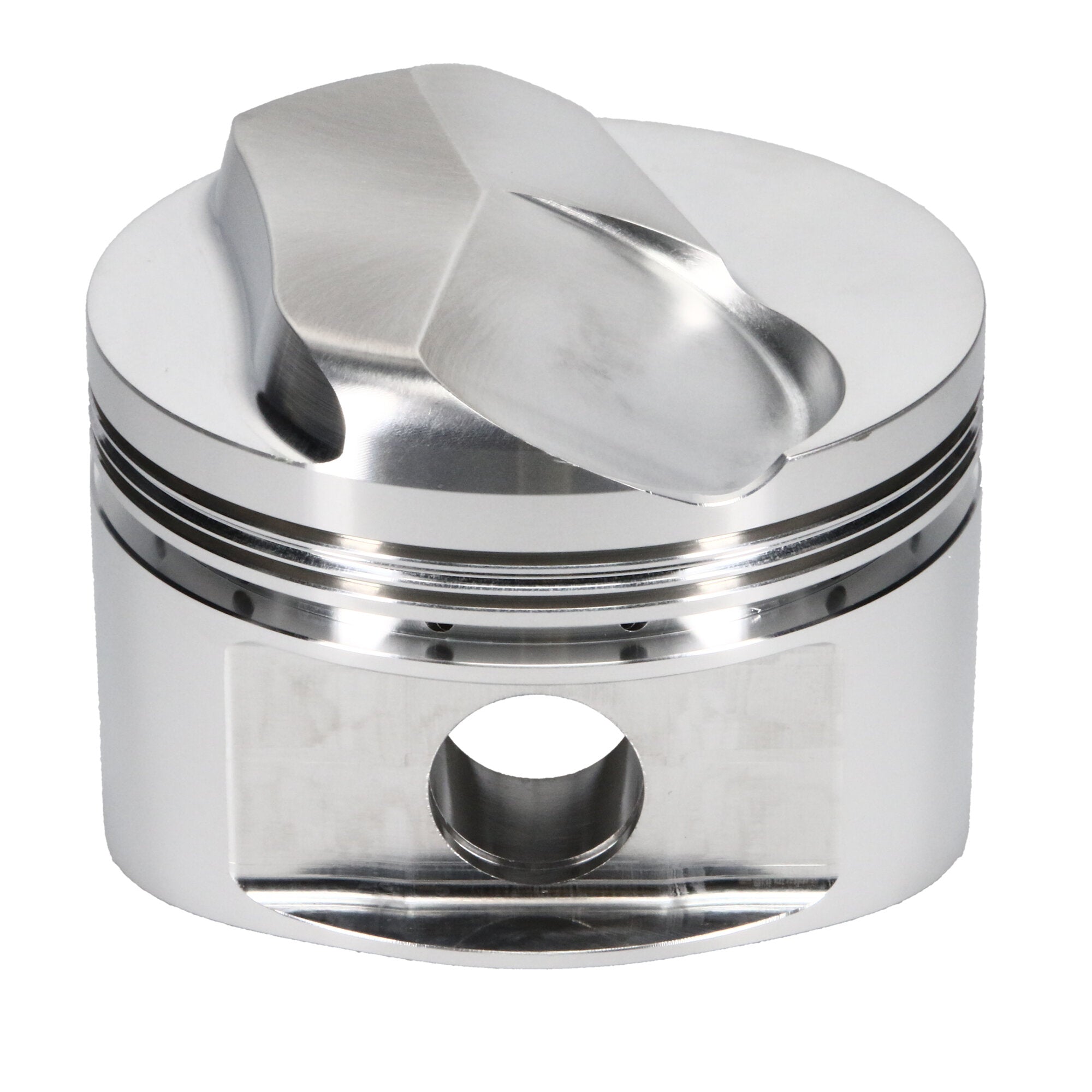

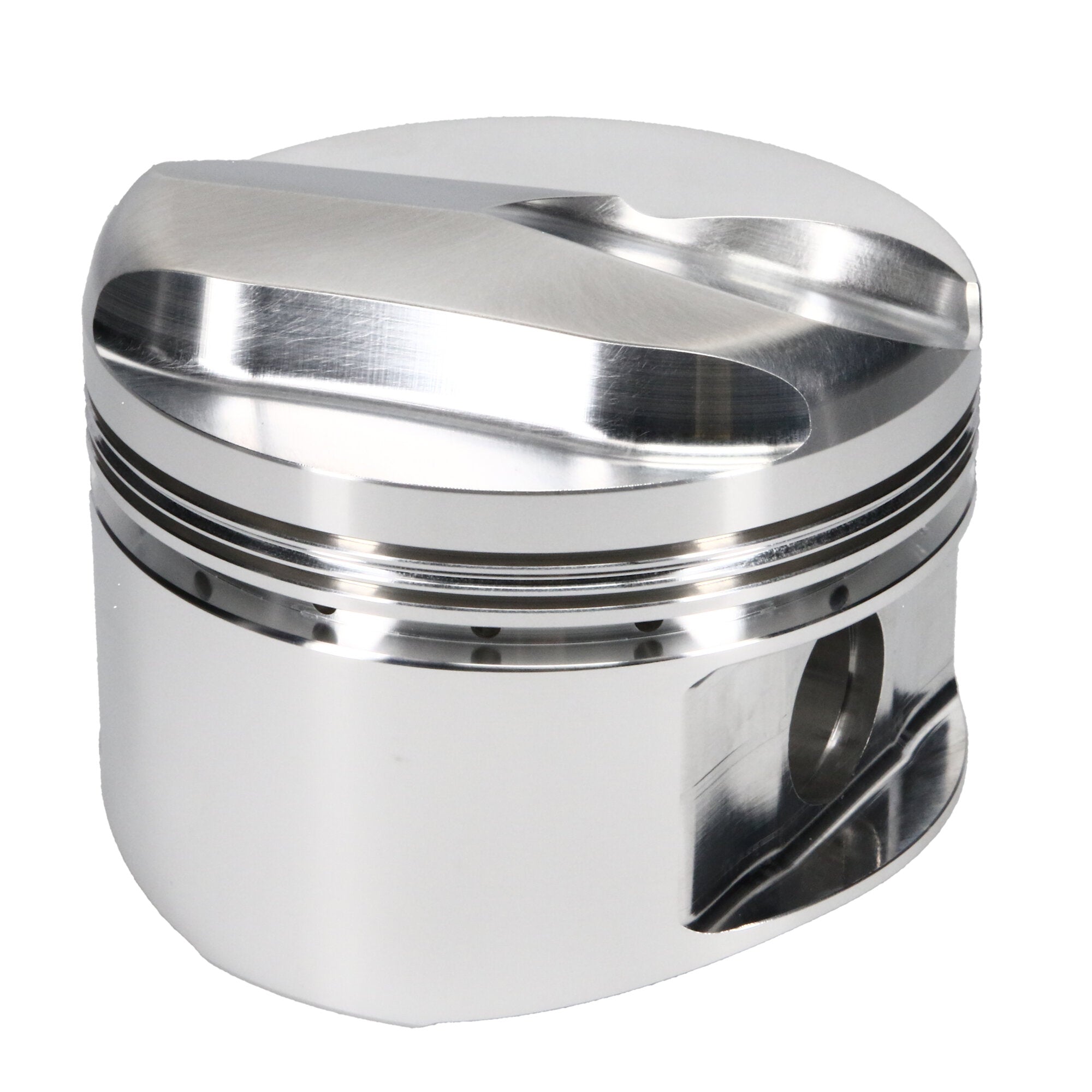

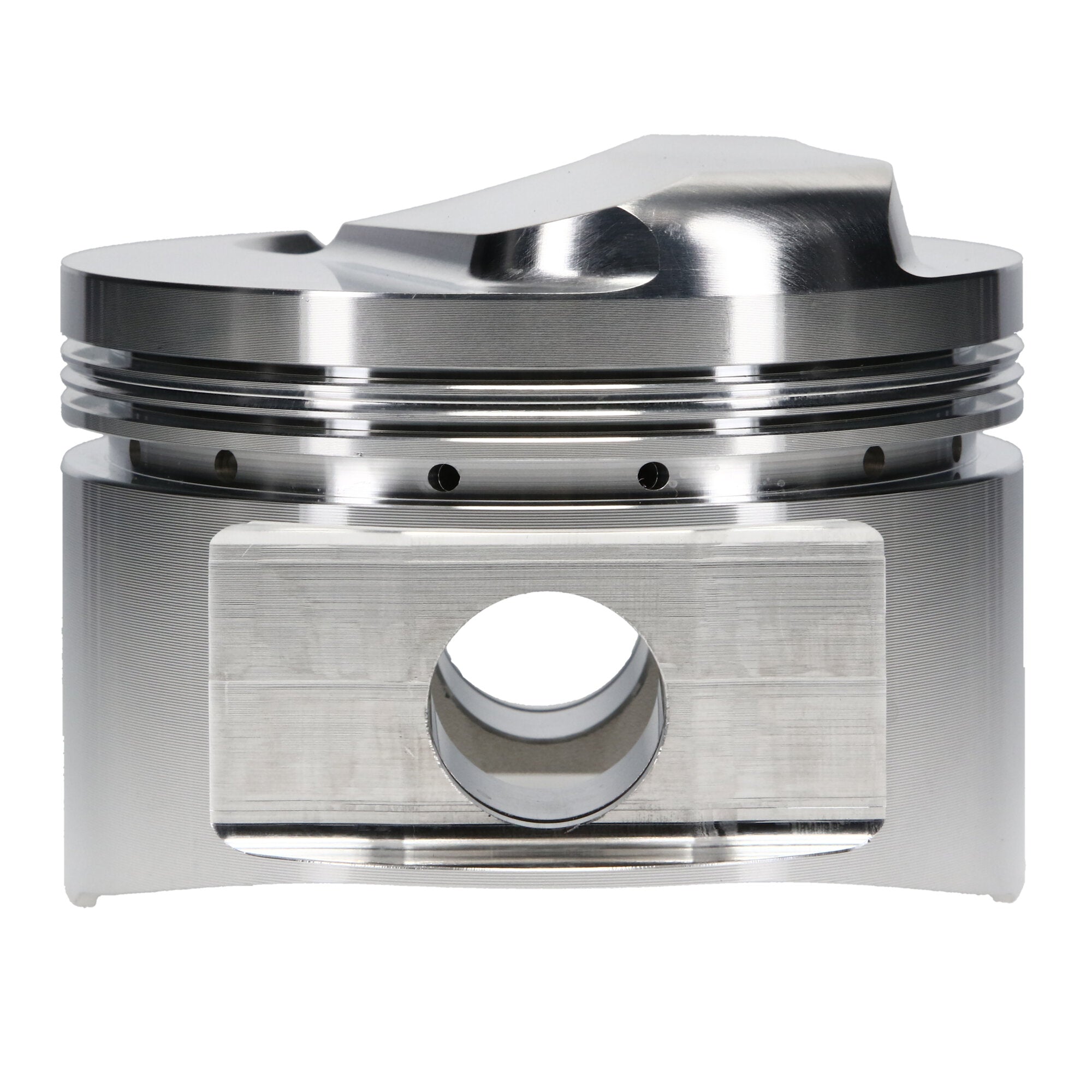

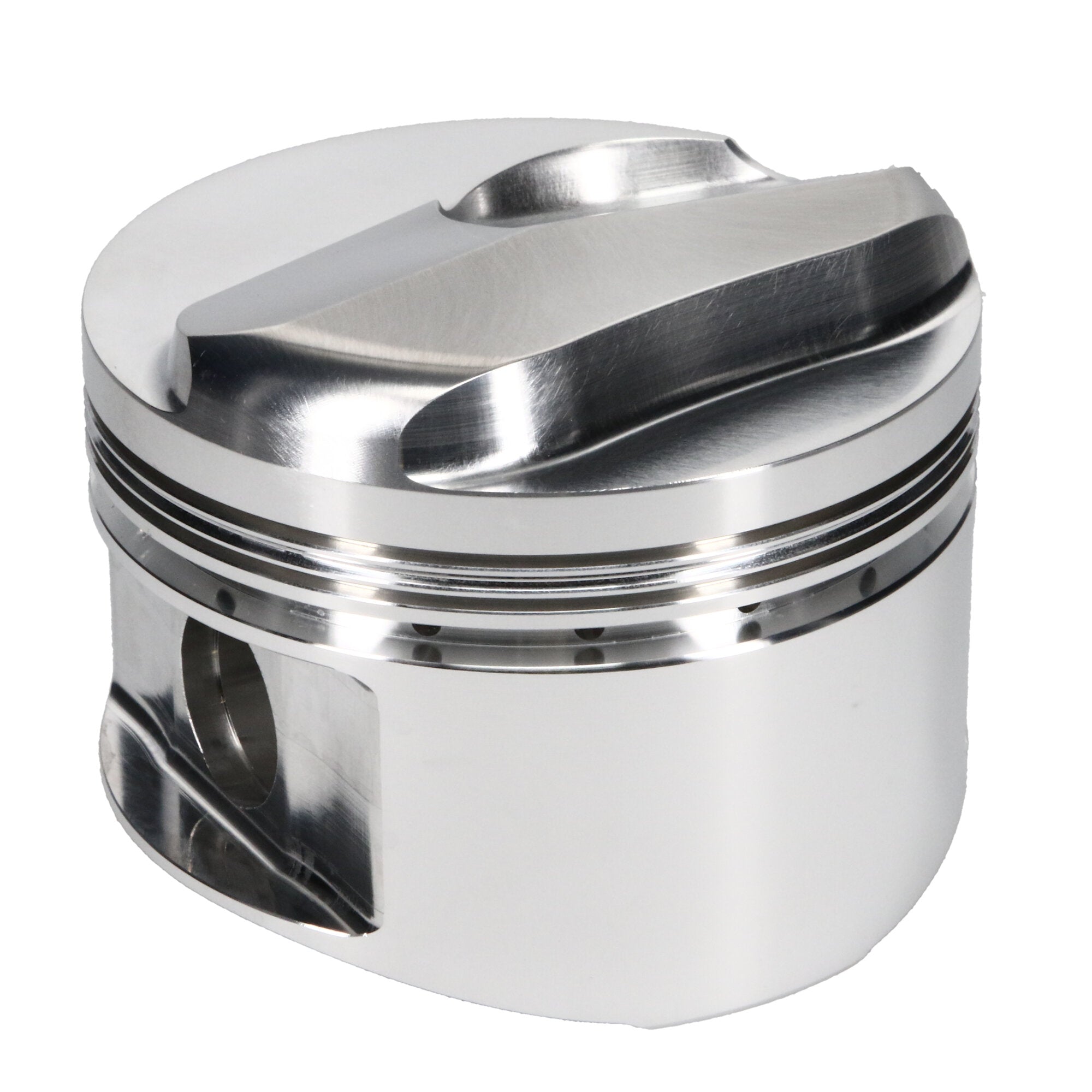

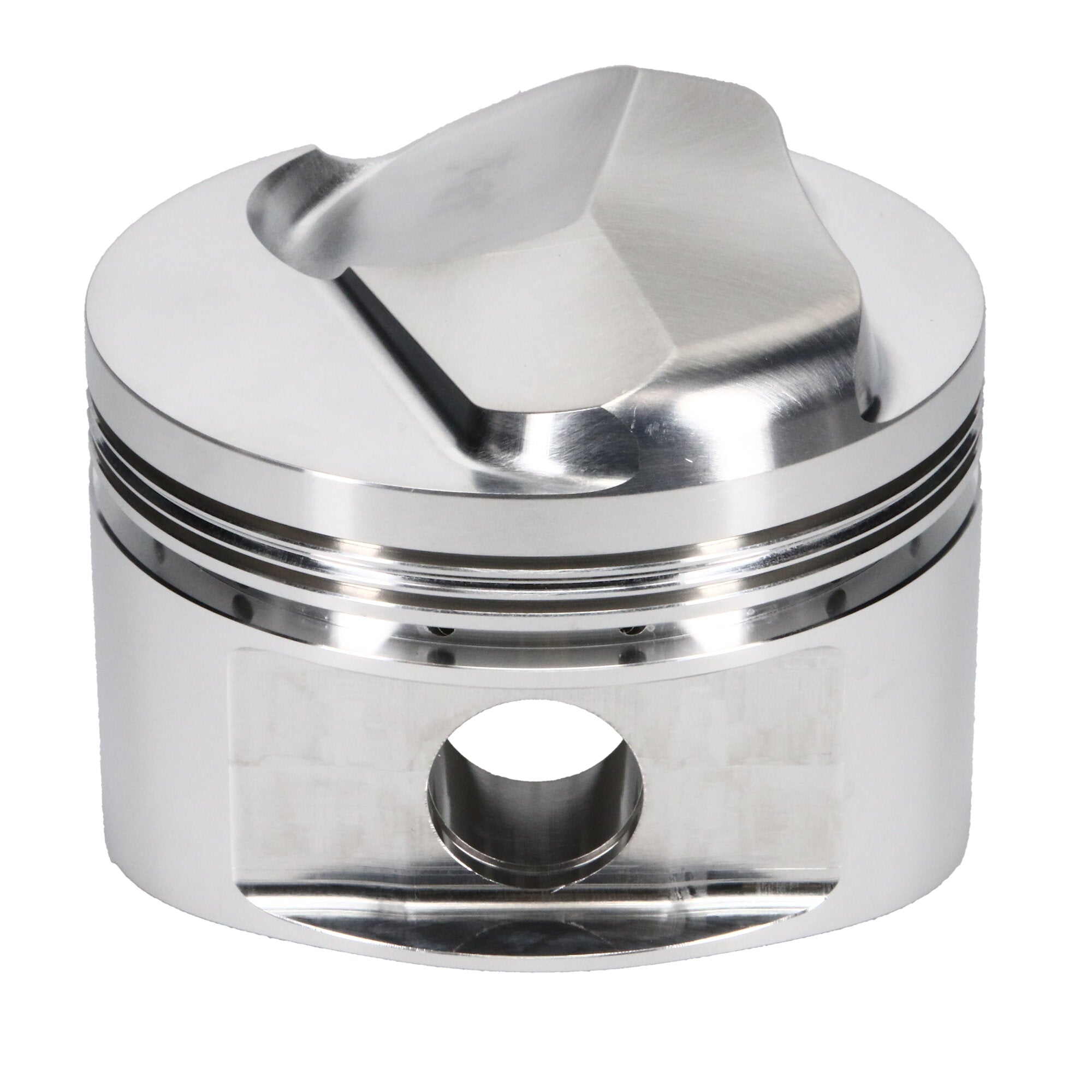

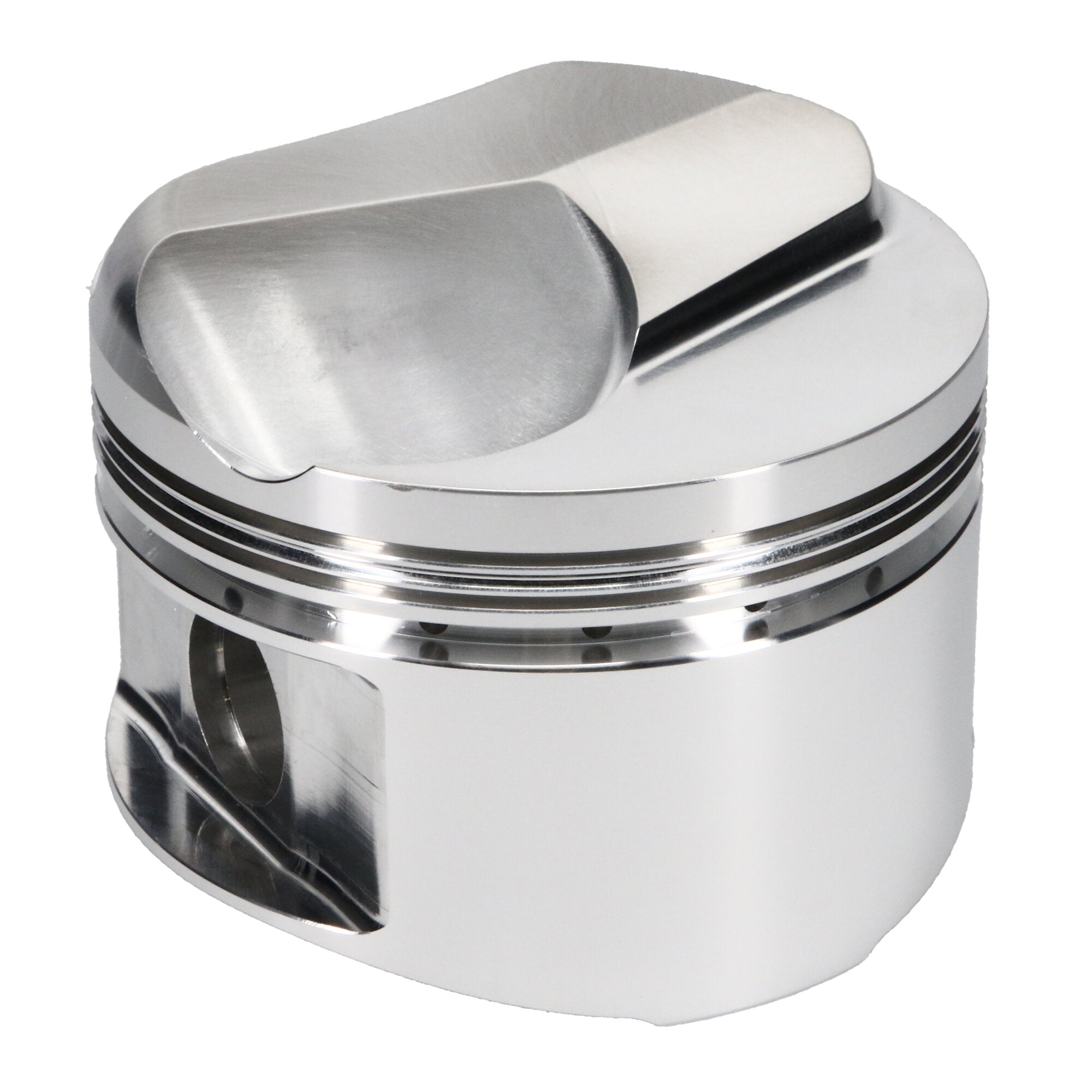

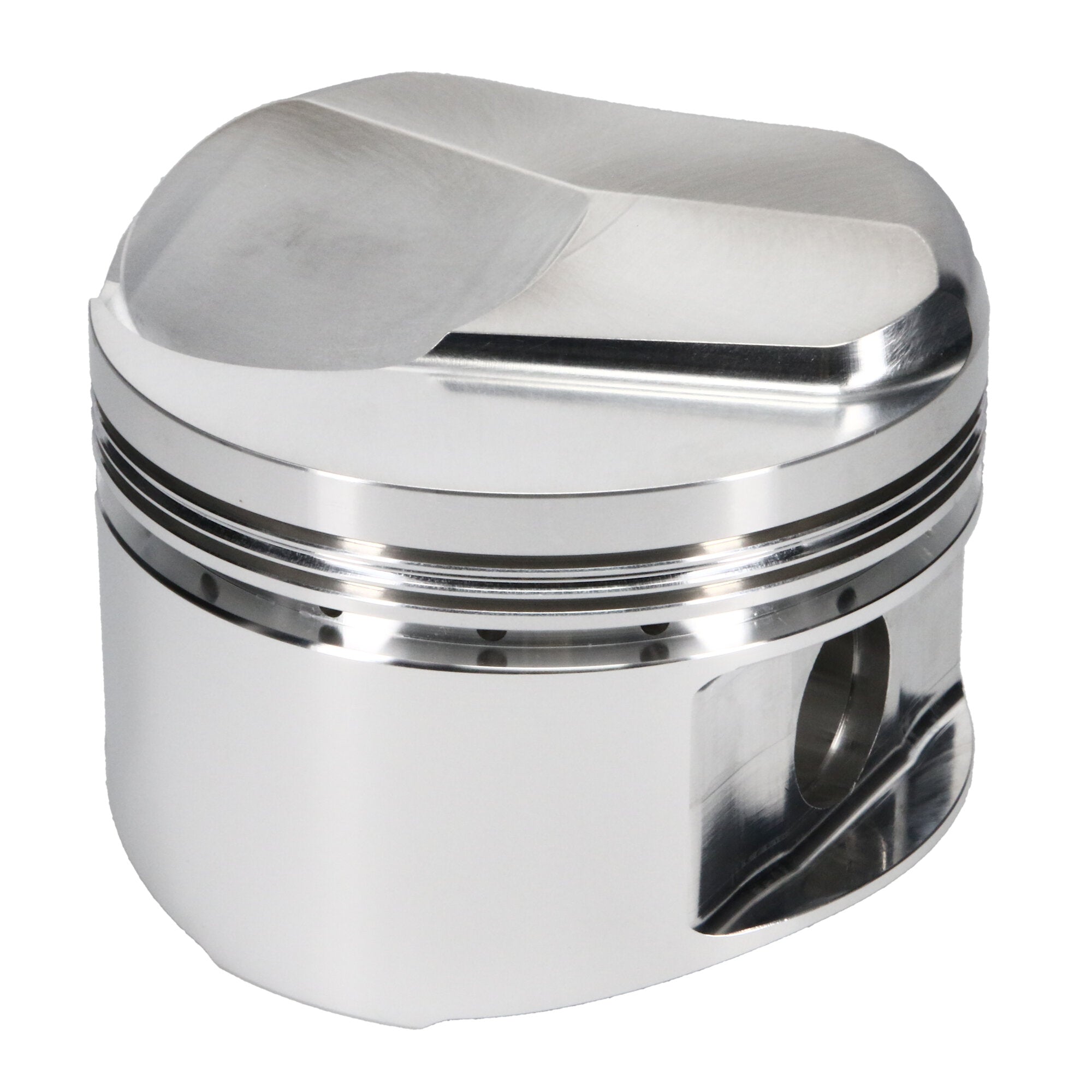

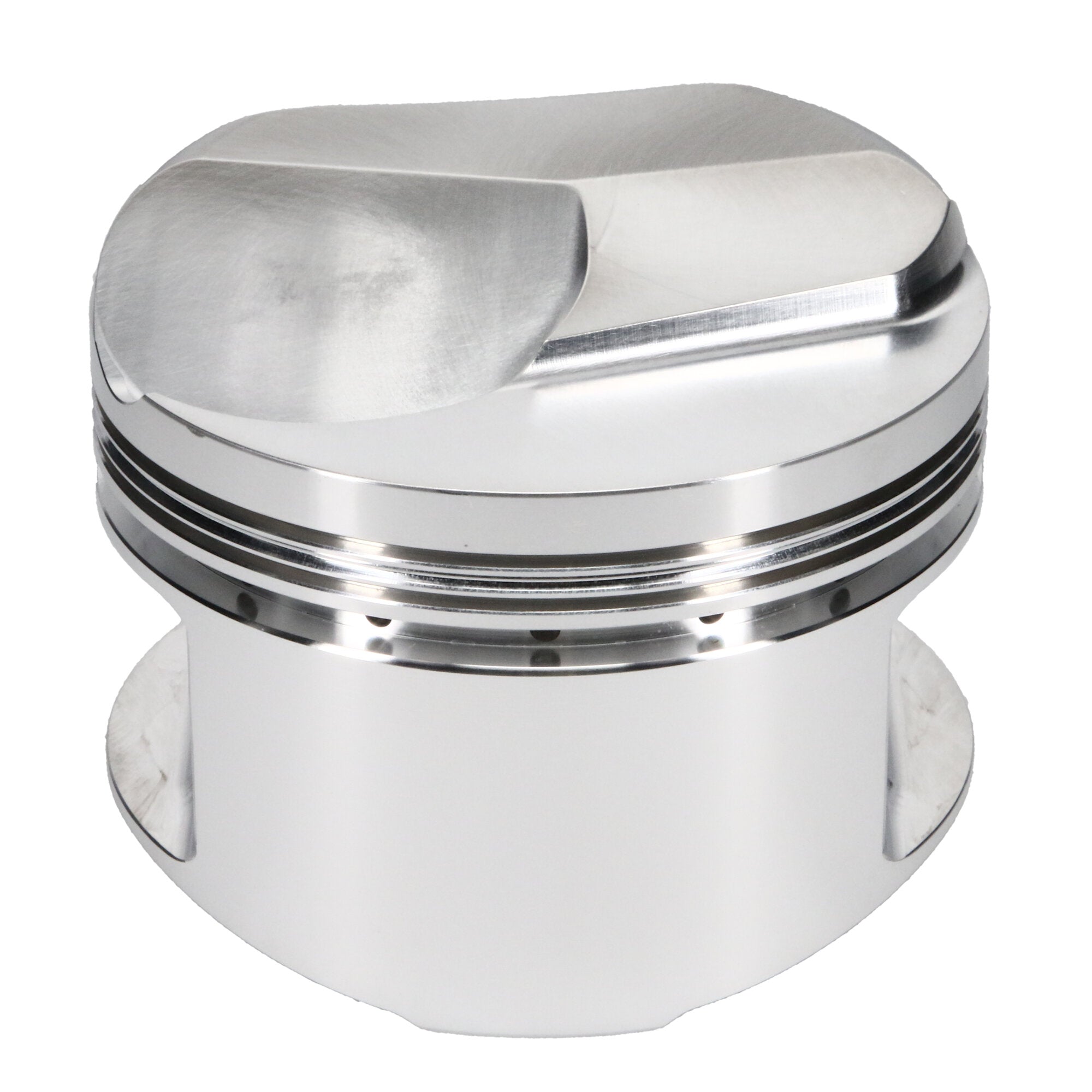

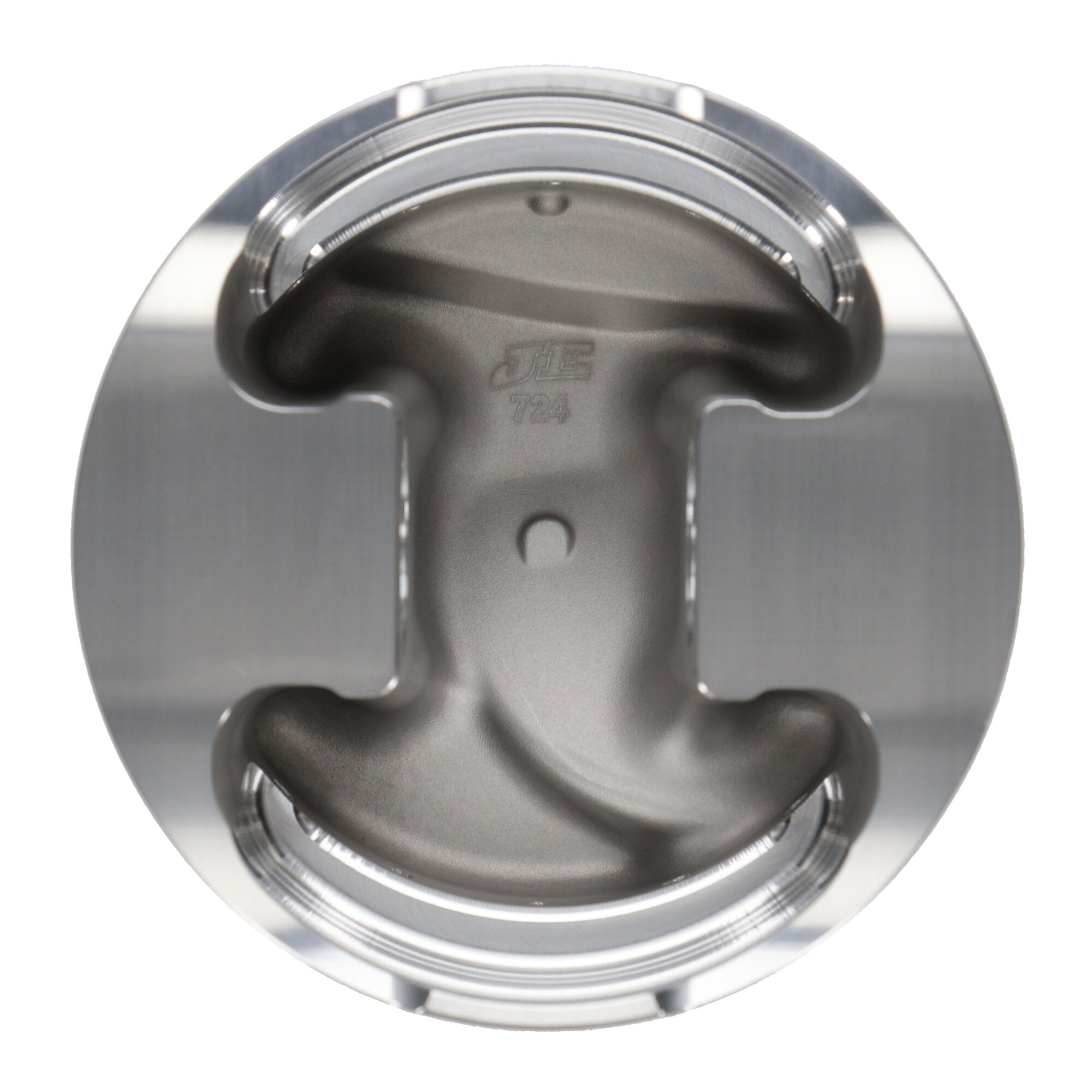

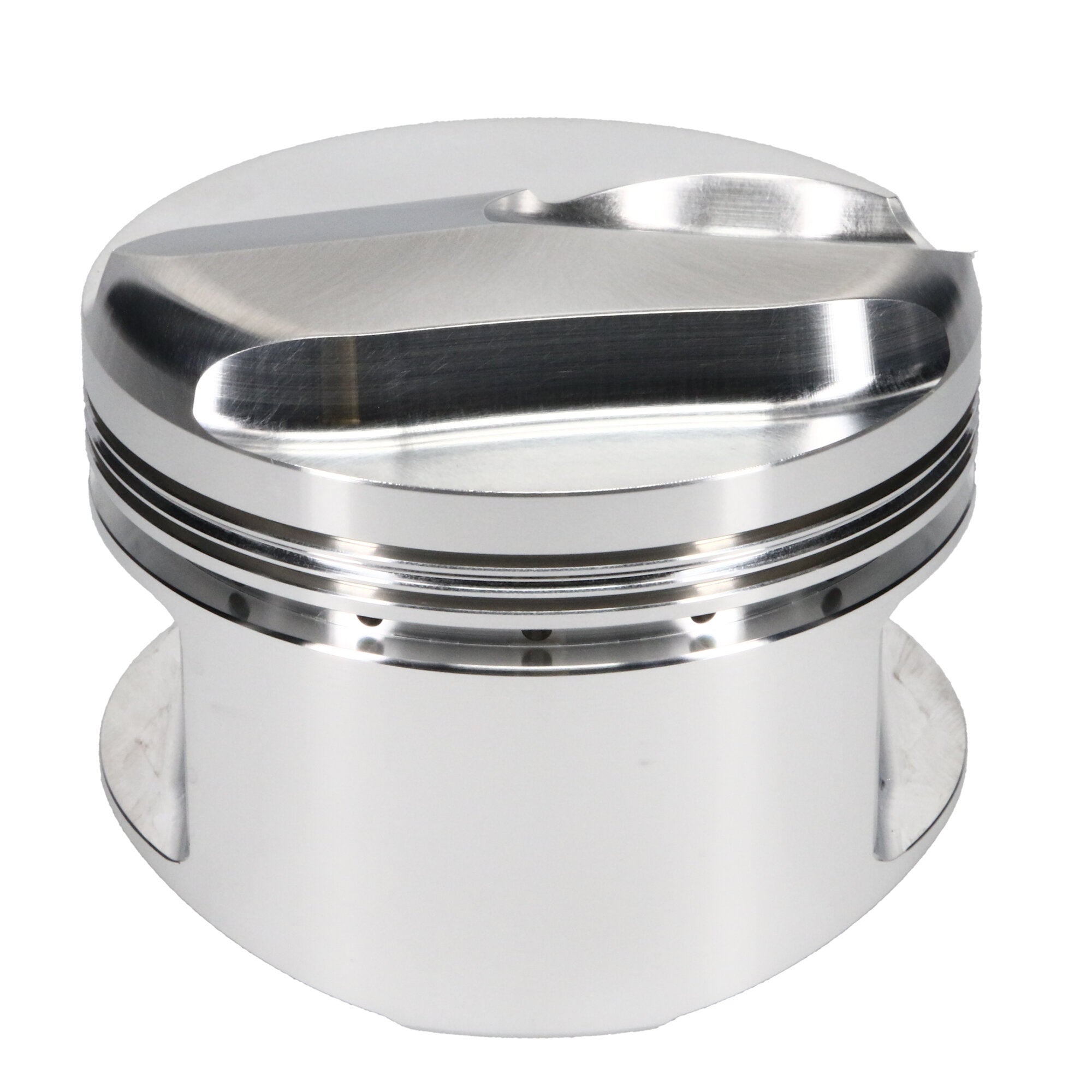

Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Dome,-4.280-Bore,-1.648-Cd,-0.990-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

JE Pistons 258204S Piston Single, 2618, Dome, 4.280 Bore, 1.648 CD, 0.990 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_258204S
Engine Piston
$332.60
customers are viewing this product
JE Pistons 258212S Piston Single, 2618, Dome, 4.320 Bore, 1.120 CD, 0.990 Pin, Set of 1.
JE Pistons 258212S Piston Single, 2618, Dome, 4.320 Bore, 1.120 CD, 0.990 Pin, Set of 1.
$332.60
JE Pistons 258270S Piston Single, 2618, Dome, 4.500 Bore, 1.520 CD, 0.990 Pin, Set of 1.
JE Pistons 258270S Piston Single, 2618, Dome, 4.500 Bore, 1.520 CD, 0.990 Pin, Set of 1.
$332.60
JE Pistons 258204S Piston Single, 2618, Dome, 4.280 Bore, 1.648 CD, 0.990 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Big Block 427
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Dome, 4.280 Bore, 1.648 CD, 0.990 Pin, Set of 1.
Description_EXT JE, Chevrolet, Big Block Chevrolet, 4.280 in. Bore, 1.648 CD, Dome, Single Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Chevrolet 427, 4.280 Bore, Dome, Set of 1
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Wrist Pin Outer Diameter 0.990
Wrist Pin Wall Thickness 0.150
Forging Type Round
Bore Diameter 4.280
Product Market Domestic
Engine Type ICE
Make CHEVROLET
Oil Ring Thickness 0.188
Piston Pin Wall Thickness 0.150
Piston Series JE Pistons
Piston Quantity 1
Piston Average Weight 645
Piston Head Type Dome
Piston Pin Material 5115
Piston Volume 33.00
Product Type Engine Piston
Top Compression Ring Thickness 0.0640
Compression Height 1.648
Ring Set Included No
Engine - Web Big Block
Prop 65 (C, R or CR) CR
Engine Big Block
Piston Pin Outside Diameter 0.990
Piston Material 2618
Add-On 990-042-CS
Piston Pin Length 2.930
Industry Automotive
Prop 65 Yes/No Yes
Out of Stock Message Call for Availability
Cylinder Head CLOSED CHMBR
Title JE Pistons - Chevrolet, Big Block, 4.280 in. Bore, Piston
Add-On J100F8-4280-5
Second Compression Ring Thickness 0.0640
Add-On 990-2930-15-51S
Make - Web Chevrolet
Wrist Pin Length 2.930
Prop 65 - Short Label Prop 65 Warning Label.JPG
Ringset Included No
Title - Web JE Pistons Chevrolet Big Block Piston - 4.280 in. Bore - 1.648 in. CH, 33.00 CC
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
