As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

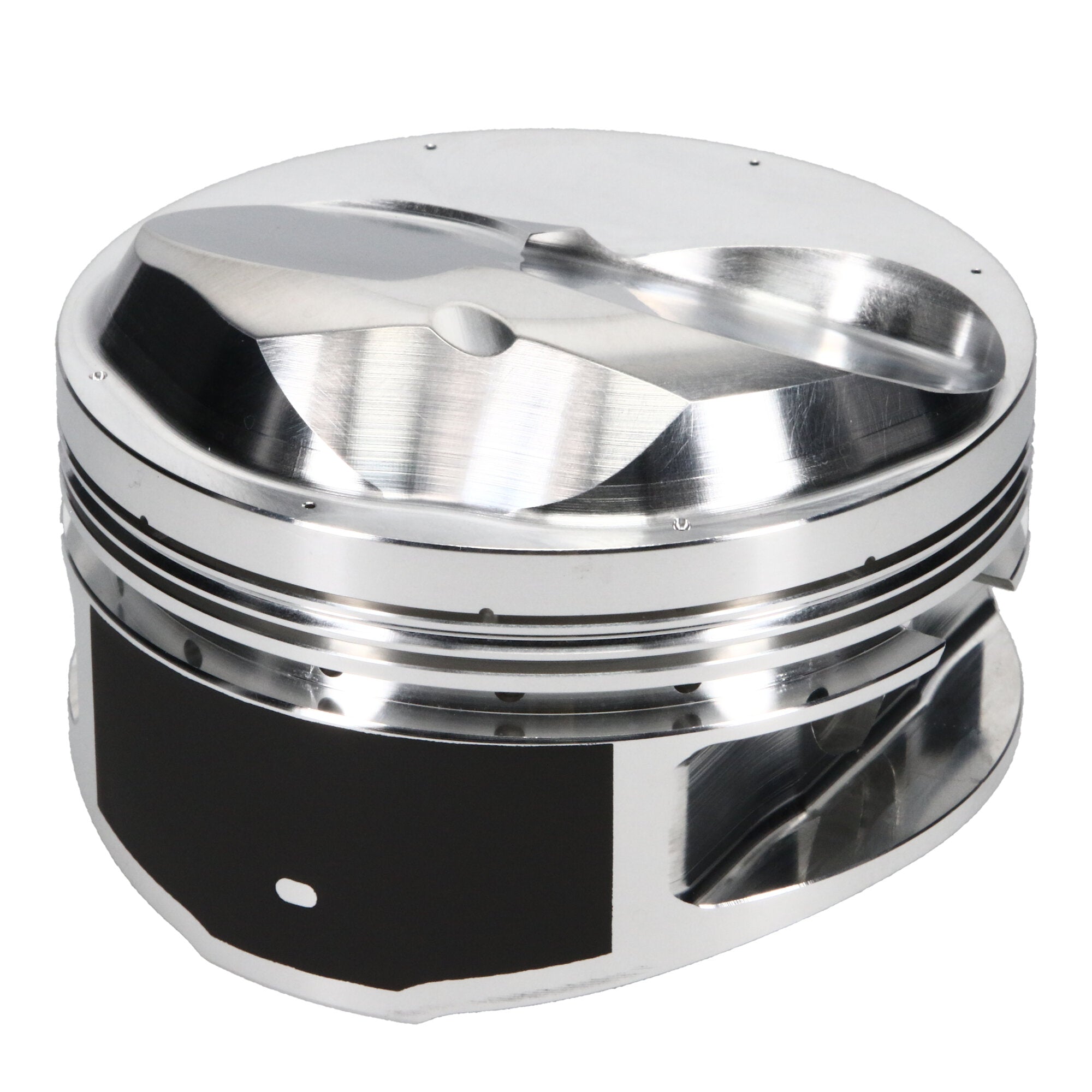

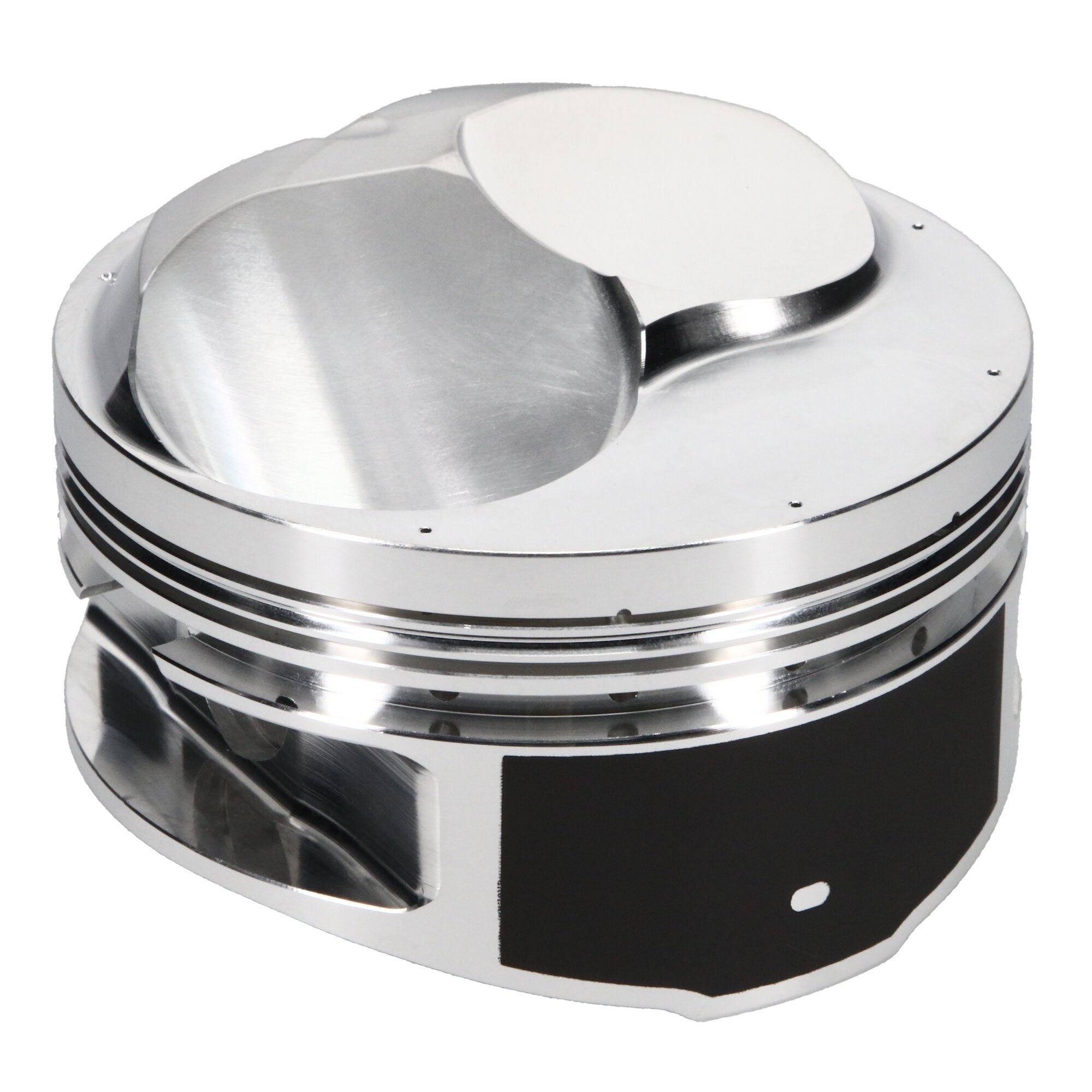

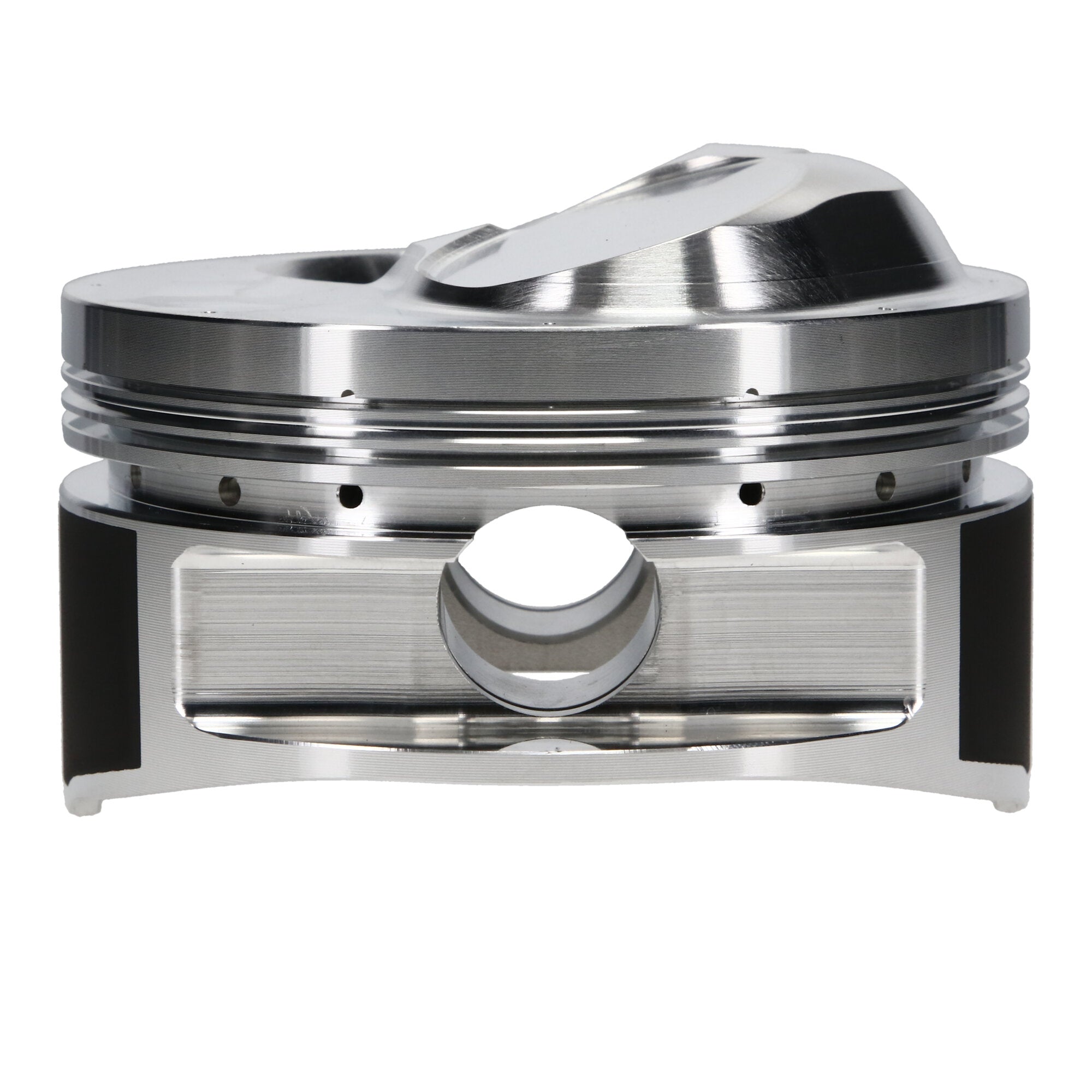

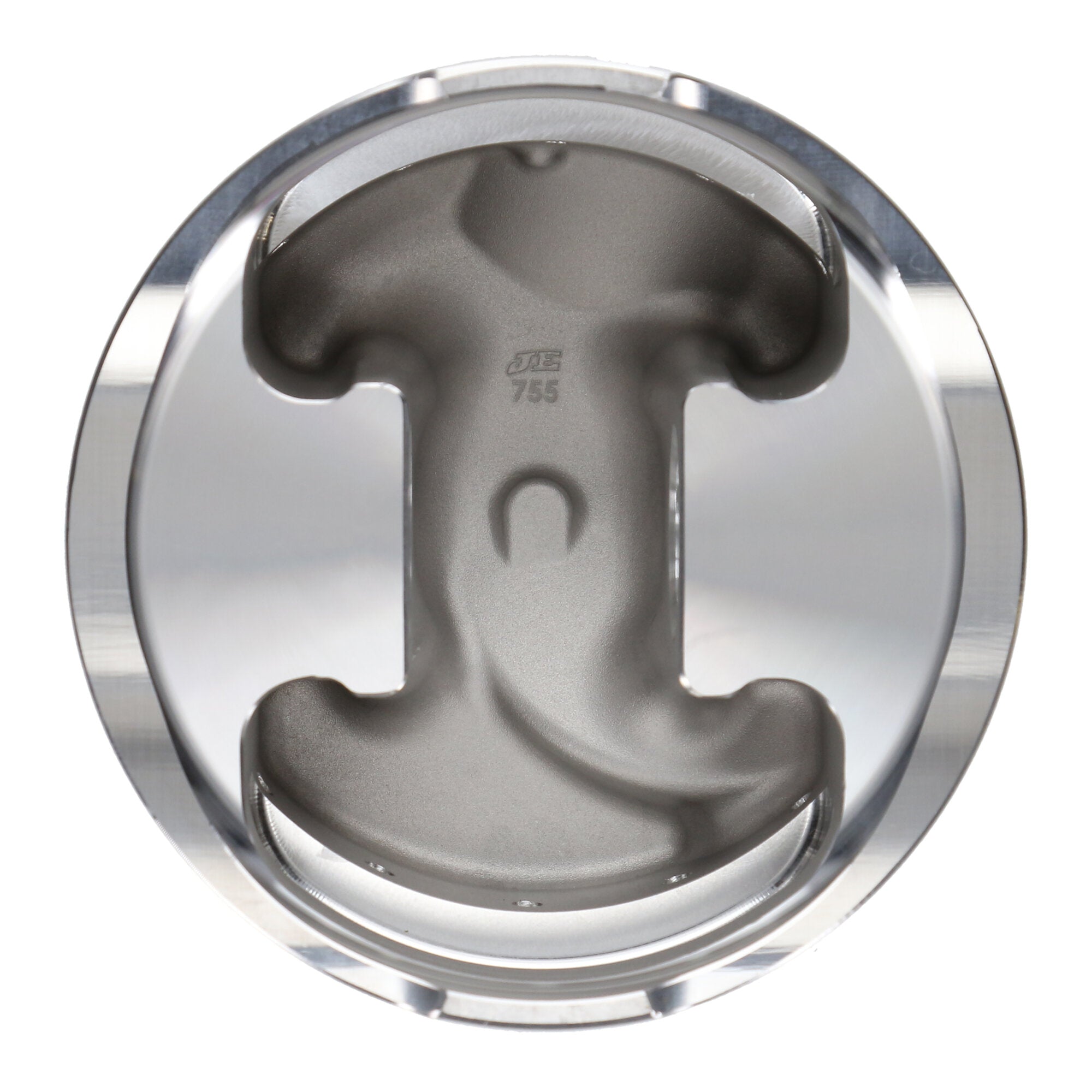

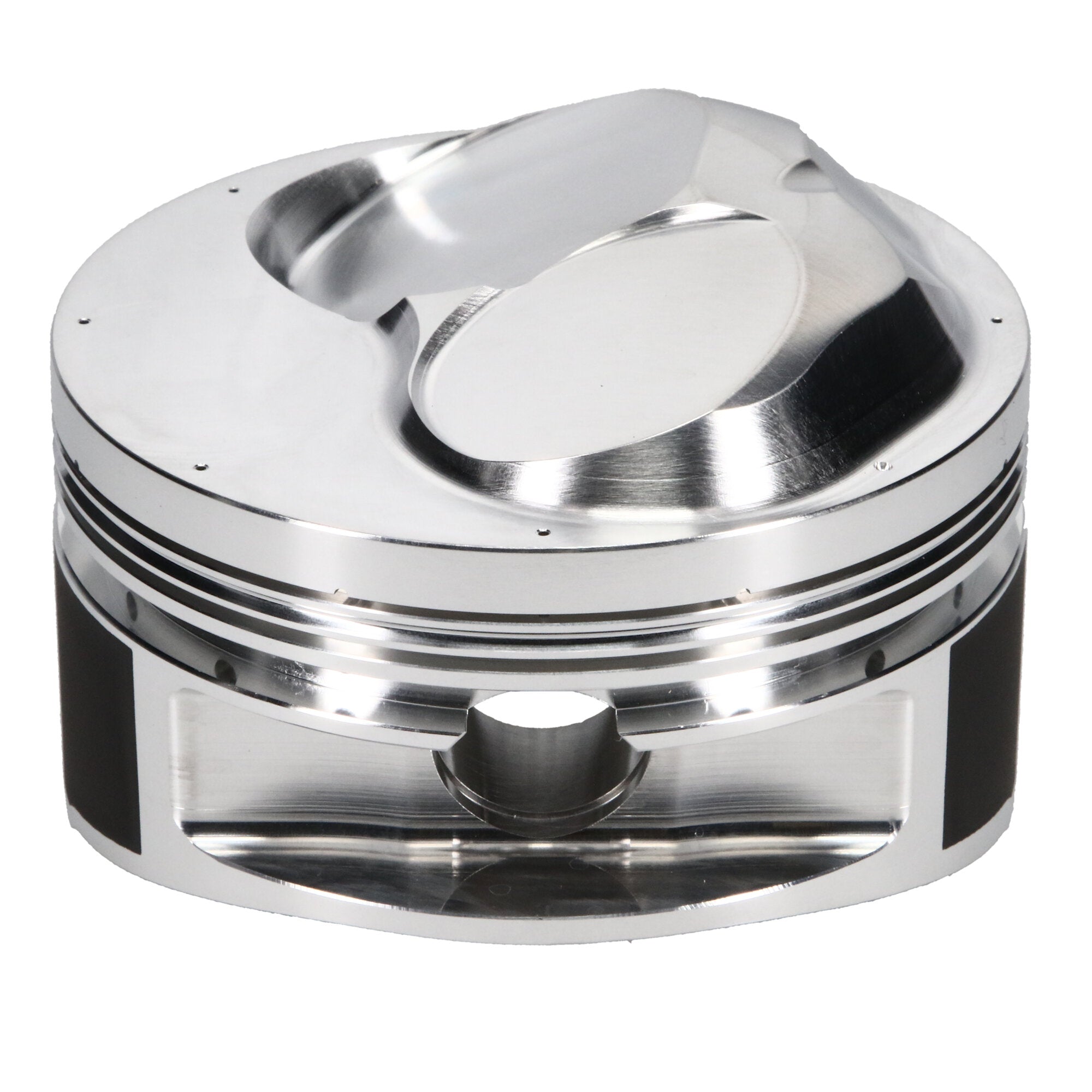

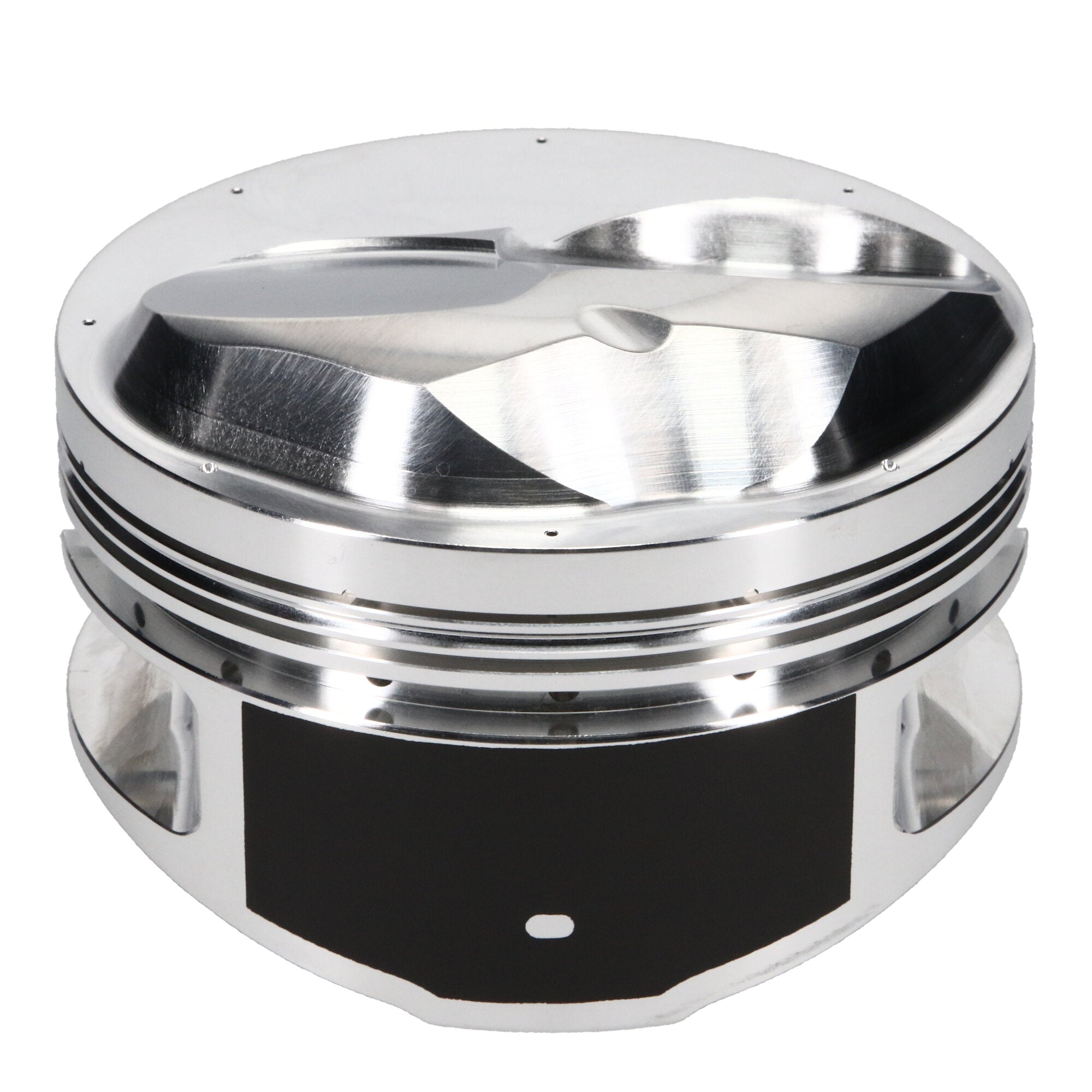

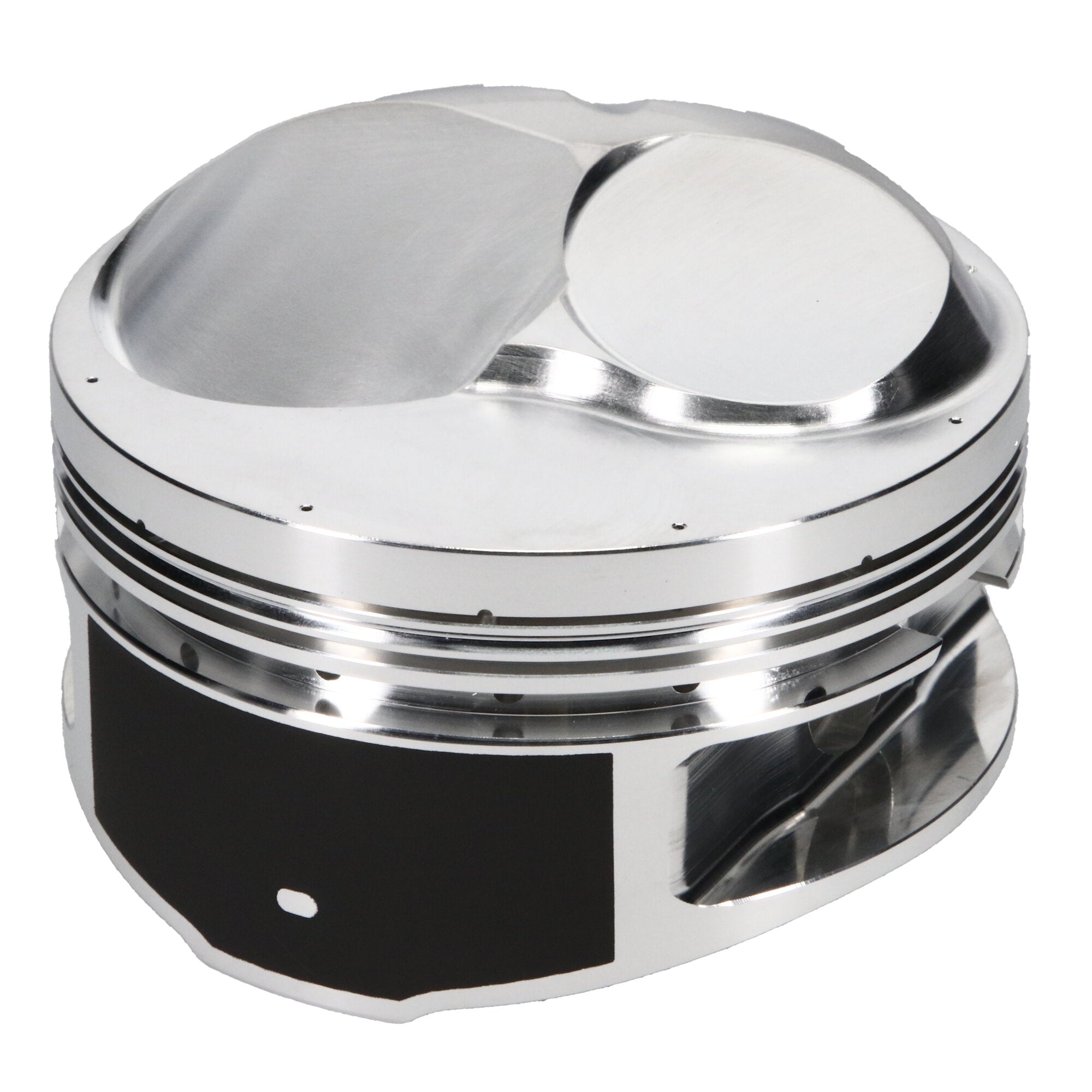

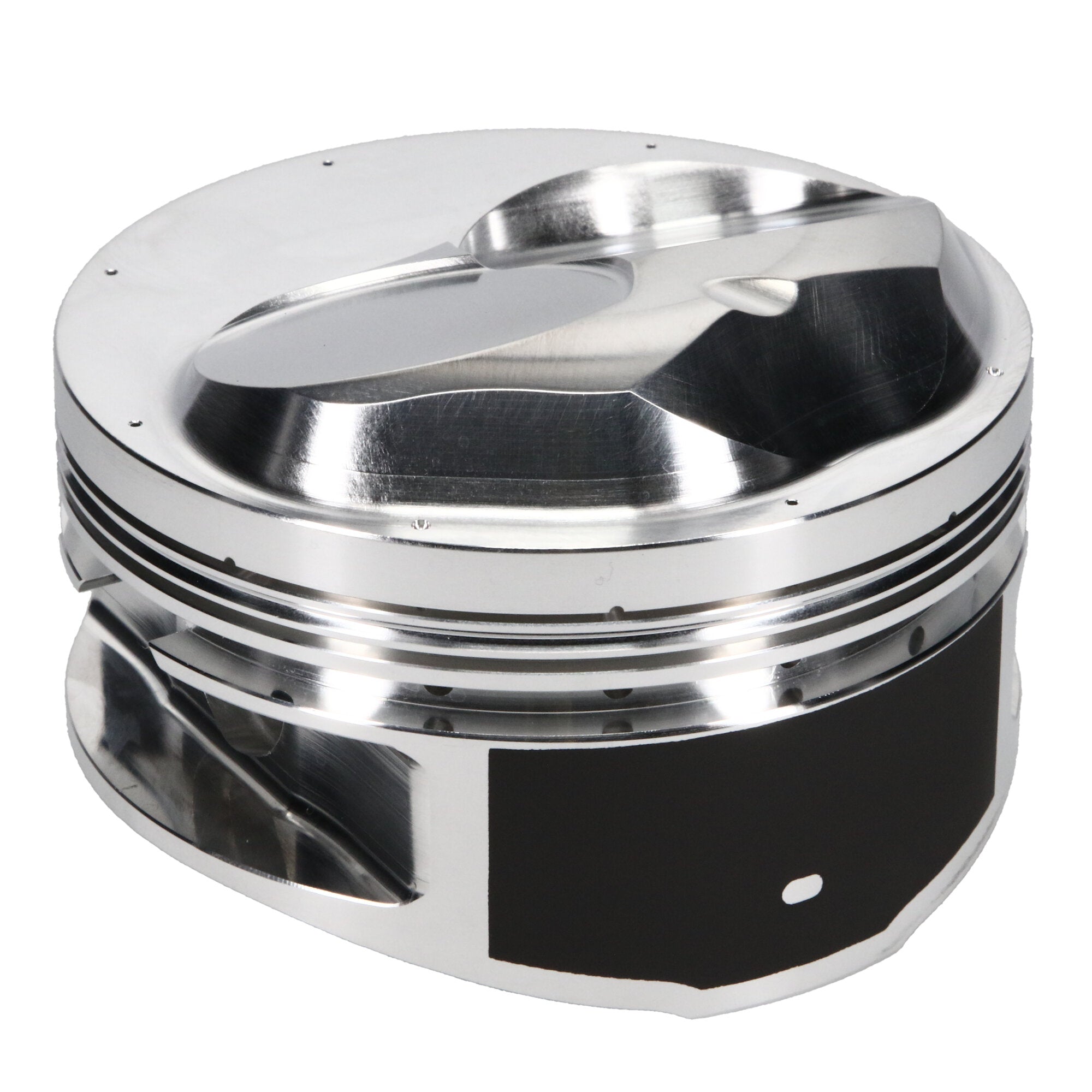

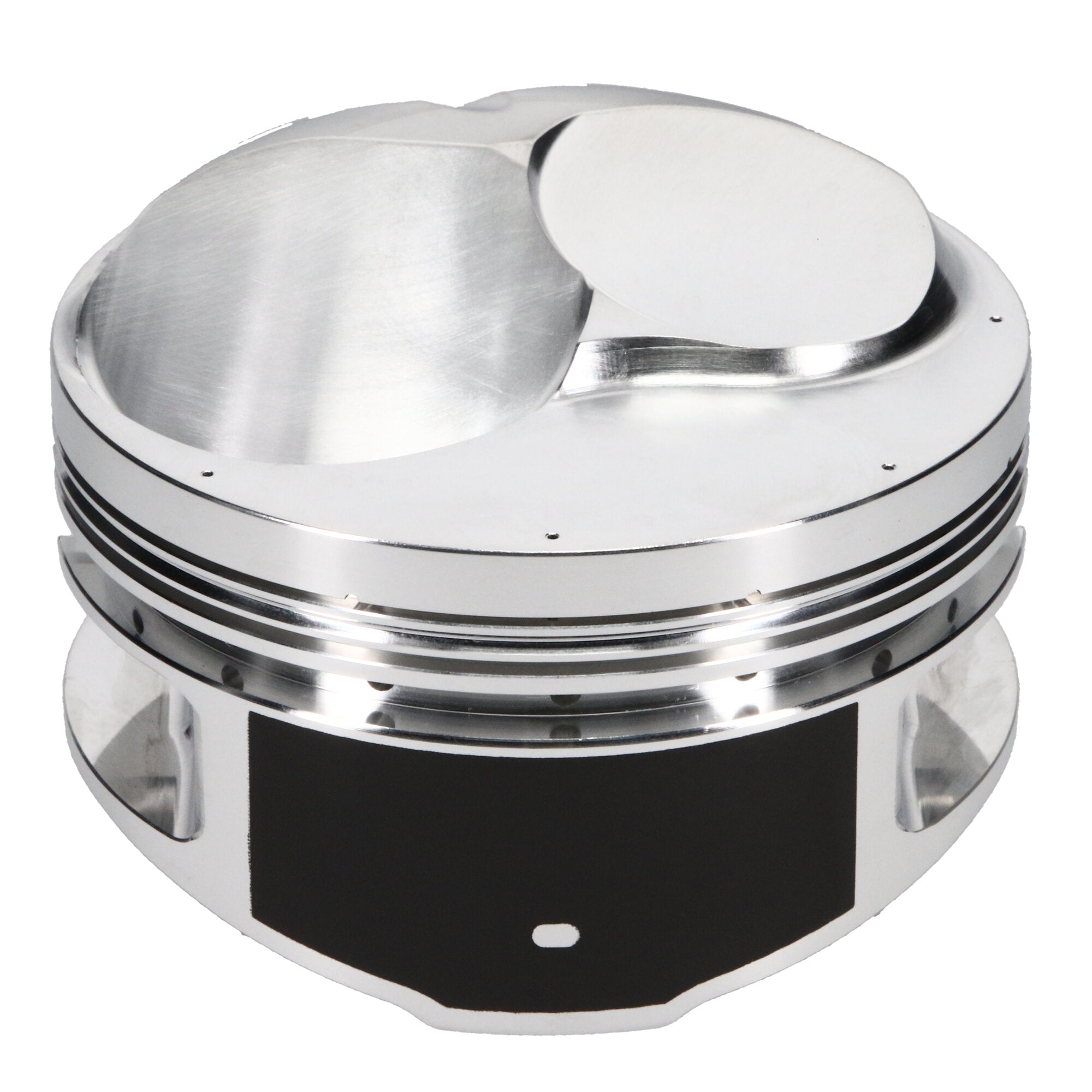

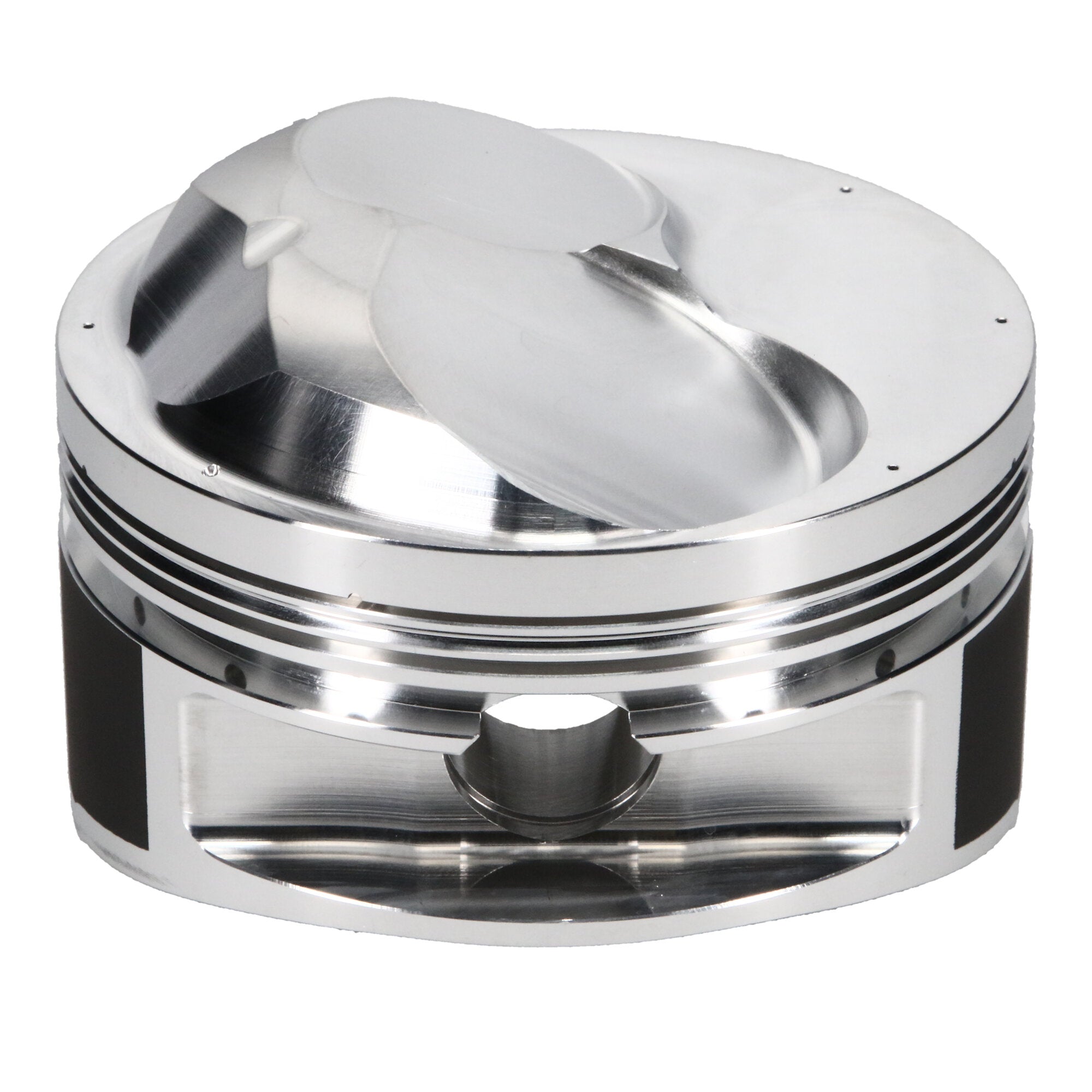

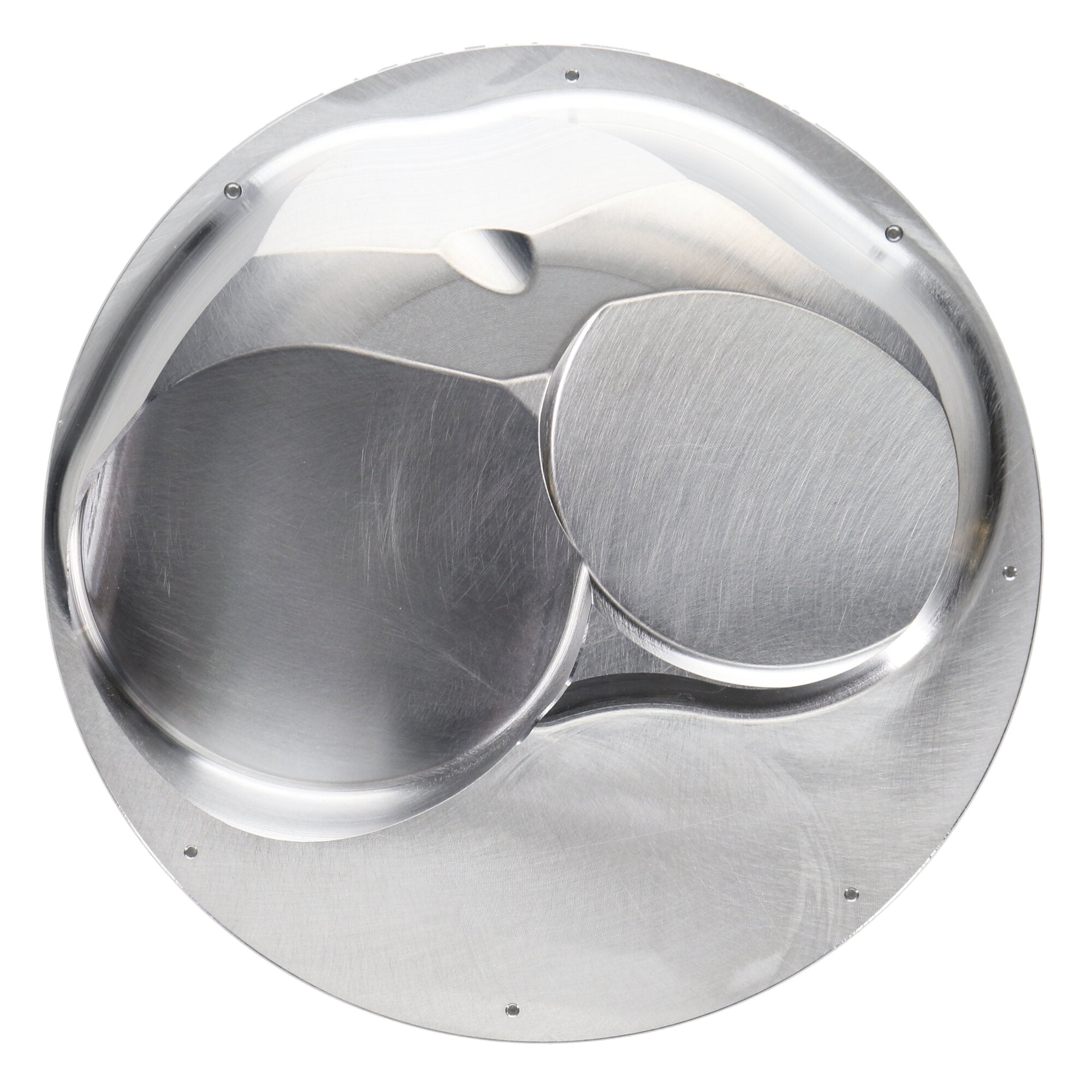

Piston Set, 2618, Dome, 4.610 Bore, 1.290 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.610 in. Bore, 1.290 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 502, 4.610 Bore, Dome, Set of 8 |
| Piston Material |
2618 |
| Cylinder Head |
OPEN CHAMBER |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.610 in. Bore - 1.290 in. CH, 44.00 CC |
| Add-On |
990-2930-18-51S |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.930 |
| Add-On |
990-042-CS |
| Add-On |
JG86L8-4610-5 |
| Piston Volume |
44.00 |
| Second Compression Ring Thickness |
0.0640 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
Round |
| Piston Head Type |
Dome |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Oil Ring Thickness |
0.218 |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0435 |
| Piston Pin Wall Thickness |
0.180 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.990 |
| Piston Average Weight |
715 |
| Engine |
Big Block |
| Engine Type |
ICE |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.180 |
| Bore Diameter |
4.610 |
| Product Market |
Domestic |
| Title |
JE Pistons - Chevrolet, Big Block, 4.610 in. Bore, Piston Kit |
| Make |
CHEVROLET |
| Ringset Included |
No |
| Compression Height |
1.290 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
