As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

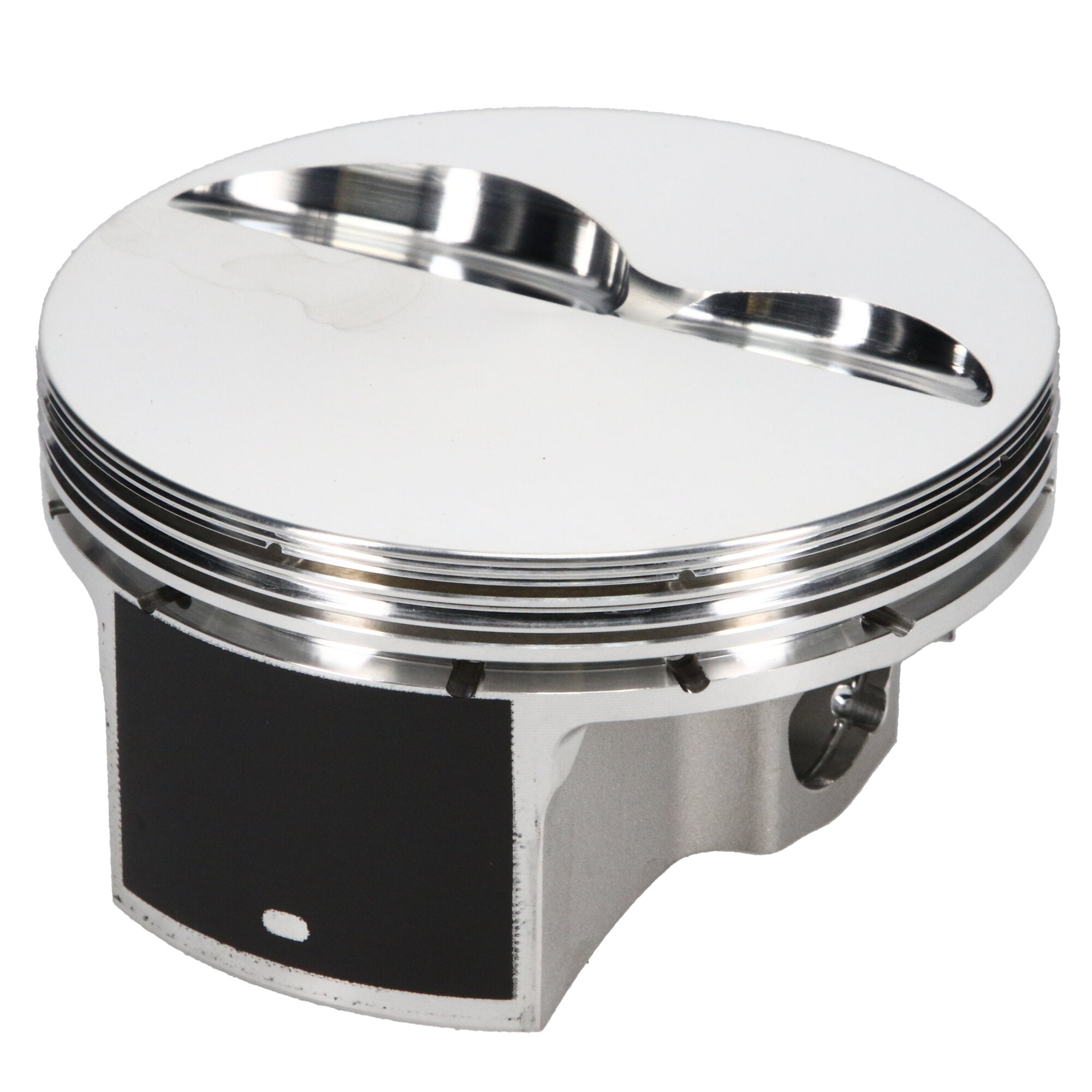

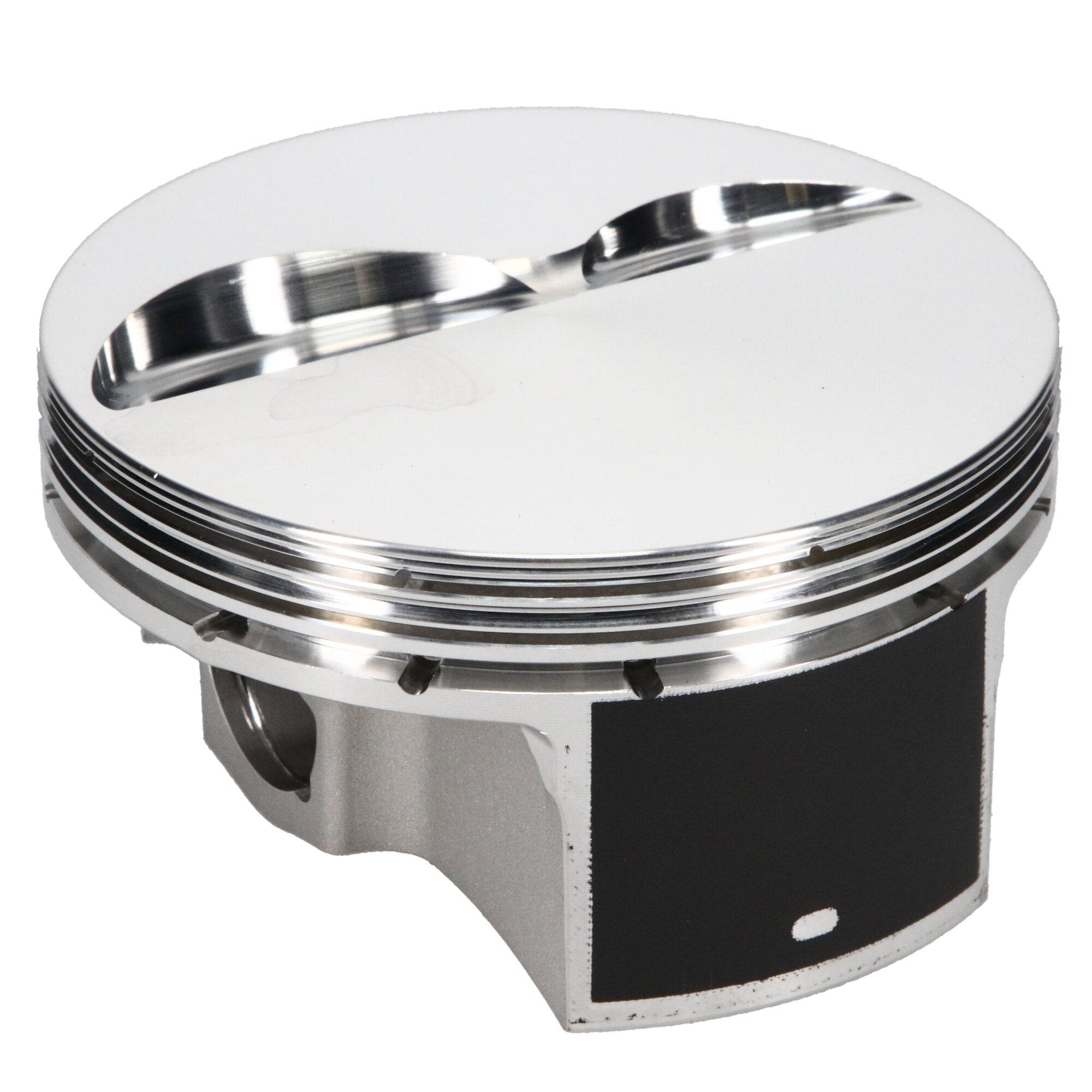

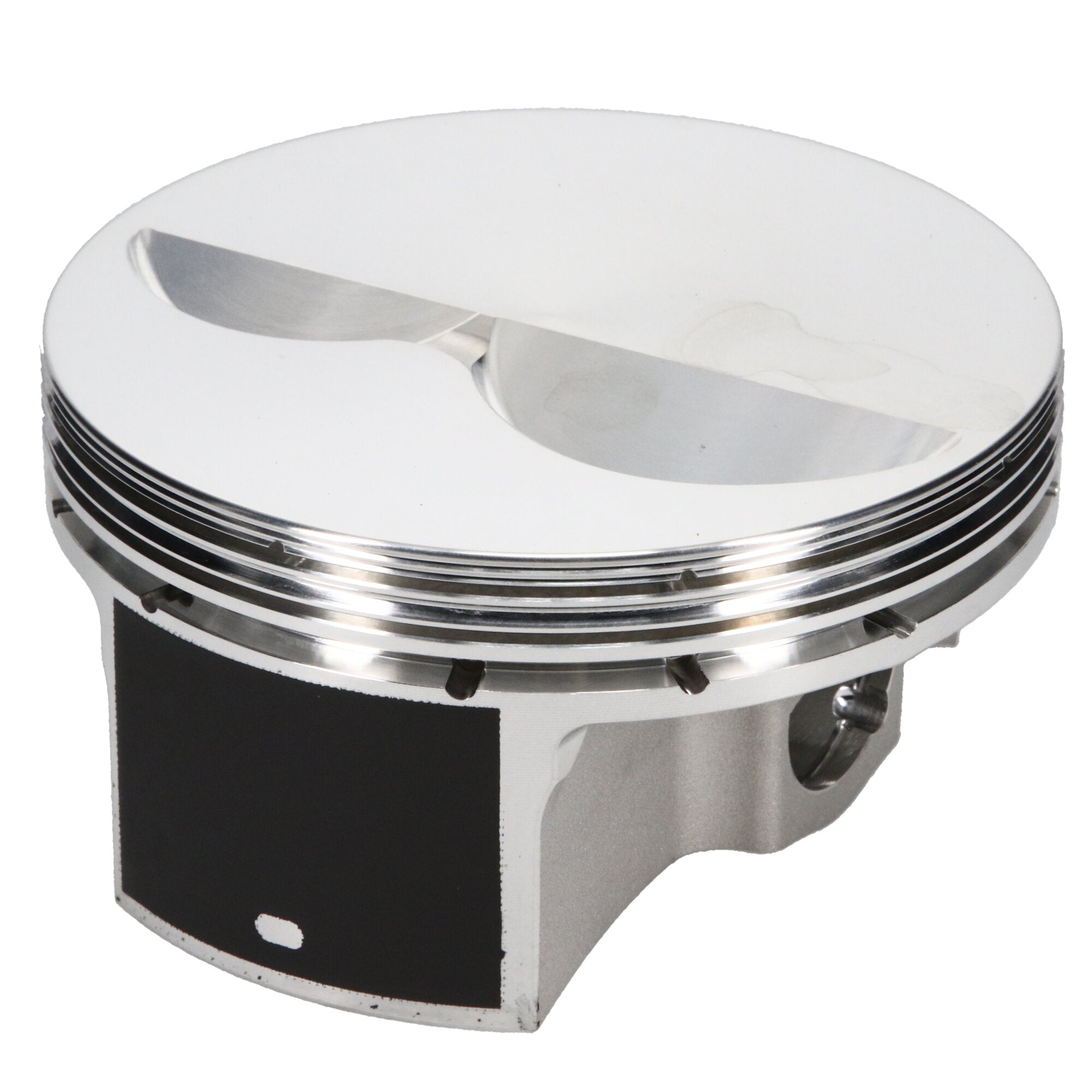

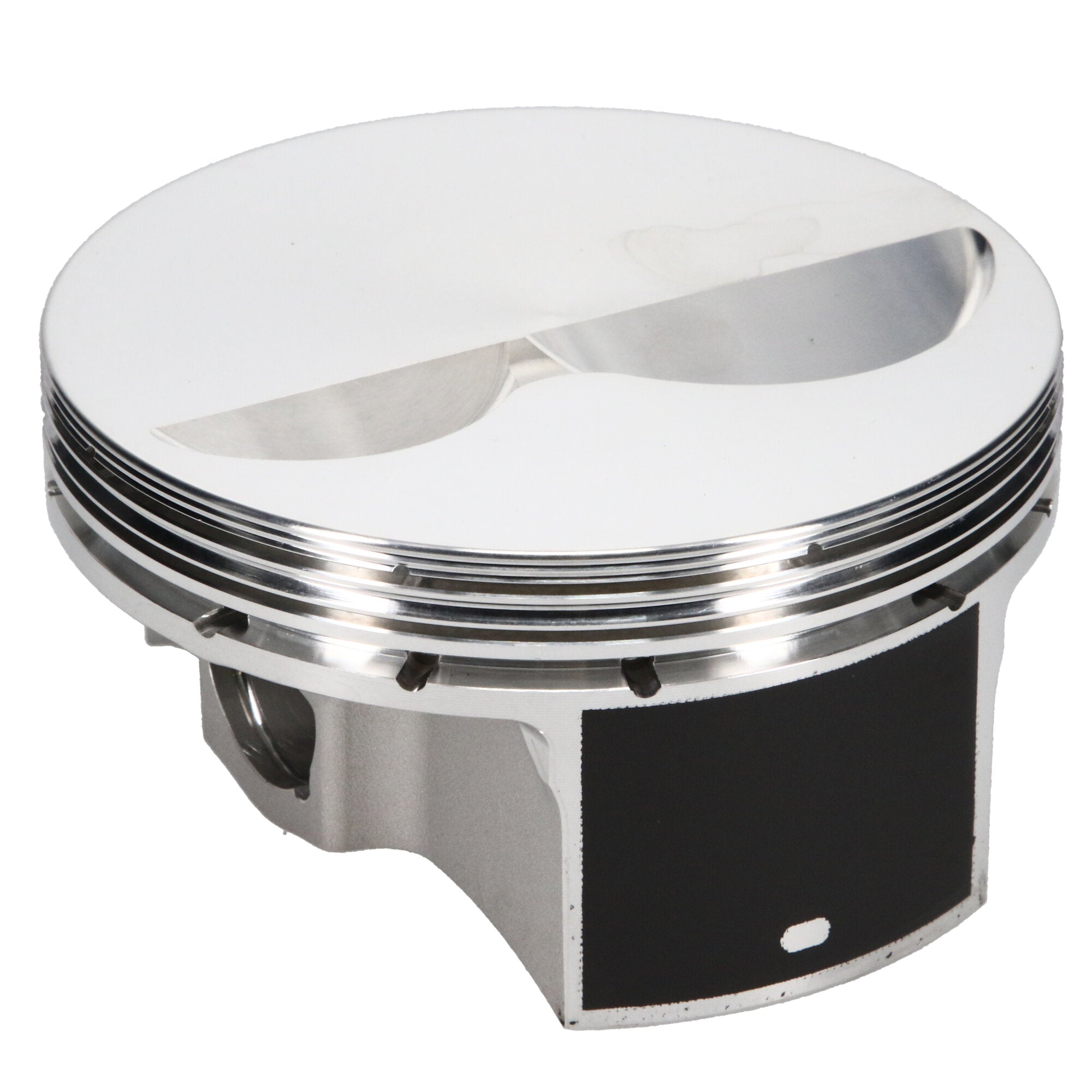

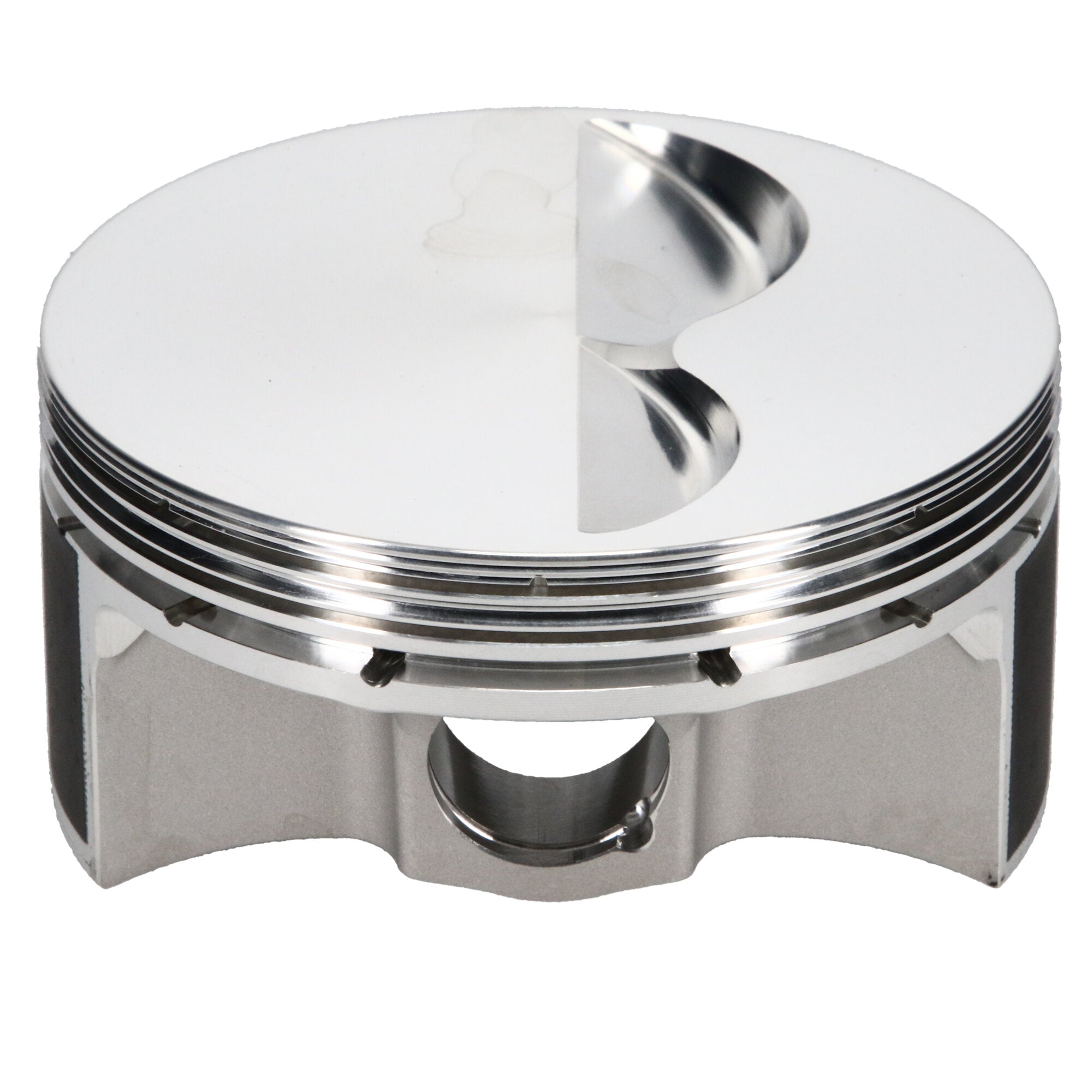

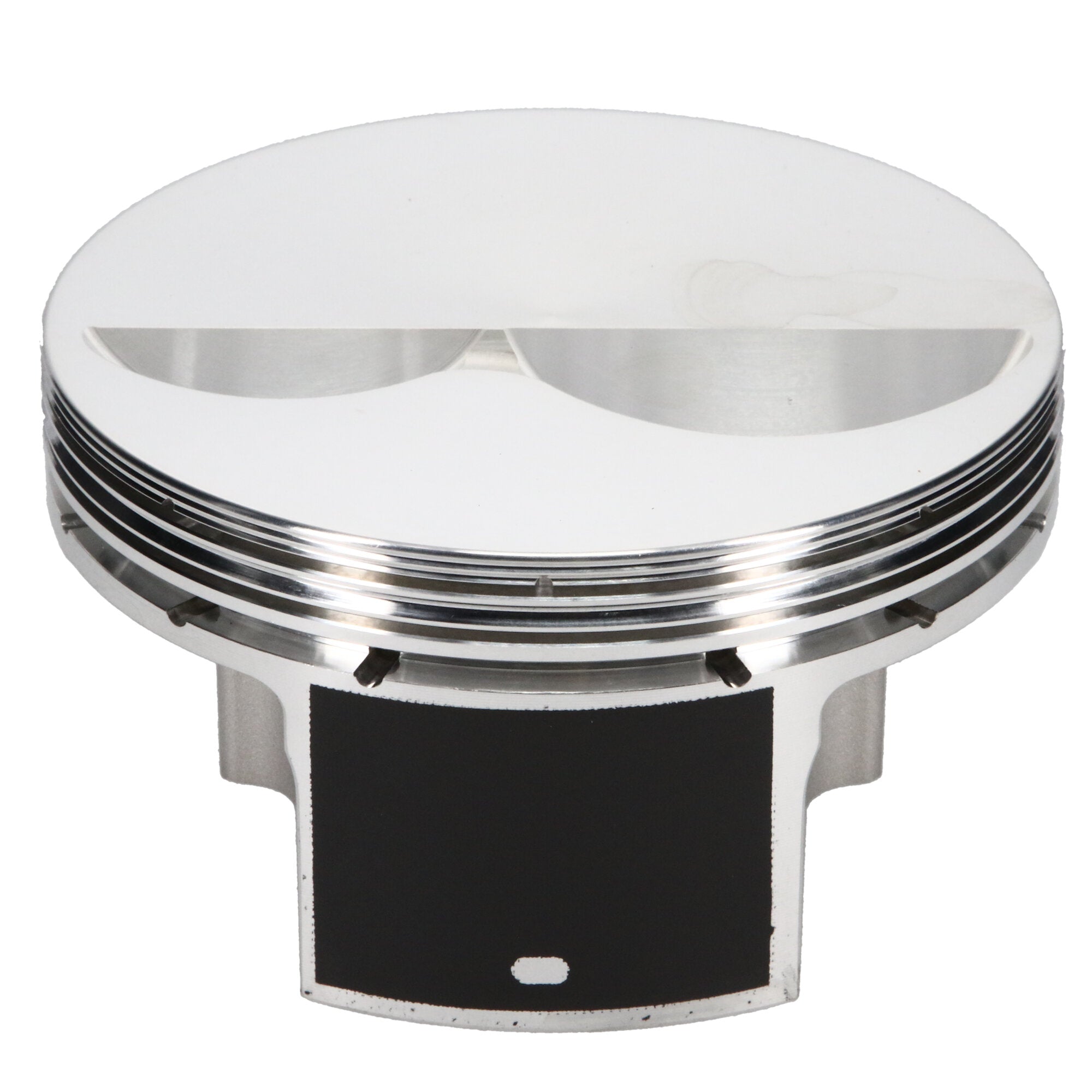

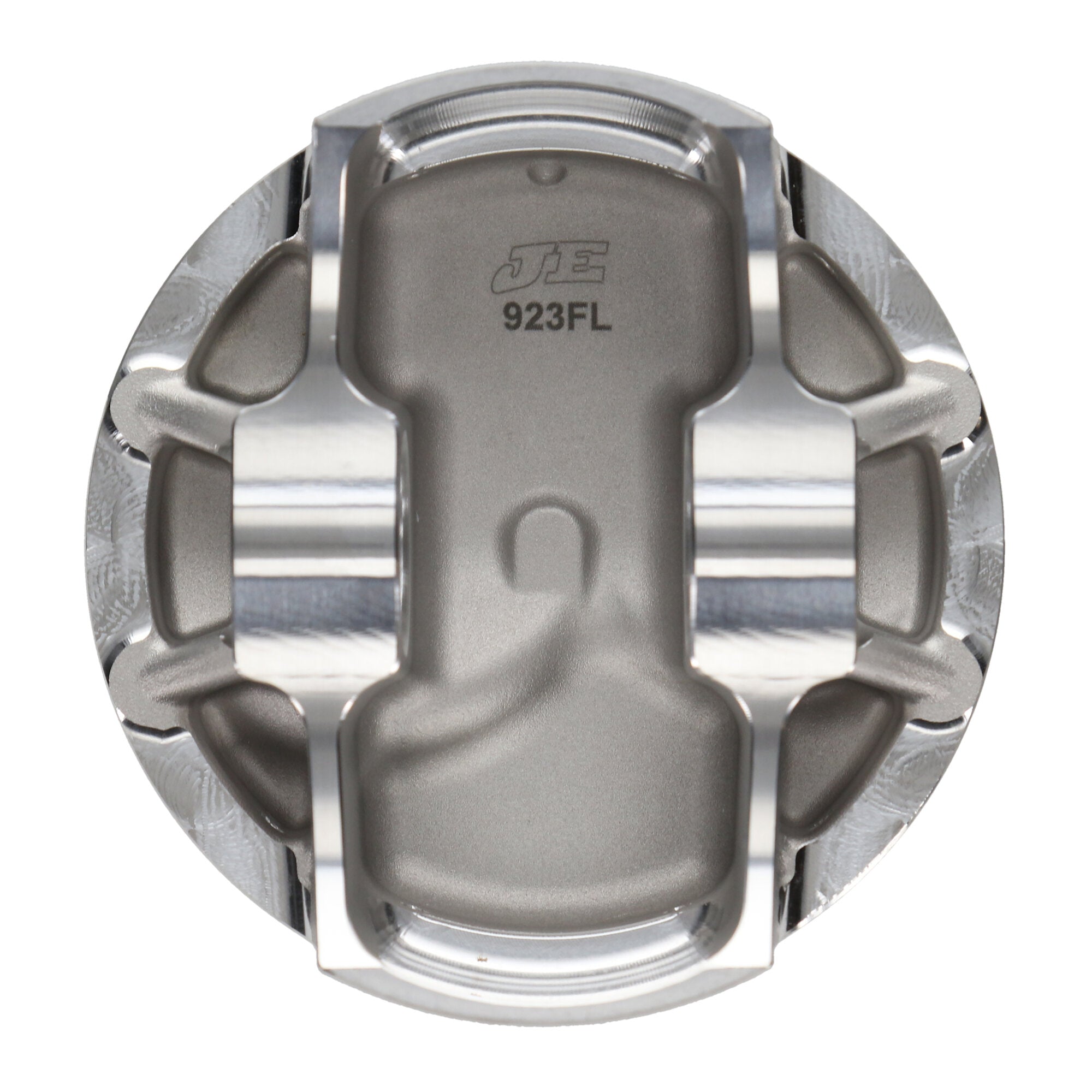

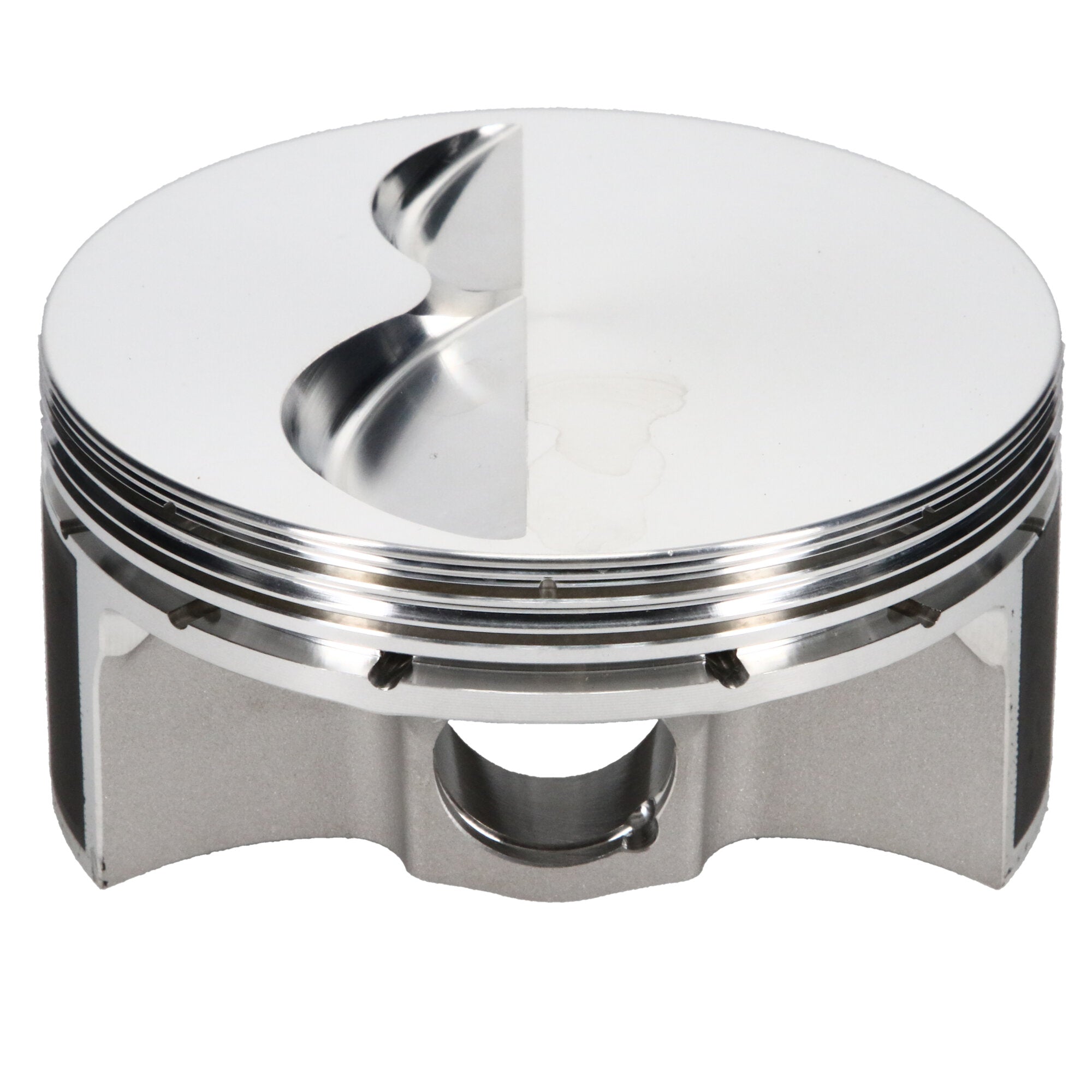

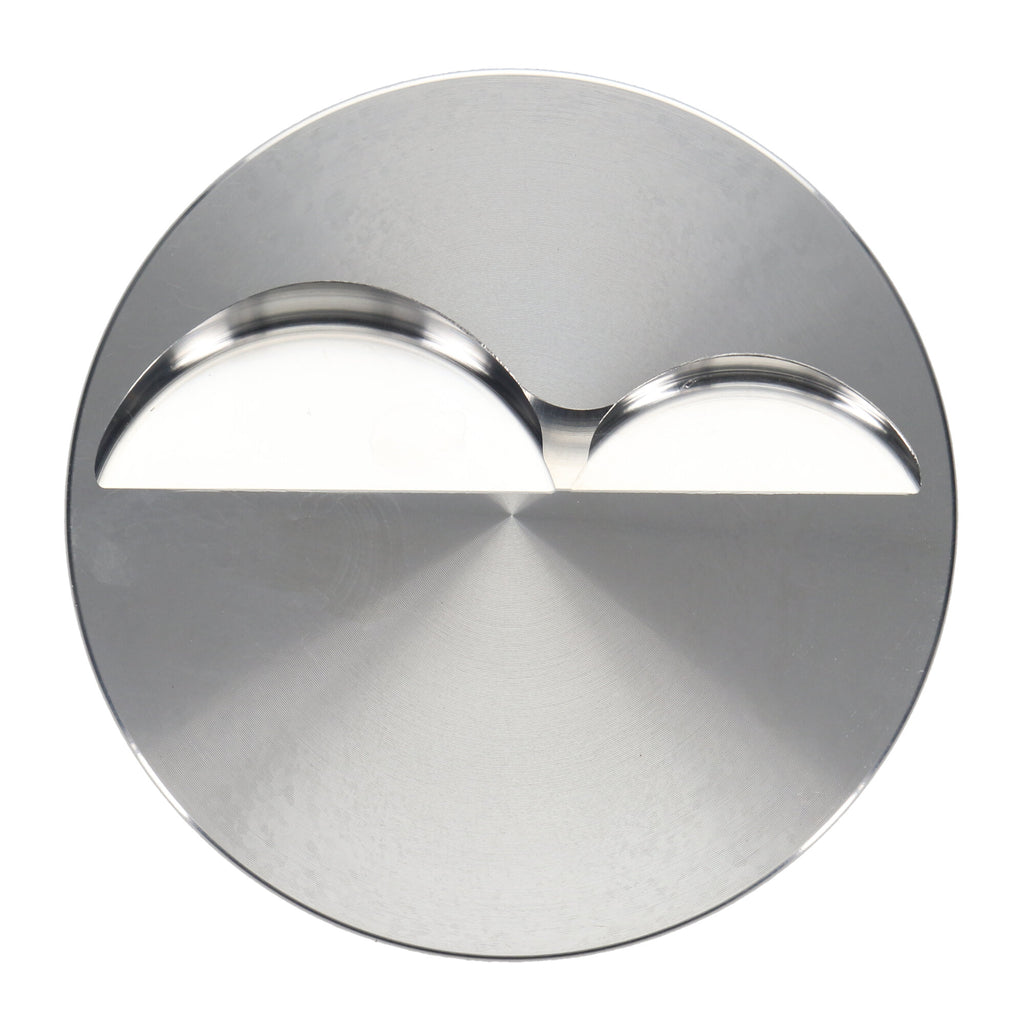

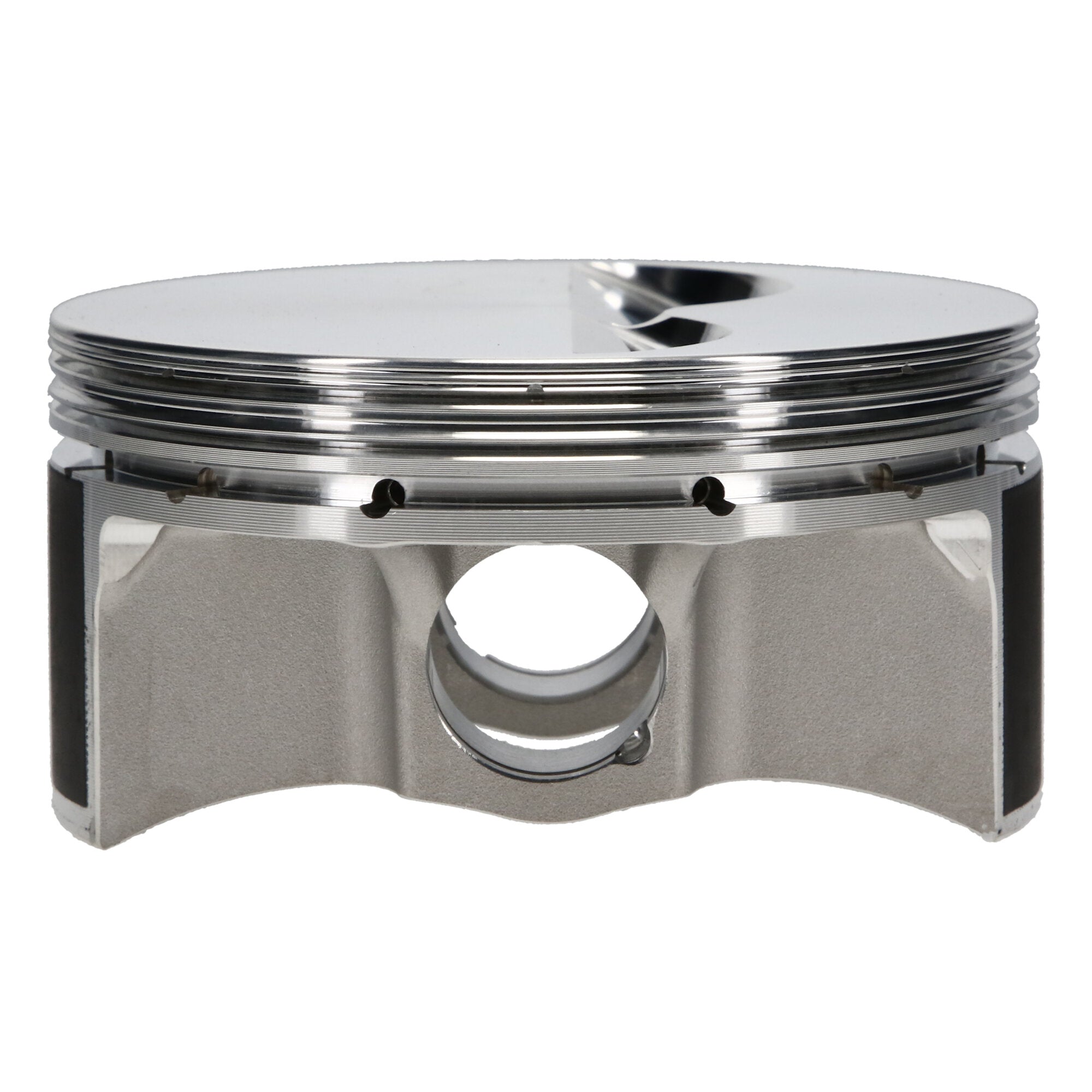

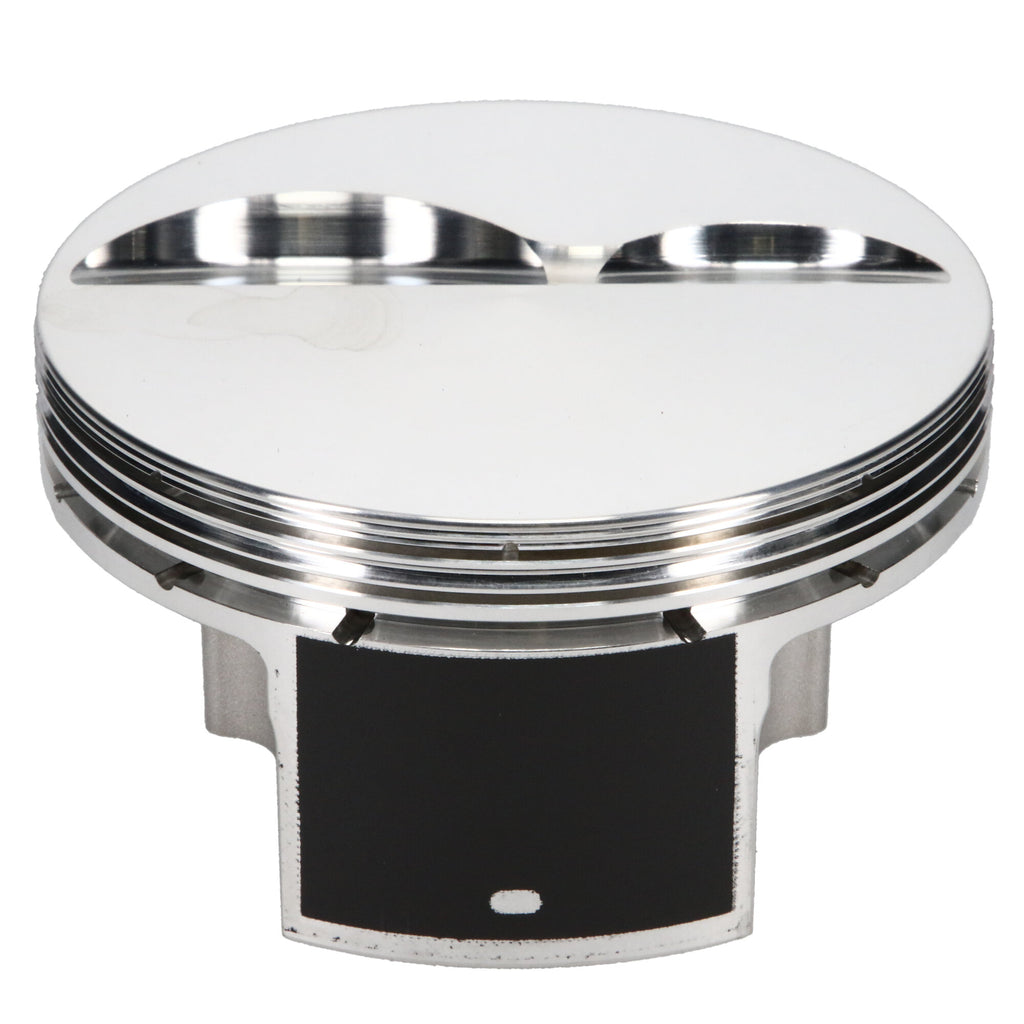

Piston Set, 2618, Flat Top, 4.045 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.045 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 350, 4.045 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Engine |
Small Block |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Make |
CHEVROLET |
| Forging Type |
FSR |
| Oil Ring Thickness |
0.119 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.045 in. Bore, Piston Kit |
| Compression Height |
1.250 |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Add-On |
J71408-4040-5 |
| Piston Volume |
-5.00 |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
927-073-MW |
| Piston Average Weight |
367 |
| Top Compression Ring Thickness |
0.0436 |
| Bore Diameter |
4.045 |
| Industry |
Automotive |
| Add-On |
927-2350-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.350 |
| Wrist Pin Length |
2.350 |
| Ring Set Included |
No |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.045 in. Bore - 1.250 in. CH, -5.00 CC |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Second Compression Ring Thickness |
0.0440 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
