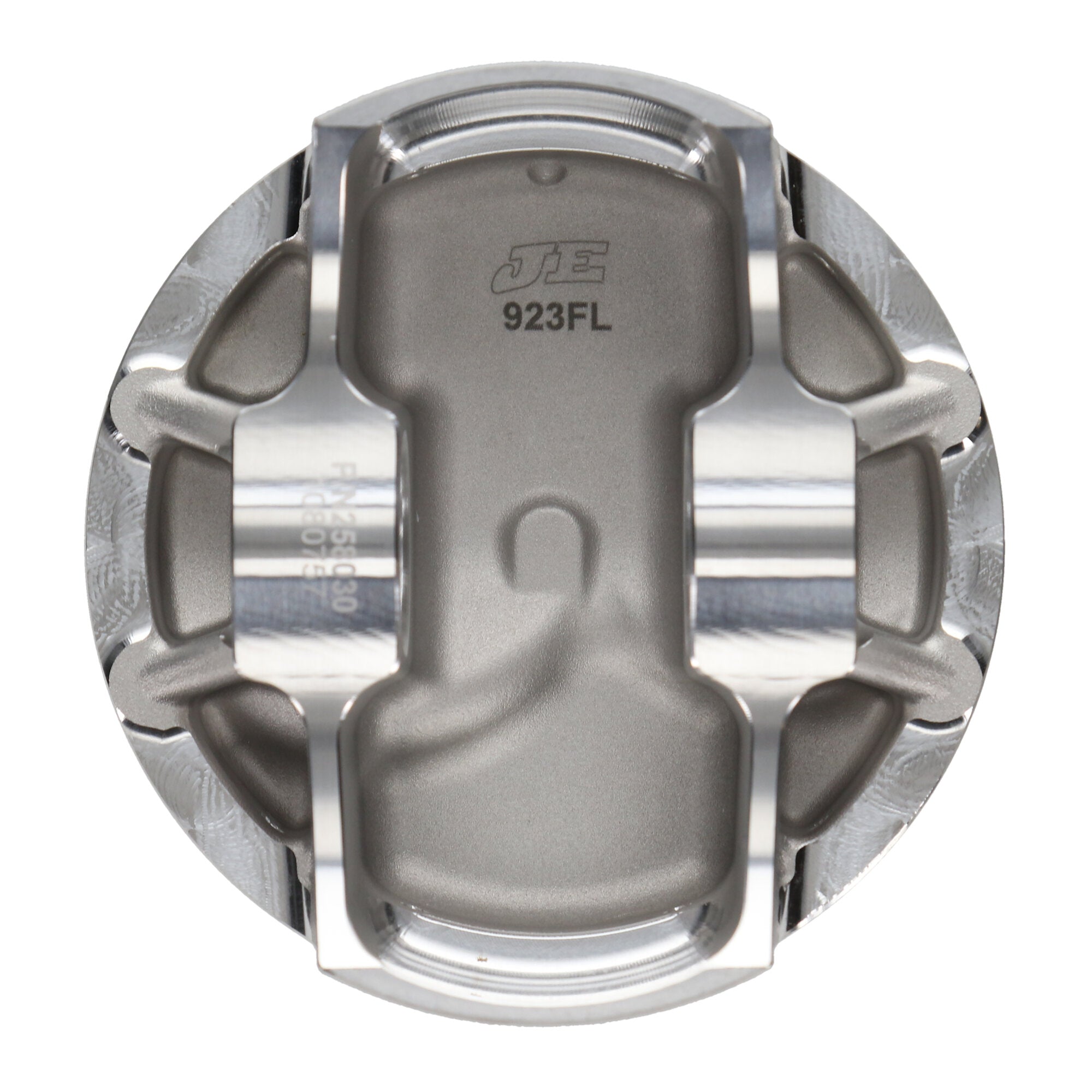

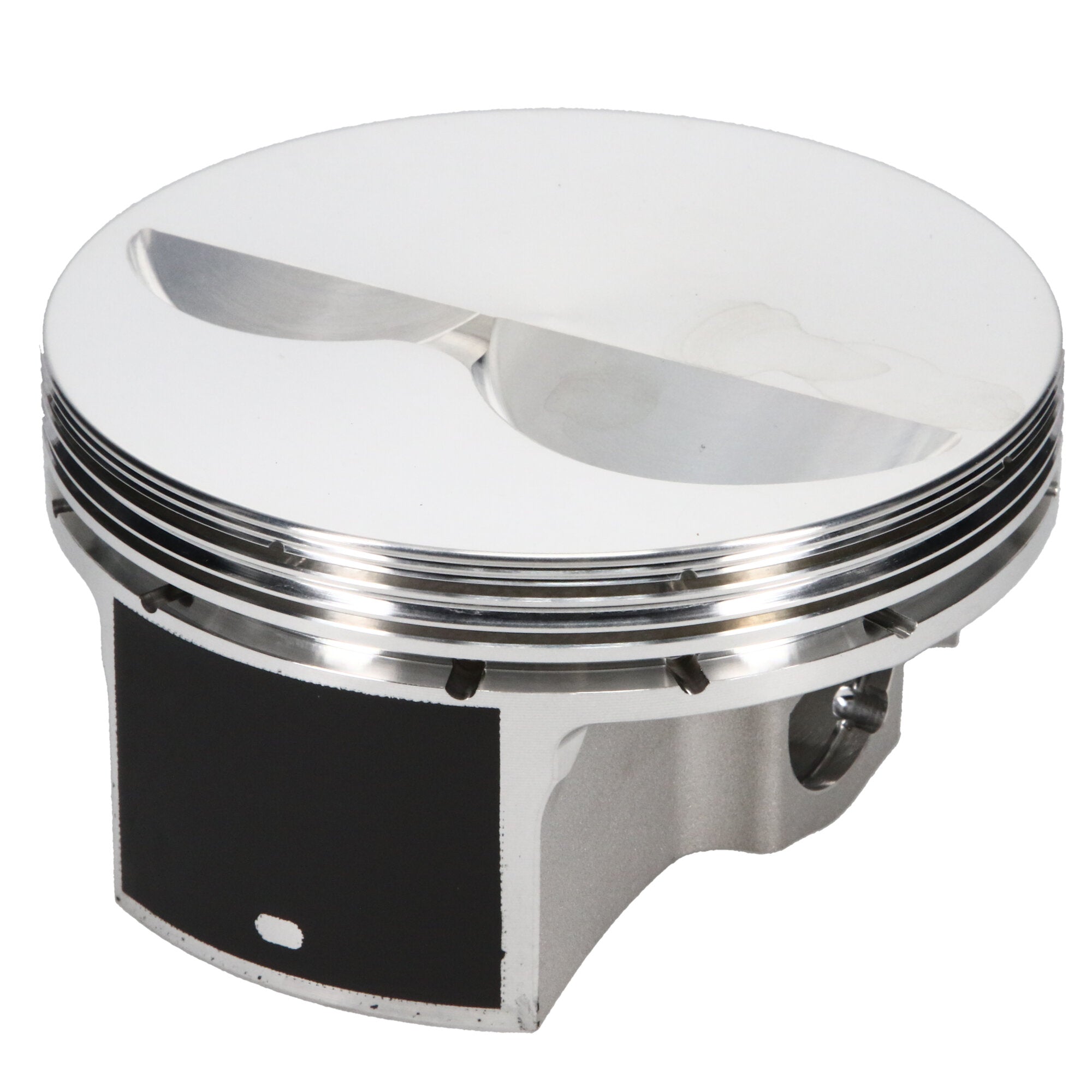

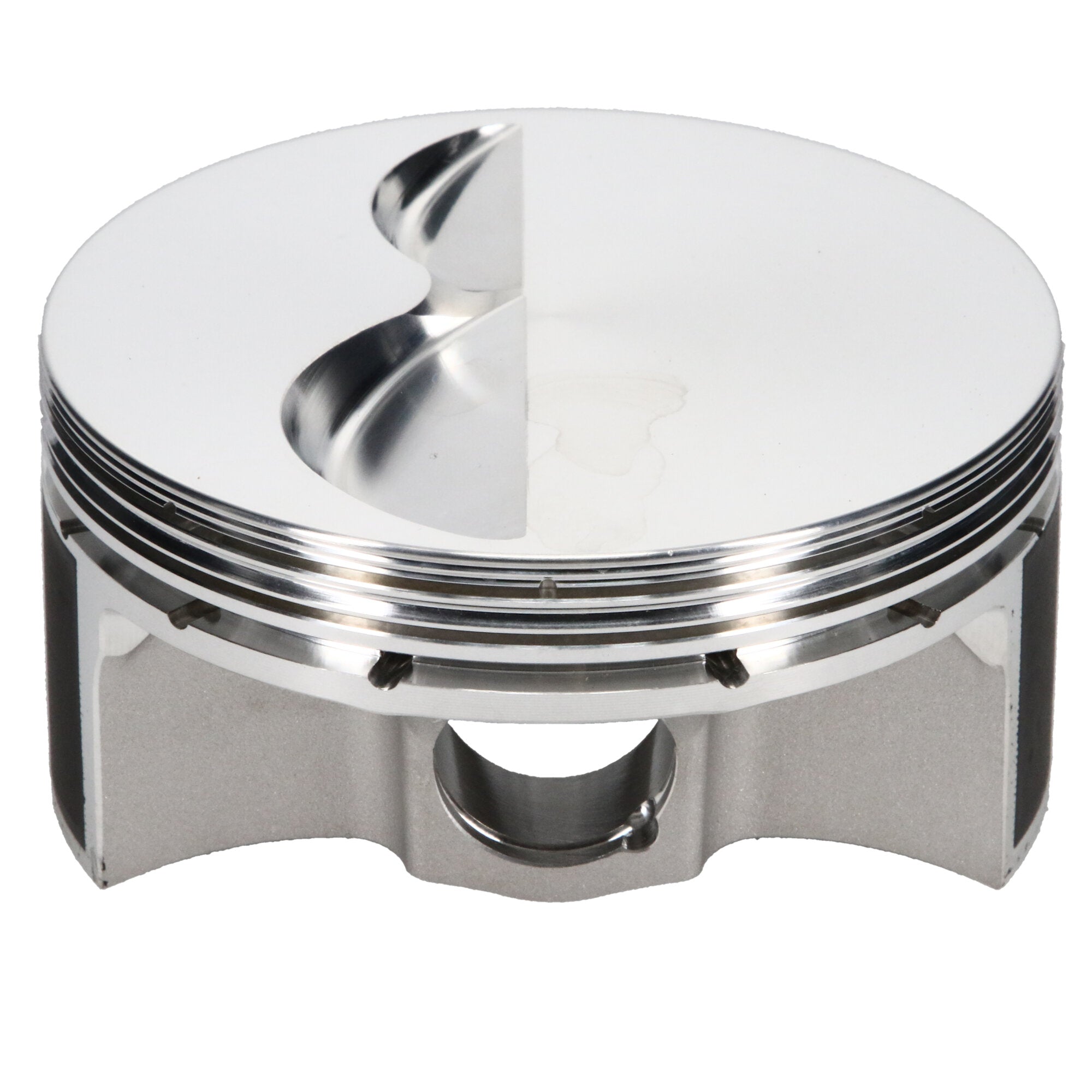

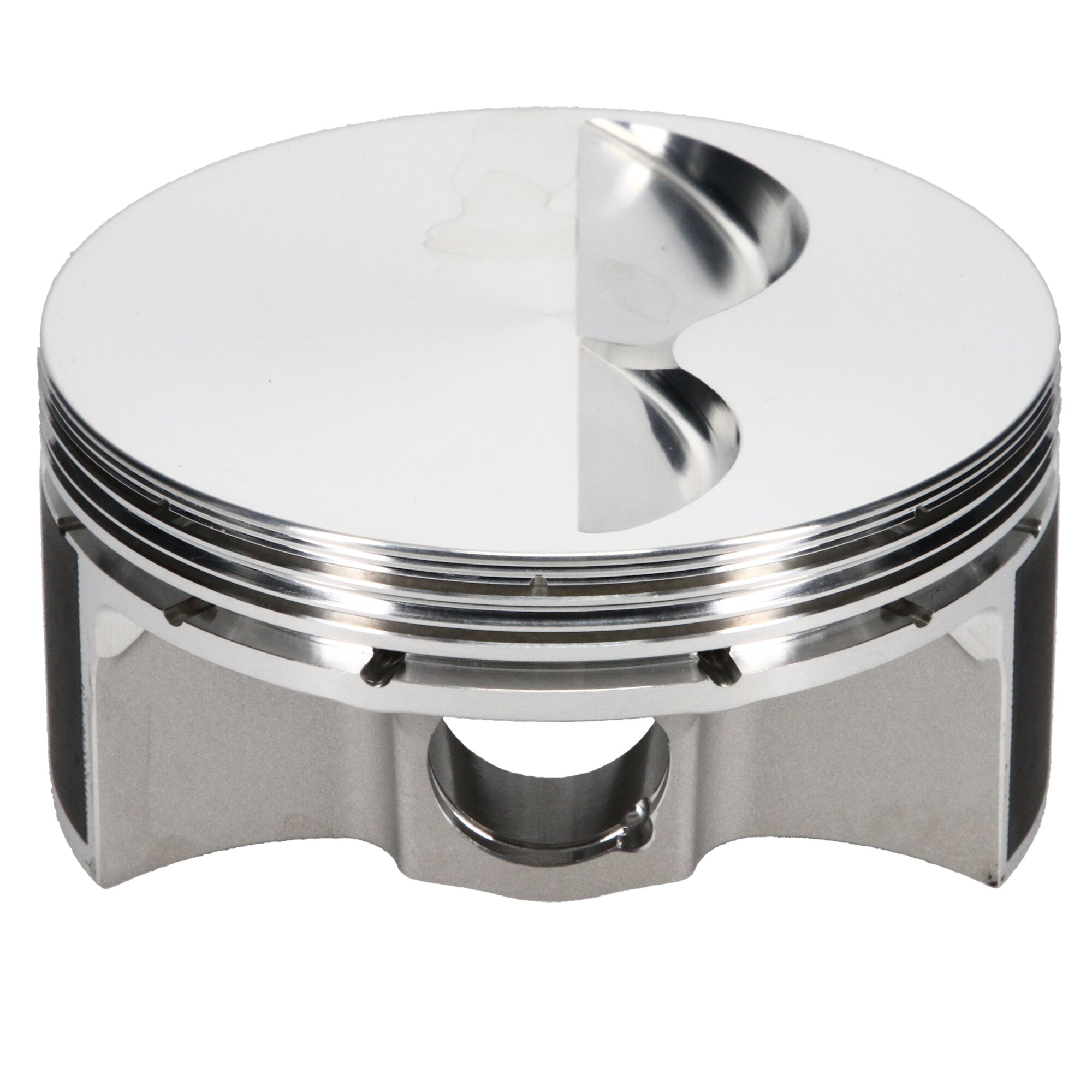

Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.040-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

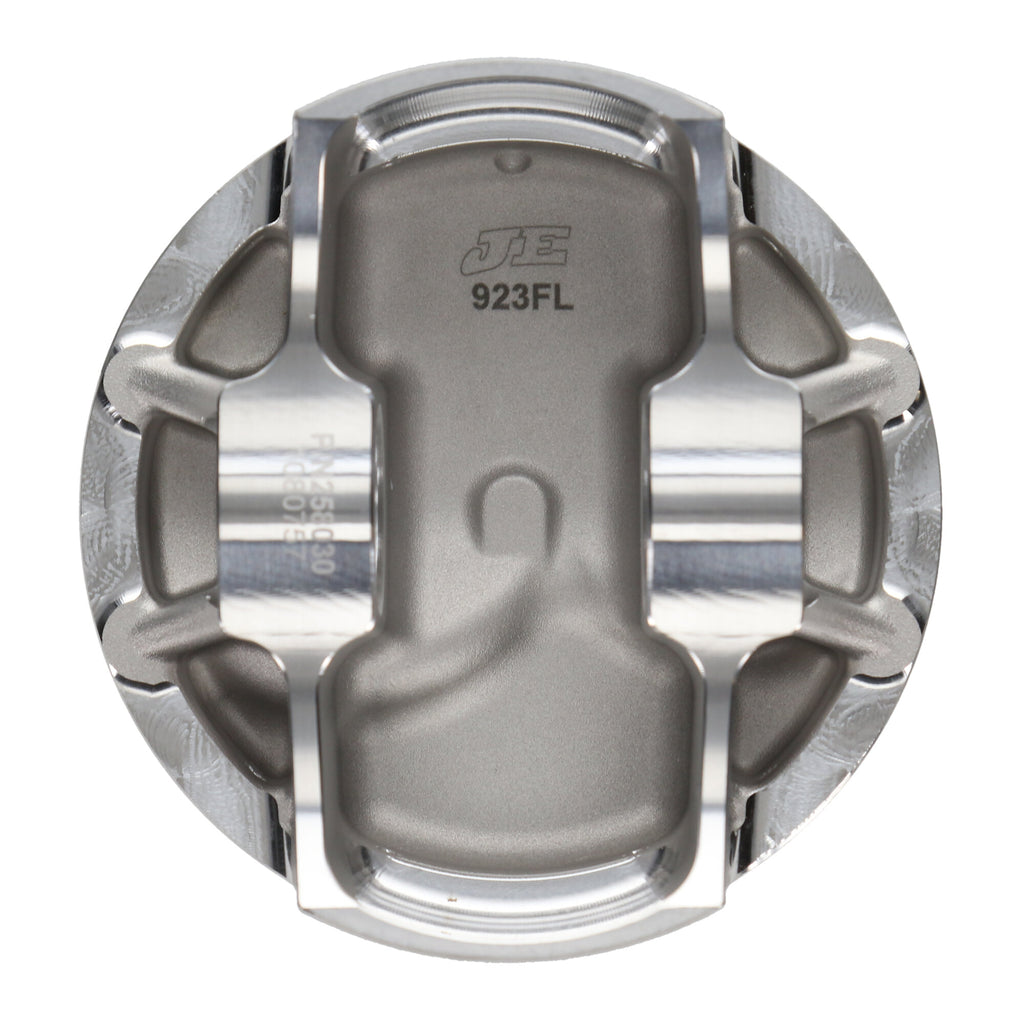

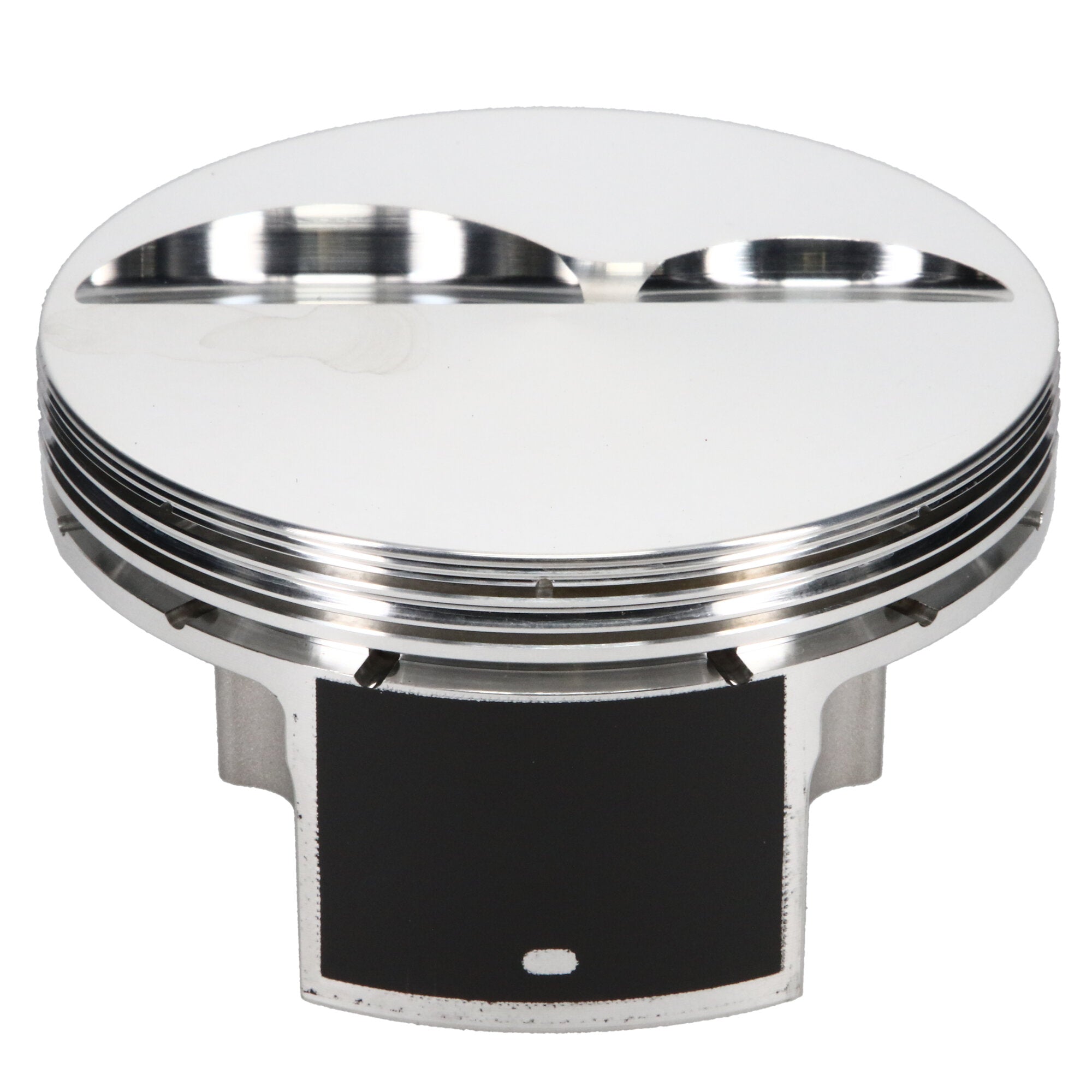

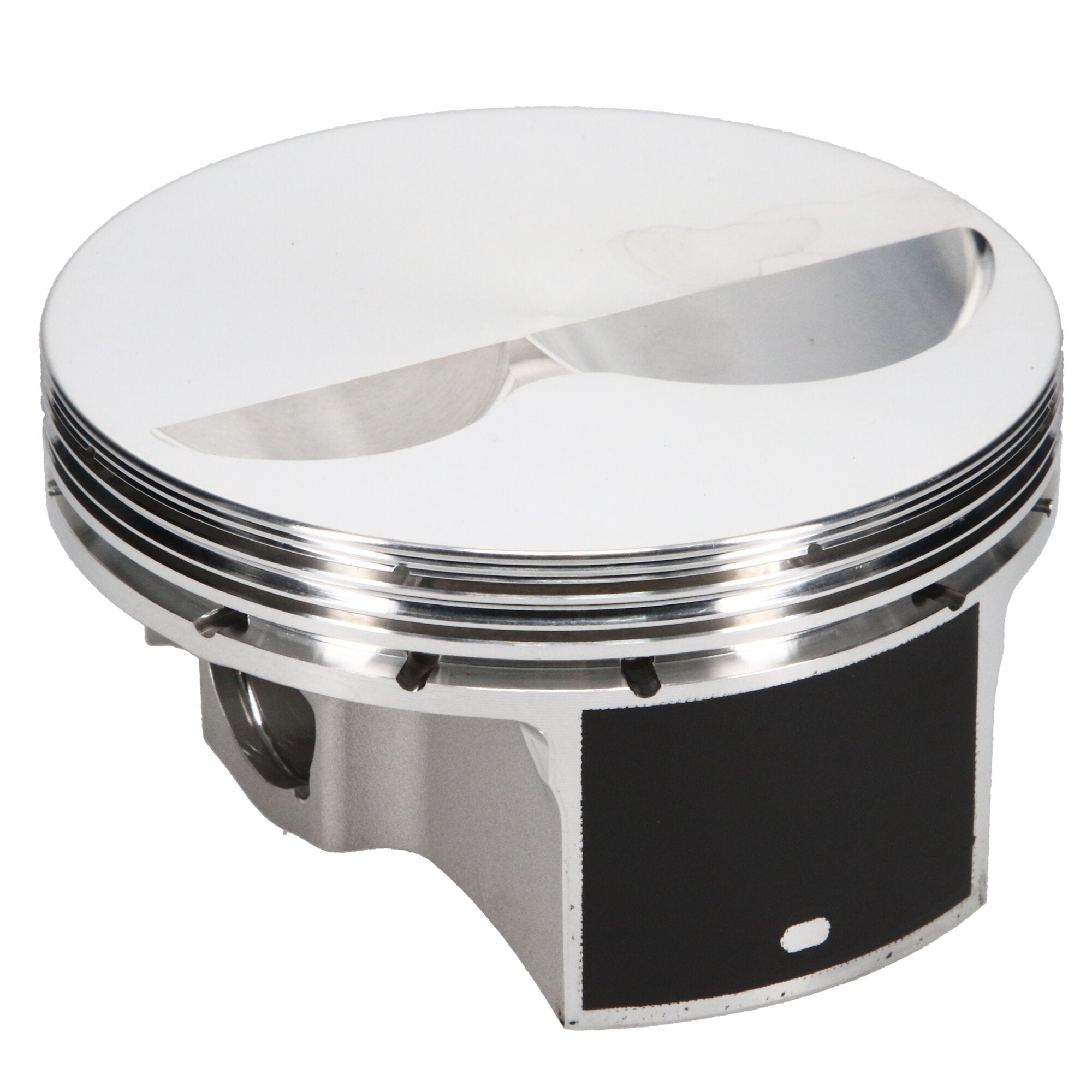

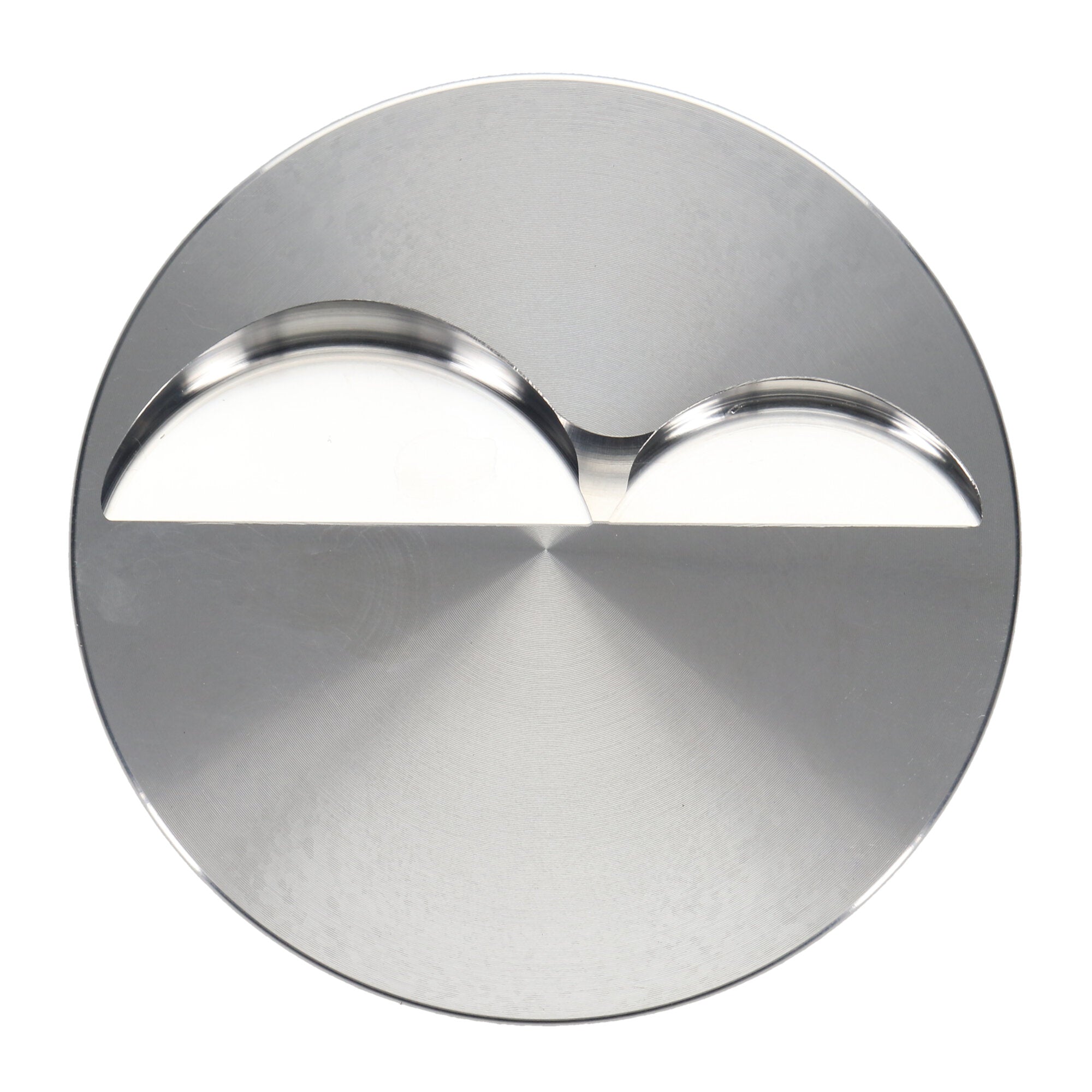

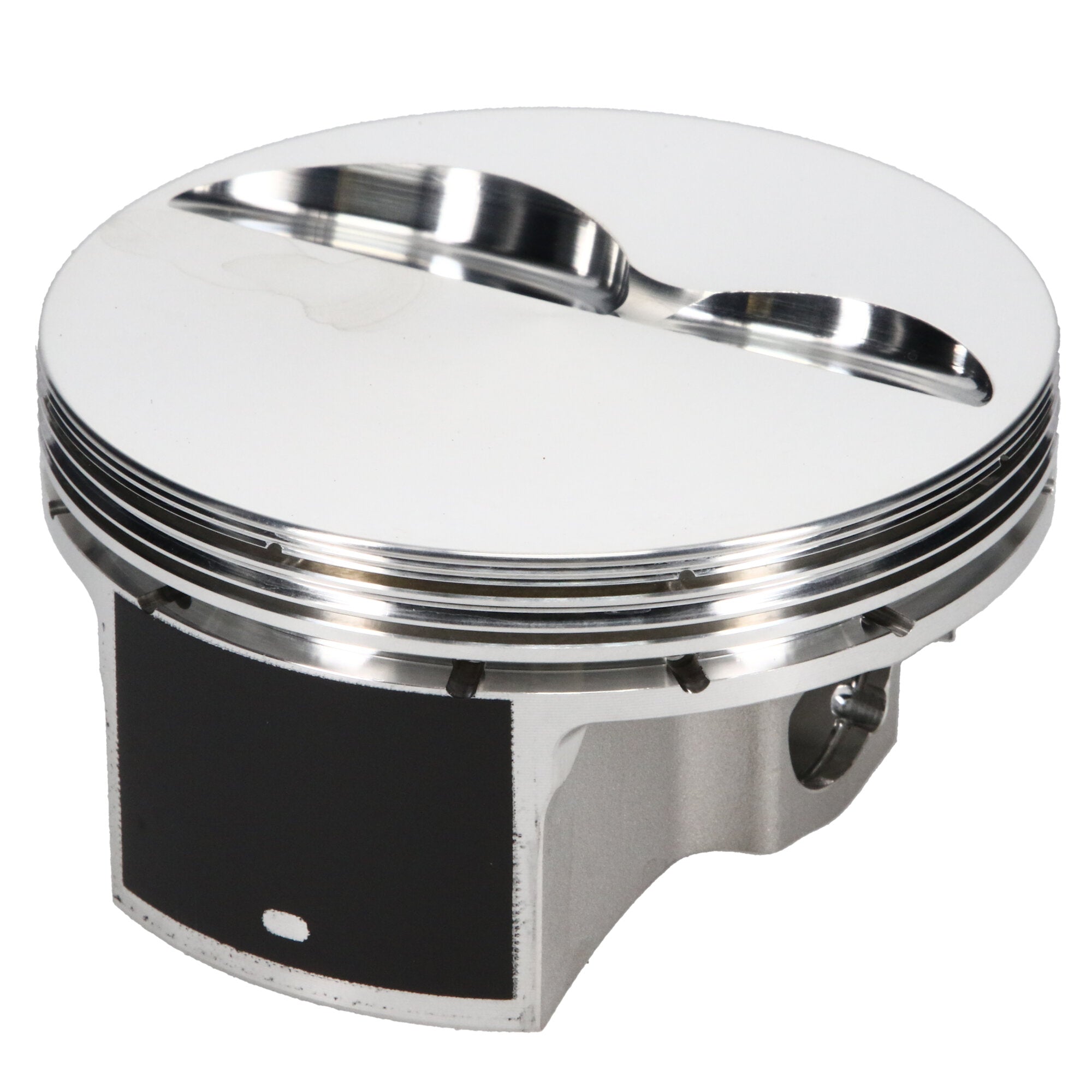

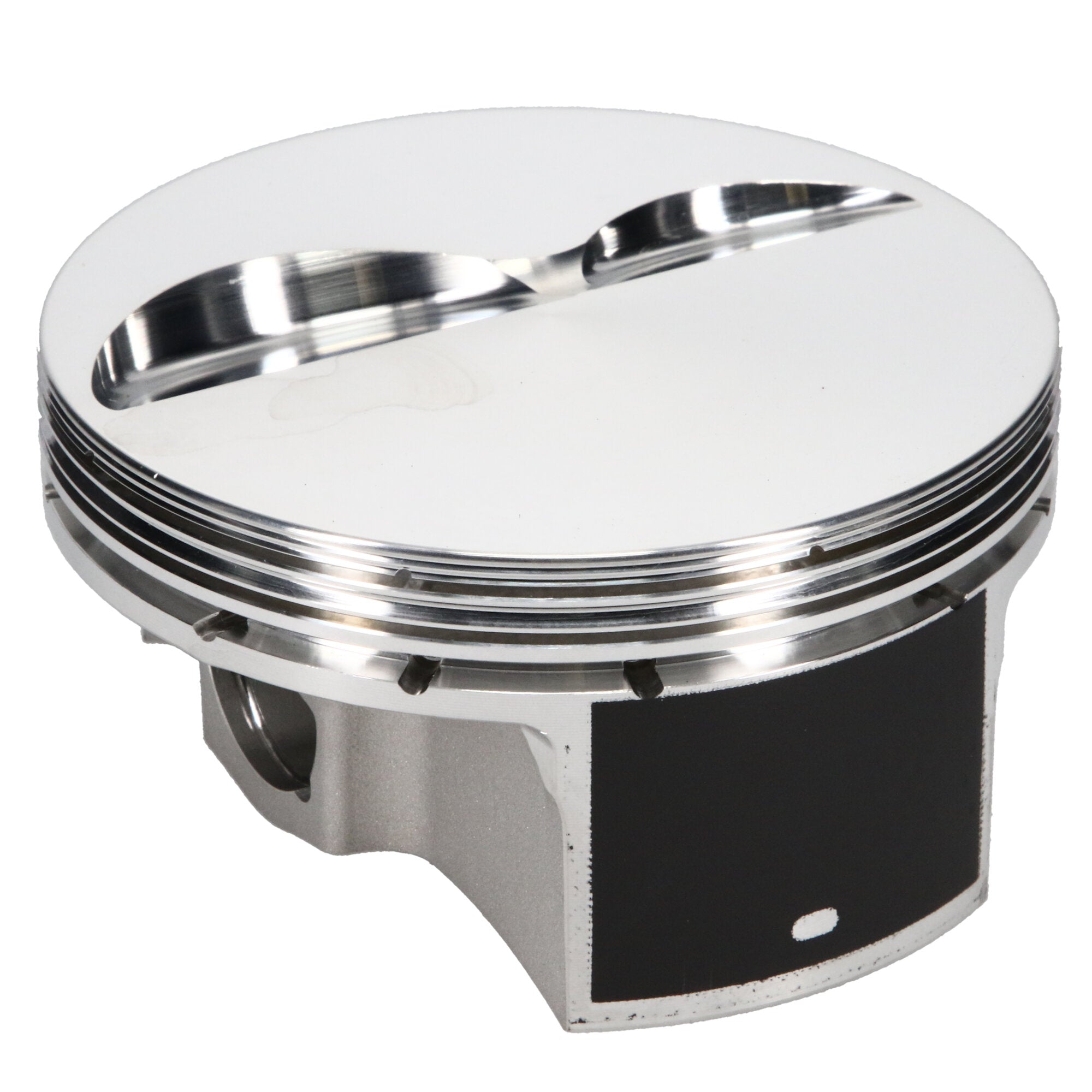

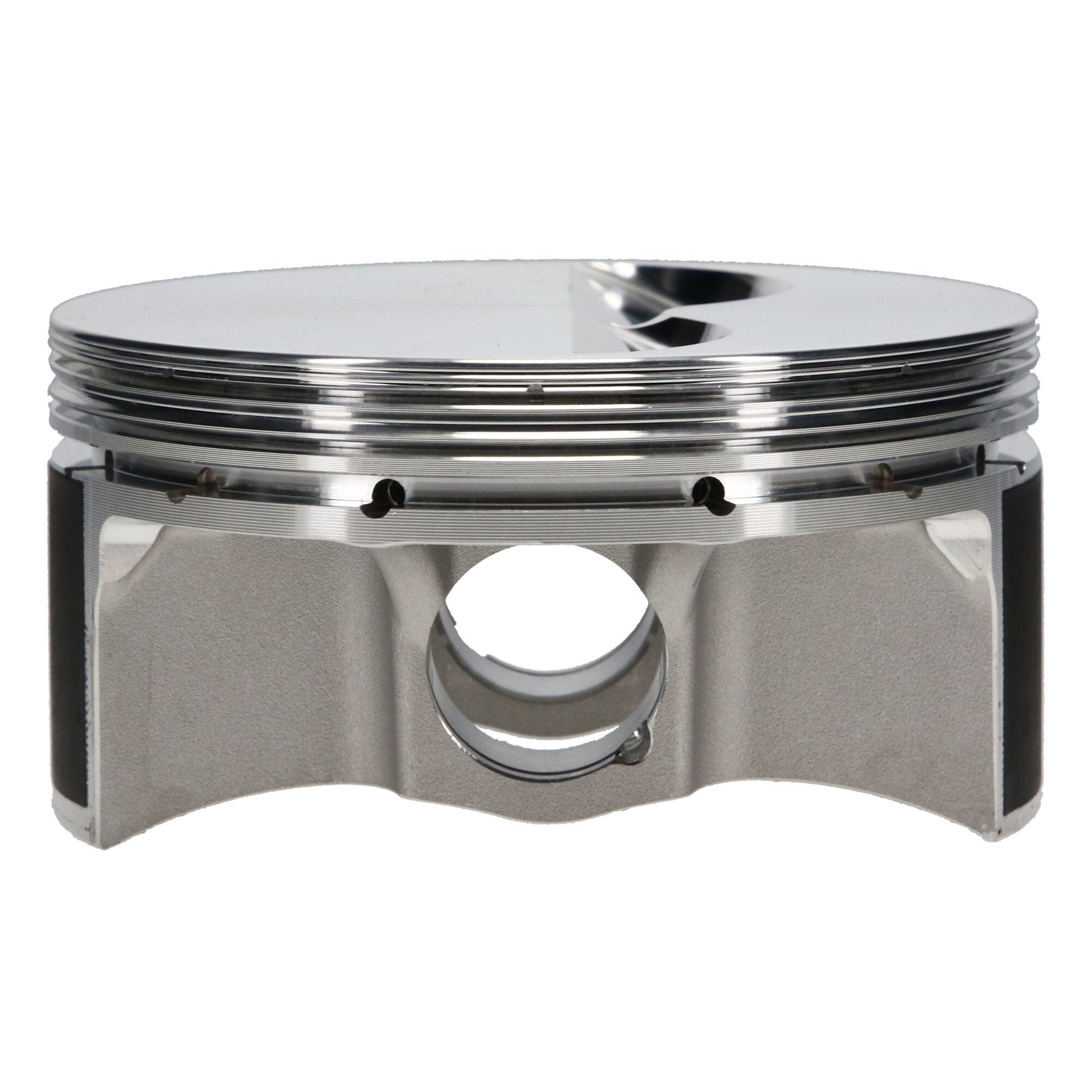

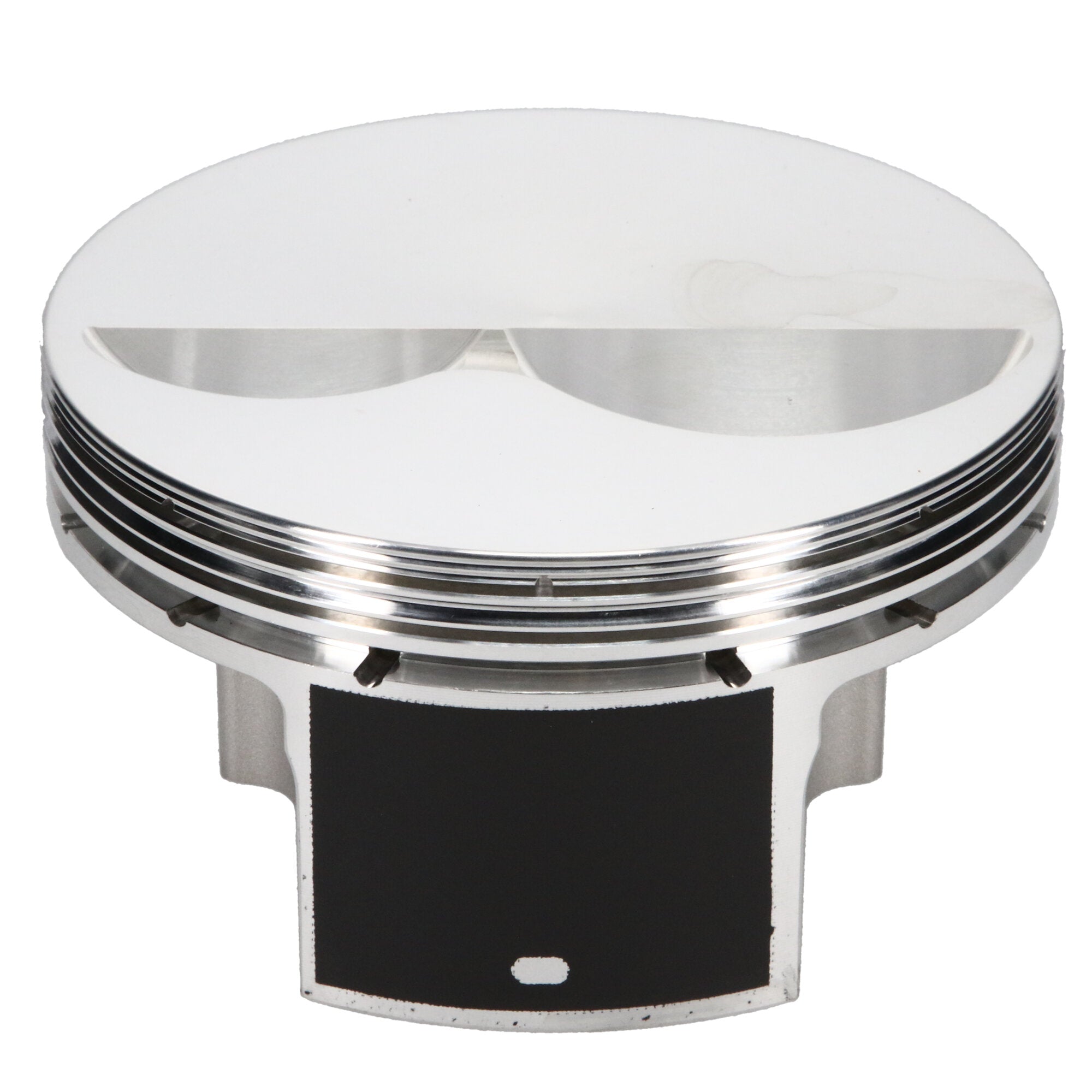

JE Pistons 258030L Piston Single, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_258030L
Engine Piston
$343.75
customers are viewing this product
Manley Performance 566265DC-1 Manley Piston Single, PIST-4.065/1.115CD/18ccDISH
Manley Performance 566265DC-1 Manley Piston Single, PIST-4.065/1.115CD/18ccDISH
$207.36
JE Pistons 257985S Piston Single, 2618, Flat Top, 4.530 Bore, 1.645 CD, 0.990 Pin, Set of 1.
JE Pistons 257985S Piston Single, 2618, Flat Top, 4.530 Bore, 1.645 CD, 0.990 Pin, Set of 1.
$321.46
JE Pistons 258030L Piston Single, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_INV JE Pistons, Piston
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.250 CD, Flat Top, Left Piston
Description_TLE Chevrolet 350, 4.040 Bore, Flat, Set of 1
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Ringset Included No
Oil Ring Thickness 0.119
Piston Pin Wall Thickness 0.150
Piston Pin Length 2.350
Engine Small Block
Forging Type FSR
Engine Type ICE
Wrist Pin Wall Thickness 0.150
Prop 65 - Short Label Prop 65 Warning Label.JPG
Piston Series JE Pistons
Piston Pin Material 5115
Title - Web JE Pistons Chevrolet Small Block Piston - 4.040 in. Bore - 1.250 in. CH, -5.00 CC
Make - Web Chevrolet
Wrist Pin Outer Diameter 0.927
Prop 65 (C, R or CR) CR
Make CHEVROLET
Title JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston
Bore Diameter 4.040
Piston Average Weight 366
Prop 65 Yes/No Yes
Piston Quantity 1
Piston Pin Outside Diameter 0.927
Second Compression Ring Thickness 0.0440
Piston Head Type Flat
Piston Volume -5.00
Product Type Engine Piston
Piston Orientation Left
Compression Height 1.250
Engine - Web Small Block
Ring Set Included No
Wrist Pin Length 2.350
Industry Automotive
Add-On 927-2350-15-51C
Cylinder Head CHEVROLET 23 DEG 20/30
Add-On 927-073-MW
Product Market Domestic
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Material 2618
Add-On J71408-4040-5
Top Compression Ring Thickness 0.0436
Out of Stock Message Call for Availability
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
