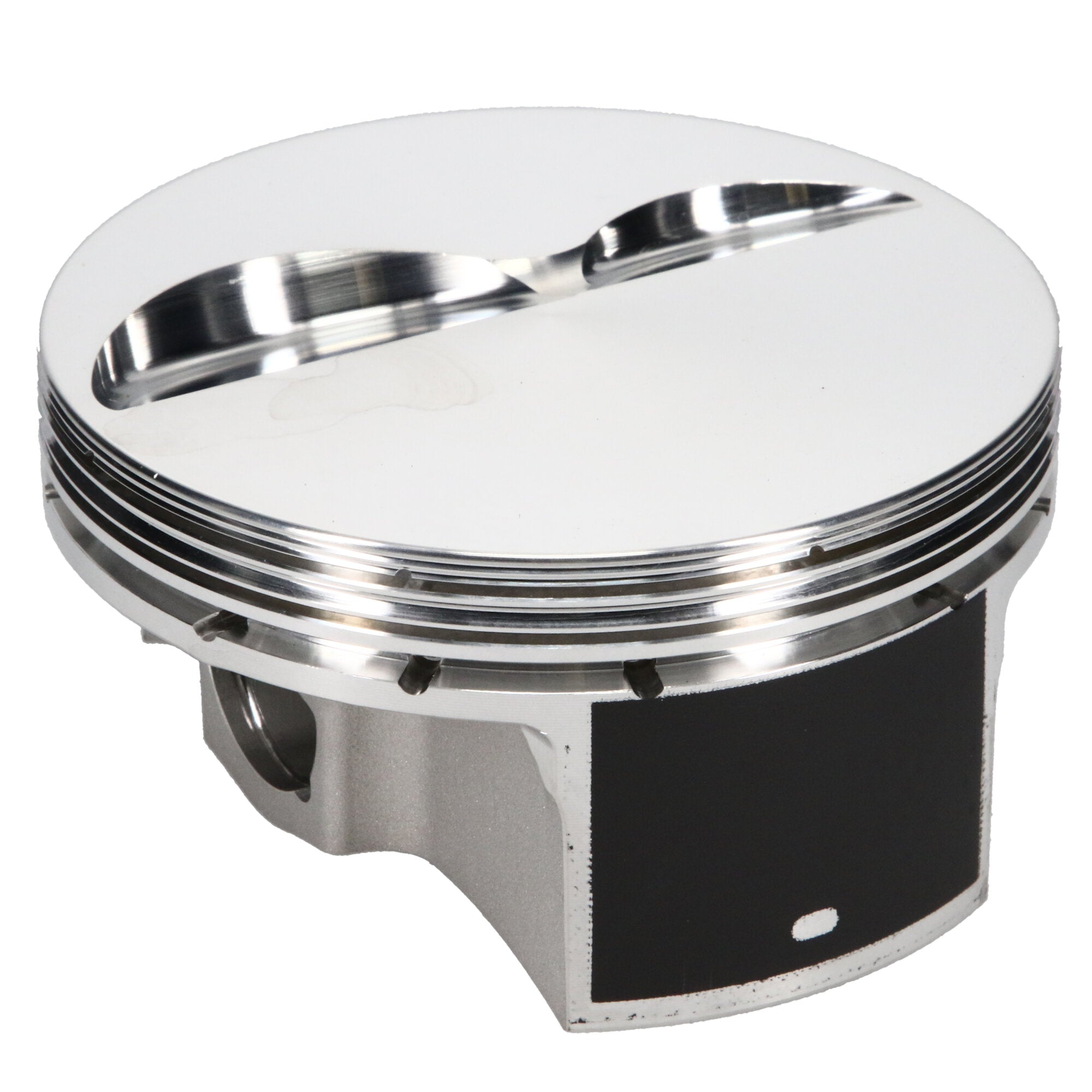

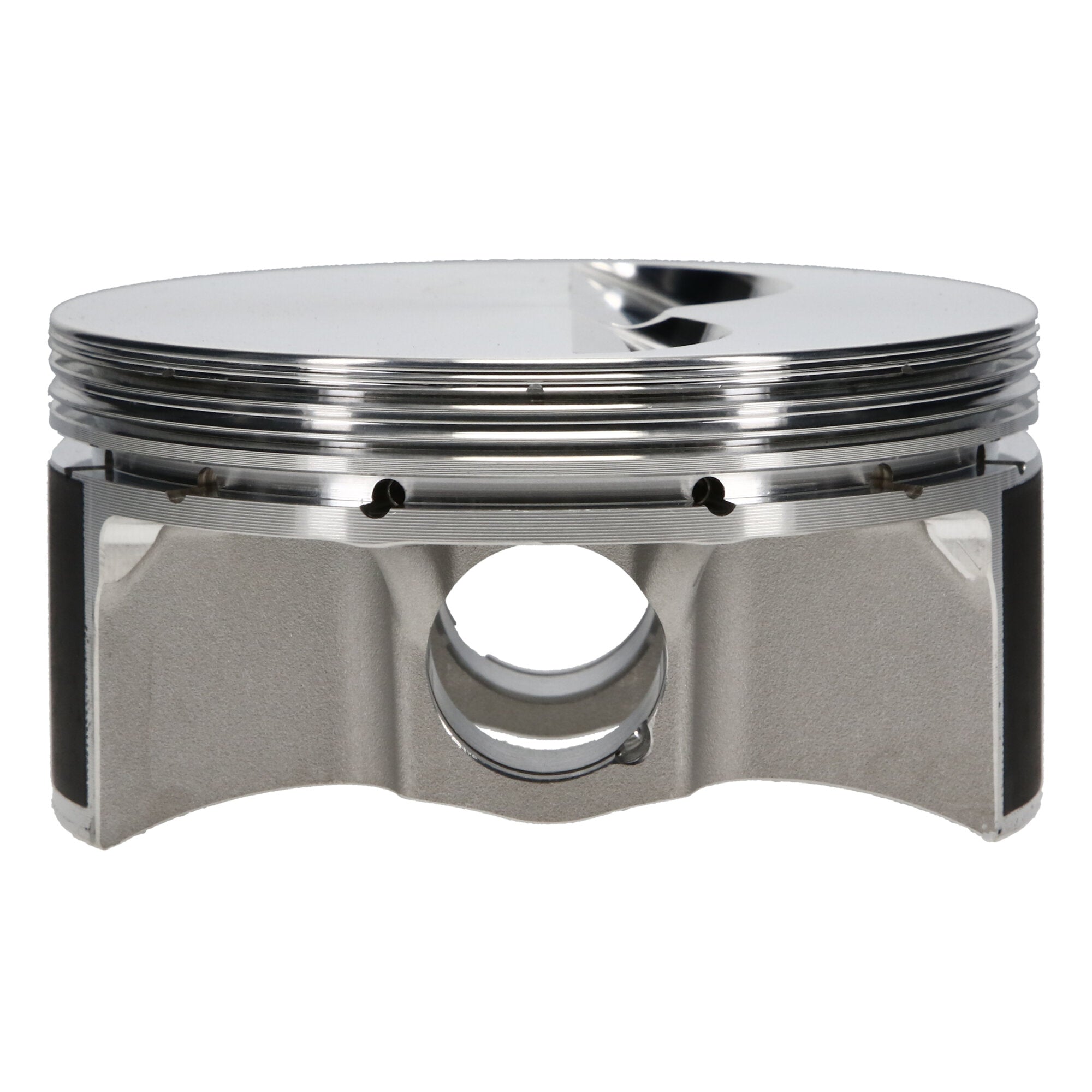

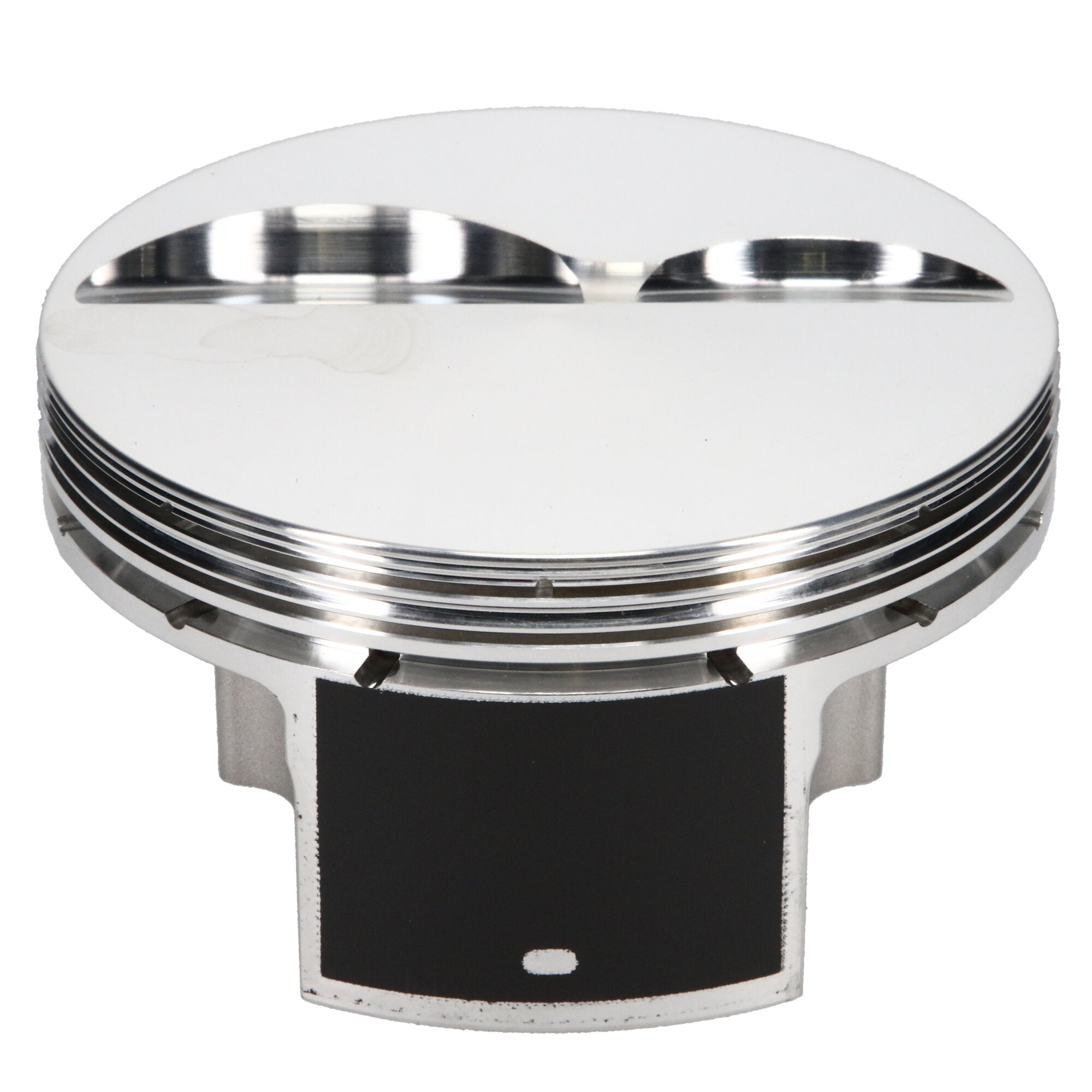

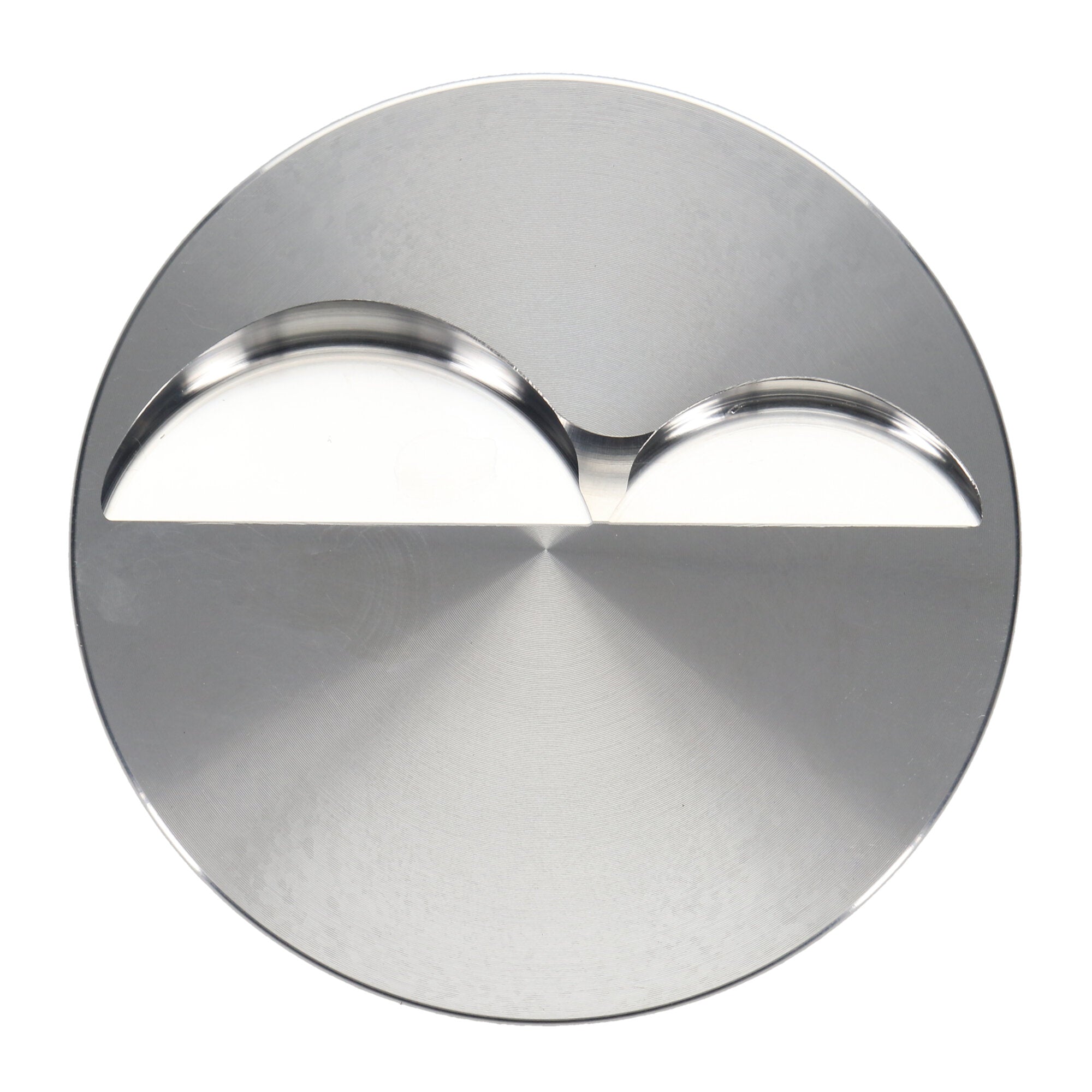

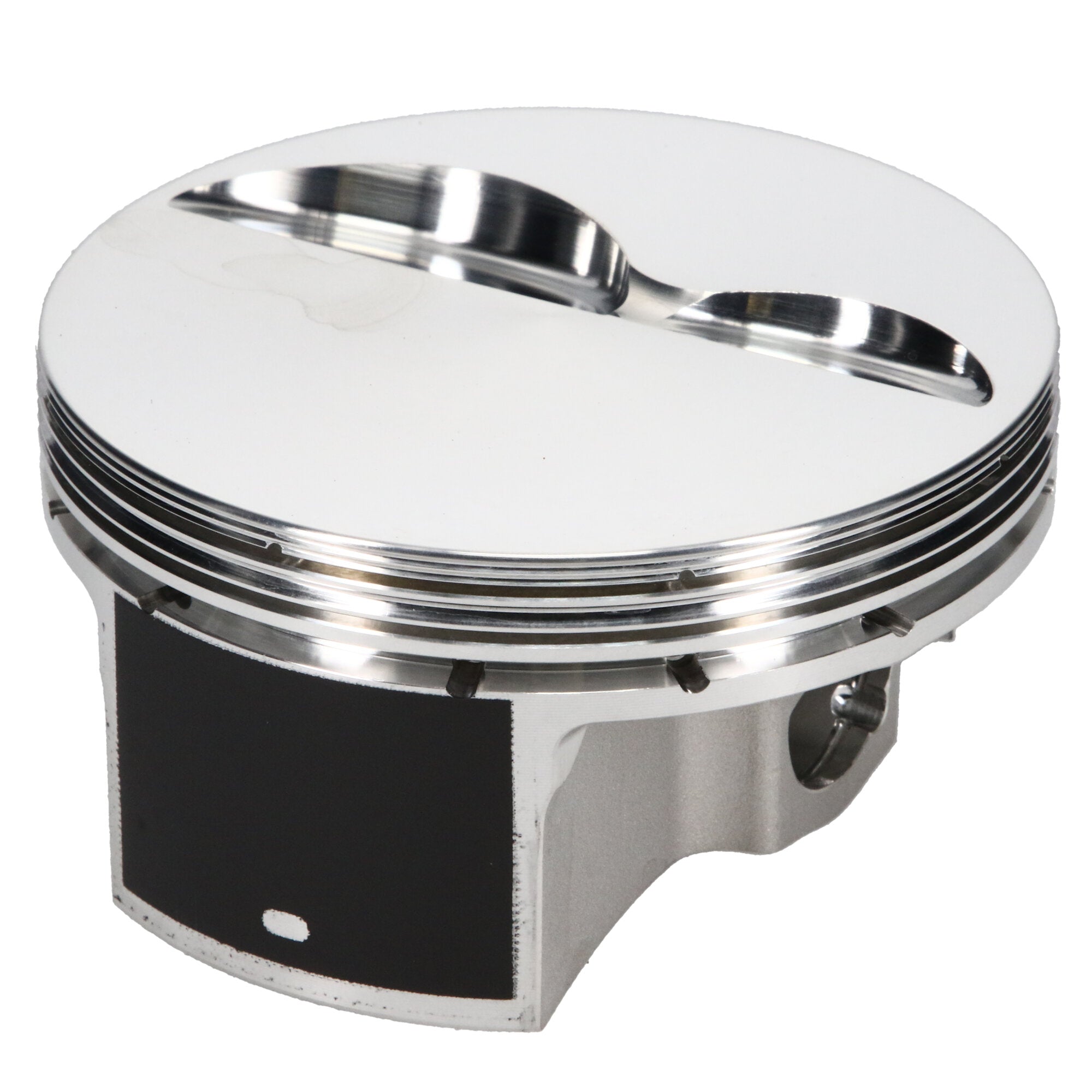

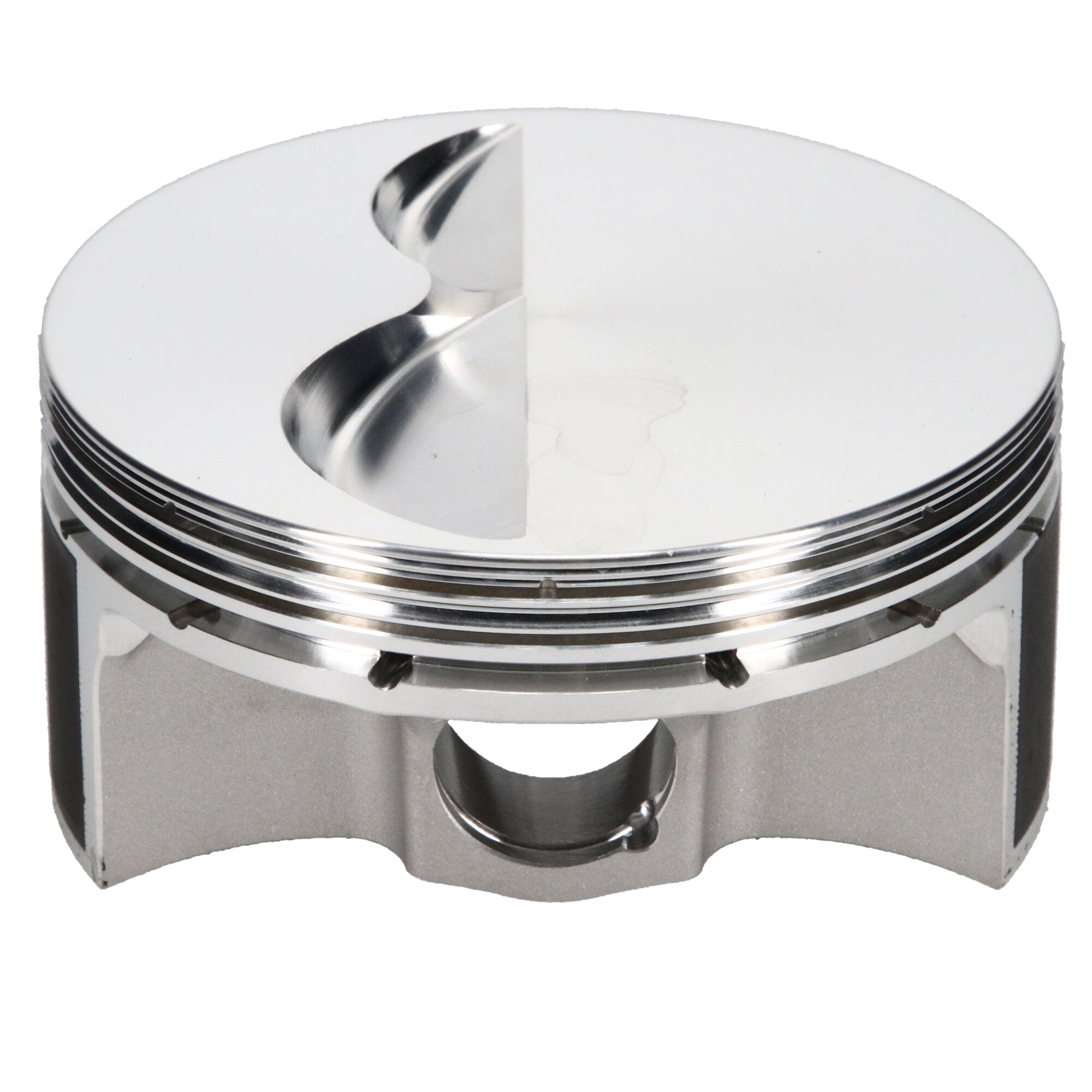

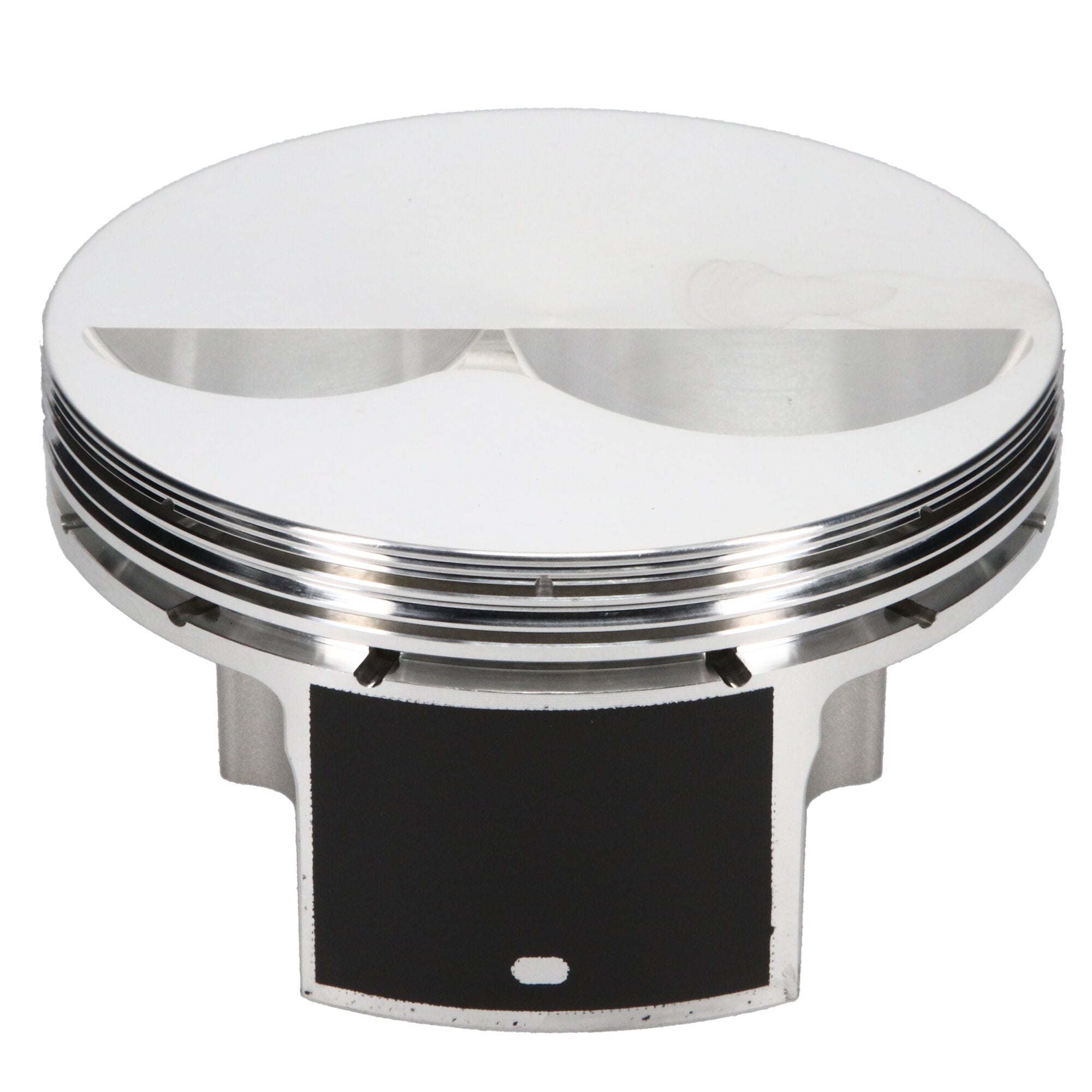

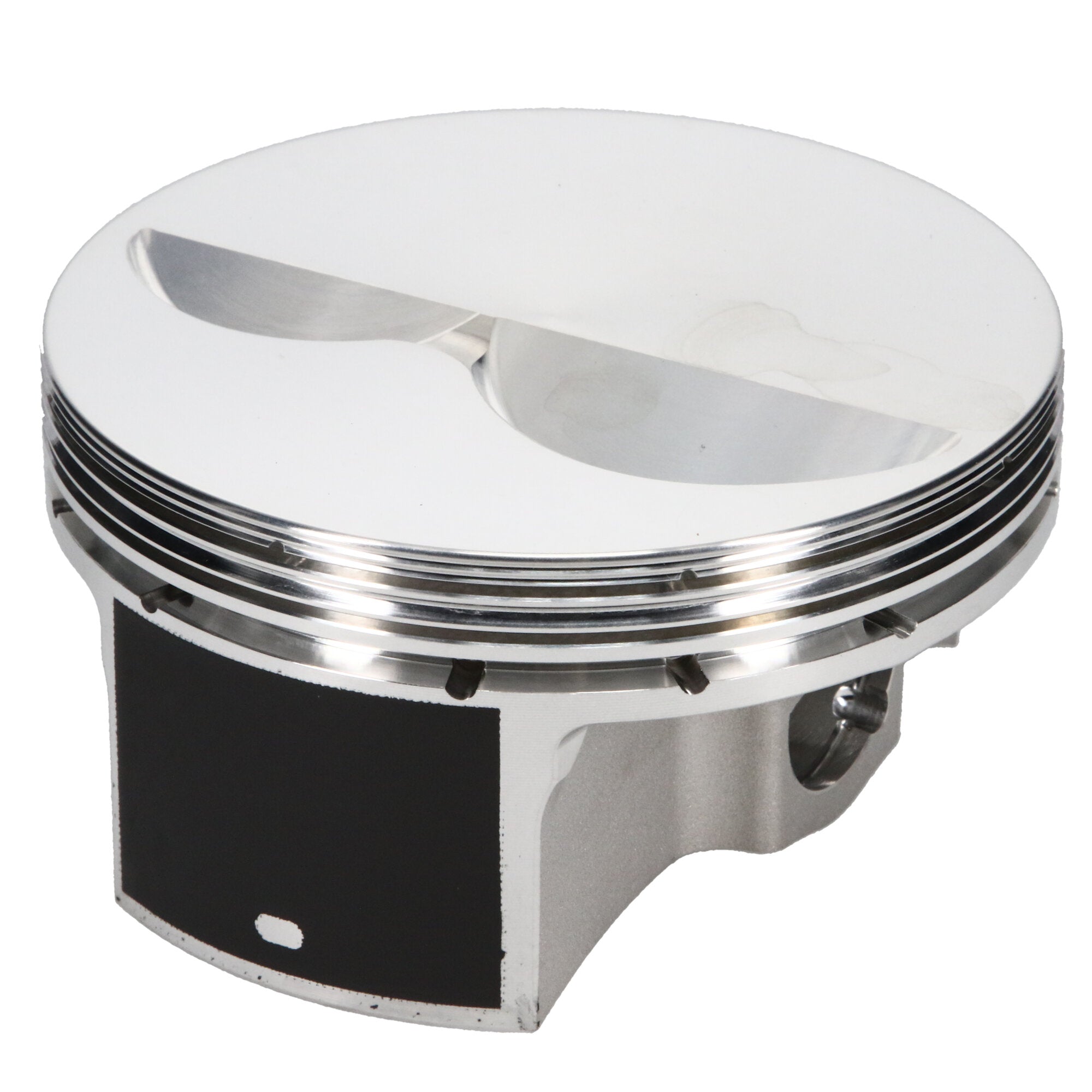

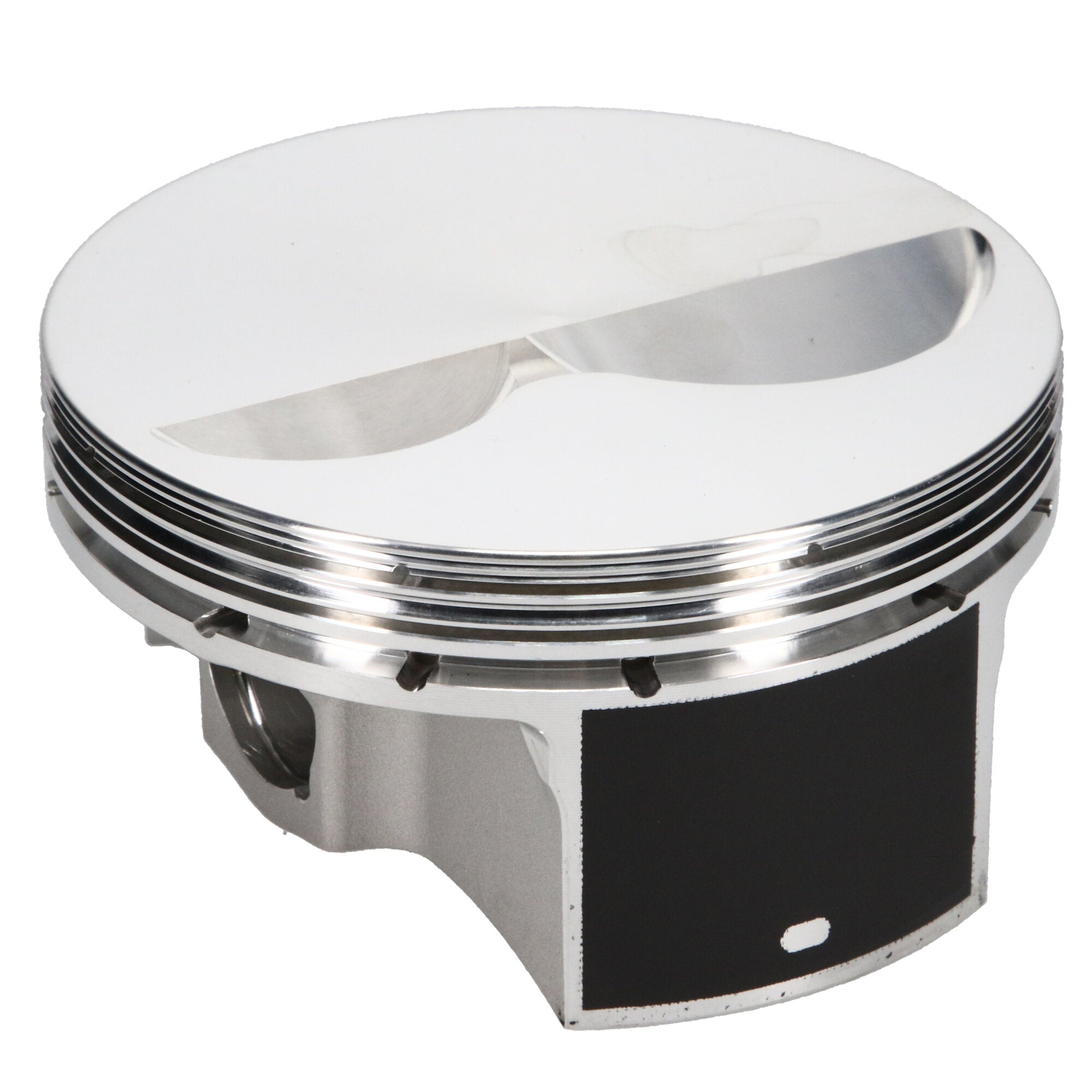

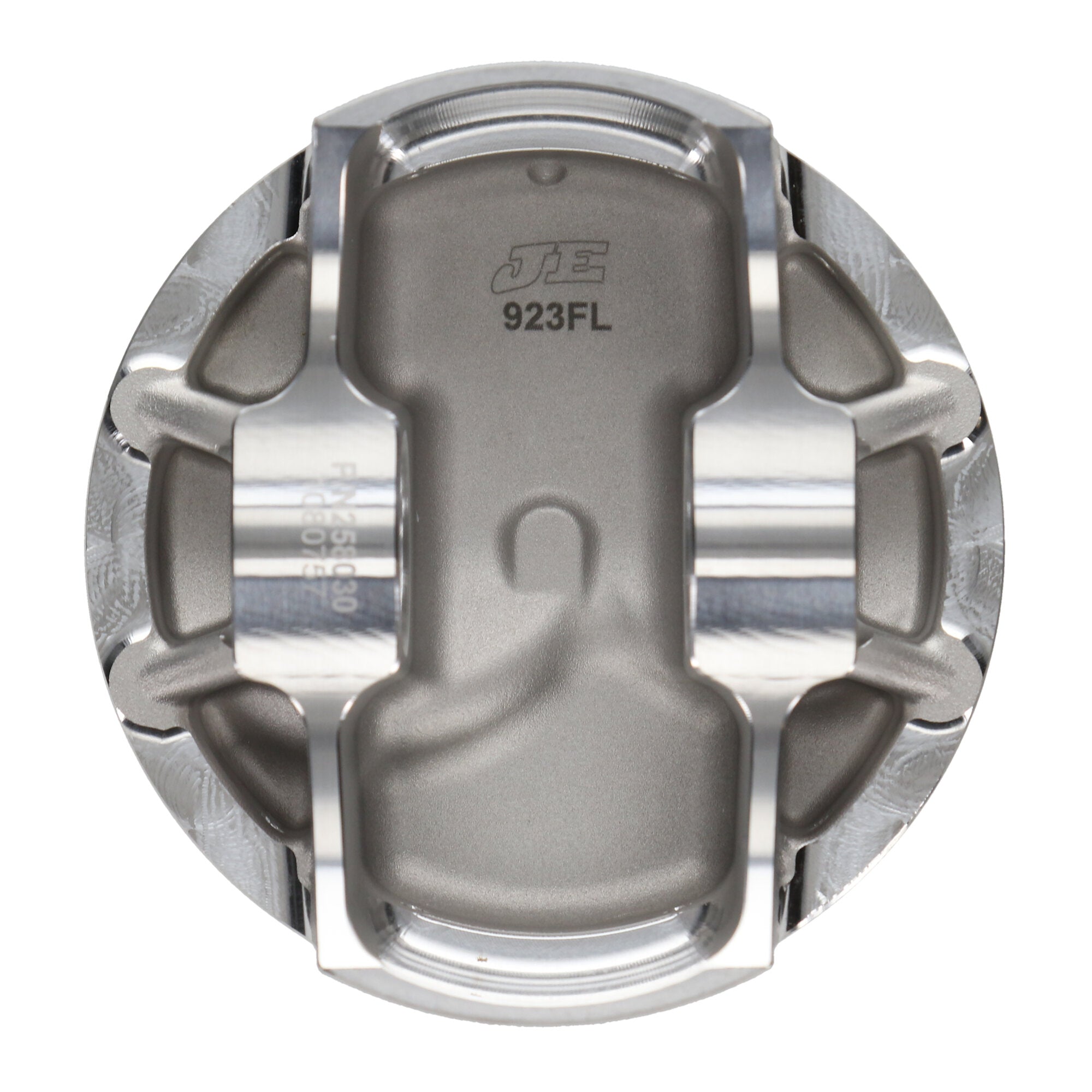

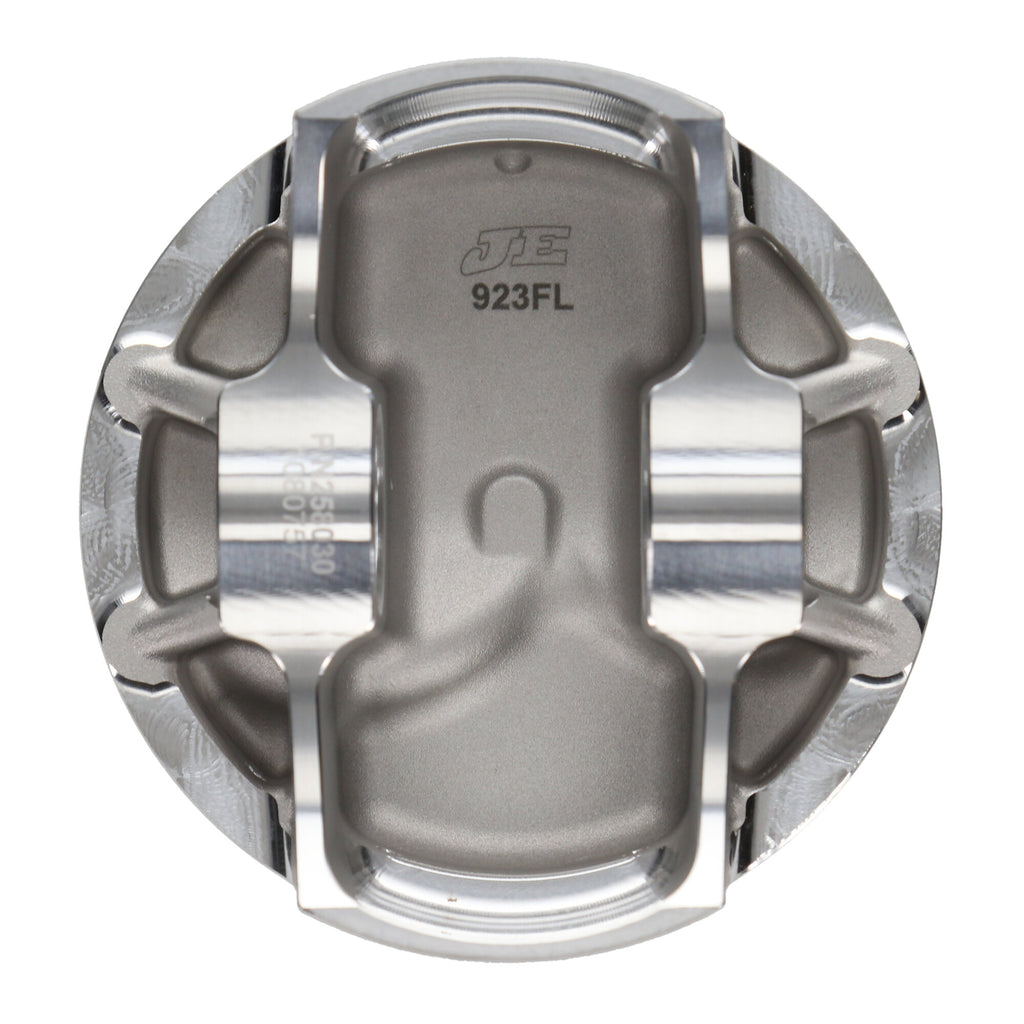

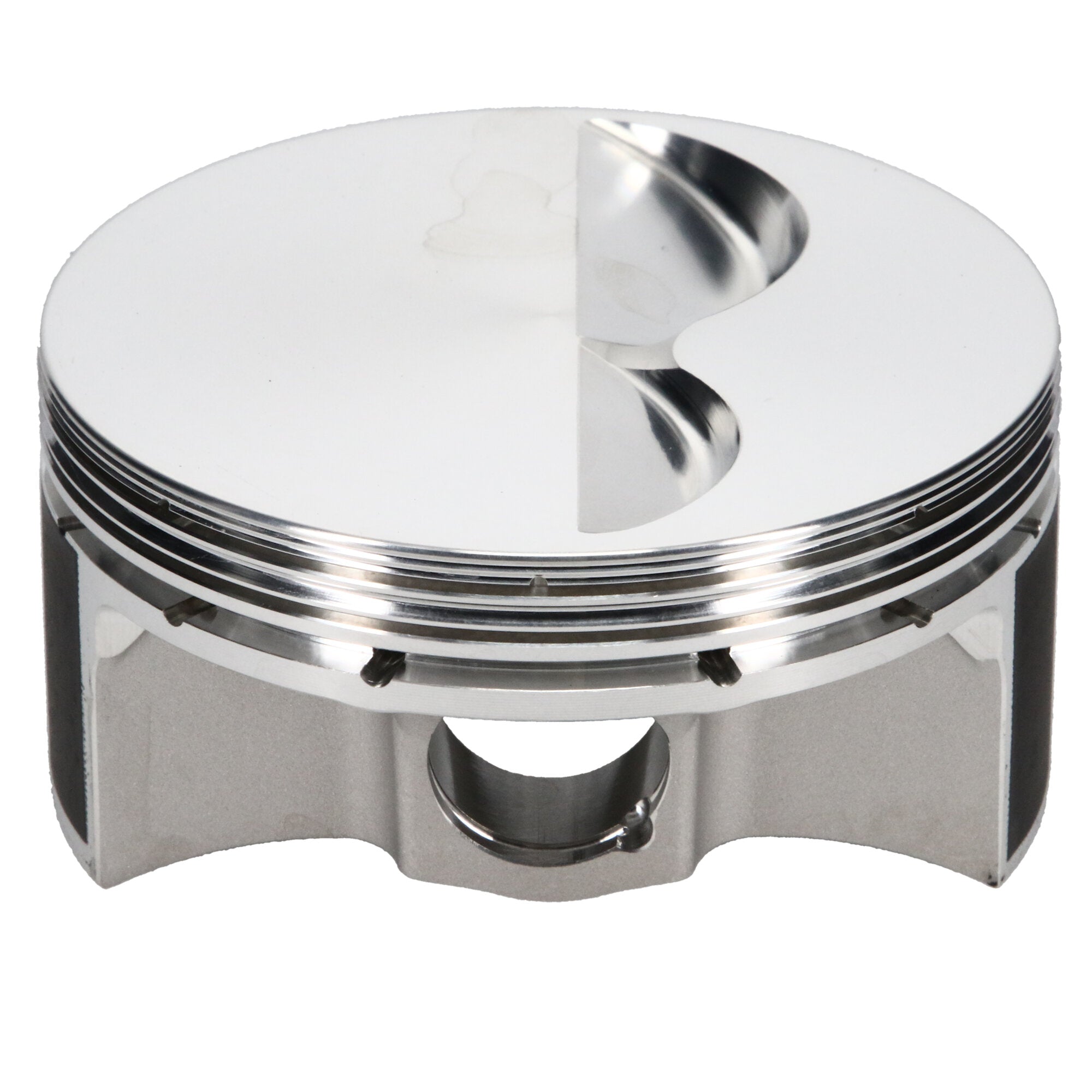

JE Pistons 258030 Piston Set, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 8.
2
sold in last
8
hours
$1,916.88
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
JE Pistons
ds_BHXG_258030
Engine Piston Kit
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
Description_ASM | Chevrolet Small Block 350 |
Description_DEF | Engine Piston Kit |
Description_DES | Piston Set, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
Description_INV | JE Pistons, Piston Kit |
Description_EXT | JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
Description_FAB |
|
Description_MKT | As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
Description_SHO | Piston Kit |
Description_TLE | Chevrolet 350, 4.040 Bore, Flat, Set of 8 |
Engine Type | ICE |
Piston Series | JE Pistons |
Piston Head Type | Flat |
Piston Pin Outside Diameter | 0.927 |
Wrist Pin Outer Diameter | 0.927 |
Title | JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
Product Market | Domestic |
Oil Ring Thickness | 0.119 |
Ringset Included | No |
Make | CHEVROLET |
Forging Type | FSR |
Wrist Pin Wall Thickness | 0.150 |
Engine | Small Block |
Prop 65 Yes/No | Yes |
Industry | Automotive |
Prop 65 (C, R or CR) | CR |
Add-On | 927-073-MW |
Piston Pin Wall Thickness | 0.150 |
Add-On | J71408-4040-5 |
Piston Volume | -5.00 |
Piston Pin Length | 2.350 |
Cylinder Head | CHEVROLET 23 DEG 20/30 |
Piston Material | 2618 |
Bore Diameter | 4.040 |
Top Compression Ring Thickness | 0.0436 |
Category Hierarchy | Auto>JE Pistons>Piston Kits>Domestic |
Compression Height | 1.250 |
Add-On | 927-2350-15-51C |
Piston Pin Material | 5115 |
Piston Quantity | 8 |
Piston Average Weight | 366 |
Ring Set Included | No |
Make - Web | Chevrolet |
Wrist Pin Length | 2.350 |
Engine - Web | Small Block |
Second Compression Ring Thickness | 0.0440 |
Product Type | Engine Piston Kit |
Title - Web | JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.250 in. CH, -5.00 CC |
Out of Stock Message | Call for Availability |
Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
Prop 65 - Short Label | Prop 65 Warning Label.JPG |
Length | 6.0000 |
Width | 12.0000 |
Height | 26.0000 |
Weight | 13.0000 |
