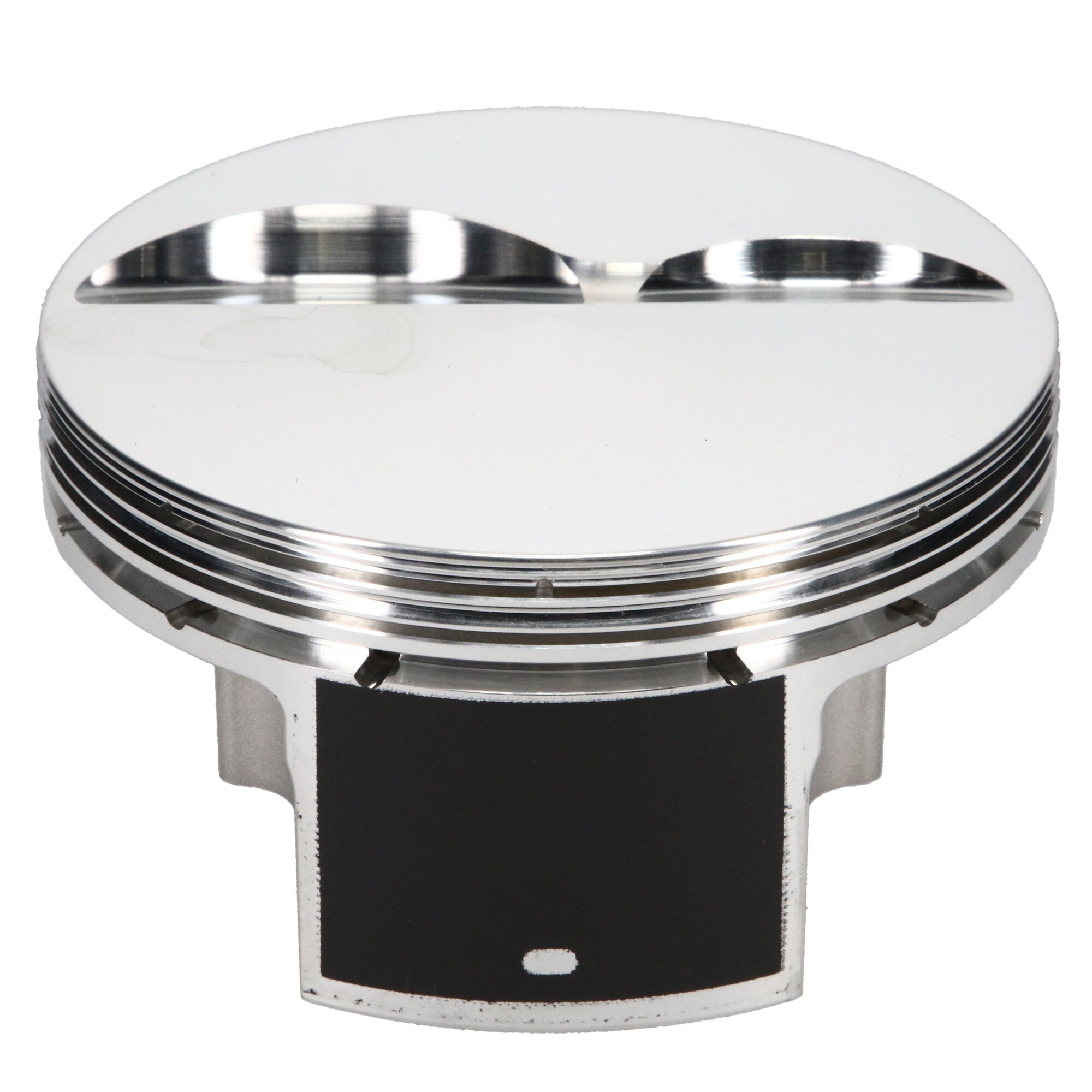

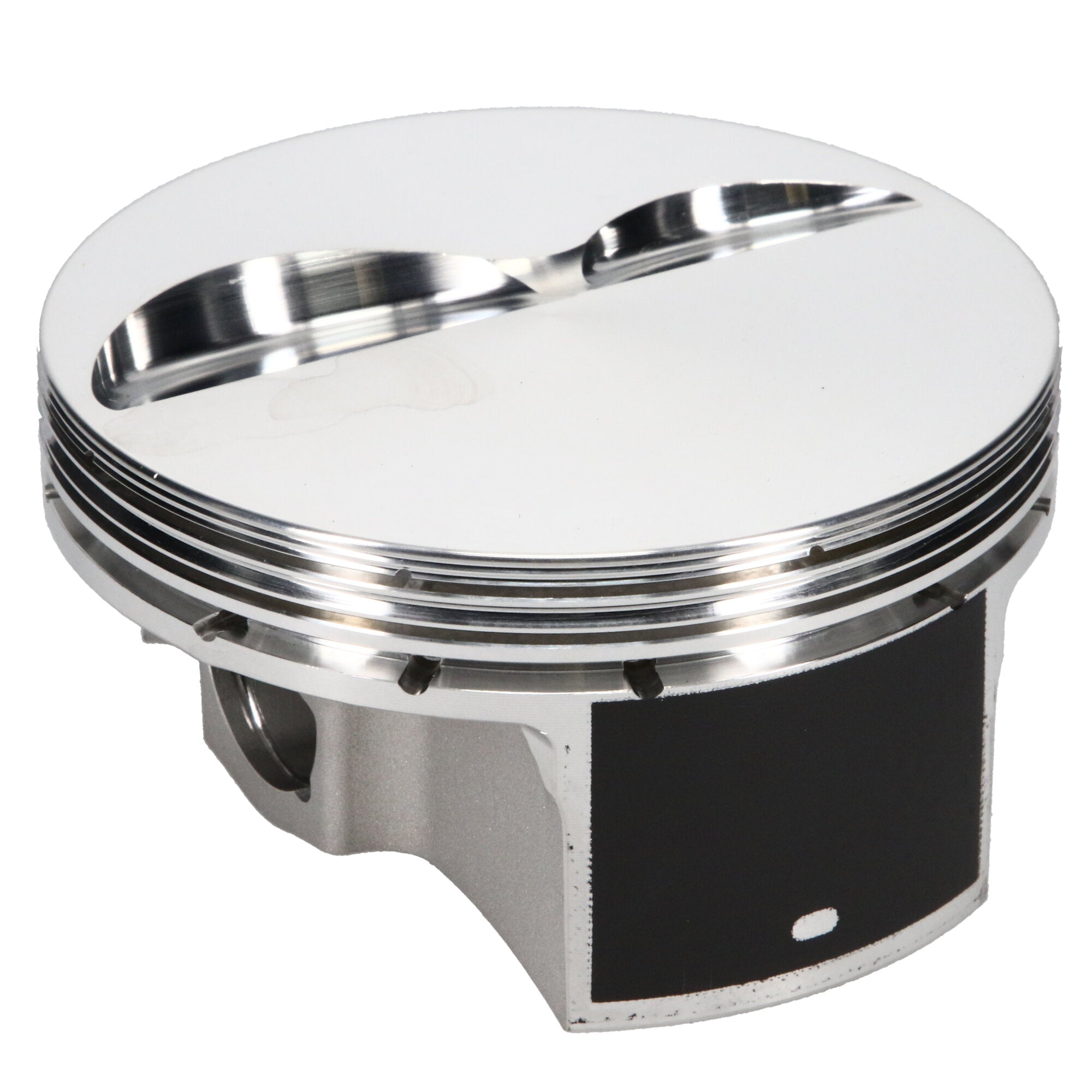

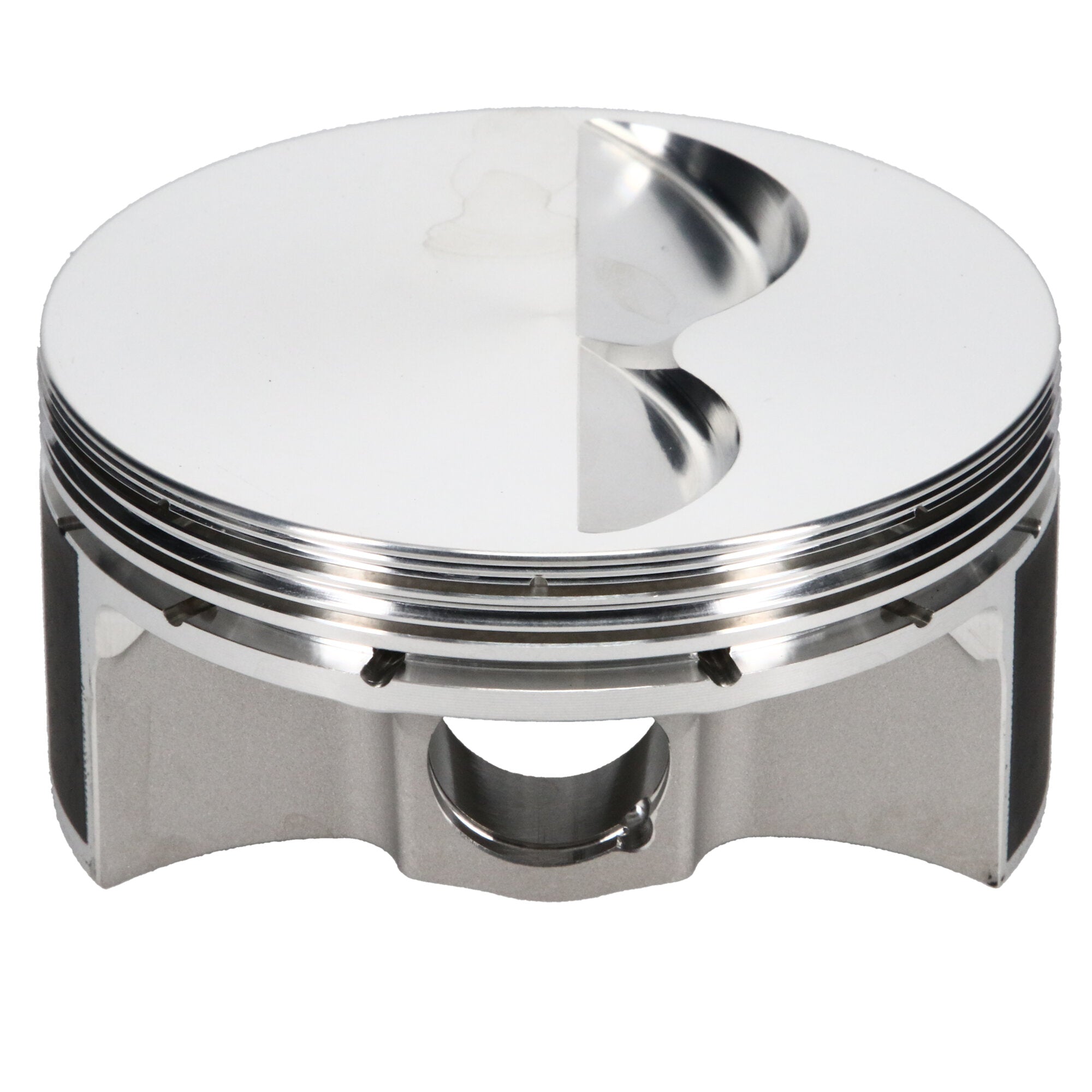

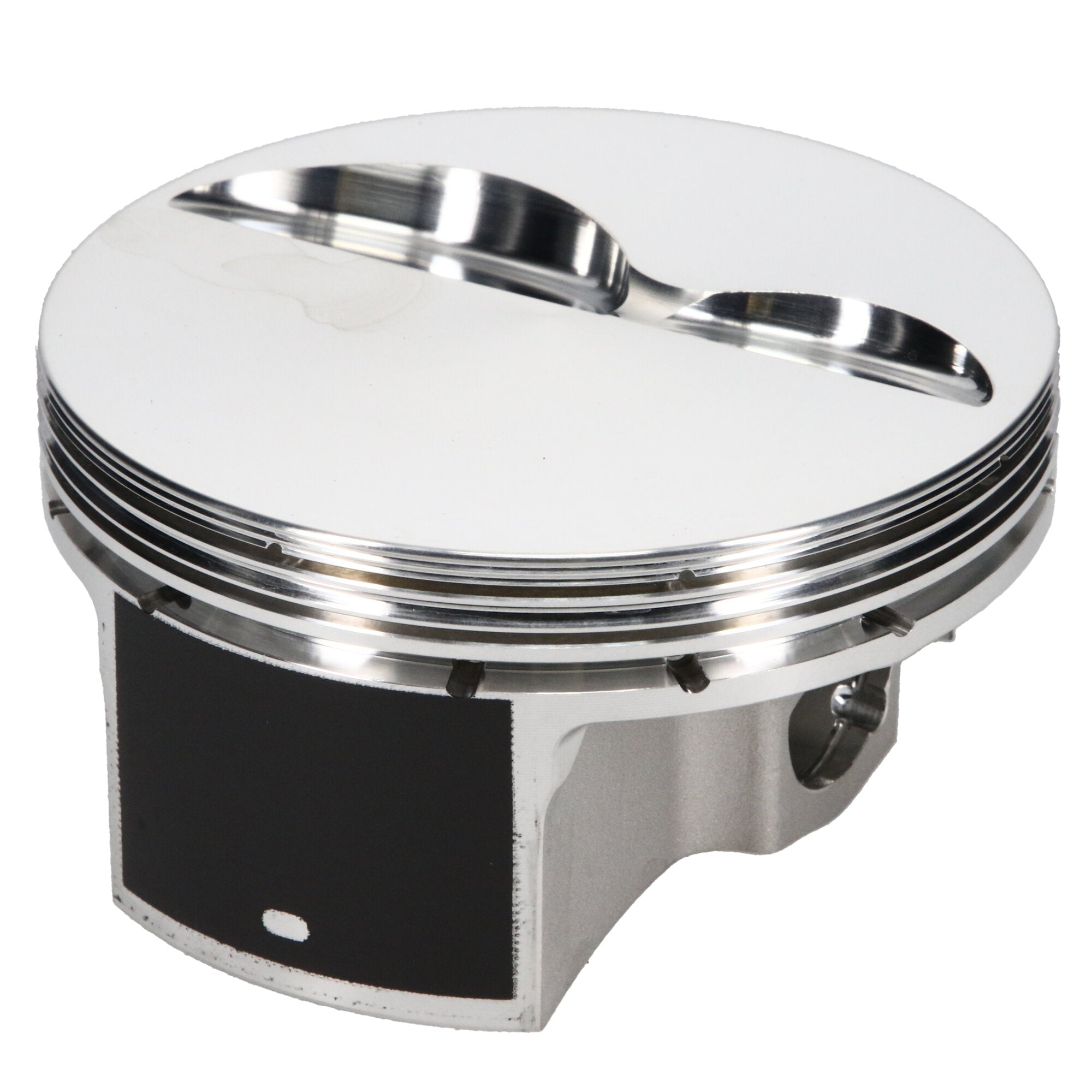

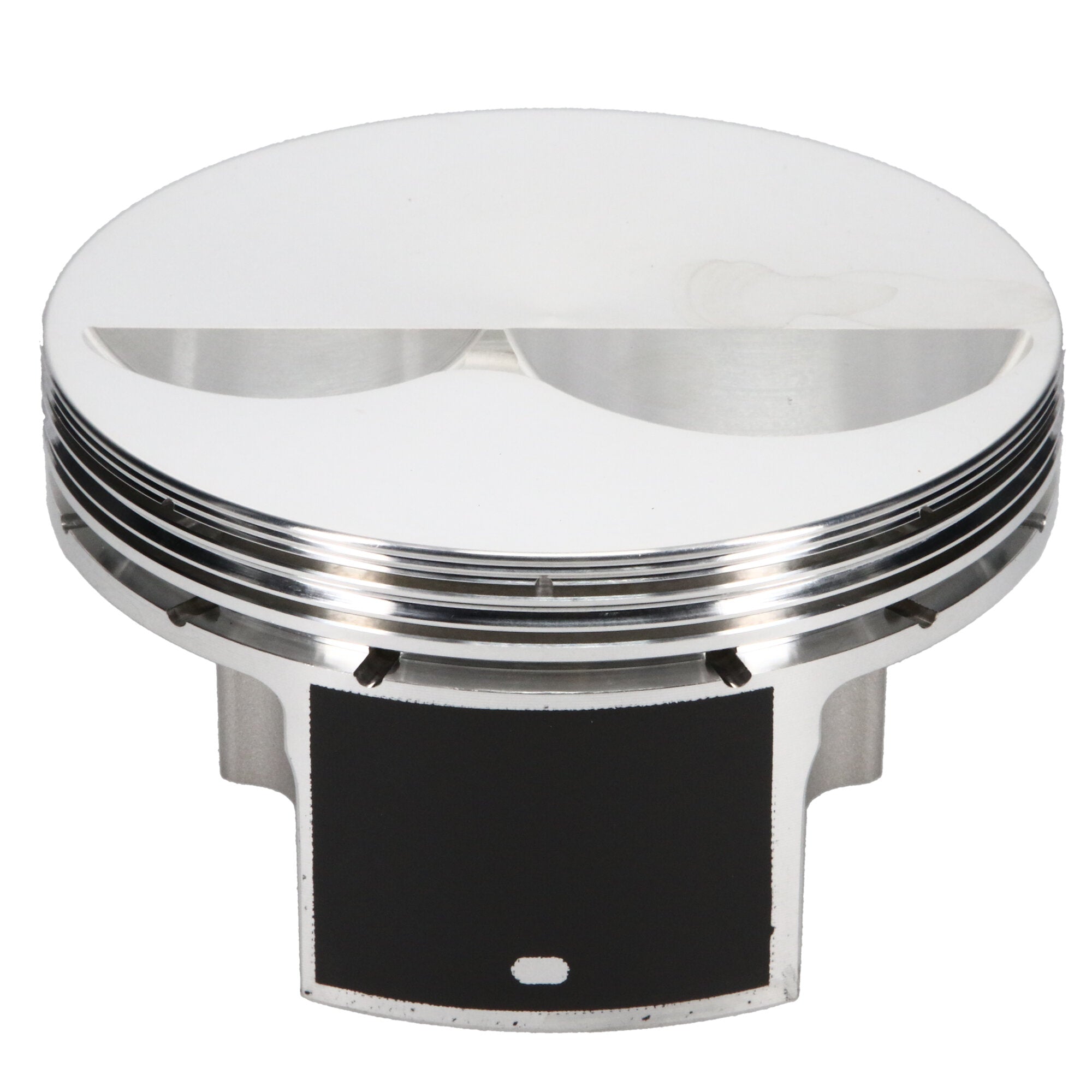

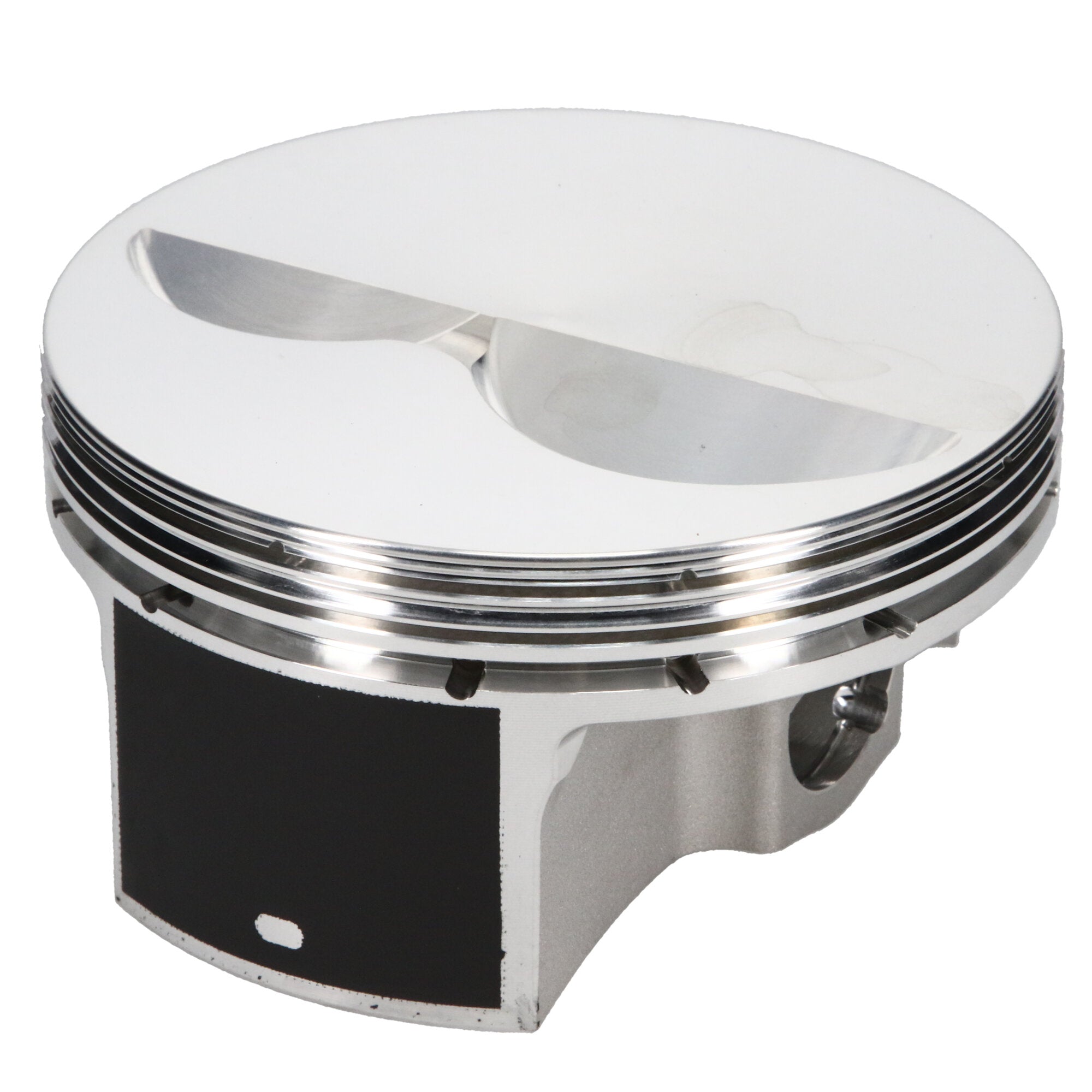

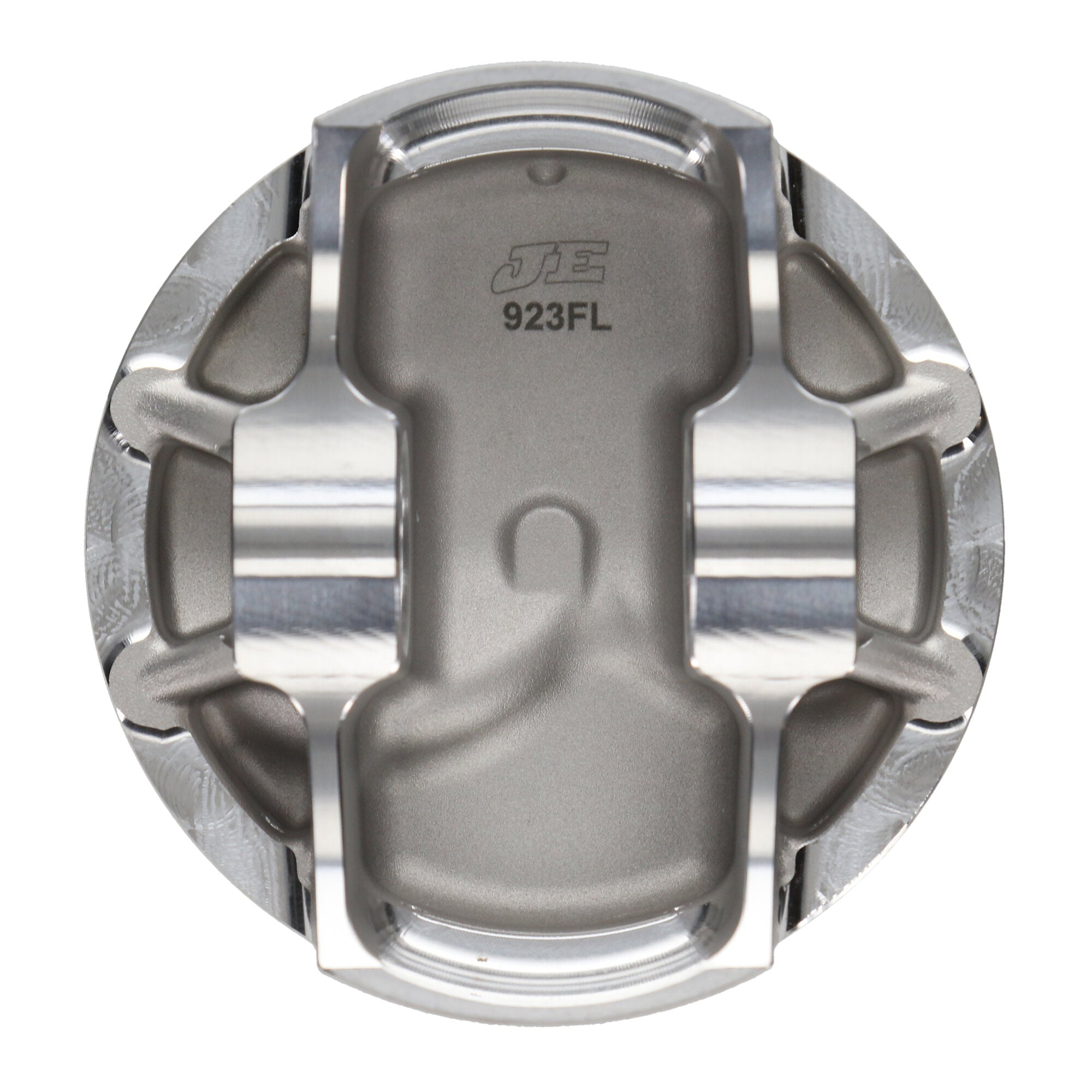

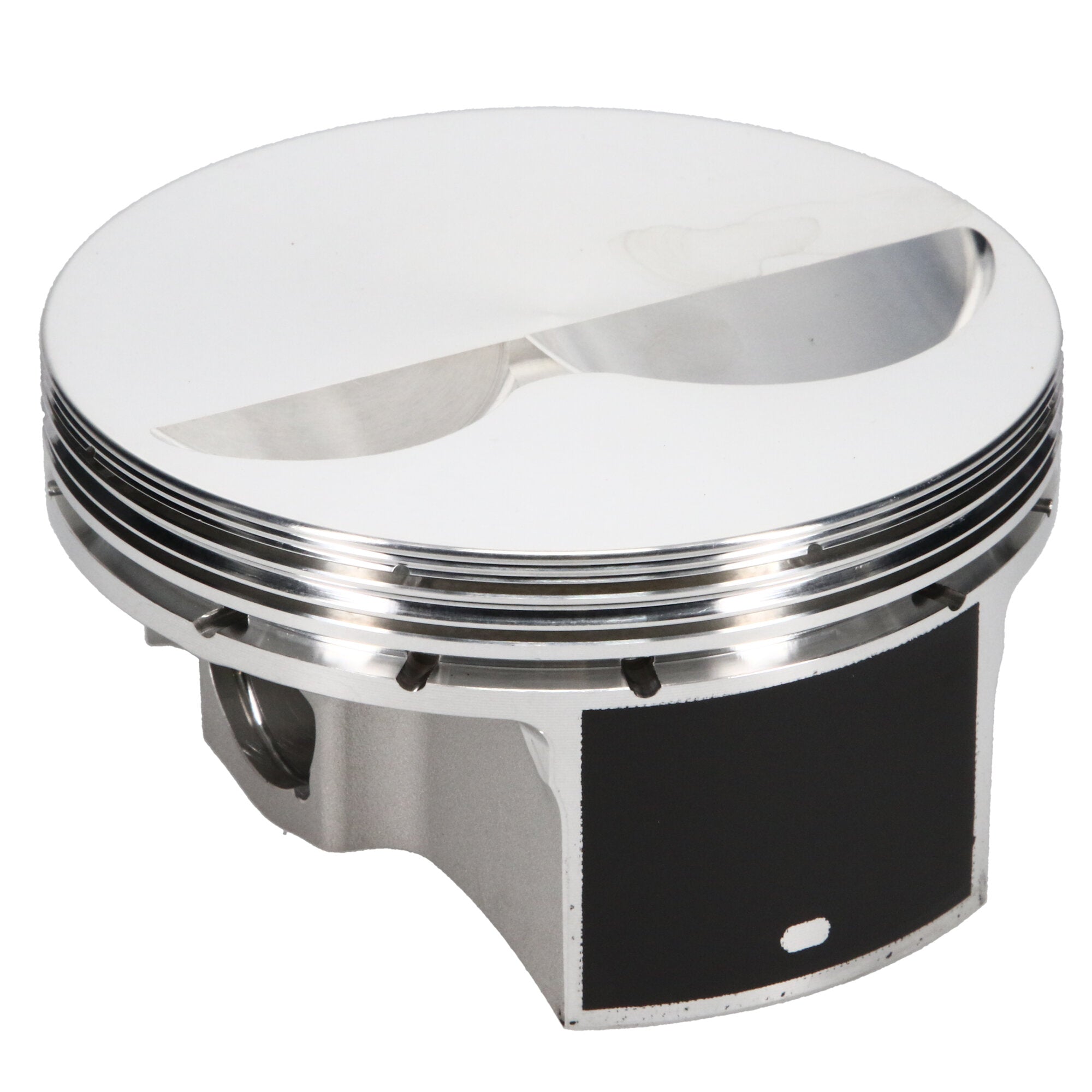

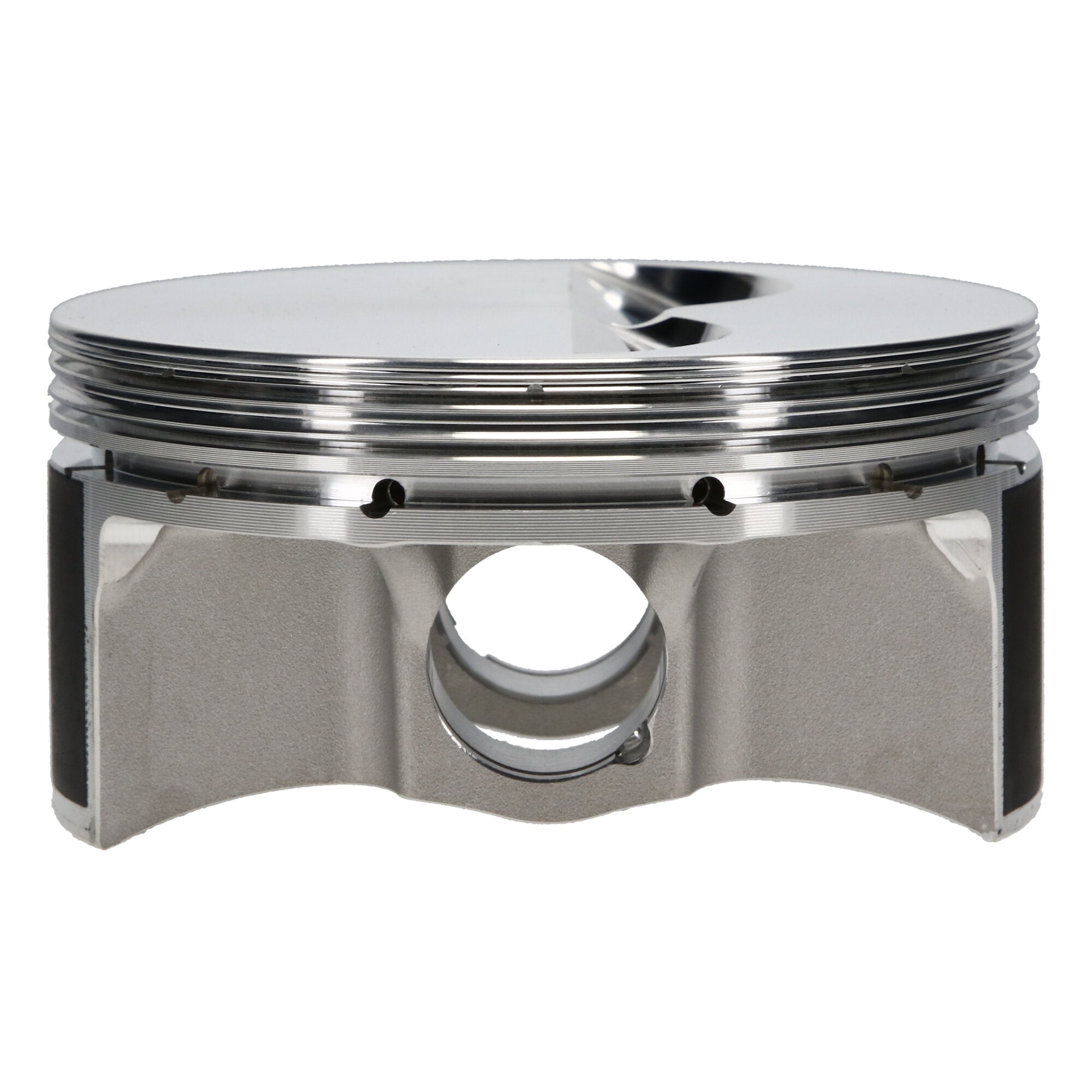

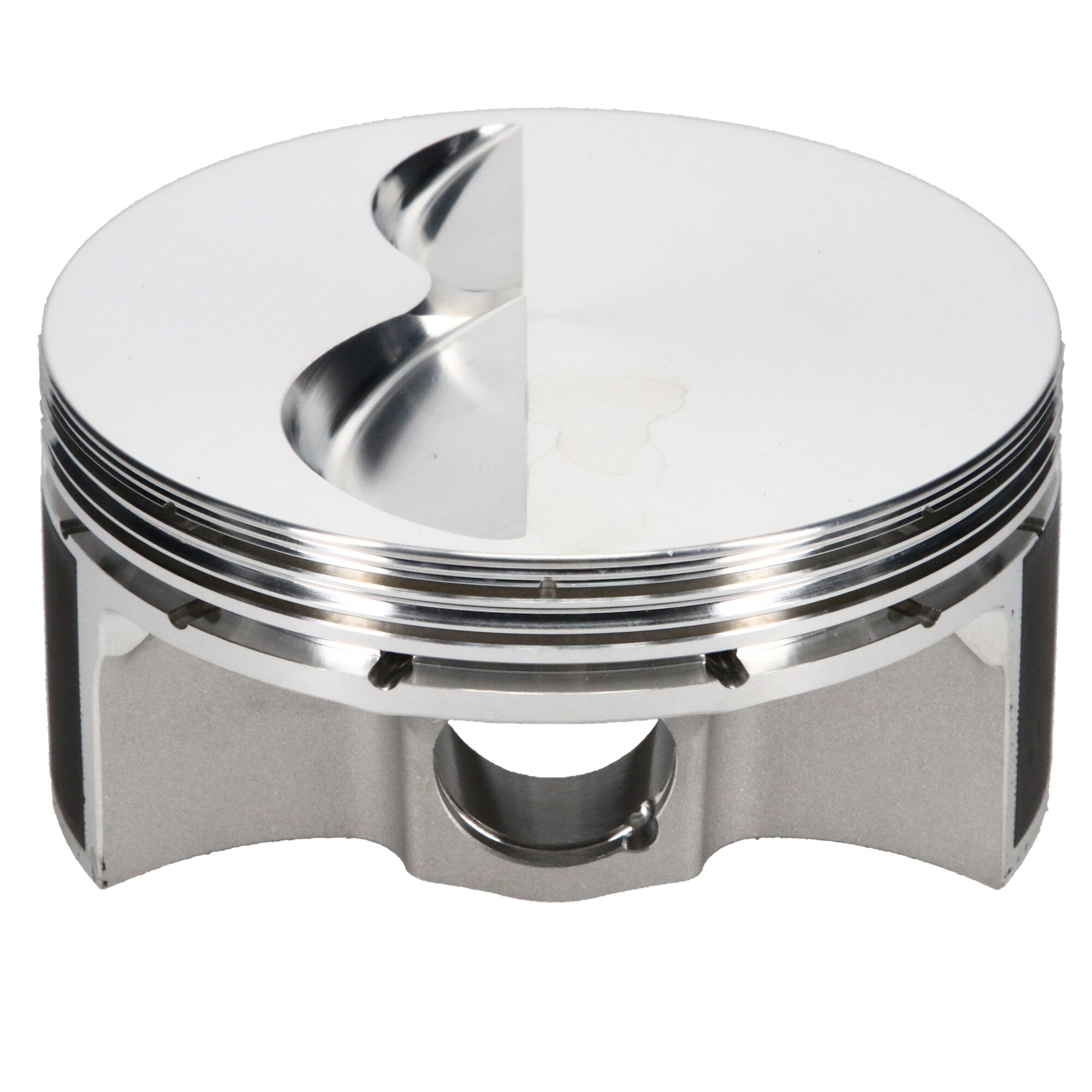

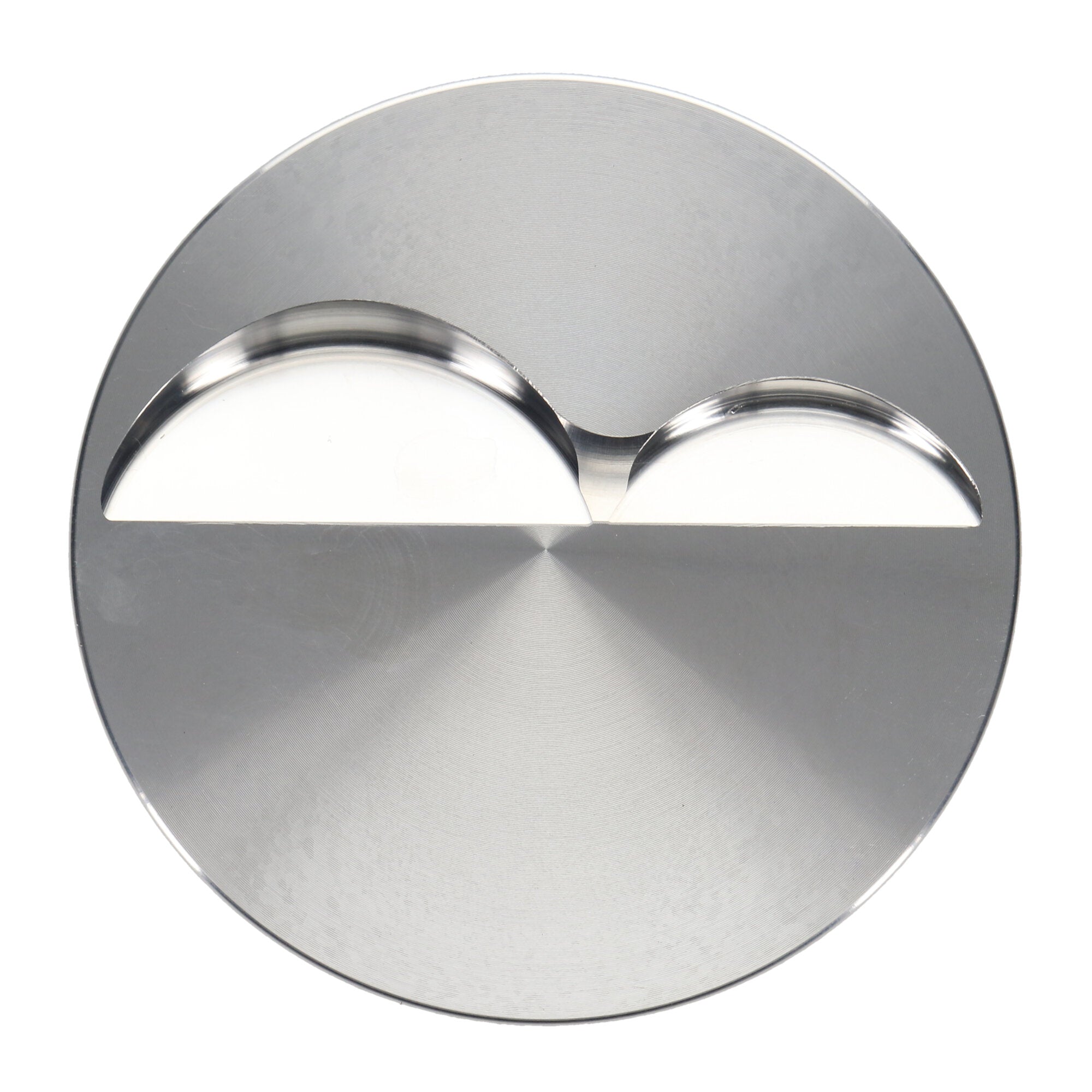

  • JE Pistons 258028R Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.250-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

JE Pistons 258028R Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_258028R
Engine Piston
$343.75
customers are viewing this product
JE Pistons 258219S Piston Single, 2618, Dome, 4.560 Bore, 1.120 CD, 0.990 Pin, Set of 1.
JE Pistons 258219S Piston Single, 2618, Dome, 4.560 Bore, 1.120 CD, 0.990 Pin, Set of 1.
$332.60
Manley Performance 596410PC-1 Manley Piston Single, PIST-4.135/1.065 CD/DISH
Manley Performance 596410PC-1 Manley Piston Single, PIST-4.135/1.065 CD/DISH
$190.49
JE Pistons 258028R Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Flat Top, Right Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 1.
Description_SHO Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Second Compression Ring Thickness 0.0440
Prop 65 Yes/No Yes
Ring Set Included No
Piston Volume -4.10
Cylinder Head CHEVROLET 23 DEG 20/30
Industry Automotive
Add-On 927-073-MW
Add-On 927-2350-15-51C
Product Type Engine Piston
Add-On J71408-4030-5
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 (C, R or CR) CR
Title - Web JE Pistons Chevrolet Small Block Piston - 4.030 in. Bore - 1.250 in. CH, -4.10 CC
Out of Stock Message Call for Availability
Piston Material 2618
Engine Small Block
Make - Web Chevrolet
Engine Type ICE
Oil Ring Thickness 0.119
Piston Pin Outside Diameter 0.927
Ringset Included No
Piston Head Type Flat
Top Compression Ring Thickness 0.0436
Make CHEVROLET
Piston Series JE Pistons
Piston Pin Material 5115
Forging Type FSR
Piston Average Weight 366
Bore Diameter 4.030
Piston Pin Length 2.350
Piston Pin Wall Thickness 0.150
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Product Market Domestic
Wrist Pin Wall Thickness 0.150
Title JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston
Compression Height 1.250
Piston Quantity 1
Piston Orientation Right
Wrist Pin Length 2.350
Engine - Web Small Block
Wrist Pin Outer Diameter 0.927
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
