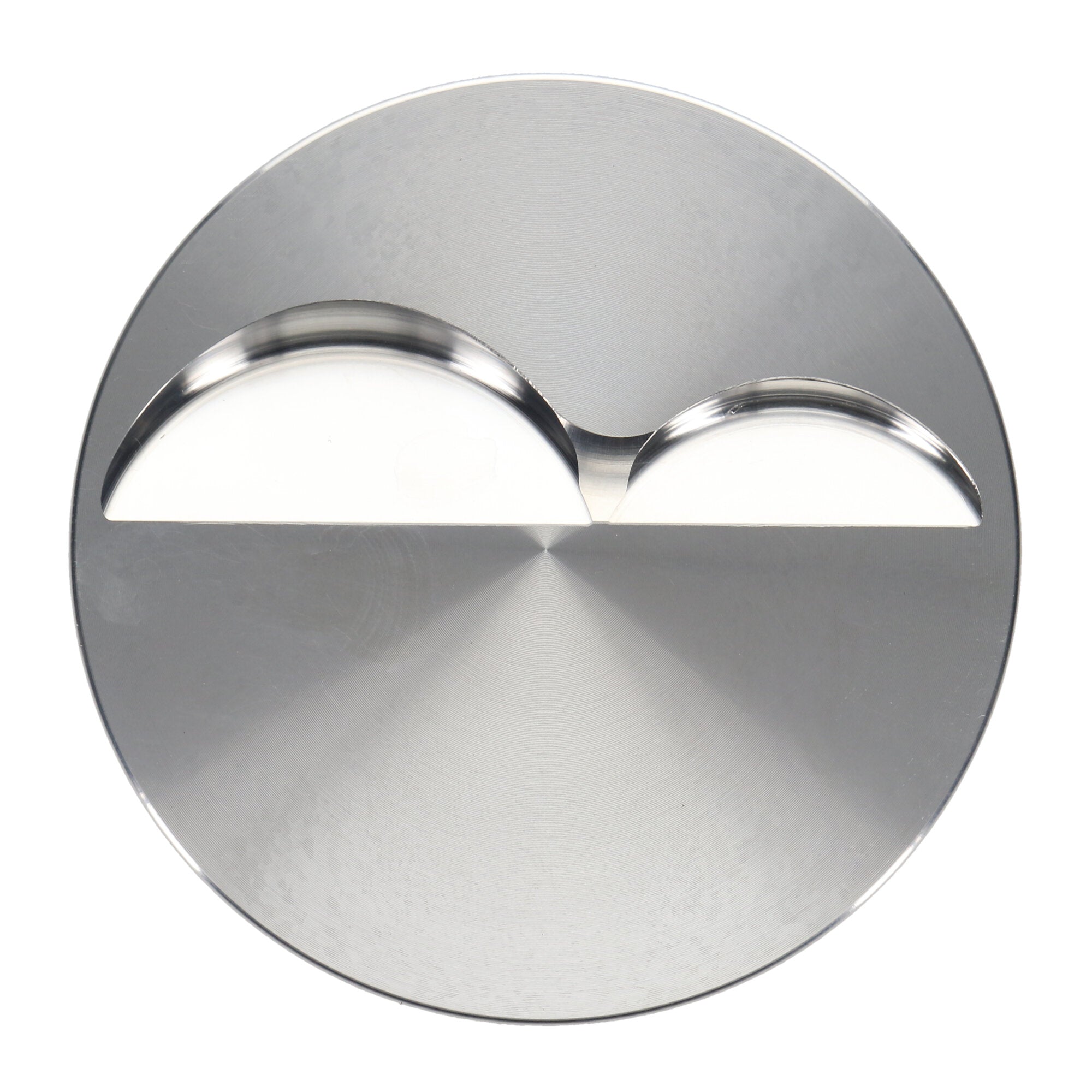

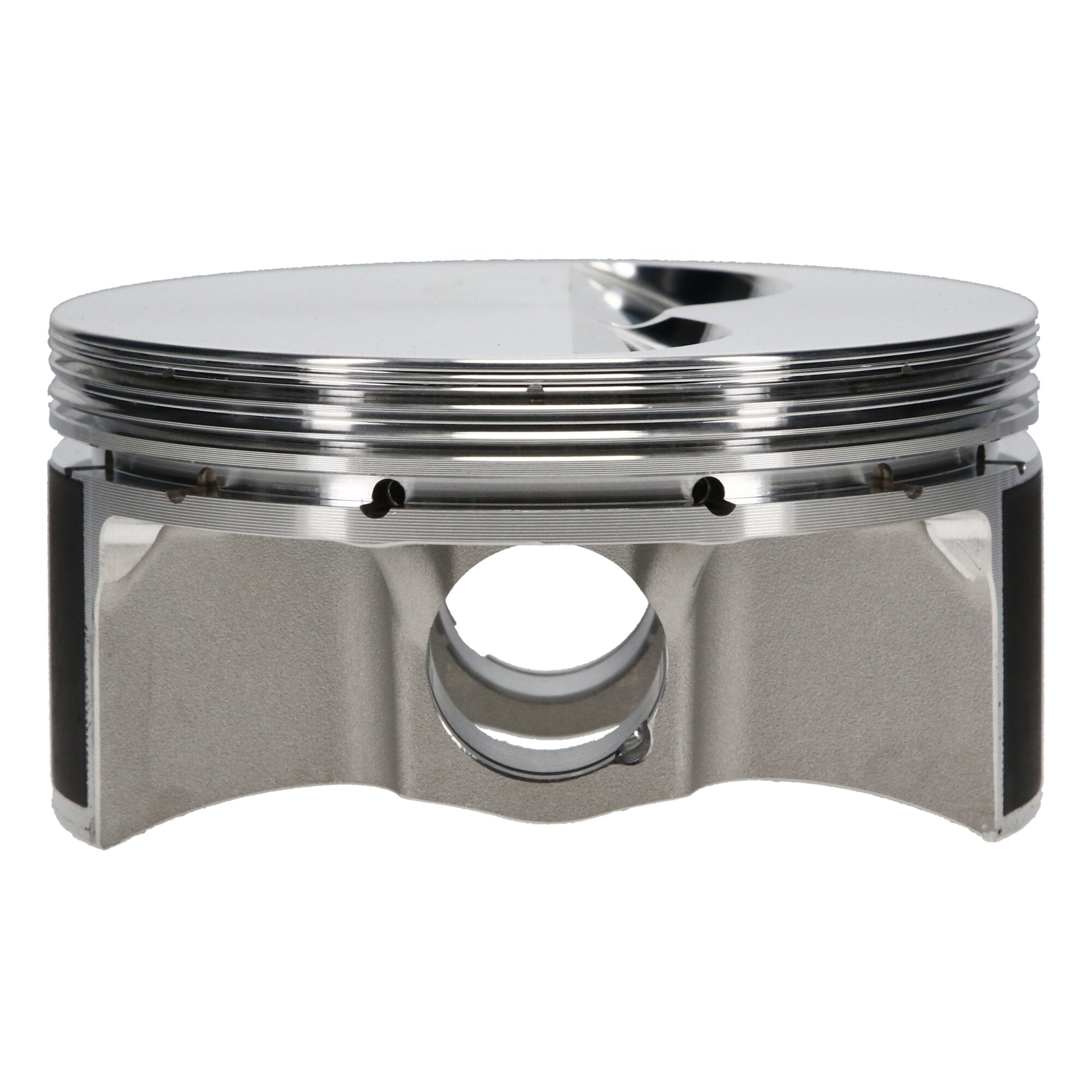

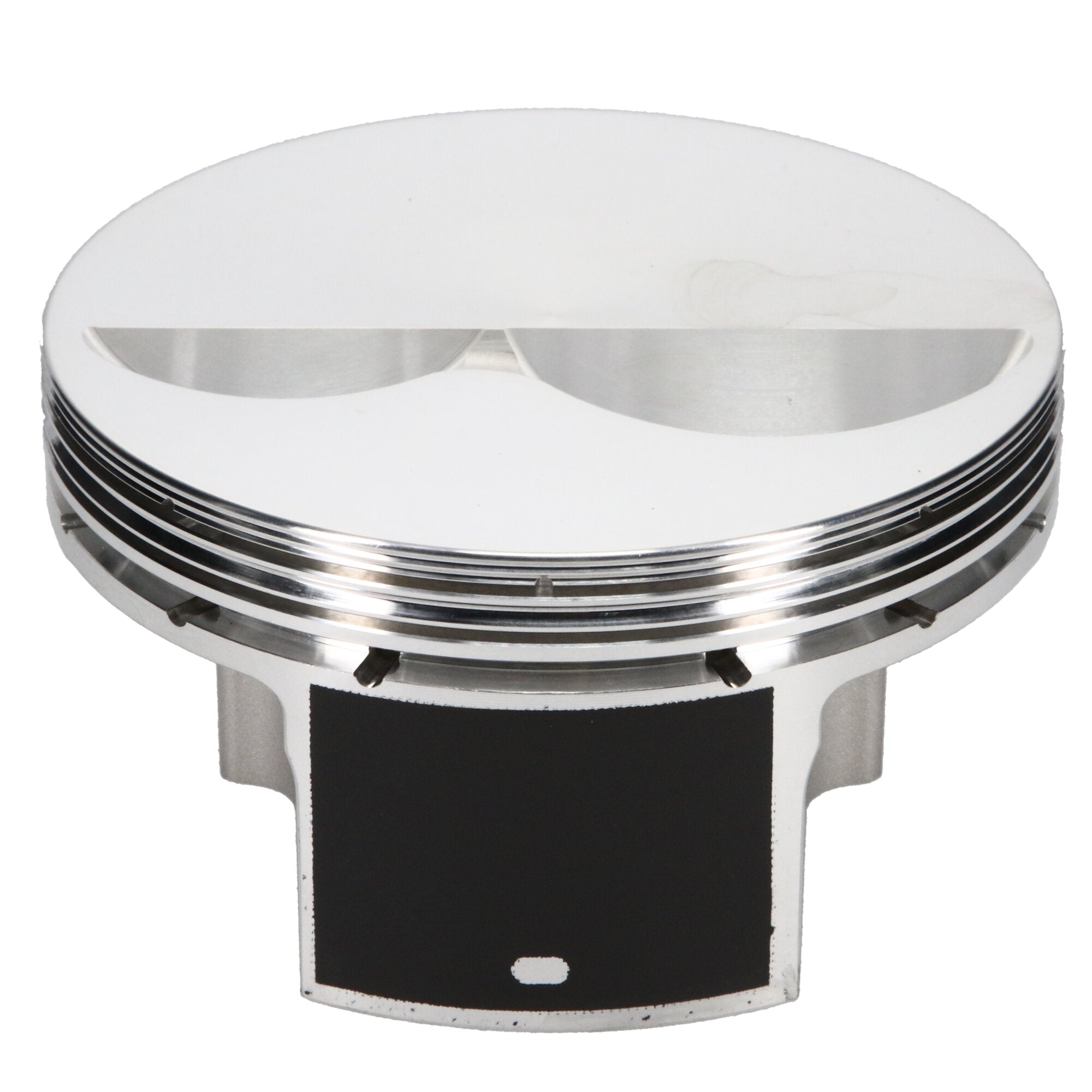

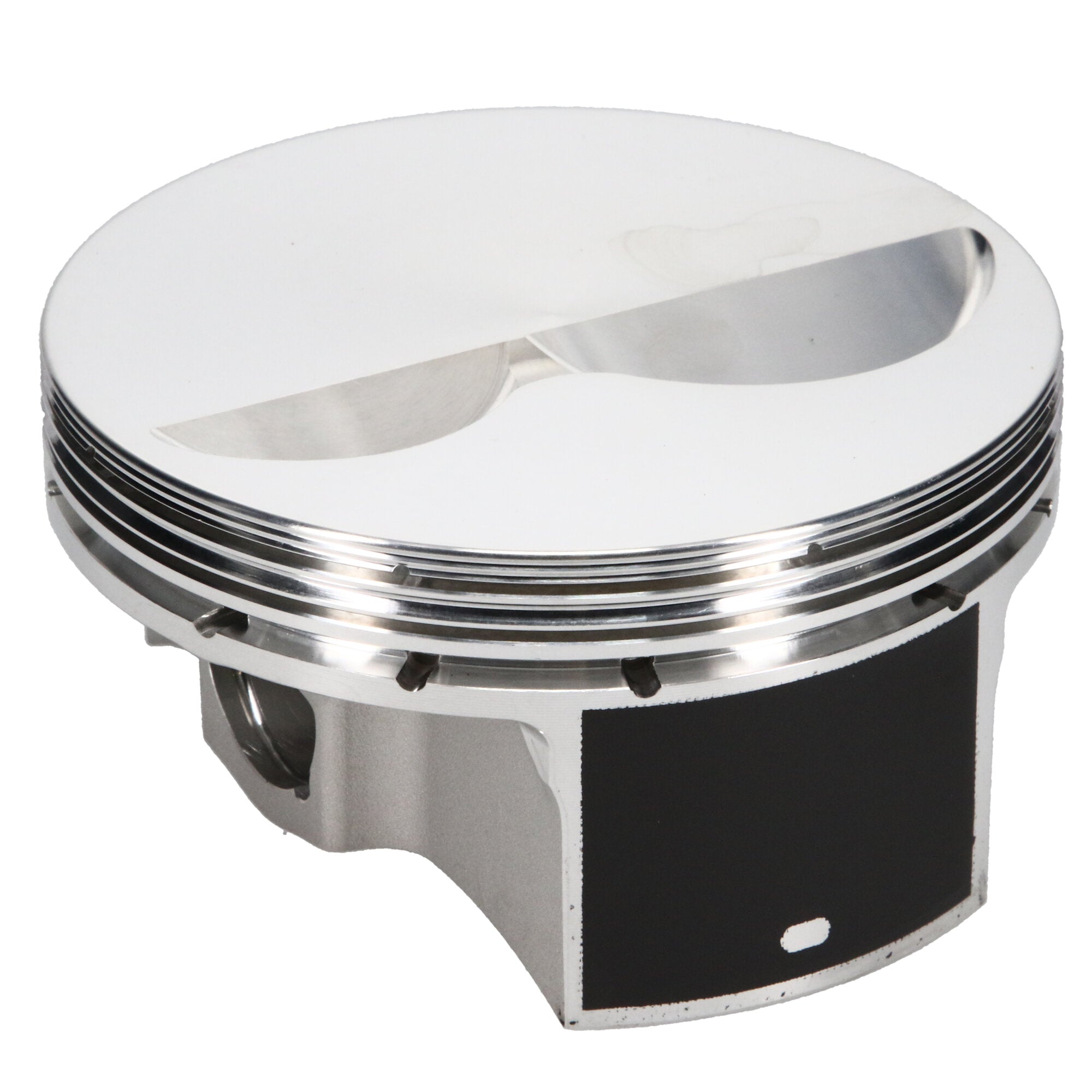

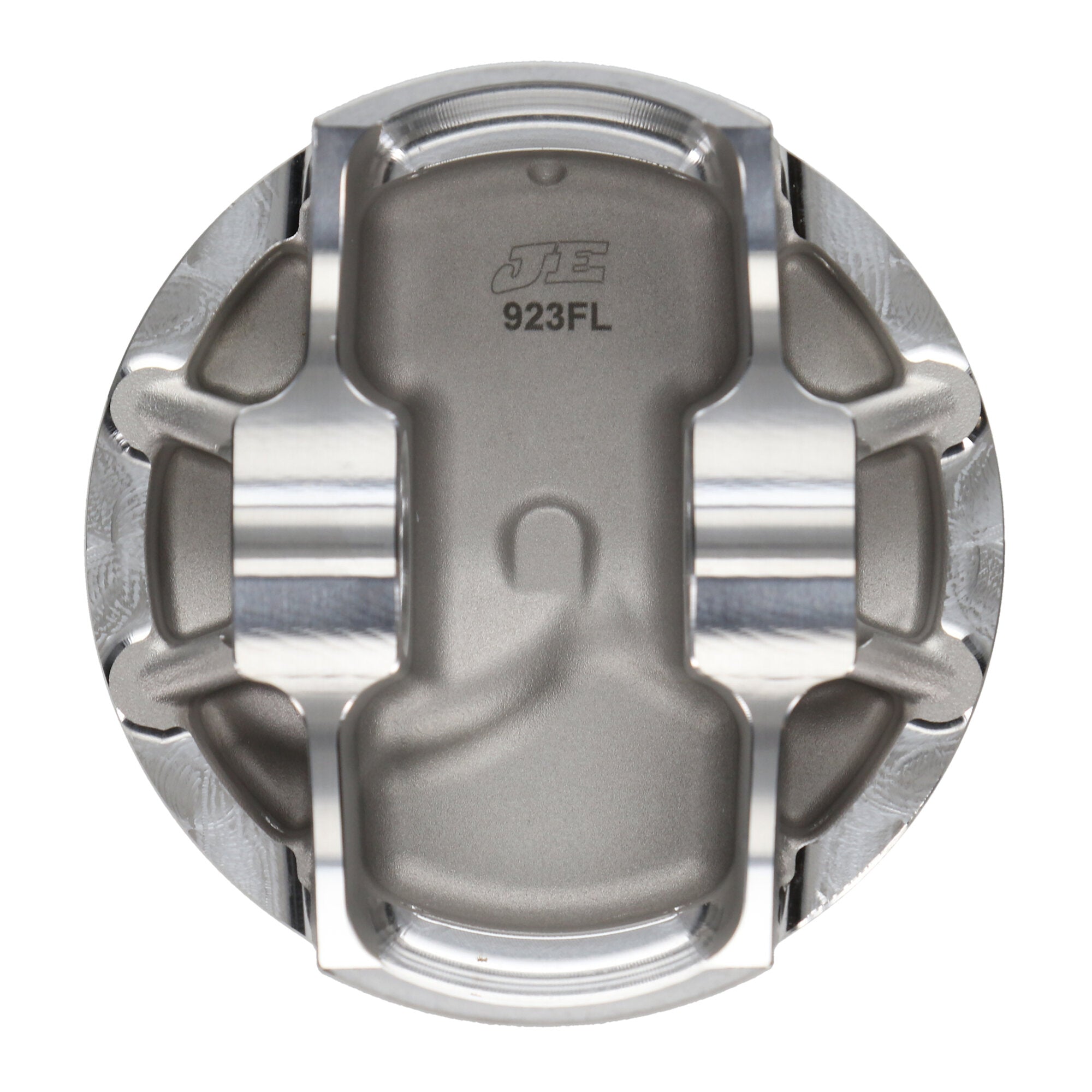

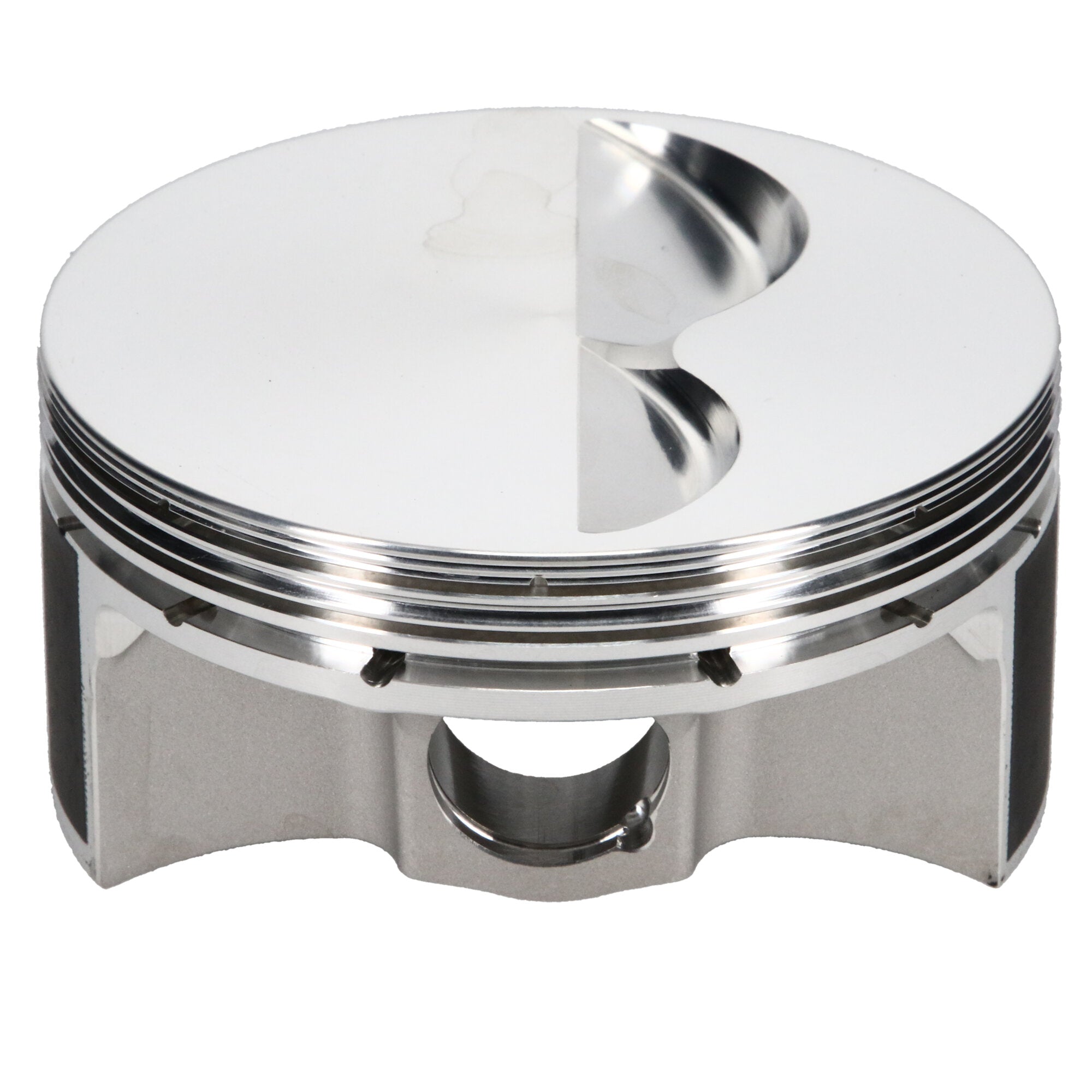

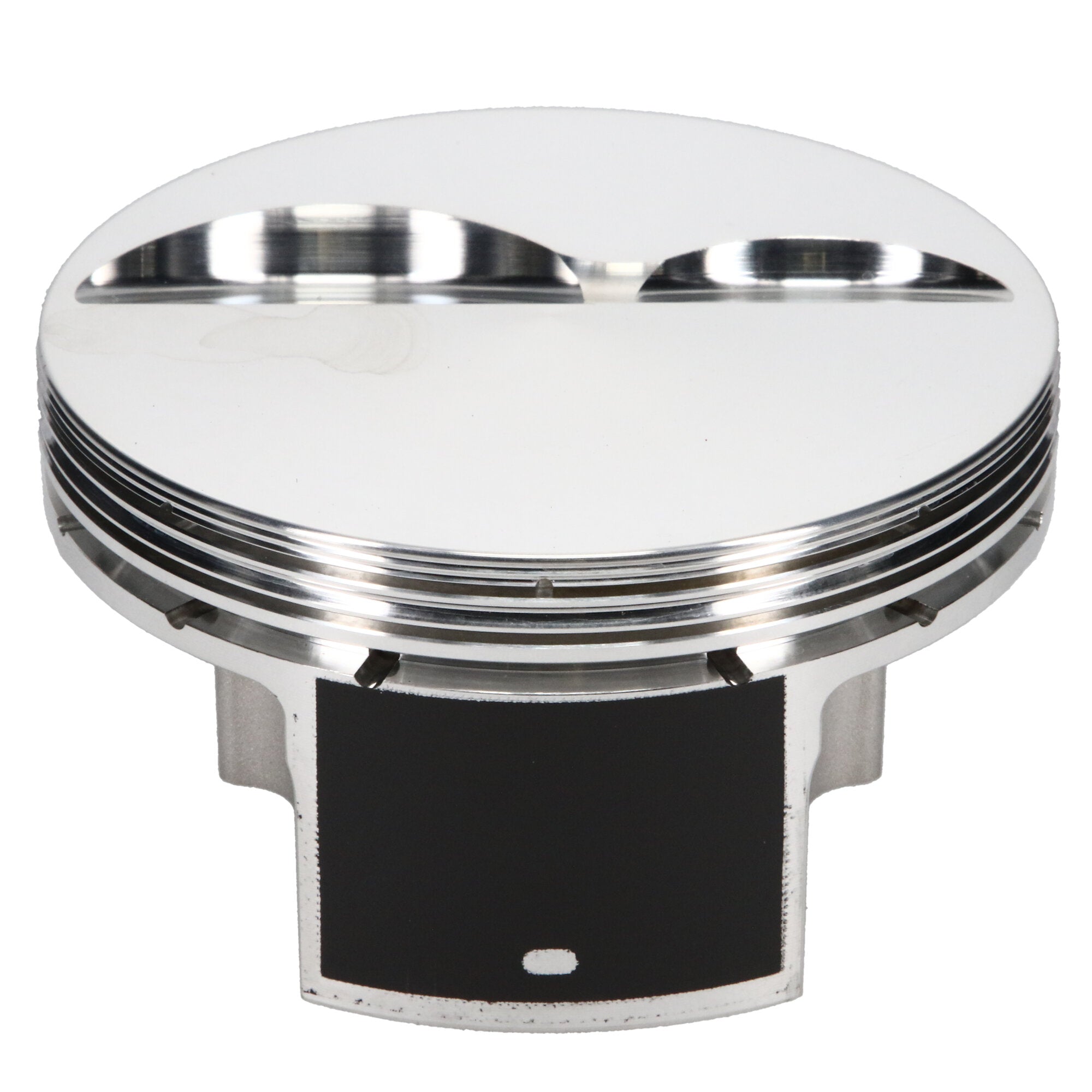

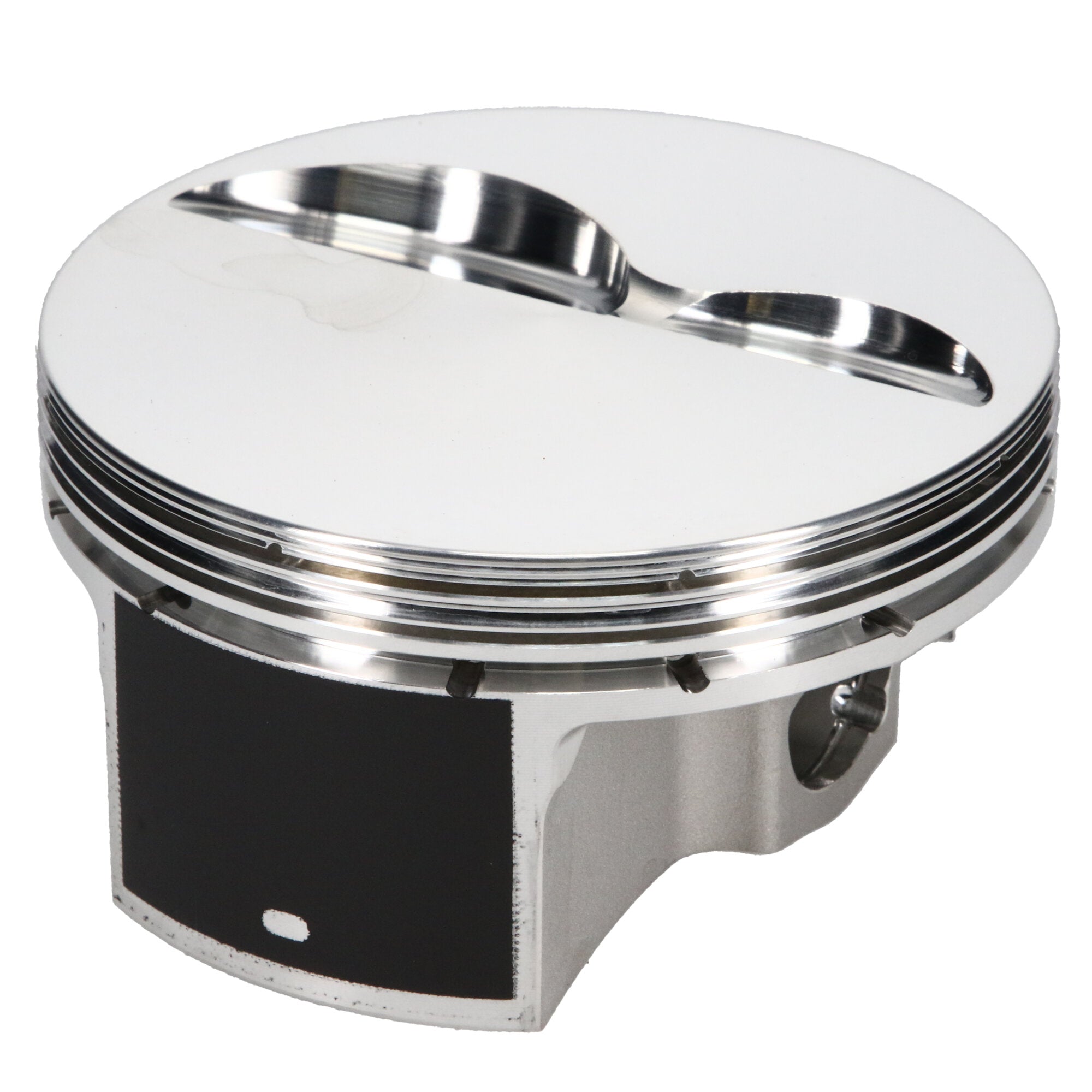

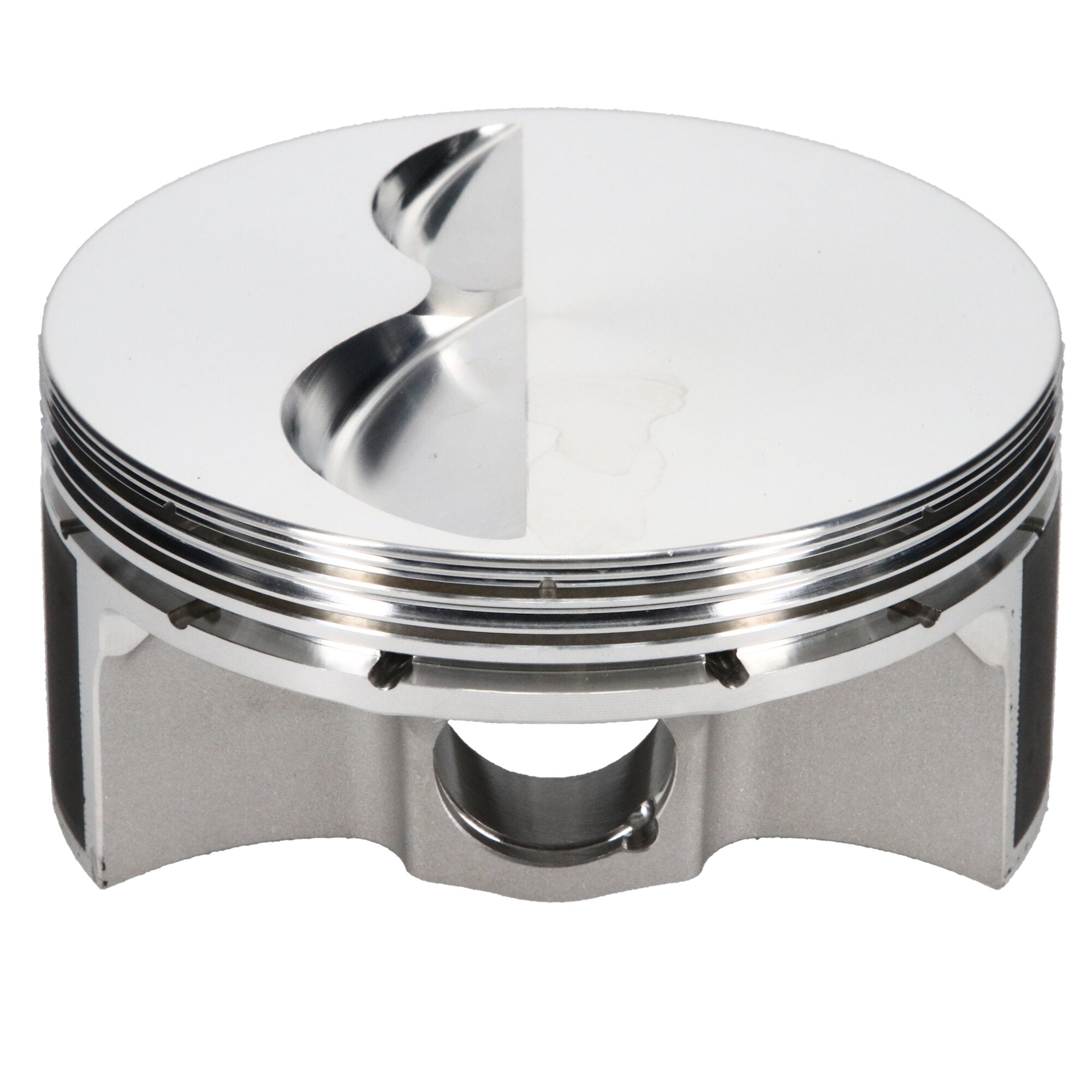

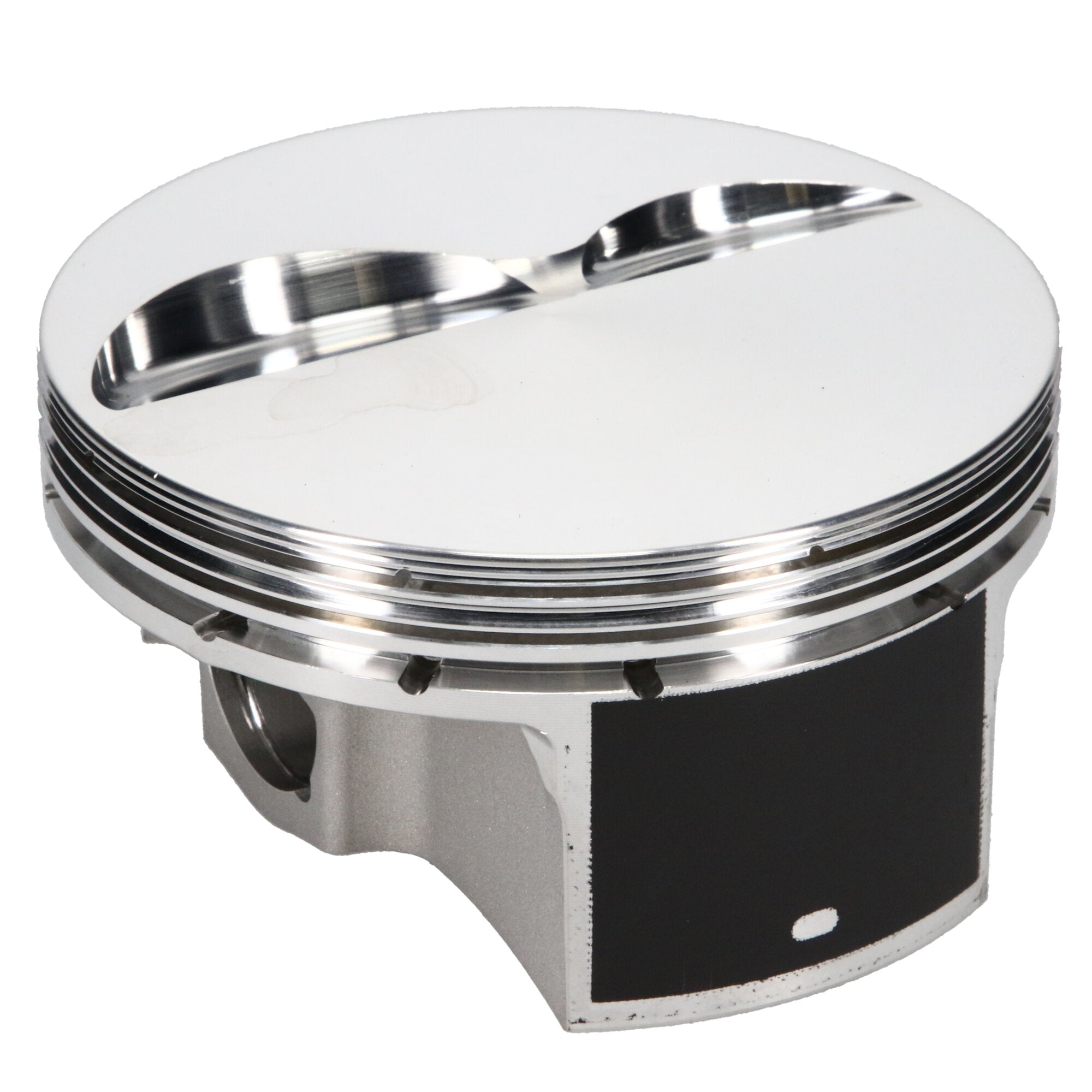

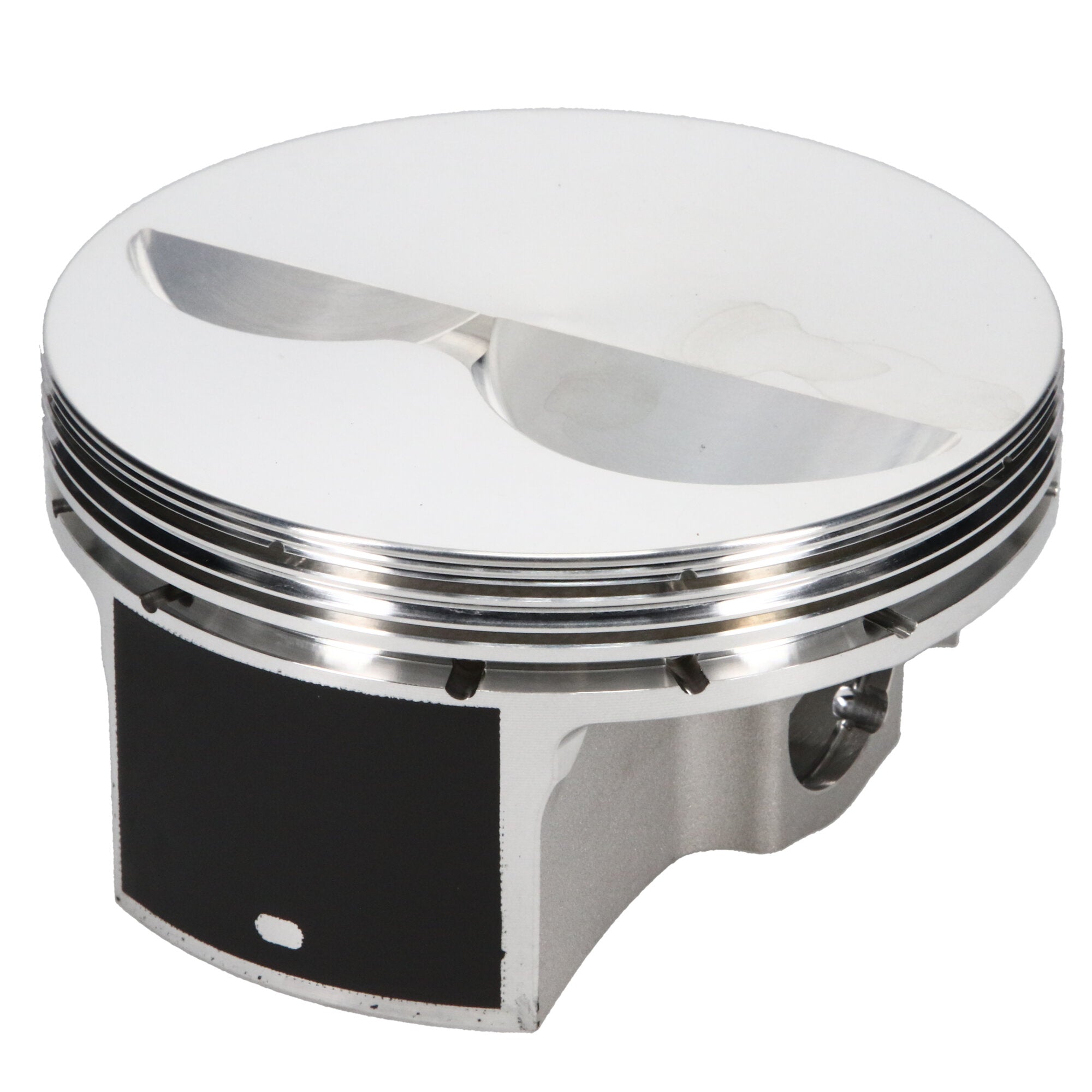

JE Pistons 258026L Piston Single, 2618, Flat Top, 4.040 Bore, 1.550 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_258026L
Engine Piston
$343.75
customers are viewing this product
JE Pistons 258215S Piston Single, 2618, Dome, 4.375 Bore, 1.120 CD, 0.990 Pin, Set of 1.
JE Pistons 258215S Piston Single, 2618, Dome, 4.375 Bore, 1.120 CD, 0.990 Pin, Set of 1.
$332.60
JE Pistons 257797L Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
JE Pistons 257797L Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
$343.75
JE Pistons 258026L Piston Single, 2618, Flat Top, 4.040 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_DES Piston Single, 2618, Flat Top, 4.040 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.040 in. Bore, 1.550 CD, Flat Top, Left Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Description_SHO Piston
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_TLE Chevrolet 350, 4.040 Bore, Flat, Set of 1
Product Market Domestic
Compression Height 1.550
Wrist Pin Wall Thickness 0.150
Wrist Pin Outer Diameter 0.927
Piston Pin Outside Diameter 0.927
Piston Pin Wall Thickness 0.150
Oil Ring Thickness 0.119
Forging Type FSR
Piston Pin Material 5115
Engine - Web Small Block
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Piston Orientation Left
Product Type Engine Piston
Piston Average Weight 392
Piston Volume -4.10
Industry Automotive
Bore Diameter 4.040
Top Compression Ring Thickness 0.0436
Piston Quantity 1
Title JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston
Piston Material 2618
Make CHEVROLET
Prop 65 (C, R or CR) CR
Ring Set Included No
Wrist Pin Length 2.350
Engine Type ICE
Cylinder Head CHEVROLET 23 DEG 20/30
Out of Stock Message Call for Availability
Piston Series JE Pistons
Title - Web JE Pistons Chevrolet Small Block Piston - 4.040 in. Bore - 1.550 in. CH, -4.10 CC
Add-On J71408-4040-5
Prop 65 Yes/No Yes
Second Compression Ring Thickness 0.0440
Add-On 927-2350-15-51C
Add-On 927-073-MW
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Make - Web Chevrolet
Piston Pin Length 2.350
Ringset Included No
Piston Head Type Flat
Engine Small Block
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
