As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

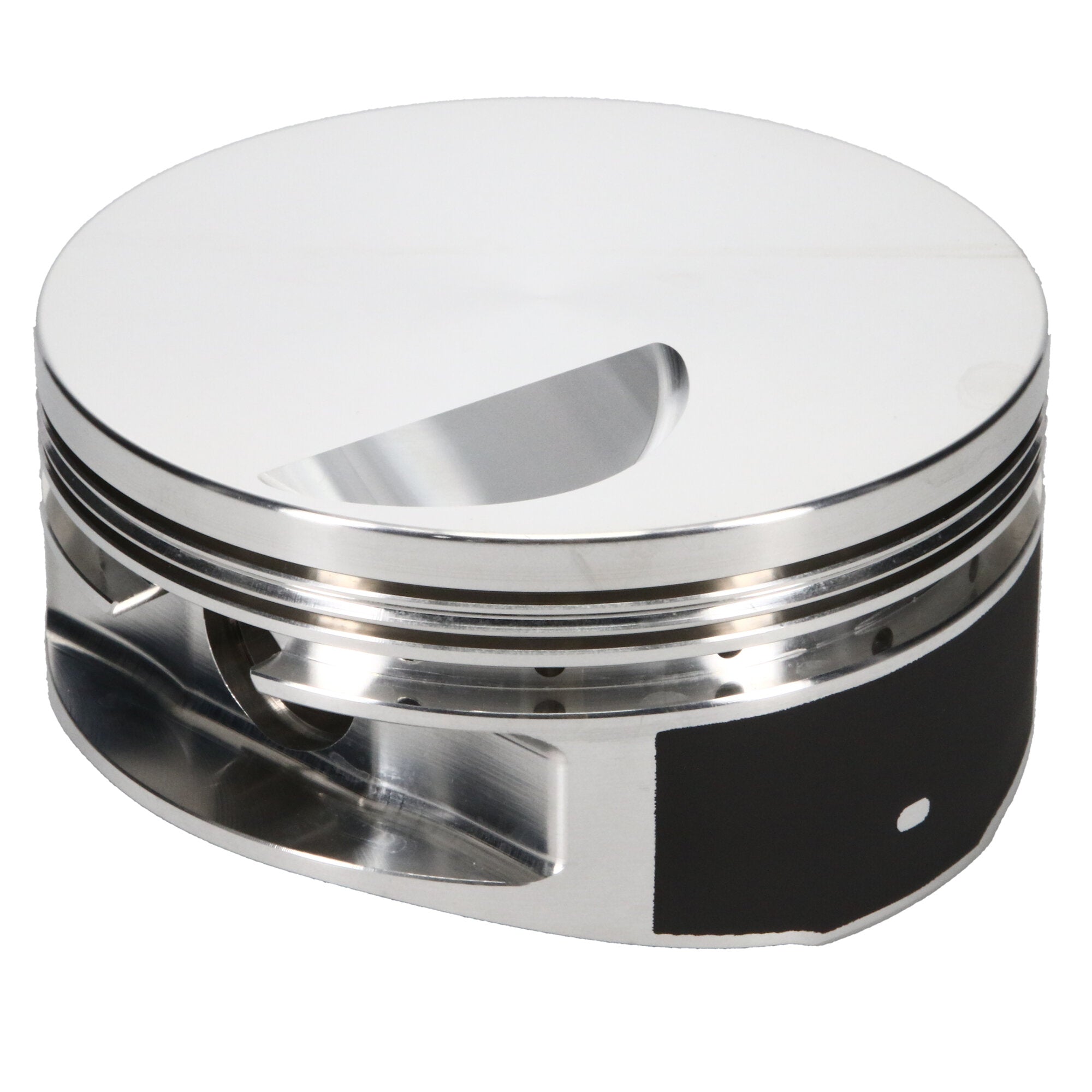

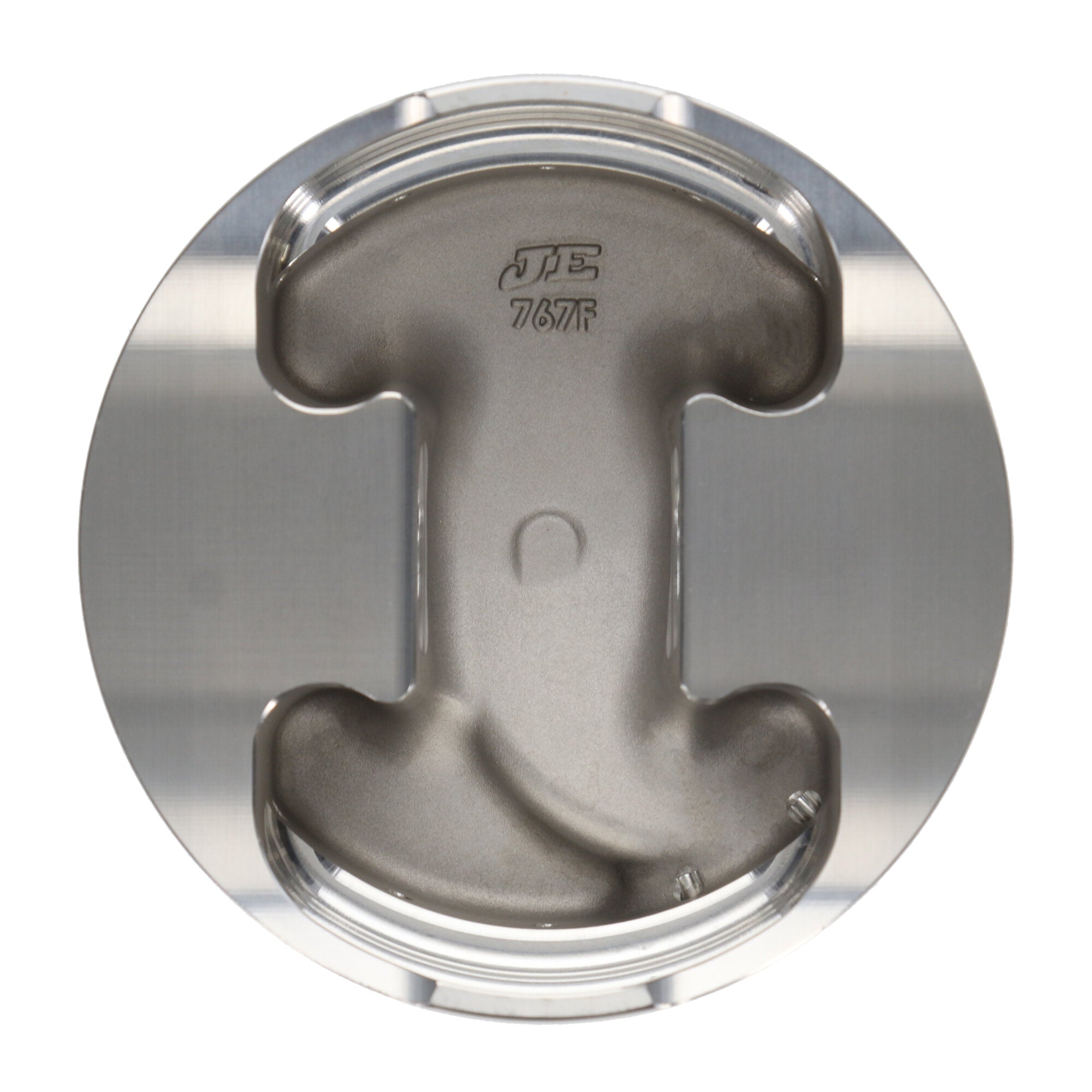

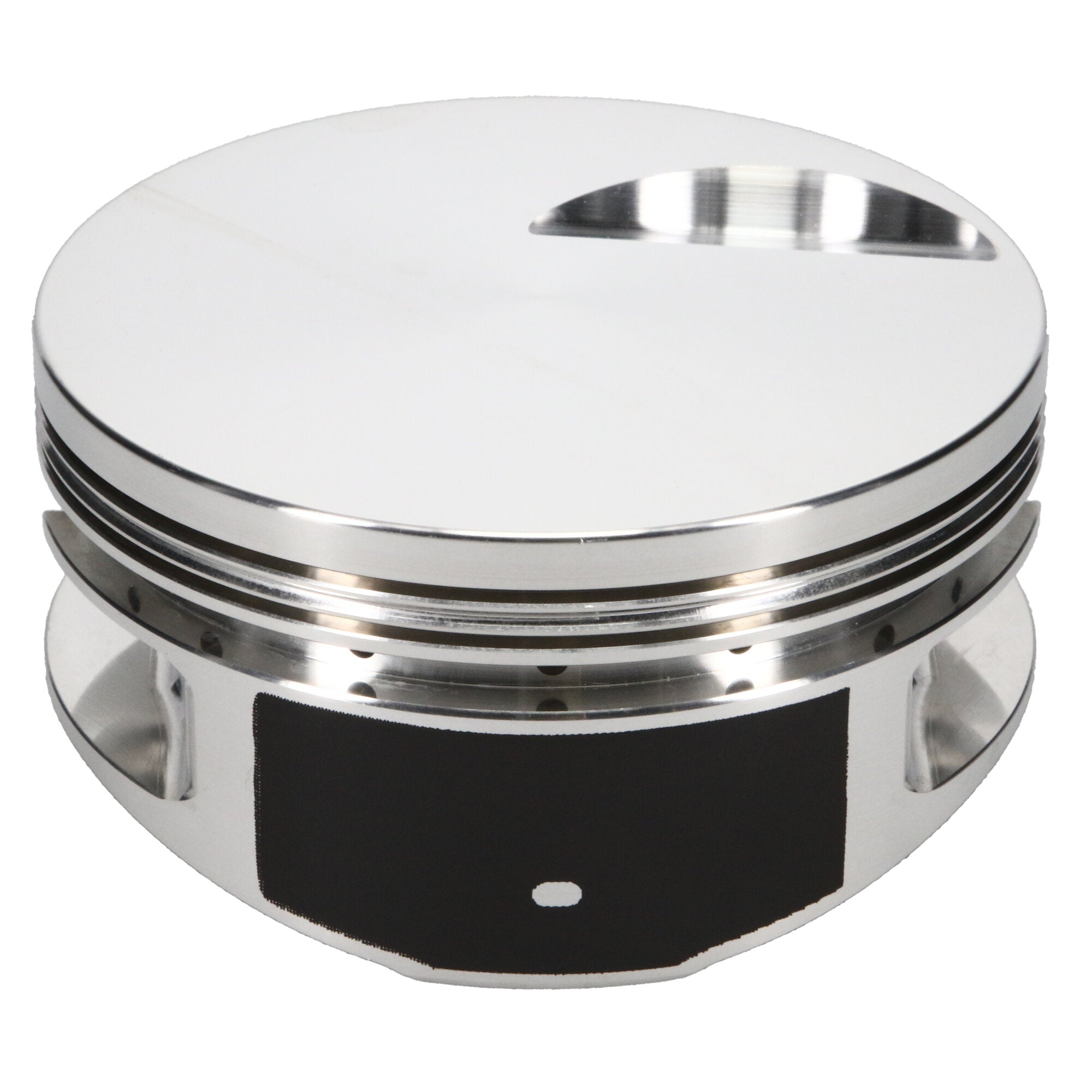

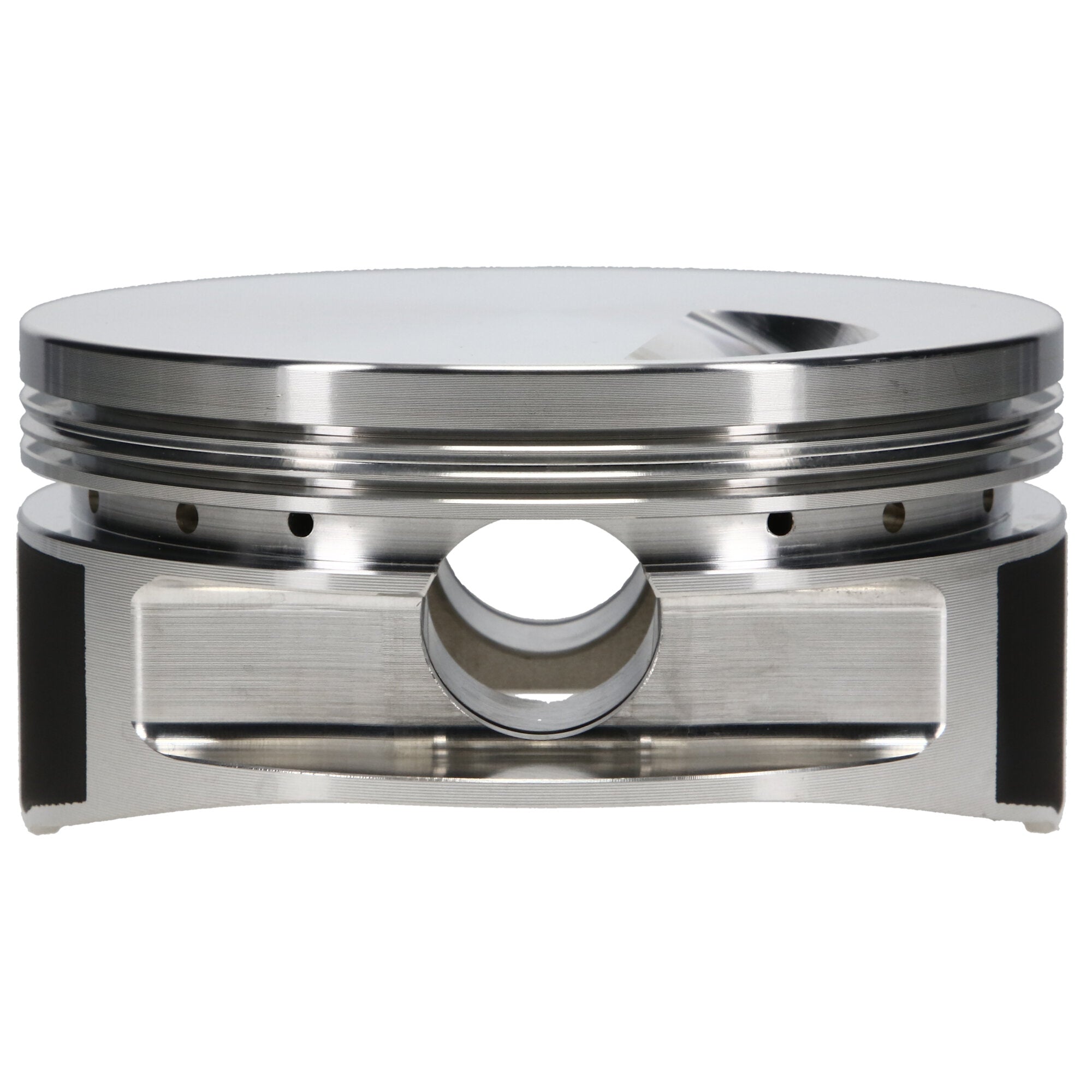

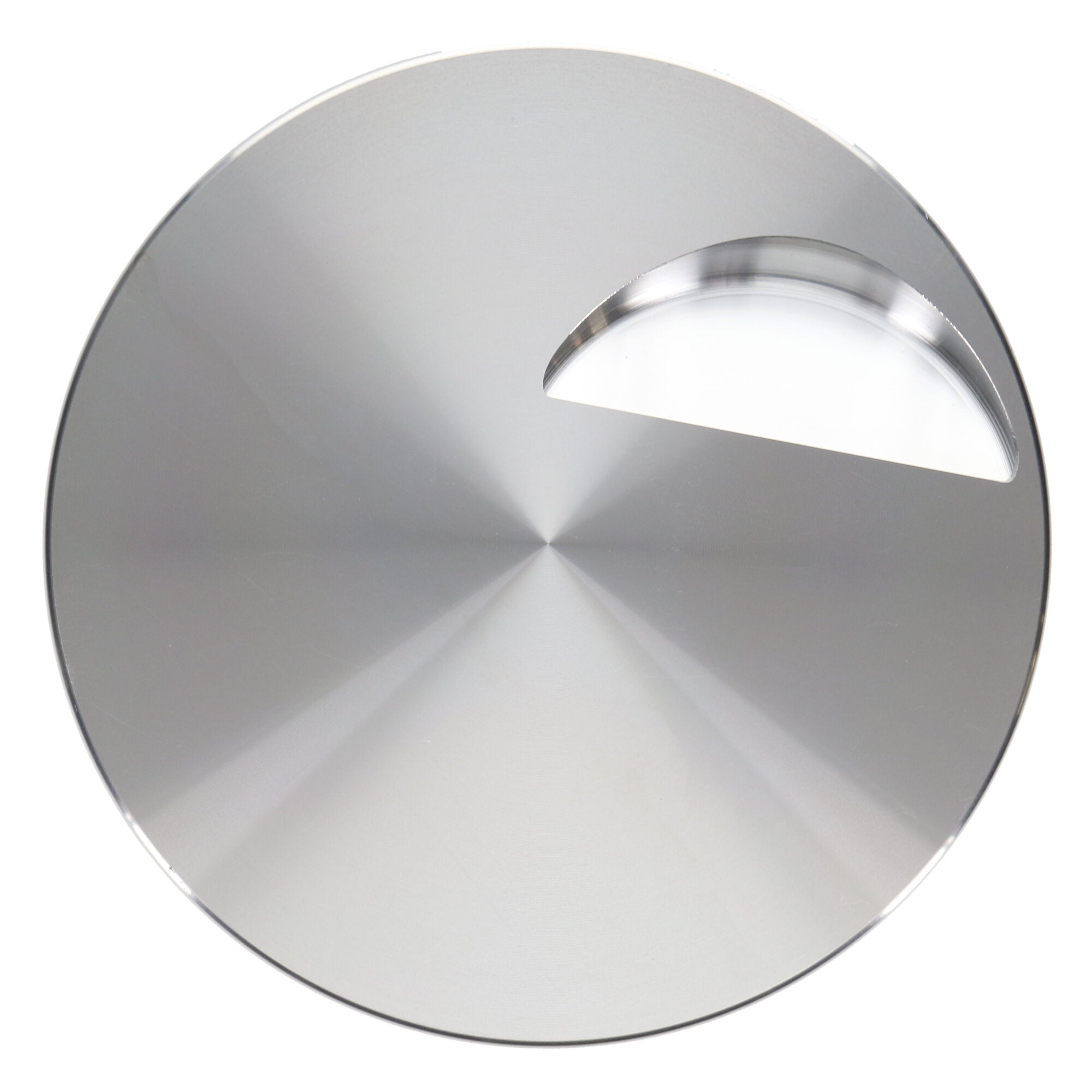

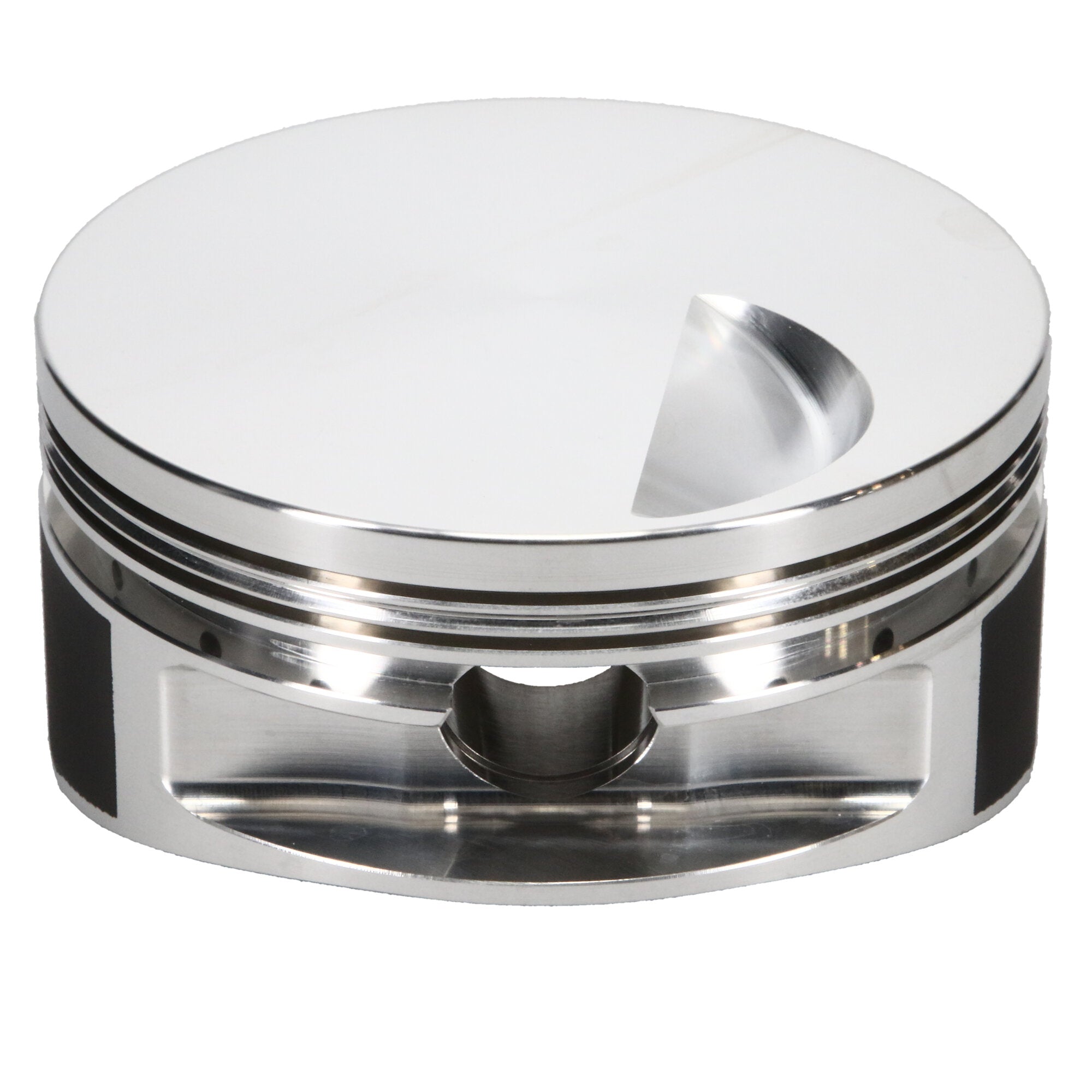

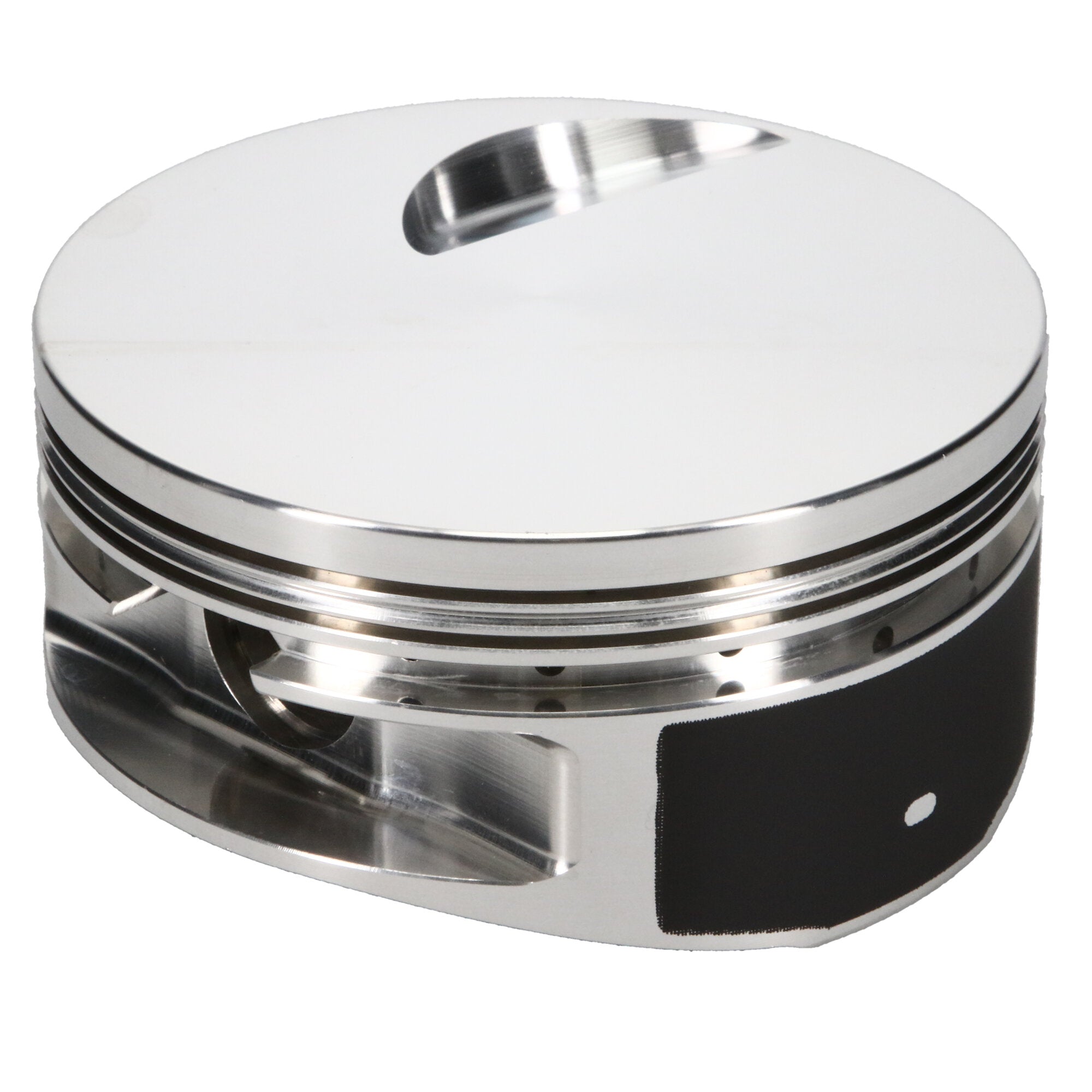

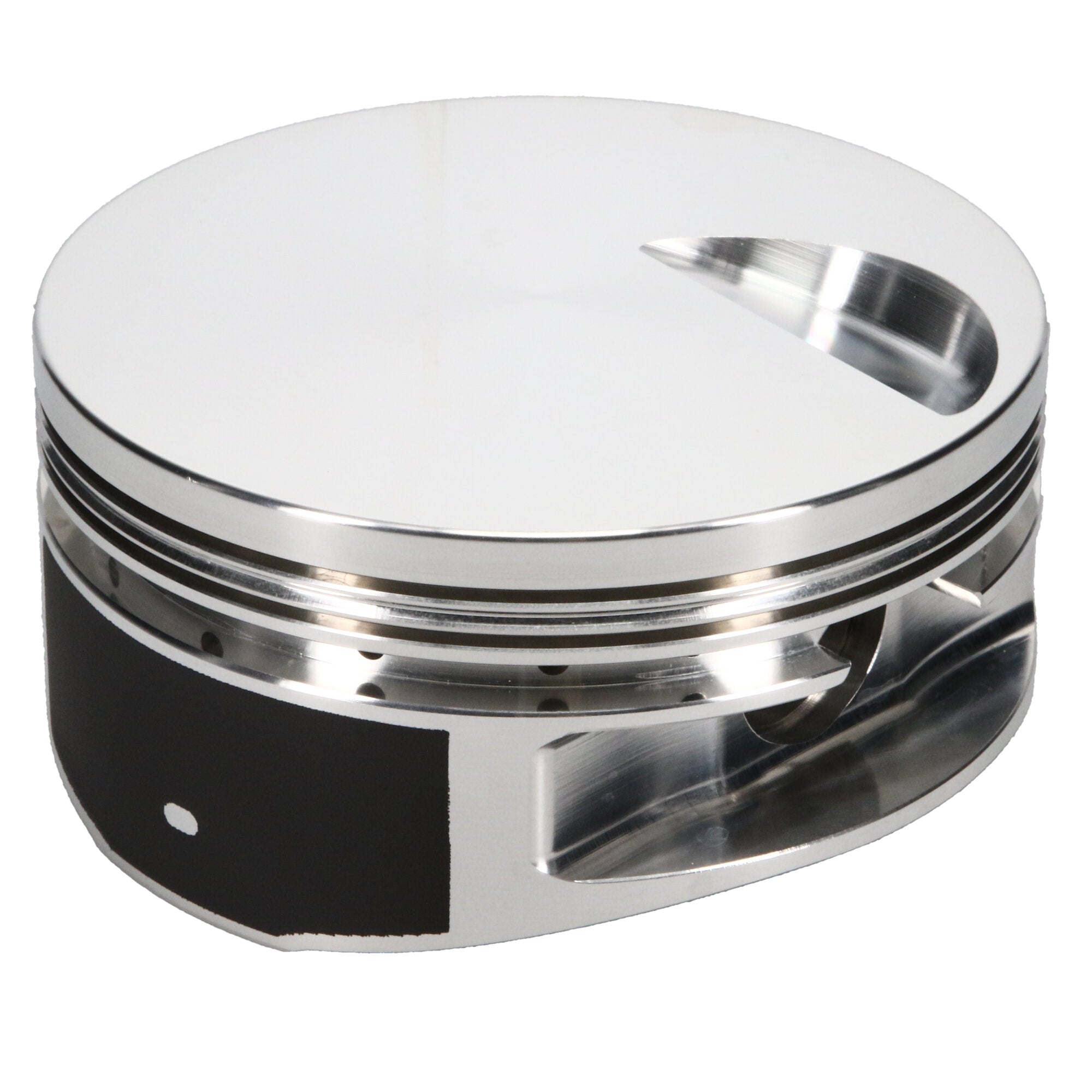

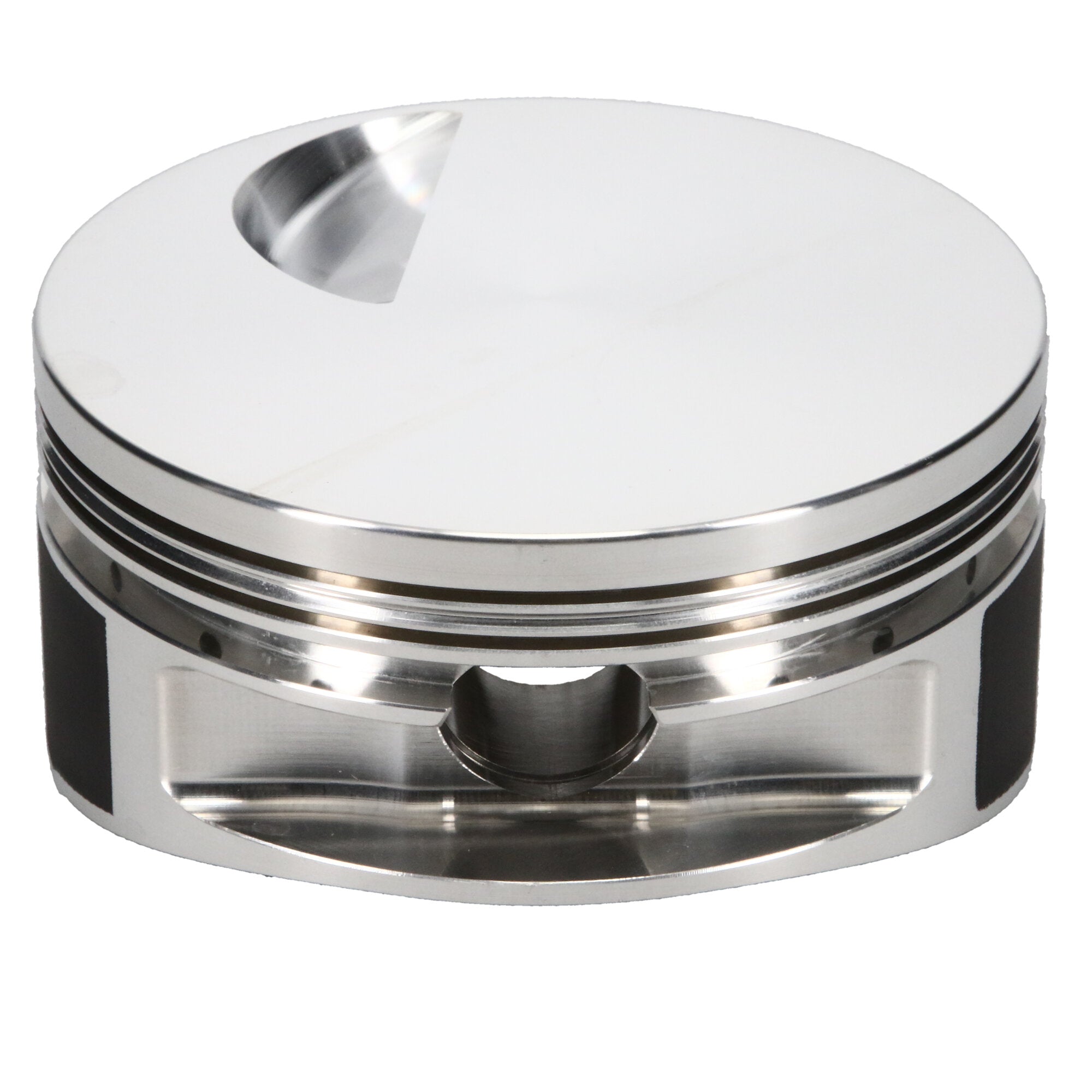

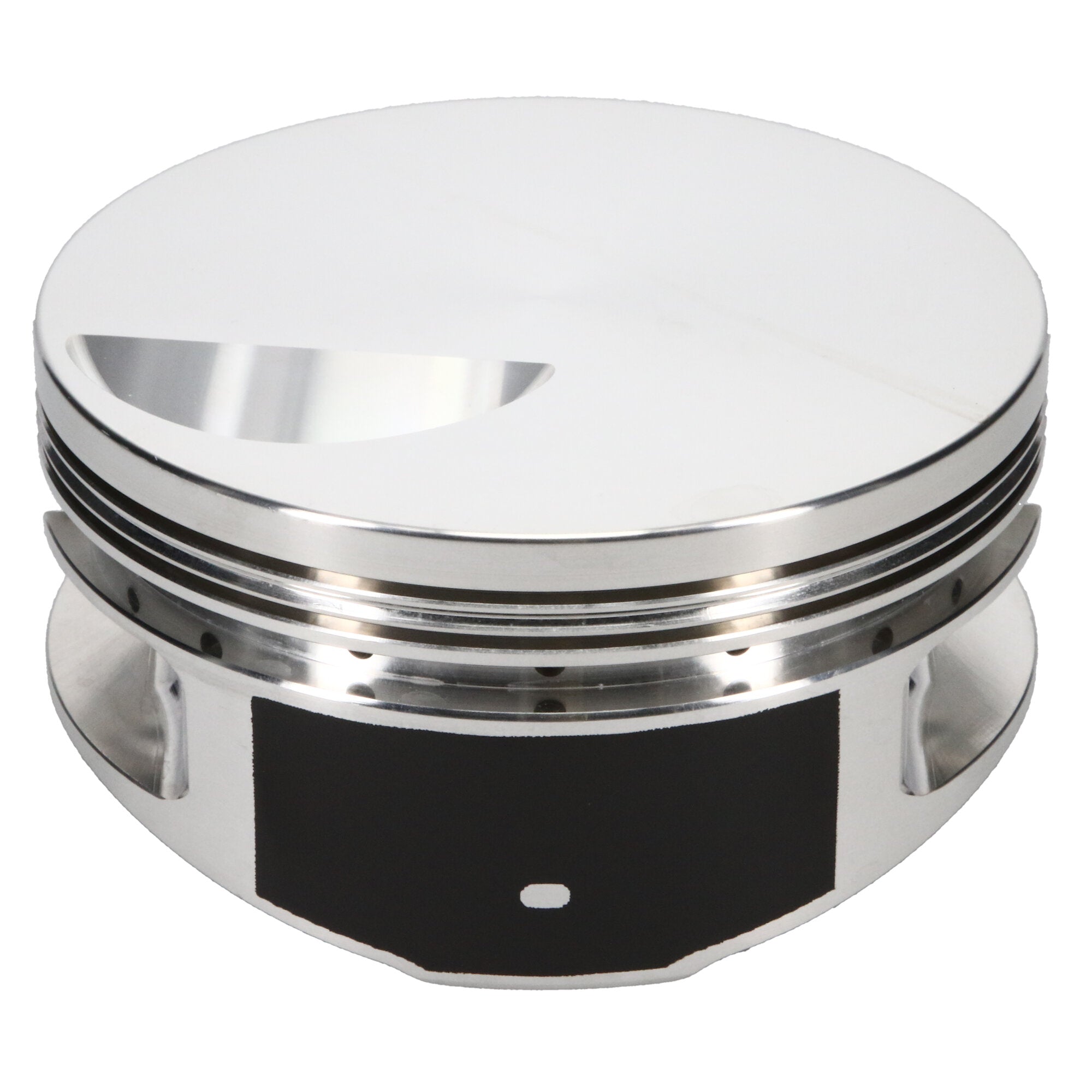

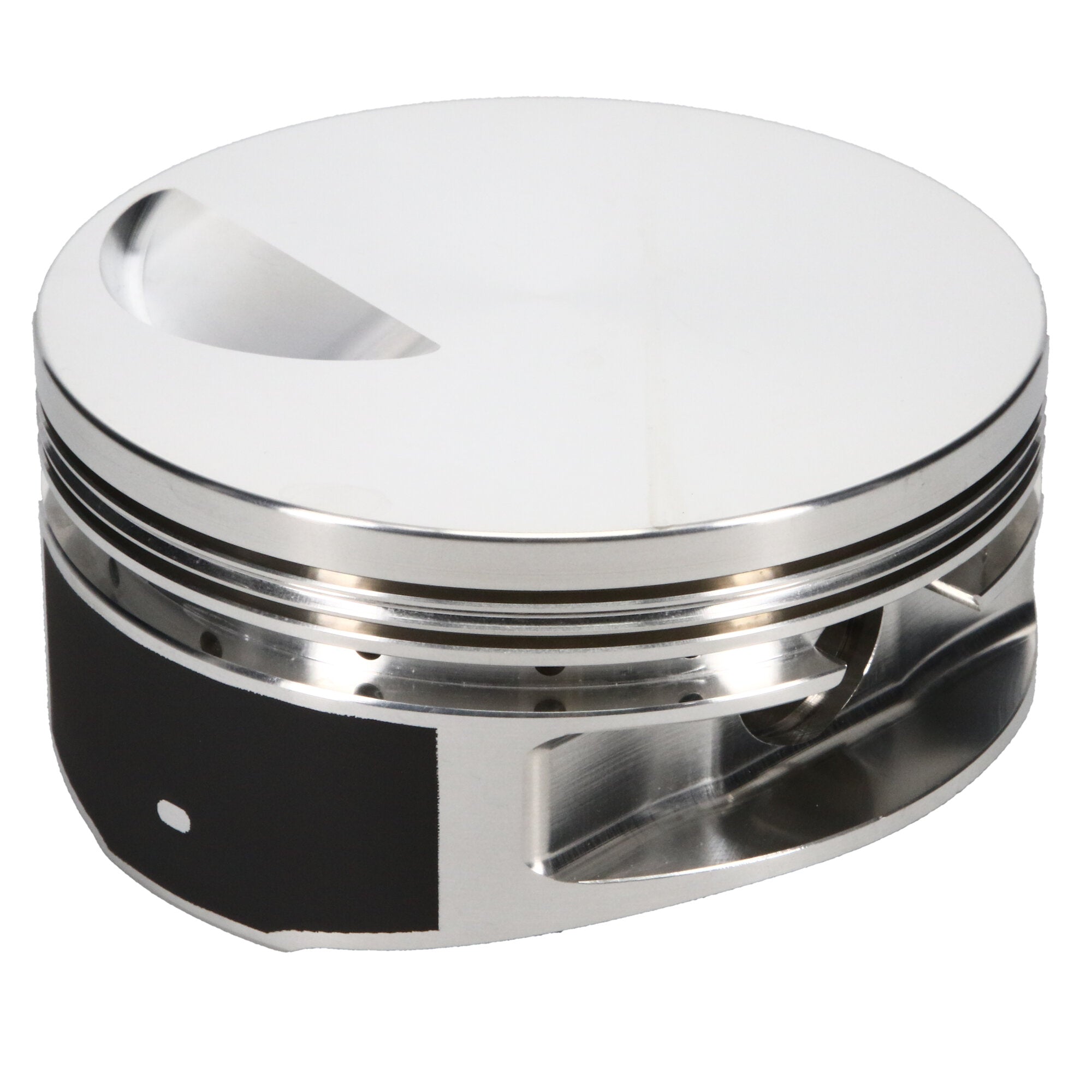

Piston Set, 2618, Flat Top, 4.530 Bore, 1.520 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.520 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_TLE |
Chevrolet 502, 4.530 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Make - Web |
Chevrolet |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.520 in. CH, -3.00 CC |
| Add-On |
J100F8-4530-5 |
| Add-On |
990-042-CS |
| Add-On |
990-2930-18-51S |
| Engine |
Big Block |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ringset Included |
No |
| Out of Stock Message |
Call for Availability |
| Piston Head Type |
Flat |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Oil Ring Thickness |
0.188 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.180 |
| Piston Pin Material |
5115 |
| Engine Type |
ICE |
| Cylinder Head |
OPEN CHAMBER |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.990 |
| Piston Volume |
-3.00 |
| Compression Height |
1.520 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
Big Block |
| Bore Diameter |
4.530 |
| Piston Average Weight |
681 |
| Piston Series |
JE Pistons |
| Top Compression Ring Thickness |
0.0640 |
| Make |
CHEVROLET |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
