As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

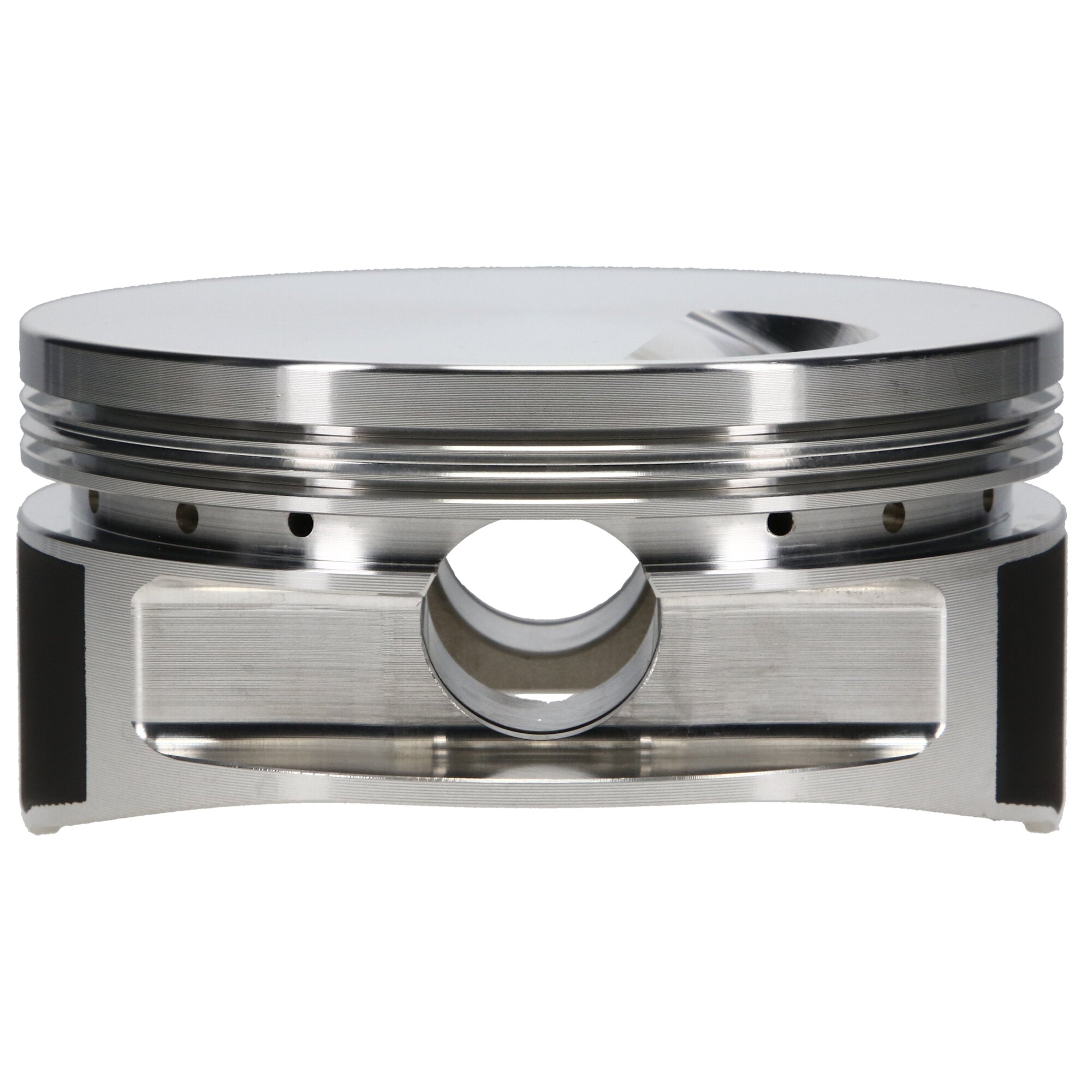

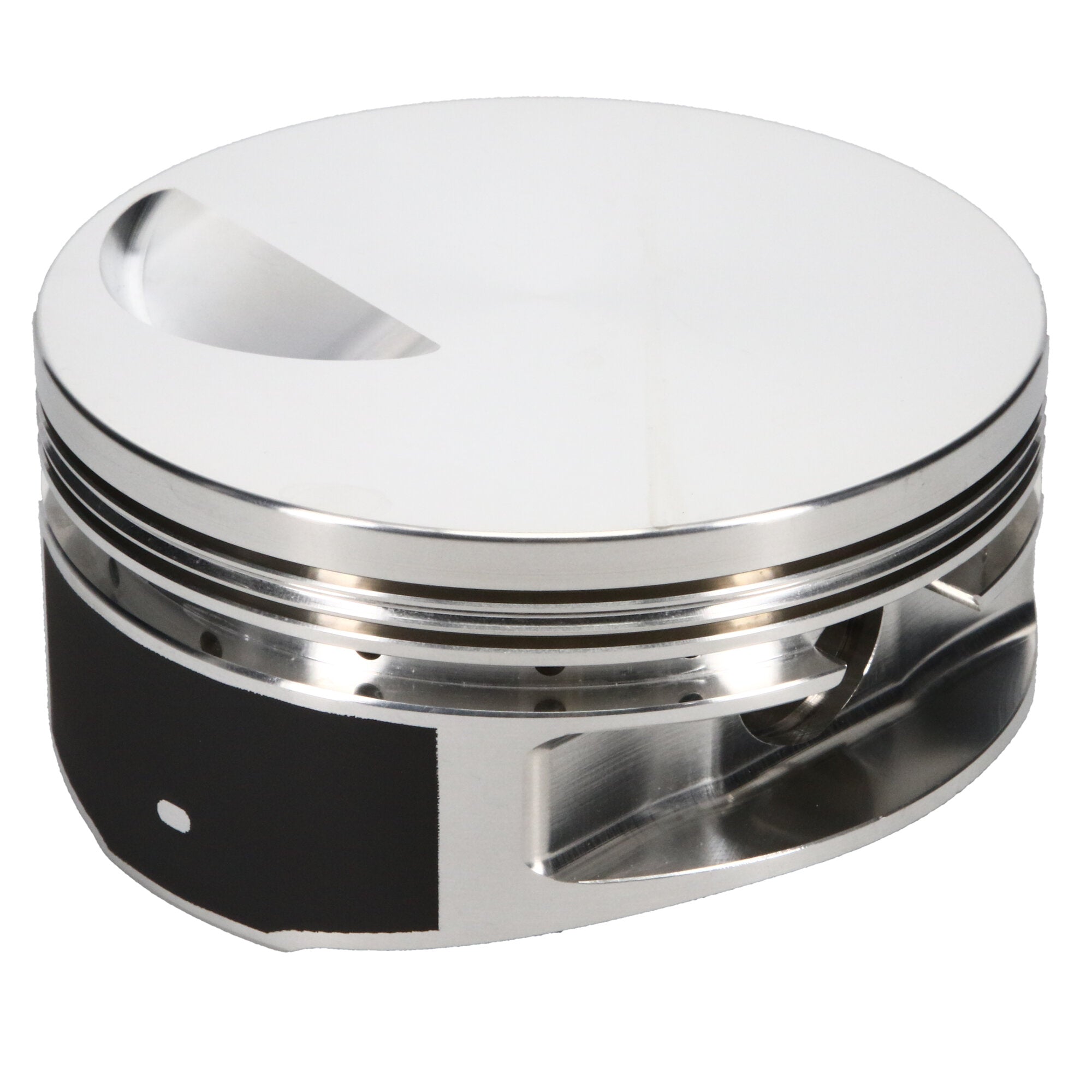

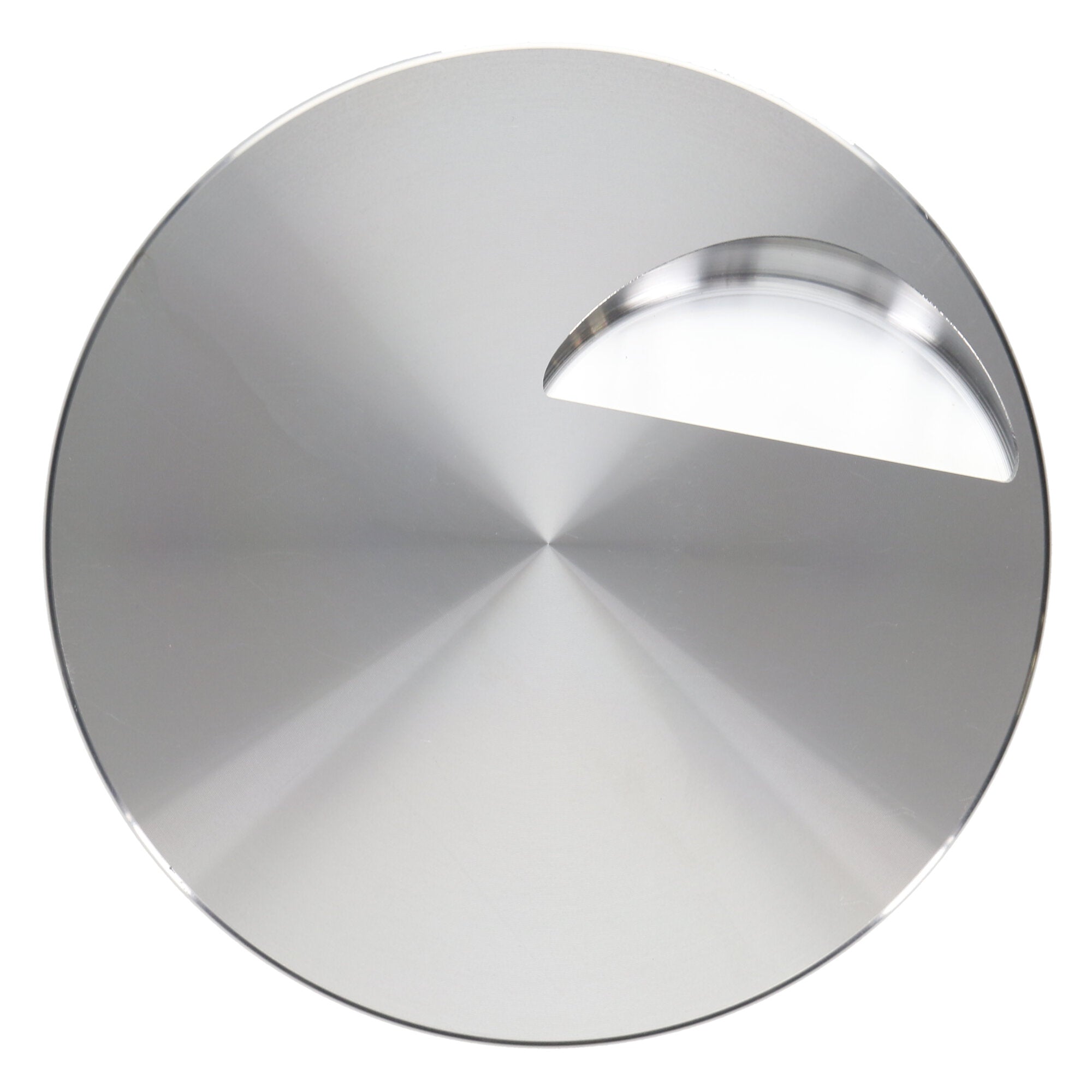

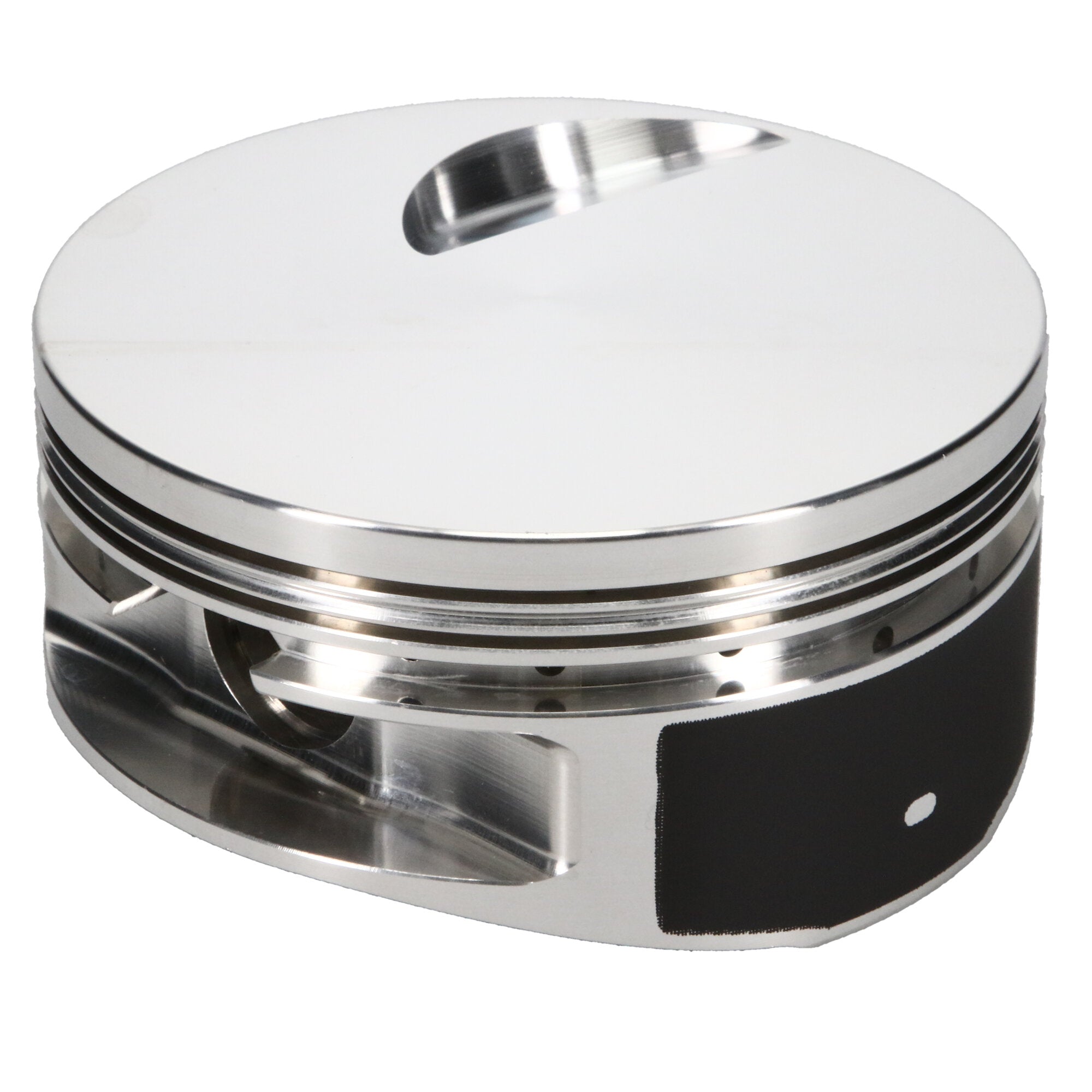

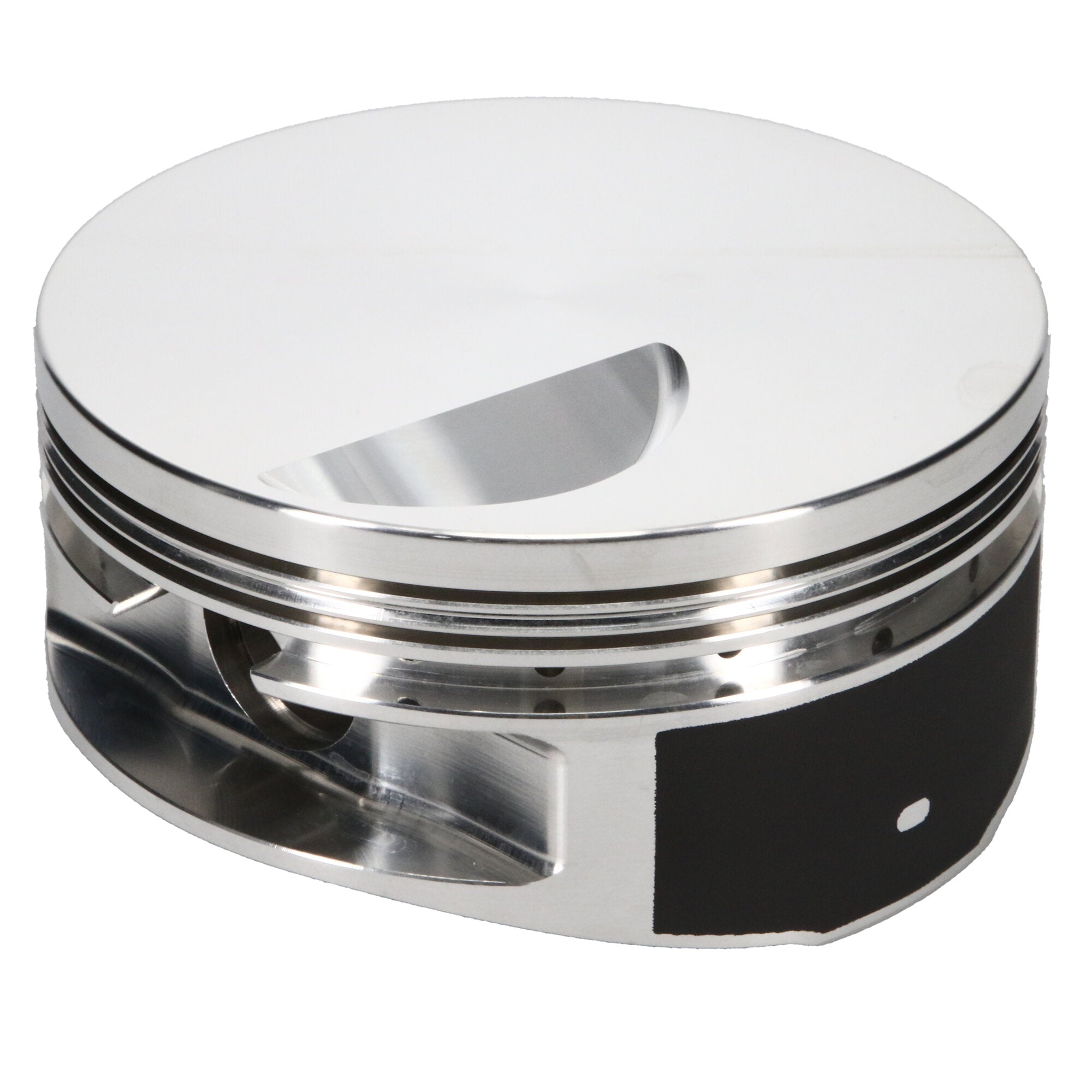

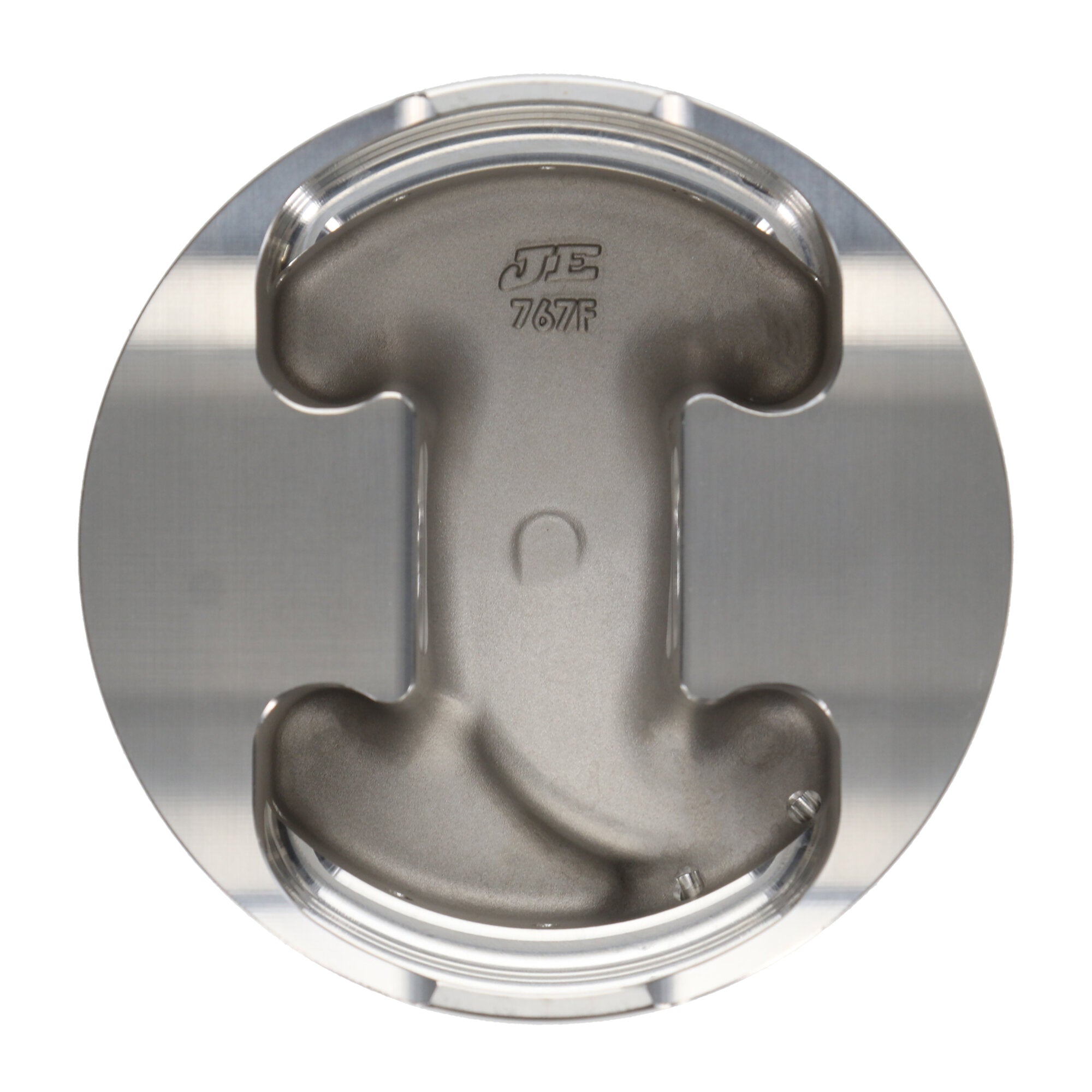

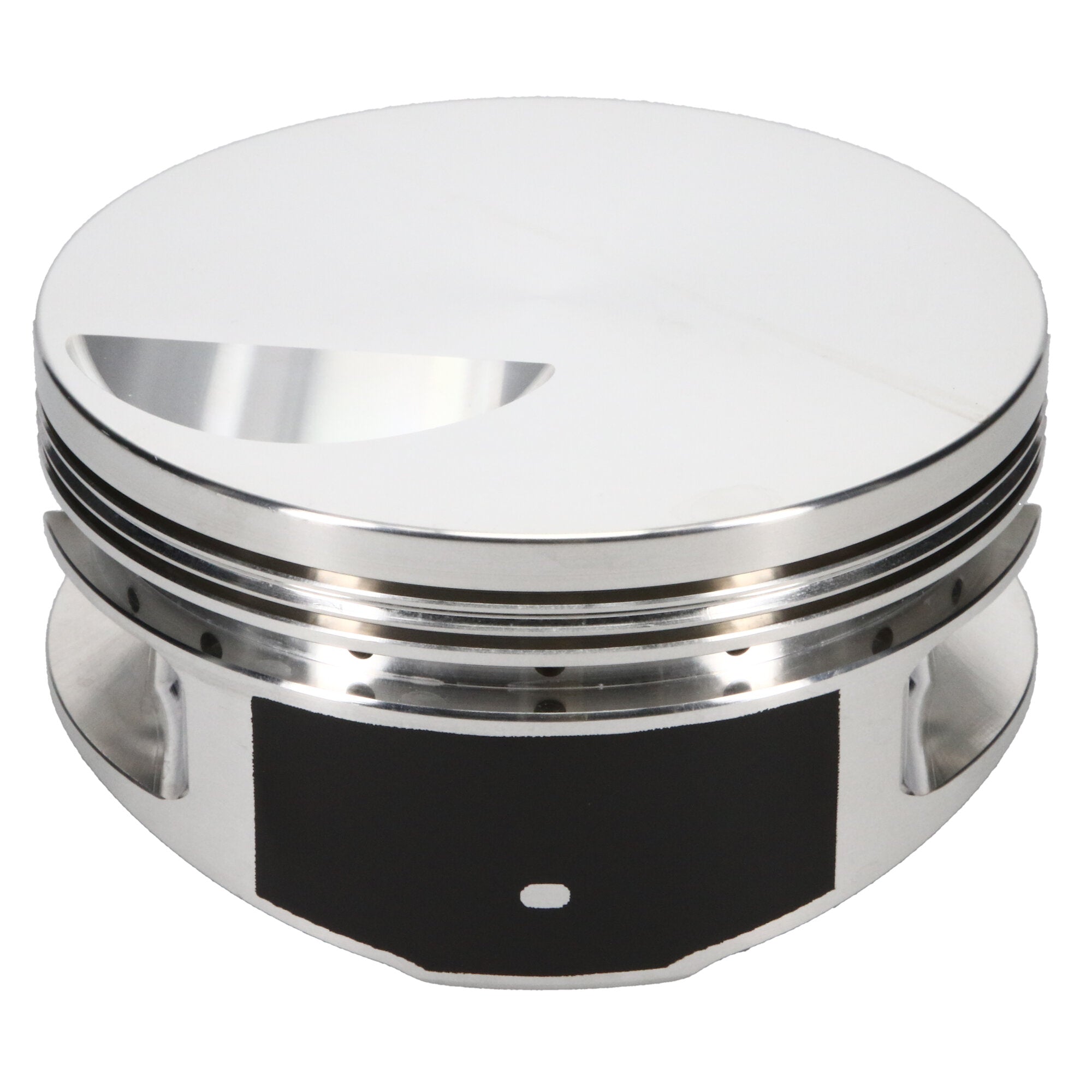

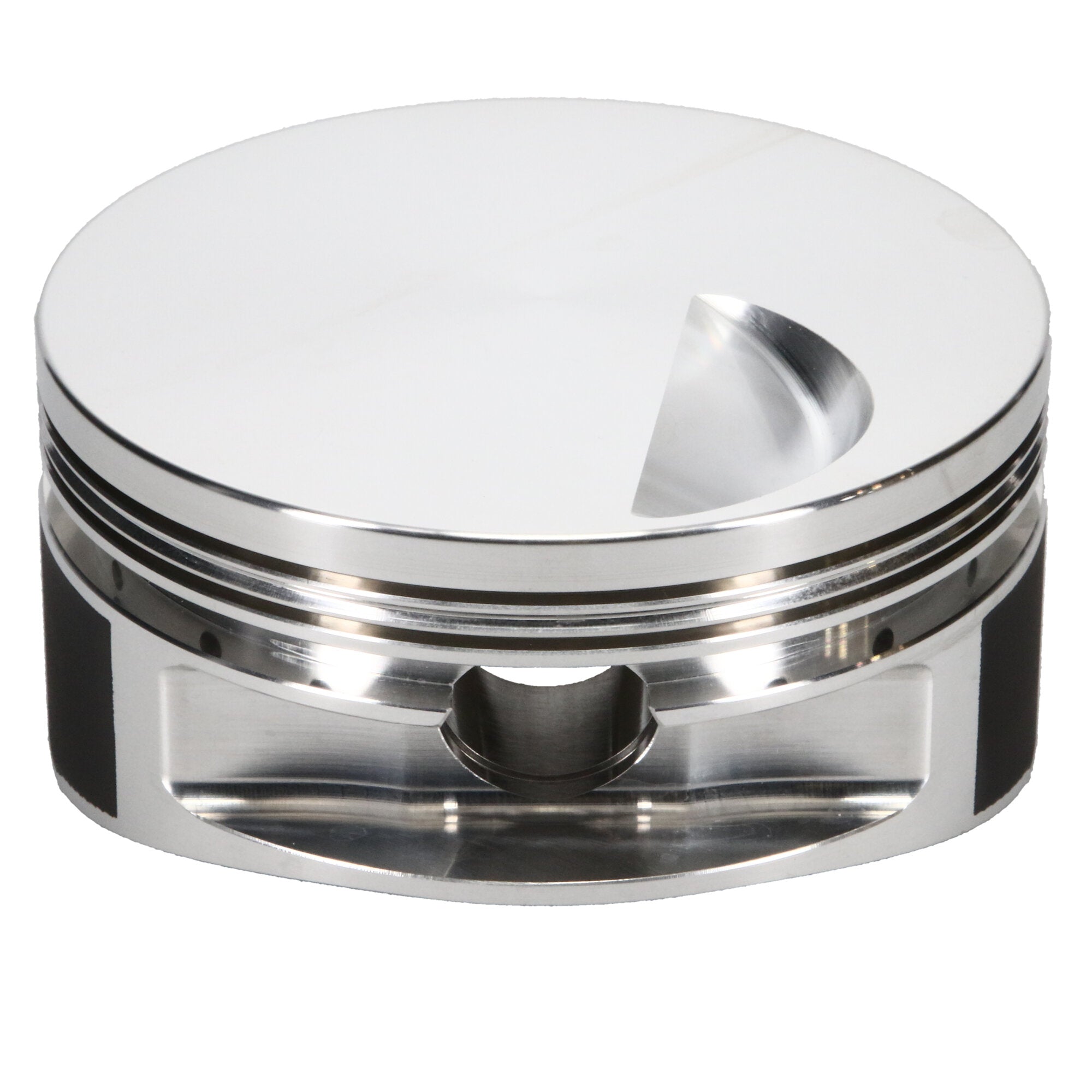

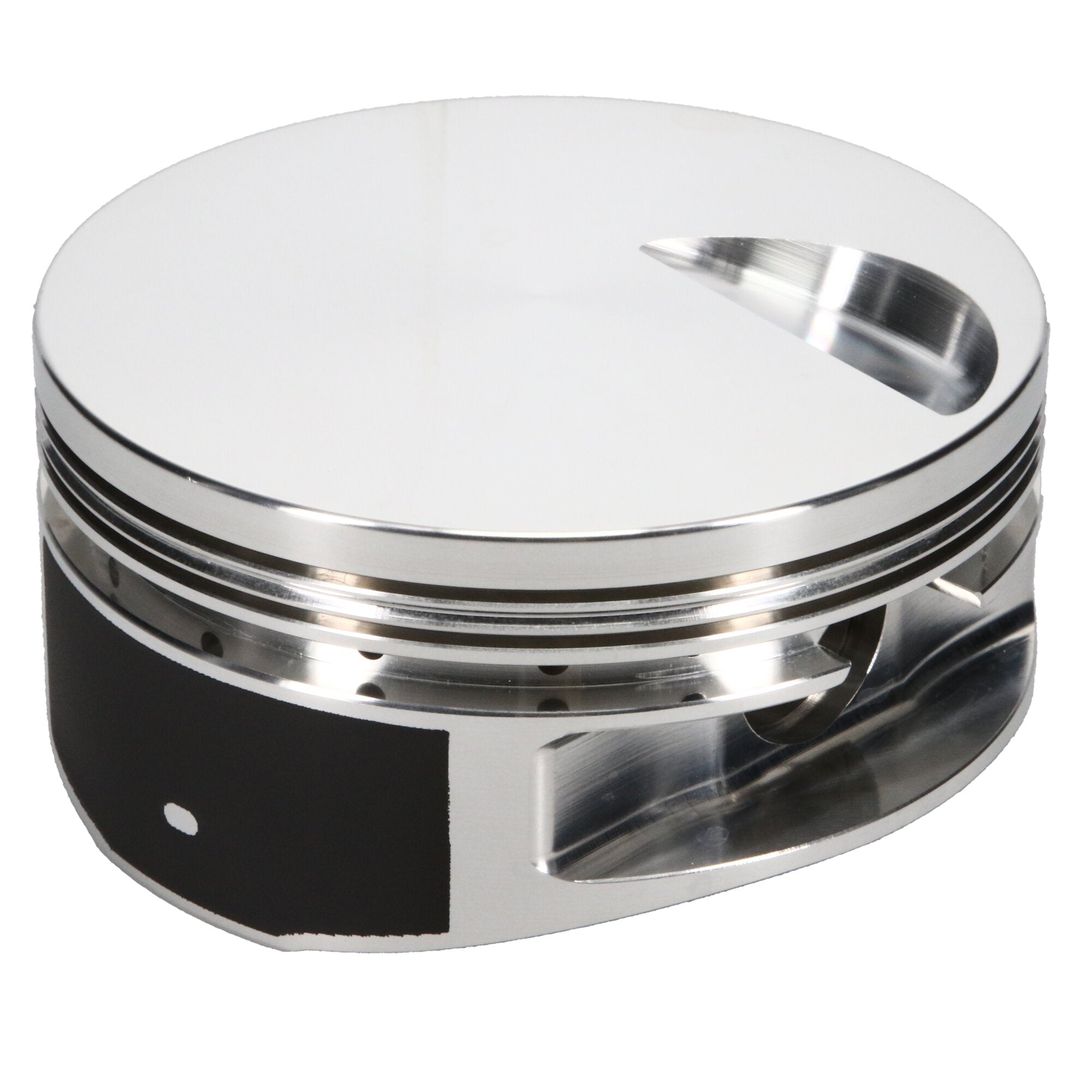

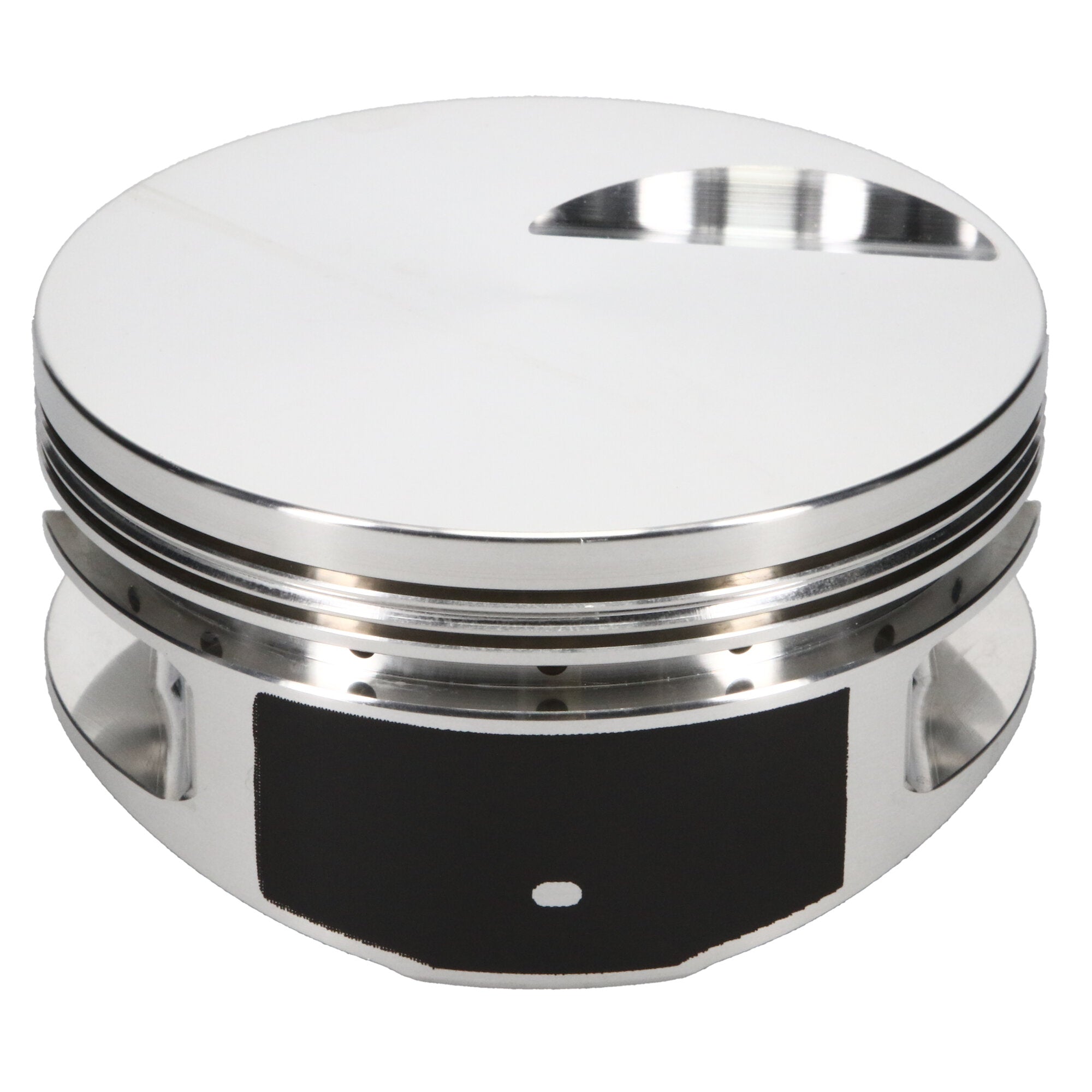

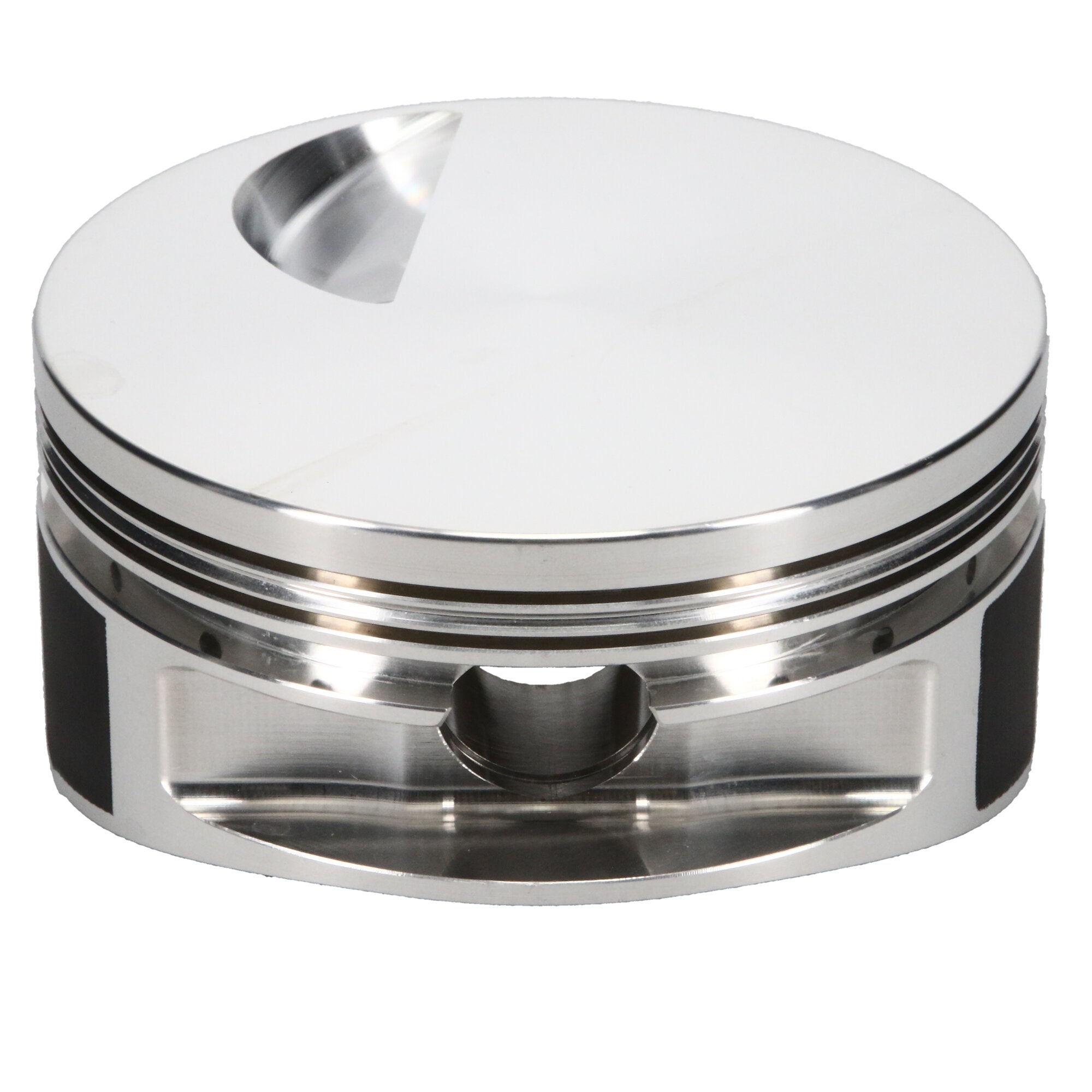

Piston Set, 2618, Flat Top, 4.530 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.395 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.530 Bore, Flat, Set of 8 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-3.00 |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Ring Set Included |
No |
| Cylinder Head |
OPEN CHAMBER |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.395 in. CH, -3.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Big Block |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.930 |
| Piston Series |
JE Pistons |
| Add-On |
990-042-CS |
| Add-On |
990-2930-18-51S |
| Add-On |
J100F8-4530-5 |
| Piston Pin Material |
5115 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Length |
2.930 |
| Compression Height |
1.395 |
| Engine - Web |
Big Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Piston Pin Outside Diameter |
0.990 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Quantity |
8 |
| Forging Type |
Round |
| Engine Type |
ICE |
| Title |
JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.188 |
| Piston Average Weight |
652 |
| Bore Diameter |
4.530 |
| Piston Head Type |
Flat |
| Piston Pin Wall Thickness |
0.180 |
| Product Market |
Domestic |
| Ringset Included |
No |
| Make |
CHEVROLET |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
