As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

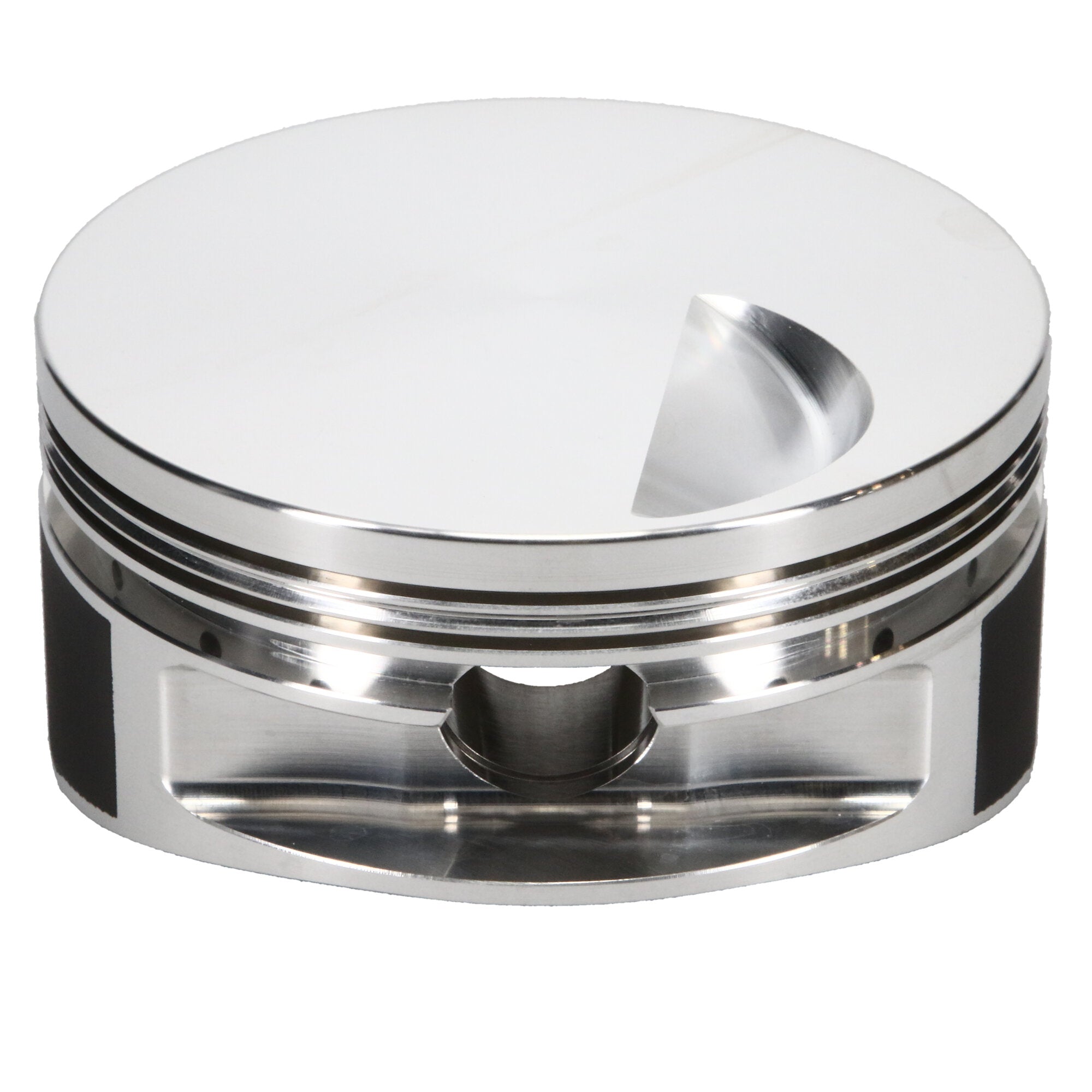

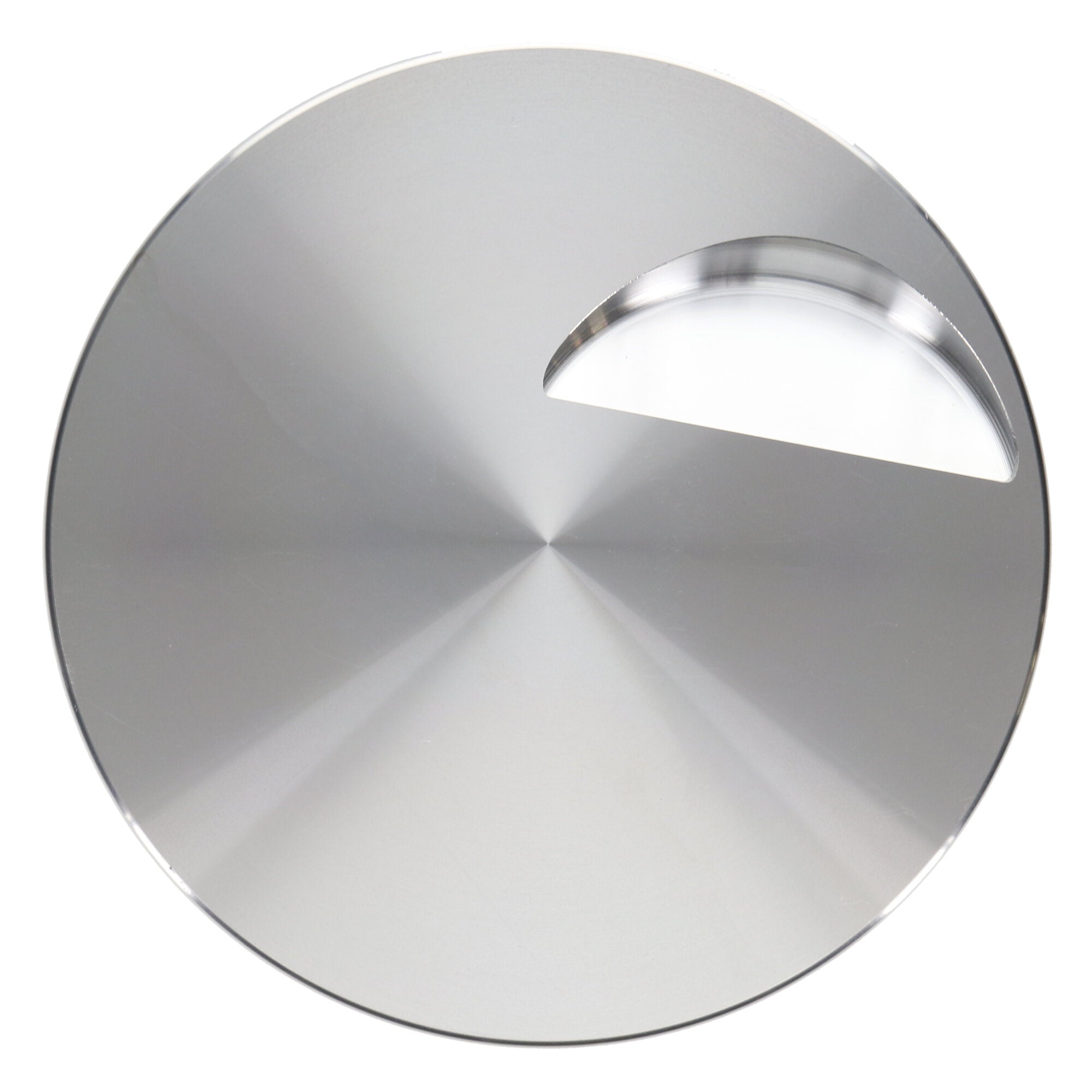

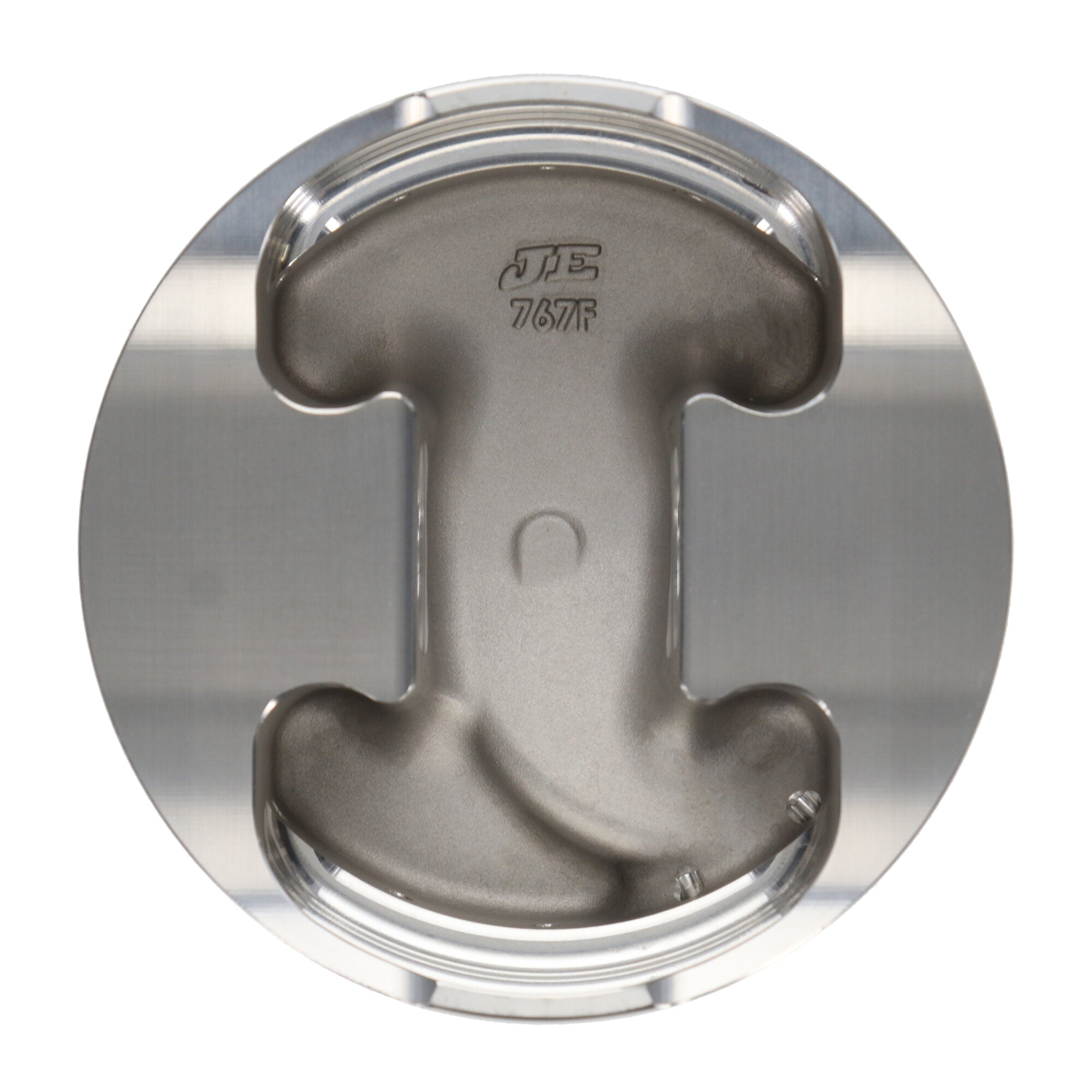

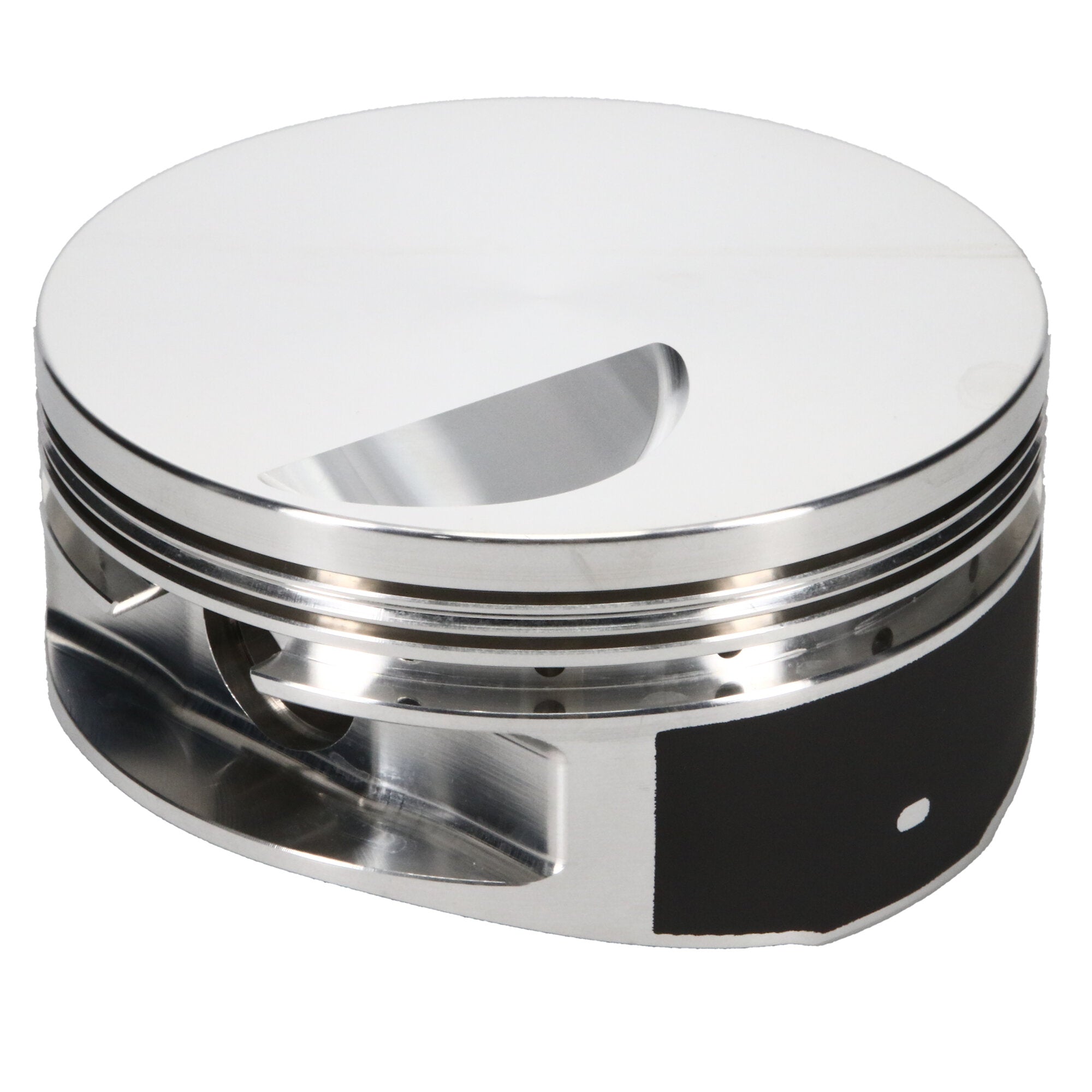

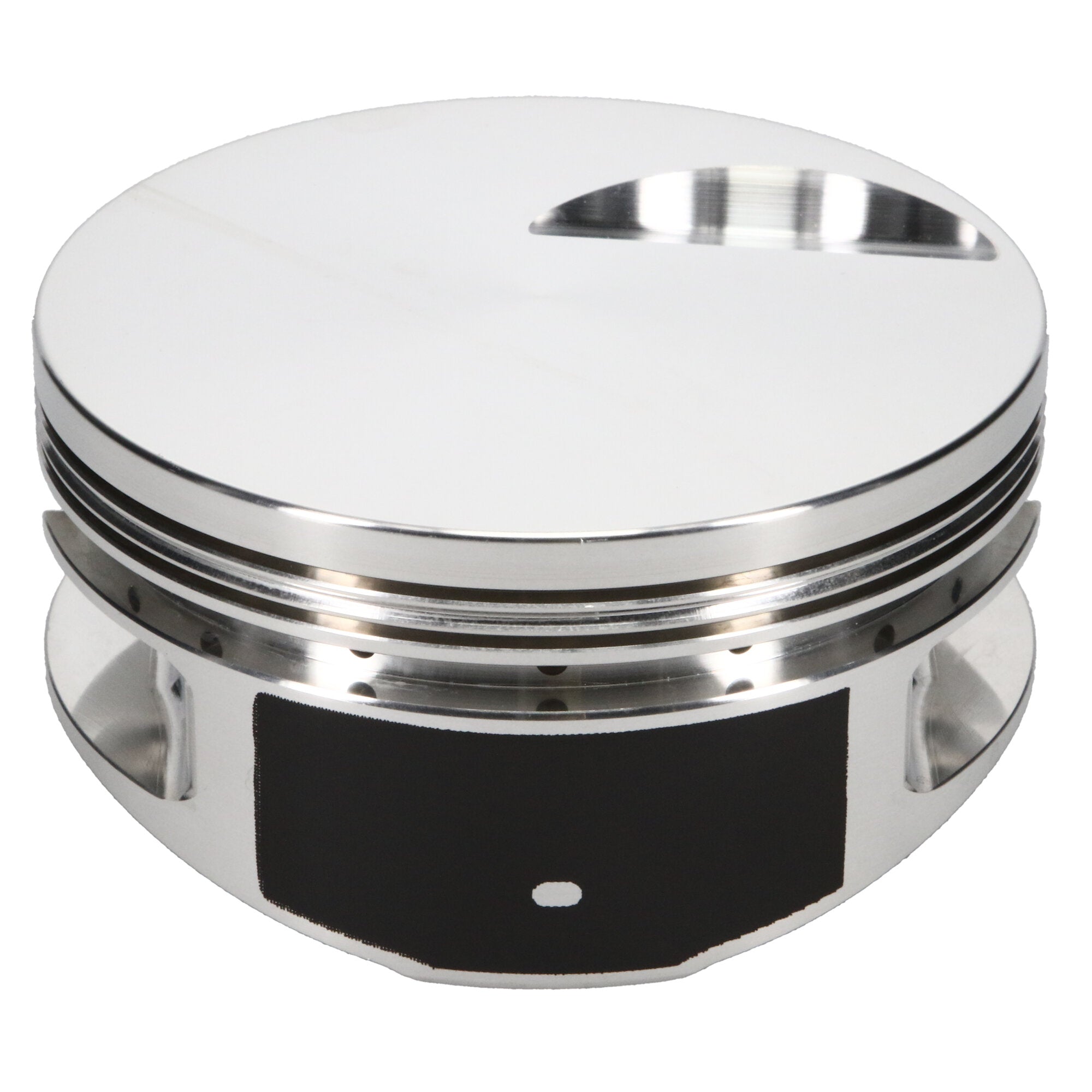

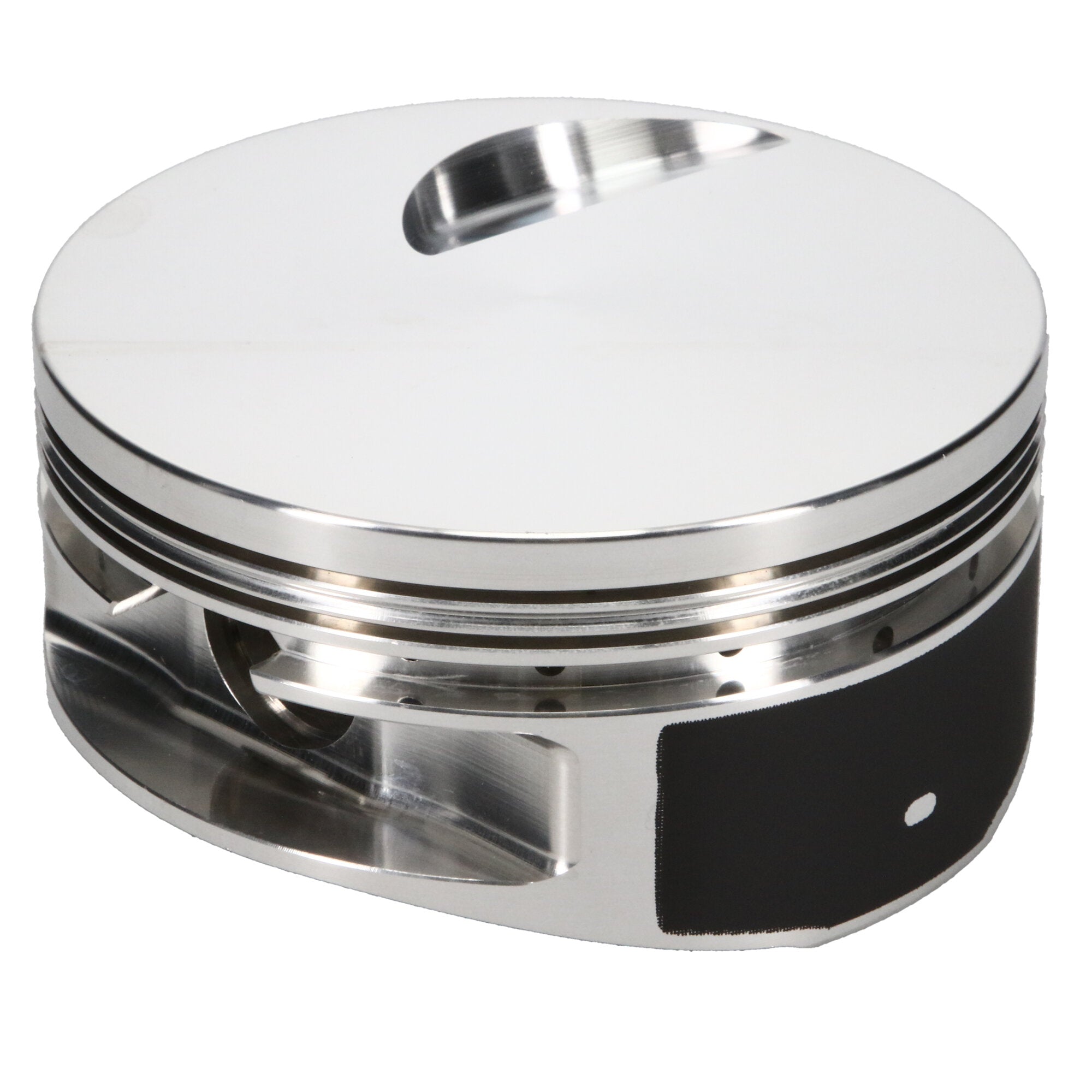

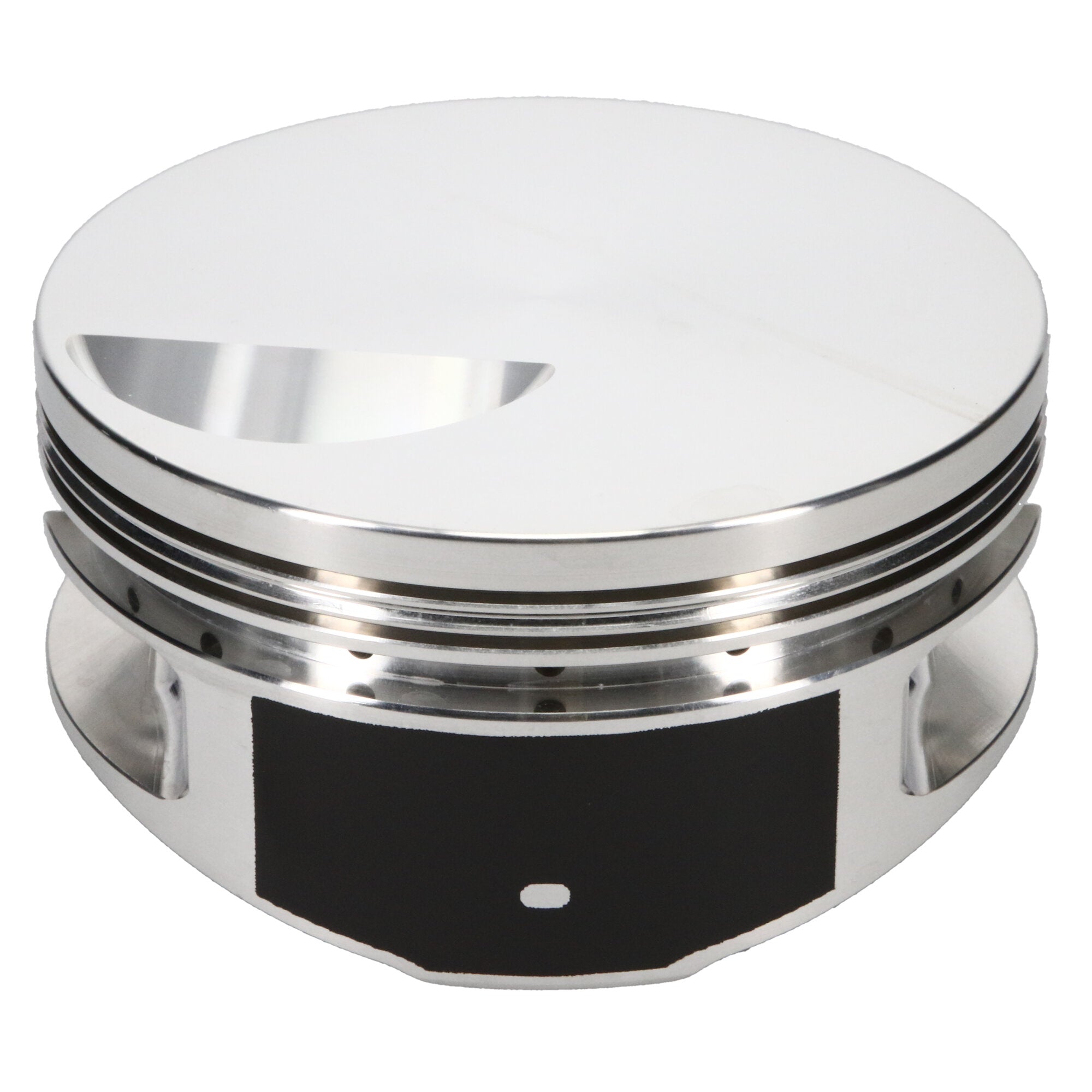

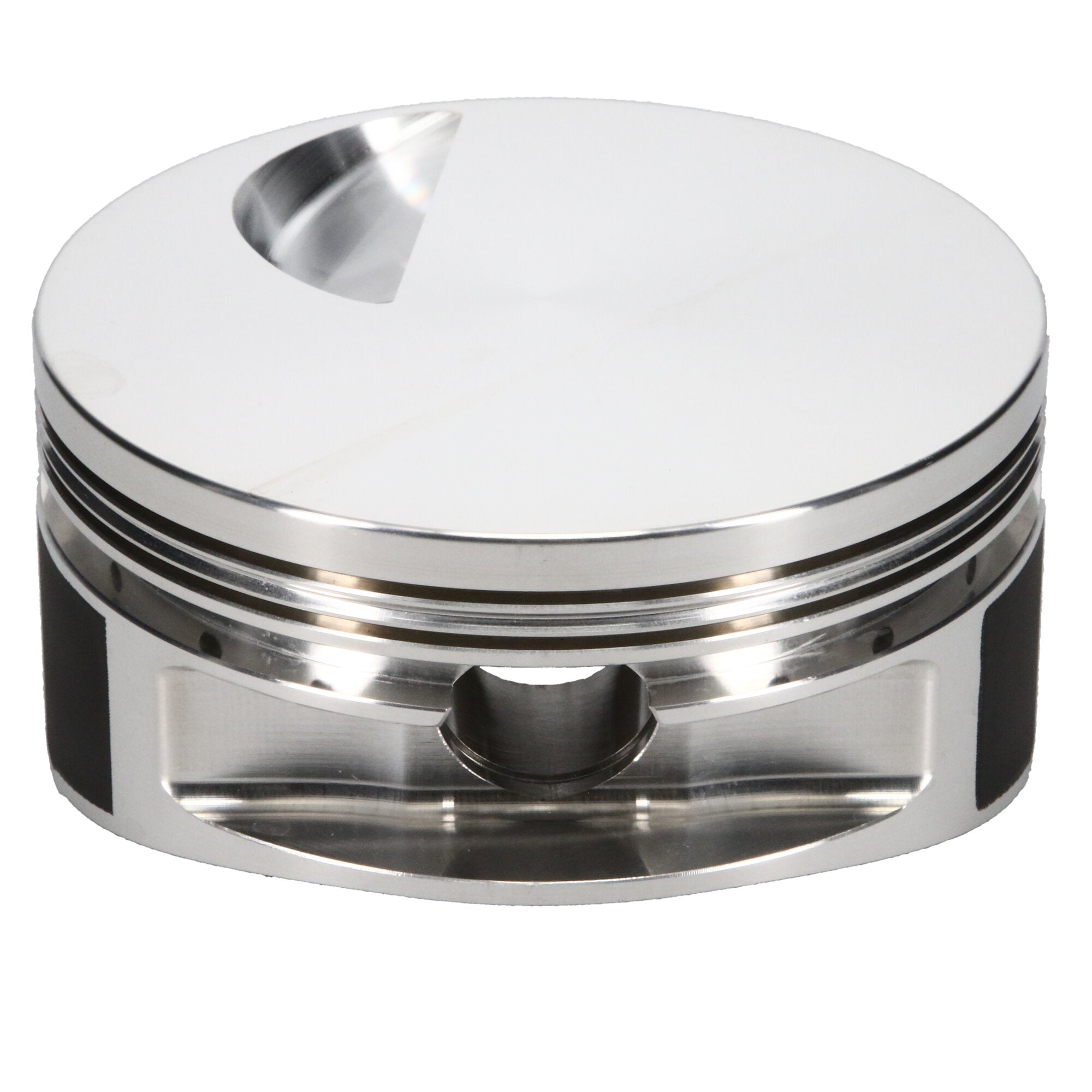

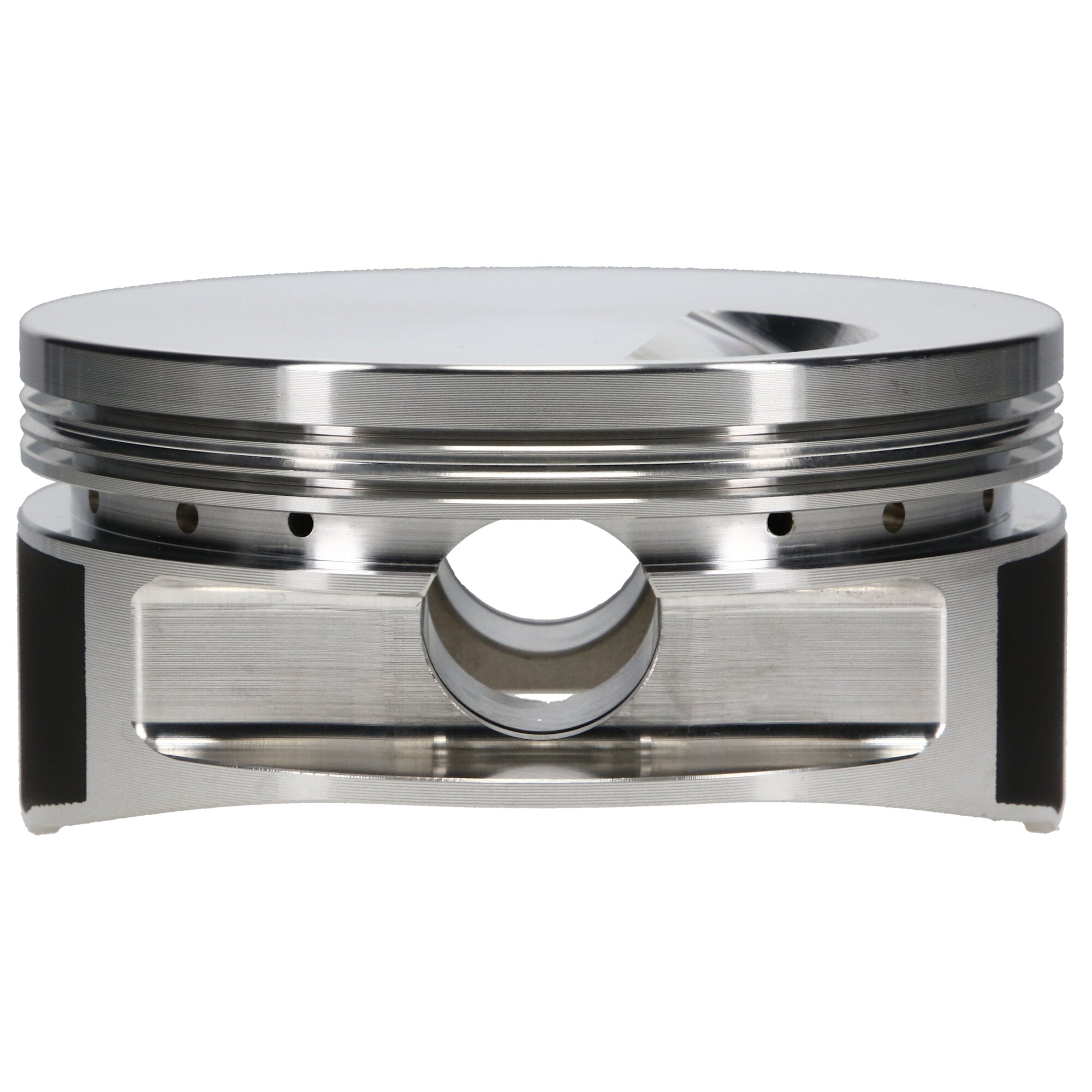

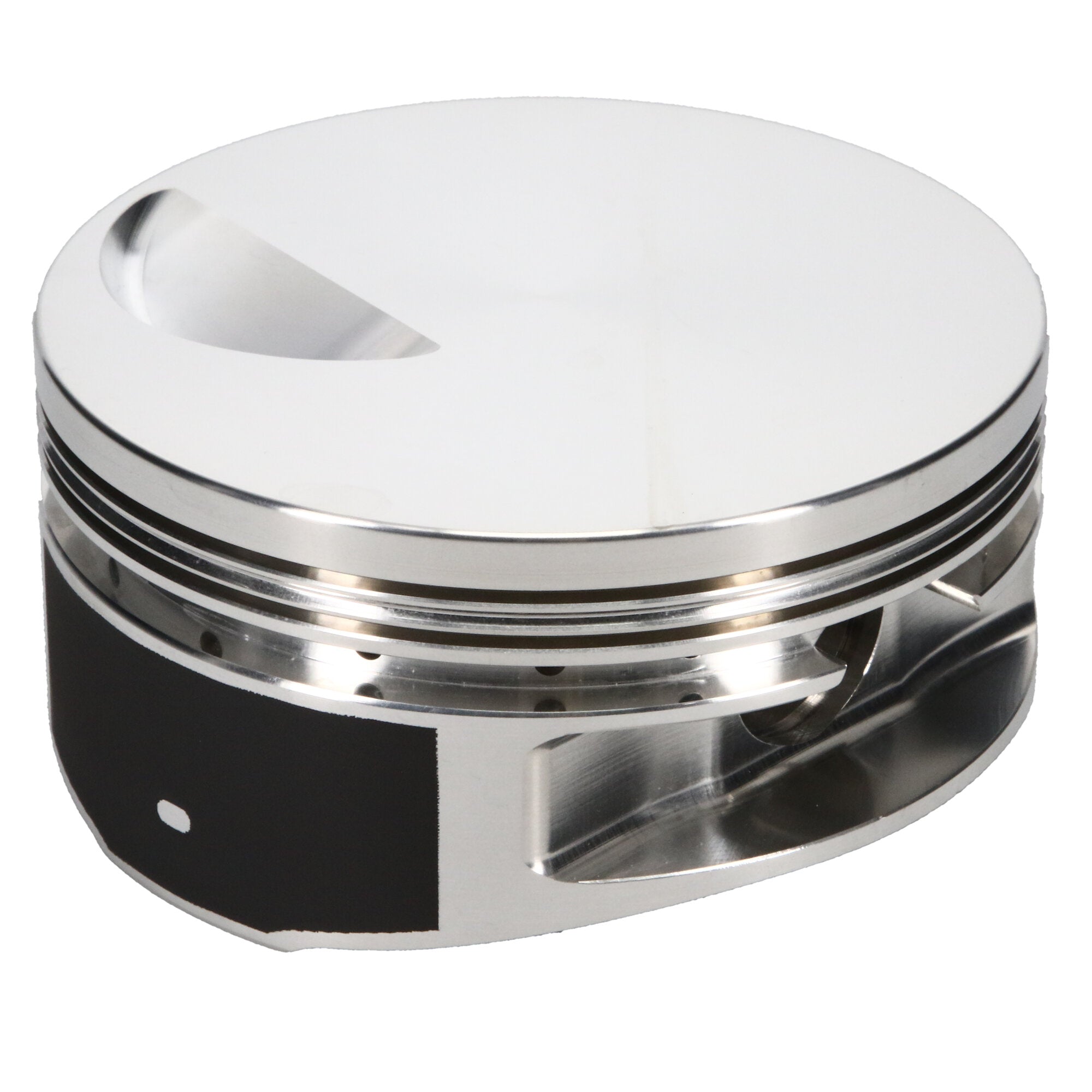

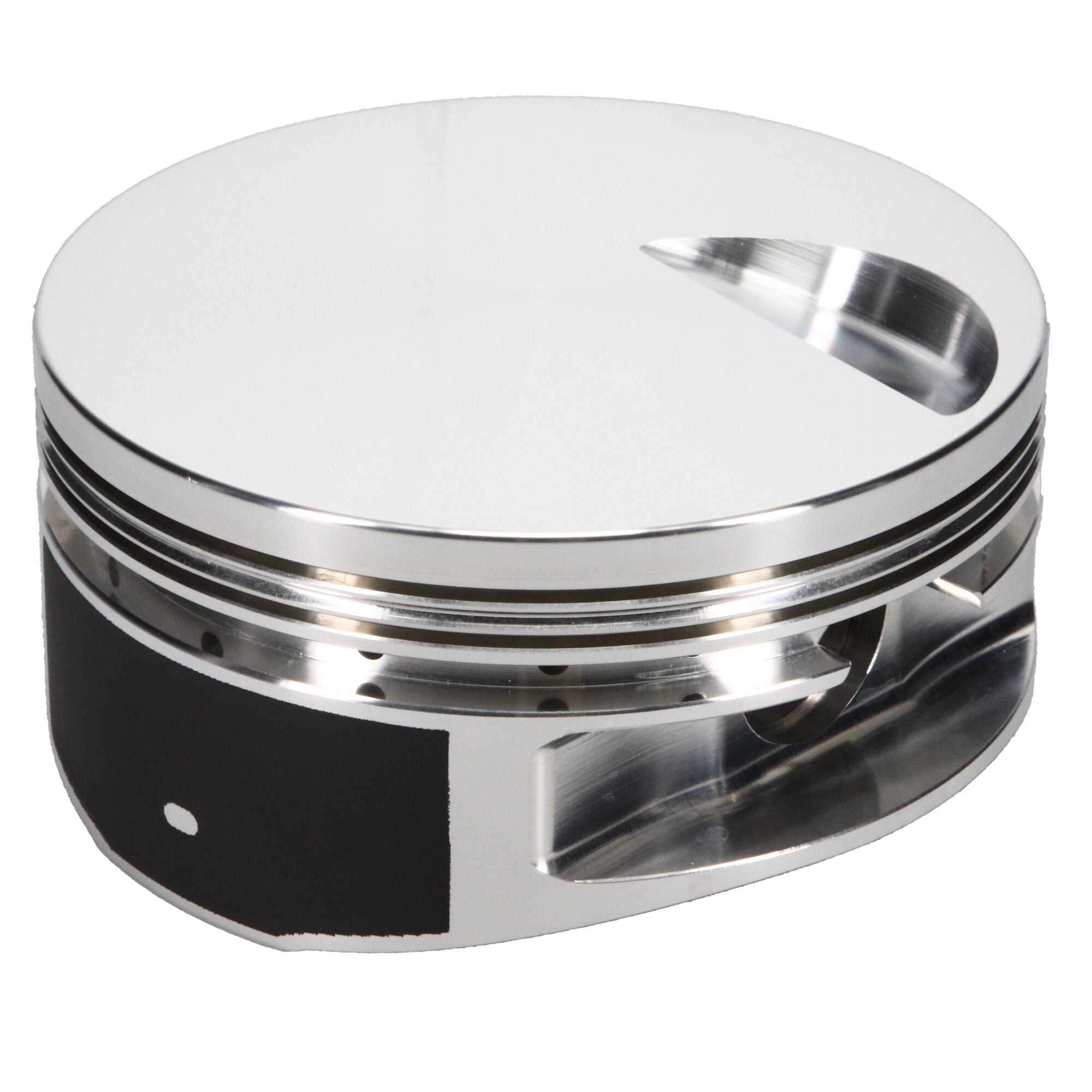

Piston Set, 2618, Flat Top, 4.500 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.395 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 502, 4.500 Bore, Flat, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Engine - Web |
Big Block |
| Title |
JE Pistons - Chevrolet, Big Block, 4.500 in. Bore, Piston Kit |
| Piston Head Type |
Flat |
| Piston Series |
JE Pistons |
| Piston Quantity |
8 |
| Product Market |
Domestic |
| Piston Pin Outside Diameter |
0.990 |
| Piston Pin Wall Thickness |
0.180 |
| Make |
CHEVROLET |
| Bore Diameter |
4.500 |
| Compression Height |
1.395 |
| Piston Average Weight |
640 |
| Forging Type |
Round |
| Oil Ring Thickness |
0.188 |
| Ringset Included |
No |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.180 |
| Industry |
Automotive |
| Engine Type |
ICE |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Piston Material |
2618 |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
990-2930-18-51S |
| Product Type |
Engine Piston Kit |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
J100F8-4500-5 |
| Piston Volume |
-3.00 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.930 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Engine |
Big Block |
| Prop 65 (C, R or CR) |
CR |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.500 in. Bore - 1.395 in. CH, -3.00 CC |
| Out of Stock Message |
Call for Availability |
| Piston Pin Length |
2.930 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
18.0000 |
