As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

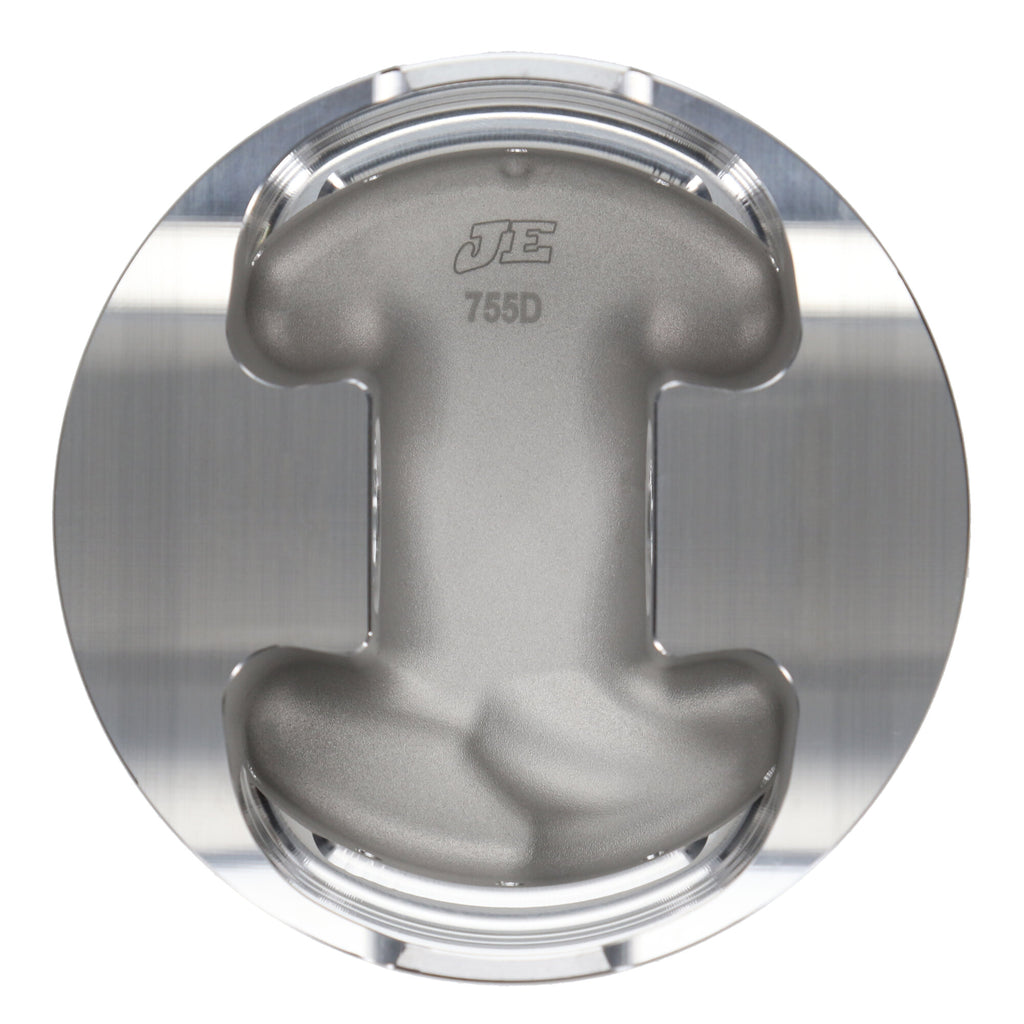

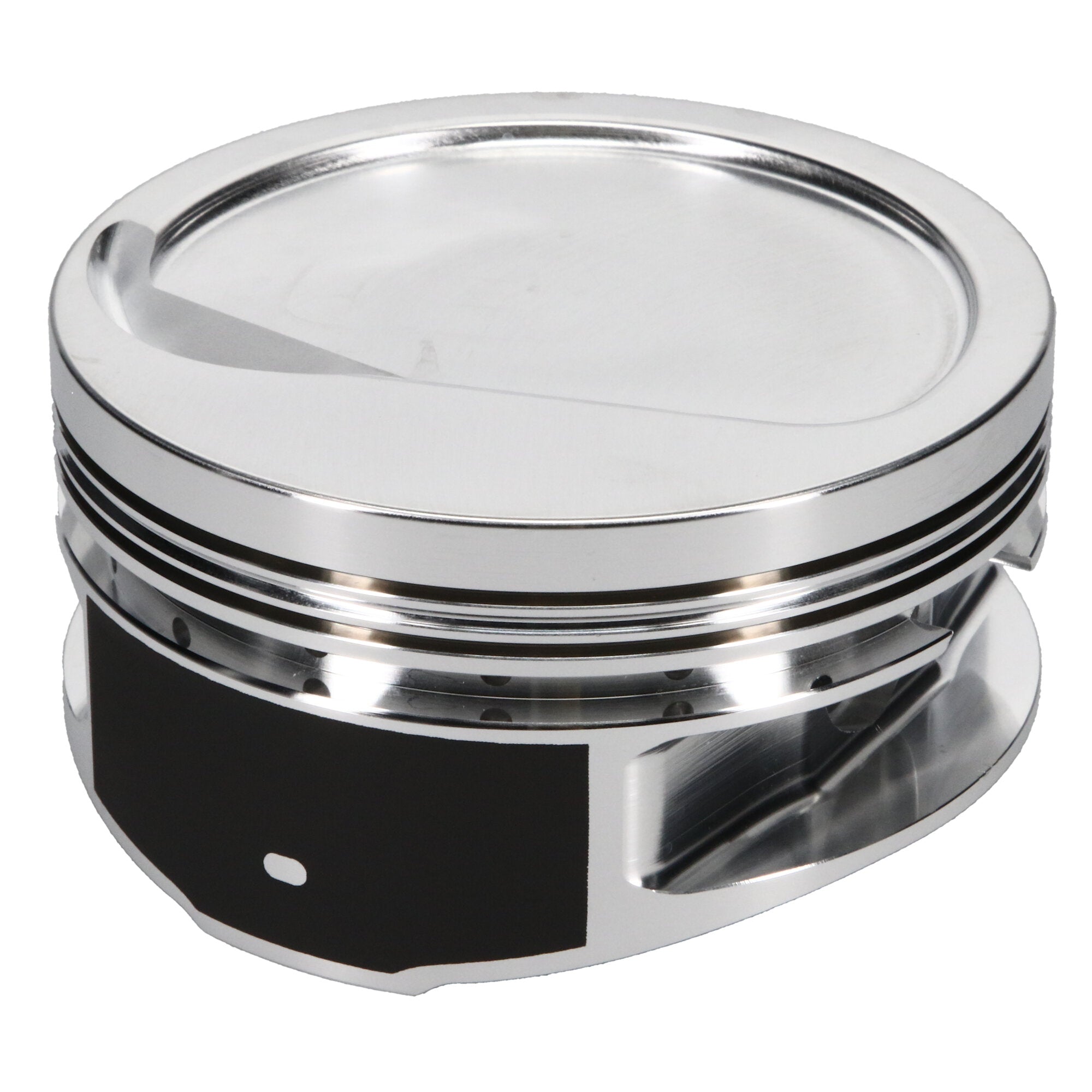

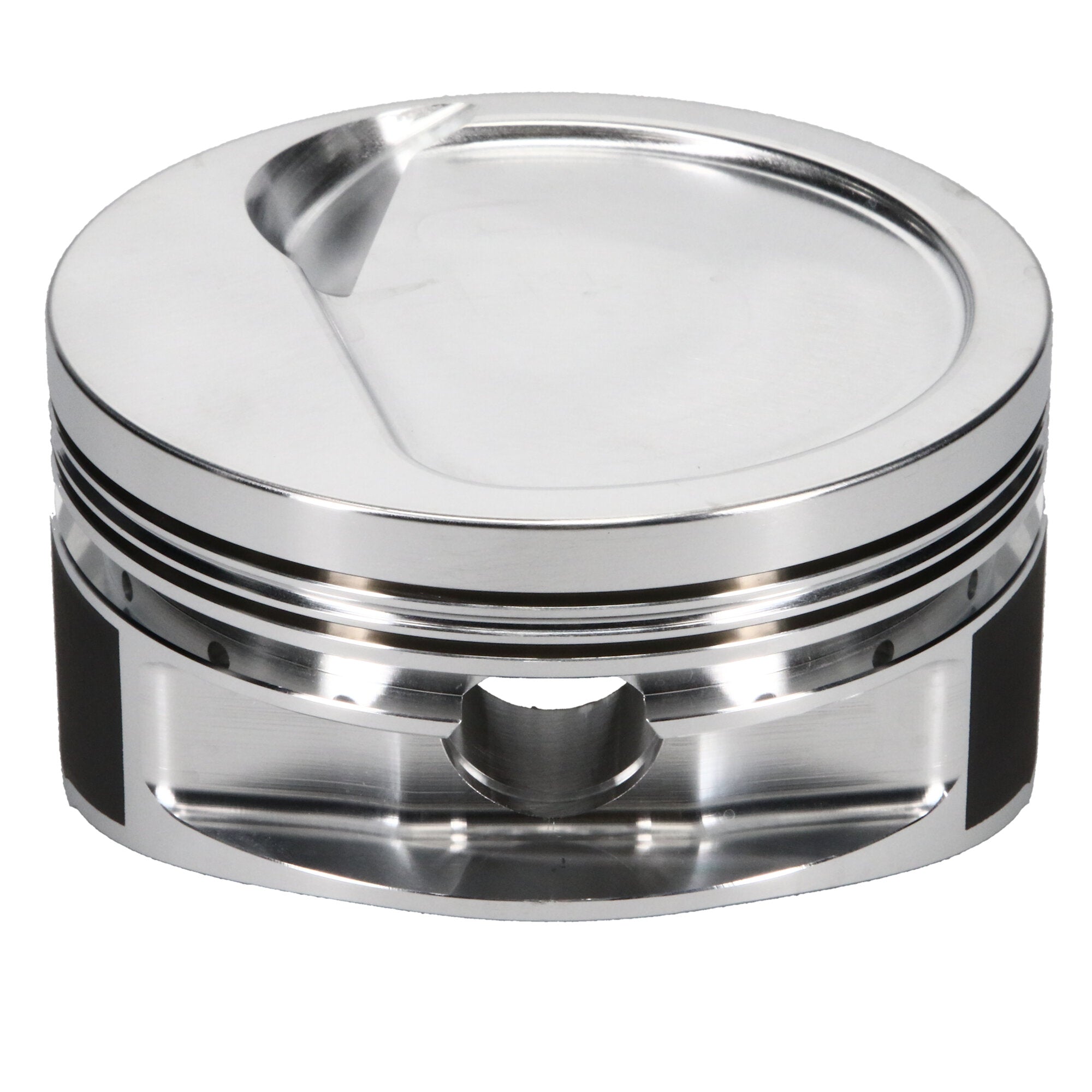

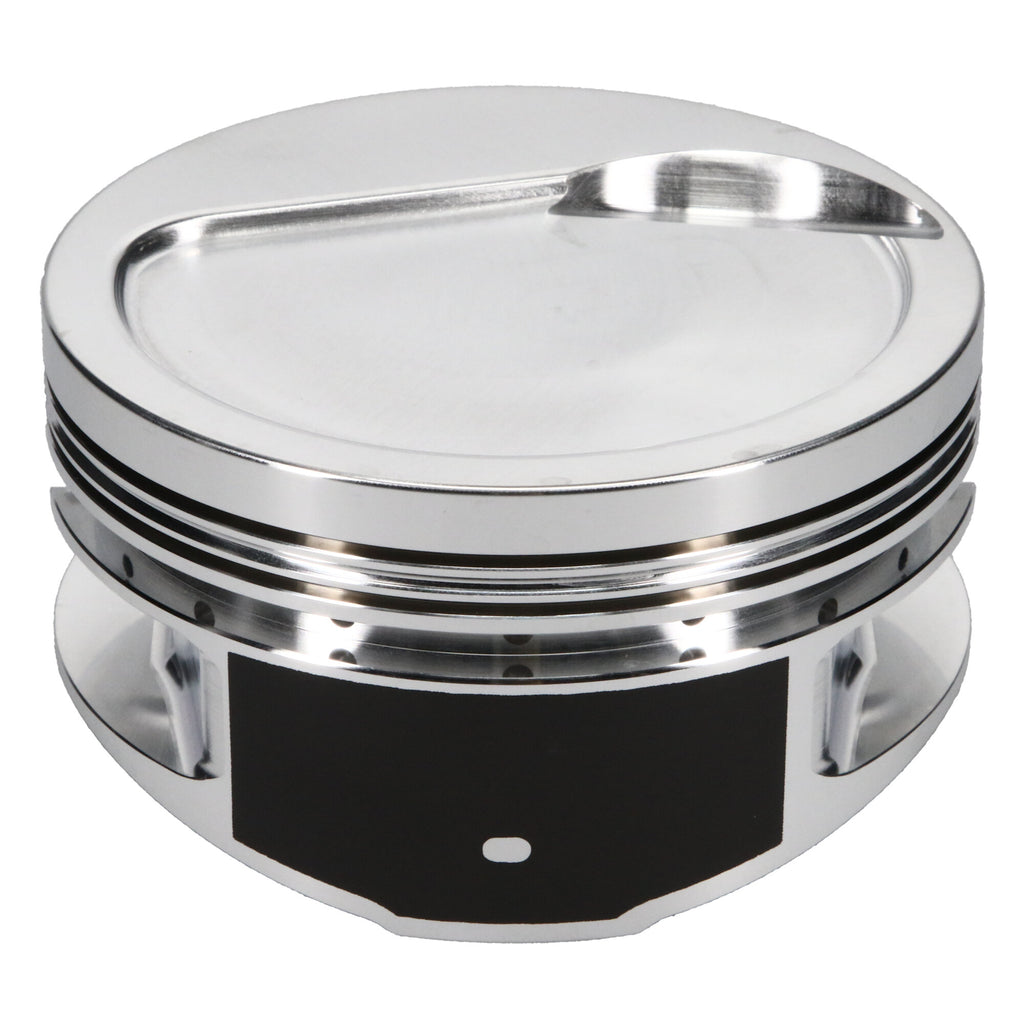

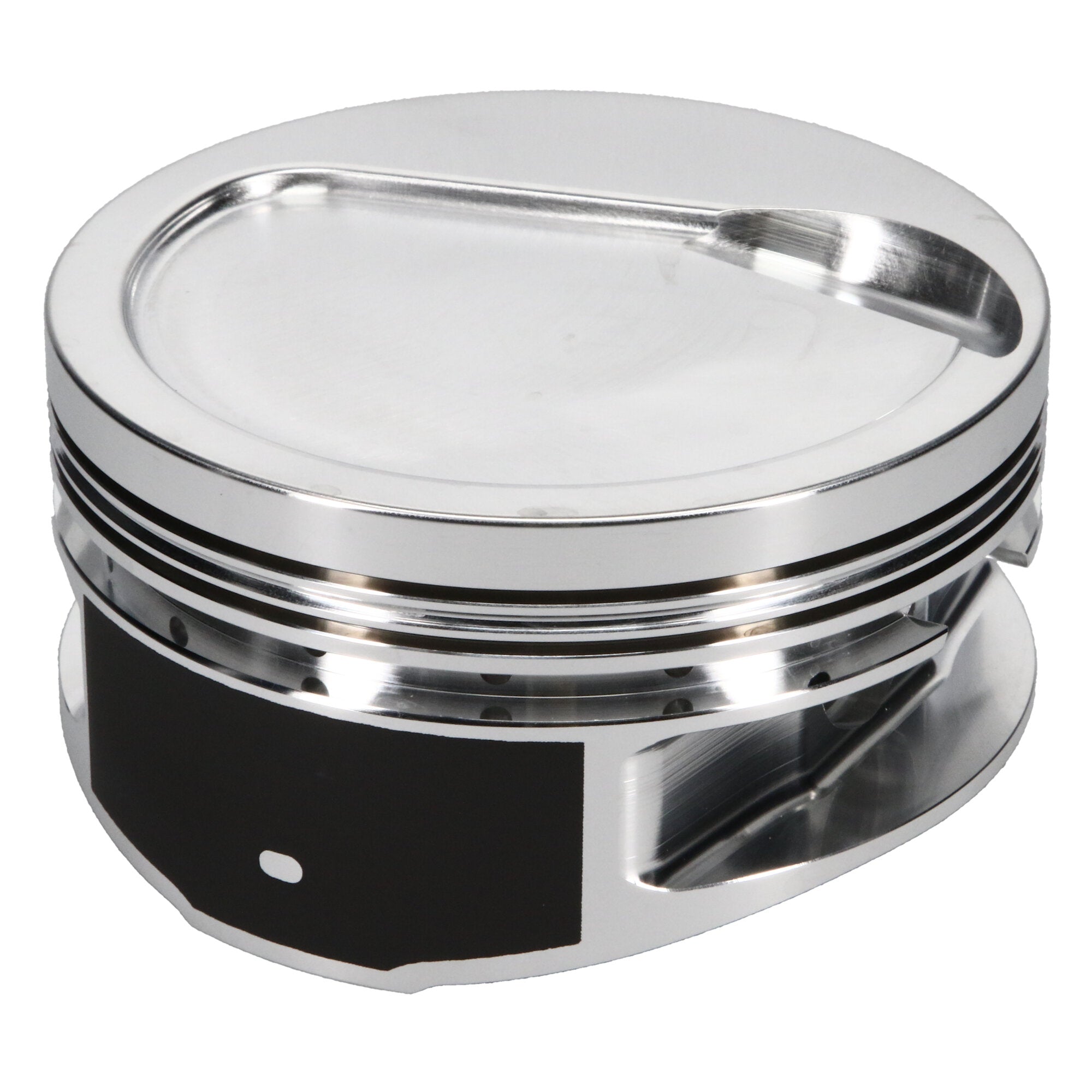

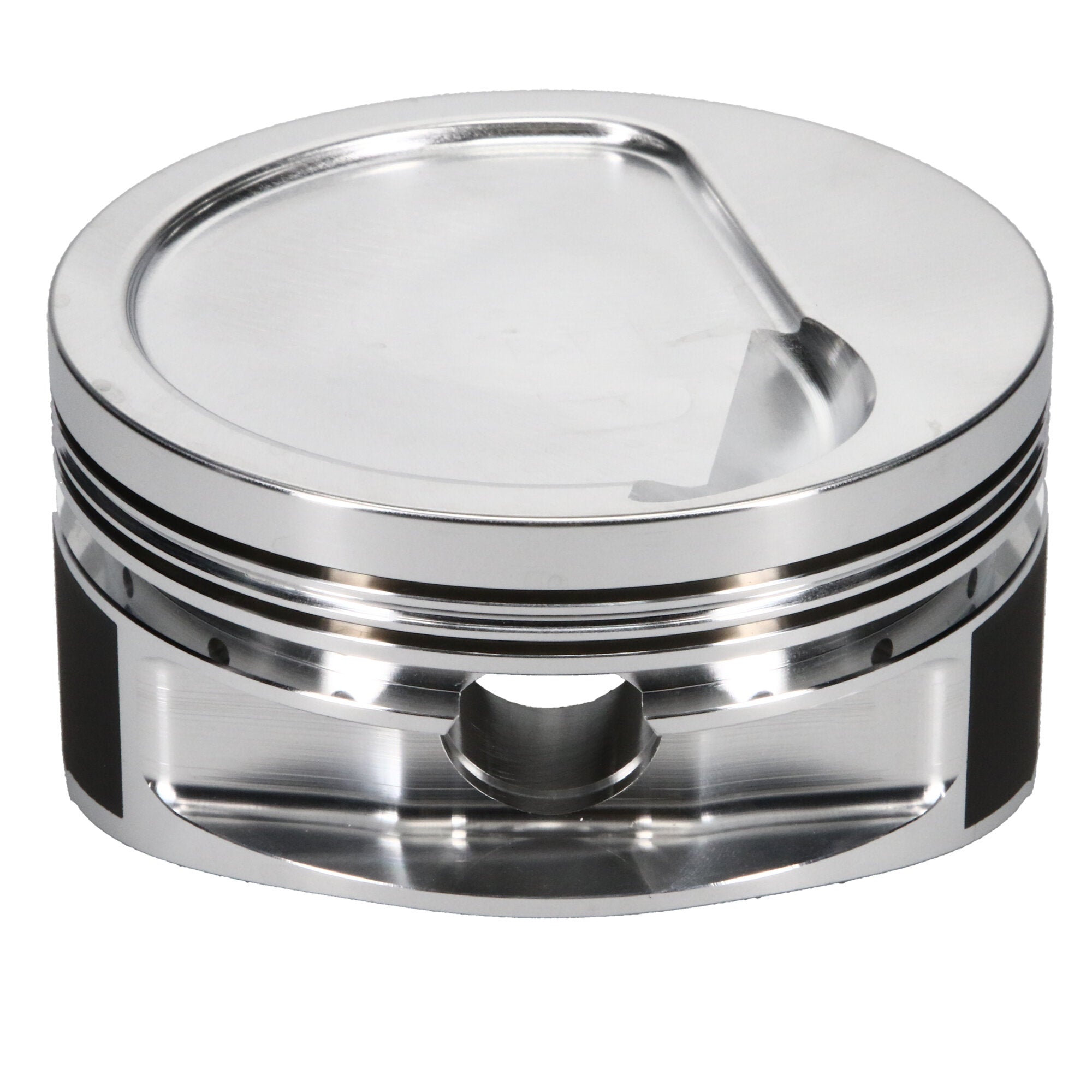

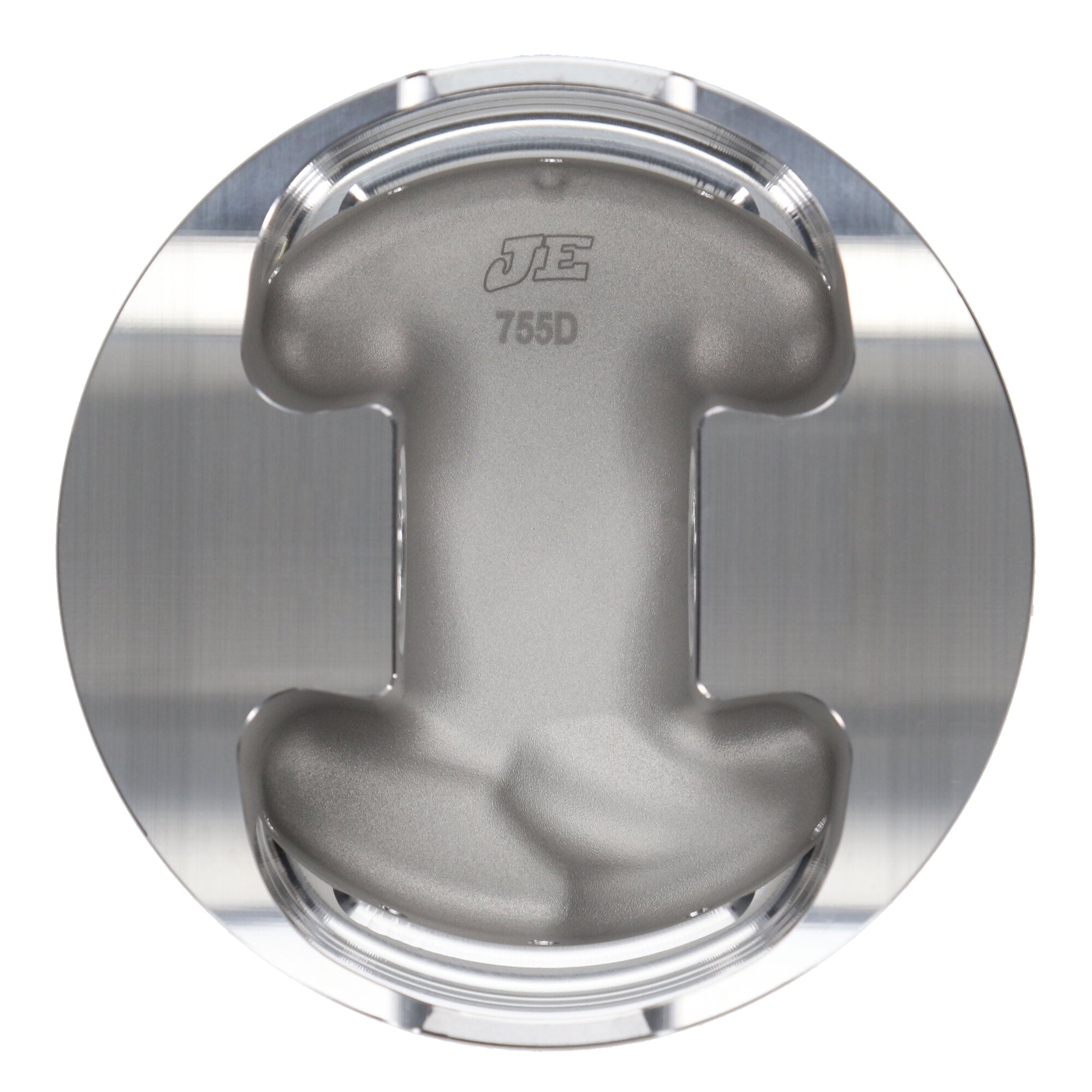

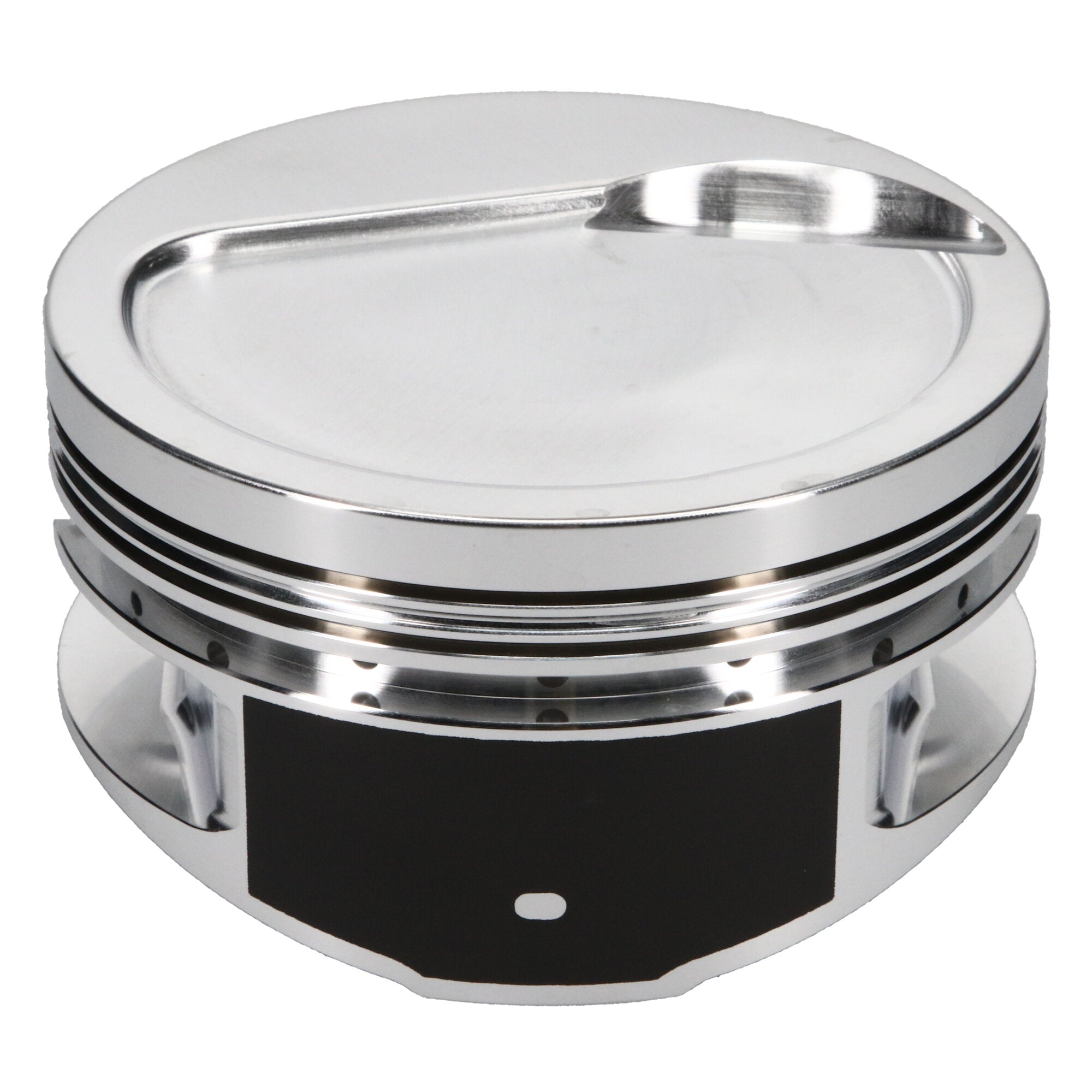

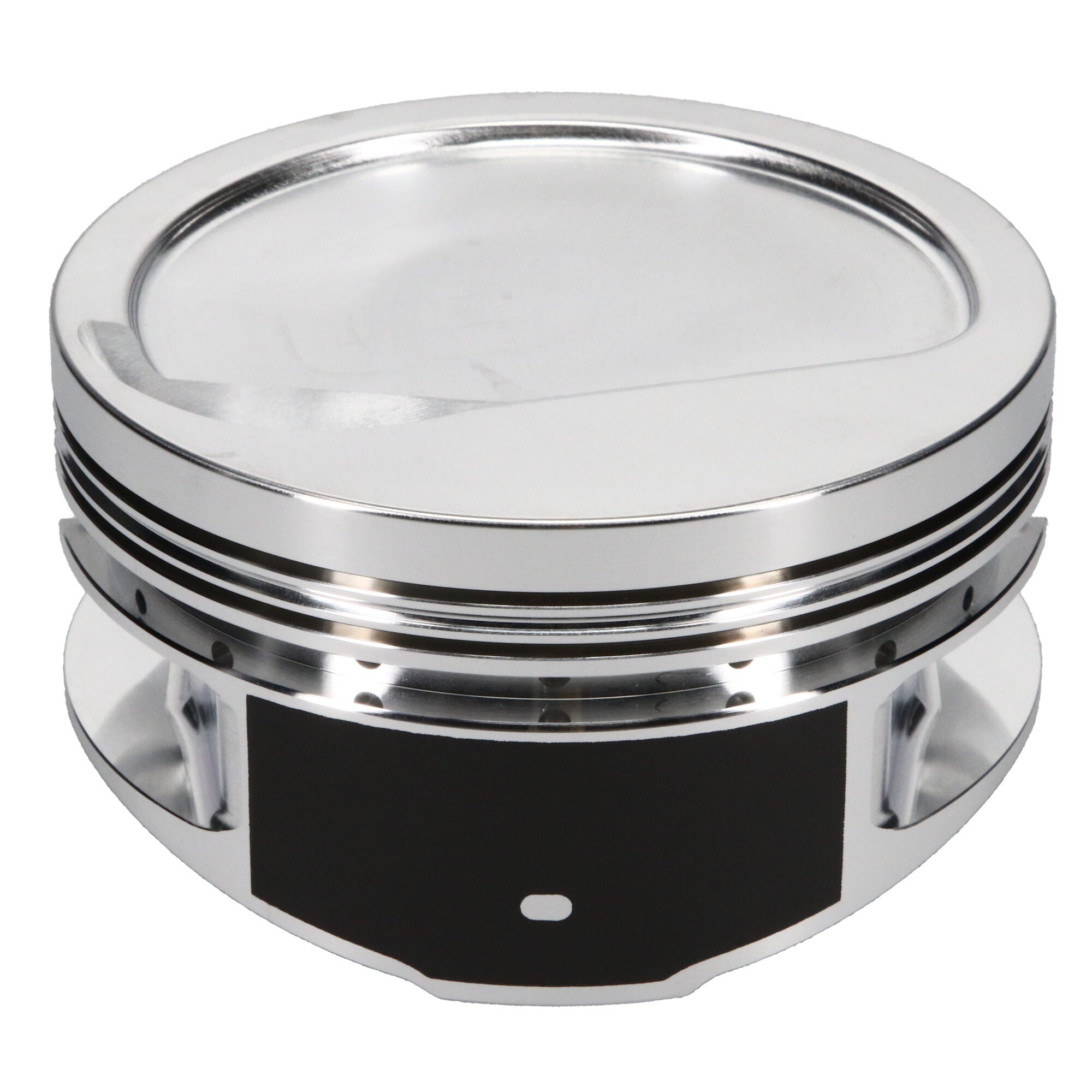

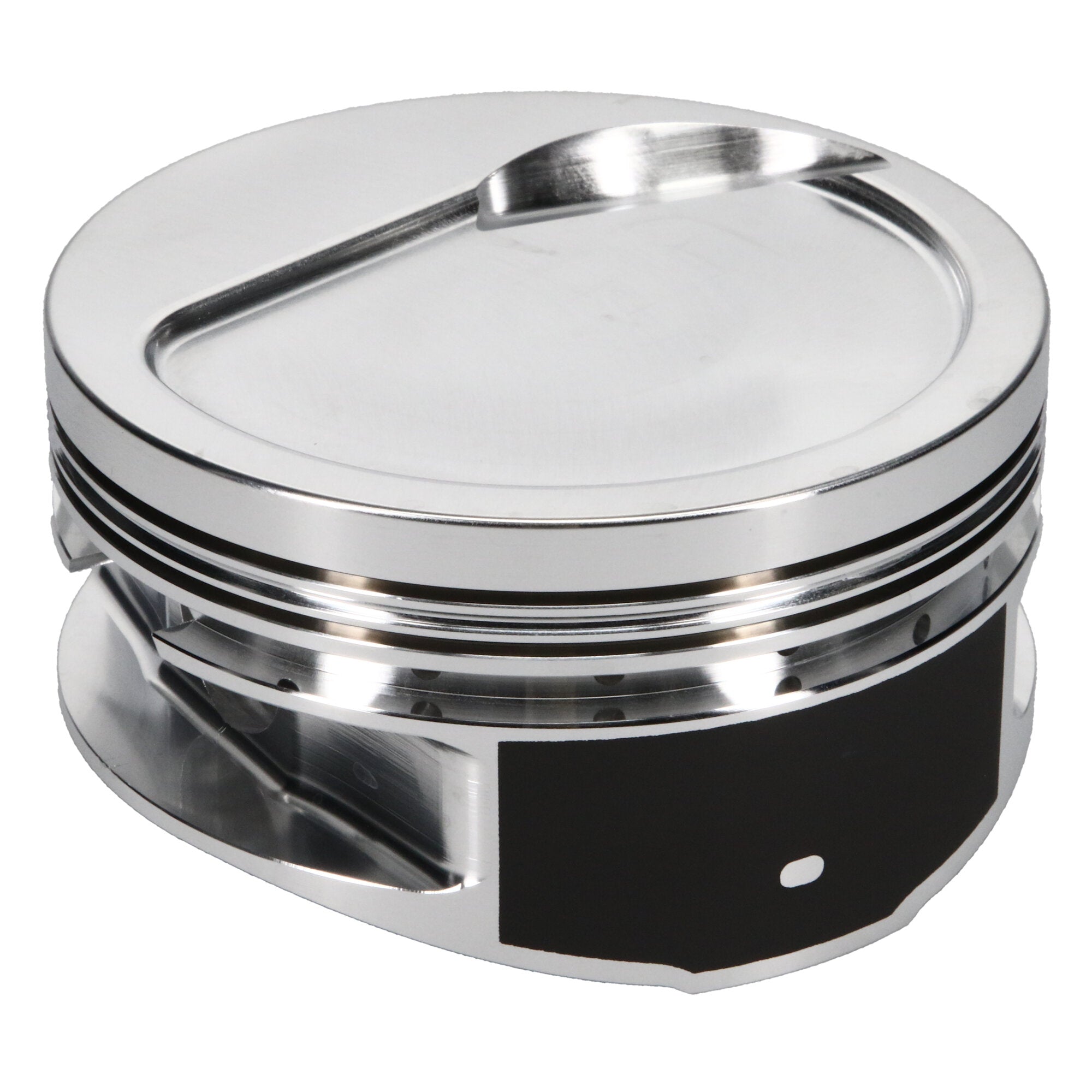

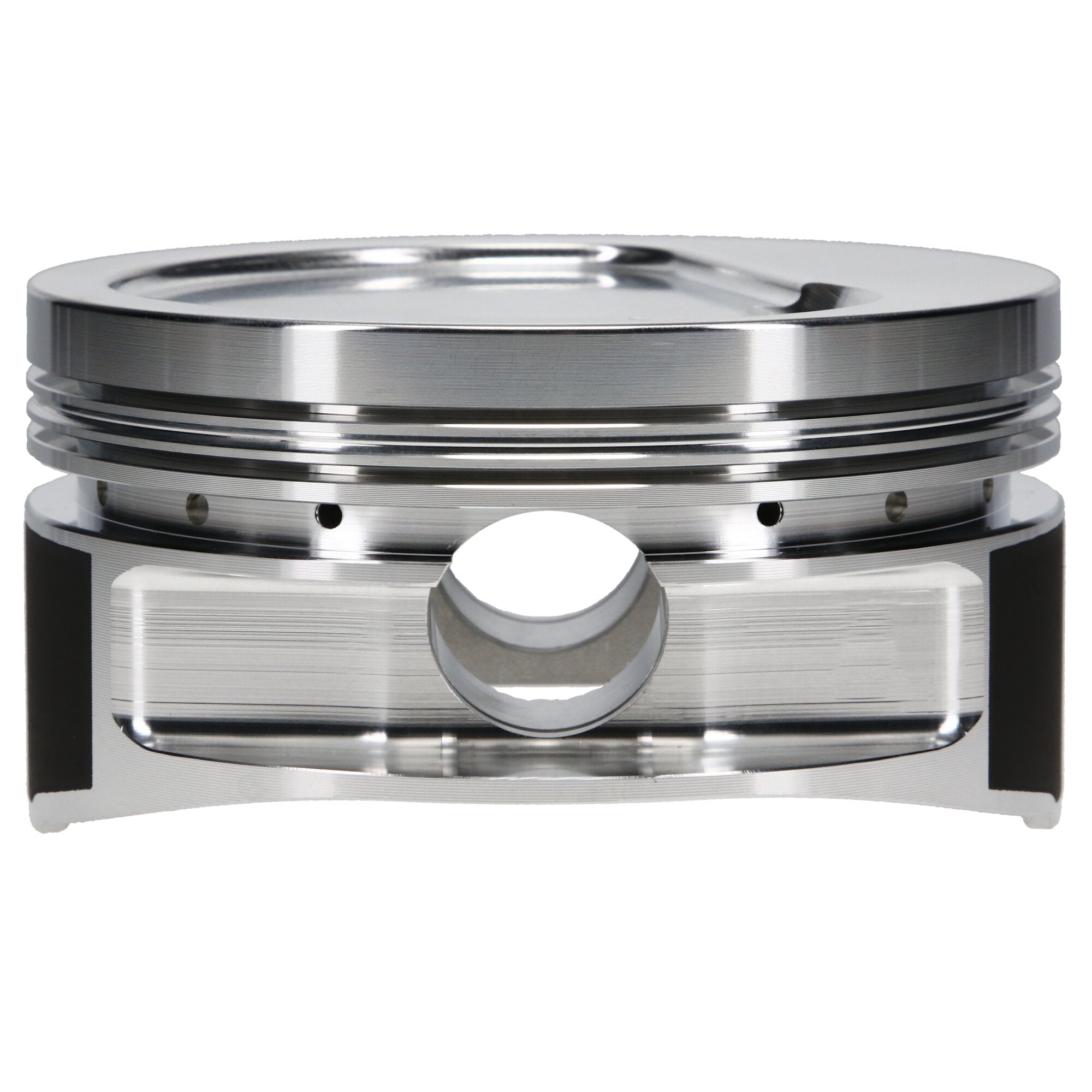

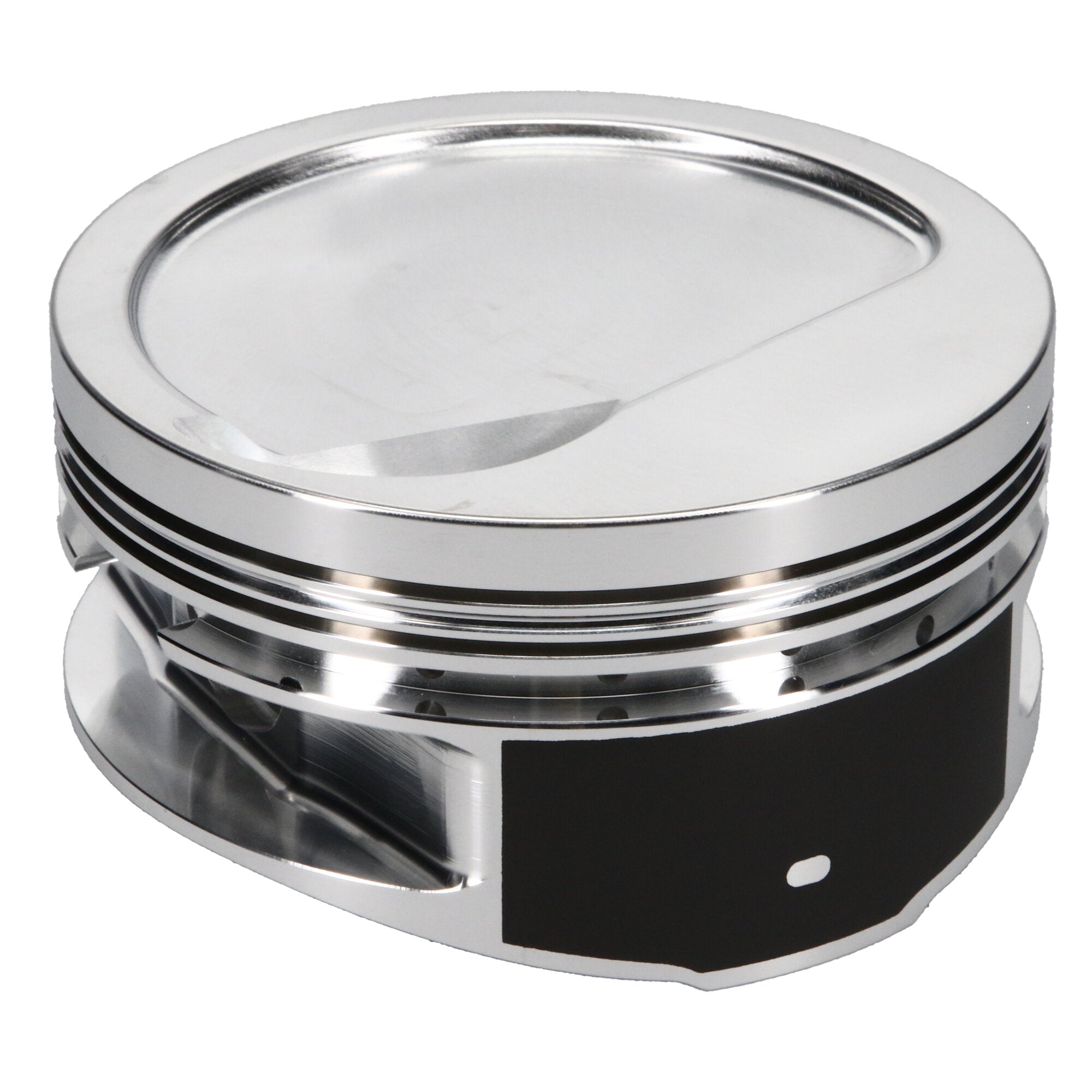

Piston Set, 2618, Inv Dome/Dish, 4.530 Bore, 1.645 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.645 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.530 Bore, Dish, Set of 8 |
| Second Compression Ring Thickness |
0.0640 |
| Make - Web |
Chevrolet |
| Wrist Pin Length |
2.930 |
| Piston Volume |
-11.50 |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.645 in. CH, -11.50 CC |
| Add-On |
J100F8-4530-5 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
OPEN CHAMBER |
| Add-On |
990-2930-18-51S |
| Piston Pin Length |
2.930 |
| Add-On |
990-042-CS |
| Prop 65 Yes/No |
Yes |
| Ring Set Included |
No |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.645 |
| Engine |
Big Block |
| Piston Average Weight |
674 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Forging Type |
Round |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Bore Diameter |
4.530 |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Pin Wall Thickness |
0.180 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Piston Head Type |

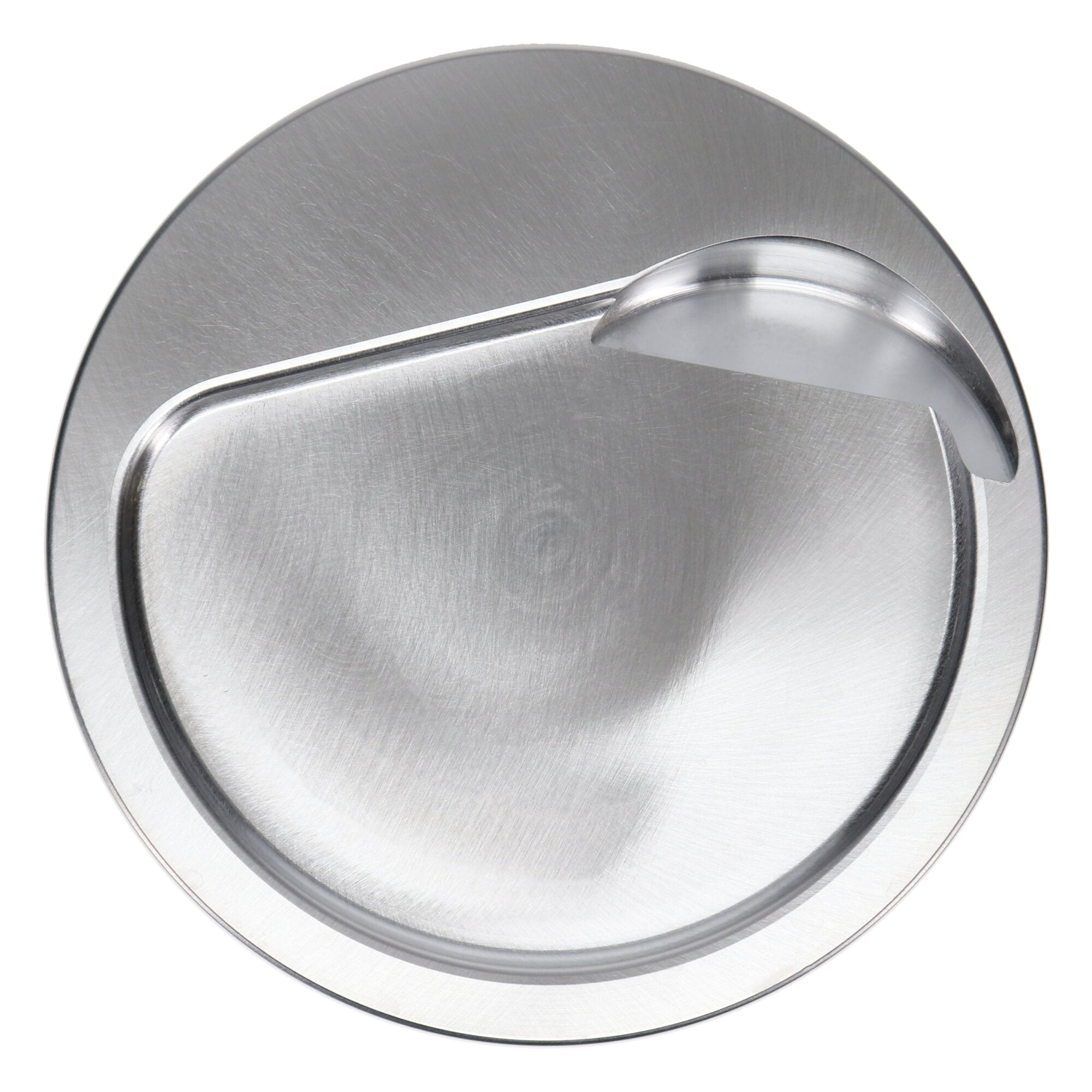

Dish |
| Engine - Web |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
