As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.520 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_DES |

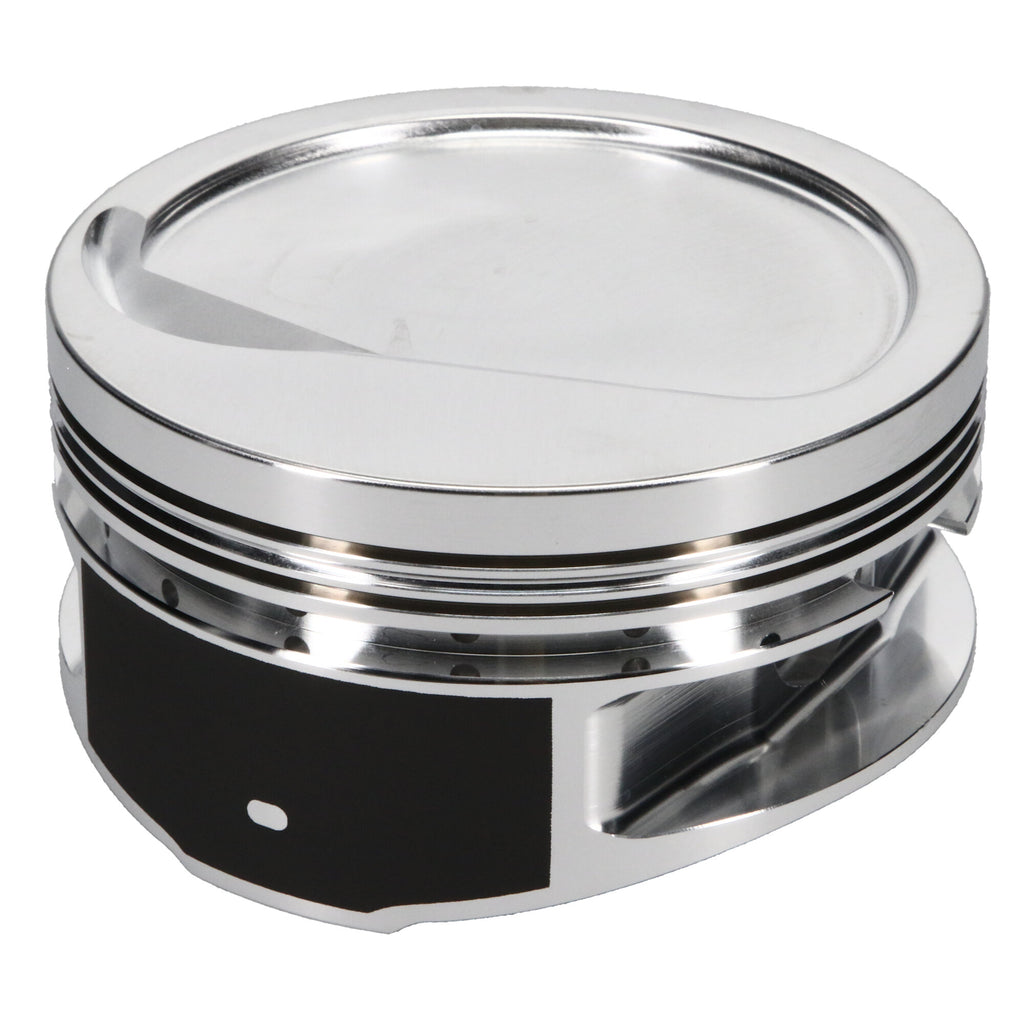

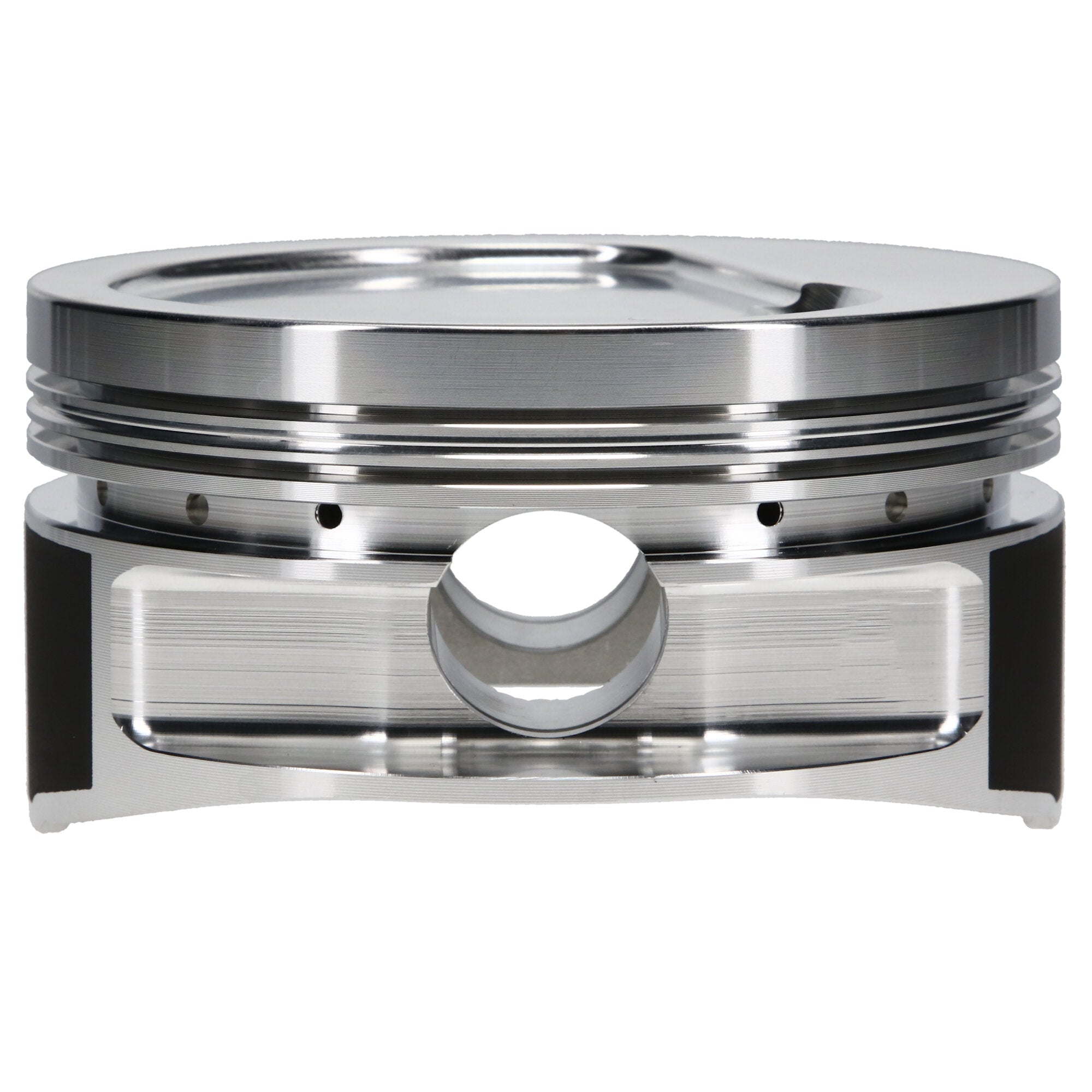

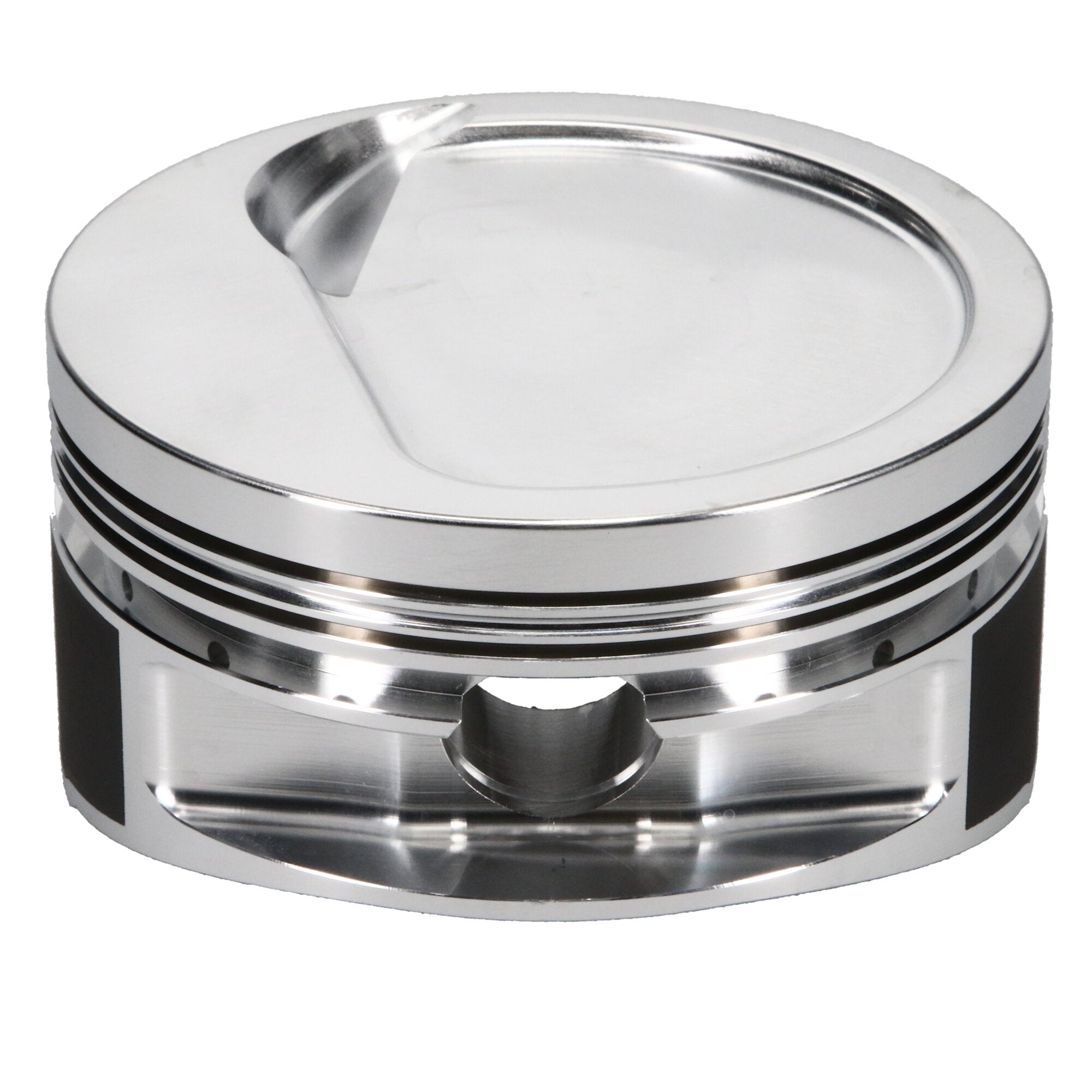

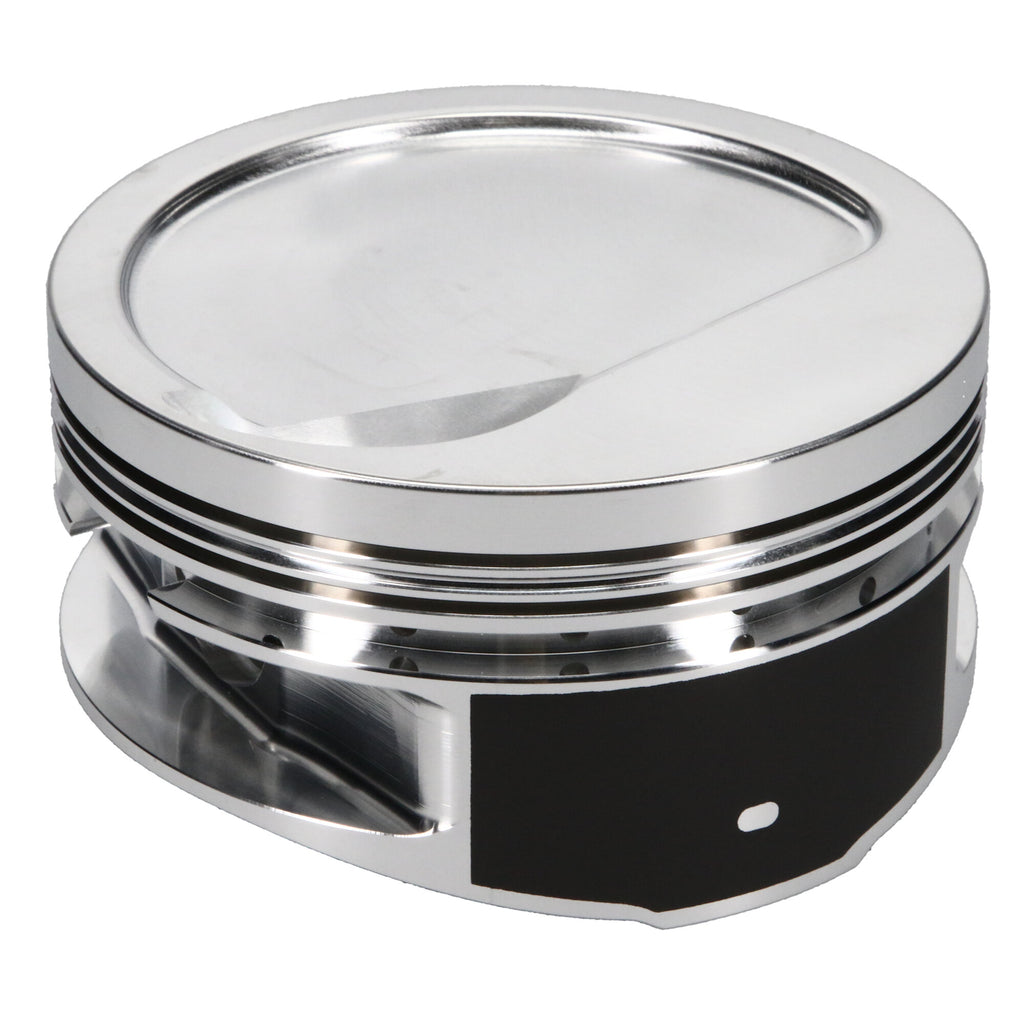

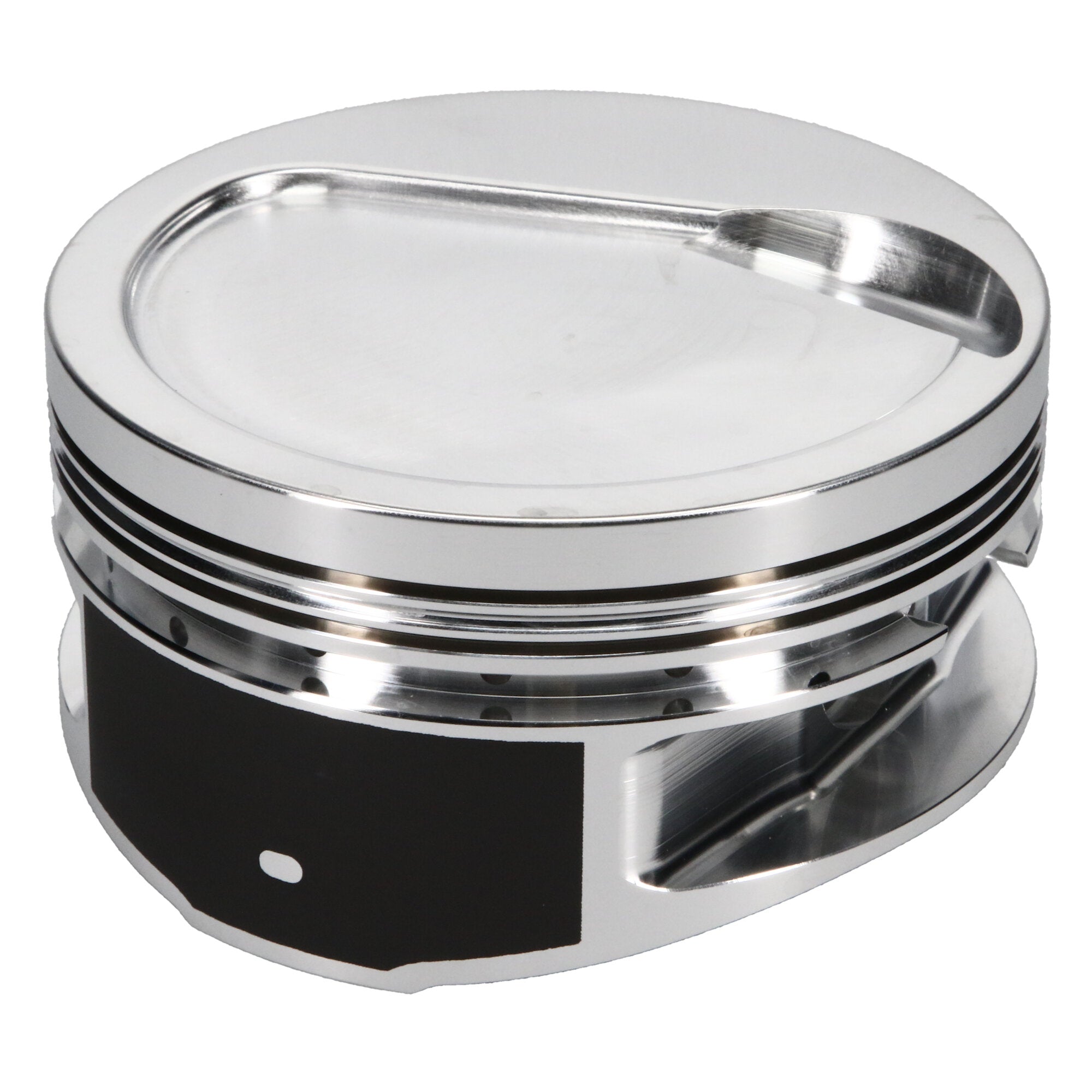

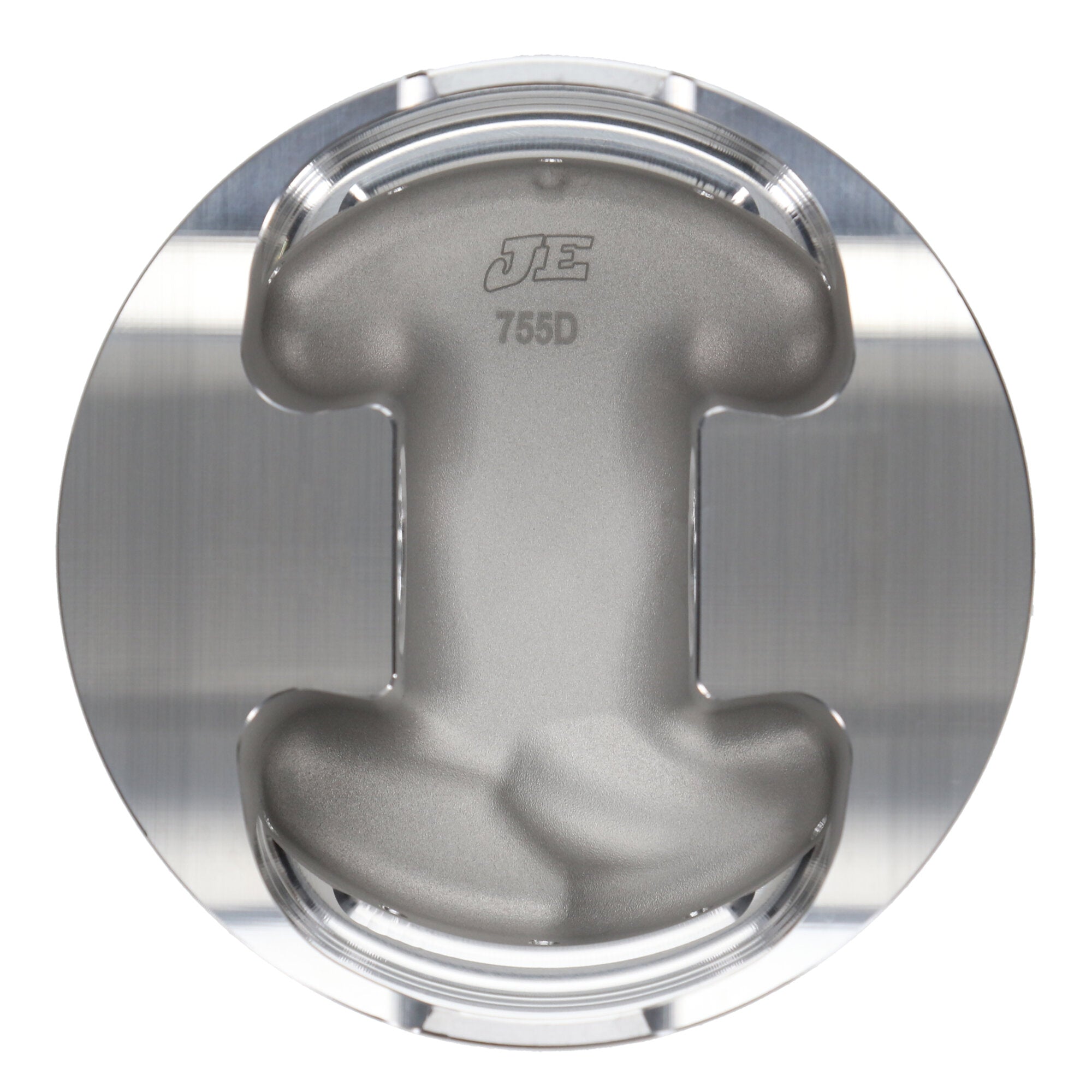

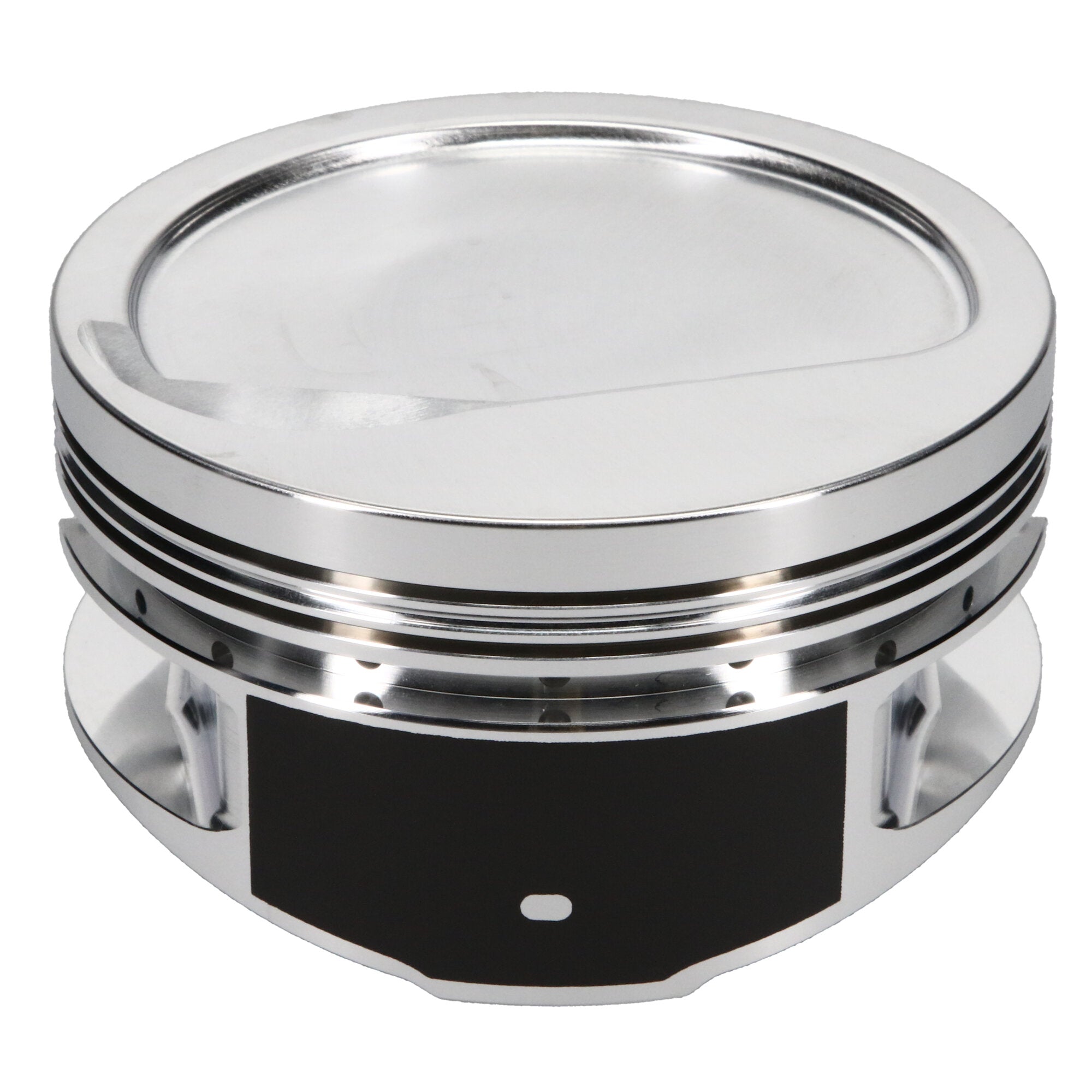

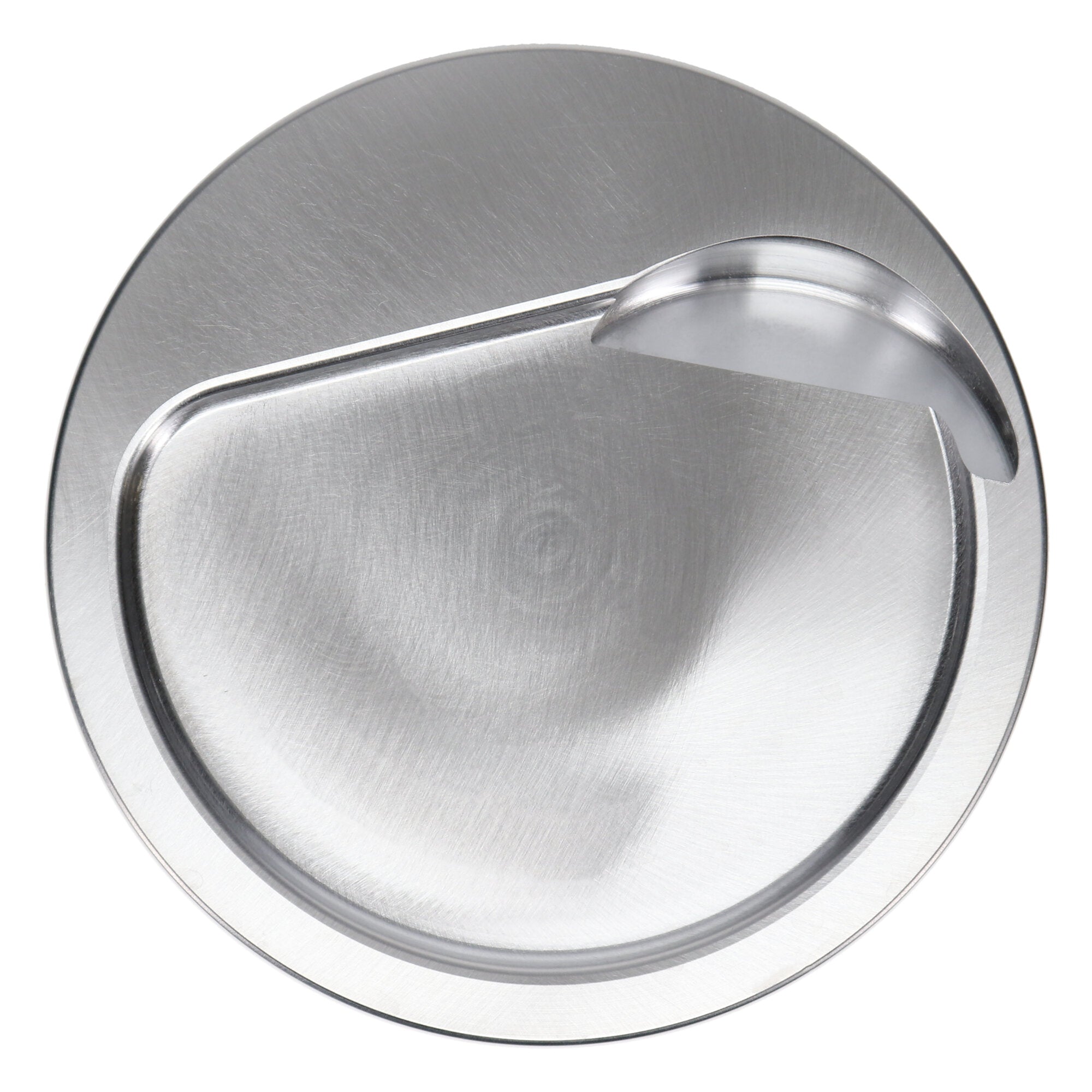

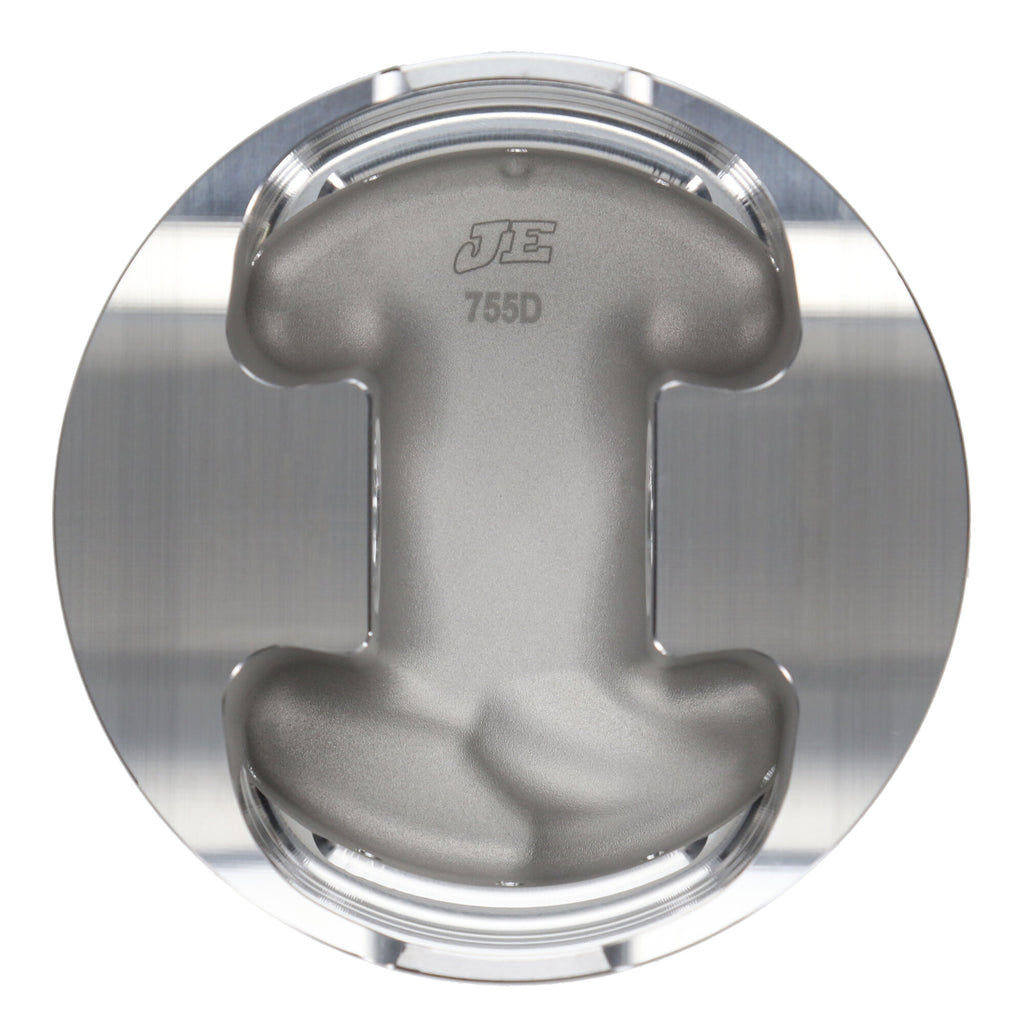

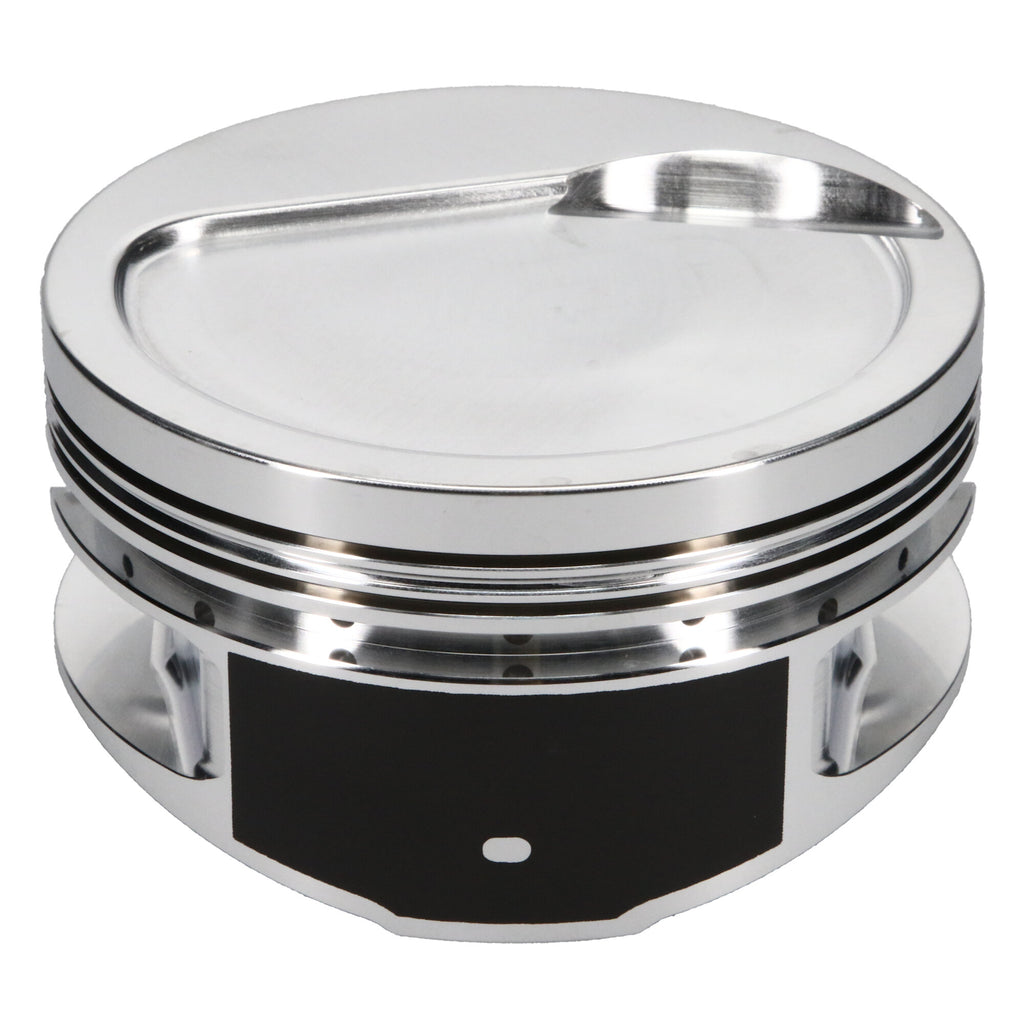

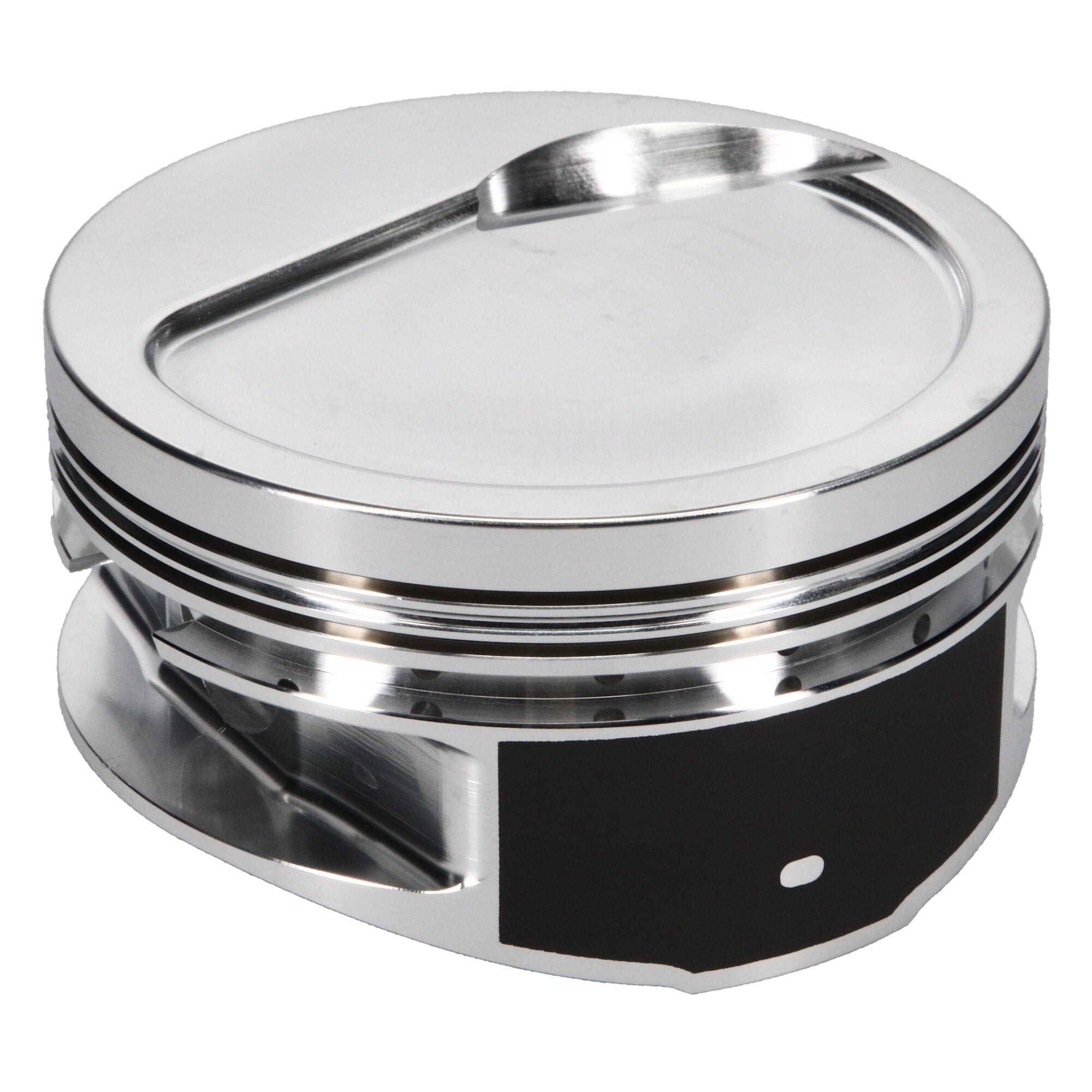

Piston Set, 2618, Inv Dome/Dish, 4.600 Bore, 1.520 CD, 0.990 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.600 Bore, Dish, Set of 8 |
| Oil Ring Thickness |
0.188 |
| Piston Pin Length |
2.930 |
| Piston Pin Wall Thickness |
0.180 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Ringset Included |
No |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Engine |
Big Block |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.180 |
| Piston Average Weight |
662 |
| Add-On |
990-2930-18-51S |
| Prop 65 Yes/No |
Yes |
| Add-On |
J100L8-4600-5 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.520 in. CH, -20.00 CC |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-20.00 |
| Bore Diameter |
4.600 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
990-042-CS |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.990 |
| Piston Head Type |
Dish |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
OPEN CHAMBER |
| Compression Height |
1.520 |
| Second Compression Ring Thickness |
0.0640 |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
