As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.520 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_DES |

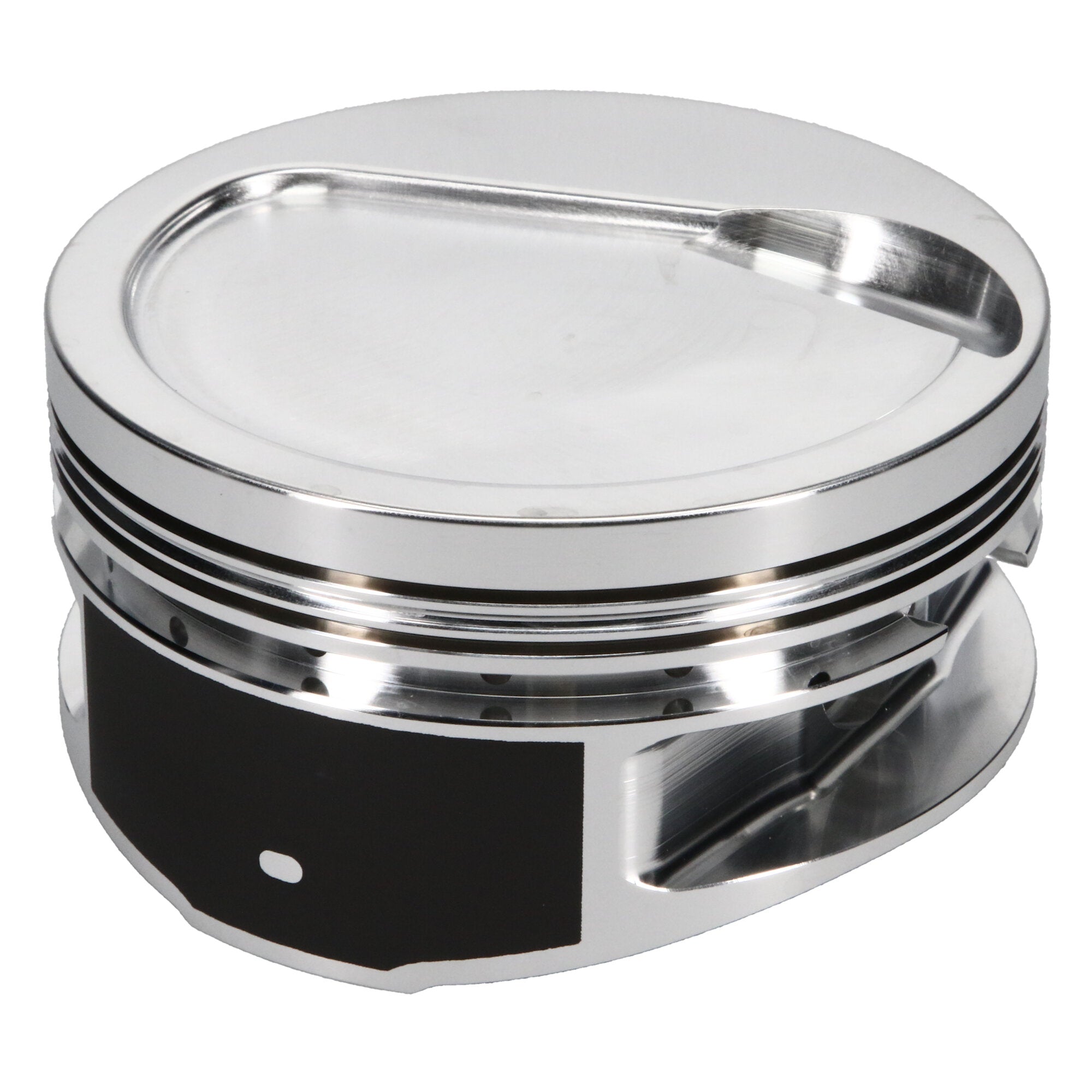

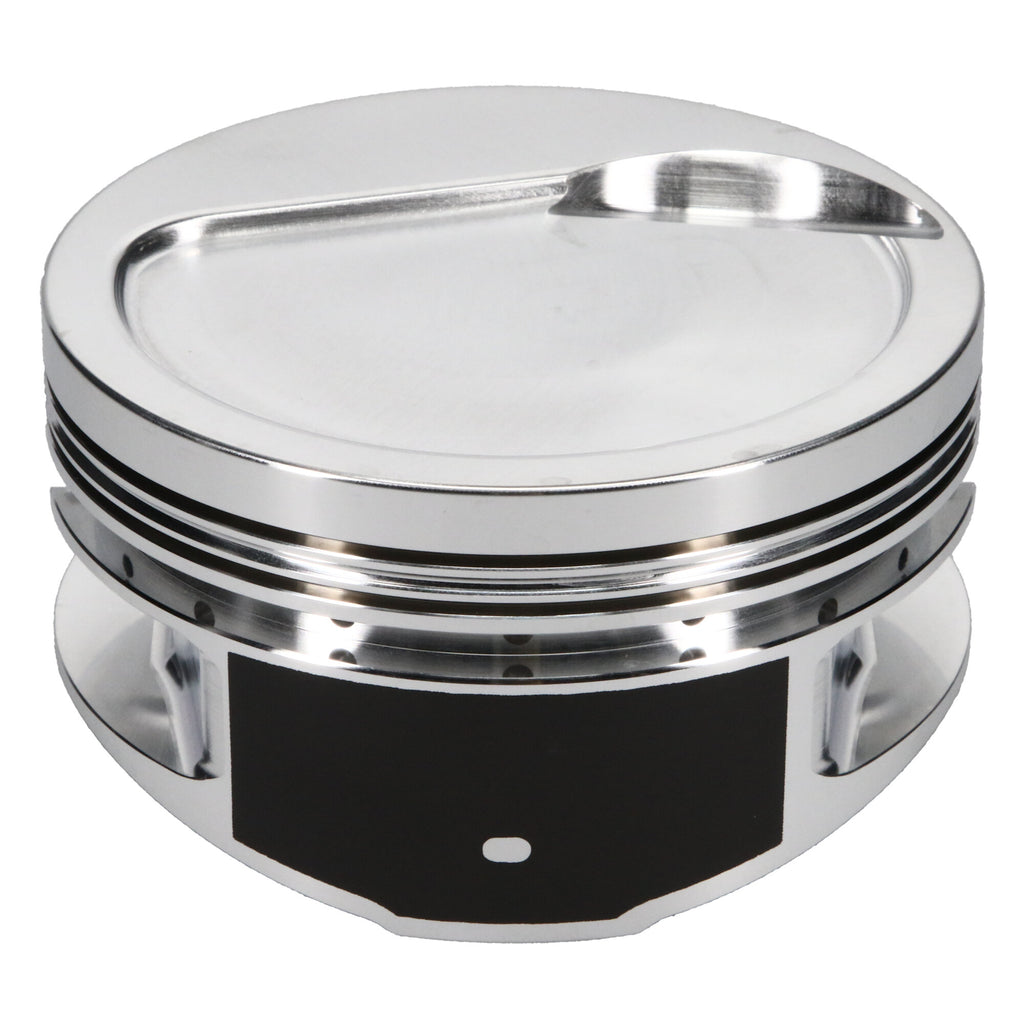

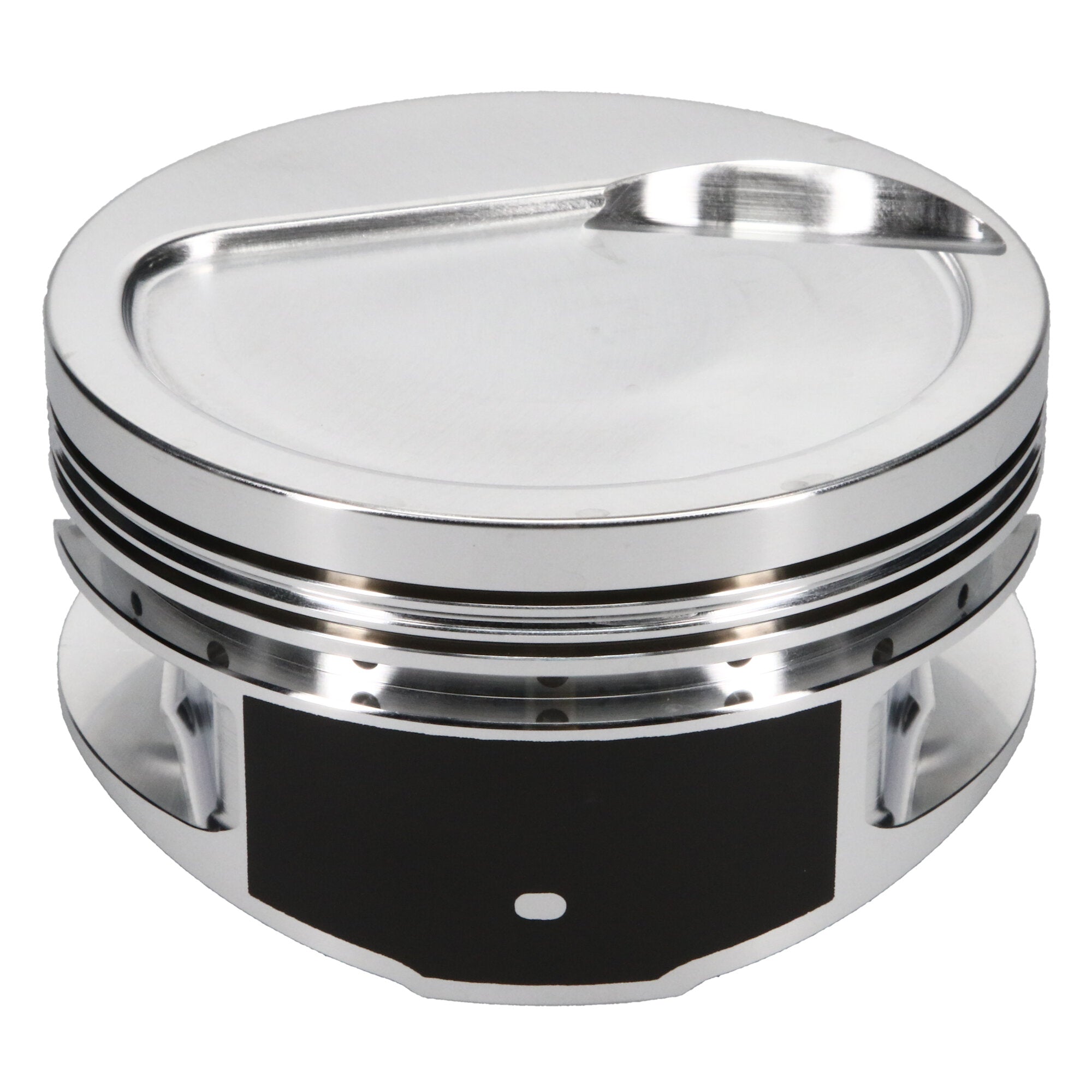

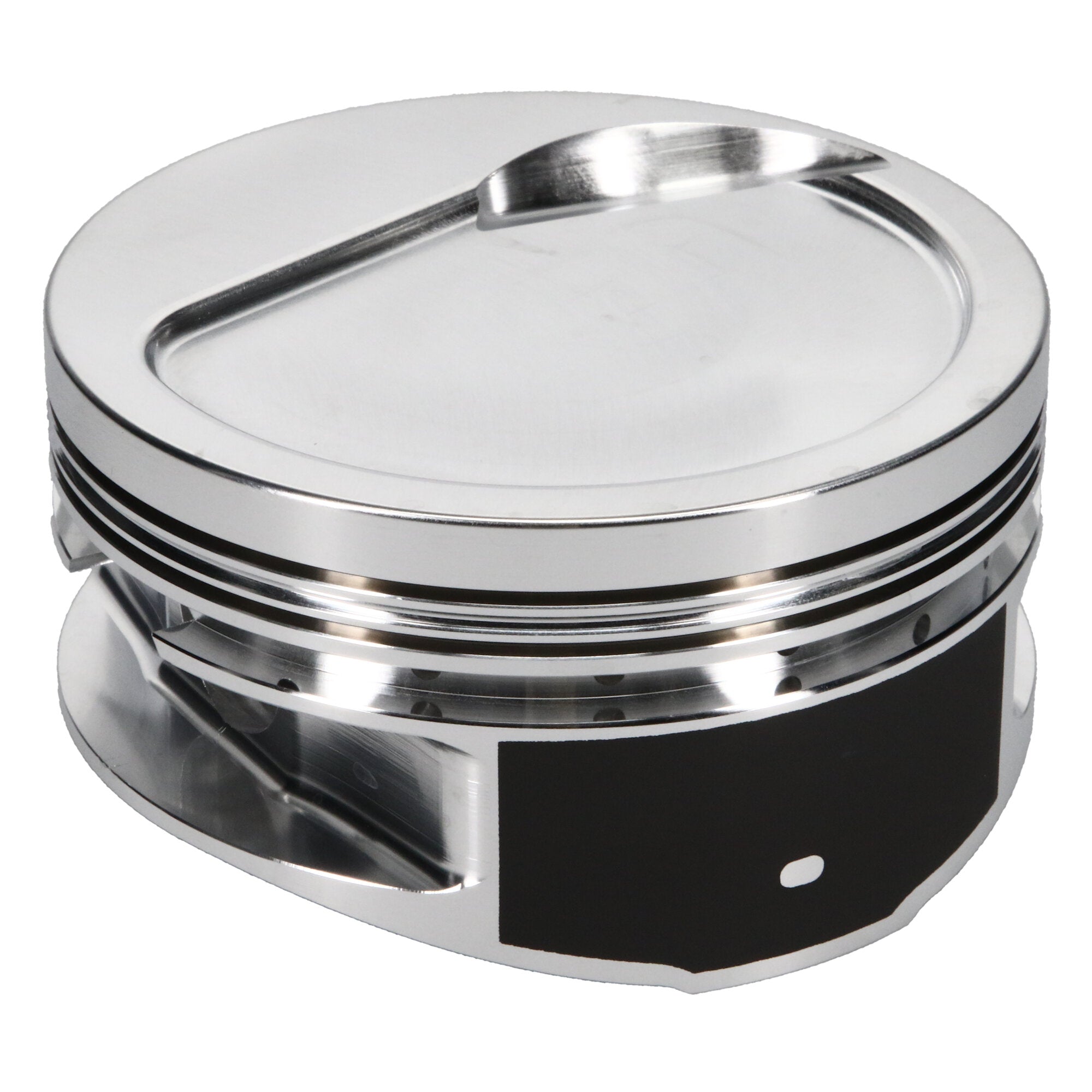

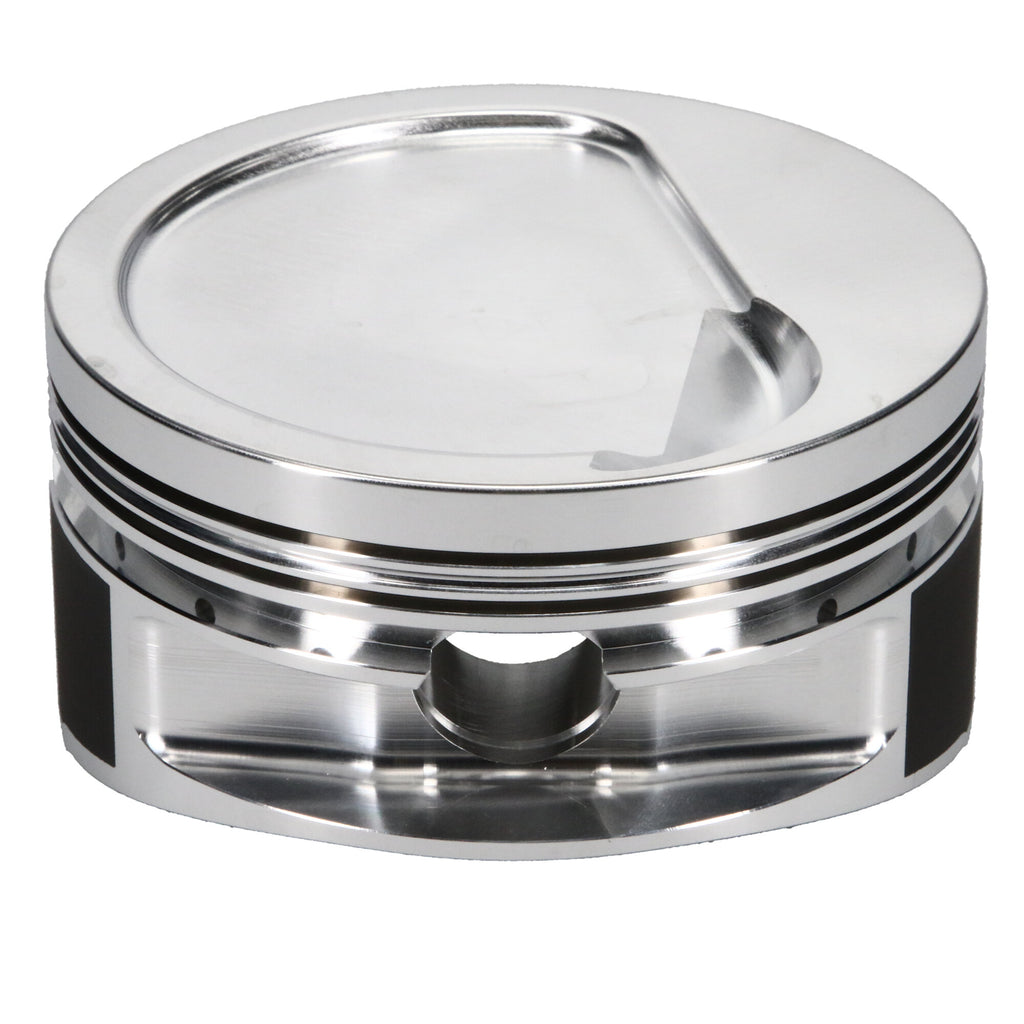

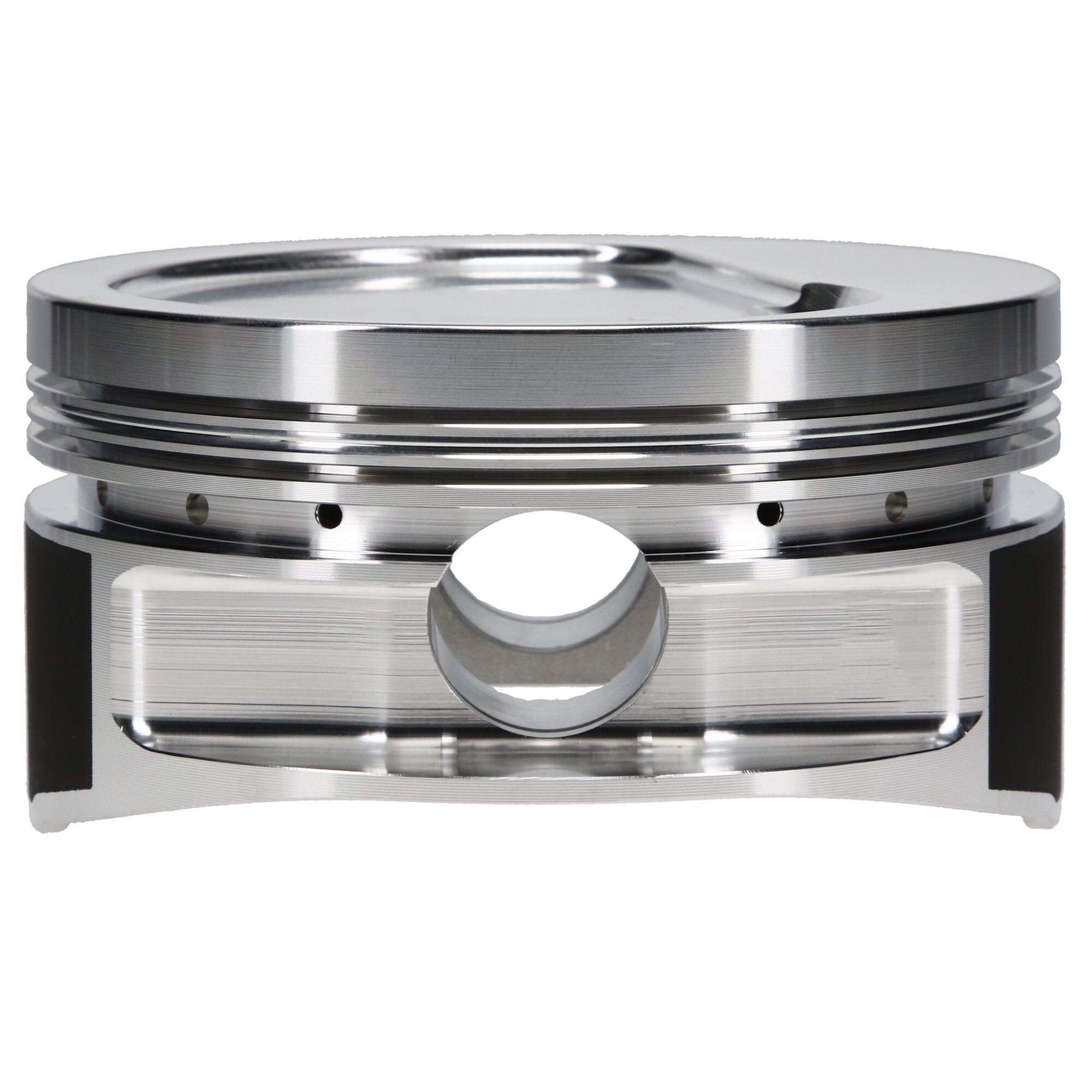

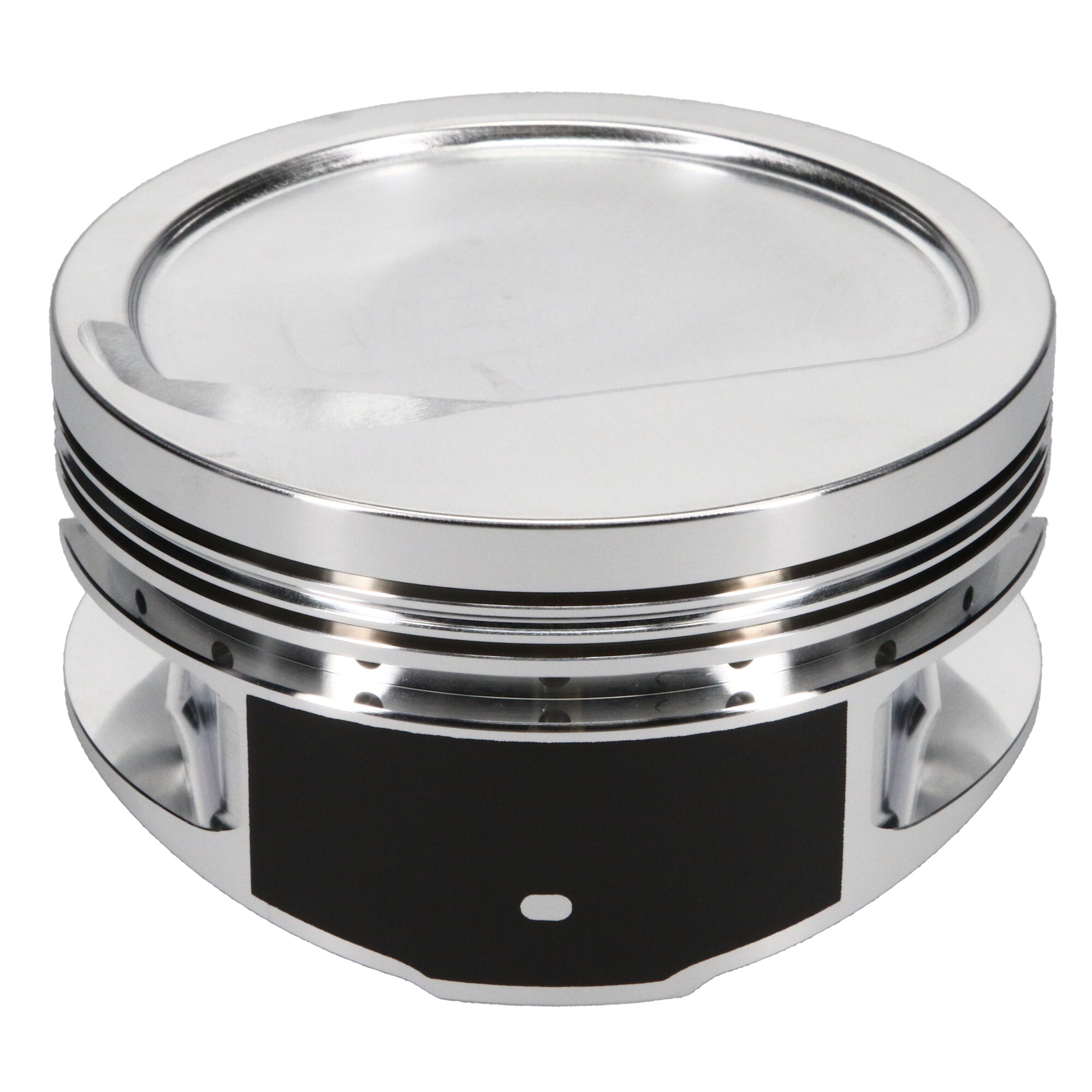

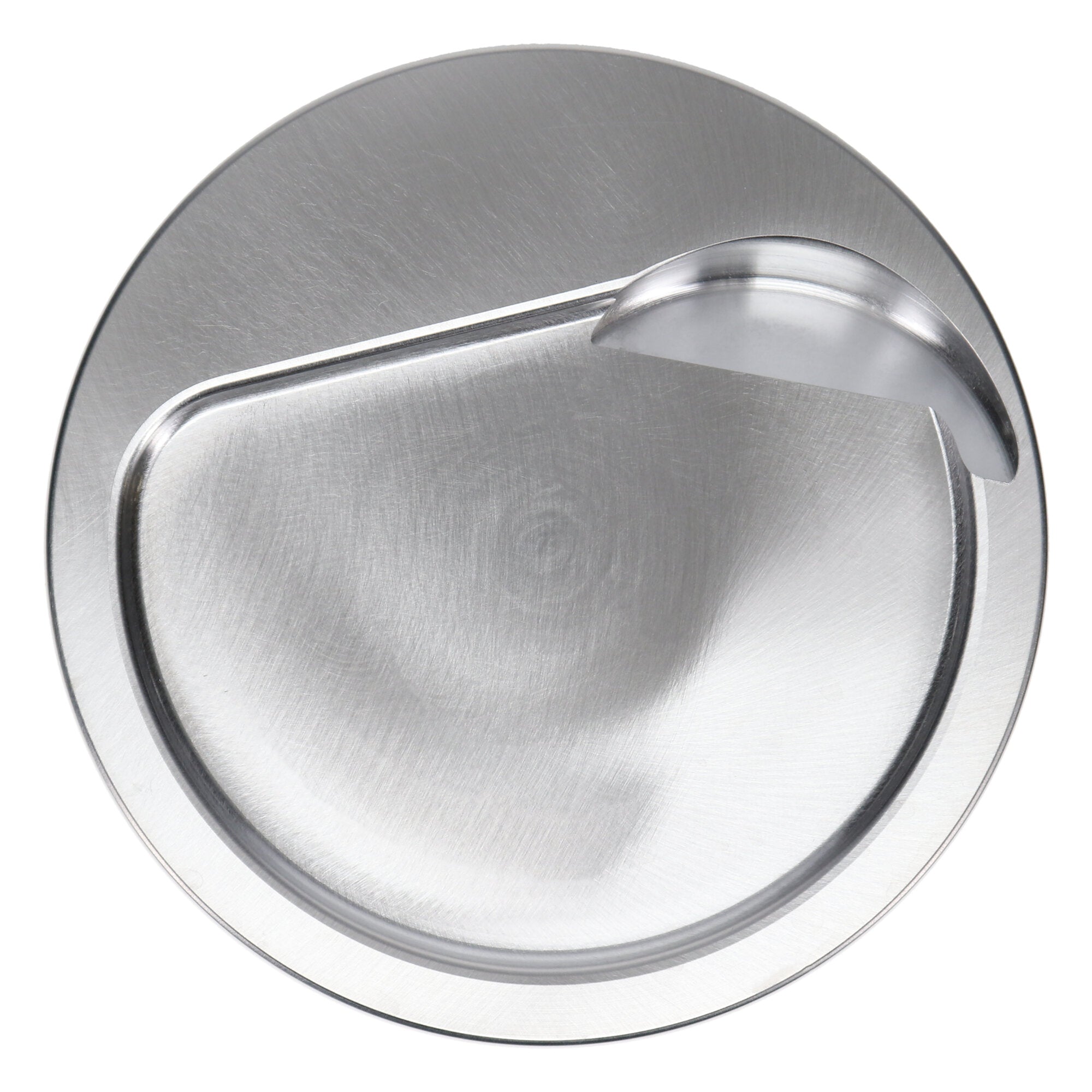

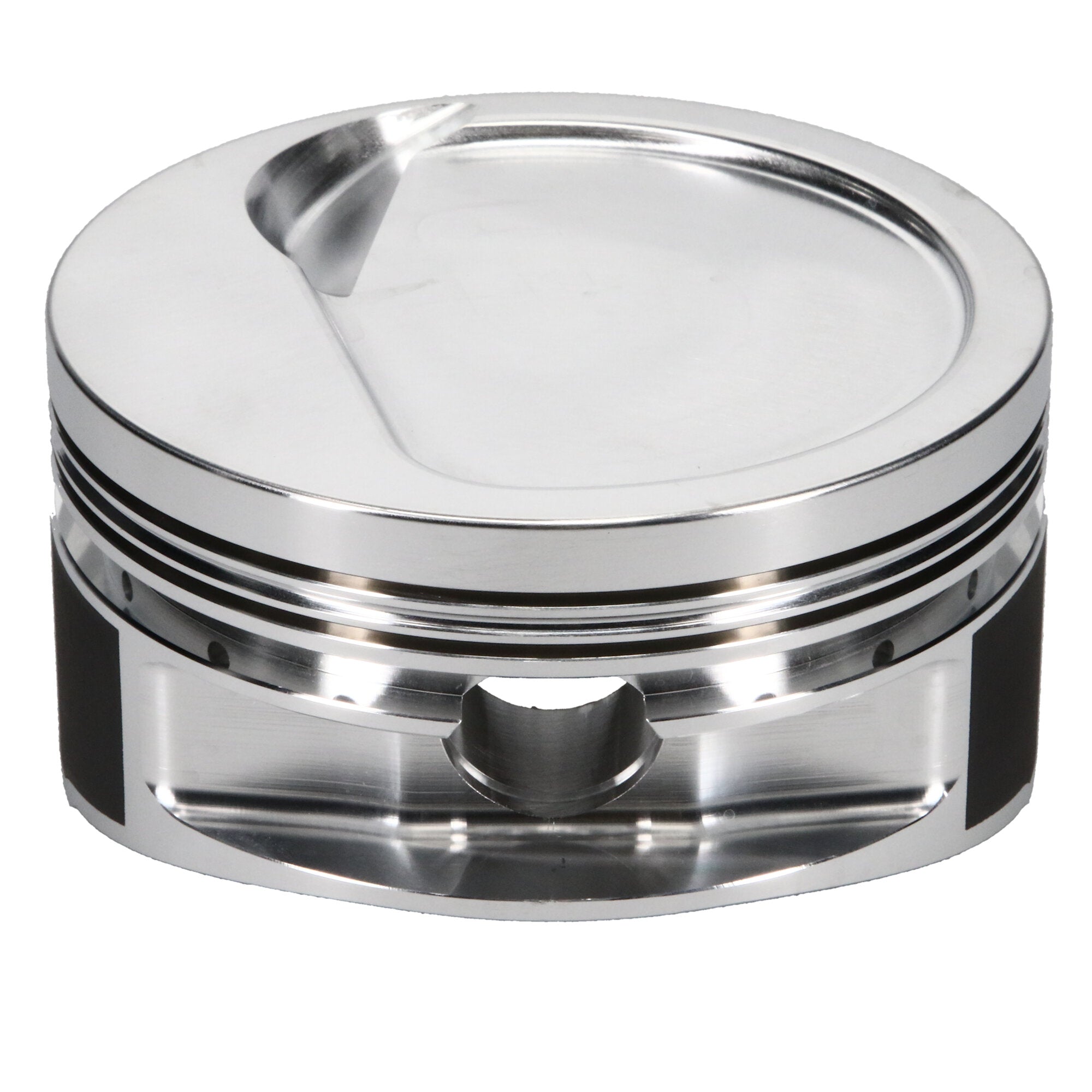

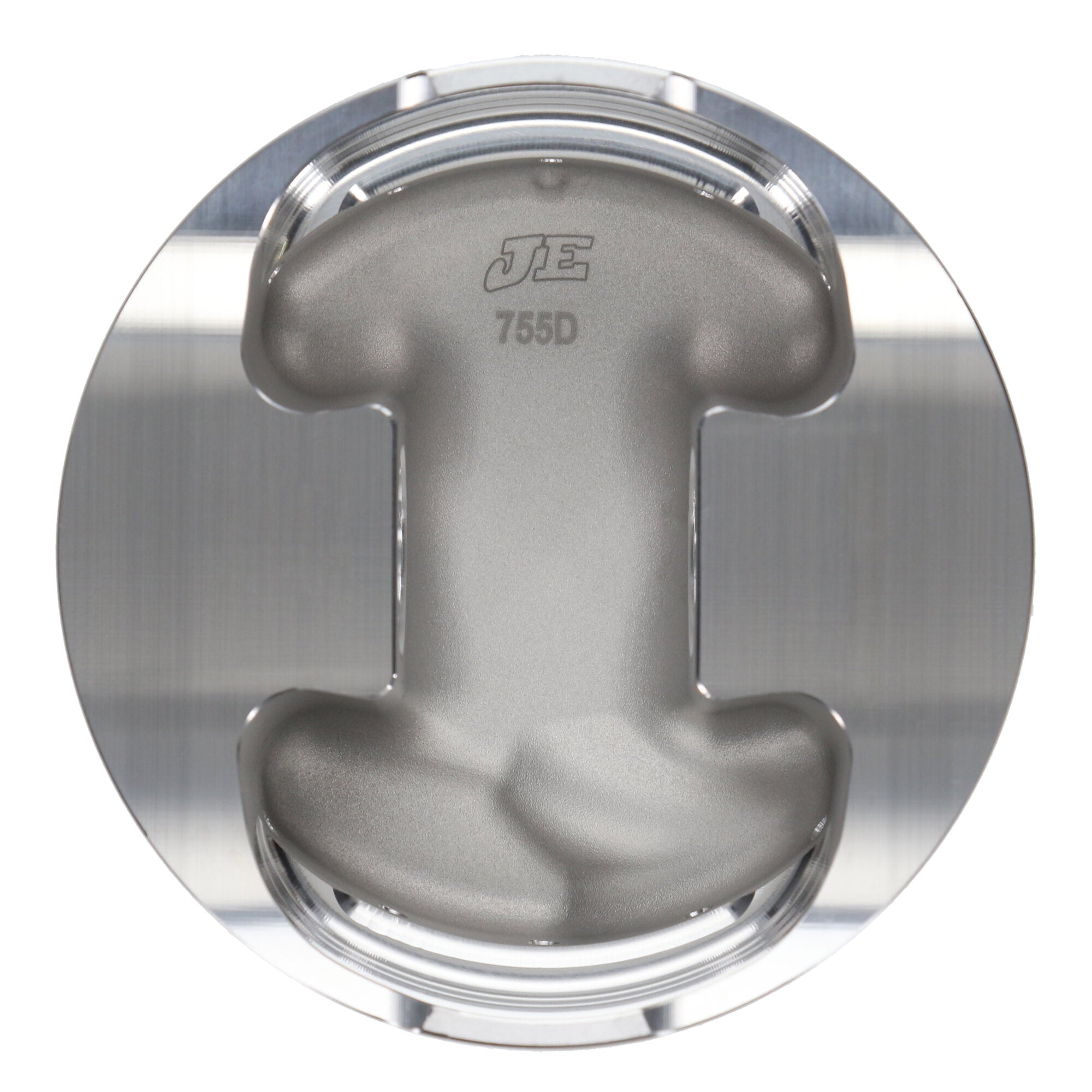

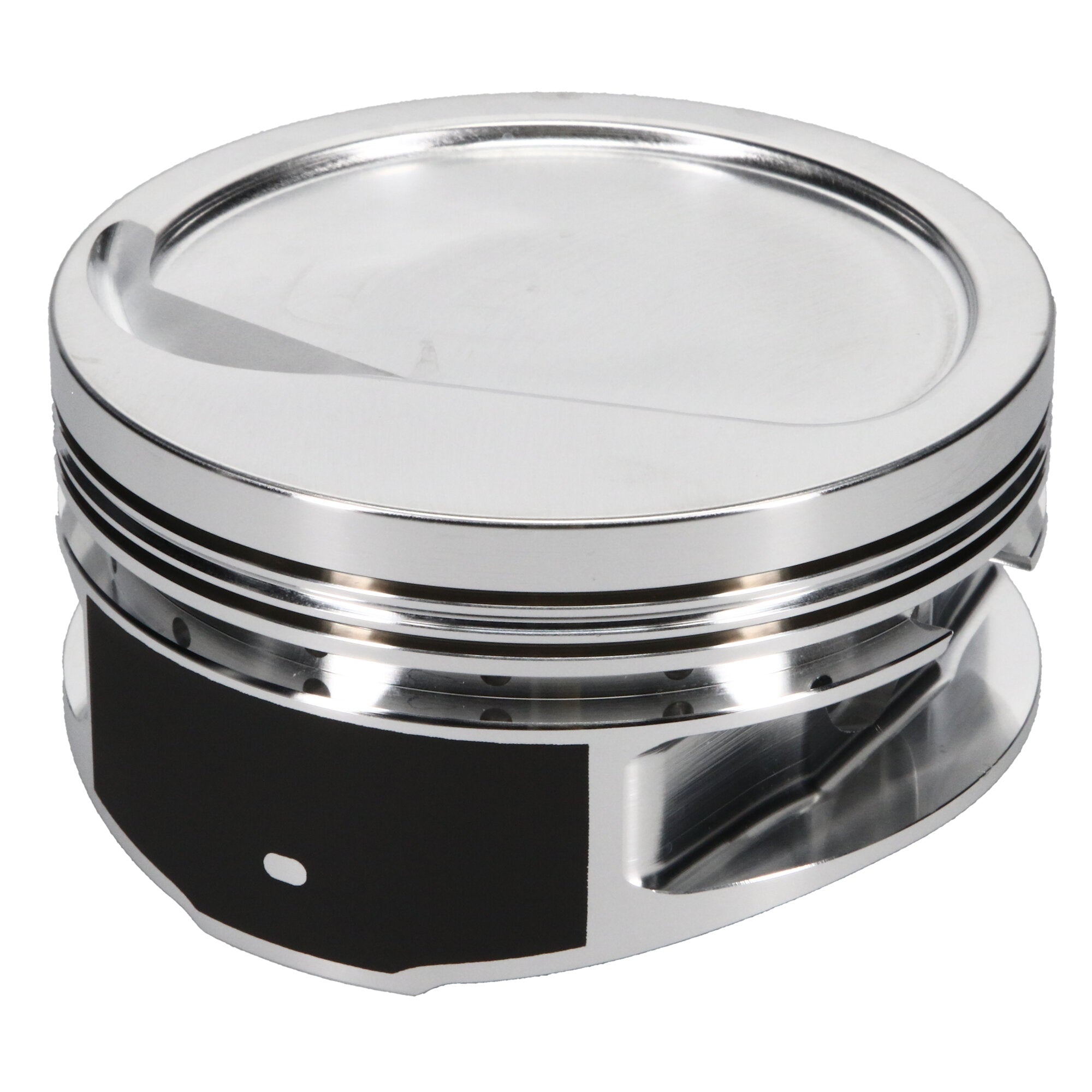

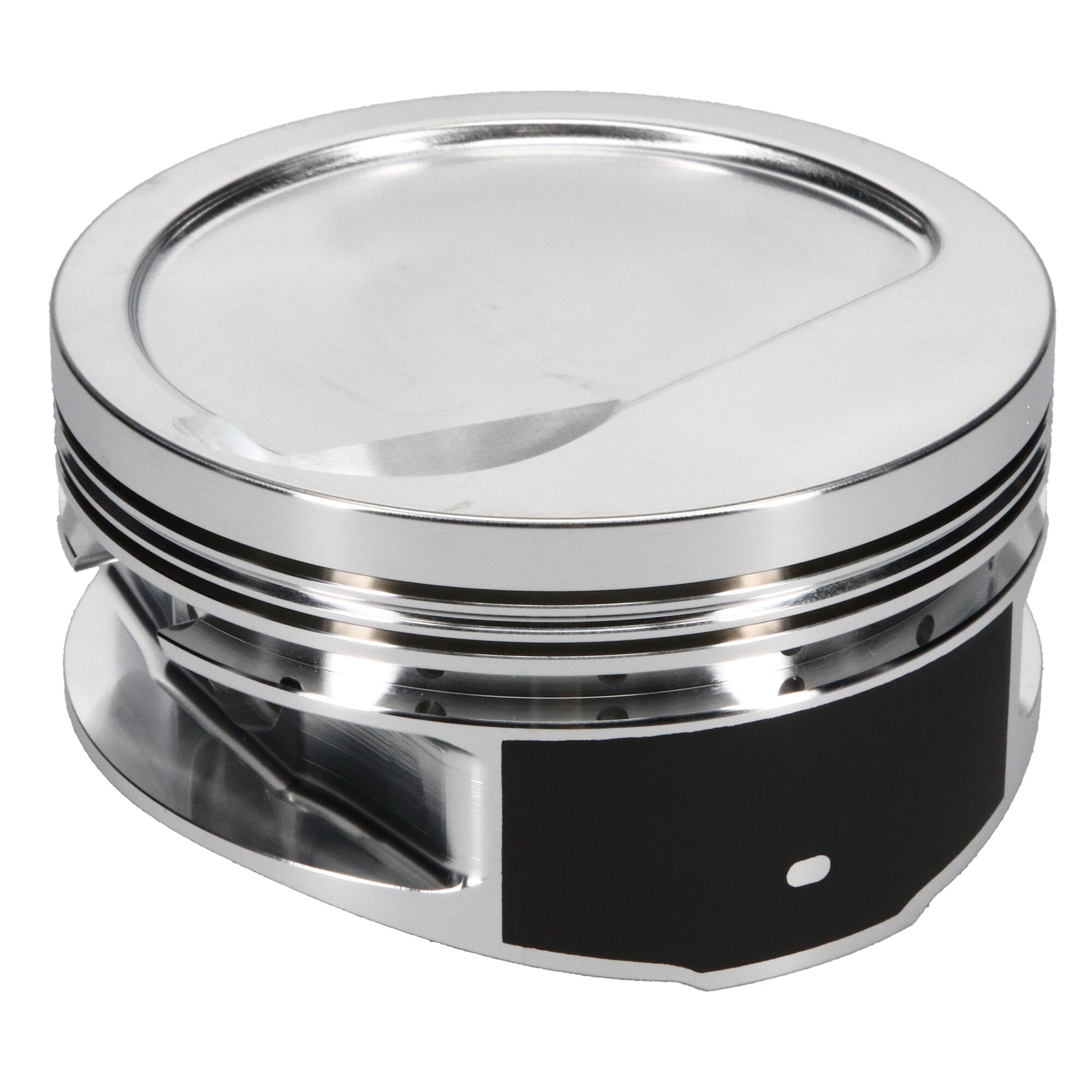

Piston Set, 2618, Inv Dome/Dish, 4.560 Bore, 1.520 CD, 0.990 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 502, 4.560 Bore, Dish, Set of 8 |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.180 |
| Piston Quantity |
8 |
| Engine - Web |
Big Block |
| Ringset Included |
No |
| Piston Head Type |
Dish |
| Engine |
Big Block |
| Top Compression Ring Thickness |
0.0640 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Title |
JE Pistons - Chevrolet, Big Block, 4.560 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.990 |
| Make |
CHEVROLET |
| Product Market |
Domestic |
| Oil Ring Thickness |
0.188 |
| Compression Height |
1.520 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
990-042-CS |
| Piston Volume |
-20.00 |
| Piston Pin Length |
2.930 |
| Prop 65 (C, R or CR) |
CR |
| Cylinder Head |
OPEN CHAMBER |
| Bore Diameter |
4.560 |
| Piston Material |
2618 |
| Add-On |
J100S8-4560-5 |
| Piston Average Weight |
647 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.560 in. Bore - 1.520 in. CH, -20.00 CC |
| Out of Stock Message |
Call for Availability |
| Product Type |
Engine Piston Kit |
| Add-On |
990-2930-18-51S |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.930 |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.990 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
