As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

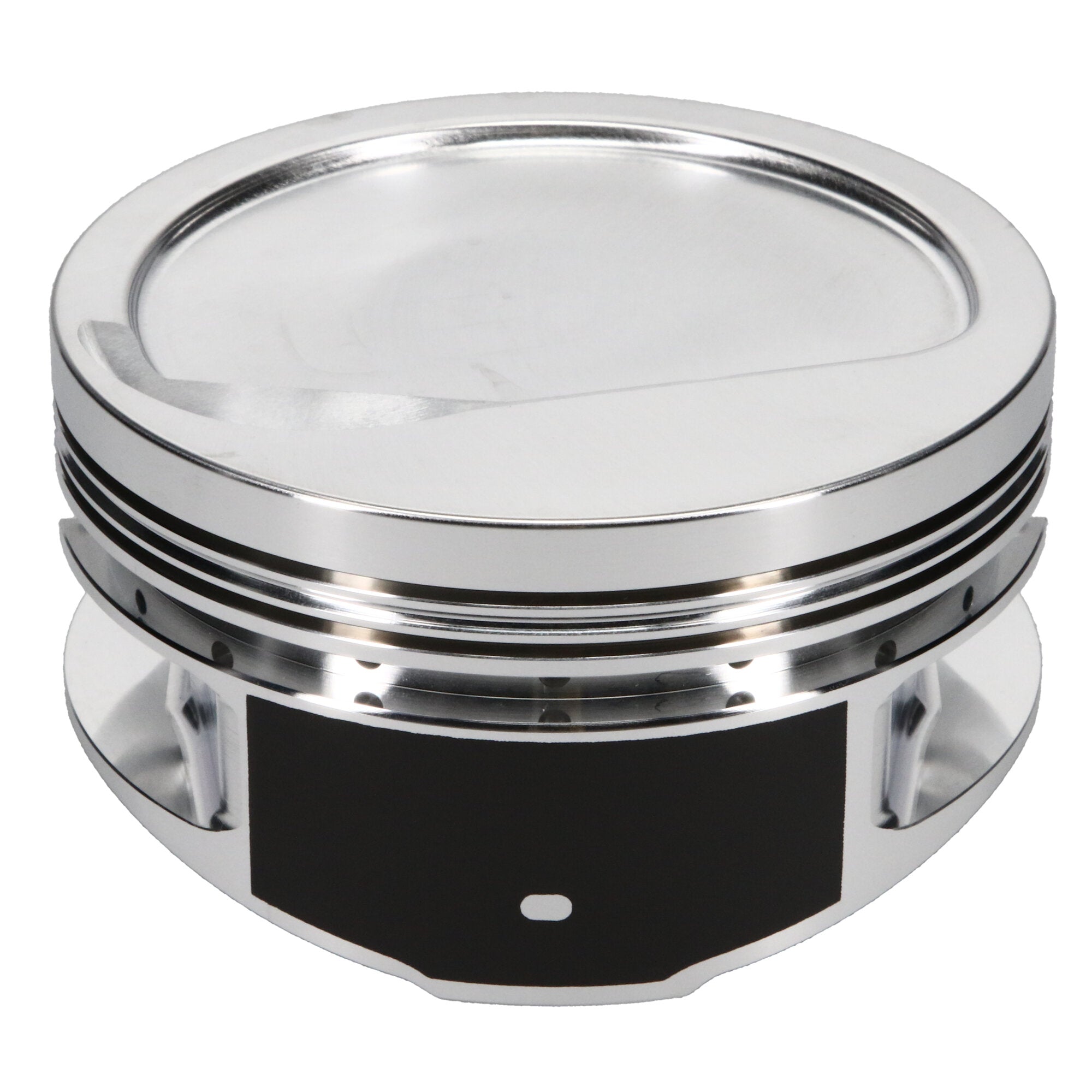

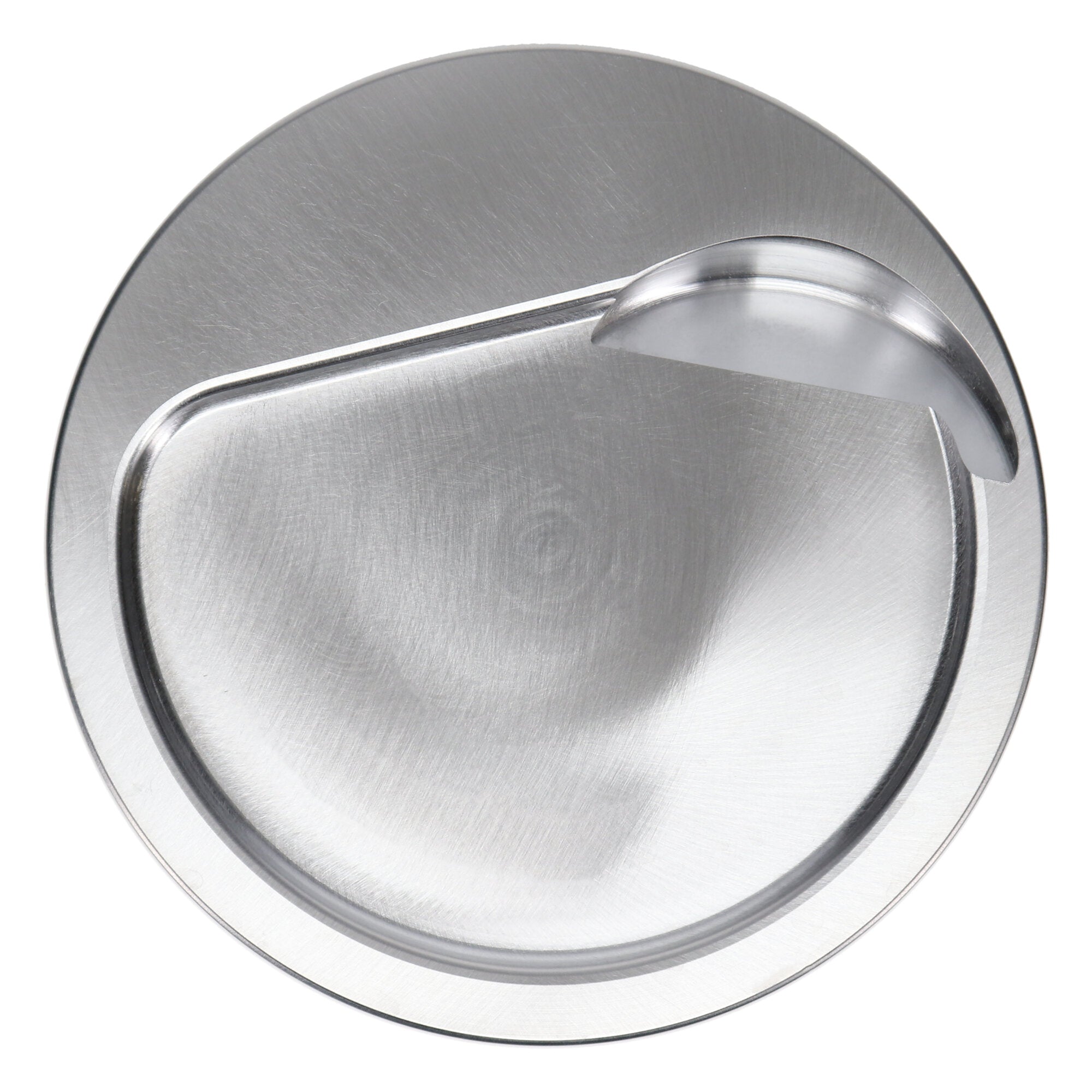

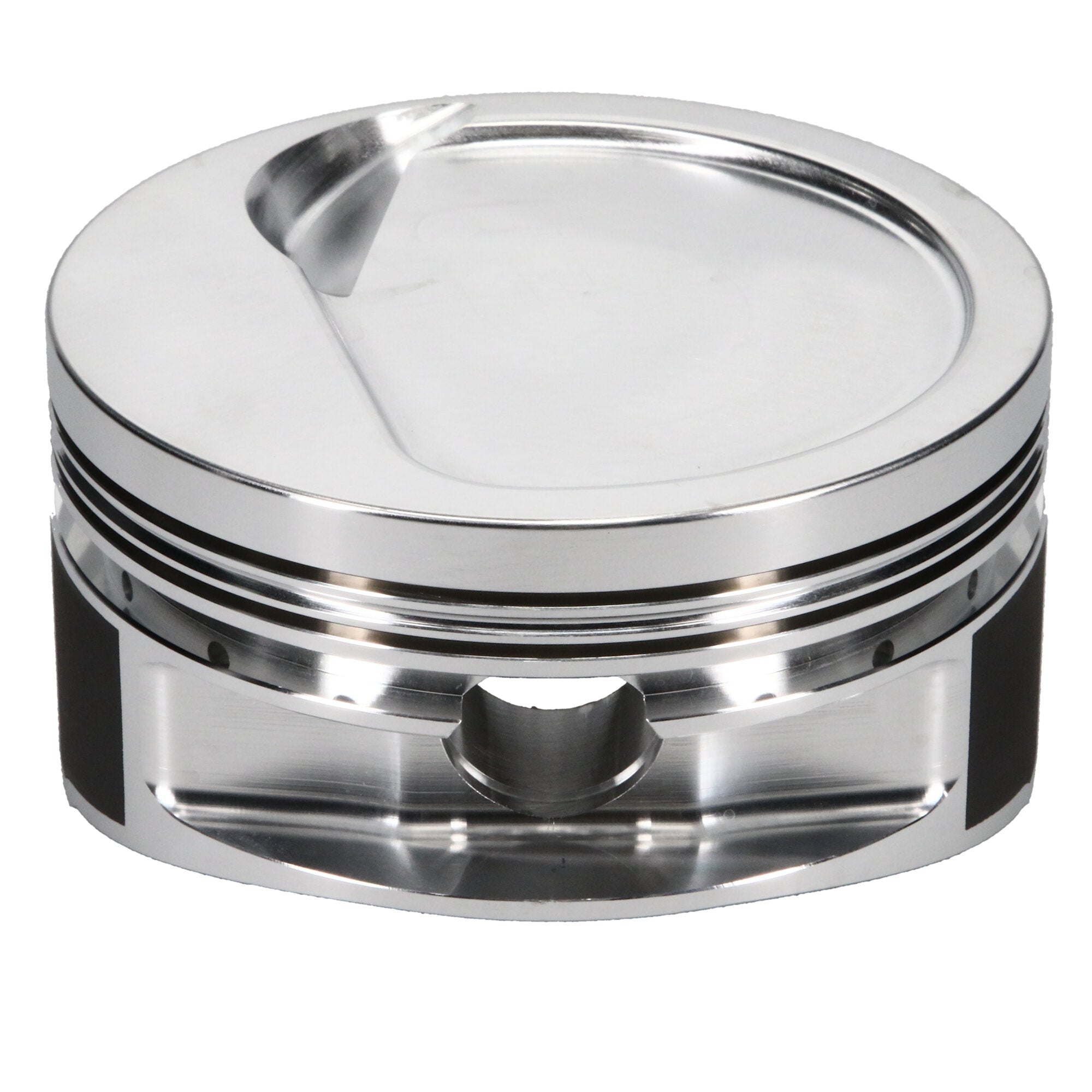

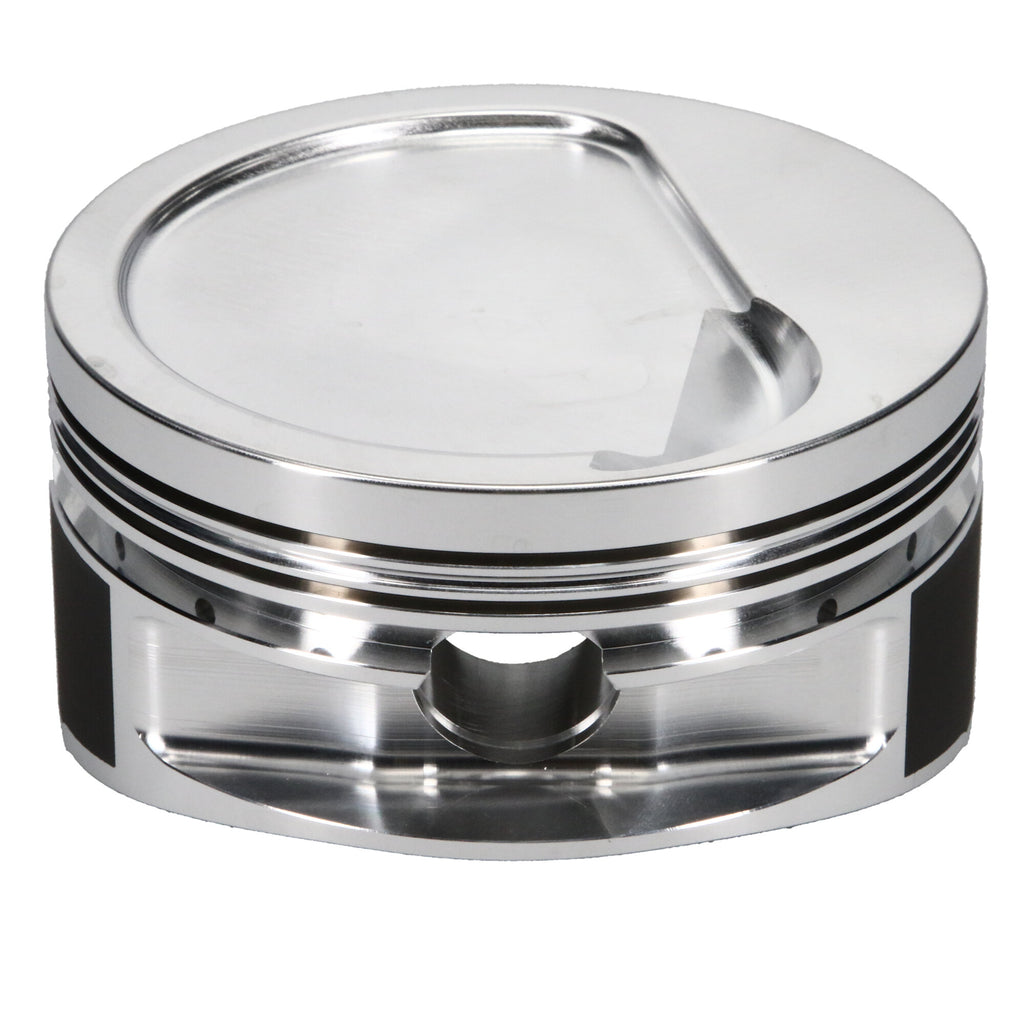

Piston Set, 2618, Inv Dome/Dish, 4.530 Bore, 1.520 CD, 0.990 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.530 in. Bore, 1.520 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 502, 4.530 Bore, Dish, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.530 in. Bore - 1.520 in. CH, -20.00 CC |
| Piston Series |
JE Pistons |
| Engine |
Big Block |
| Ringset Included |
No |
| Piston Head Type |
Dish |
| Piston Pin Length |
2.930 |
| Piston Pin Material |
5115 |
| Forging Type |
Round |
| Oil Ring Thickness |
0.188 |
| Make |
CHEVROLET |
| Wrist Pin Outer Diameter |
0.990 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Piston Quantity |
8 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.530 in. Bore, Piston Kit |
| Add-On |
990-042-CS |
| Piston Volume |
-20.00 |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.530 |
| Piston Material |
2618 |
| Add-On |
990-2930-18-51S |
| Piston Average Weight |
632 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.180 |
| Industry |
Automotive |
| Top Compression Ring Thickness |
0.0640 |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
OPEN CHAMBER |
| Piston Pin Outside Diameter |
0.990 |
| Compression Height |
1.520 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
J100F8-4530-5 |
| Wrist Pin Length |
2.930 |
| Engine - Web |
Big Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.180 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
