As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

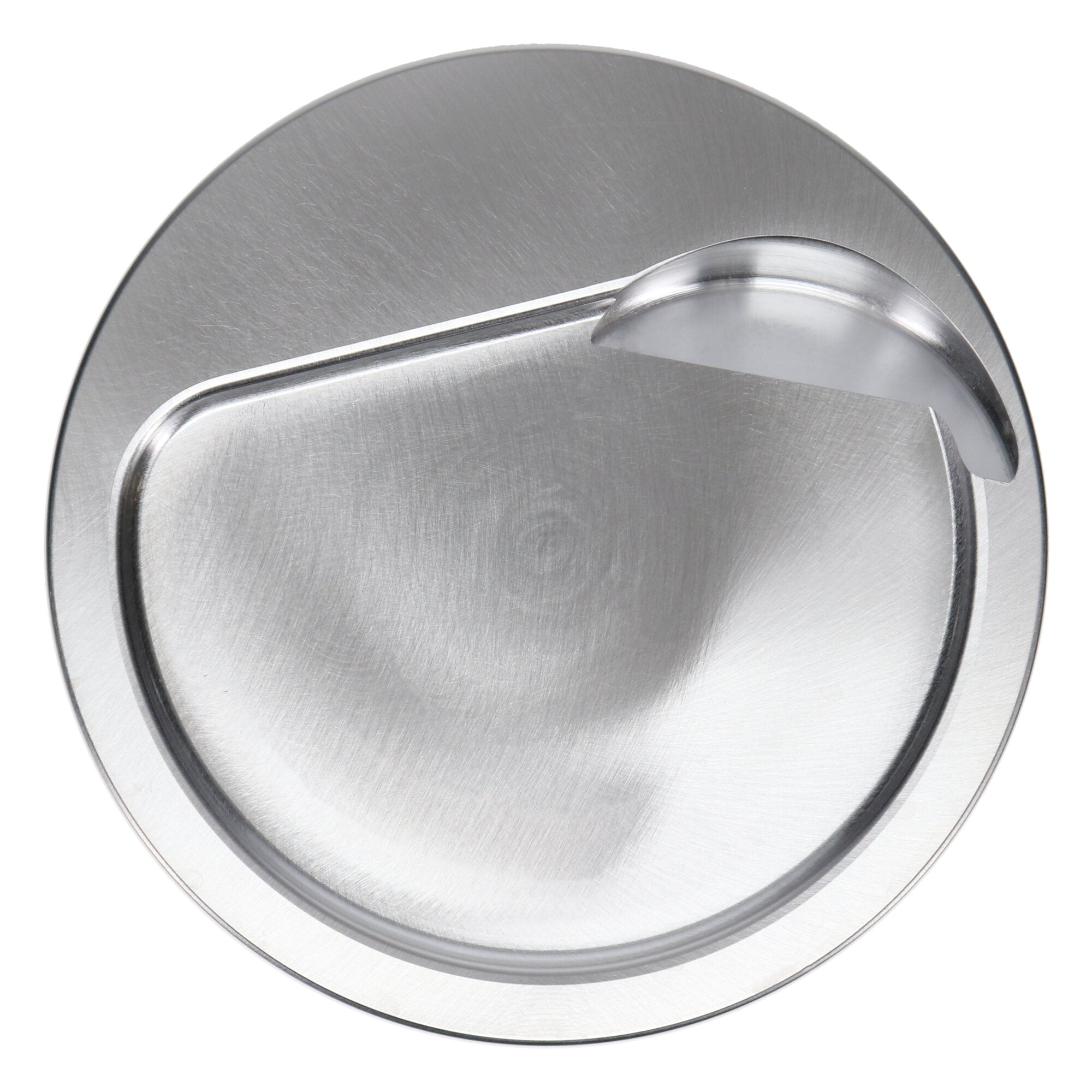

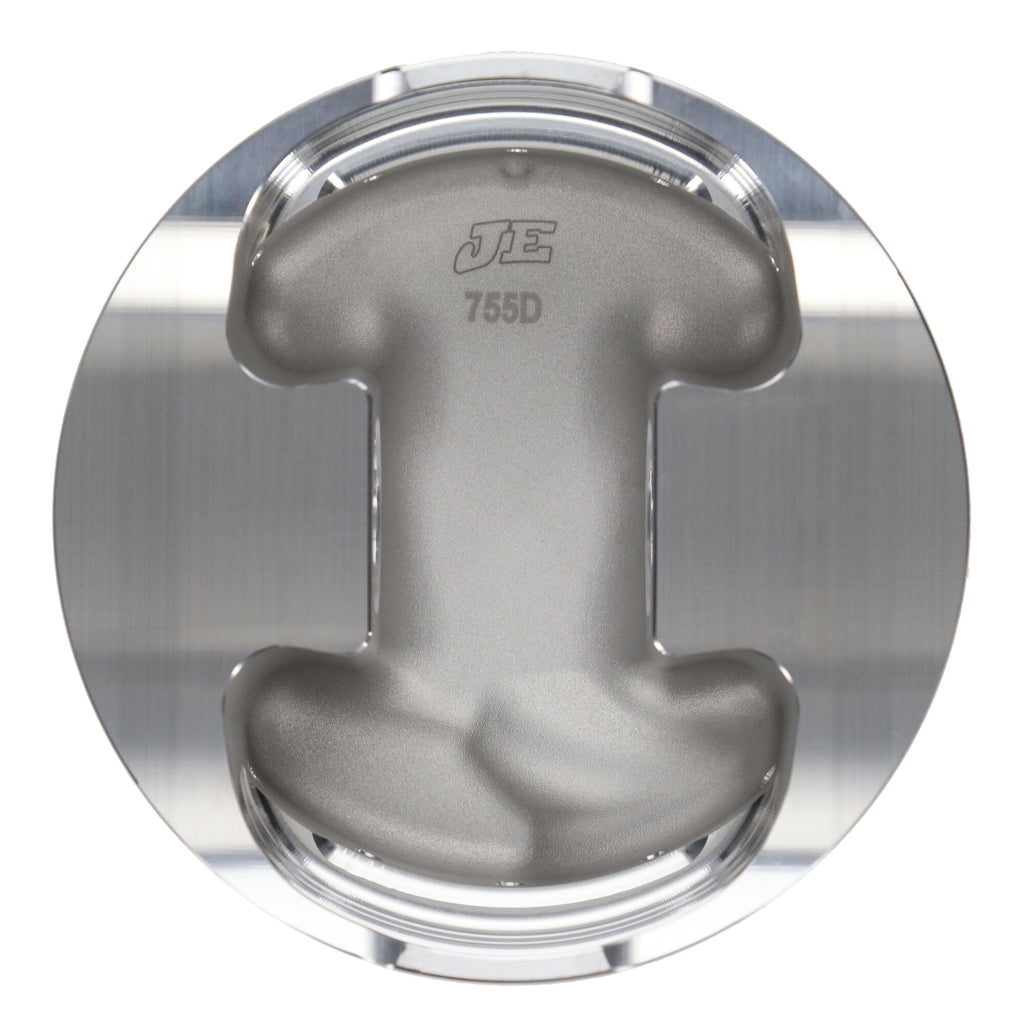

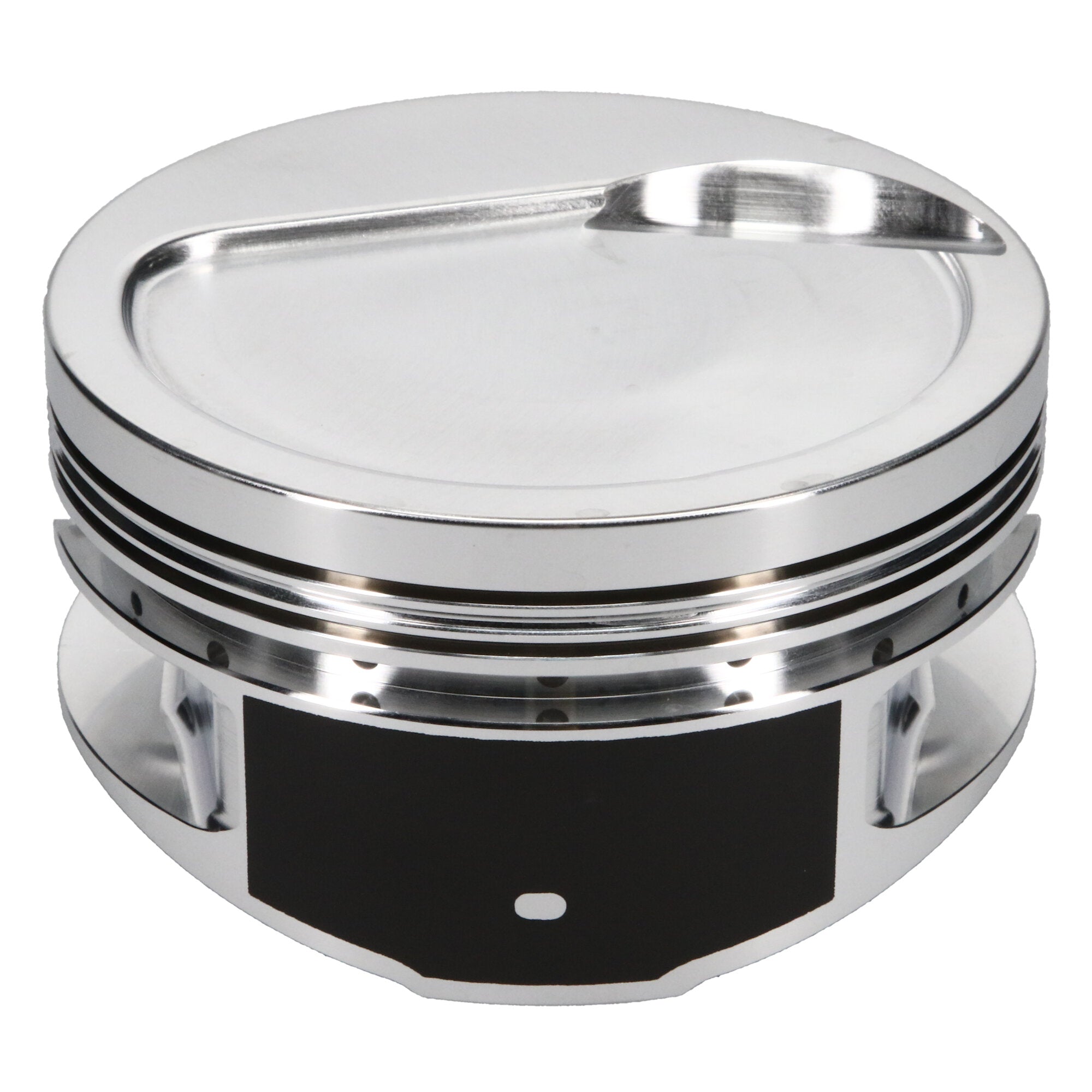

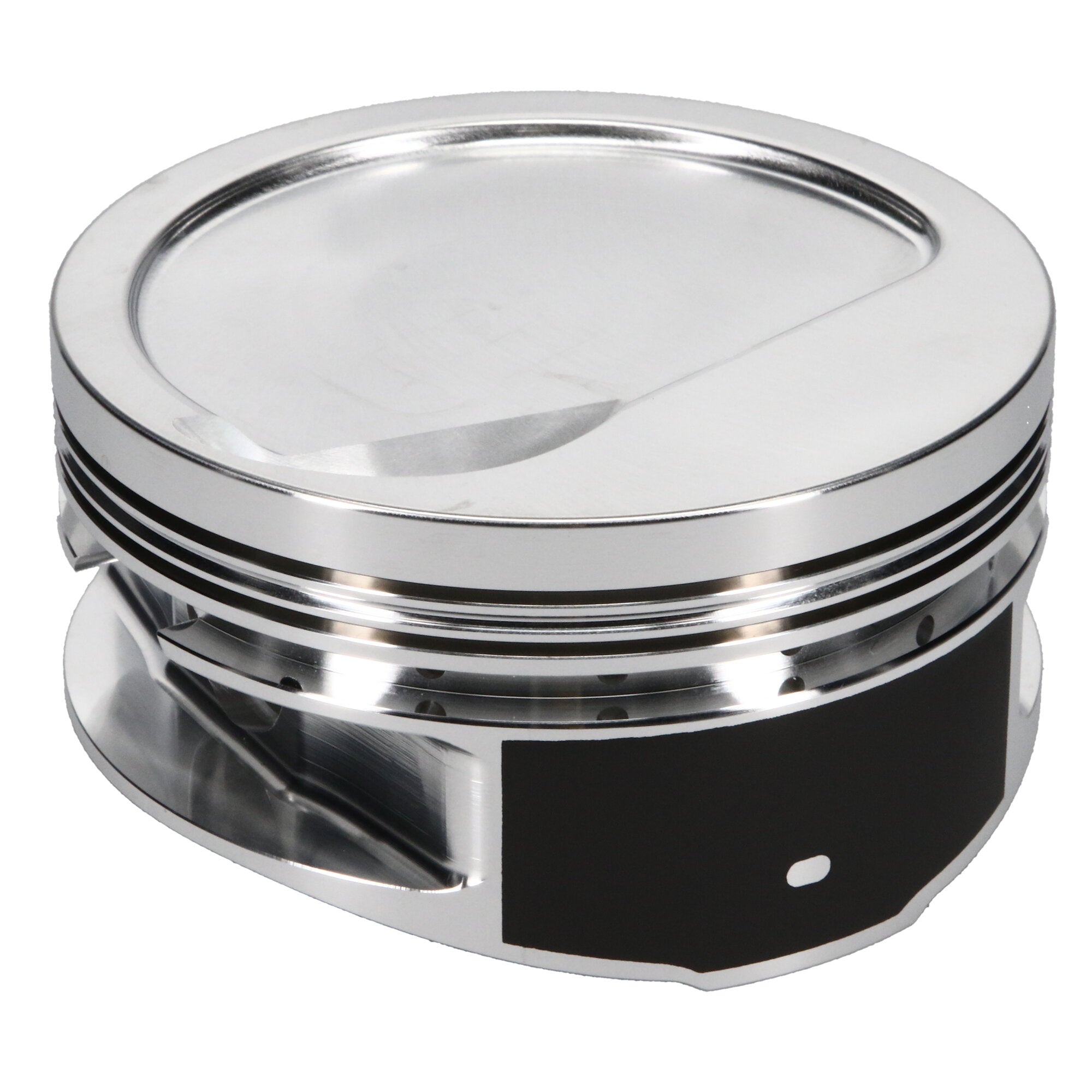

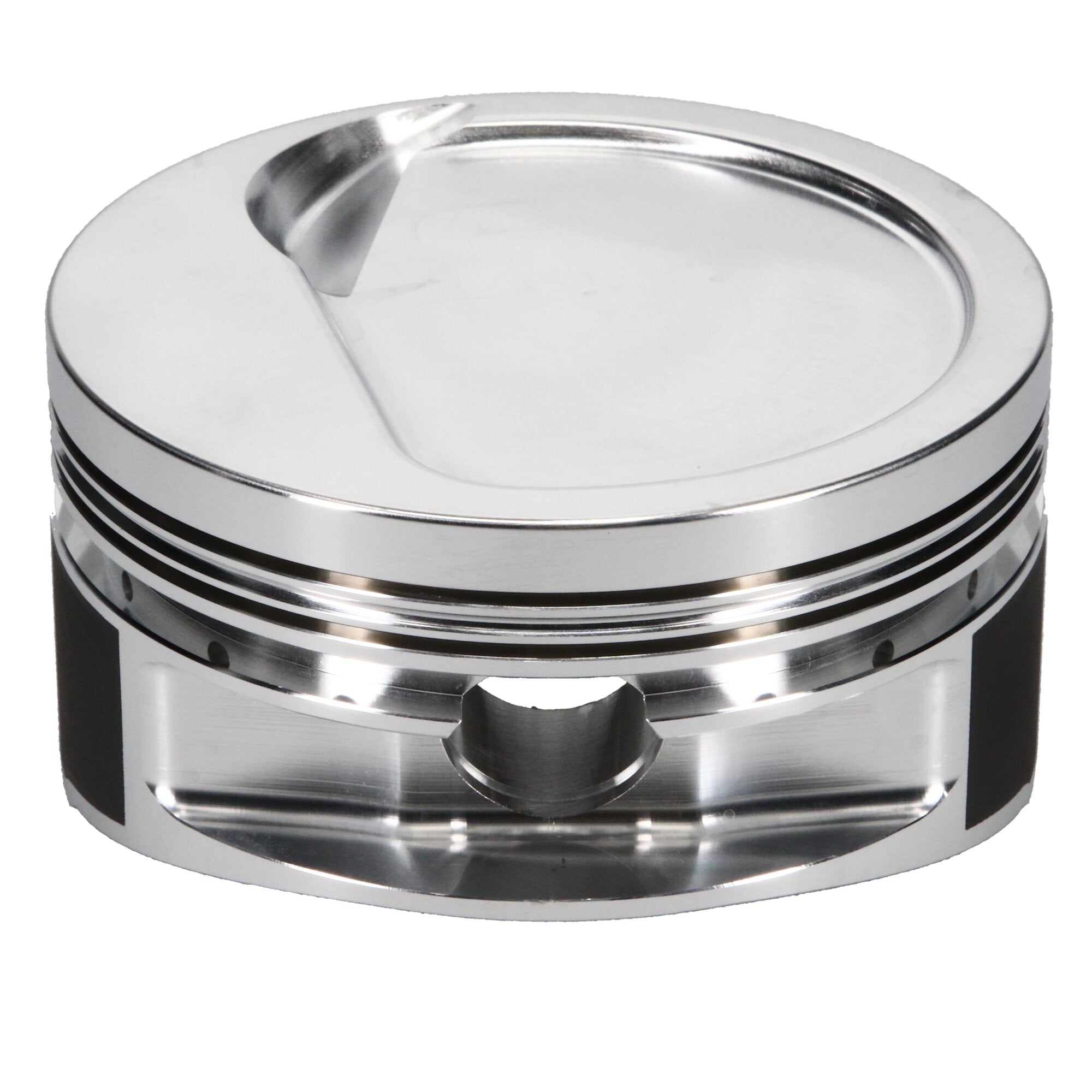

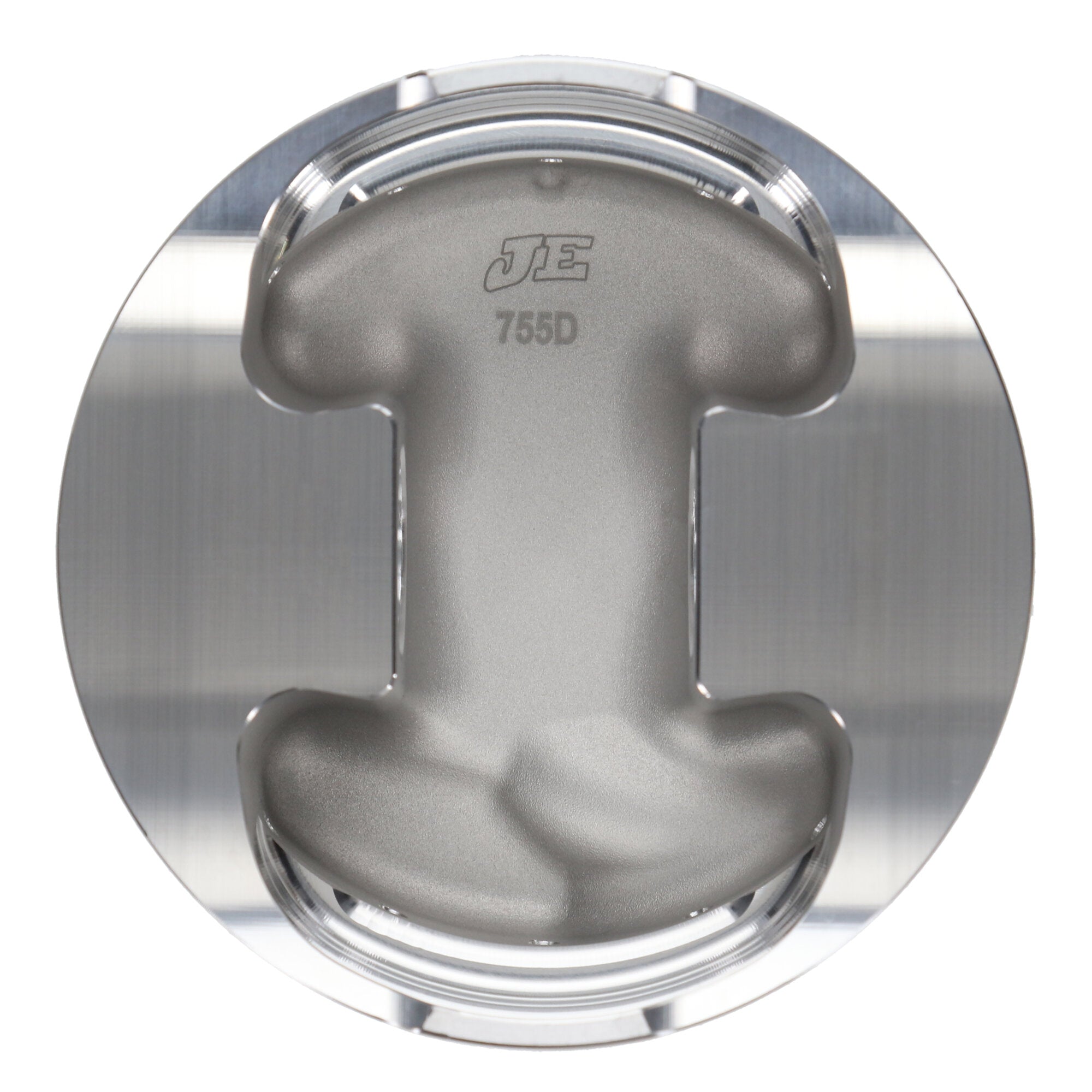

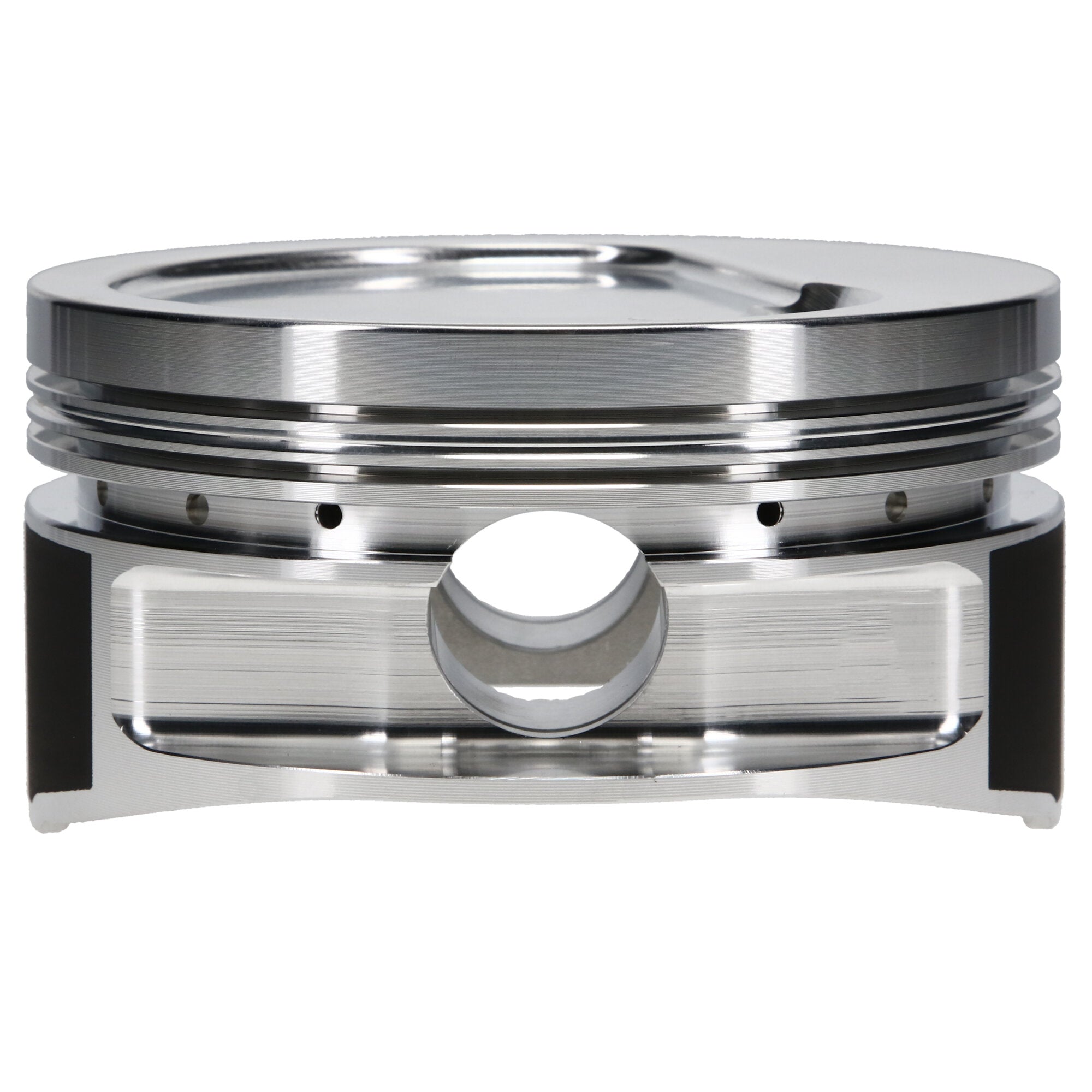

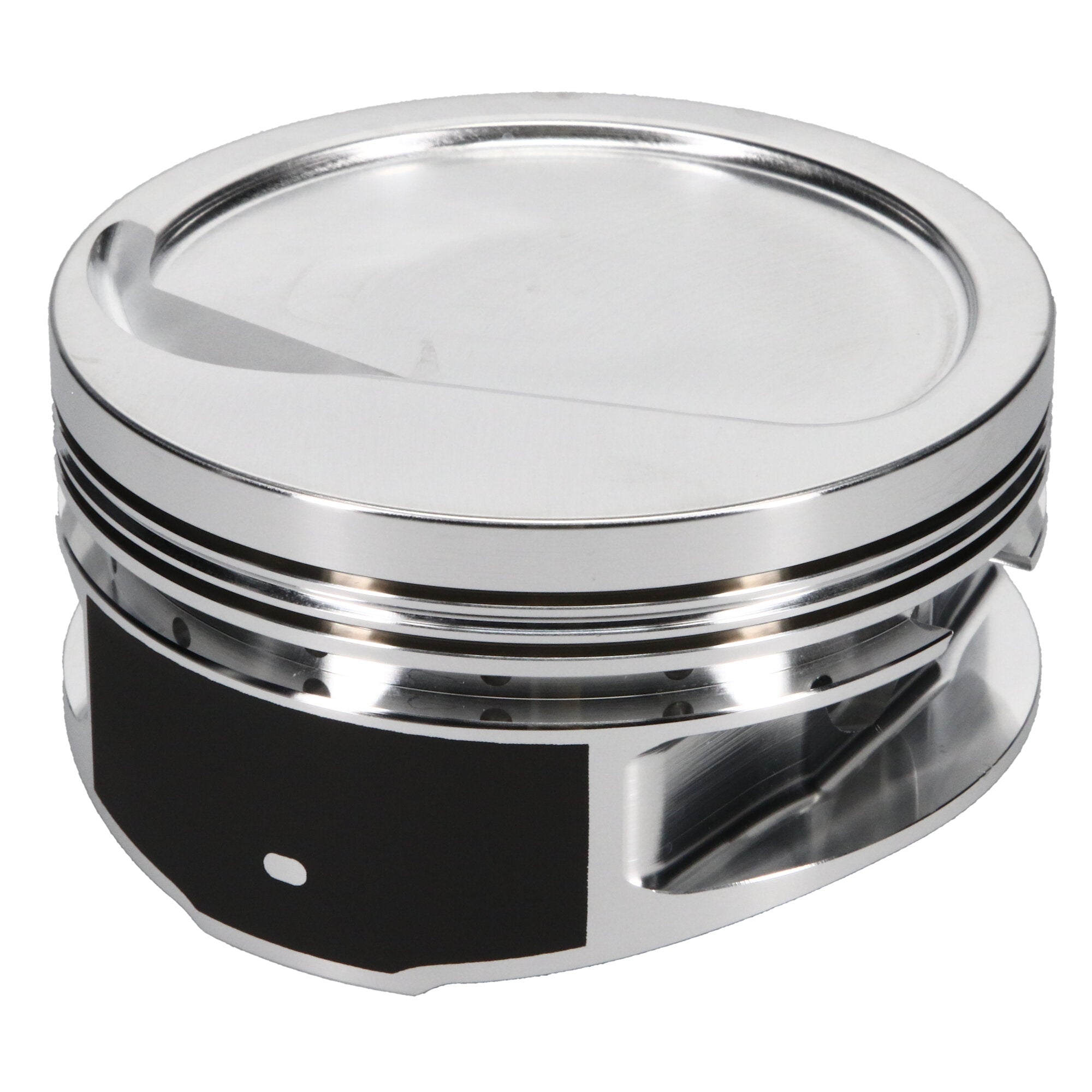

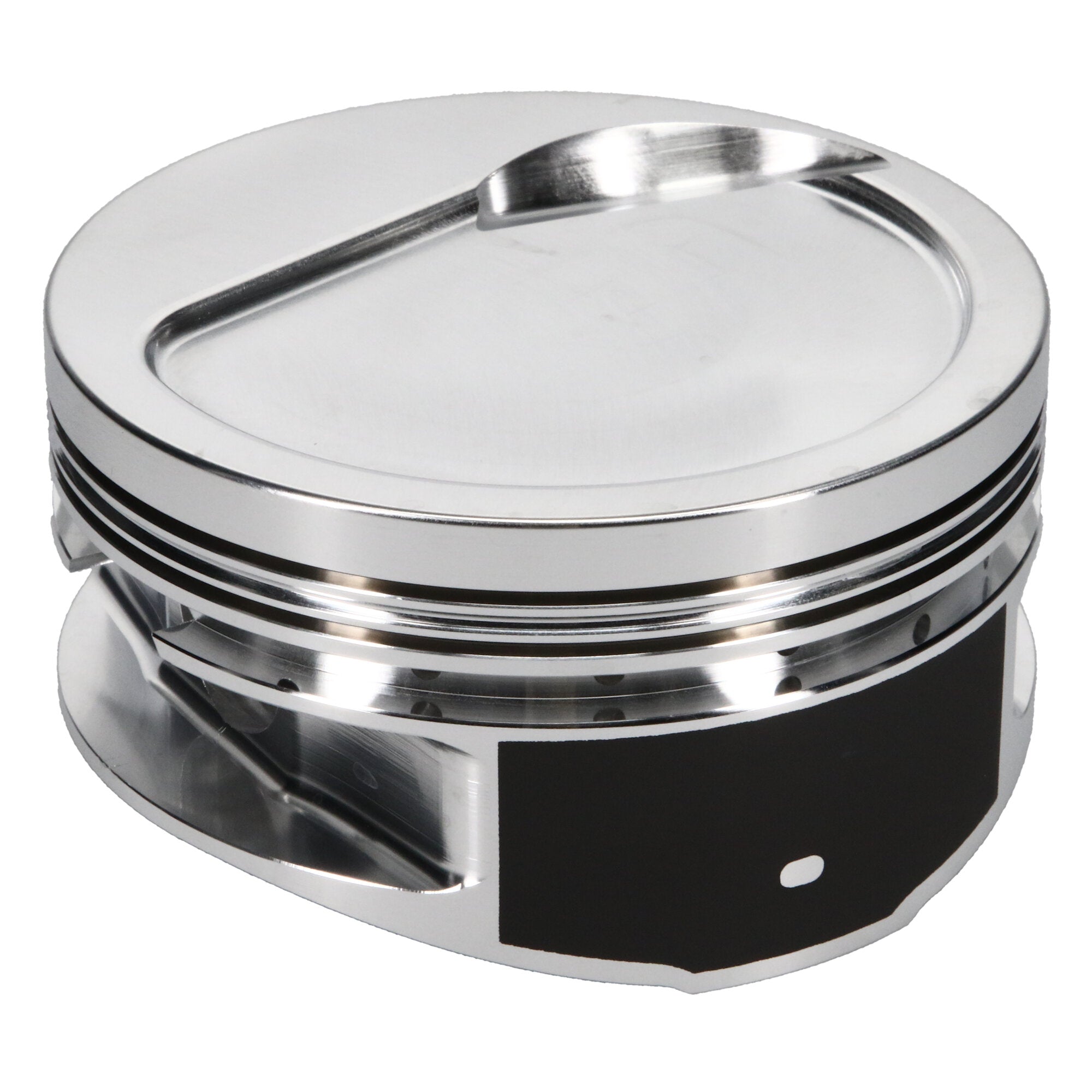

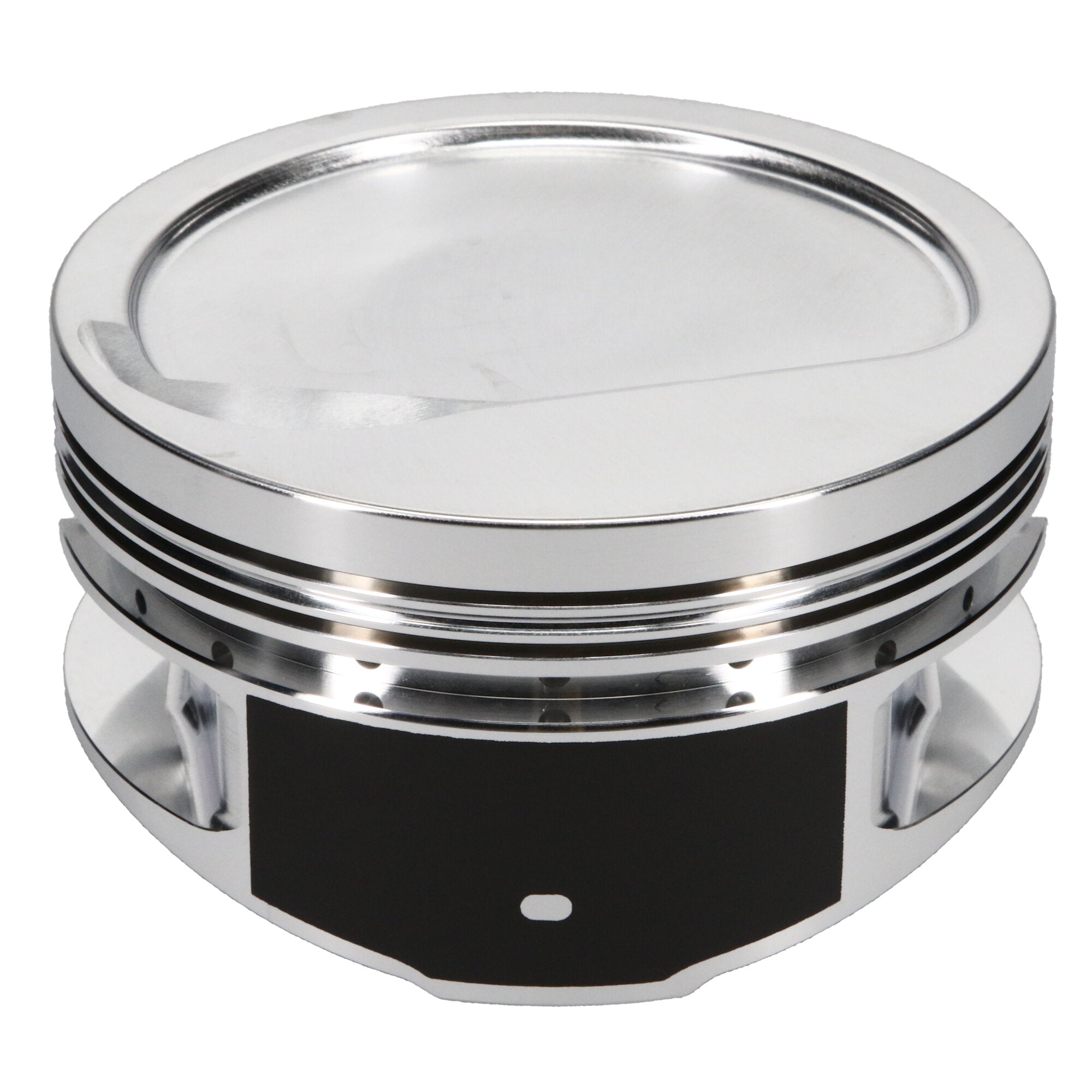

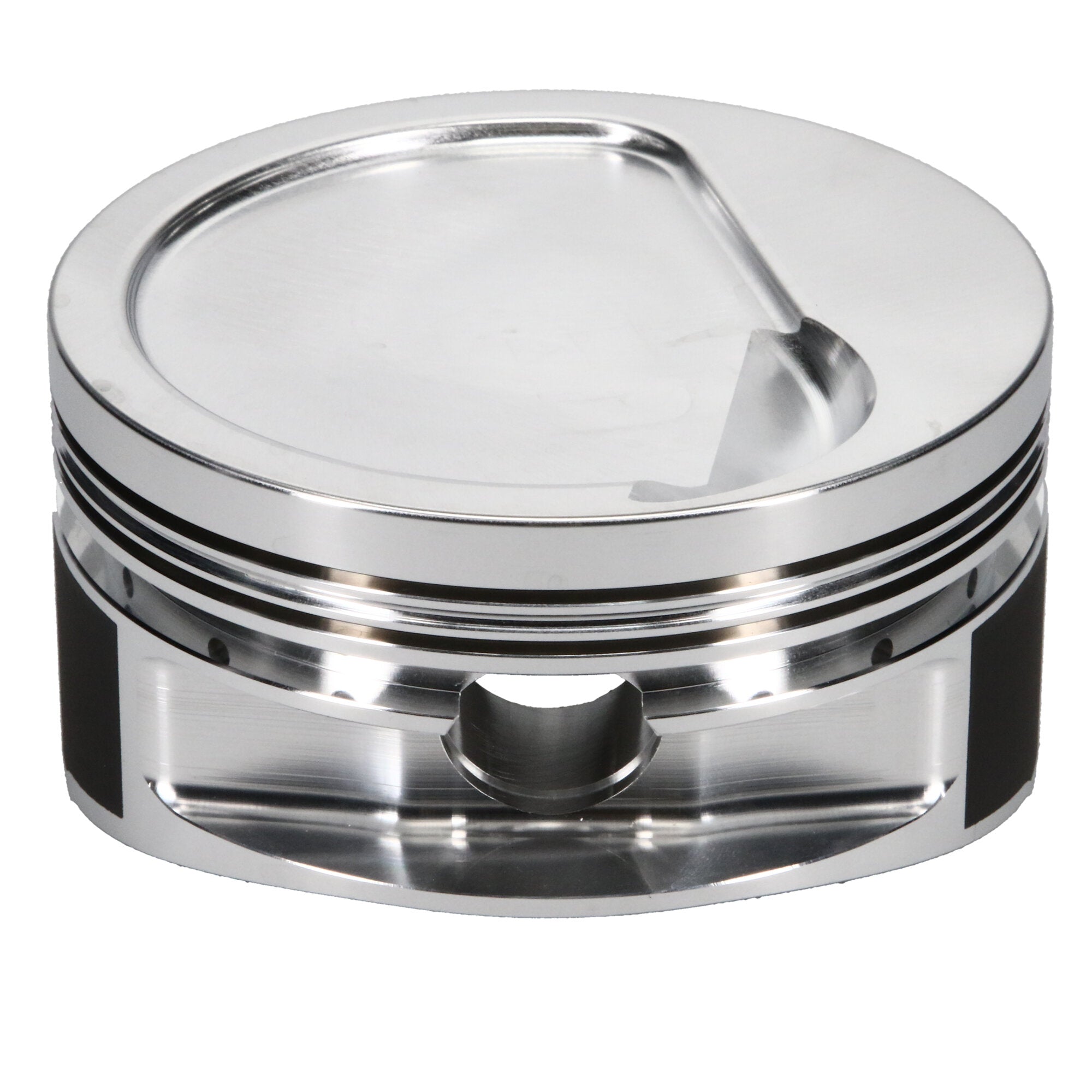

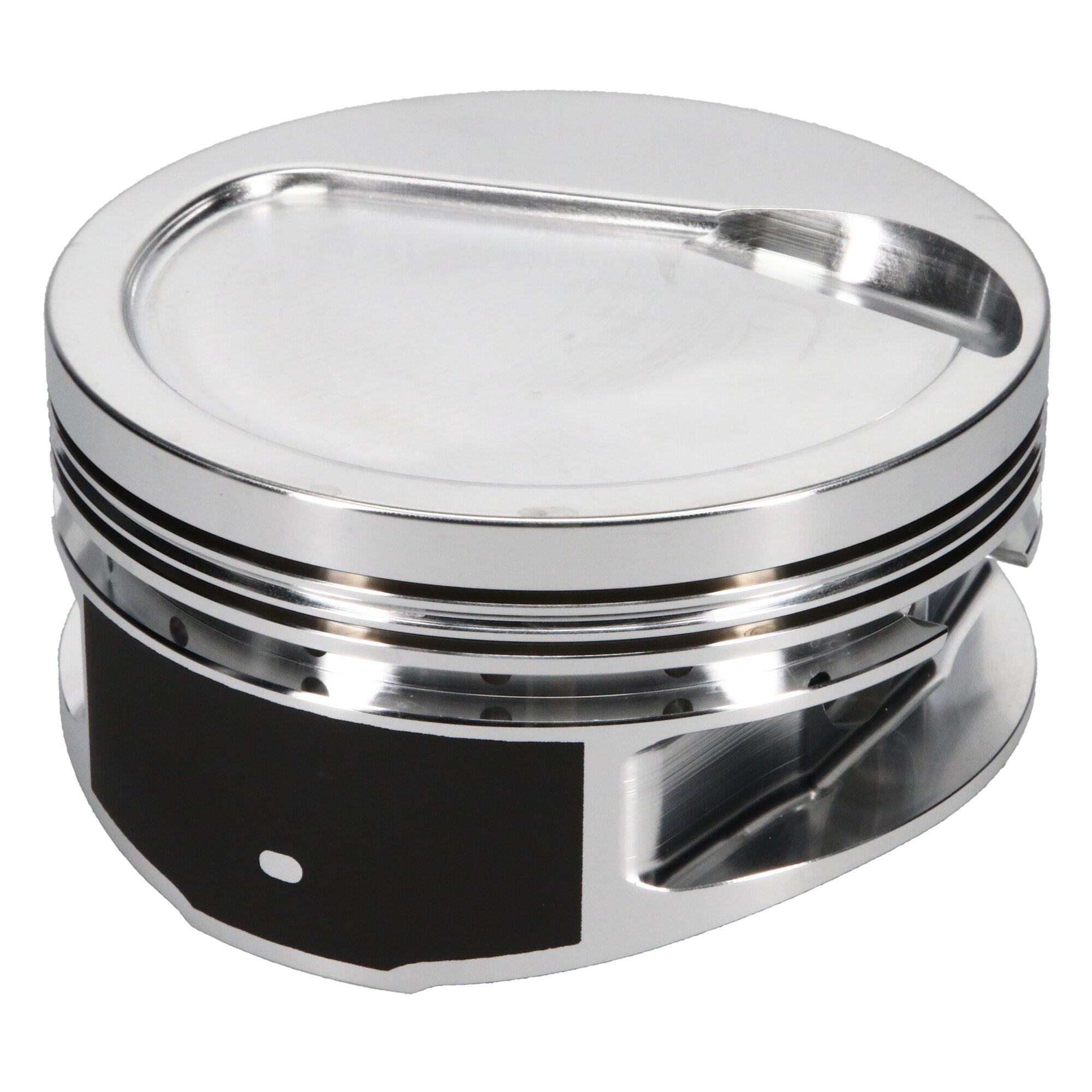

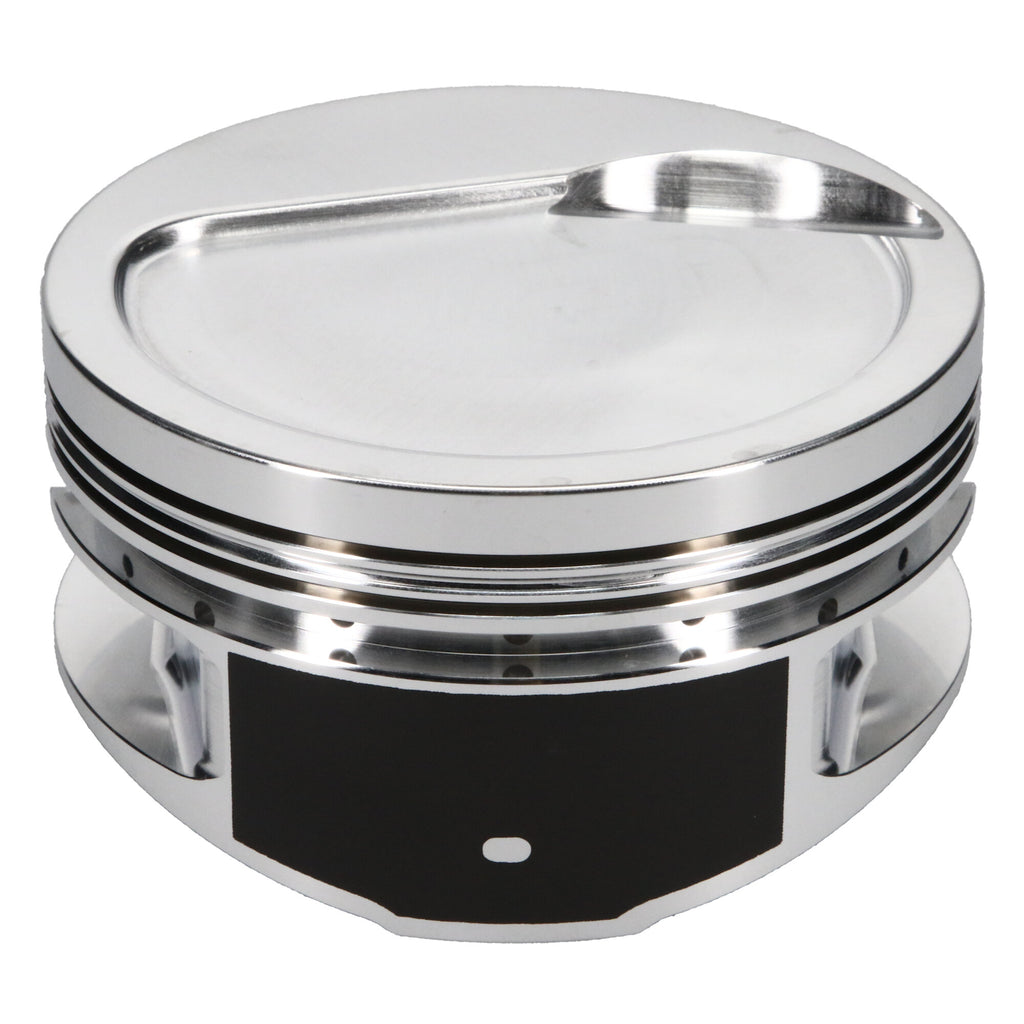

Piston Set, 2618, Inv Dome/Dish, 4.600 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.395 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.600 Bore, Dish, Set of 8 |
| Engine |
Big Block |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.395 |
| Product Market |
Domestic |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.180 |
| Oil Ring Thickness |
0.188 |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.180 |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.600 |
| Forging Type |
Round |
| Piston Pin Outside Diameter |
0.990 |
| Wrist Pin Outer Diameter |
0.990 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.395 in. CH, -28.00 CC |
| Industry |
Automotive |
| Add-On |
990-042-CS |
| Piston Quantity |
8 |
| Piston Average Weight |
625 |
| Add-On |
990-2930-18-51S |
| Product Type |
Engine Piston Kit |
| Piston Pin Length |
2.930 |
| Add-On |
J100L8-4600-5 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-28.00 |
| Cylinder Head |
OPEN CHAMBER |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Make - Web |
Chevrolet |
| Wrist Pin Length |
2.930 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
