As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

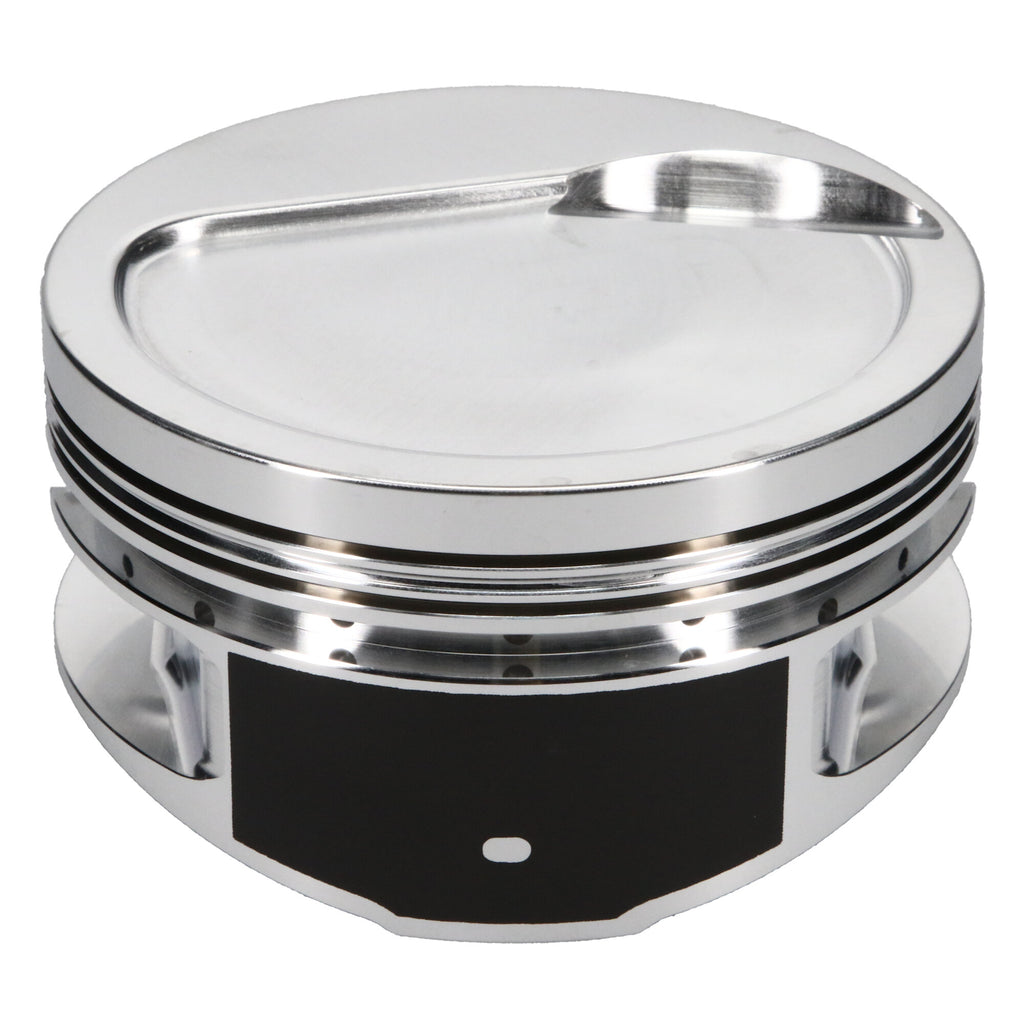

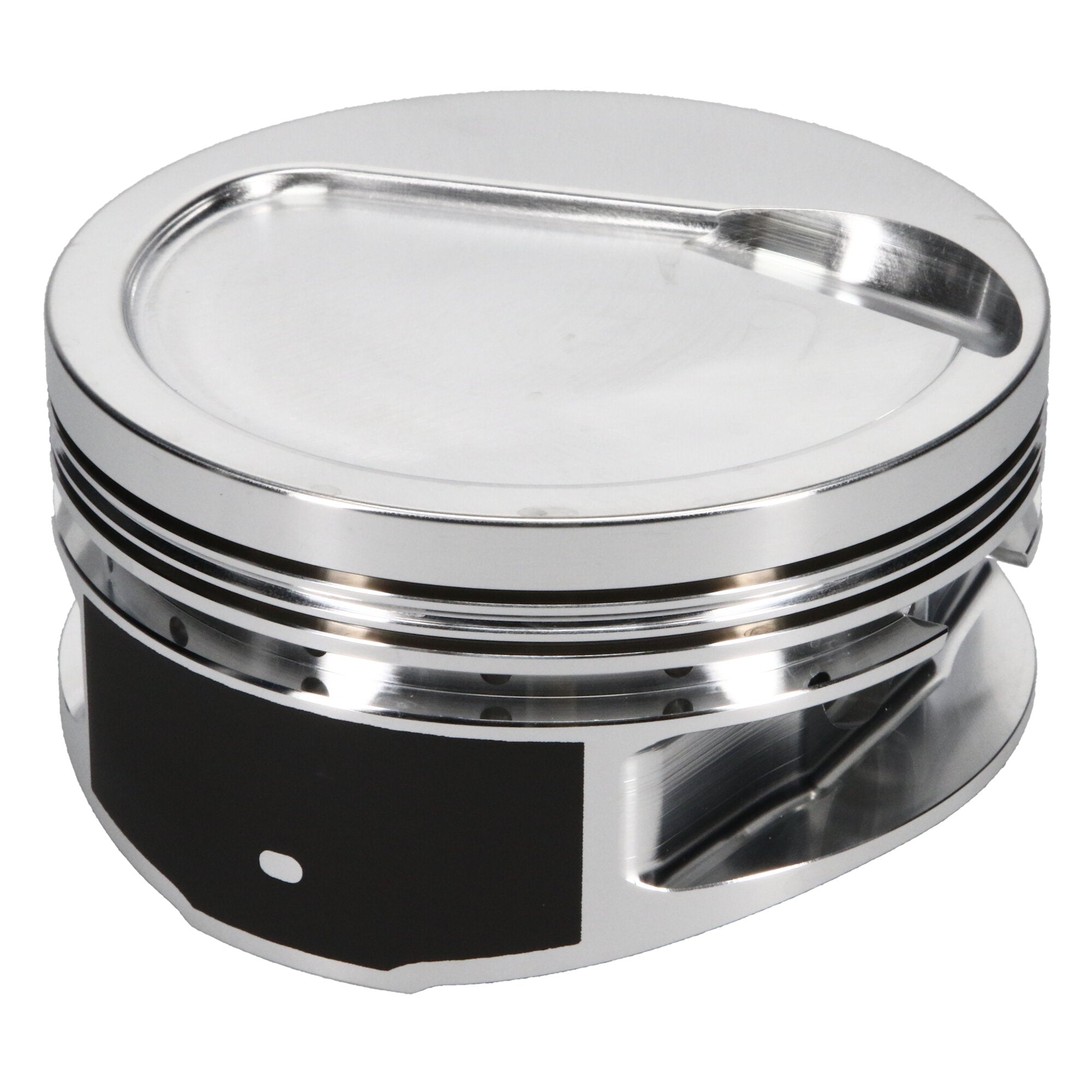

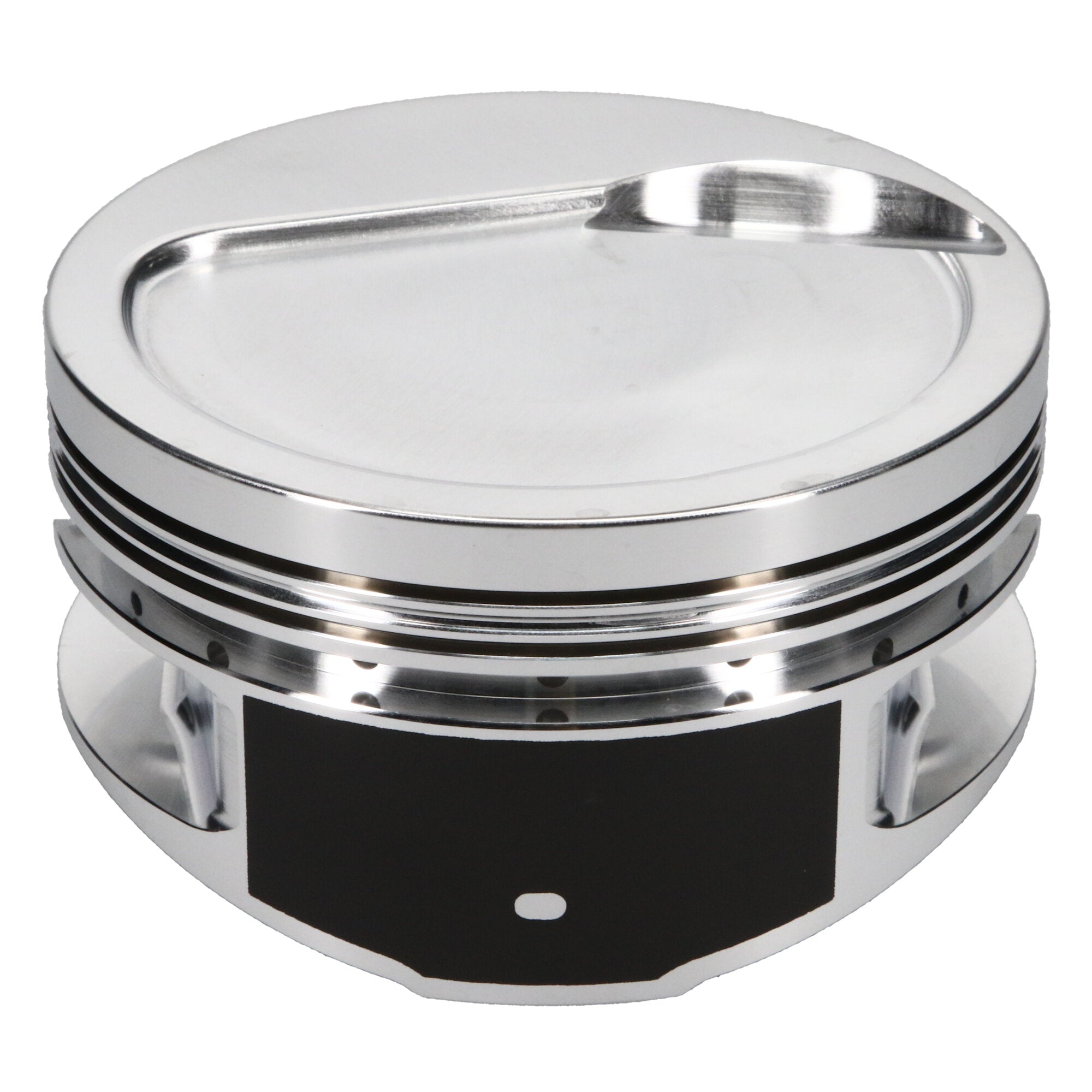

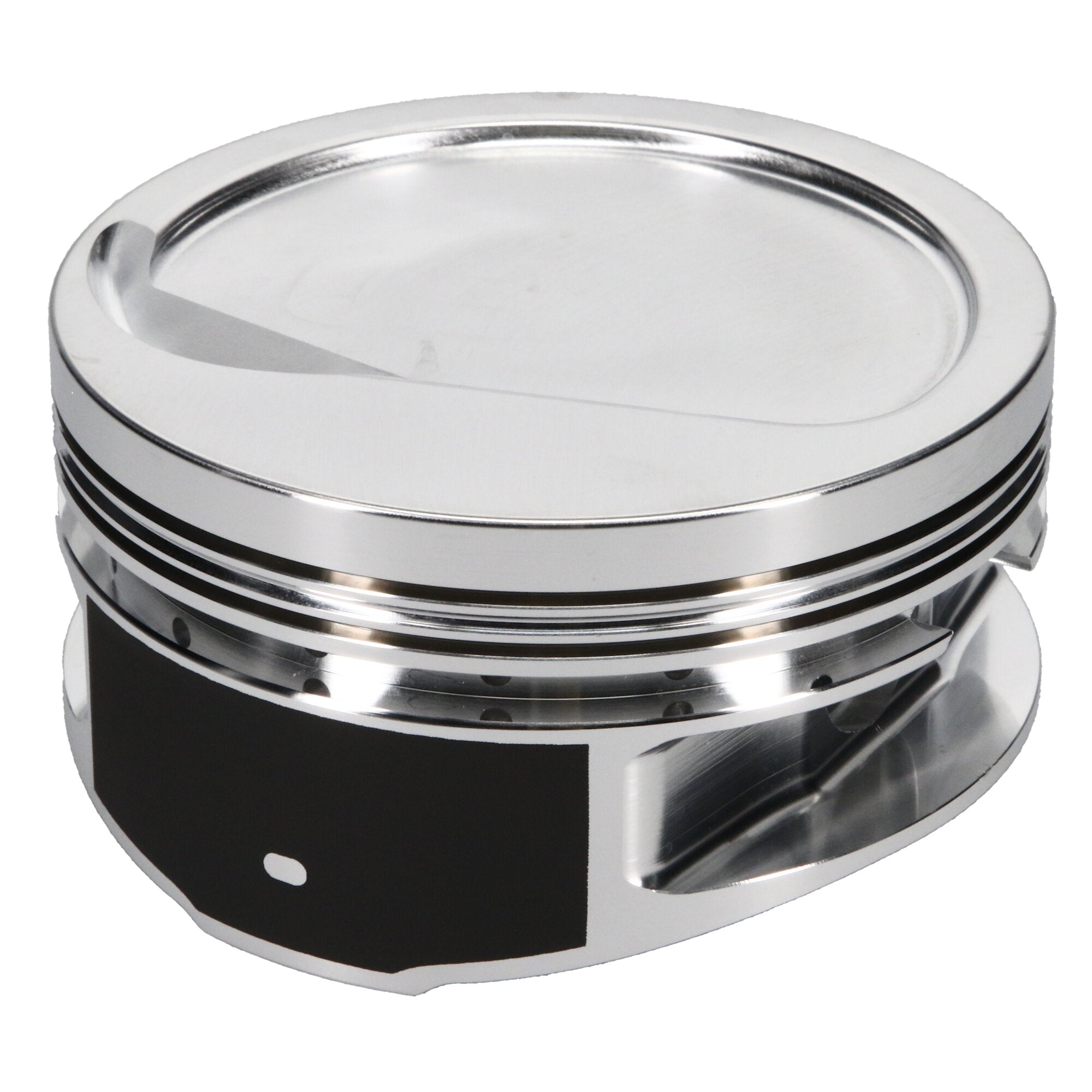

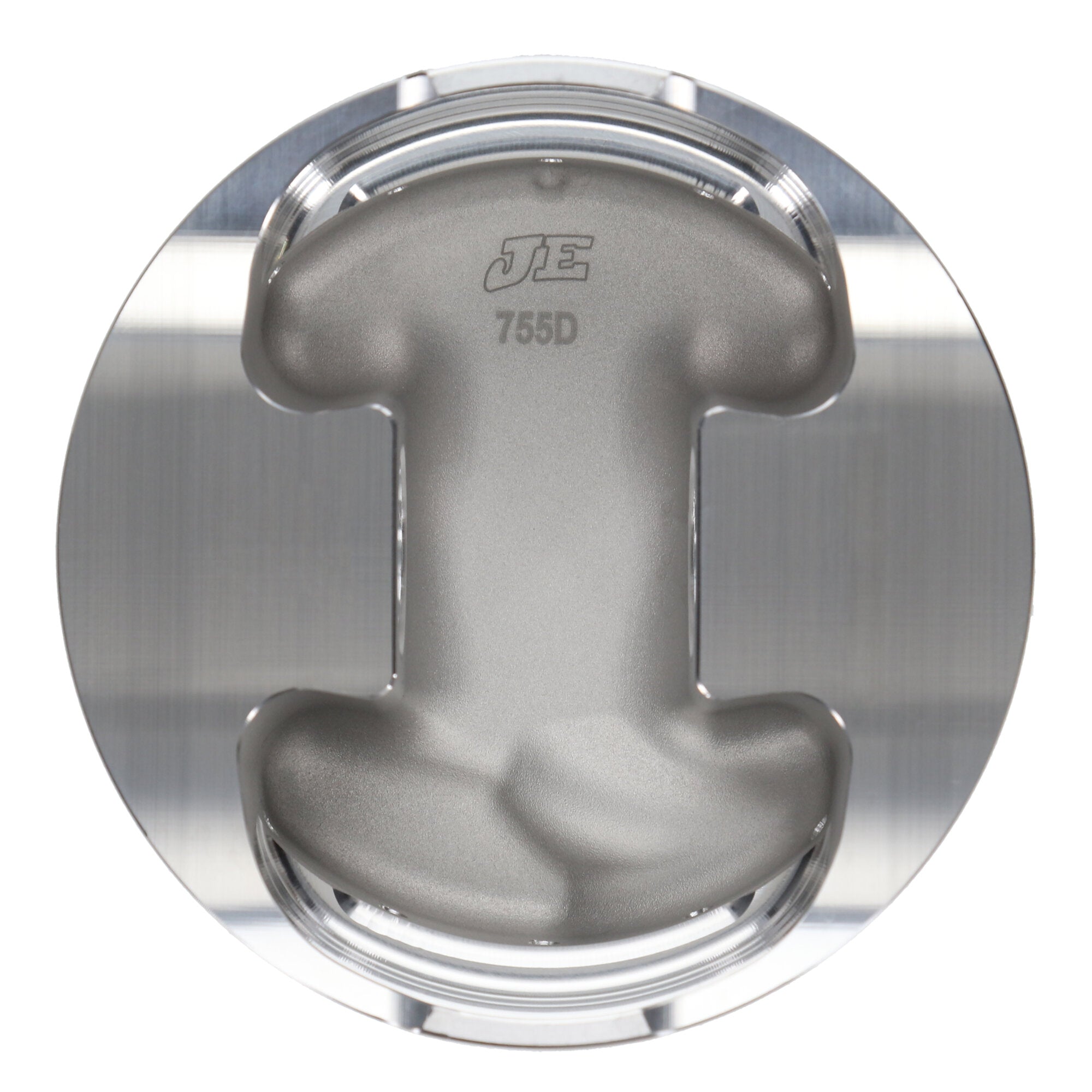

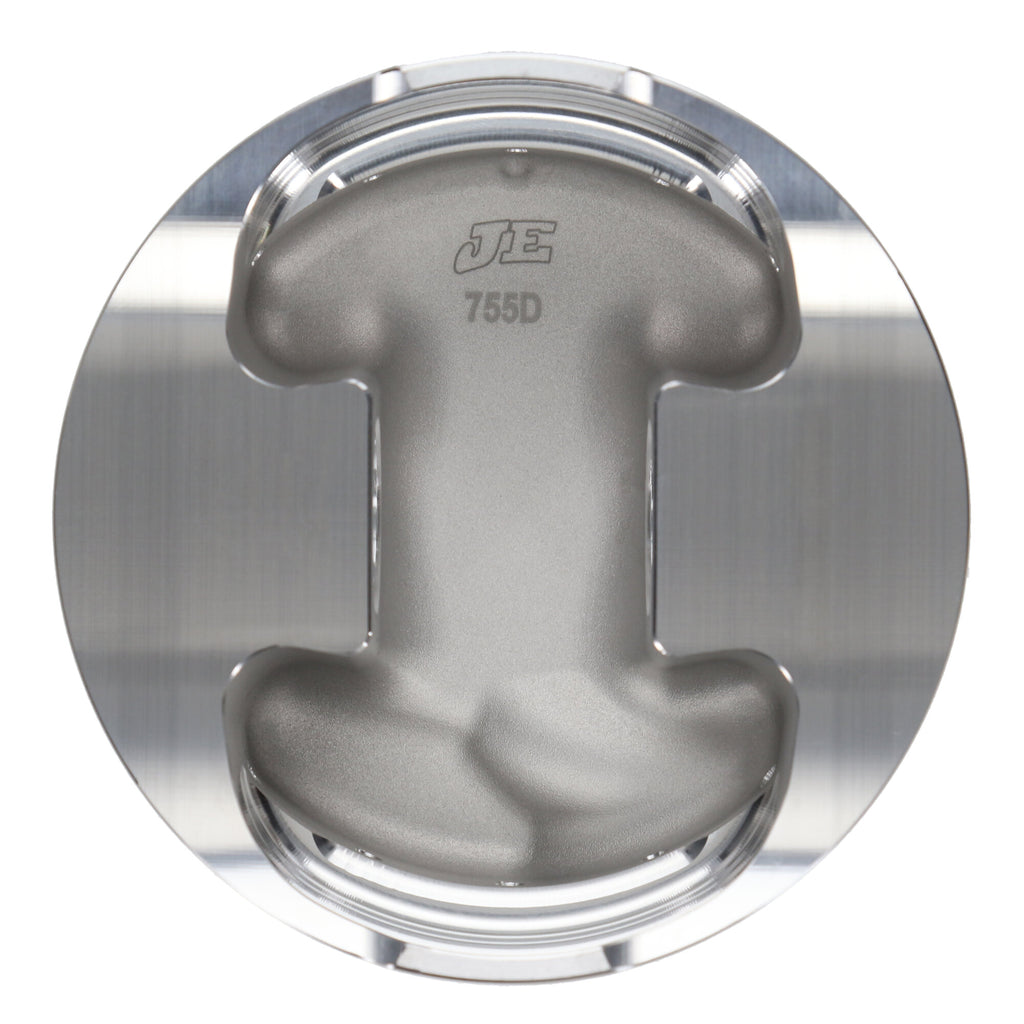

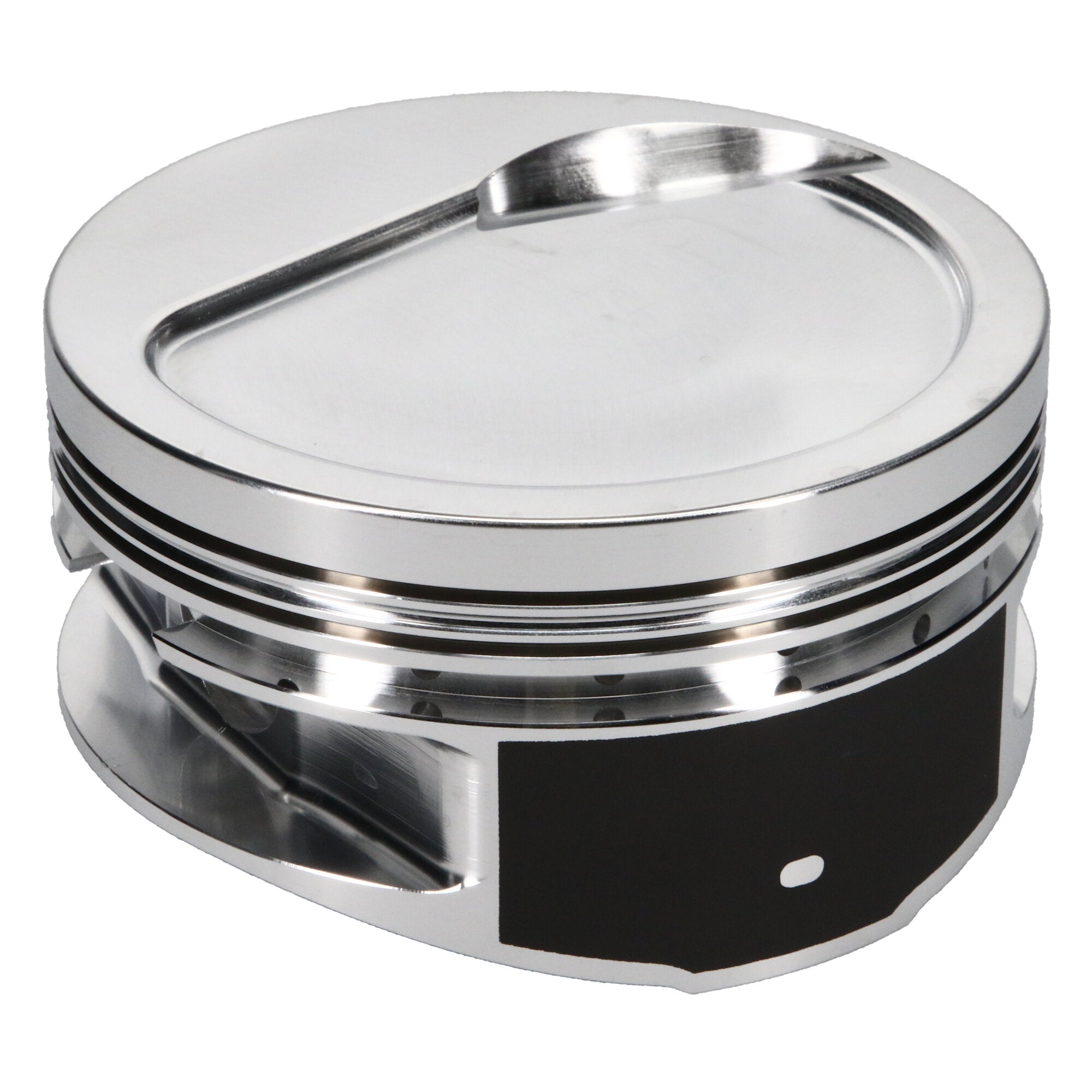

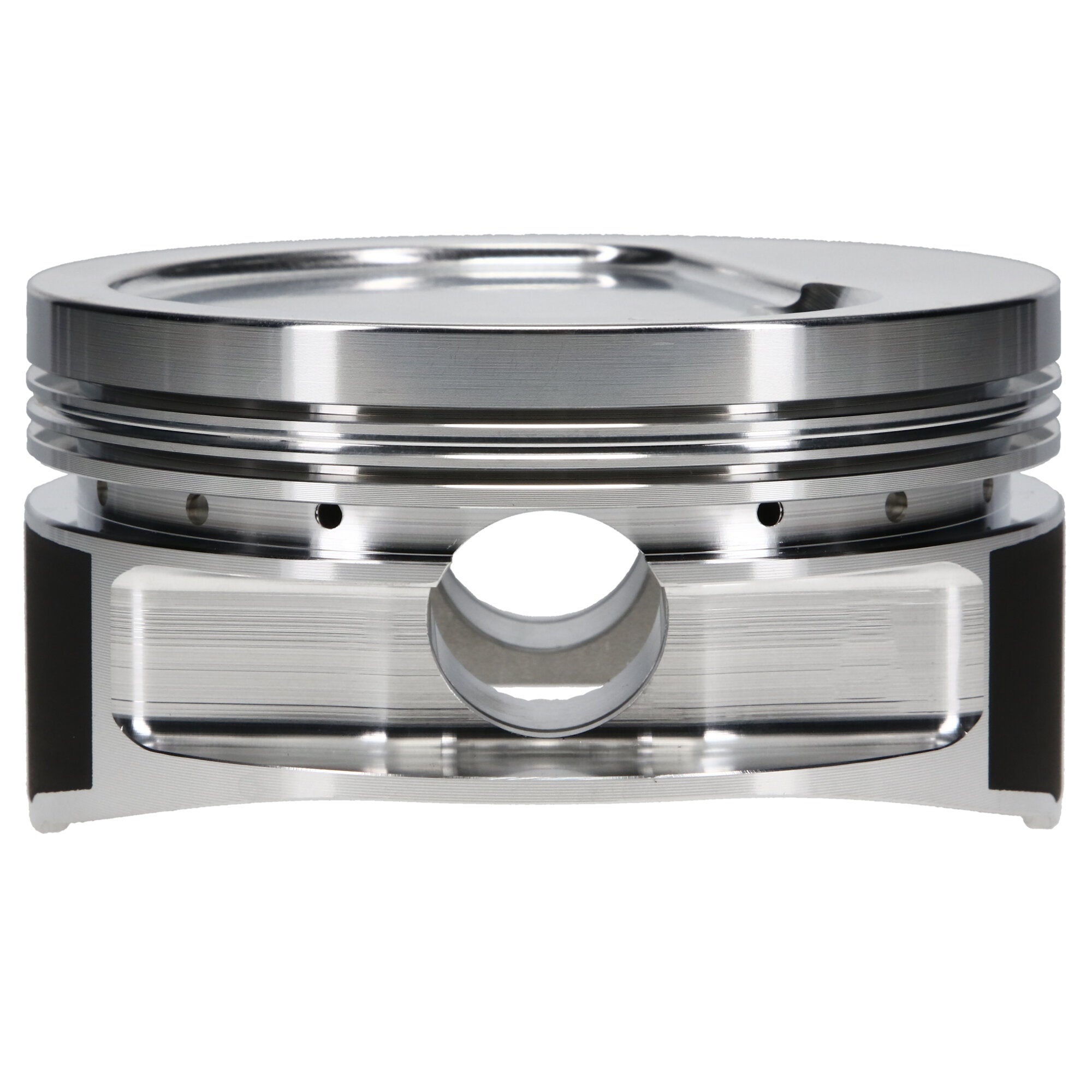

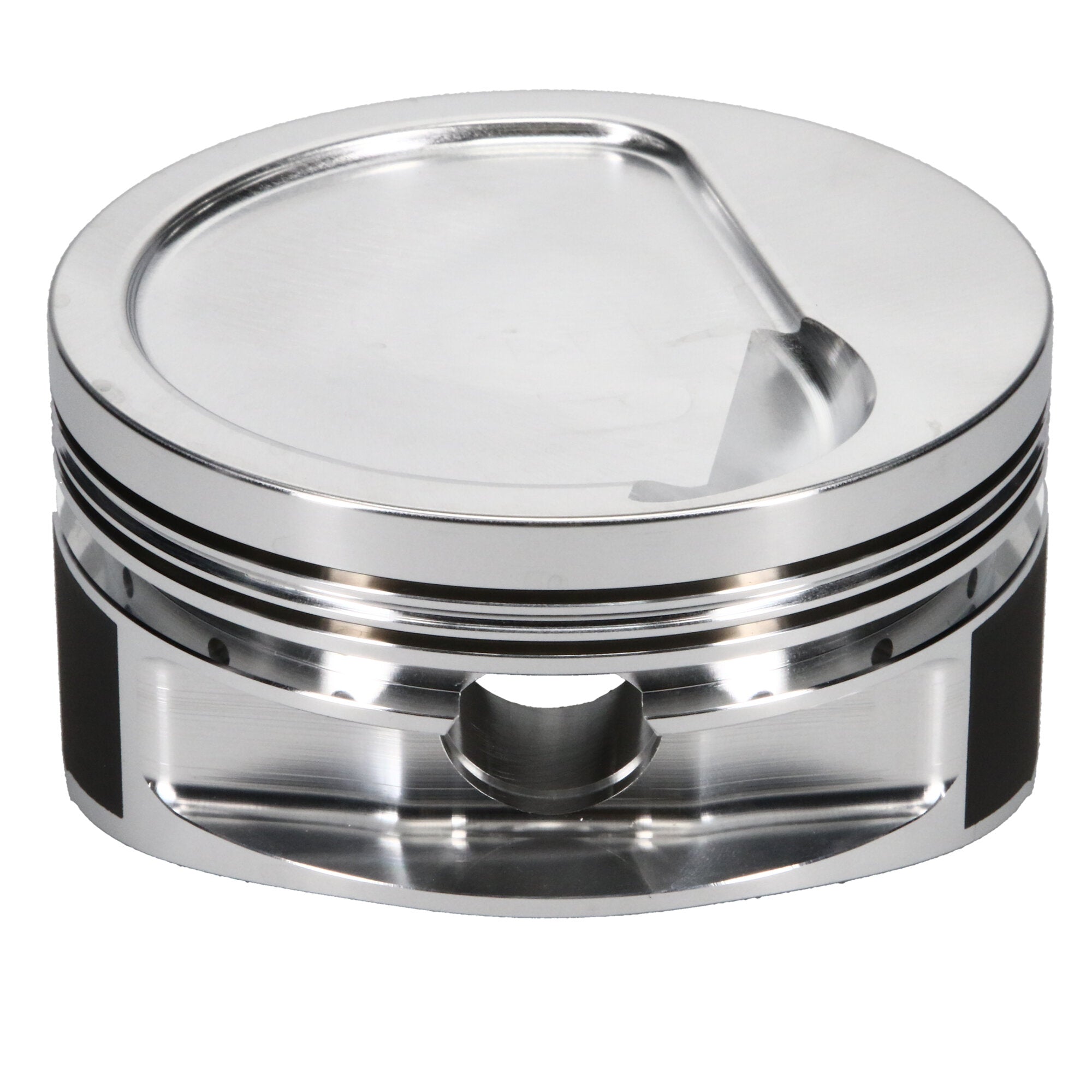

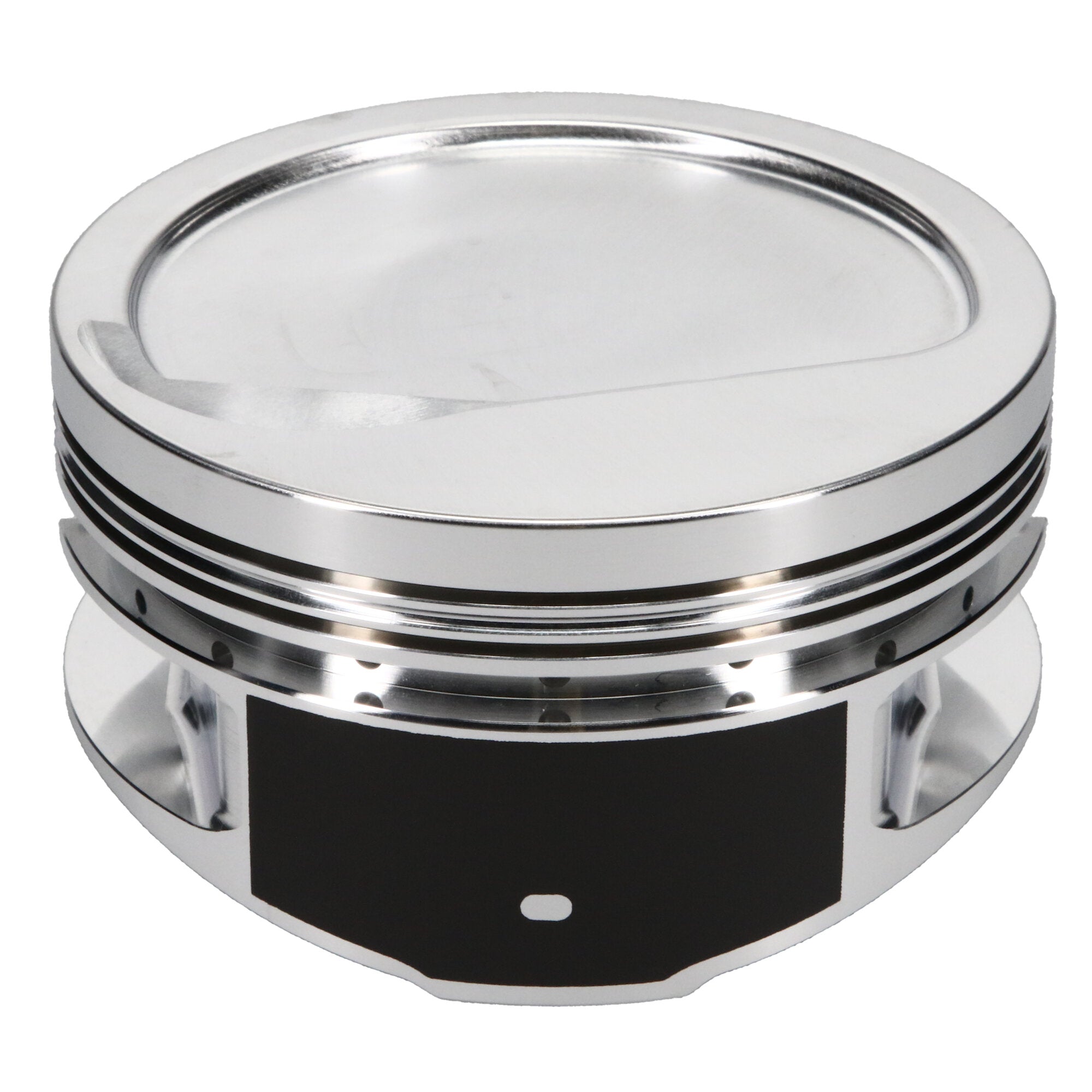

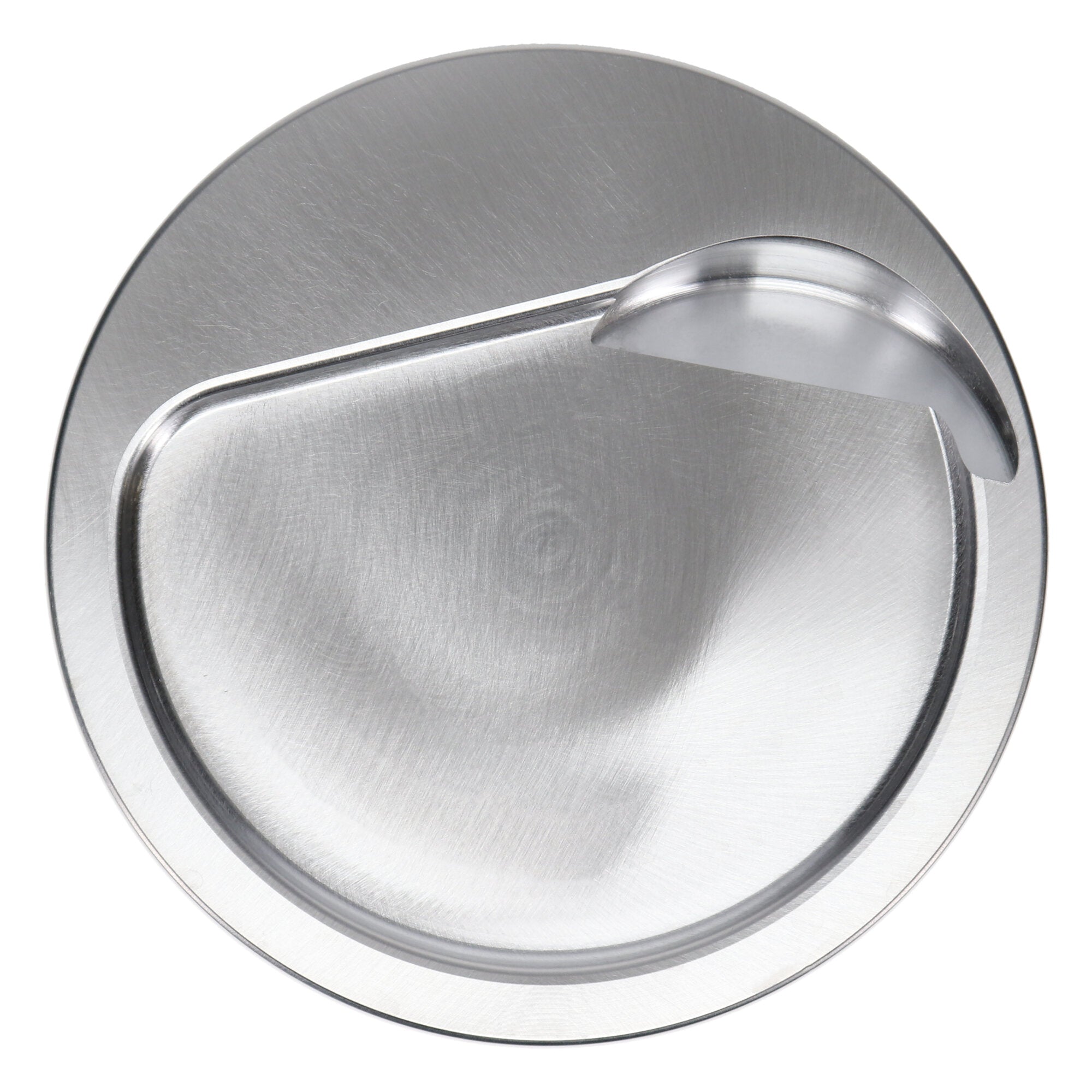

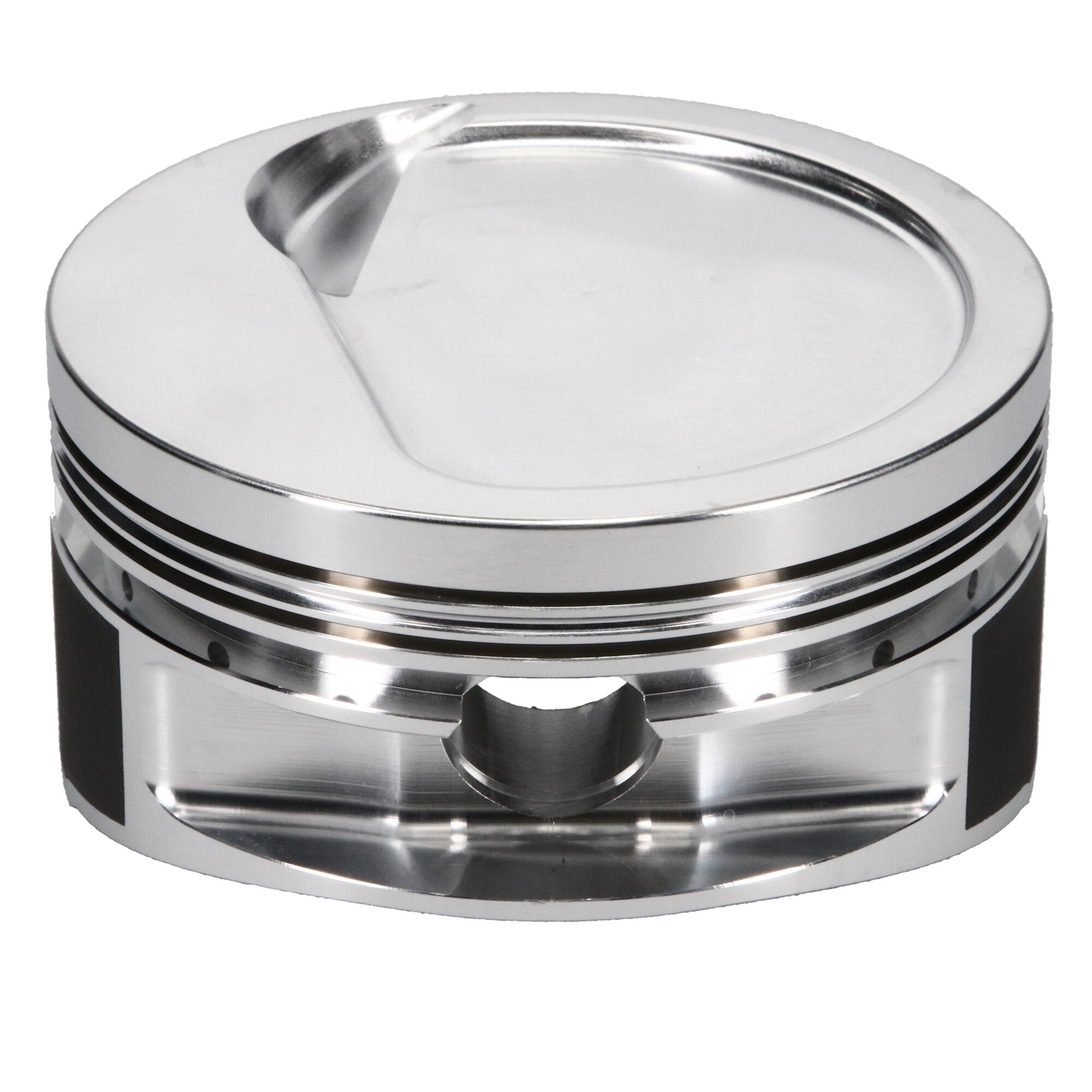

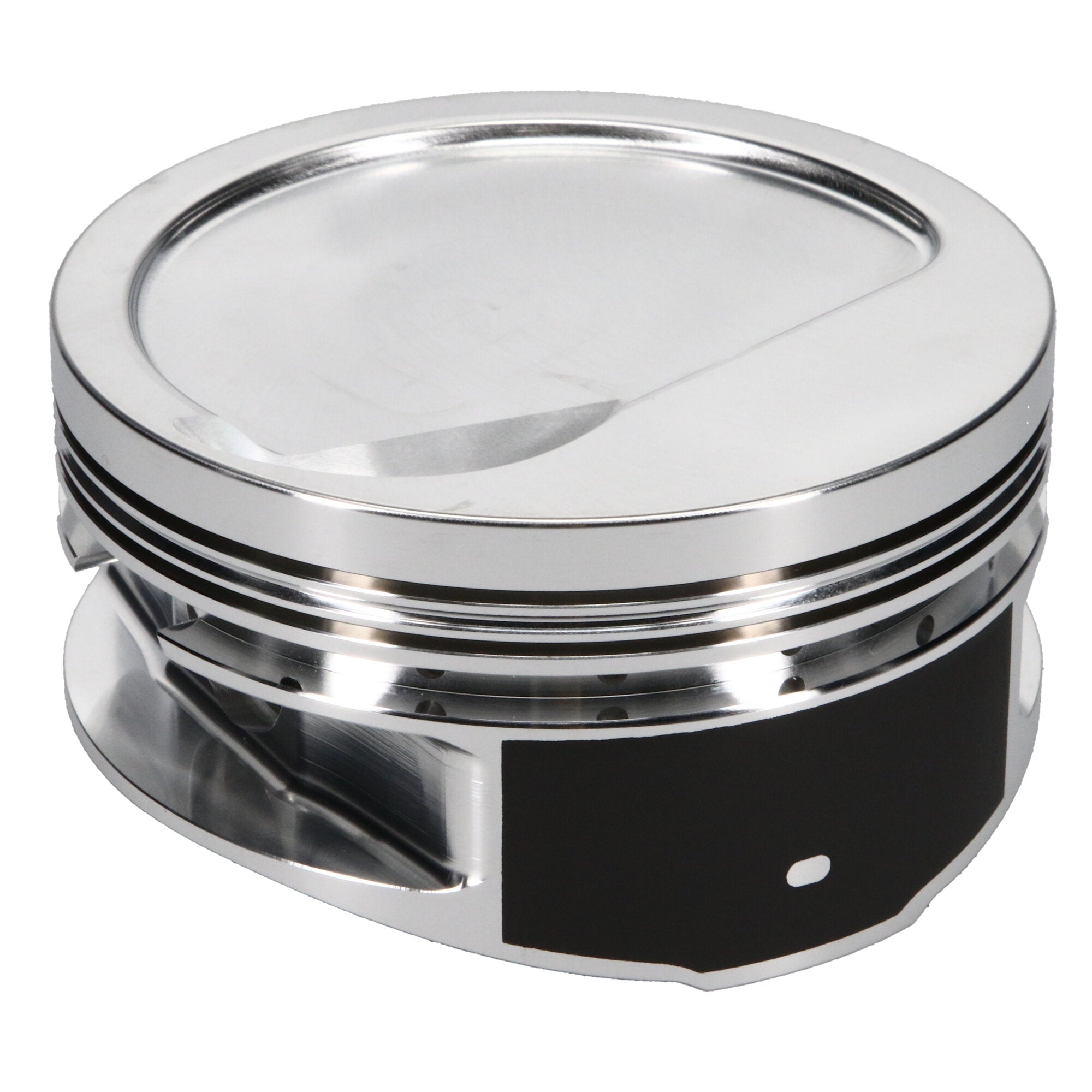

Piston Set, 2618, Inv Dome/Dish, 4.500 Bore, 1.395 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.395 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.500 Bore, Dish, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
990-042-CS |
| Piston Head Type |
Dish |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
OPEN CHAMBER |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.500 in. Bore - 1.395 in. CH, -28.00 CC |
| Add-On |
J100F8-4500-5 |
| Piston Material |
2618 |
| Add-On |
990-2930-18-51S |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Chevrolet |
| Engine |
Big Block |
| Industry |
Automotive |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
585 |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.180 |
| Piston Pin Material |
5115 |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.395 |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.188 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Length |
2.930 |
| Forging Type |
Round |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Piston Pin Outside Diameter |
0.990 |
| Title |
JE Pistons - Chevrolet, Big Block, 4.500 in. Bore, Piston Kit |
| Piston Volume |
-28.00 |
| Bore Diameter |
4.500 |
| Piston Series |
JE Pistons |
| Piston Quantity |
8 |
| Ring Set Included |
No |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
