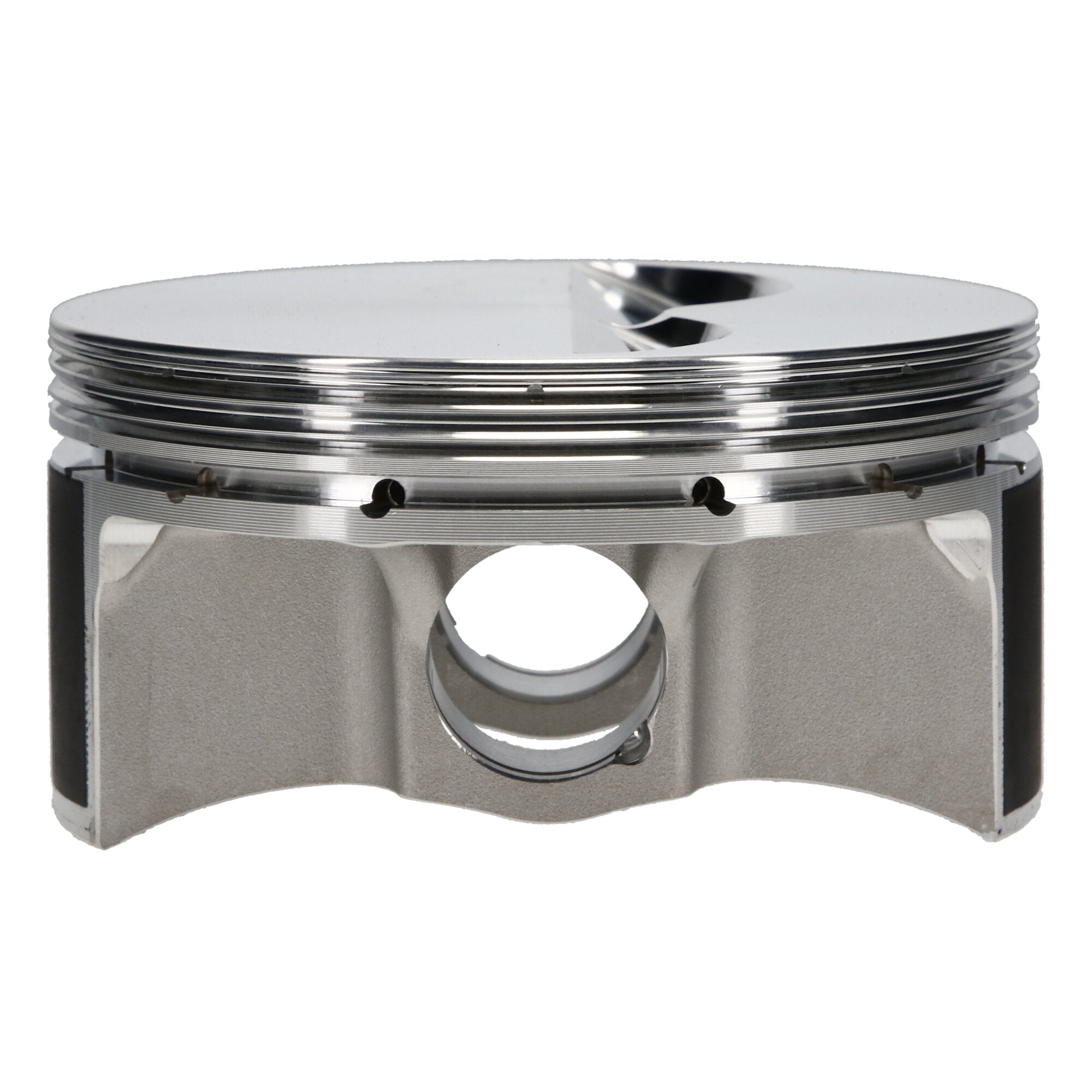

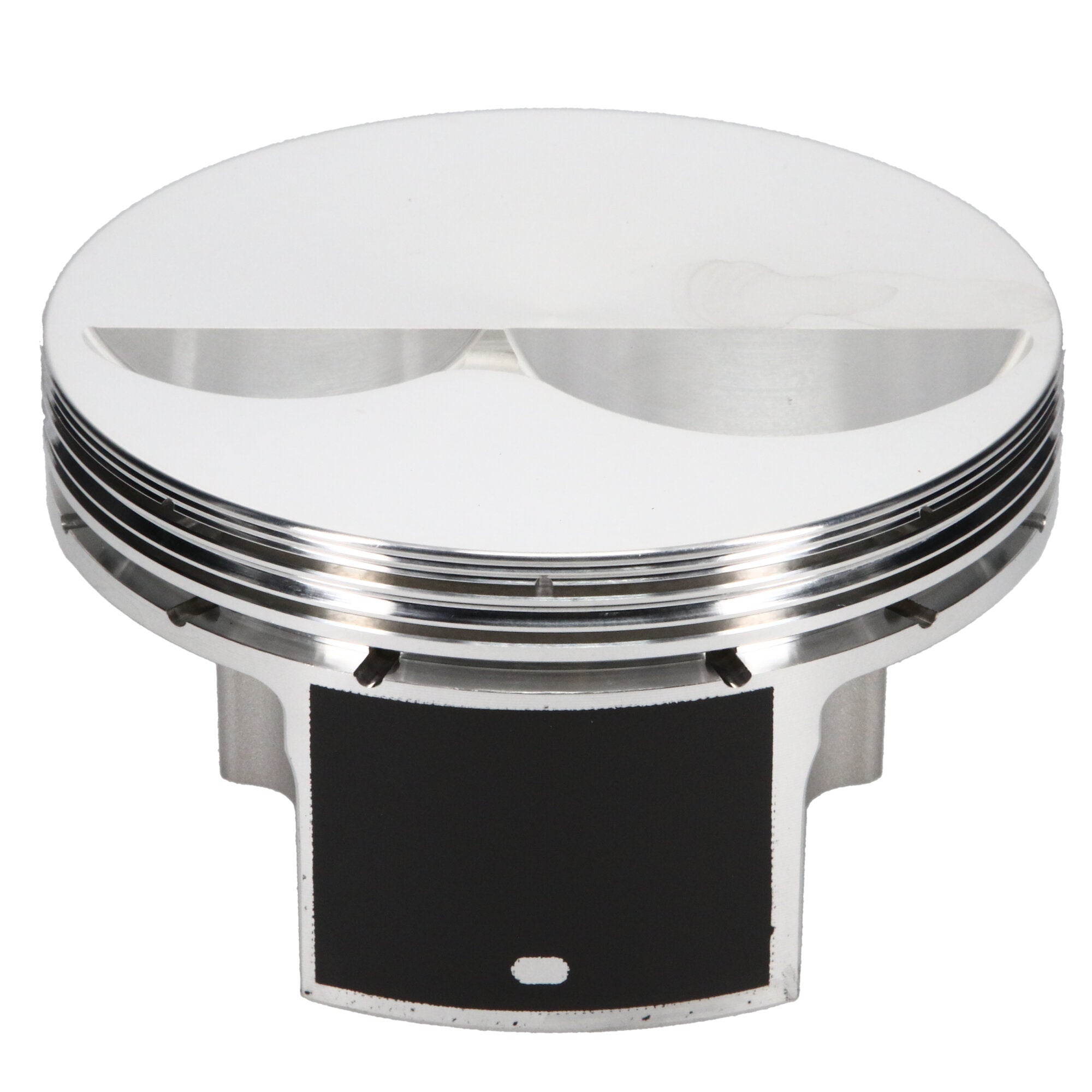

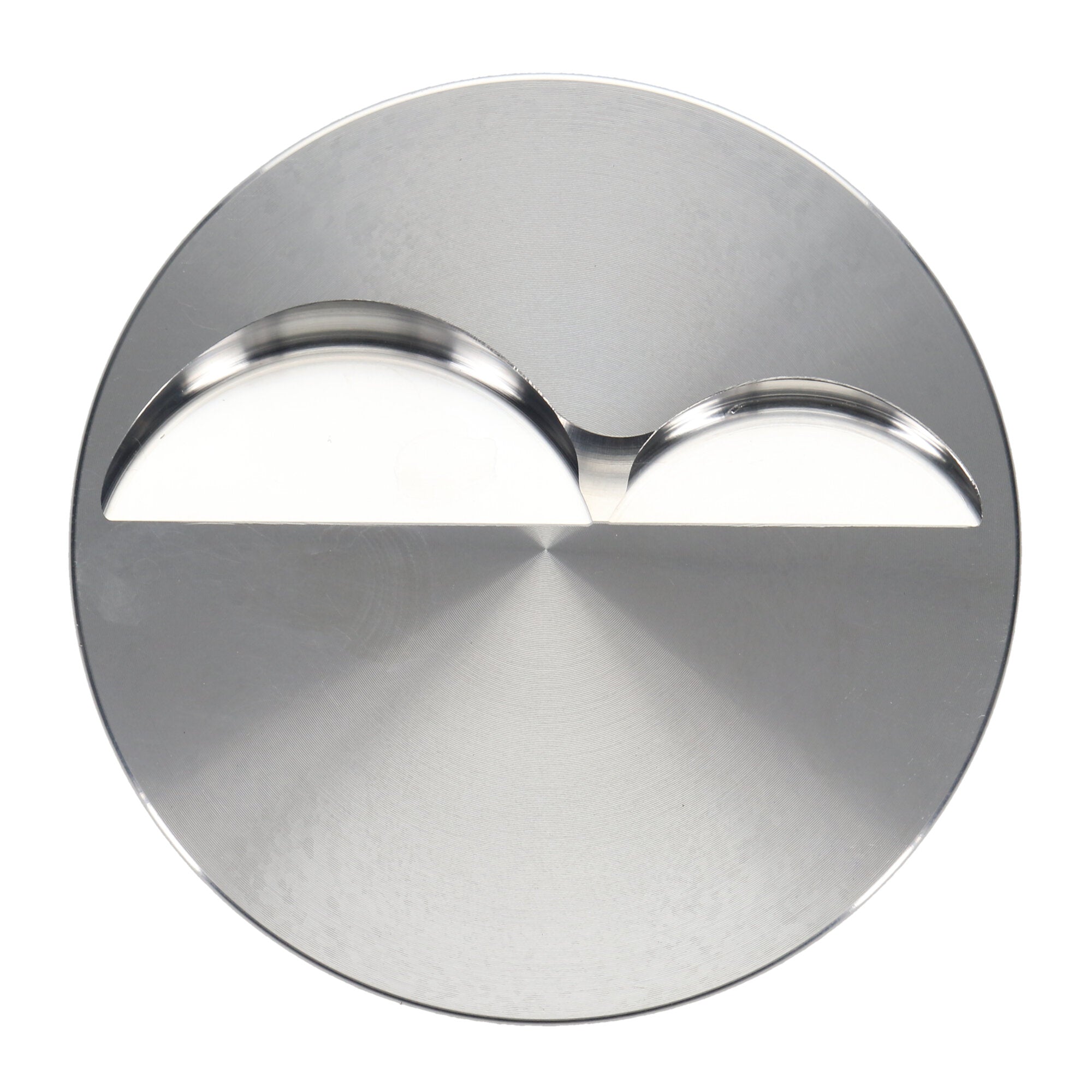

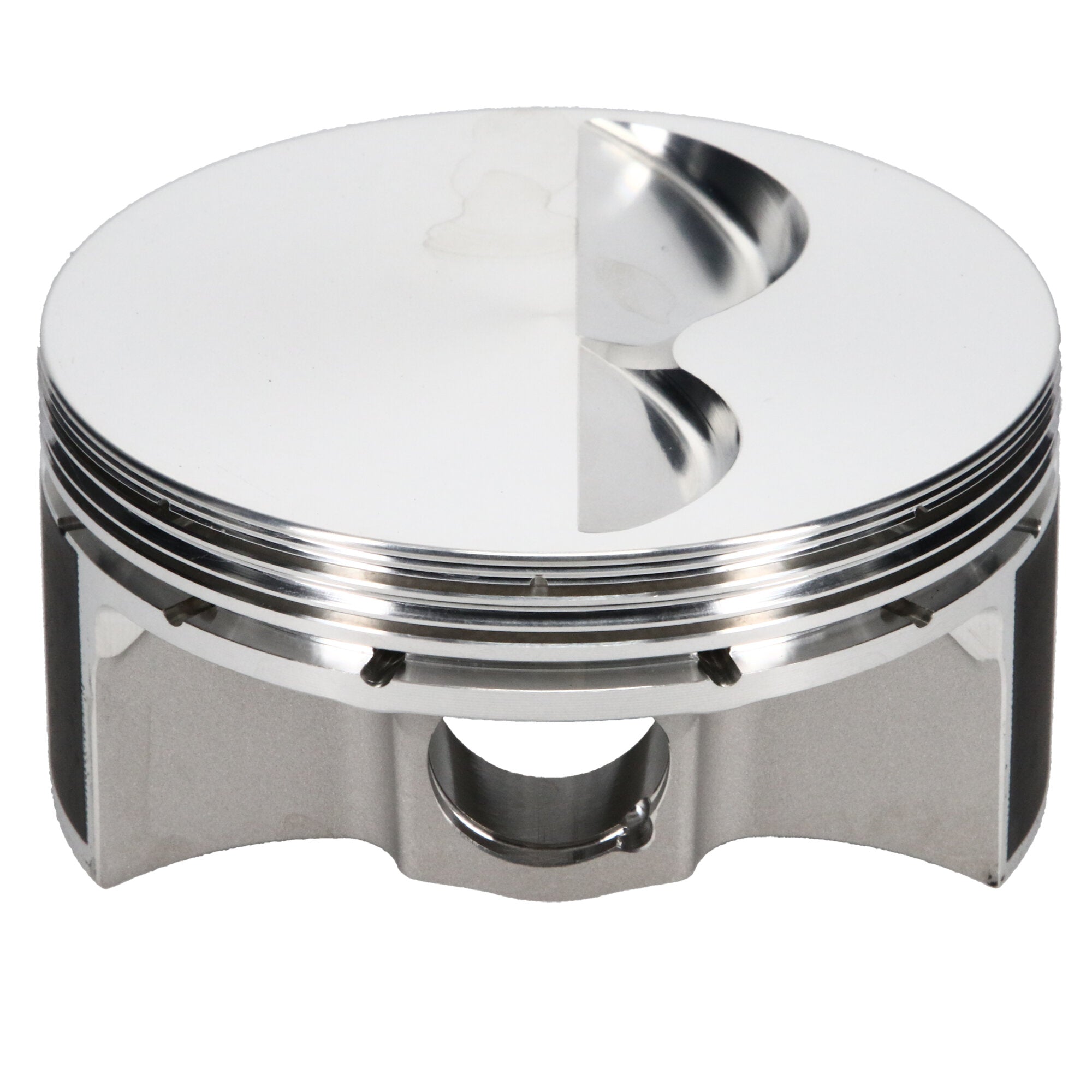

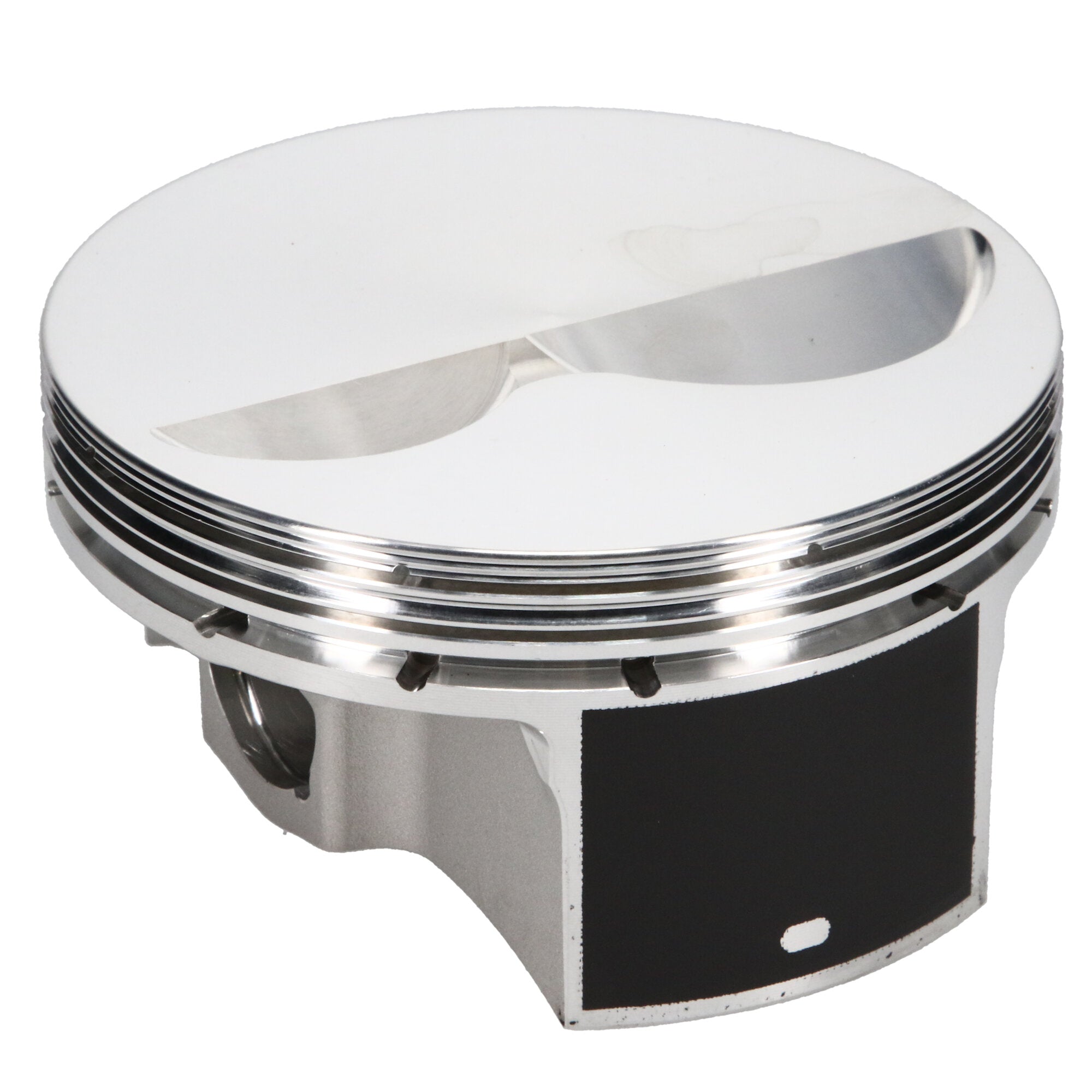

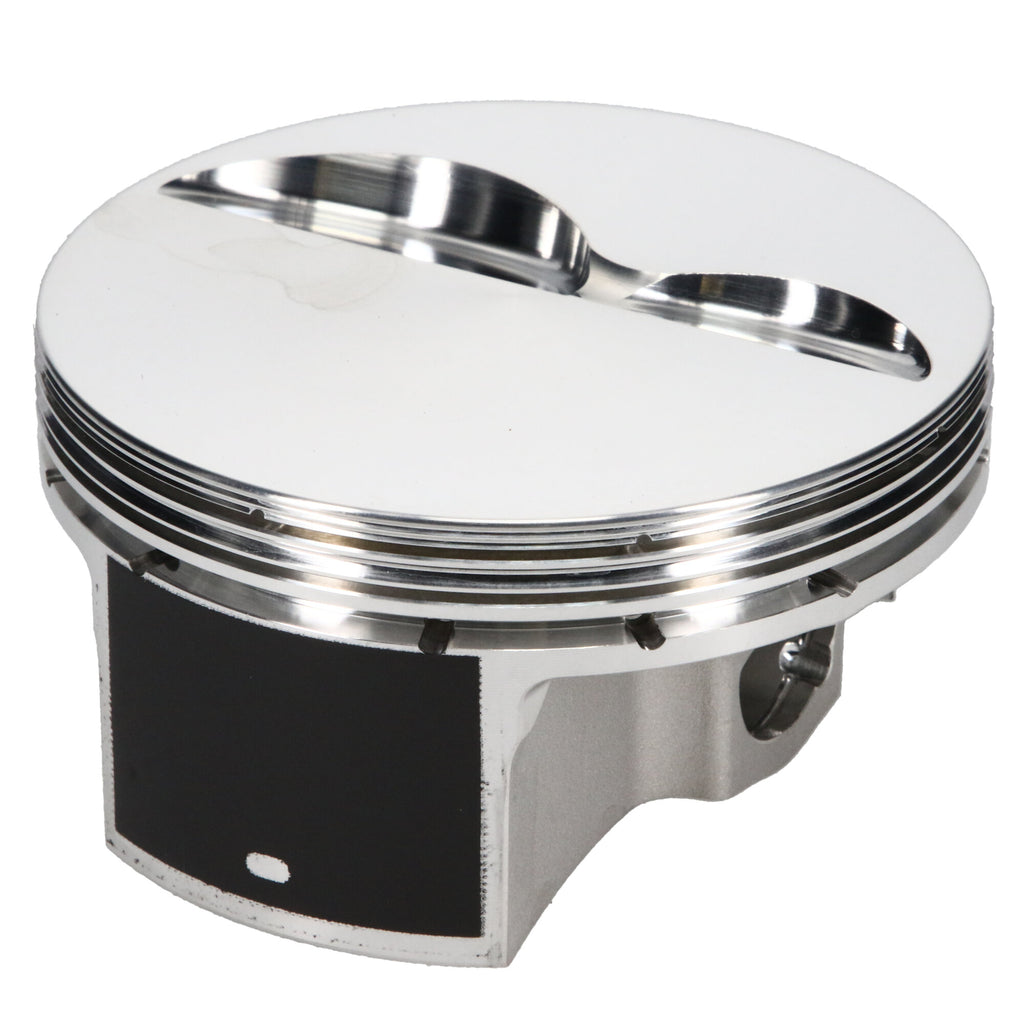

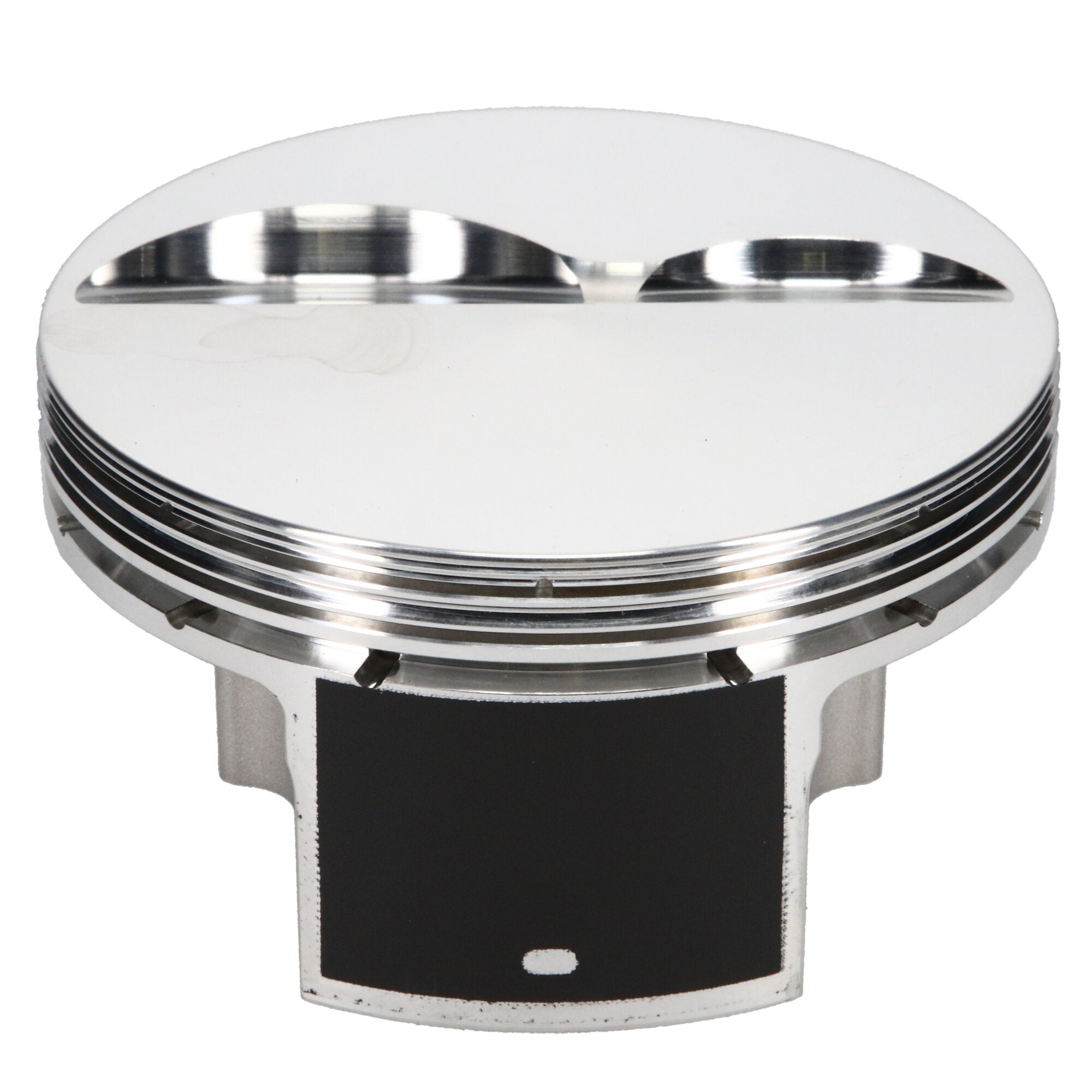

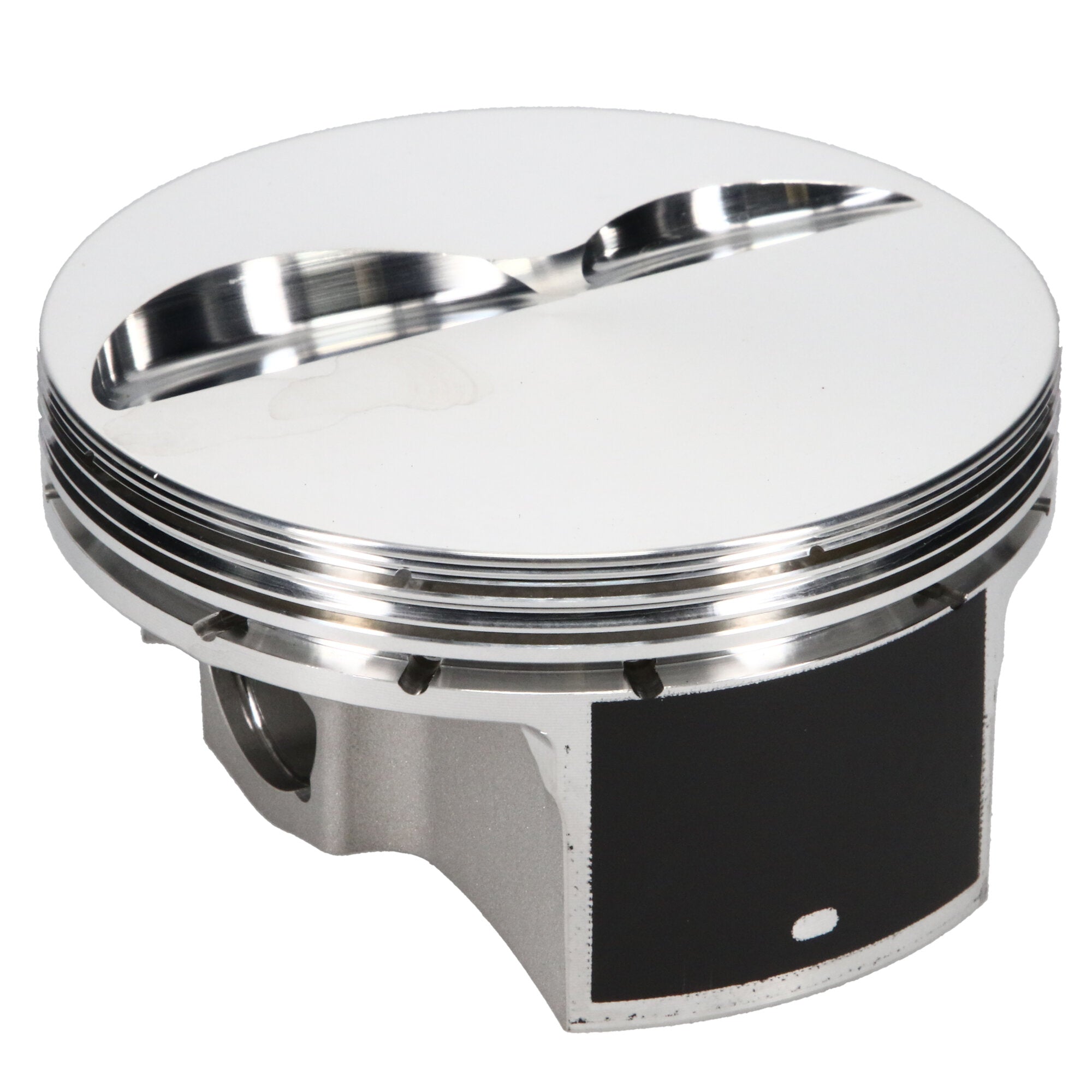

  • JE Pistons 257797R Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Sold out
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Click to zoom in
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.
Load image into Gallery viewer, Piston-Single,-2618,-Flat-Top,-4.030-Bore,-1.550-Cd,-0.927-Pin,-Set-Of-1.

Have Questions?

(877) 743-7862 Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Performance matched parts

  • Nationwide Delivery

    Economy shipping

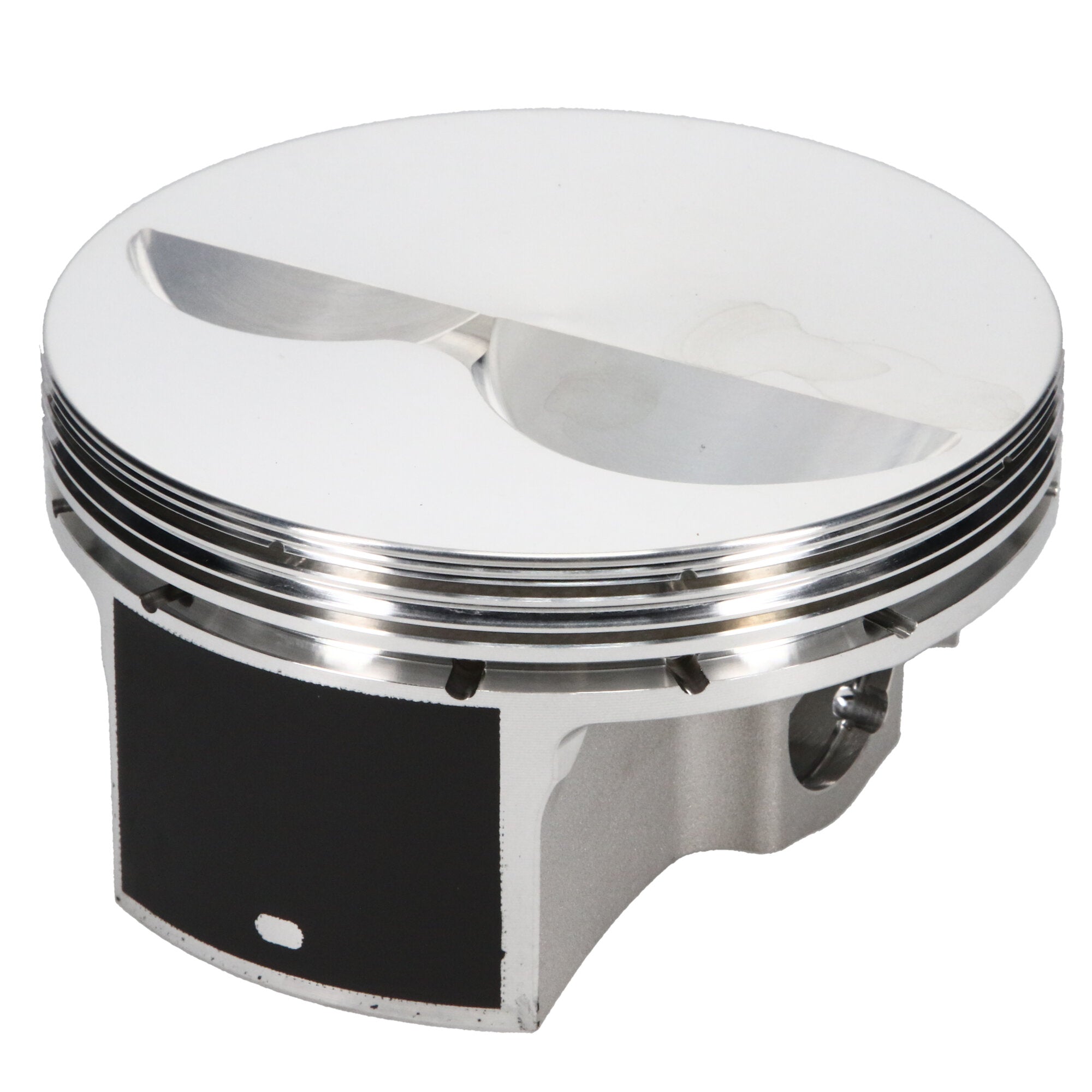

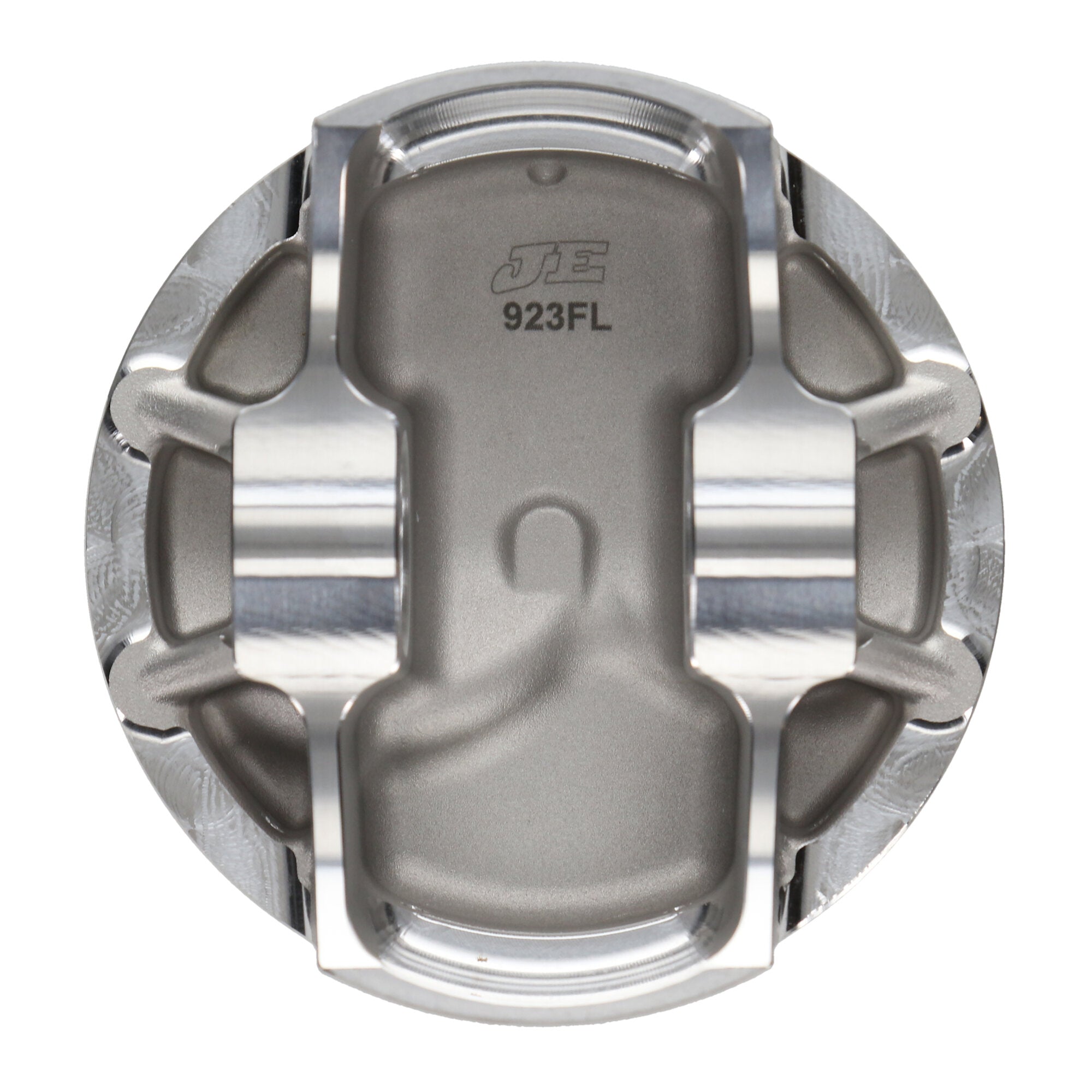

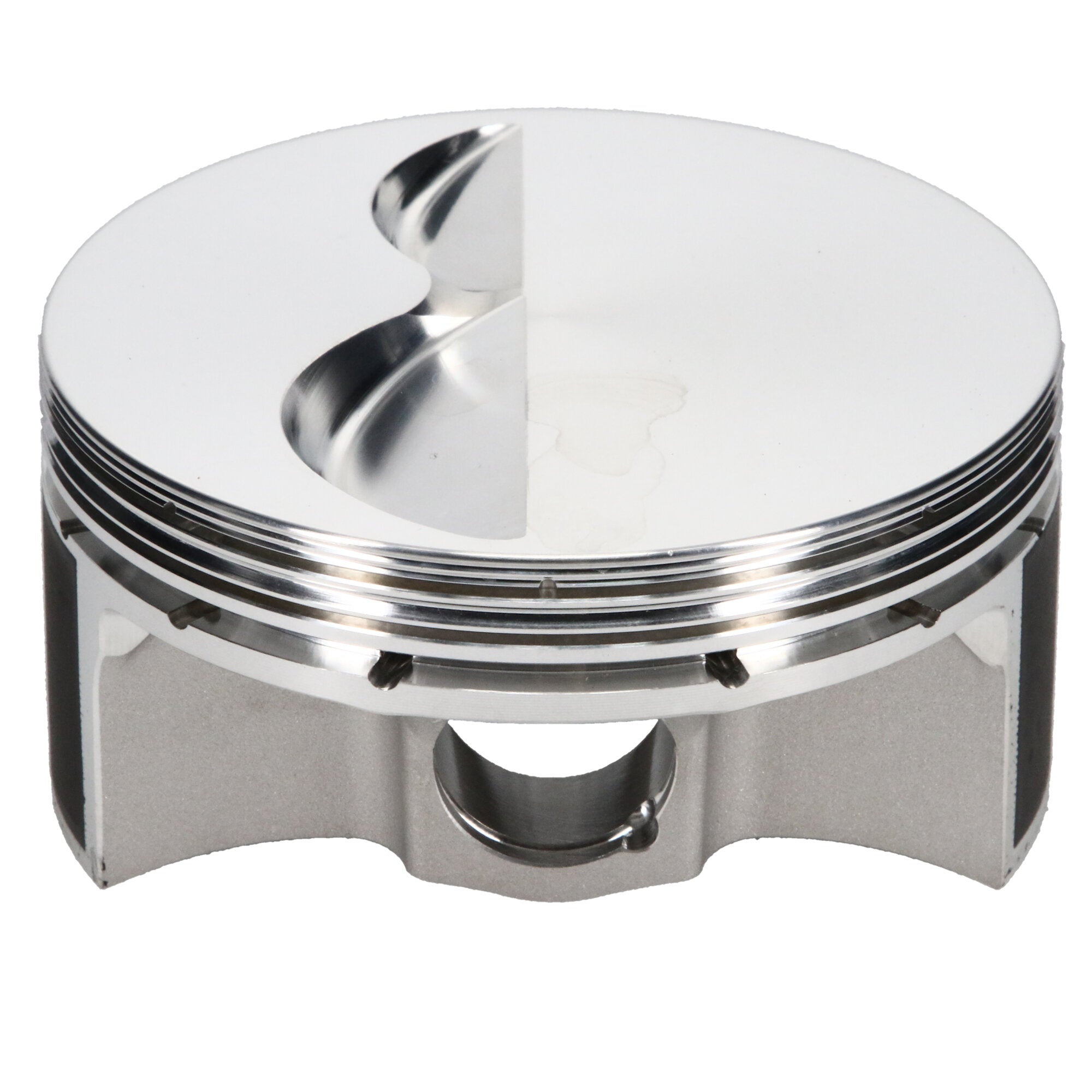

JE Pistons 257797R Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_257797R
Engine Piston
$343.75
customers are viewing this product
Manley Performance 594130C-1 Manley Piston Single, PIST-3.582/1.220 CD/D
Manley Performance 594130C-1 Manley Piston Single, PIST-3.582/1.220 CD/D
$185.70
Manley Performance 596965DC-1 Manley Piston Single, PIST-4.065/1.304CD/18ccDISH
Manley Performance 596965DC-1 Manley Piston Single, PIST-4.065/1.304CD/18ccDISH
$190.49
JE Pistons 257797R Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Details

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications:

Description_ASM Chevrolet Small Block 350
Description_DEF Engine Piston
Description_EXT JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.550 CD, Flat Top, Right Piston
Description_DES Piston Single, 2618, Flat Top, 4.030 Bore, 1.550 CD, 0.927 Pin, Set of 1.
Description_TLE Chevrolet 350, 4.030 Bore, Flat, Set of 1
Description_MKT As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Description_SHO Piston
Description_INV JE Pistons, Piston
Description_FAB
  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Oil Ring Thickness 0.119
Ringset Included No
Piston Pin Length 2.350
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Prop 65 - Short Label Prop 65 Warning Label.JPG
Make - Web Chevrolet
Prop 65 Yes/No Yes
Second Compression Ring Thickness 0.0440
Title - Web JE Pistons Chevrolet Small Block Piston - 4.030 in. Bore - 1.550 in. CH, -4.10 CC
Out of Stock Message Call for Availability
Engine Type ICE
Forging Type FSR
Piston Series JE Pistons
Piston Average Weight 389
Add-On J71408-4030-5
Piston Pin Material 5115
Product Market Domestic
Piston Head Type Flat
Top Compression Ring Thickness 0.0436
Piston Pin Wall Thickness 0.150
Piston Orientation Right
Industry Automotive
Cylinder Head CHEVROLET 23 DEG 20/30
Bore Diameter 4.030
Title JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston
Add-On 927-073-MW
Piston Volume -4.10
Piston Material 2618
Engine Small Block
Piston Pin Outside Diameter 0.927
Compression Height 1.550
Add-On 927-2350-15-51C
Category Hierarchy Auto>JE Pistons>Single Replacement Pistons>Domestic
Make CHEVROLET
Product Type Engine Piston
Ring Set Included No
Wrist Pin Wall Thickness 0.150
Engine - Web Small Block
Wrist Pin Length 2.350
Prop 65 (C, R or CR) CR
Piston Quantity 1
Wrist Pin Outer Diameter 0.927
Length 5.0000
Width 5.0000
Height 5.0000
Weight 1.0000
