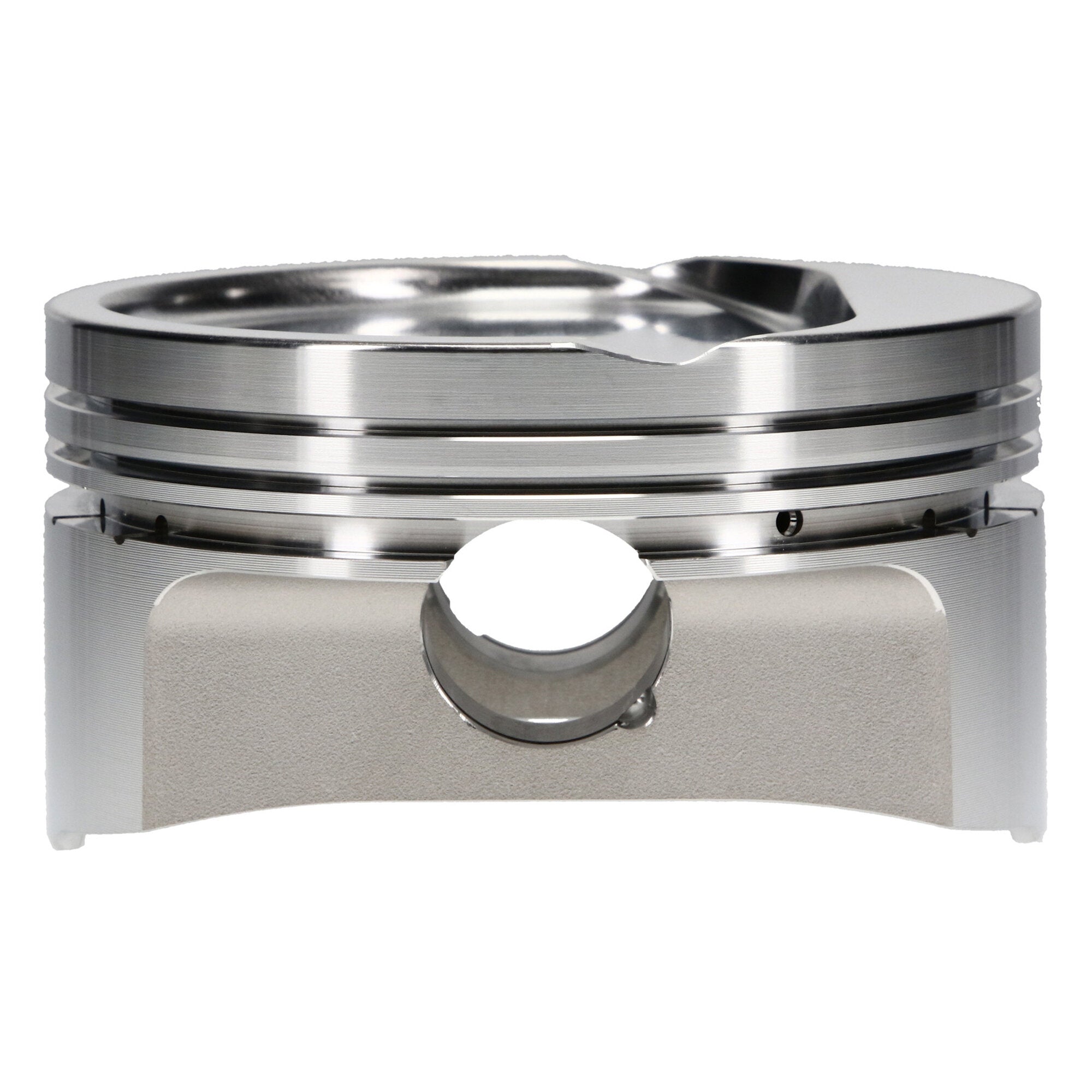

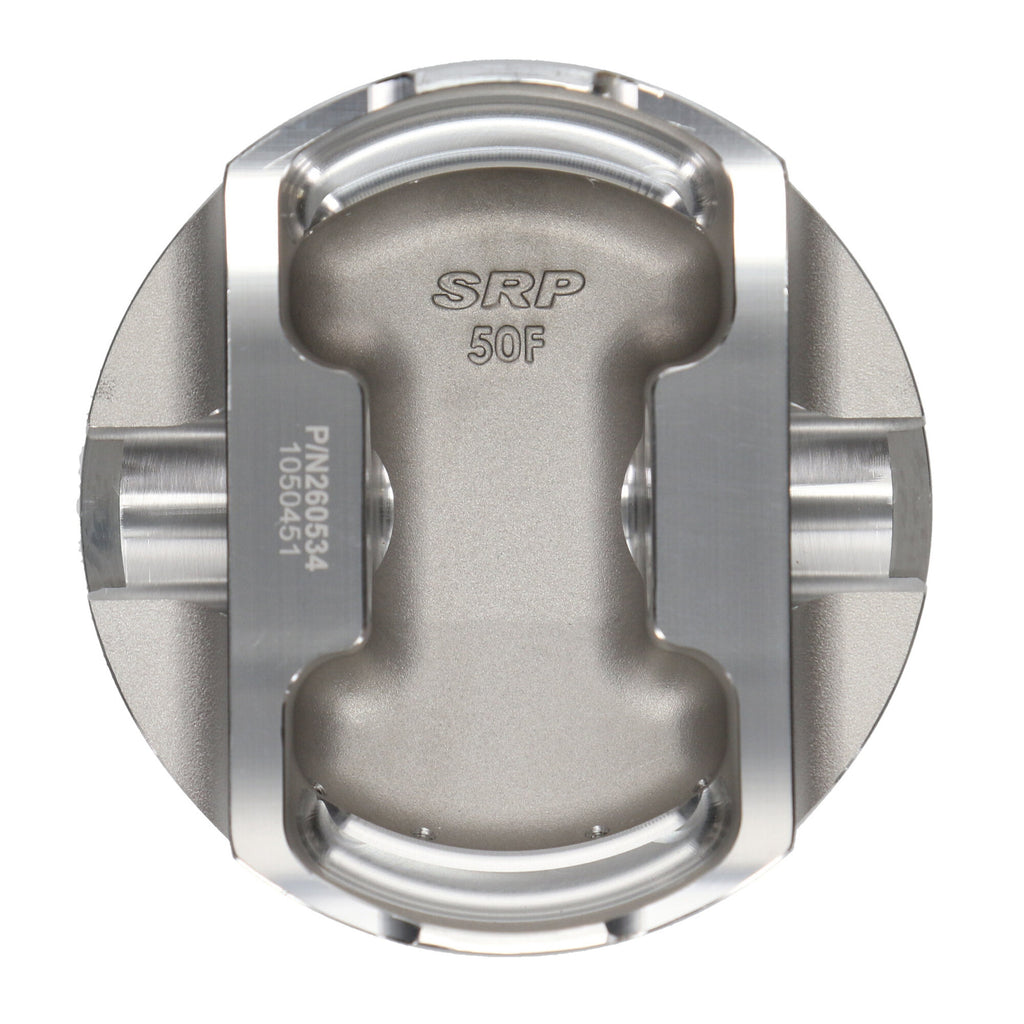

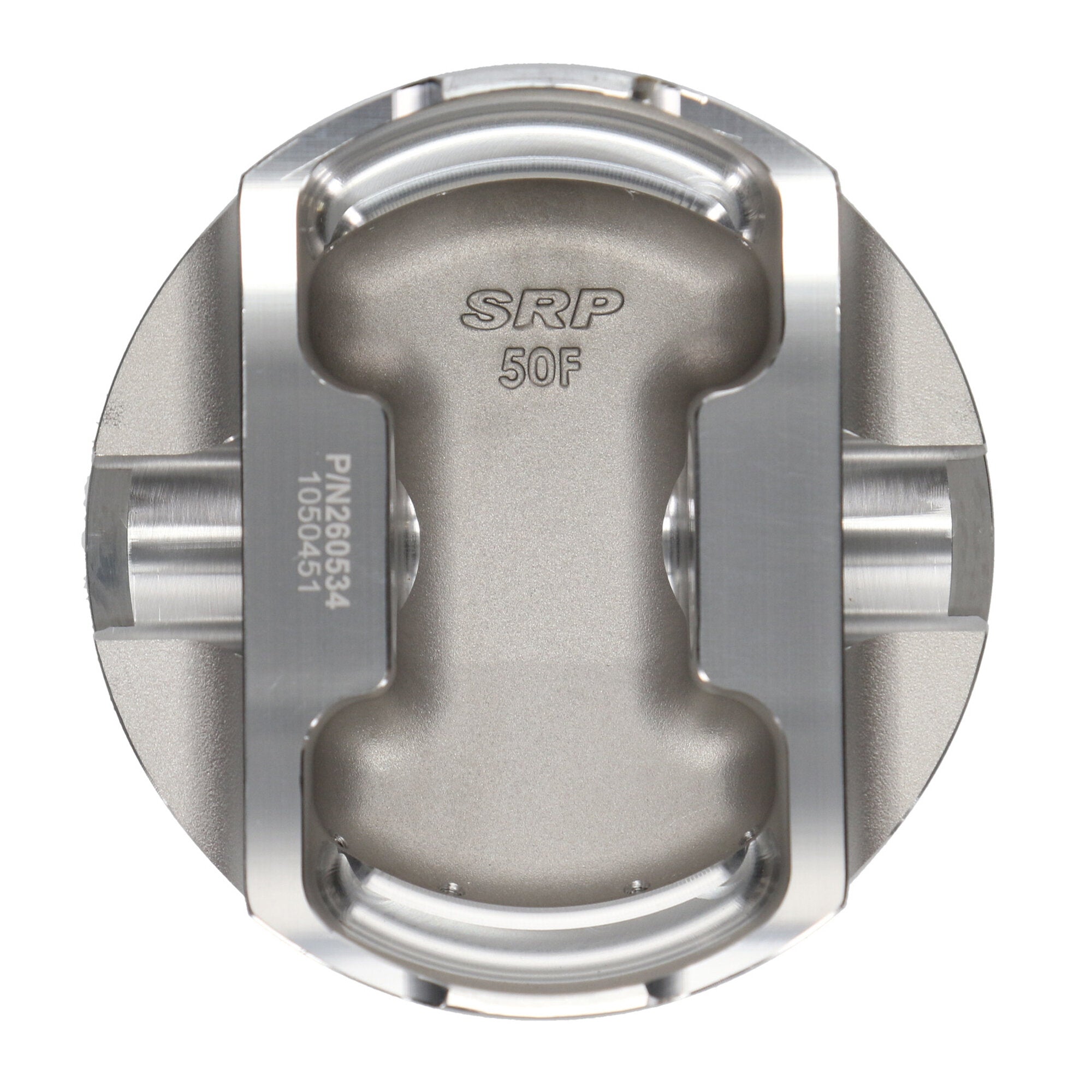

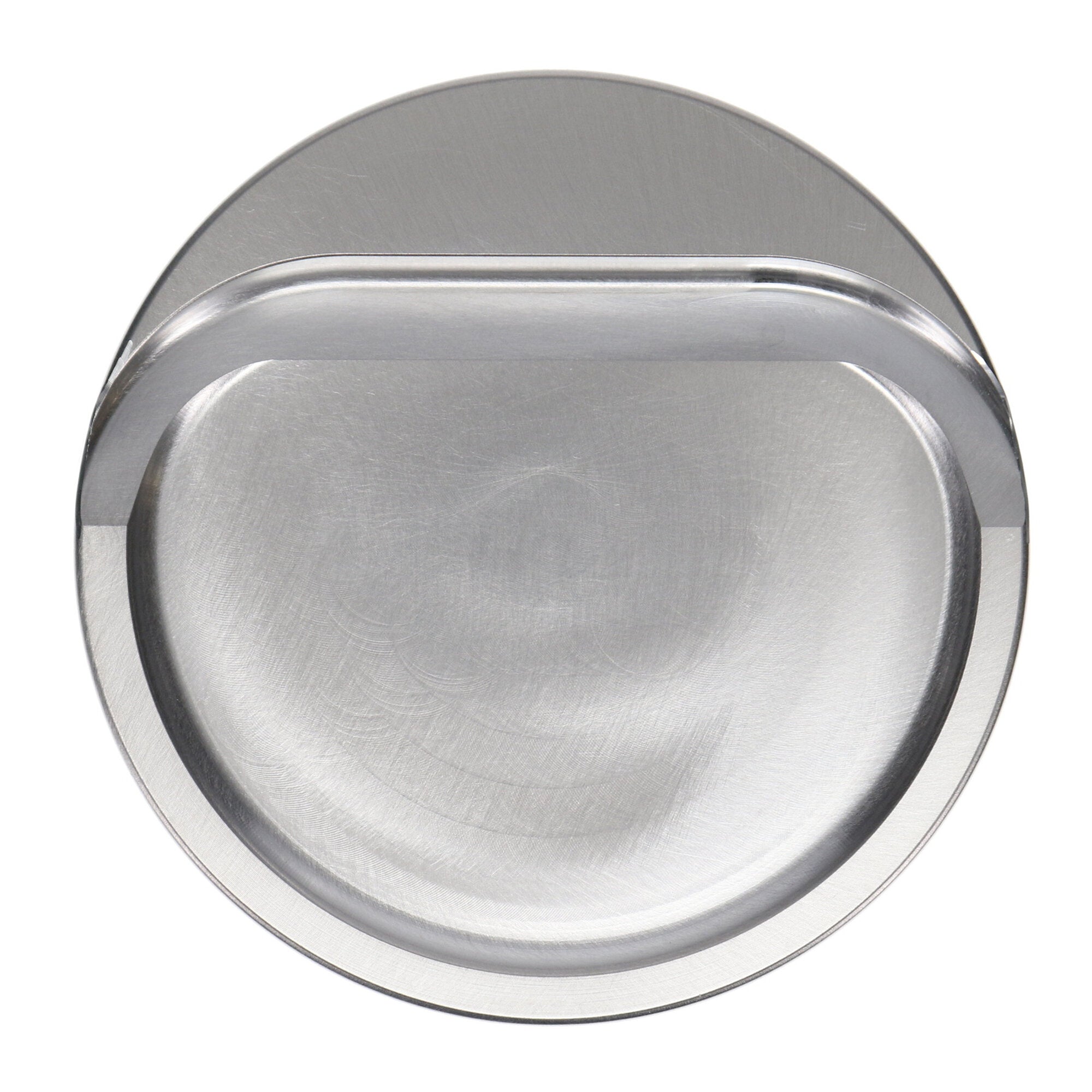

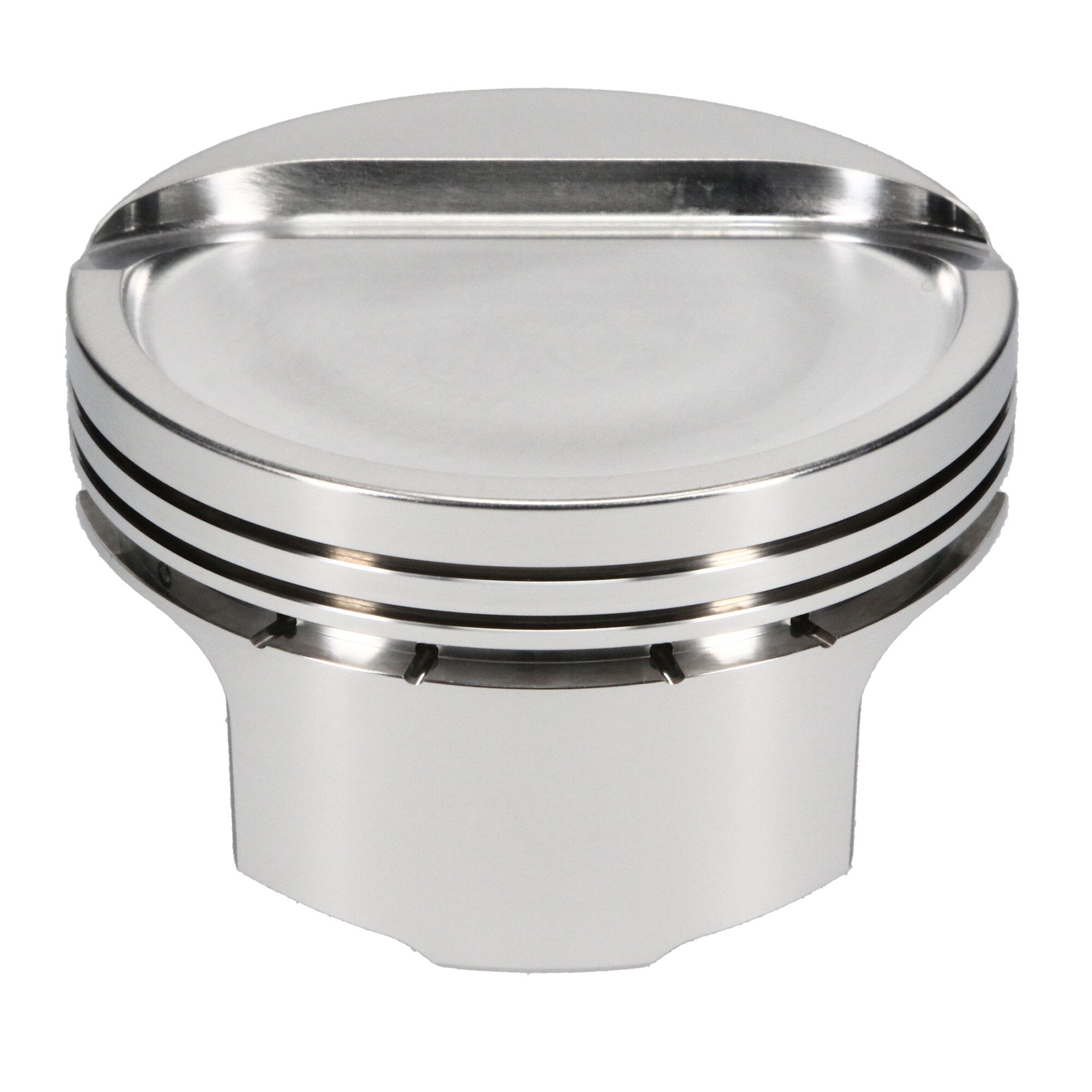

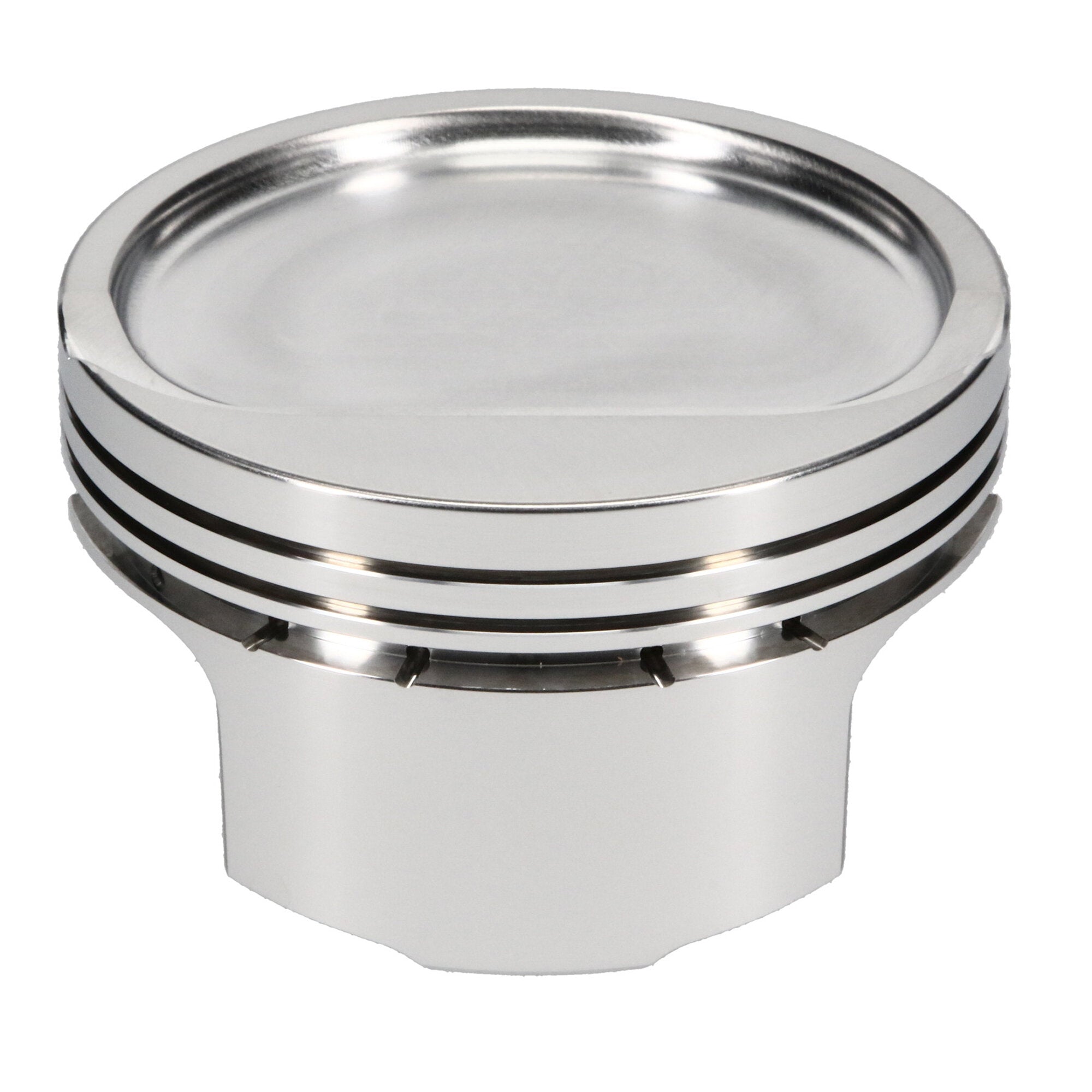

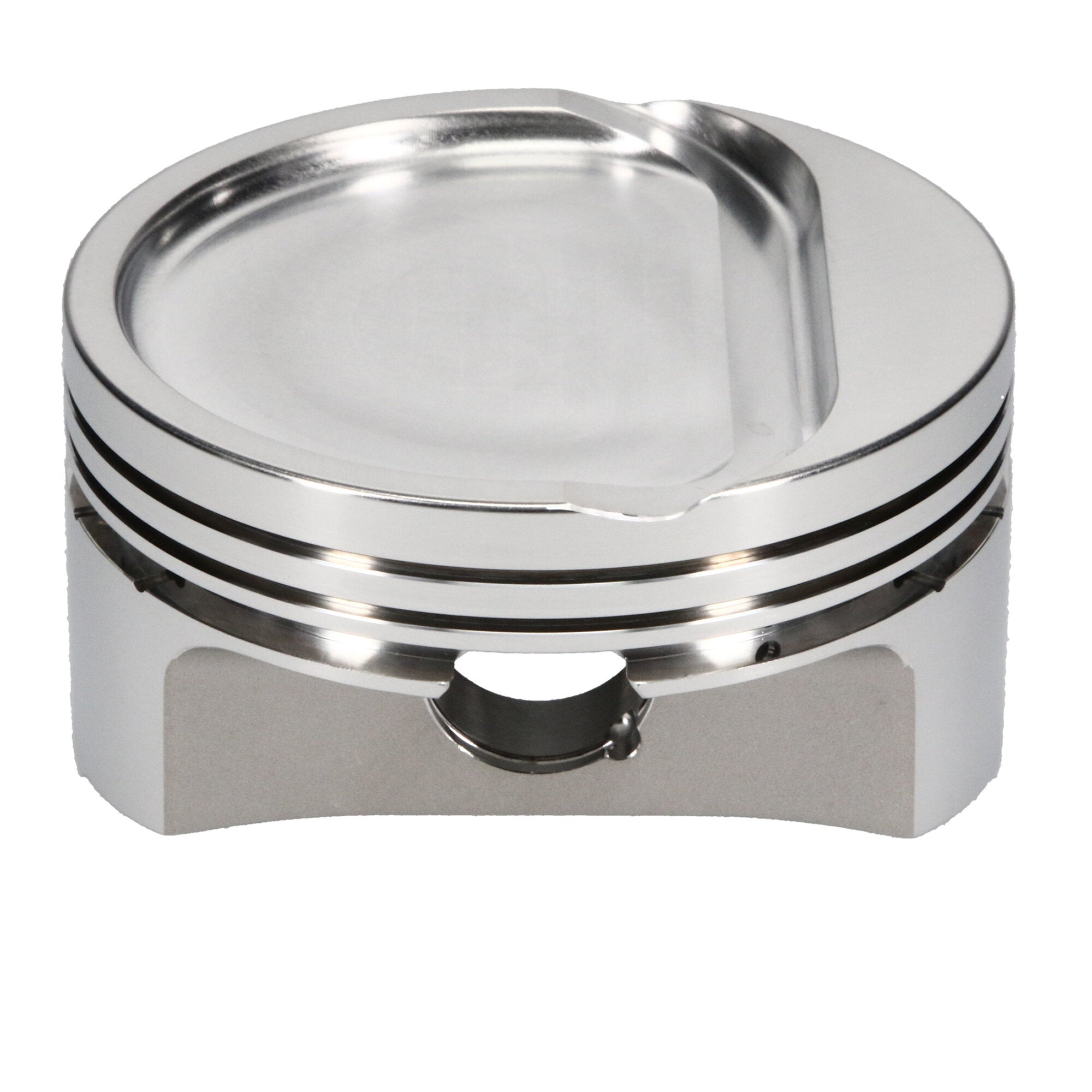

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS2 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.005 Bore, 1.115 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, LS Gen III/IV, 4.005 in. Bore, 1.115 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet LS2, 4.005 Bore, Dish, Set of 8 |
| Out of Stock Message |
Call for Availability |
| Ring Set Included |
No |
| Add-On |
927-073-MW |
| Product Type |
Engine Piston Kit |
| Add-On |
J60008-4000-5 |
| Add-On |
927-2250-15-51C |
| Wrist Pin Length |
2.250 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Material |
4032 |
| Title - Web |
SRP Chevrolet LS Gen III/IV Piston Kit - 4.005 in. Bore - 1.115 in. CH, -29.00 CC |
| Piston Volume |
-29.00 |
| Bore Diameter |
4.005 |
| Piston Average Weight |
392 |
| Industry |
Automotive |
| Cylinder Head |
LSX/L92 12 DEG |
| Prop 65 Yes/No |
Yes |
| Top Compression Ring Thickness |
0.0600 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine |
LS Gen III/IV |
| Title |
SRP - Chevrolet, LS Gen III/IV, 4.005 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Make |
CHEVROLET |
| Forging Type |
FSR |
| Piston Head Type |
Dish |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Length |
2.250 |
| Prop 65 (C, R or CR) |
CR |
| Compression Height |
1.115 |
| Ringset Included |
No |
| Oil Ring Thickness |
0.149 |
| Second Compression Ring Thickness |
0.0600 |
| Engine - Web |
LS Gen III/IV |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Product Market |
Domestic |
| Piston Series |
SRP |
| Piston Pin Outside Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
