As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda F20C1 S2000 |
| Description_DEF |
Engine Piston |
| Description_DES |

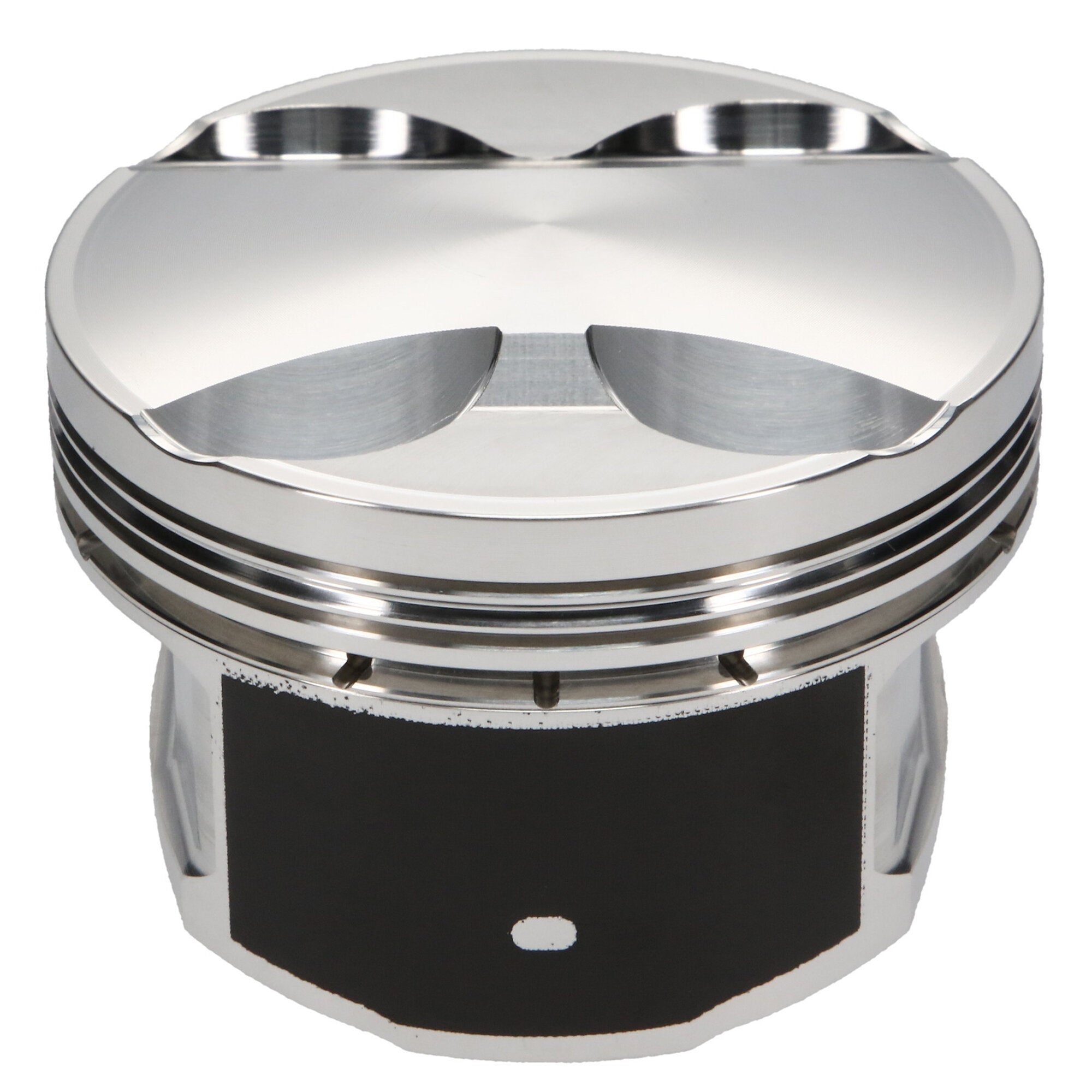

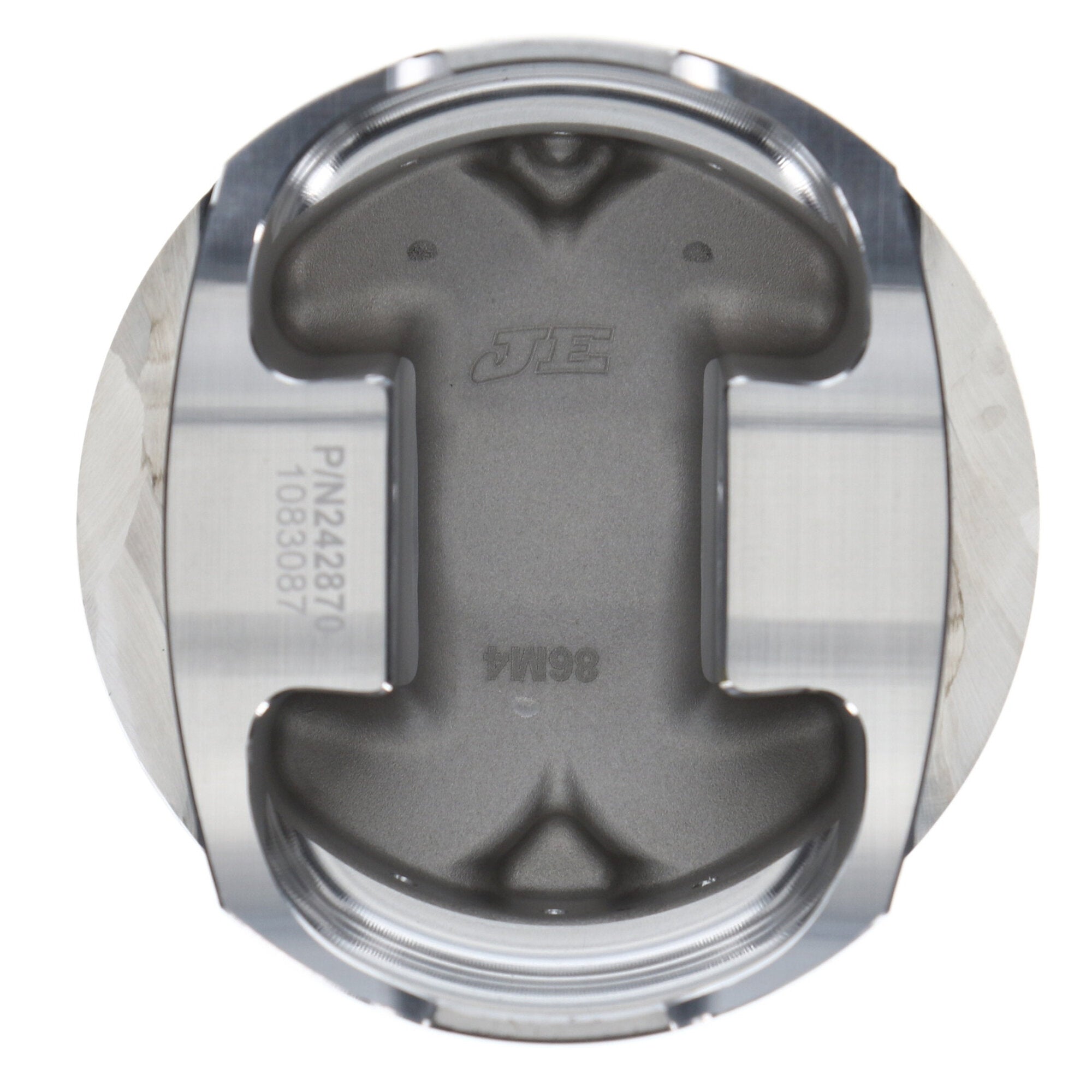

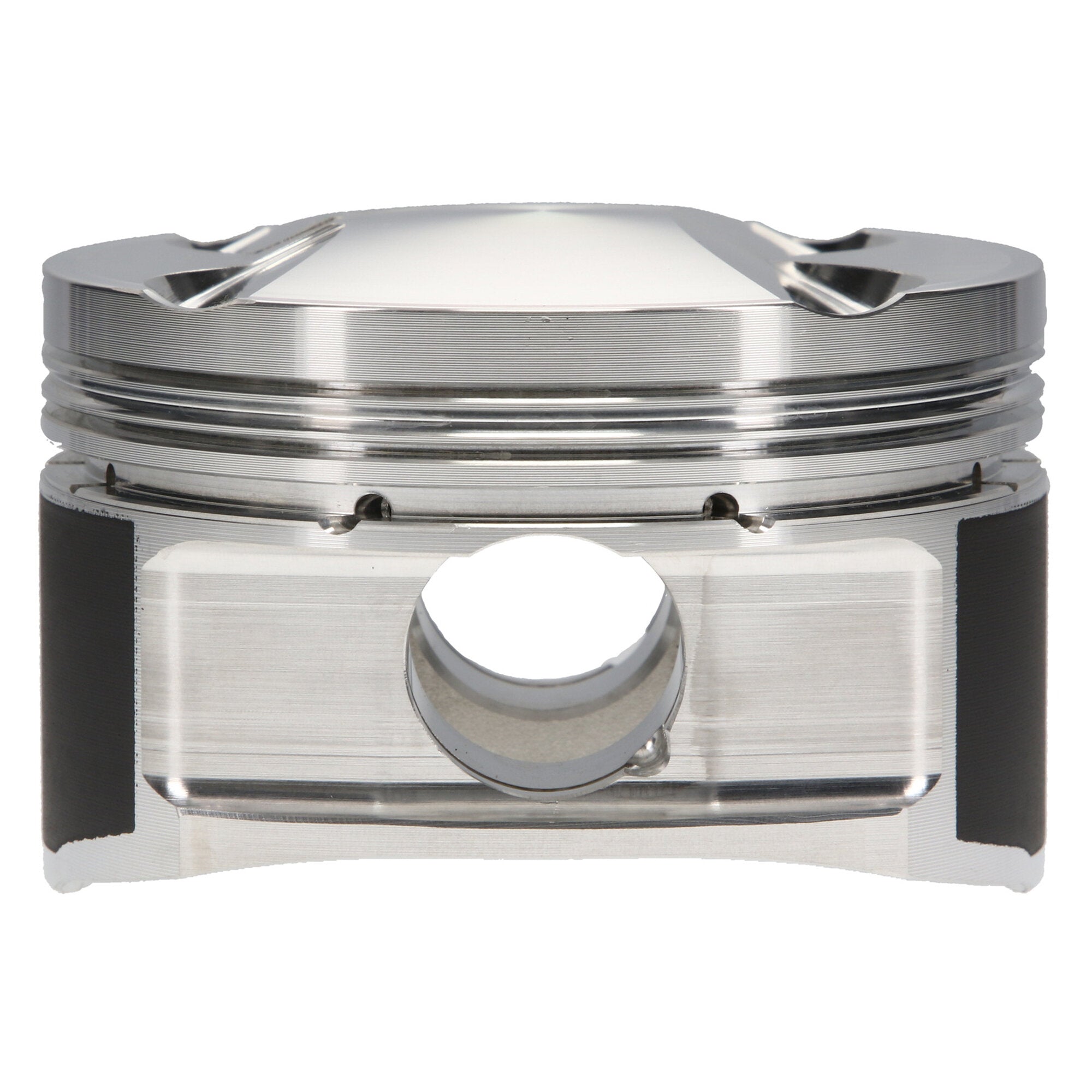

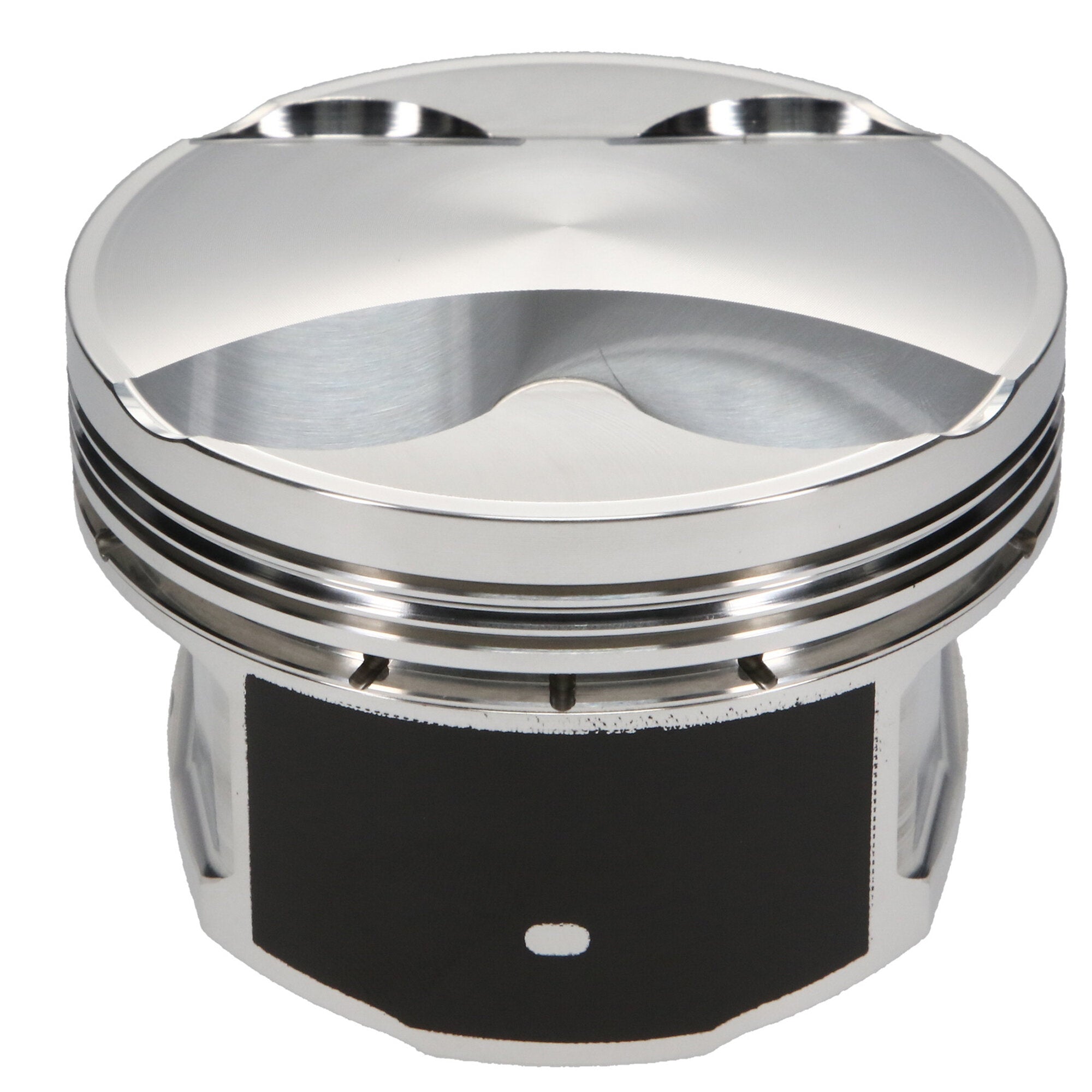

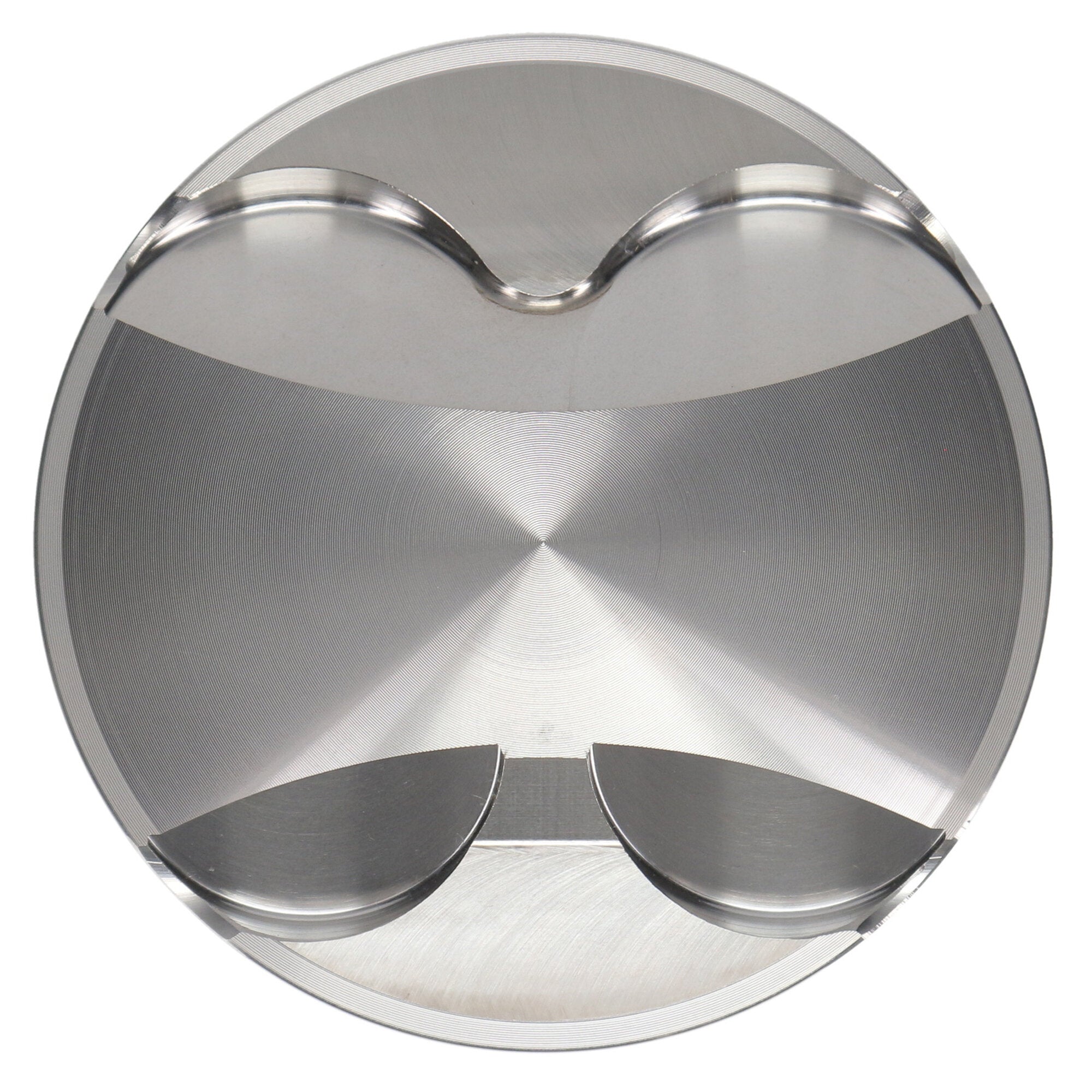

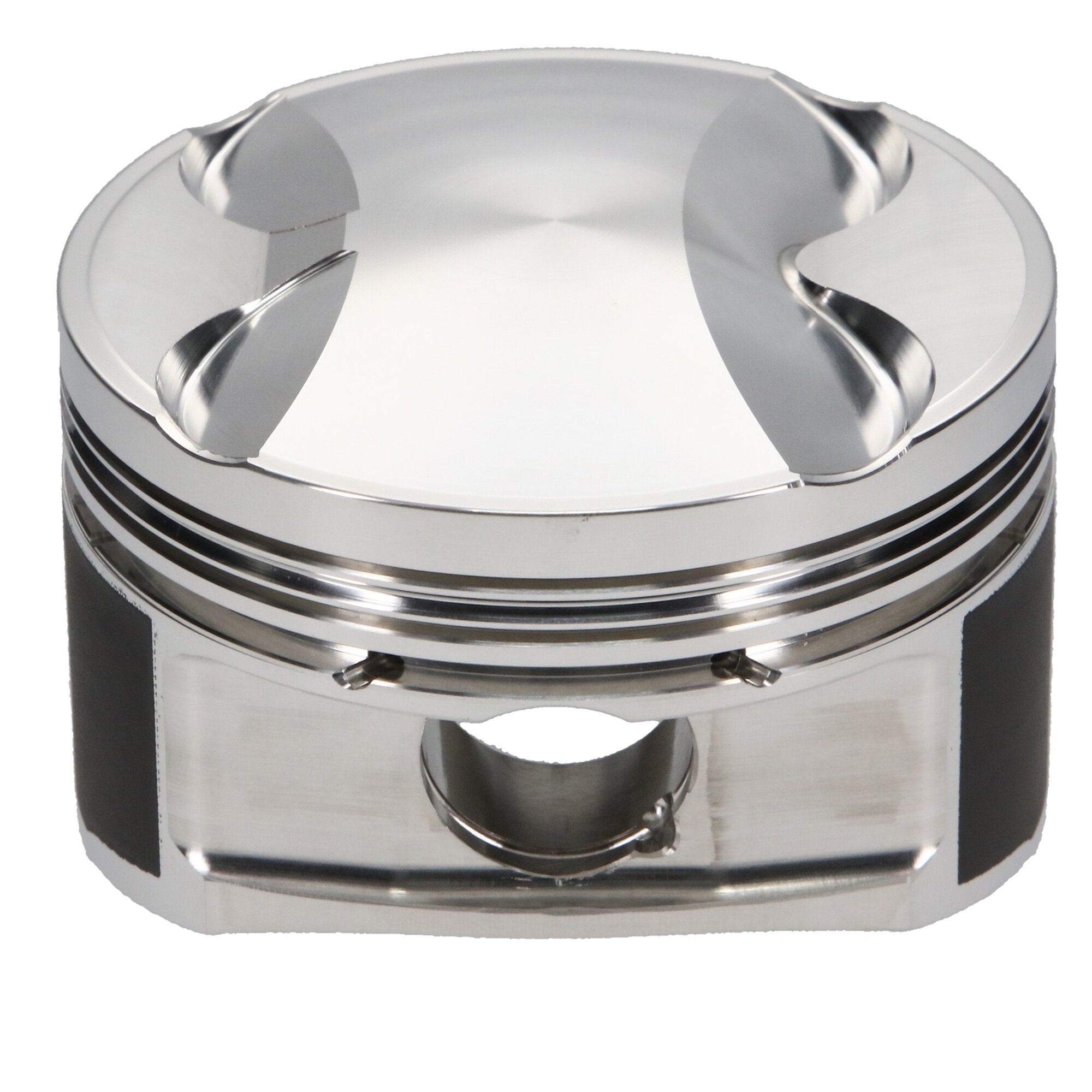

Piston Single, 2618, Dome, 3.425 Bore, 1.181 CD, 0.905 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Honda, F Series, 3.425 in. Bore, 11.50:1, Dome, Single Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Honda F20C, 87.00 Bore, Dome, Set of 1 |
| Engine Type |
ICE |
| Piston Quantity |
1 |
| Wrist Pin Length |
2.250 |
| Piston Head Type |
Dome |
| Ringset Included |
Yes |
| Forging Type |
Round |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Engine - Web |
F Series |
| Piston Pin Outside Diameter |
0.905 |
| Make |
HONDA |
| Piston Average Weight |
320 |
| Oil Ring Thickness |
0.111 |
| Top Compression Ring Thickness |
0.0400 |
| Title |
JE Pistons - Honda, F Series, 87.00 mm Bore, Piston |
| Wrist Pin Outer Diameter |
0.905 |
| Add-On |
JG1001-3425 |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Honda F Series Piston - 87.00 mm Bore - 1.181 in. CH, 5.50 CC |
| Add-On |
905-2250-15-51C |
| Compression Height |
1.181 |
| Engine |
F SERIES |
| Cylinder Head |
F20C1 |
| Product Market |
Sport Compact |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Sport Compact |
| Add-On |
905-073-MW |
| Piston Volume |
5.50 |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Product Type |
Engine Piston |
| Bore Diameter |
87.00 |
| Prop 65 (C, R or CR) |
CR |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.150 |
| Make - Web |
Honda |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0480 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
1.0000 |
