As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Nissan KA24DE |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

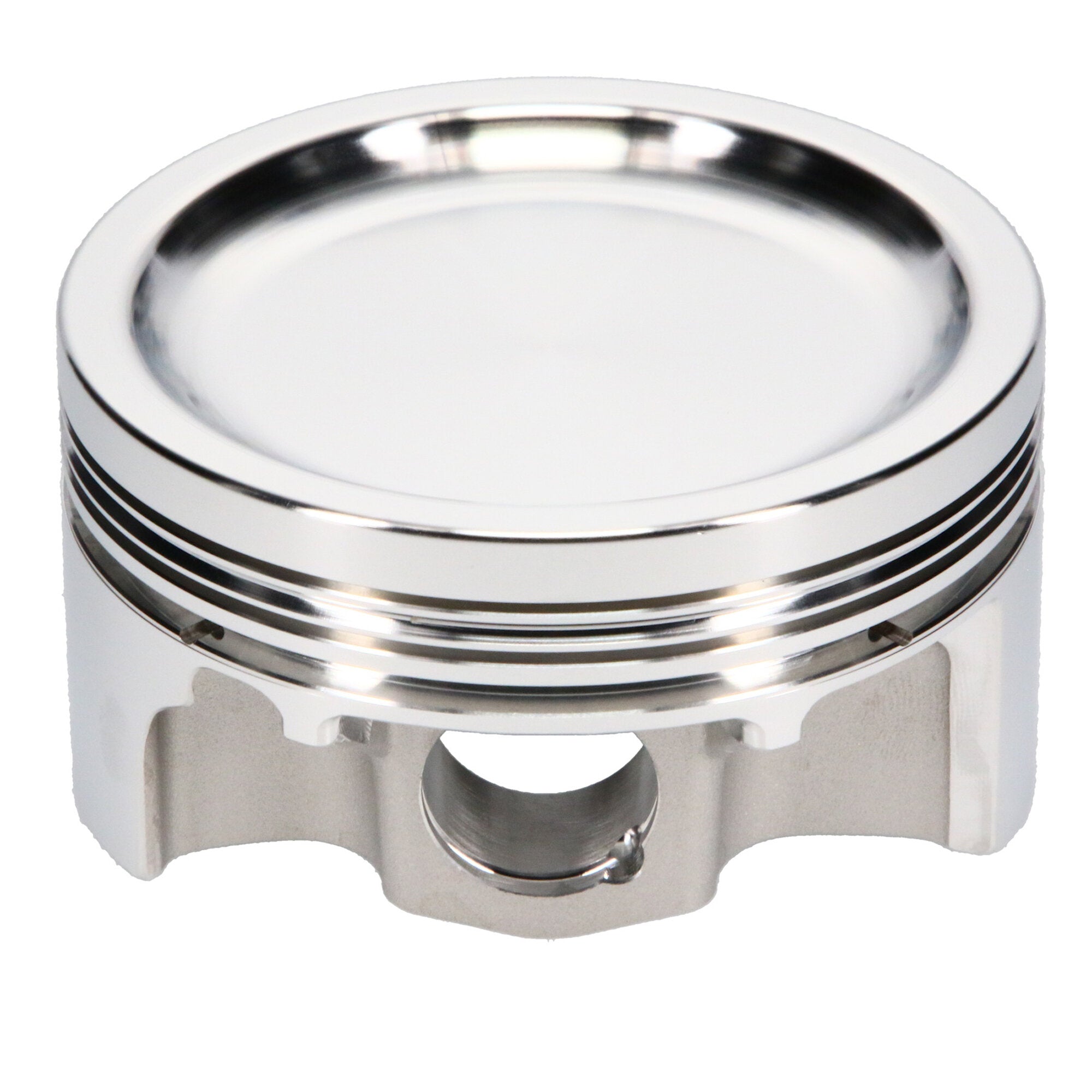

Piston Set, 2618, Inv Dome/Dish, 3.524 Bore, 1.336 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
Piston Set, 2618, Inv Dome/Dish, 3.524 Bore, 1.336 CD, 0.827 Pin Dia, Set of 4. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_TLE |
Nissan KA24DE, 89.50 Bore, Dish, Set of 4 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Engine |
KA24DE |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Nissan KA24DE Piston Kit - 89.50 mm Bore - 1.336 in. CH, -22.00 CC |
| Make - Web |
Nissan |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.250 |
| Industry |
Automotive |
| Add-On |
JG1001-3524 |
| Piston Material |
2618 |
| Cylinder Head |
KA24DE |
| Add-On |
827-2250-15-51C |
| Add-On |
827-063-MW |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Oil Ring Thickness |
0.111 |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Nissan, KA24DE, 89.50 mm Bore, Piston Kit |
| Piston Volume |
-22.00 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Piston Pin Outside Diameter |
0.827 |
| Forging Type |
Round |
| Piston Head Type |
Dish |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Bore Diameter |
89.50 |
| Piston Average Weight |
355 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Make |
NISSAN |
| Piston Quantity |
4 |
| Compression Height |
1.336 |
| Top Compression Ring Thickness |
0.0400 |
| Product Market |
Sport Compact |
| Engine - Web |
KA24DE |
| Wrist Pin Outer Diameter |
0.827 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
