As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 Big Duke/Chief |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

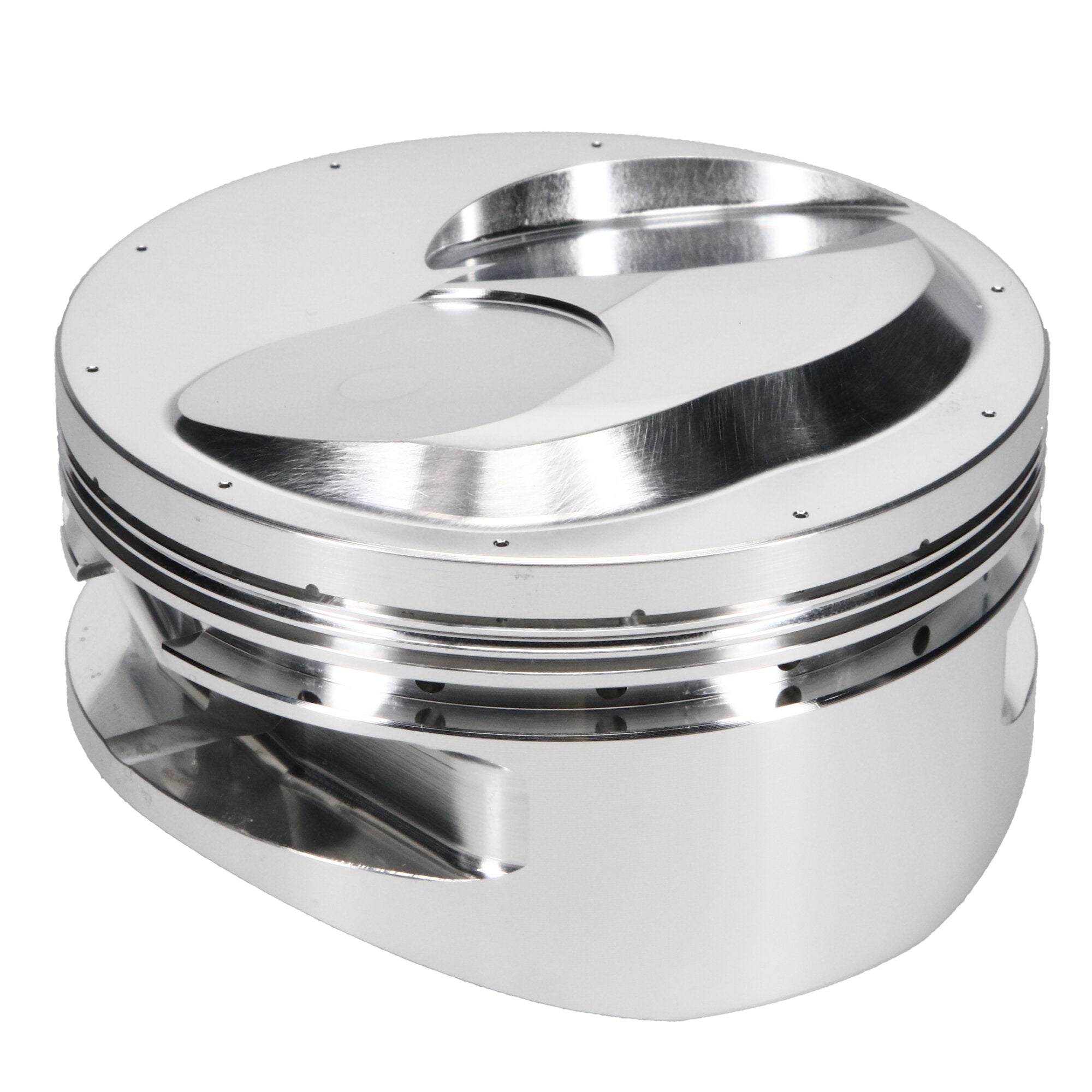

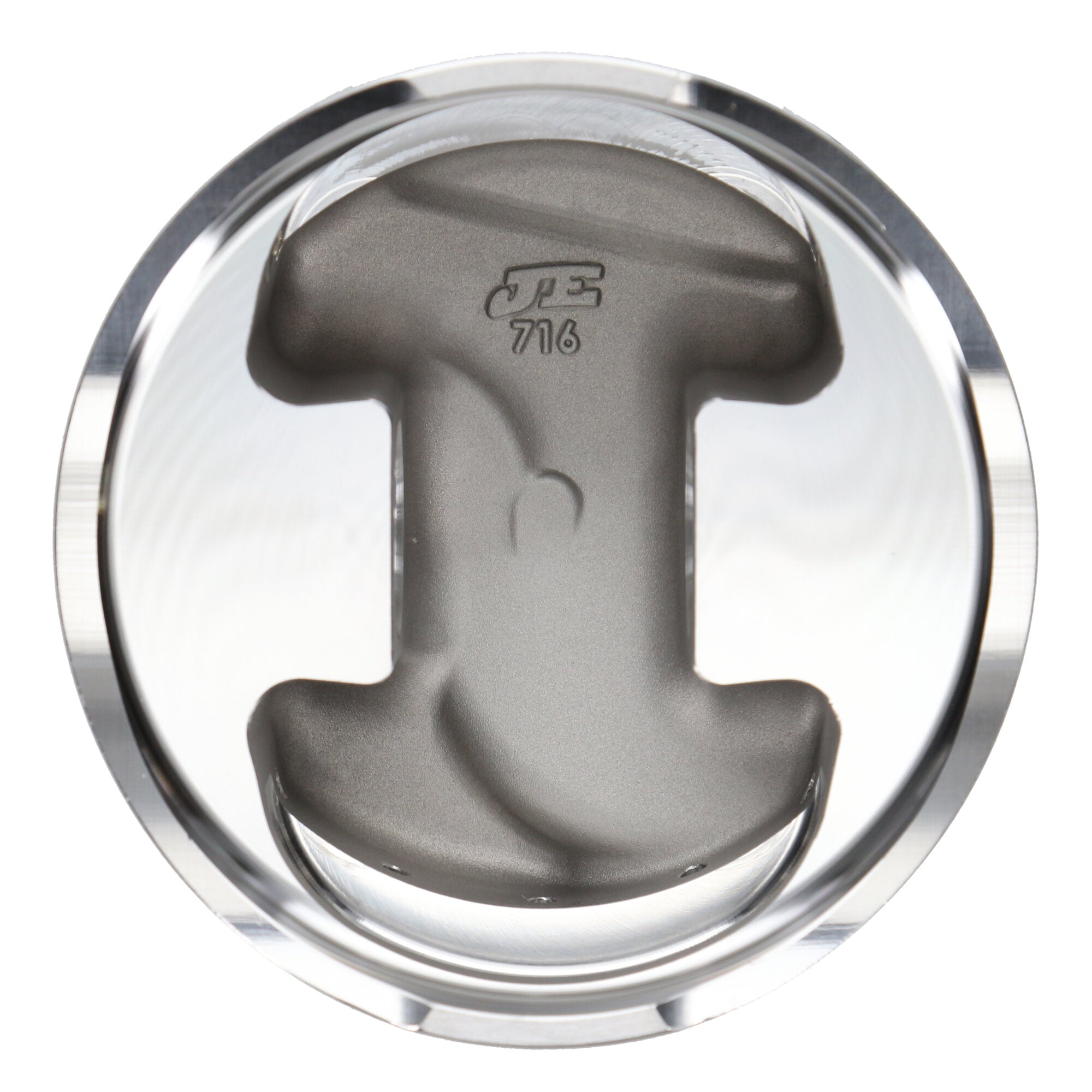

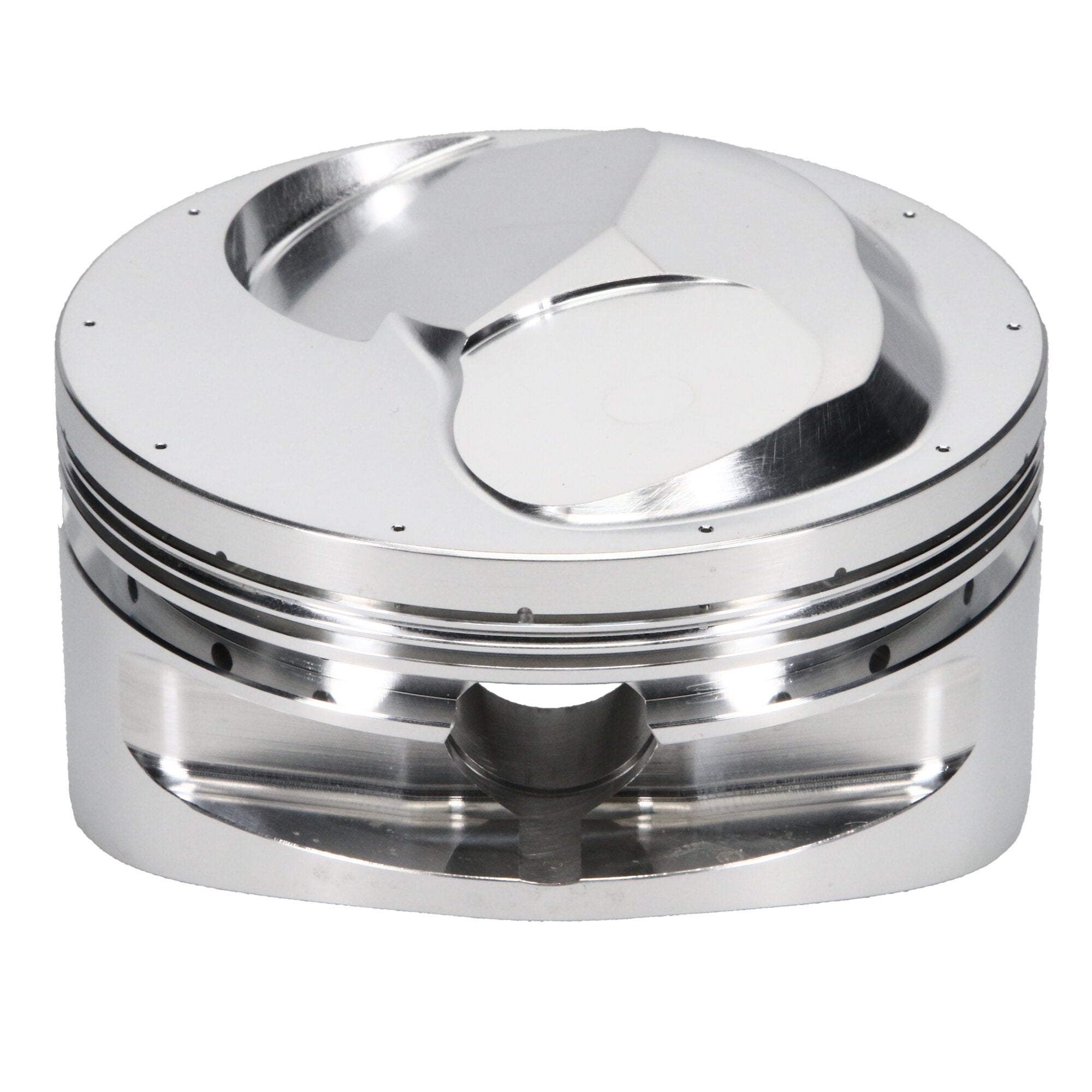

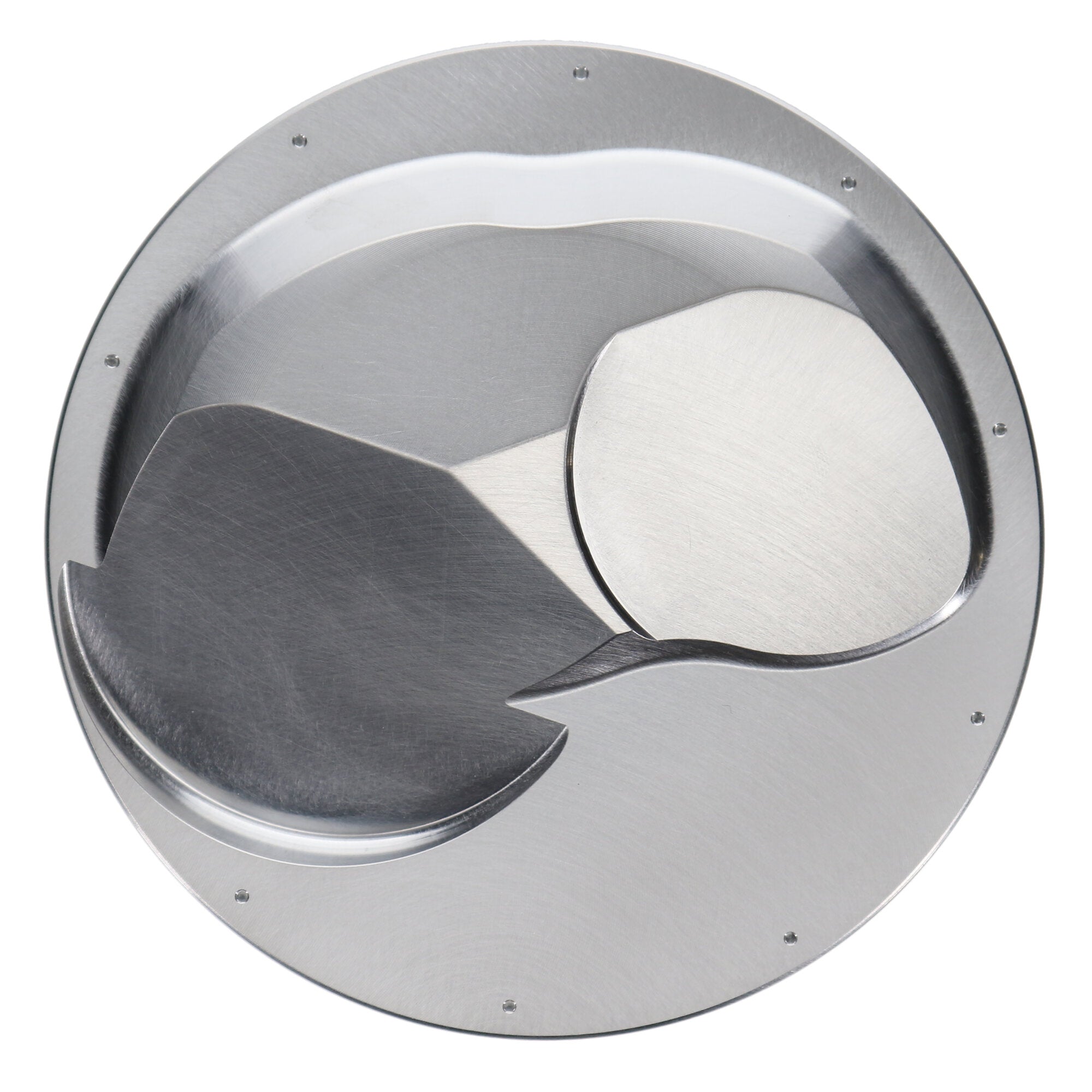

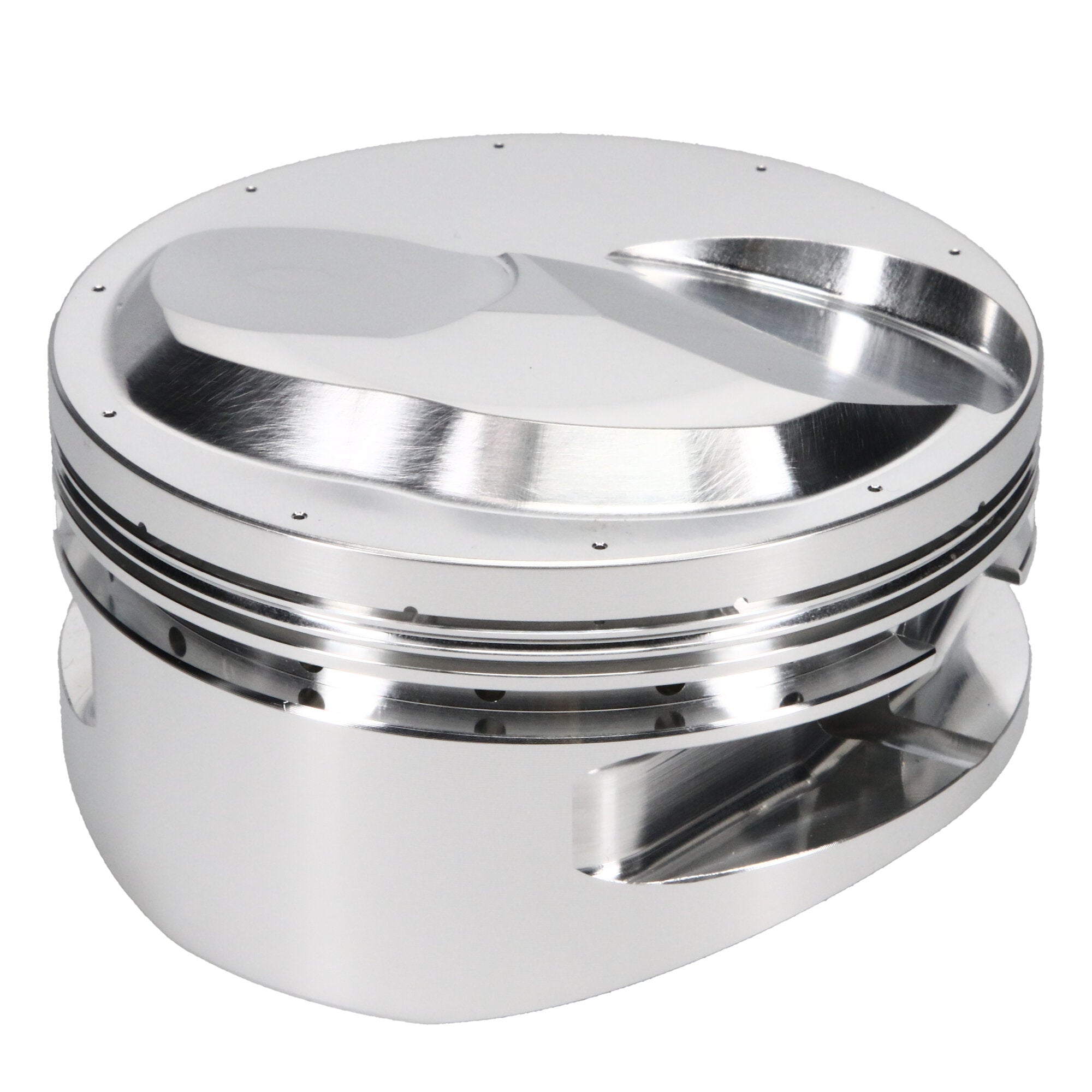

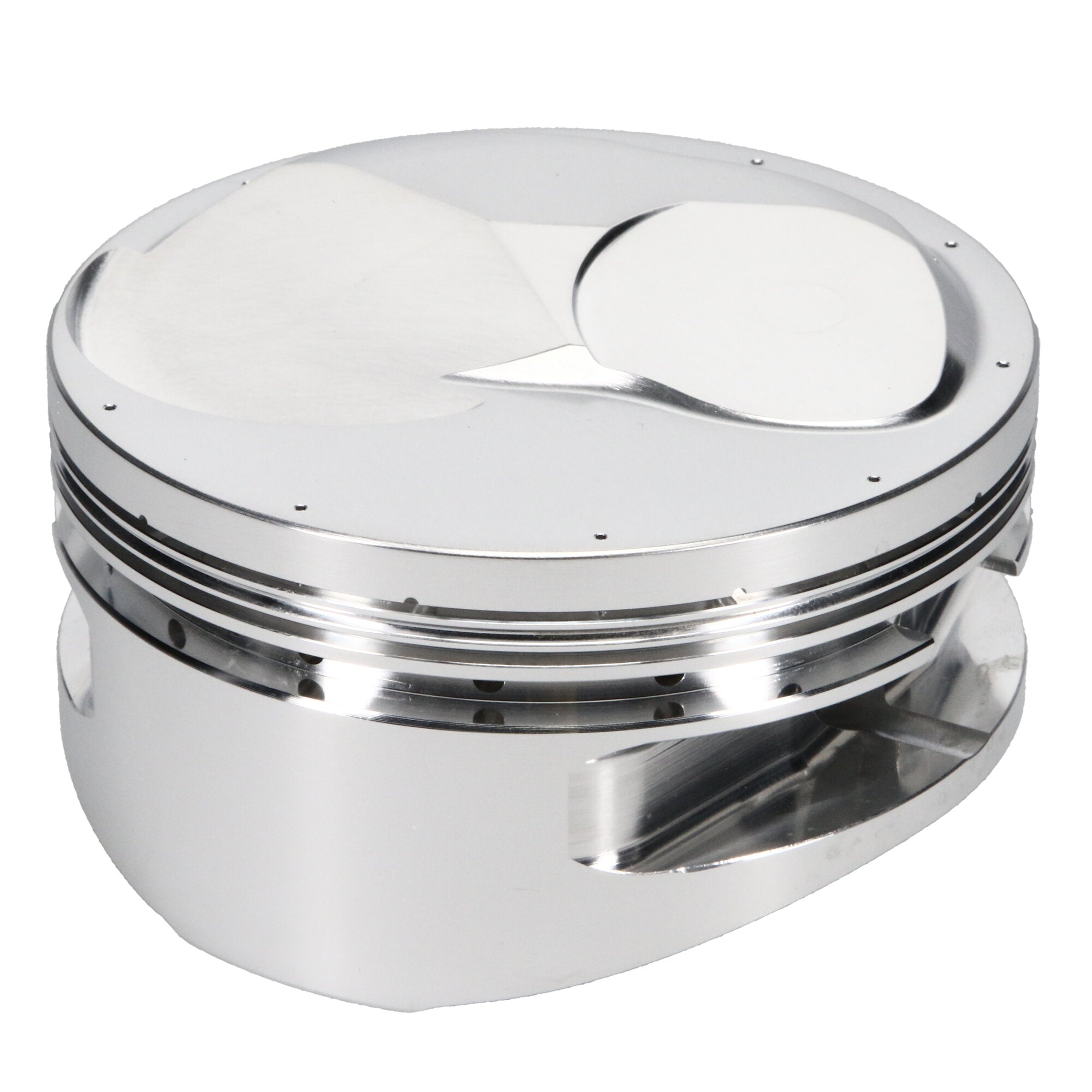

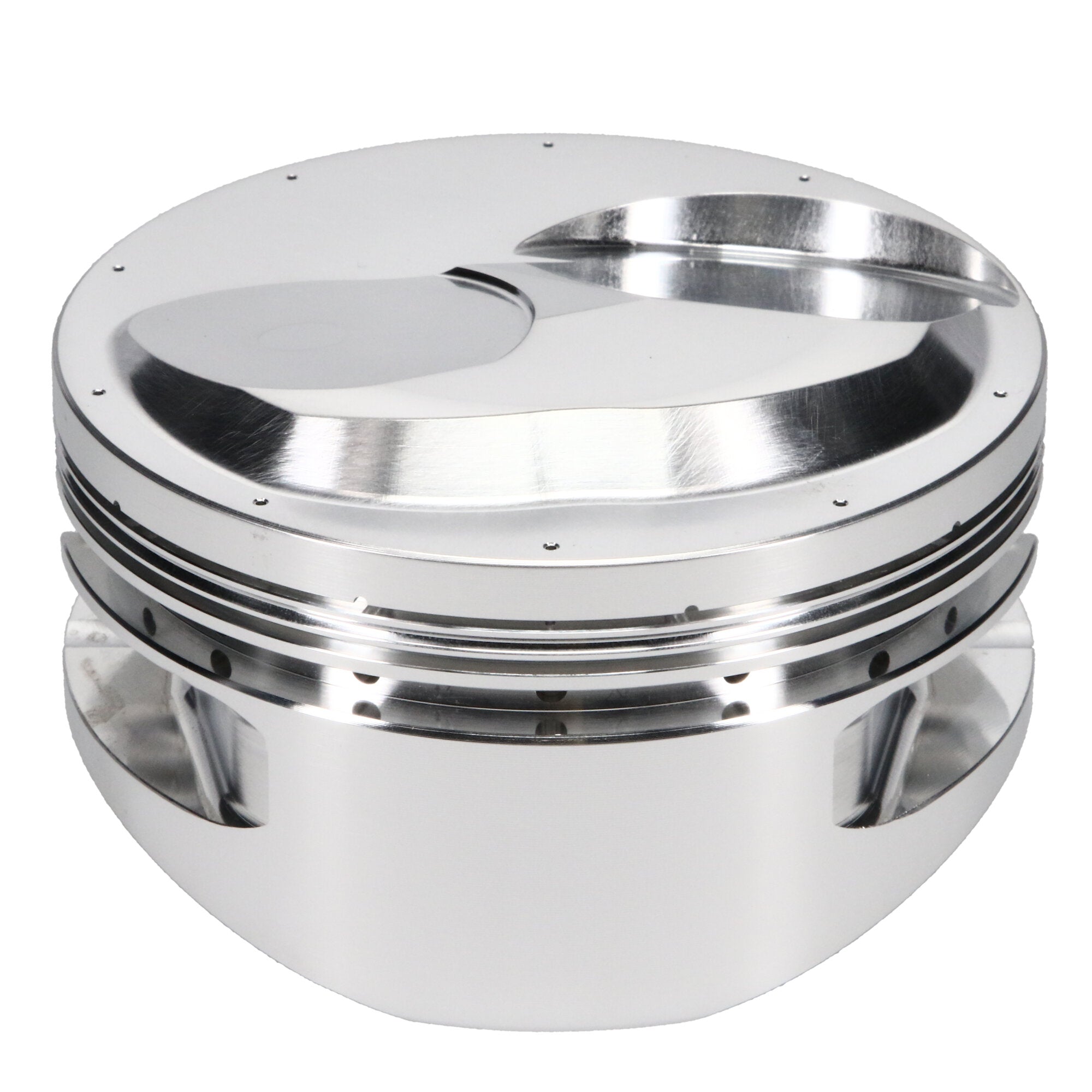

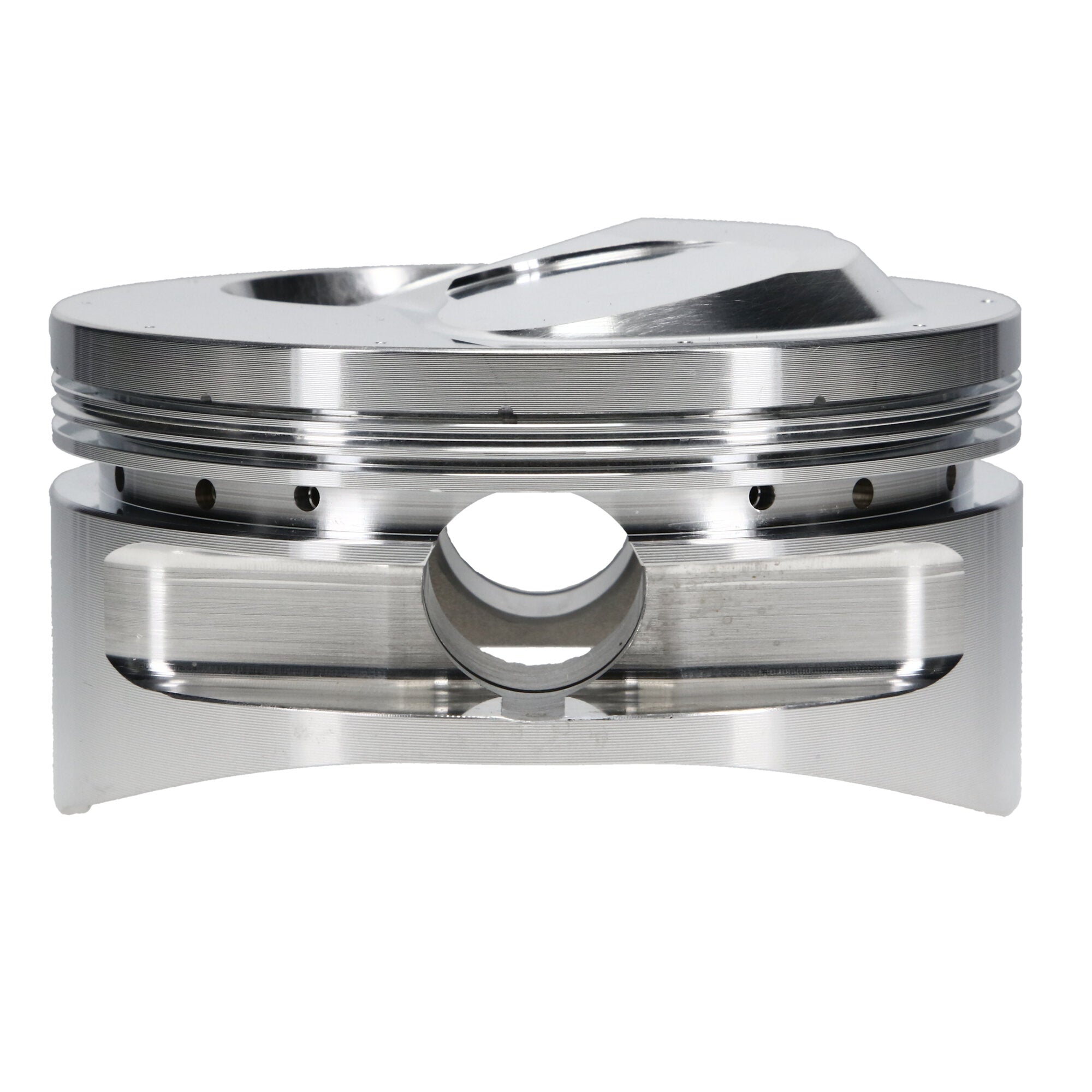

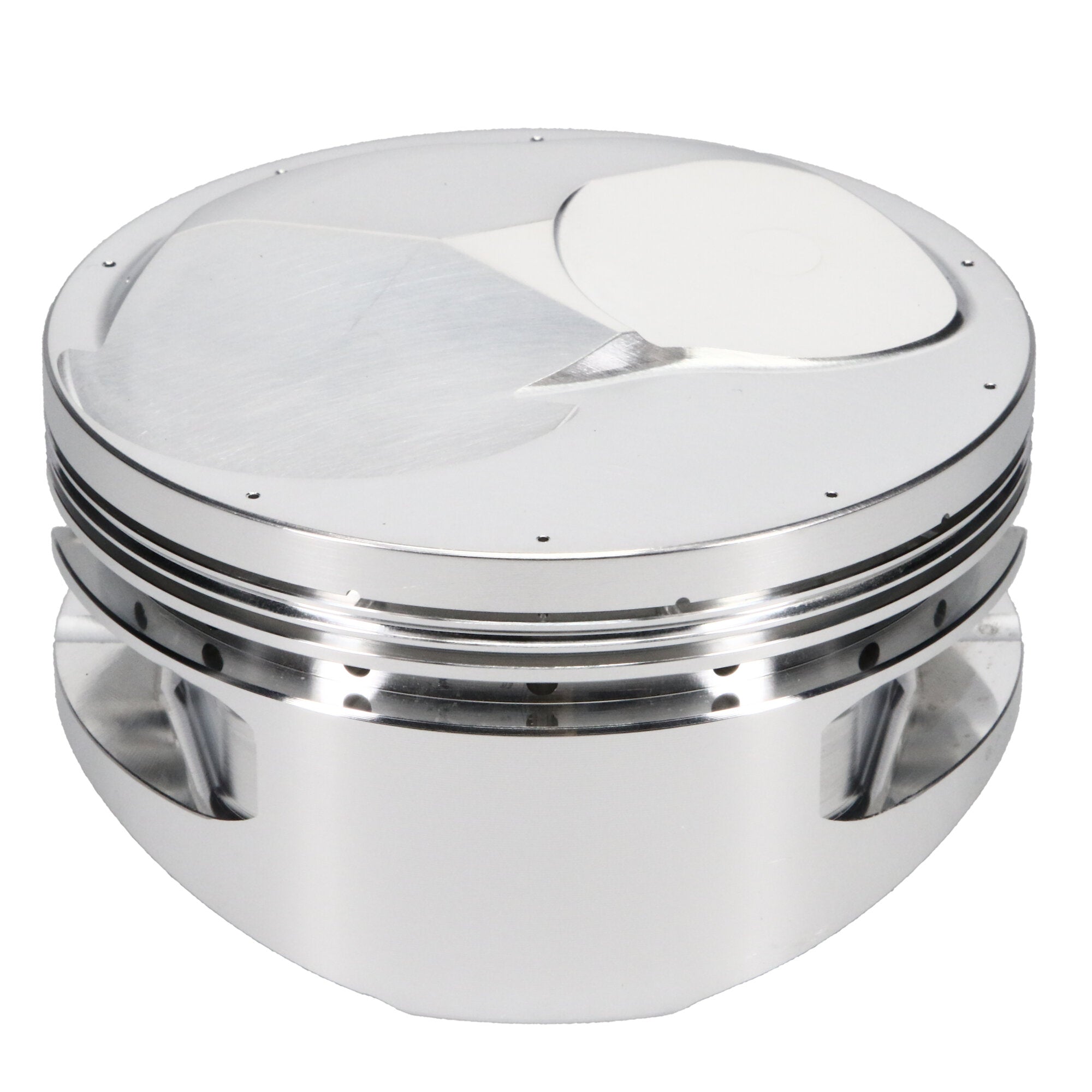

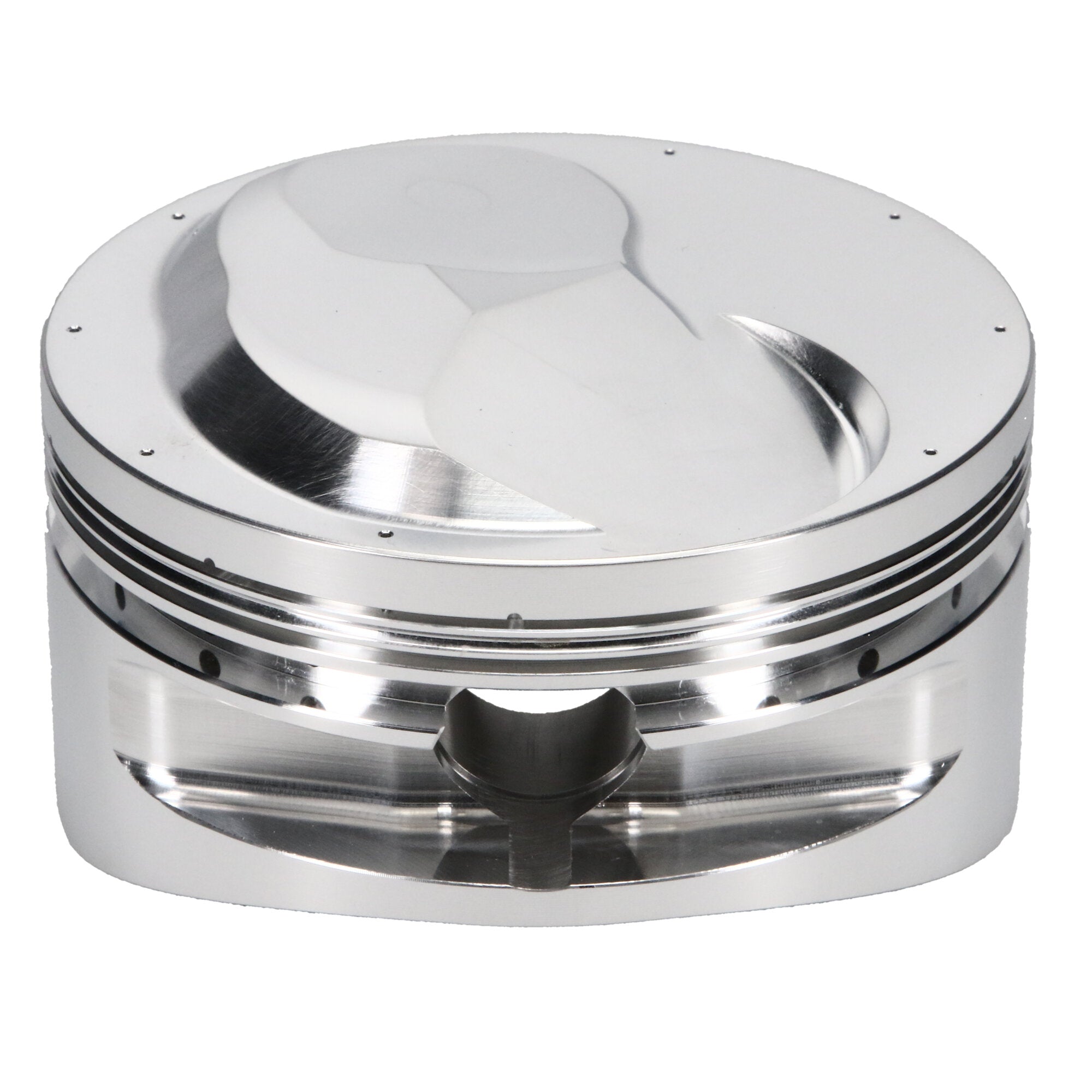

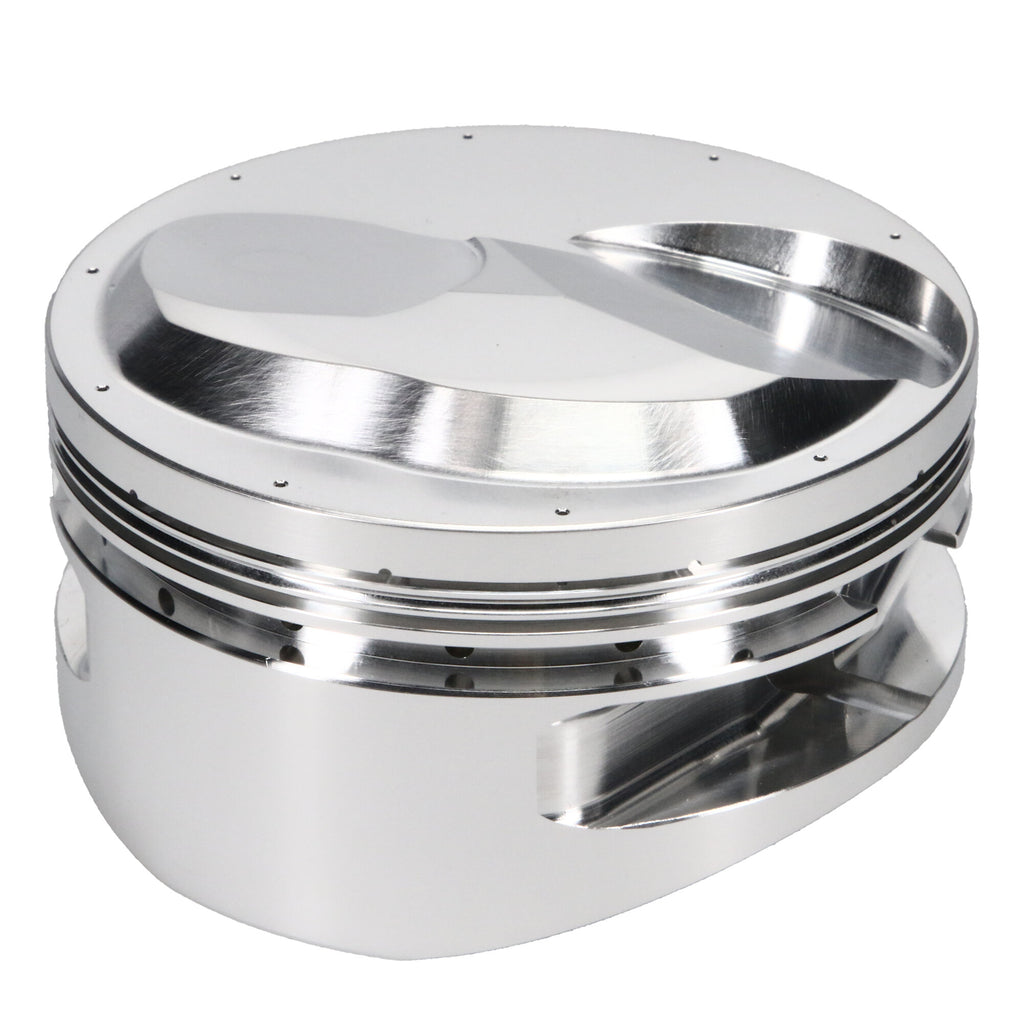

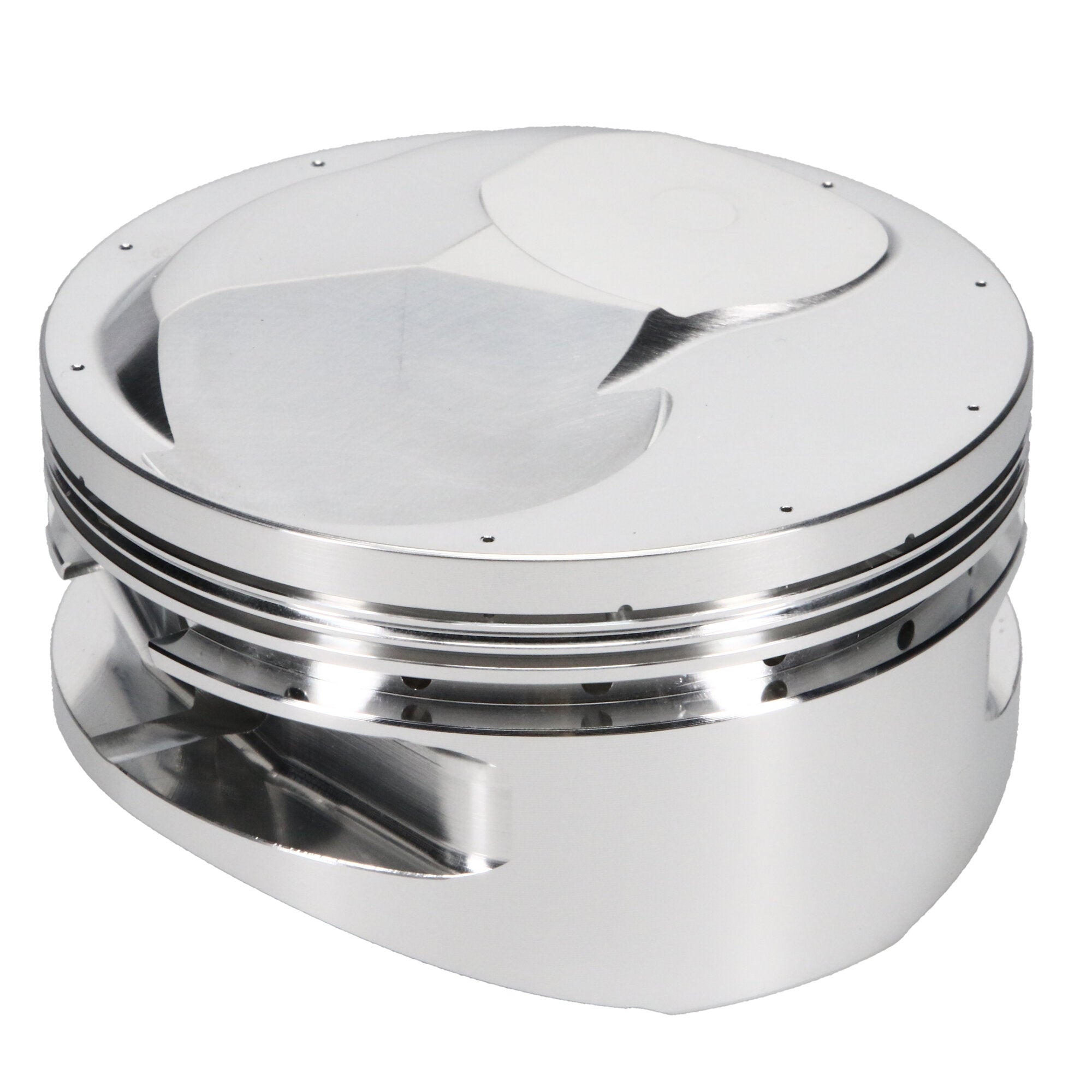

Piston Set, 2618, Dome, 4.600 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 502, 4.600 Bore, Dome, Set of 8 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.270 in. CH, 0.50 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Ringset Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Material |
5115 |
| Piston Head Type |
Dome |
| Piston Volume |
0.50 |
| Product Type |
Engine Piston Kit |
| Oil Ring Thickness |
0.218 |
| Piston Pin Length |
2.930 |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Engine |
Big Block |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.180 |
| Engine - Web |
Big Block |
| Ring Set Included |
No |
| Top Compression Ring Thickness |
0.0435 |
| Bore Diameter |
4.600 |
| Cylinder Head |
BIG CHIEF |
| Add-On |
990-2930-18-51S |
| Compression Height |
1.270 |
| Piston Quantity |
8 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Out of Stock Message |
Call for Availability |
| Make |
CHEVROLET |
| Add-On |
990-042-CS |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
654 |
| Piston Pin Outside Diameter |
0.990 |
| Piston Pin Wall Thickness |
0.180 |
| Add-On |
JG86L8-4600-5 |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.930 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
