As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Big Block 502 Big Duke/Chief |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

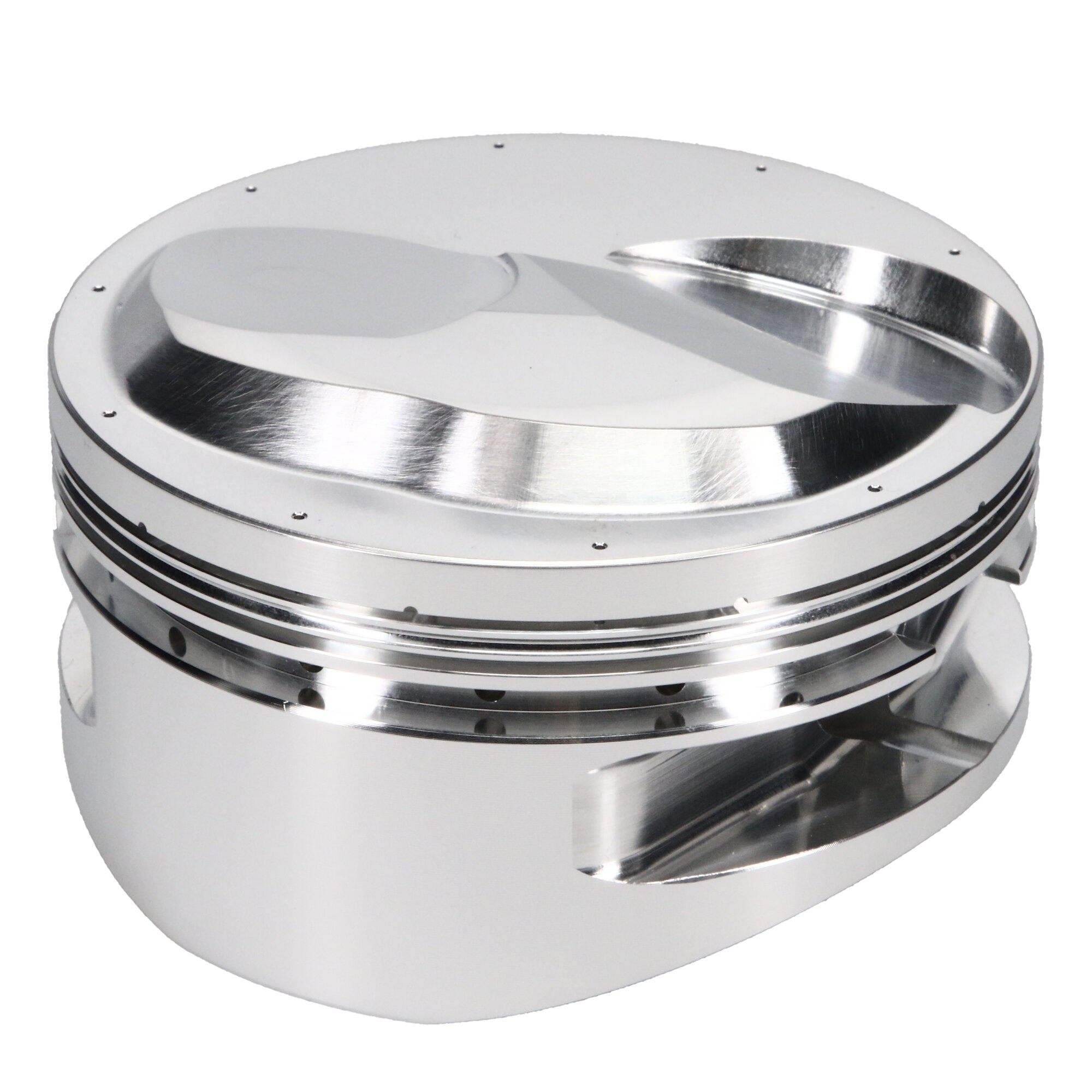

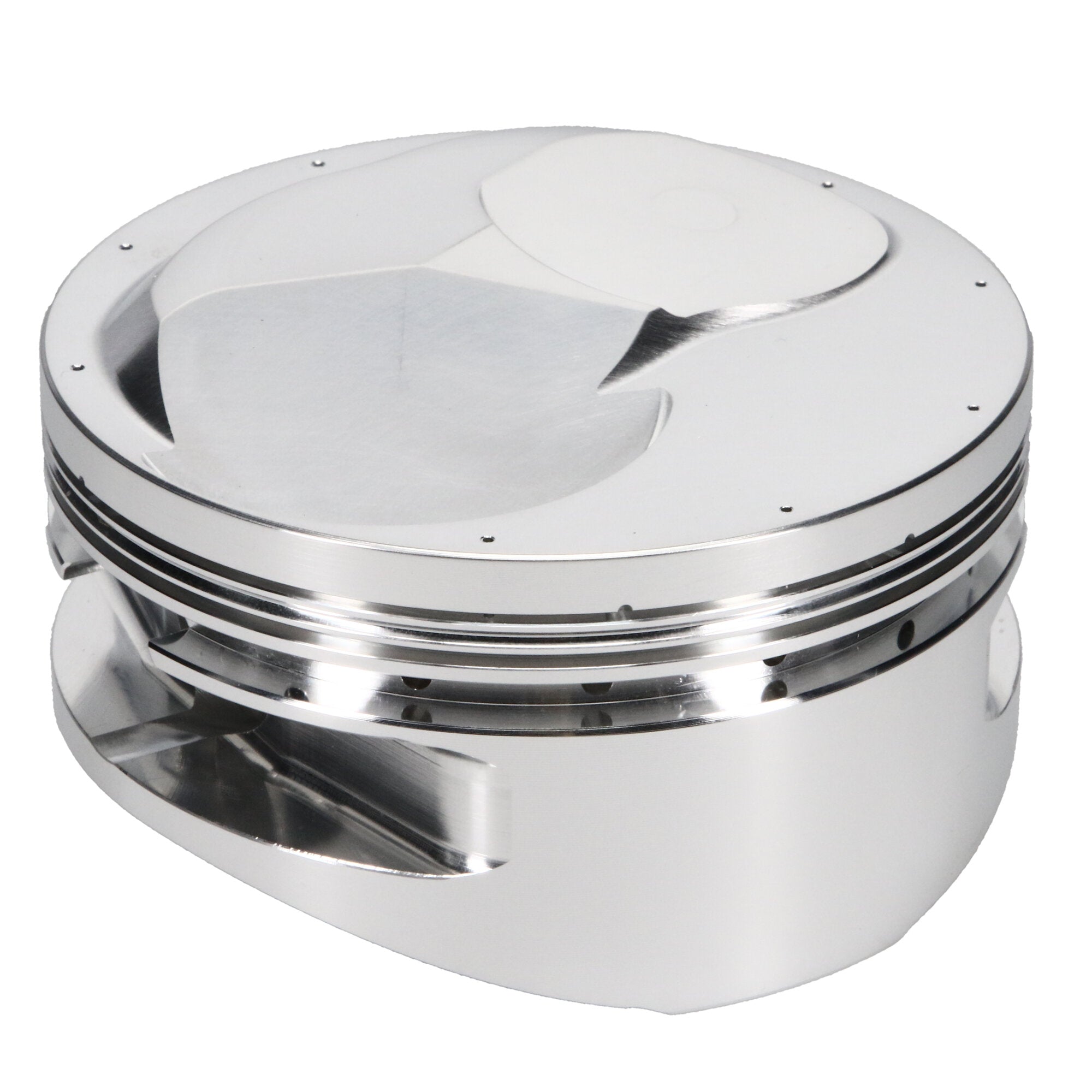

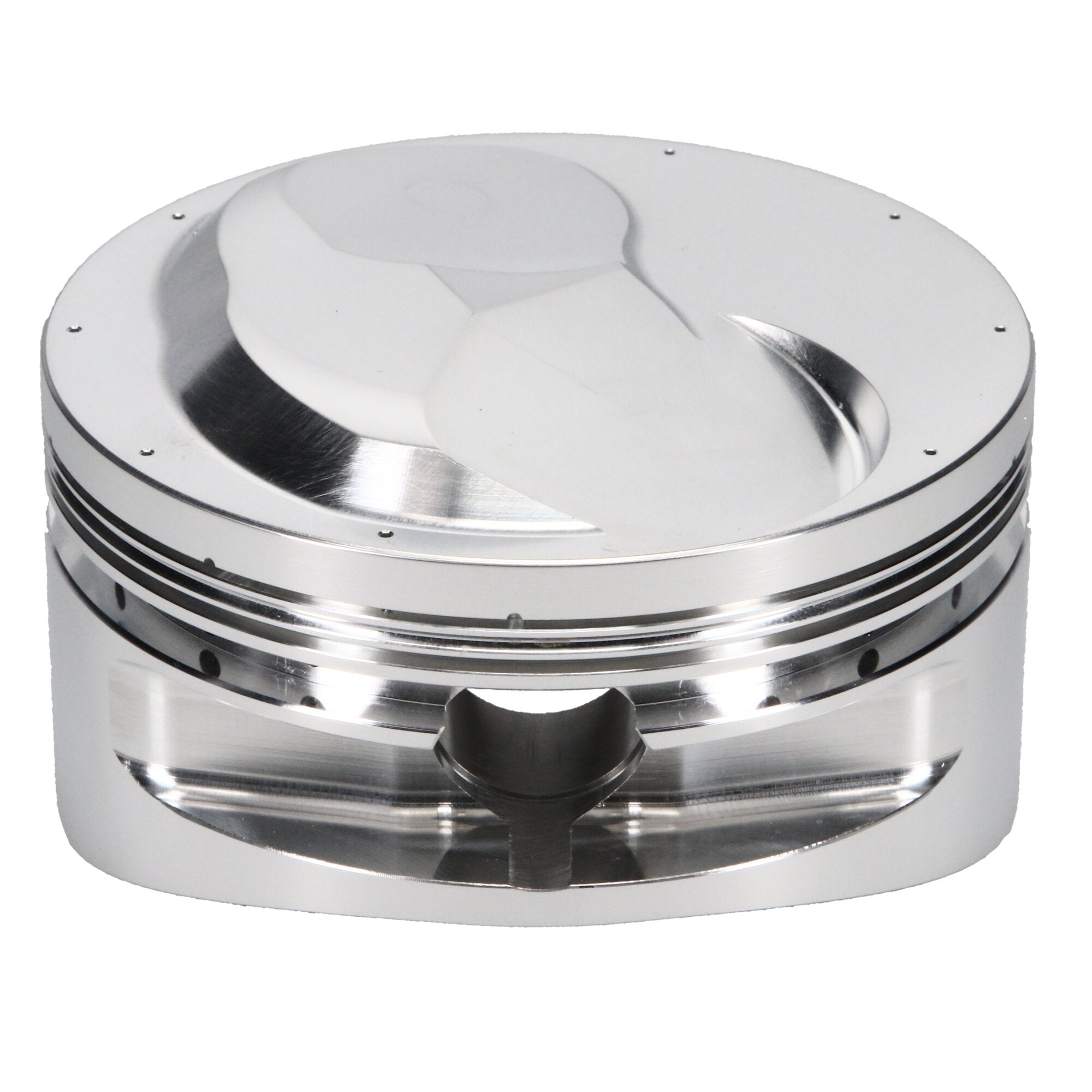

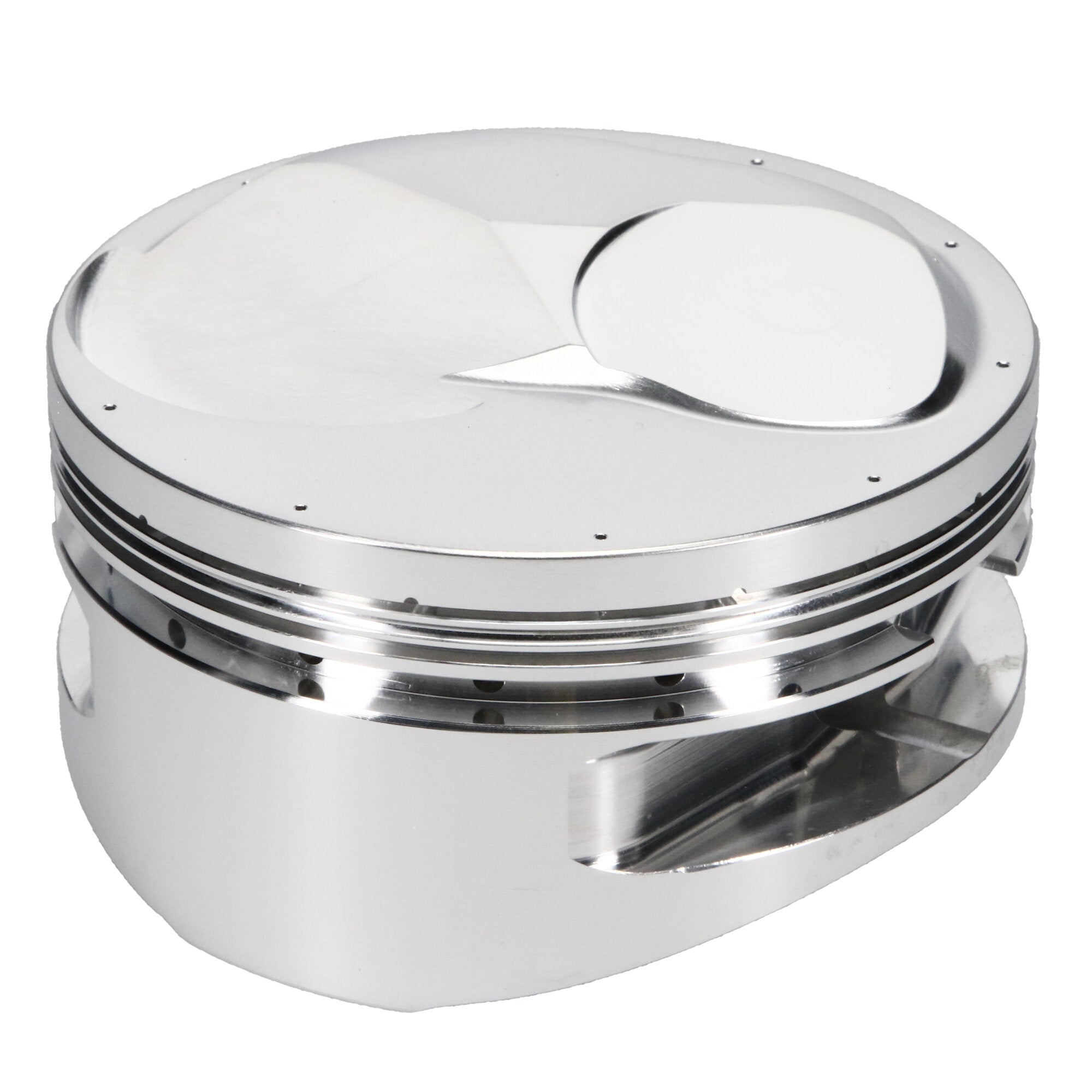

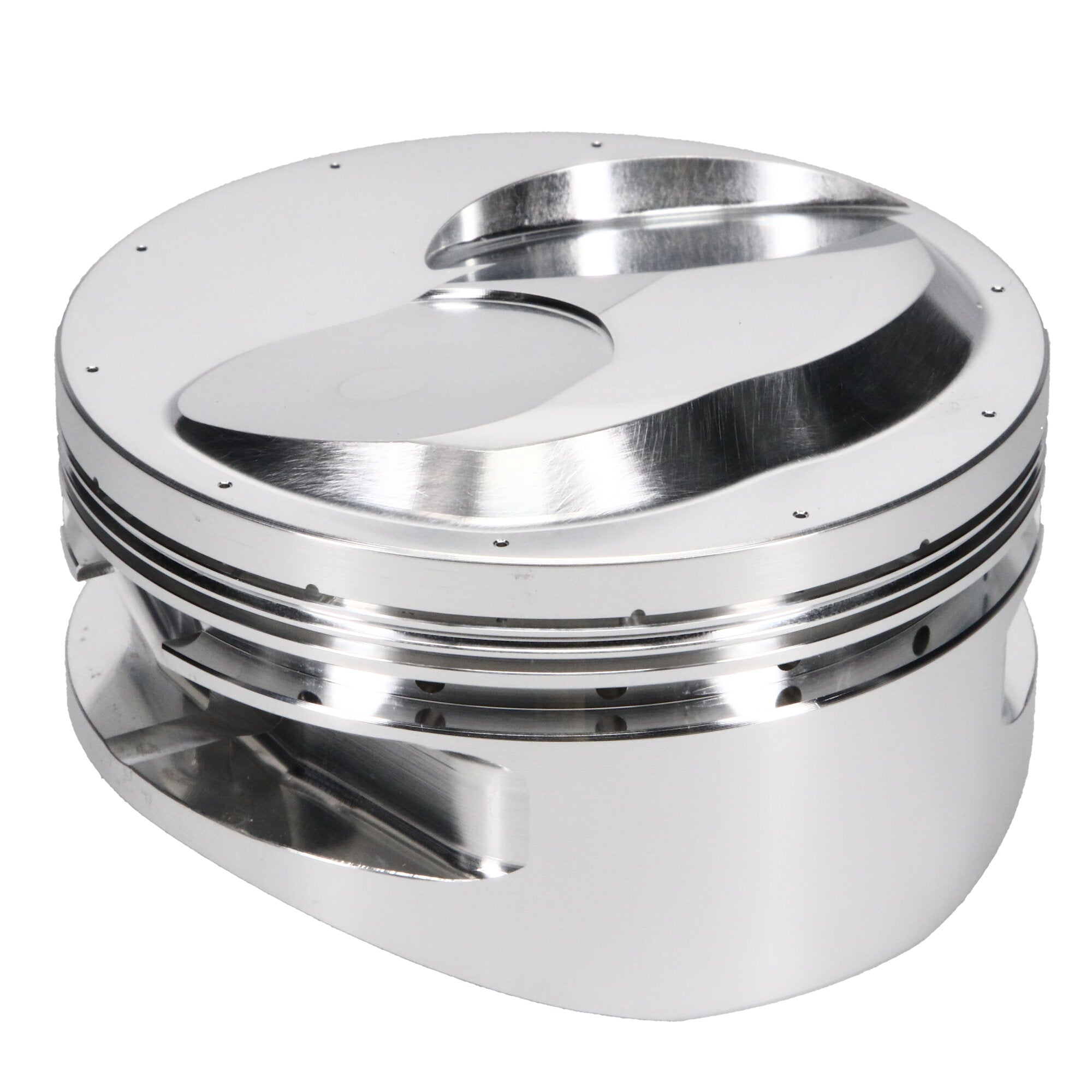

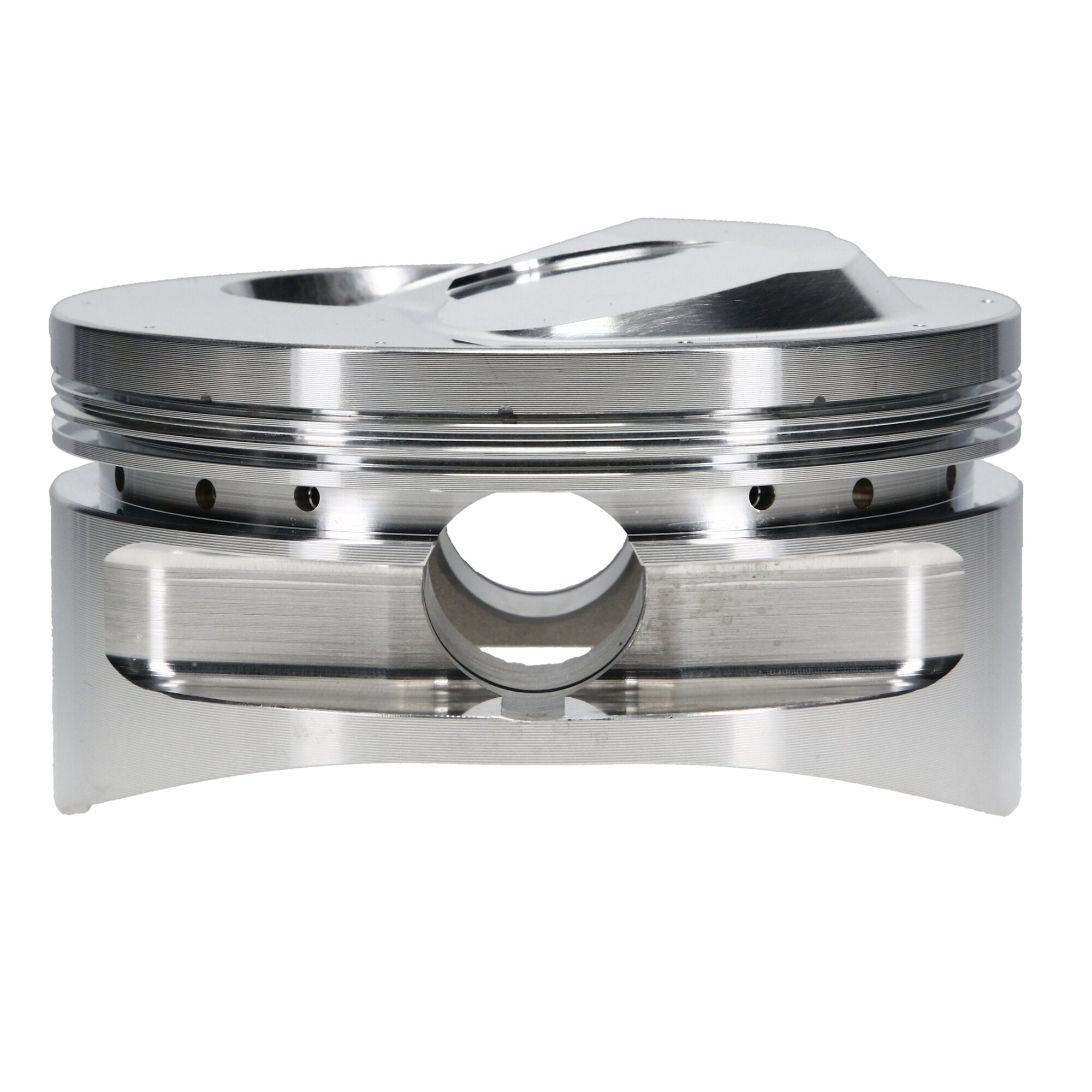

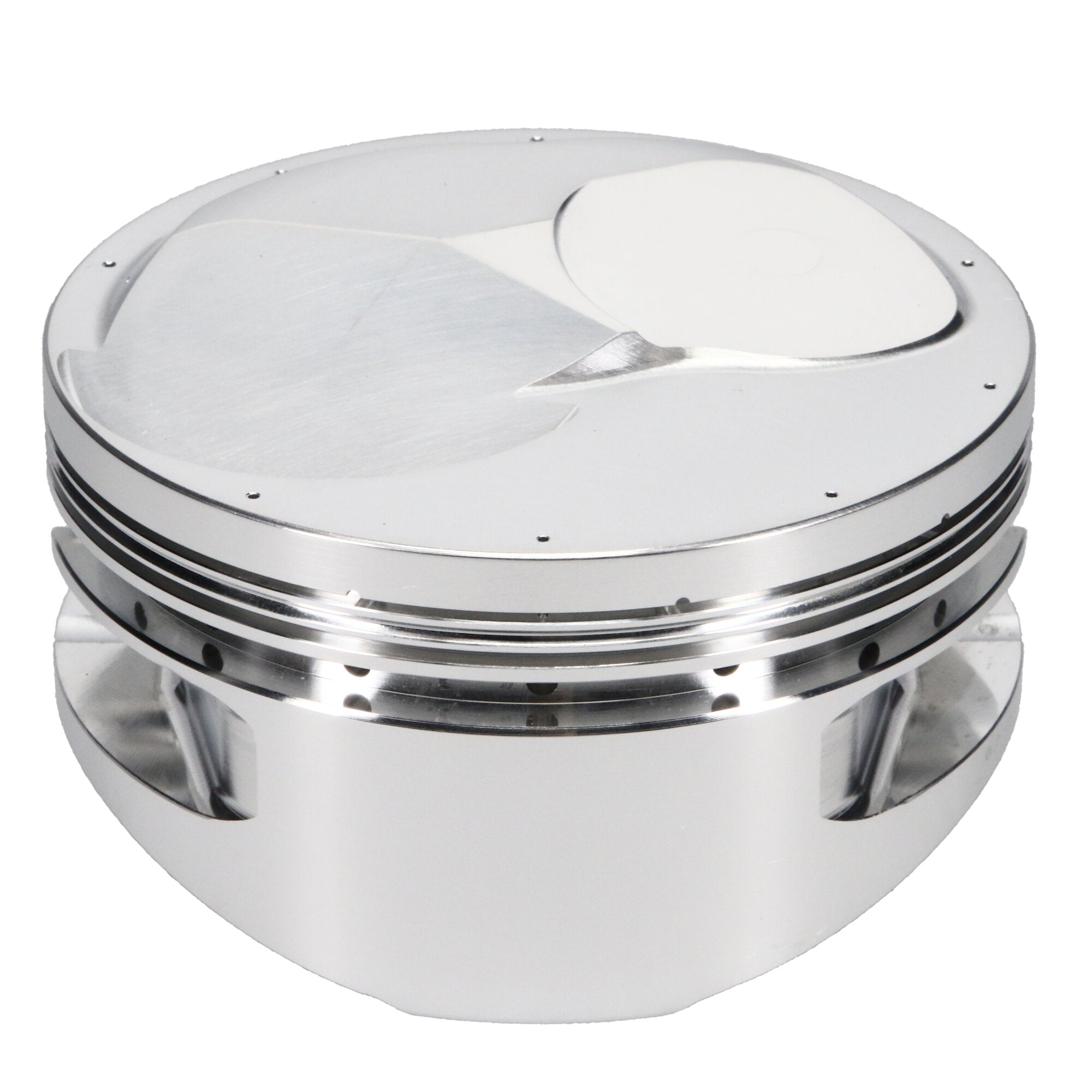

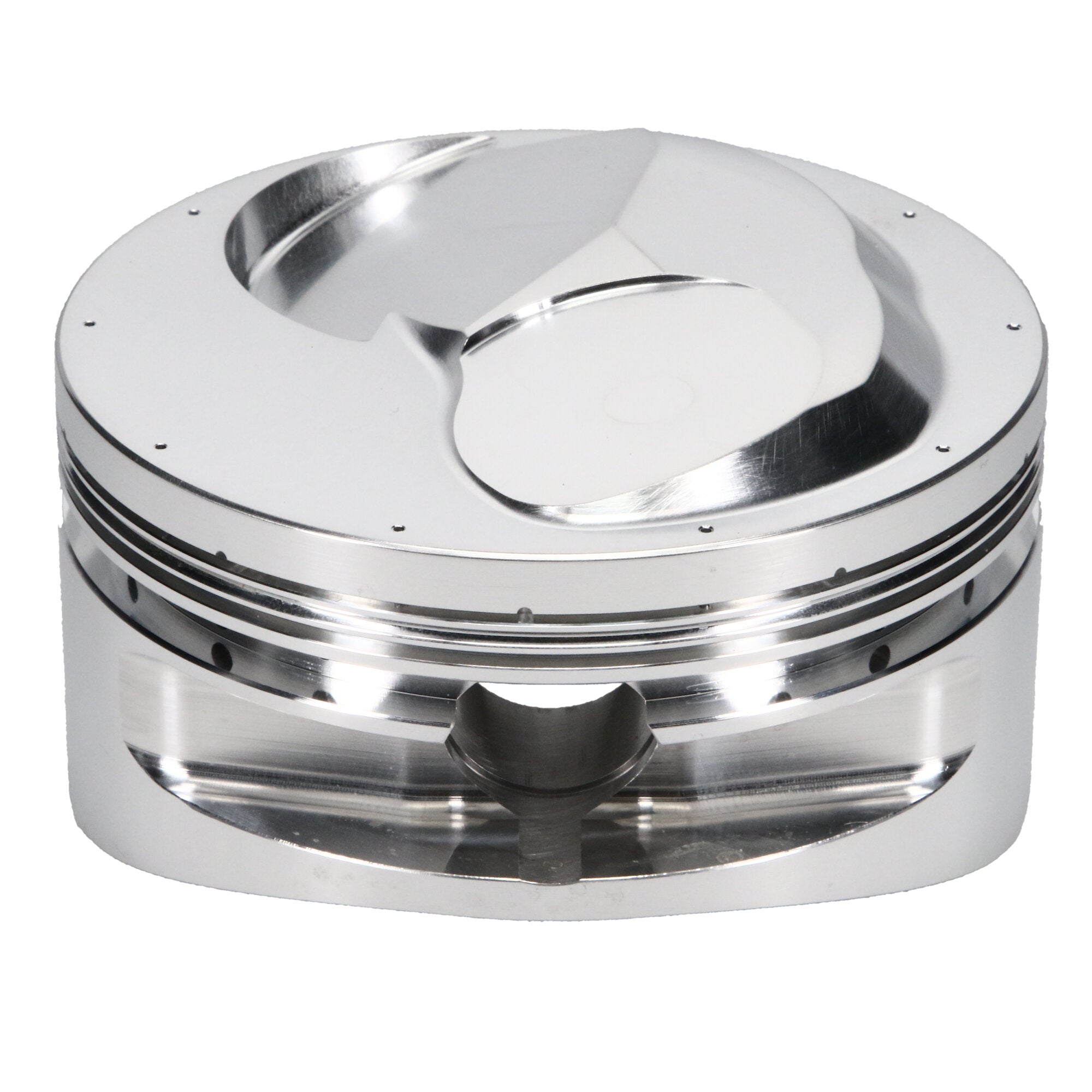

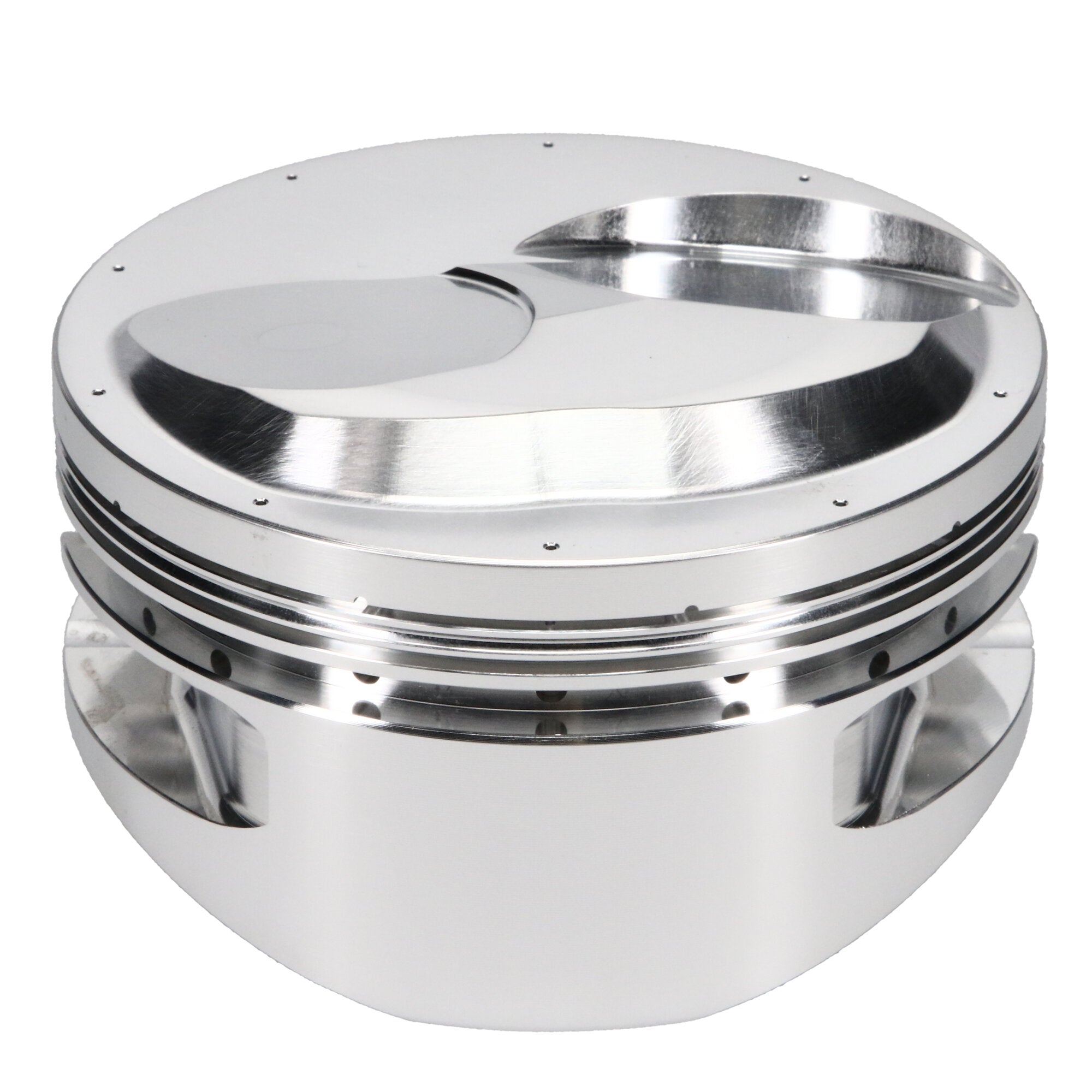

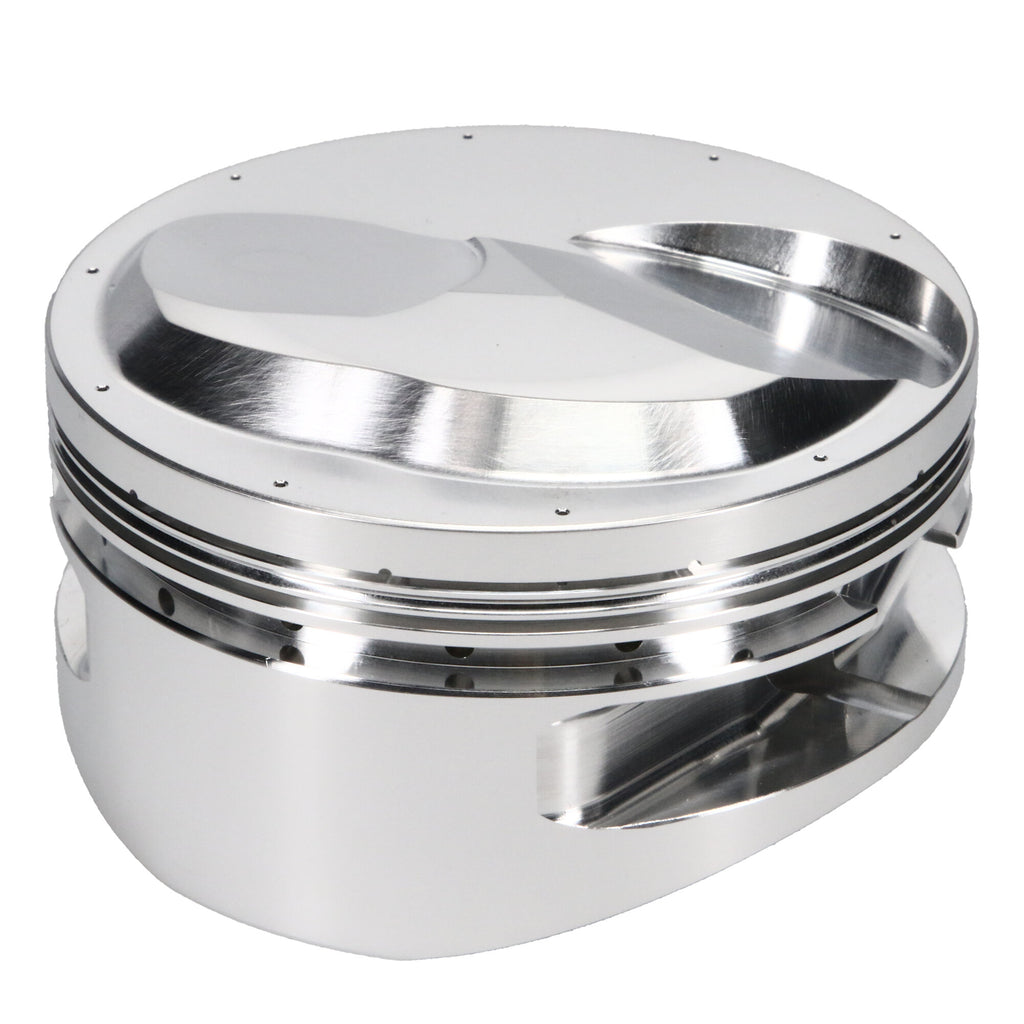

Piston Set, 2618, Dome, 4.600 Bore, 1.120 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Big Block Chevrolet, 4.600 in. Bore, 1.120 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 502, 4.600 Bore, Dome, Set of 8 |
| Piston Average Weight |
638 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Cylinder Head |
BIG CHIEF |
| Title - Web |
JE Pistons Chevrolet Big Block Piston Kit - 4.600 in. Bore - 1.120 in. CH, 20.00 CC |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
990-2930-18-51S |
| Prop 65 Yes/No |
Yes |
| Add-On |
990-042-CS |
| Piston Pin Length |
2.930 |
| Add-On |
JG86L8-4600-5 |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Forging Type |
Round |
| Piston Head Type |
Dome |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.218 |
| Industry |
Automotive |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Piston Volume |
20.00 |
| Piston Quantity |
8 |
| Engine |
Big Block |
| Piston Pin Outside Diameter |
0.990 |
| Engine Type |
ICE |
| Compression Height |
1.120 |
| Wrist Pin Wall Thickness |
0.180 |
| Wrist Pin Outer Diameter |
0.990 |
| Ring Set Included |
No |
| Piston Pin Wall Thickness |
0.180 |
| Ringset Included |
No |
| Title |
JE Pistons - Chevrolet, Big Block, 4.600 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0435 |
| Bore Diameter |
4.600 |
| Make |
CHEVROLET |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
