As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 1.8T 20V 97-05 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

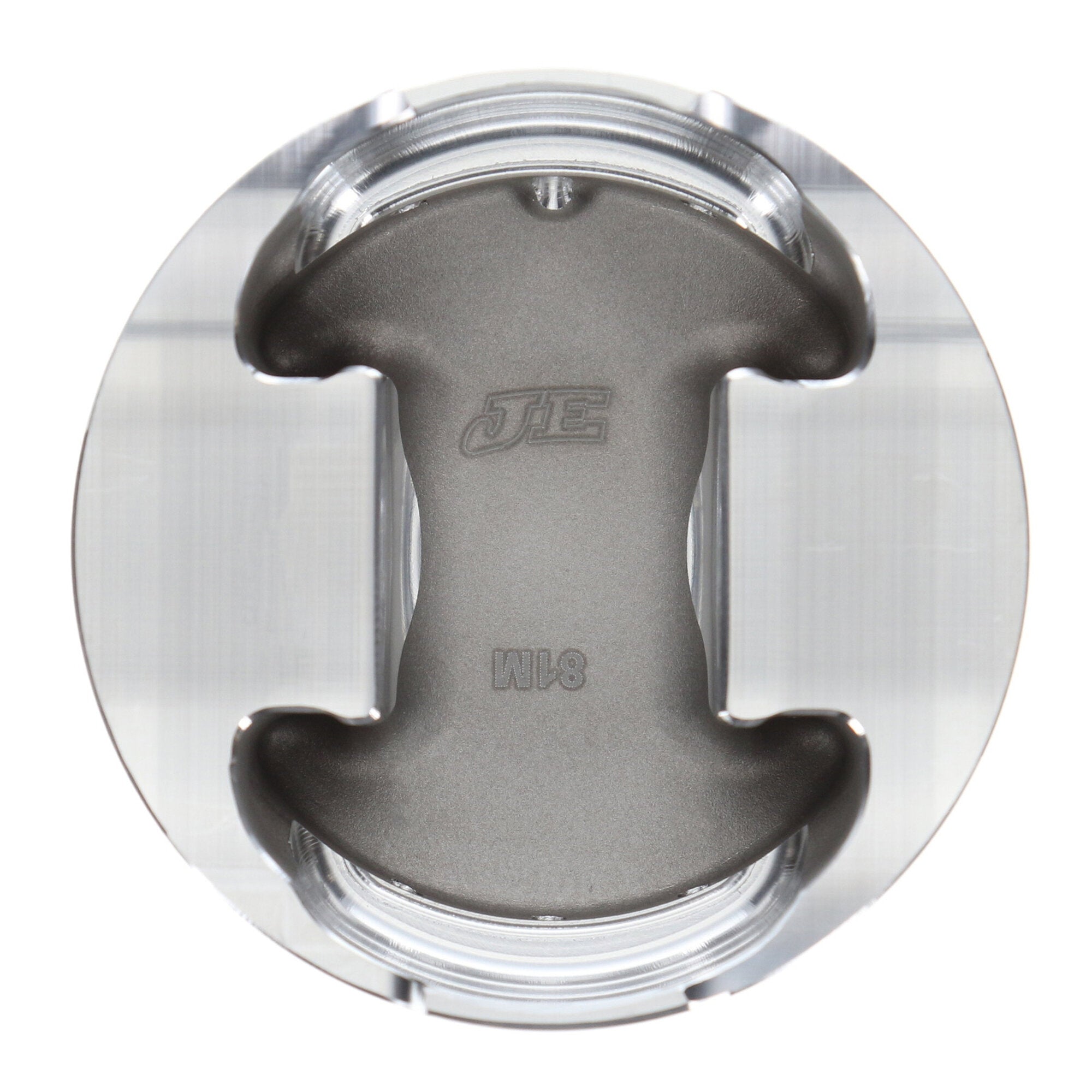

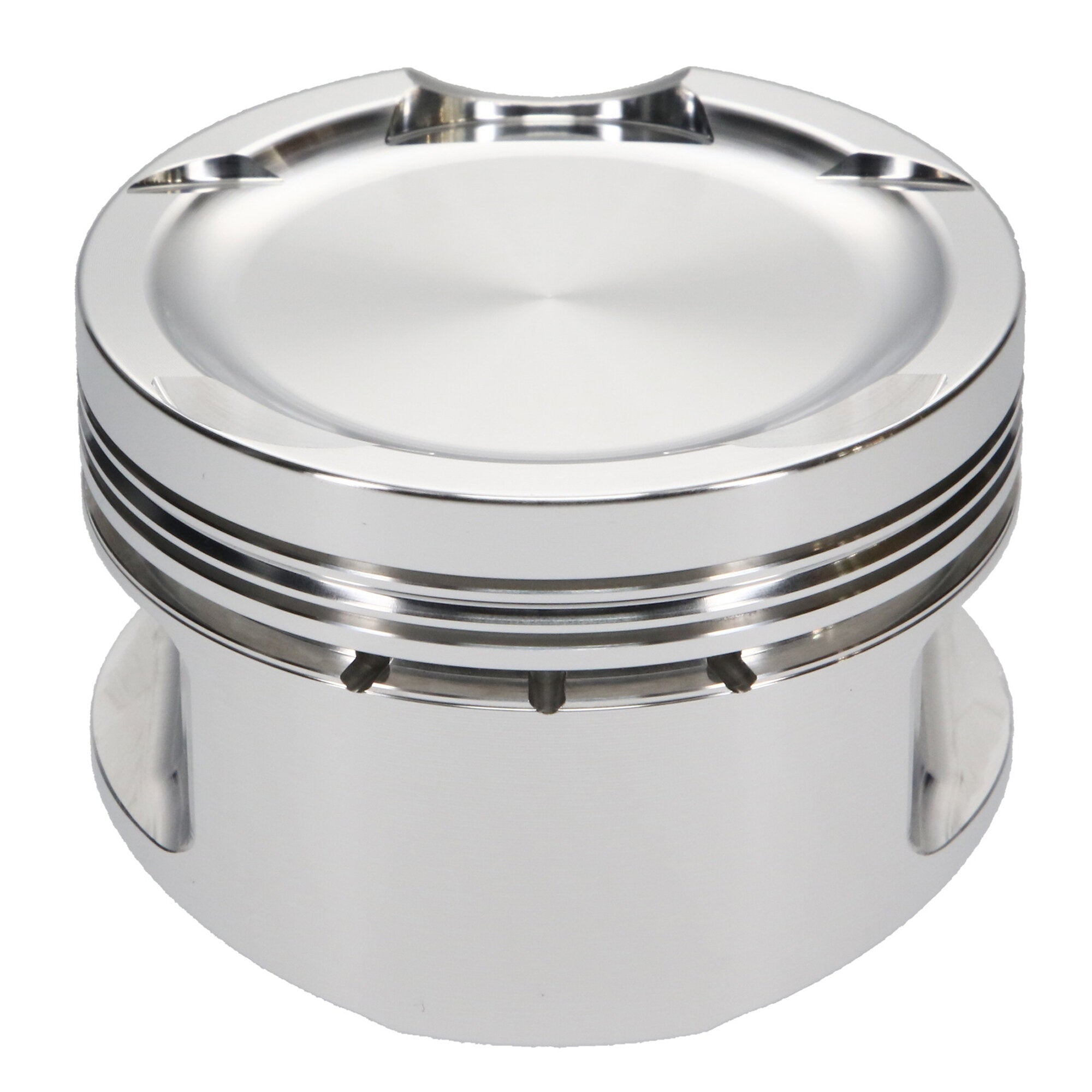

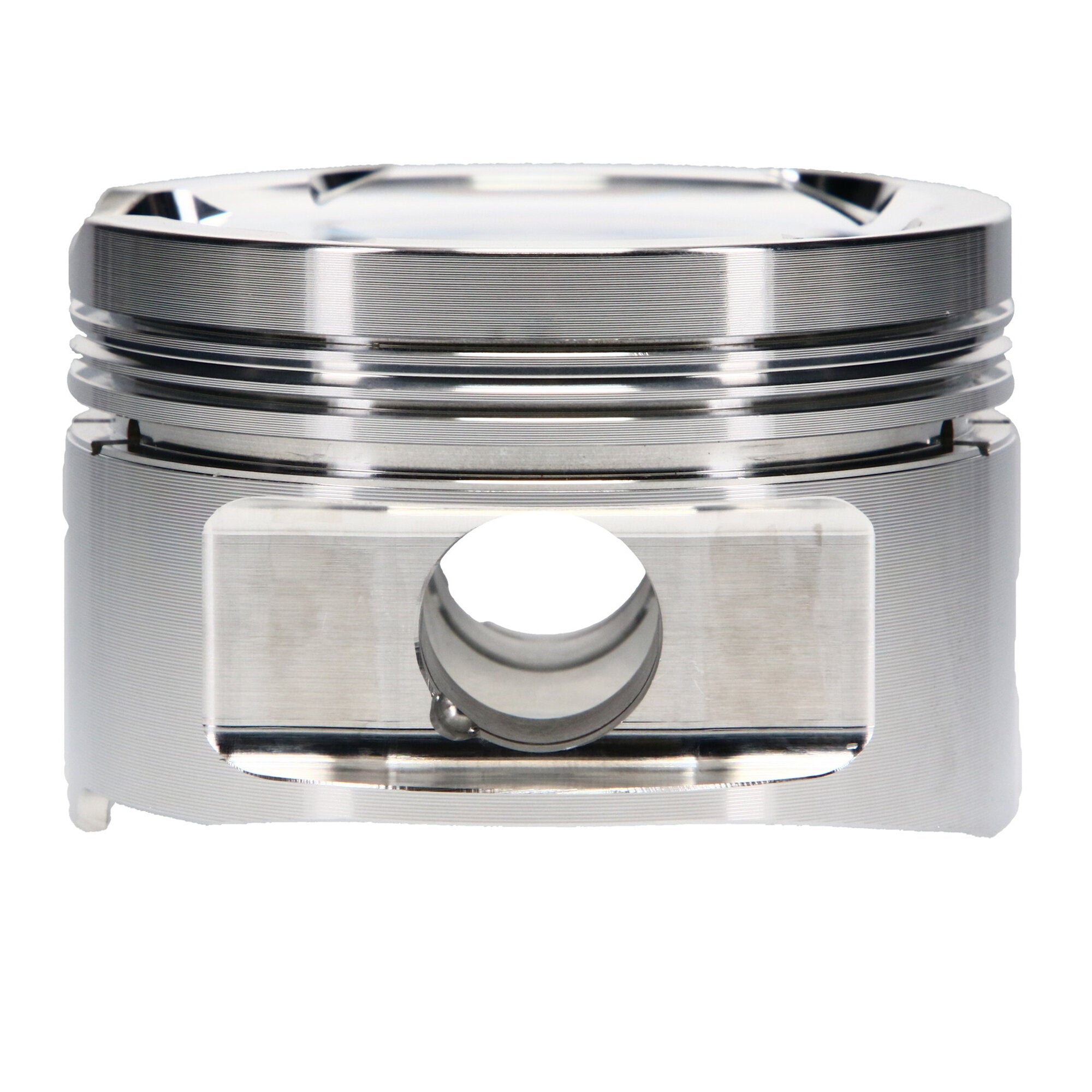

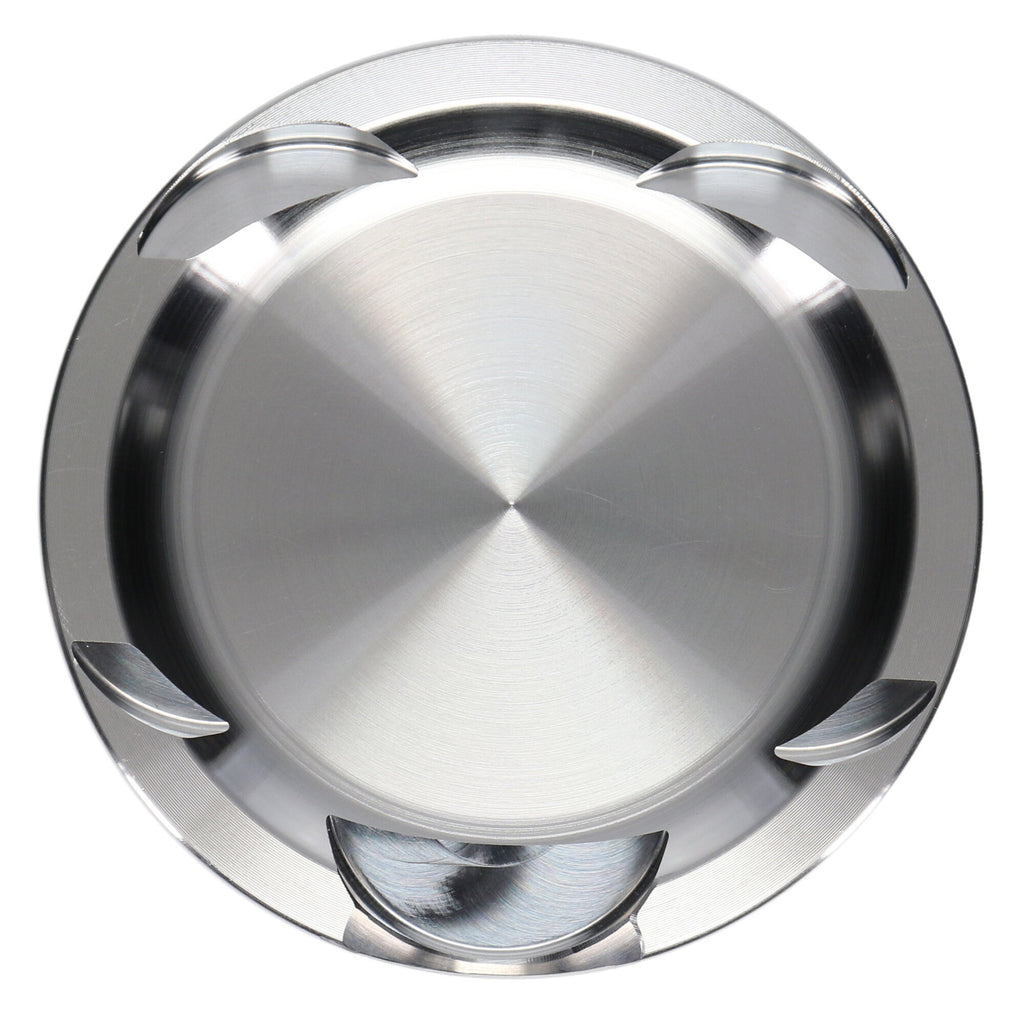

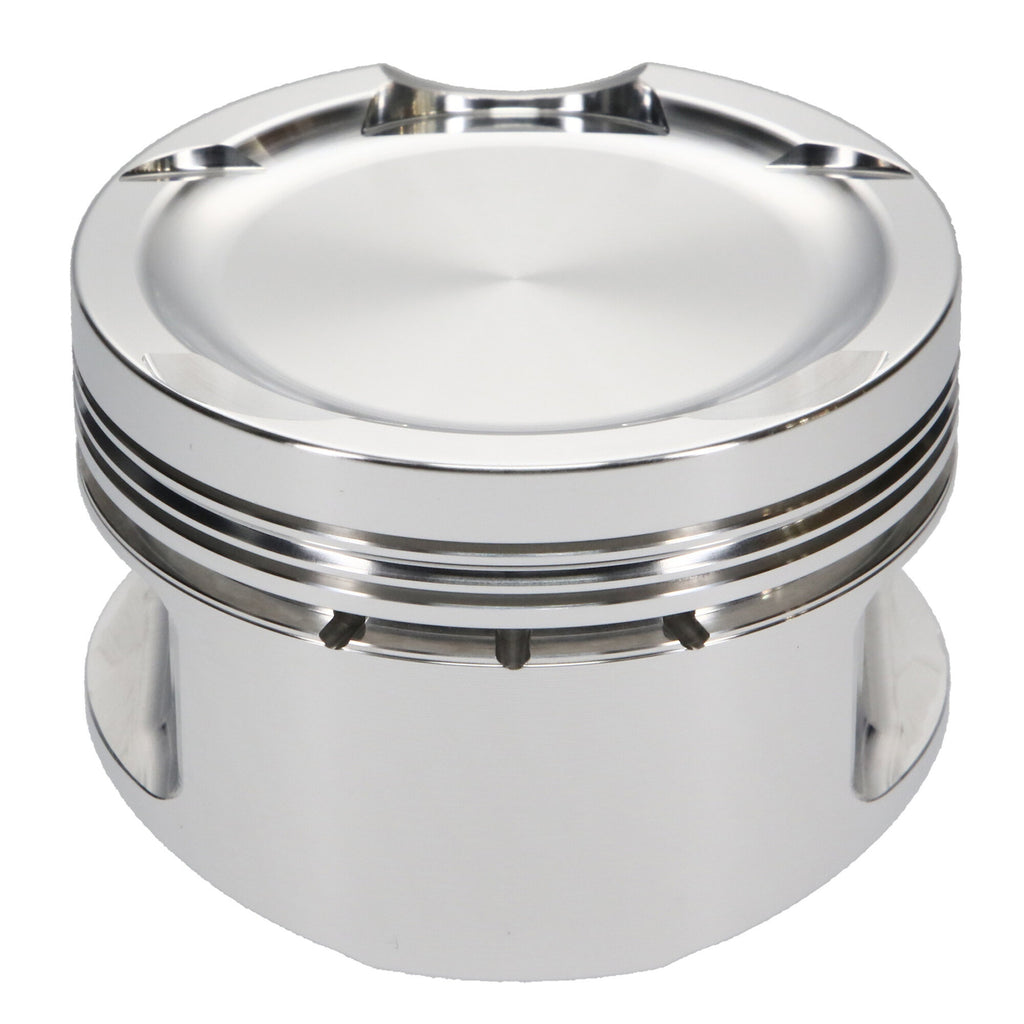

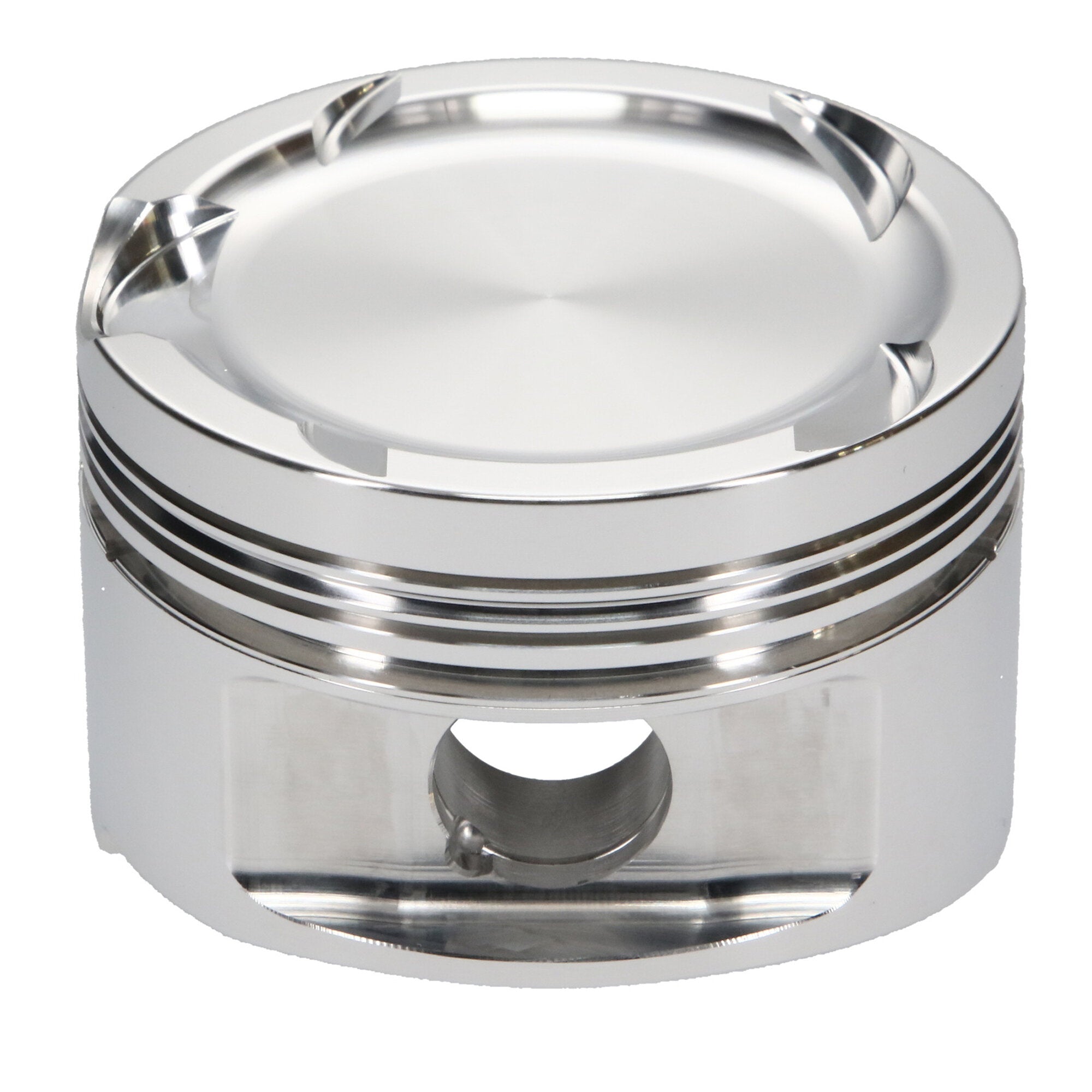

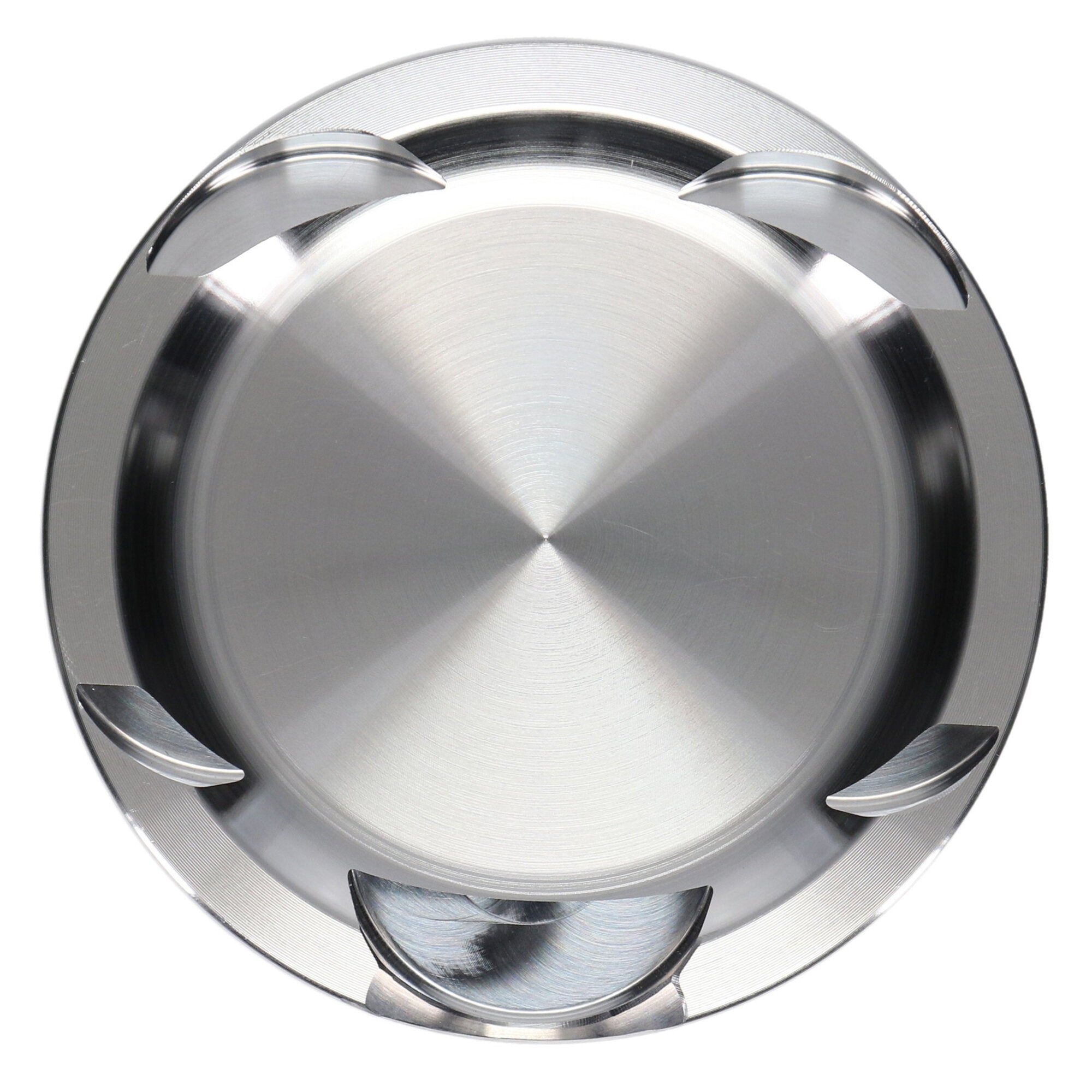

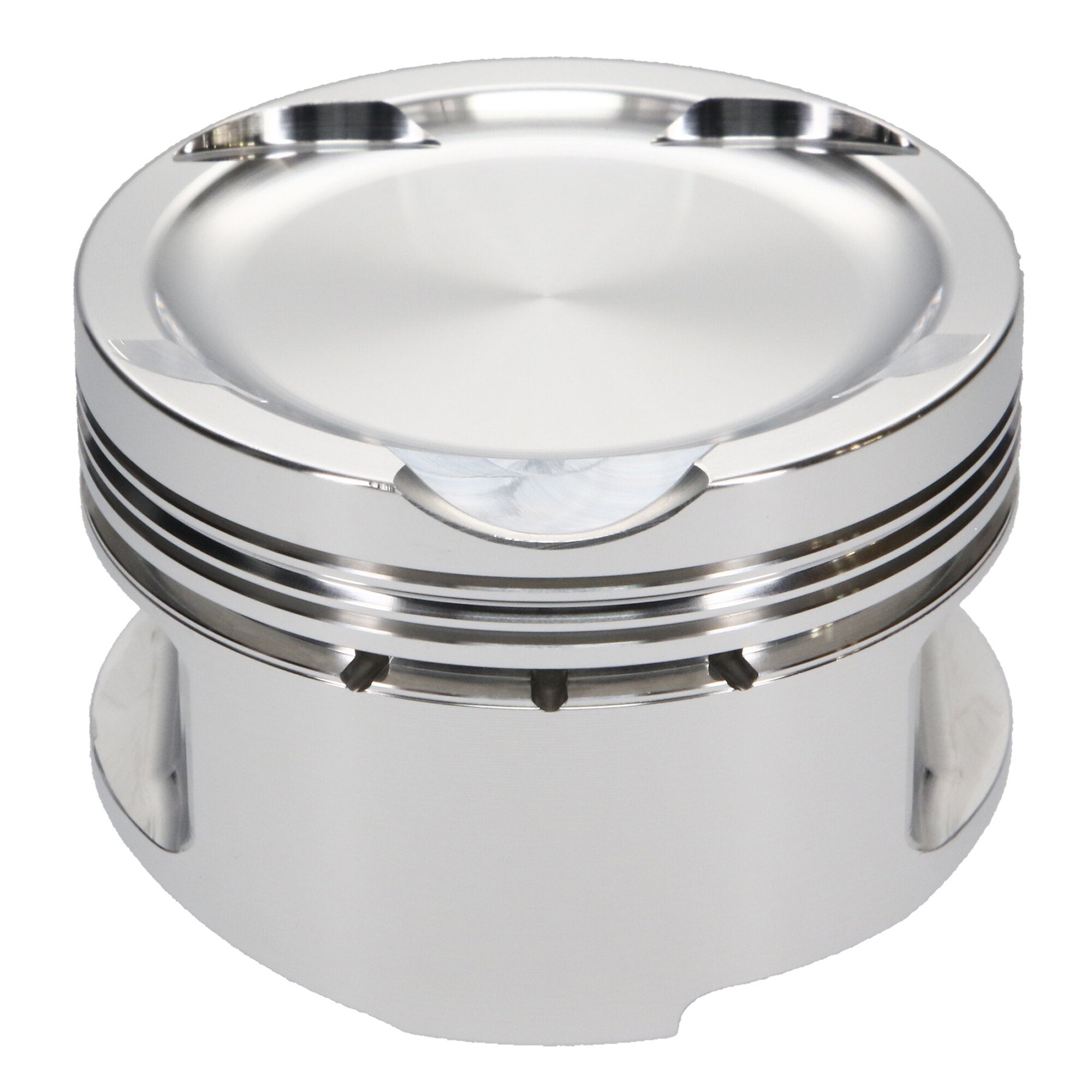

Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.286 CD, 0.787 Pin, Set of 4. |
| Description_EXT |
JE, VW, 1.8T 20V - 20mm Pin, 3.228 in. Bore, 9.25:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Volkswagen 1.8T 20V, 82.00 Bore, Dish, Set of 4 |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Volkswagen 1.8T 20V Piston Kit - 82.00 mm Bore - 1.286 in. CH, -3.70 CC |
| Second Compression Ring Thickness |
0.0480 |
| Ringset Included |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Add-On |
JG1001-3228 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Cylinder Head |
1.8T APH |
| Add-On |
787-2250-18-51C |
| Industry |
Automotive |
| Add-On |
787-050-MW |
| Piston Pin Length |
2.250 |
| Engine |
1.8T 20V 20 mm Pin |
| Make |
VOLKSWAGEN |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
1.8T 20V |
| Engine Detail |
1.8T 20V 20 mm Pin |
| Piston Pin Material |
5115 |
| Piston Average Weight |
308 |
| Piston Pin Outside Diameter |
0.787 |
| Oil Ring Thickness |
0.111 |
| Bore Diameter |
82.00 |
| Compression Height |
1.286 |
| Piston Pin Wall Thickness |
0.180 |
| Piston Volume |
-3.70 |
| Piston Quantity |
4 |
| Title |
JE Pistons - Volkswagen, 1.8T 20V, 82.00 mm Bore, Piston Kit |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0400 |
| Forging Type |
Round |
| Product Market |
European |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Piston Series |
JE Pistons |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.250 |
| Wrist Pin Outer Diameter |
0.787 |
| Wrist Pin Wall Thickness |
0.180 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
