As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Honda K24A3/K20A2 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Acura, K Series, 3.425 in. Bore, 10.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_DES |

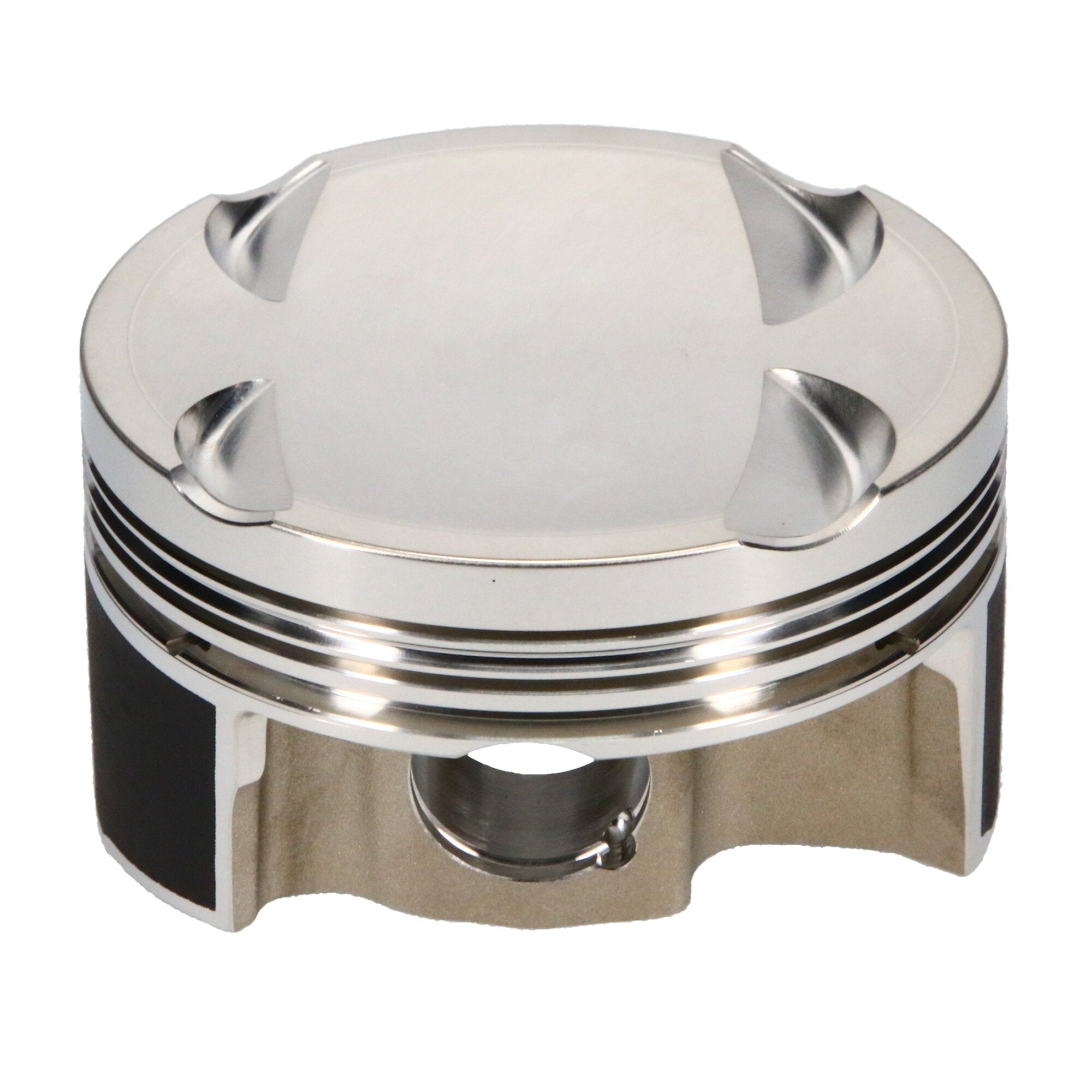

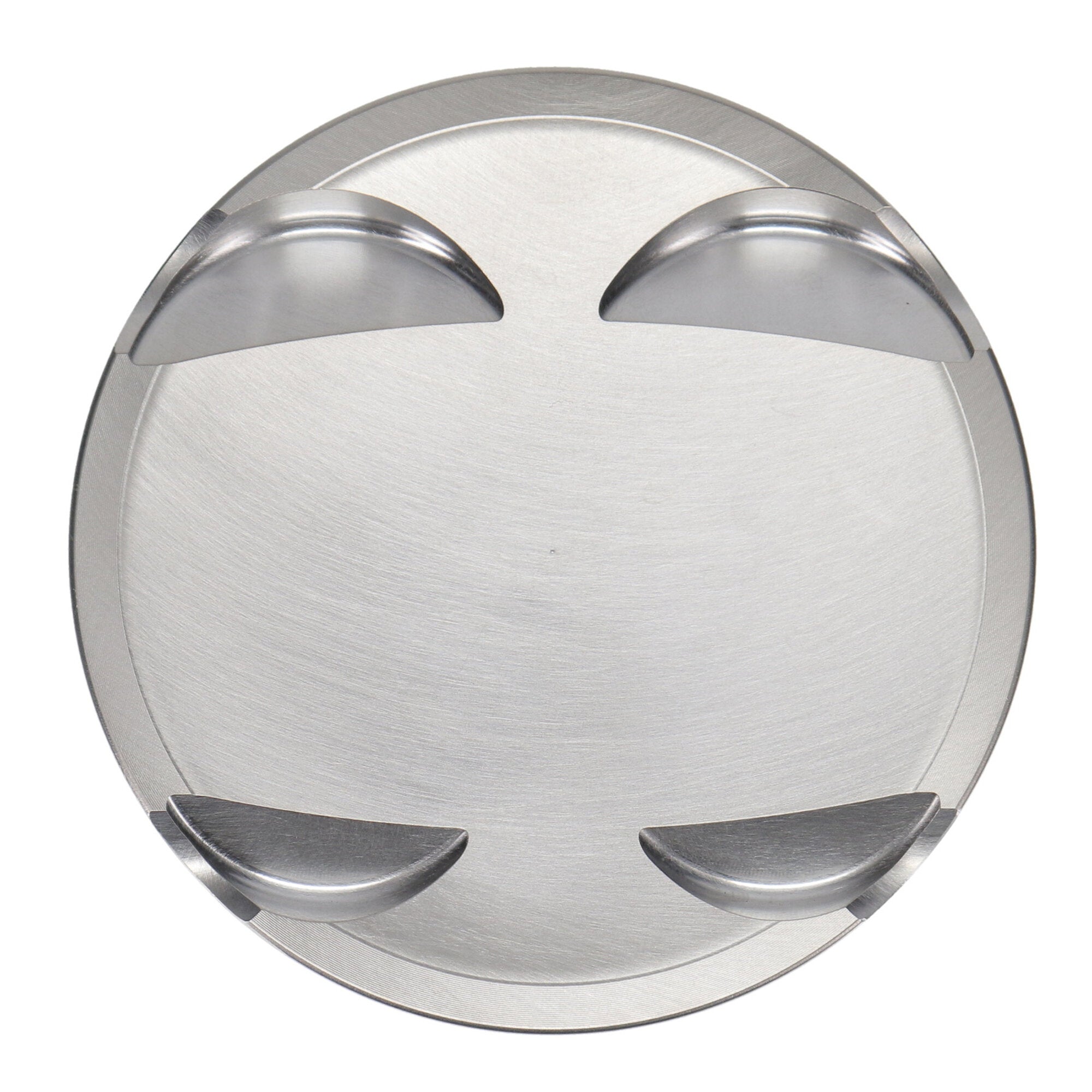

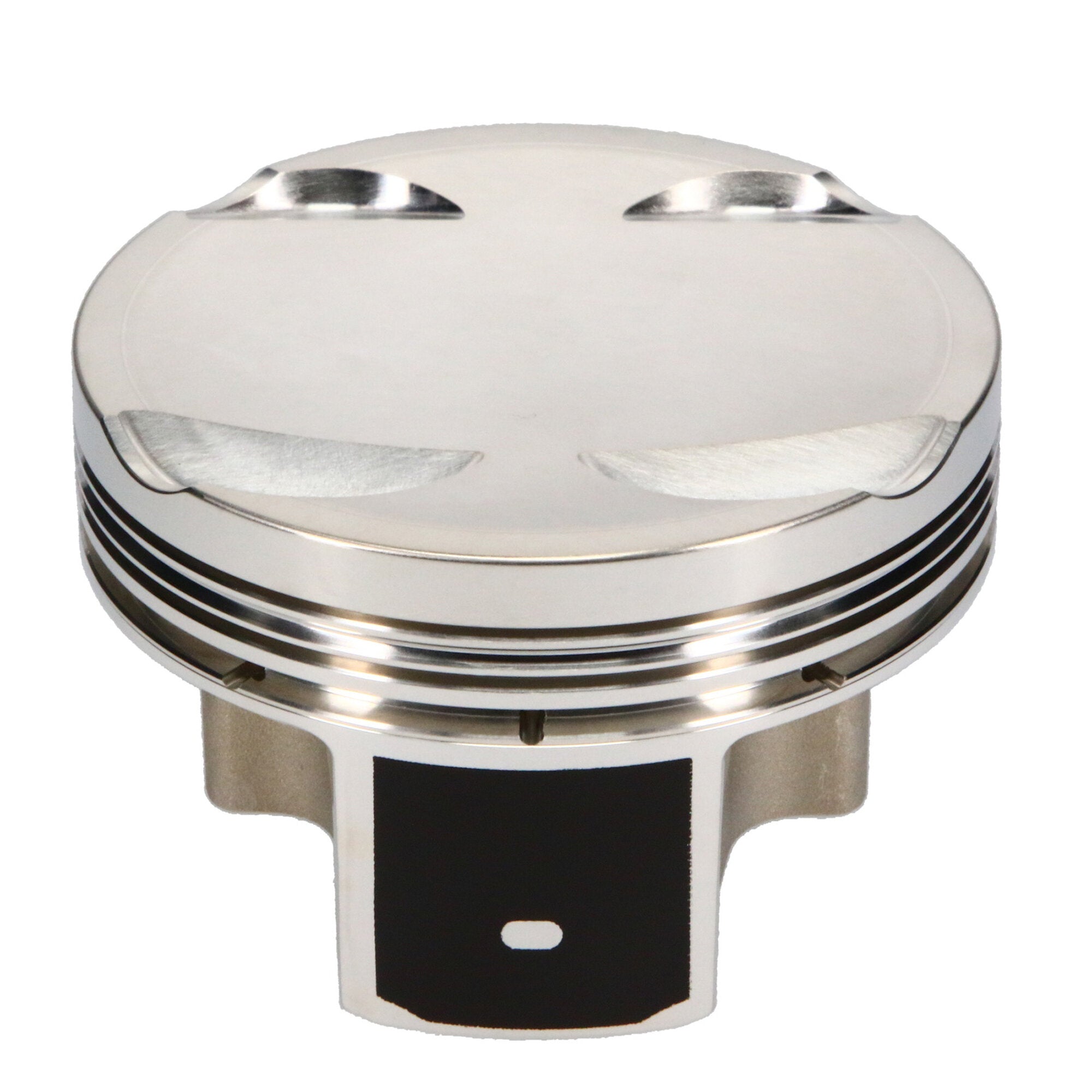

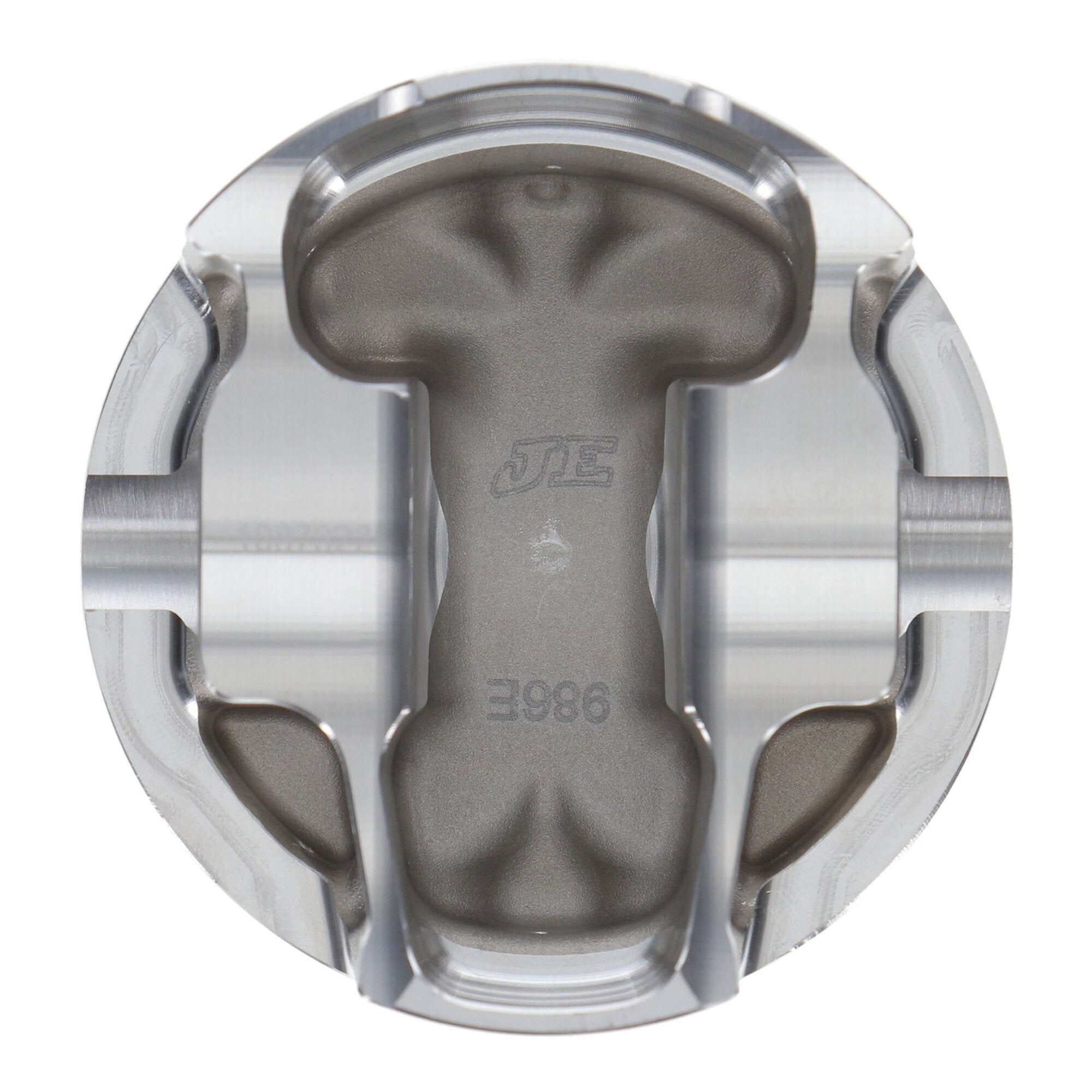

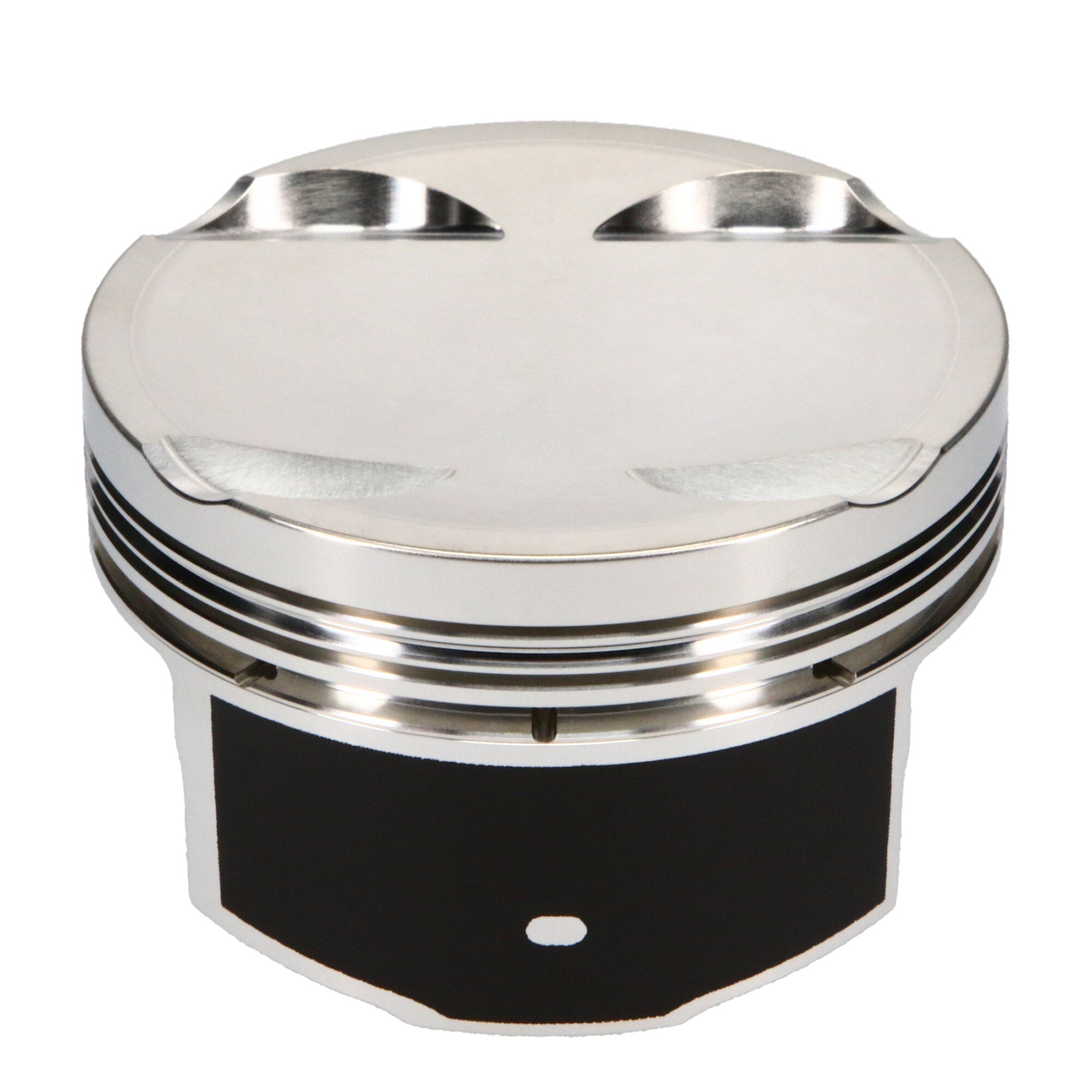

Piston Set, 2618, Inv Dome/Dish, 3.425 Bore, 1.176 CD, 0.866 Pin, Set of 4. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Honda K20A2/K24A3, 87.00 Bore, Dish, Set of 4 |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Acura |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-6.30 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.250 |
| Add-On |
866-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Industry |
Automotive |
| Cylinder Head |
K20 |
| Add-On |
JG1001-3425 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0480 |
| Add-On |
866-063-MW |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
Yes |
| Oil Ring Thickness |
0.111 |
| Engine |
K Series |
| Ringset Included |
Yes |
| Piston Pin Material |
5115 |
| Title - Web |
JE Pistons Acura K Series Piston Kit - 87.00 mm Bore - 1.176 in. CH, -6.30 CC |
| Piston Pin Length |
2.250 |
| Piston Quantity |
4 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Sport Compact |
| Piston Pin Wall Thickness |
0.150 |
| Piston Average Weight |
316 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.866 |
| Make |
ACURA |
| Top Compression Ring Thickness |
0.0400 |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Compression Height |
1.176 |
| Title |
JE Pistons - Acura, K Series, 87.00 mm Bore, Piston Kit |
| Piston Head Type |
Dish |
| Bore Diameter |
87.00 |
| Product Market |
Sport Compact |
| Wrist Pin Outer Diameter |
0.866 |
| Engine - Web |
K Series |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
5.0000 |
