As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

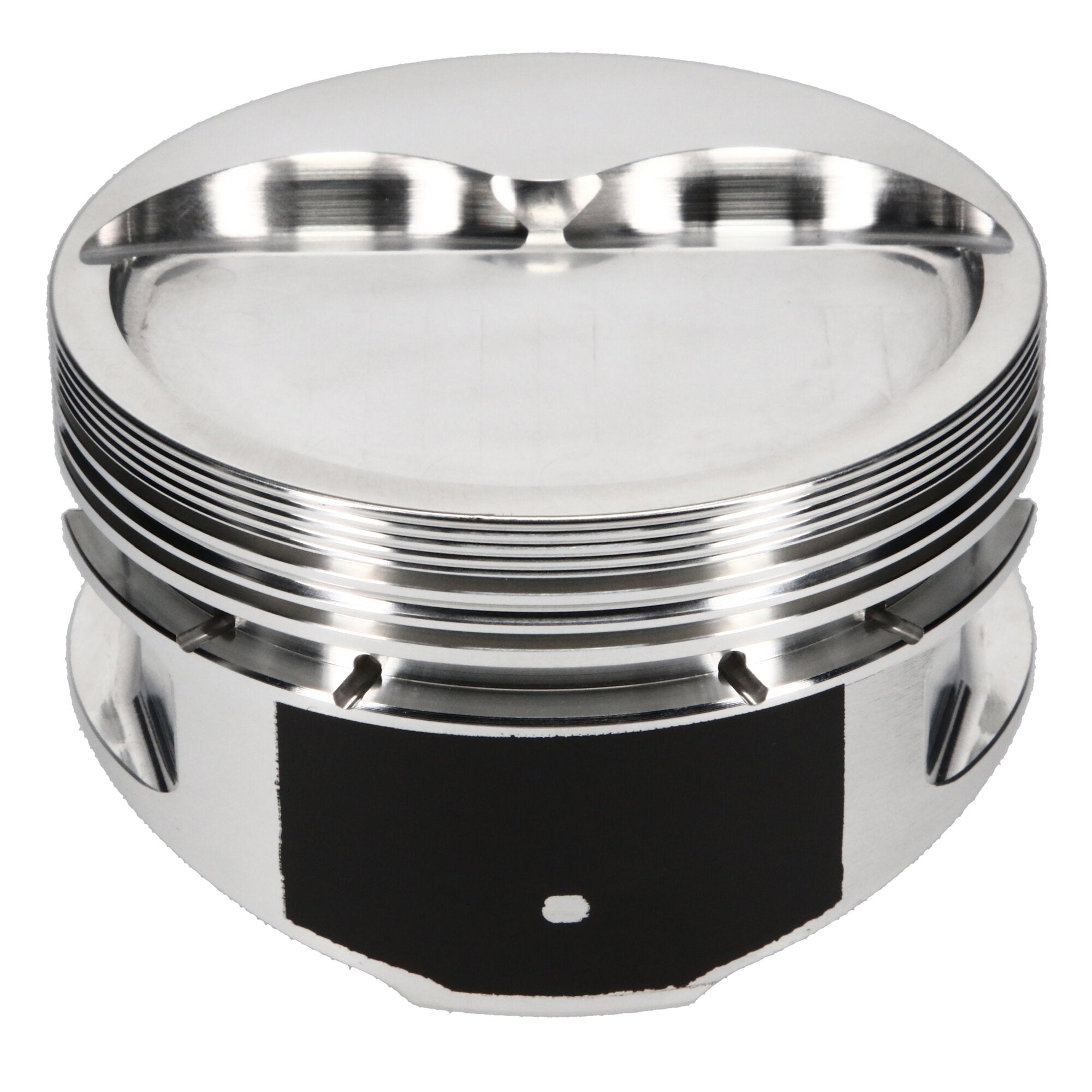

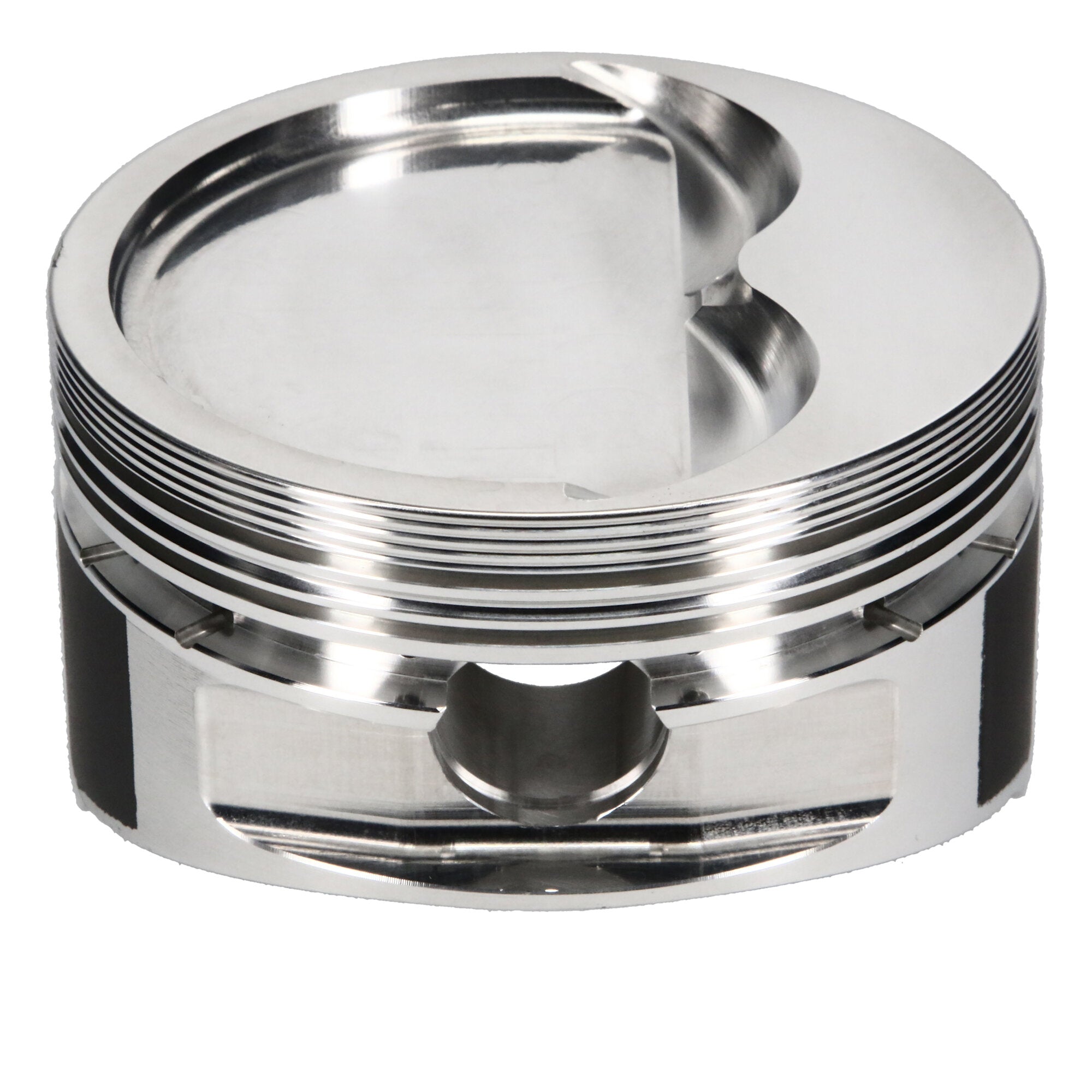

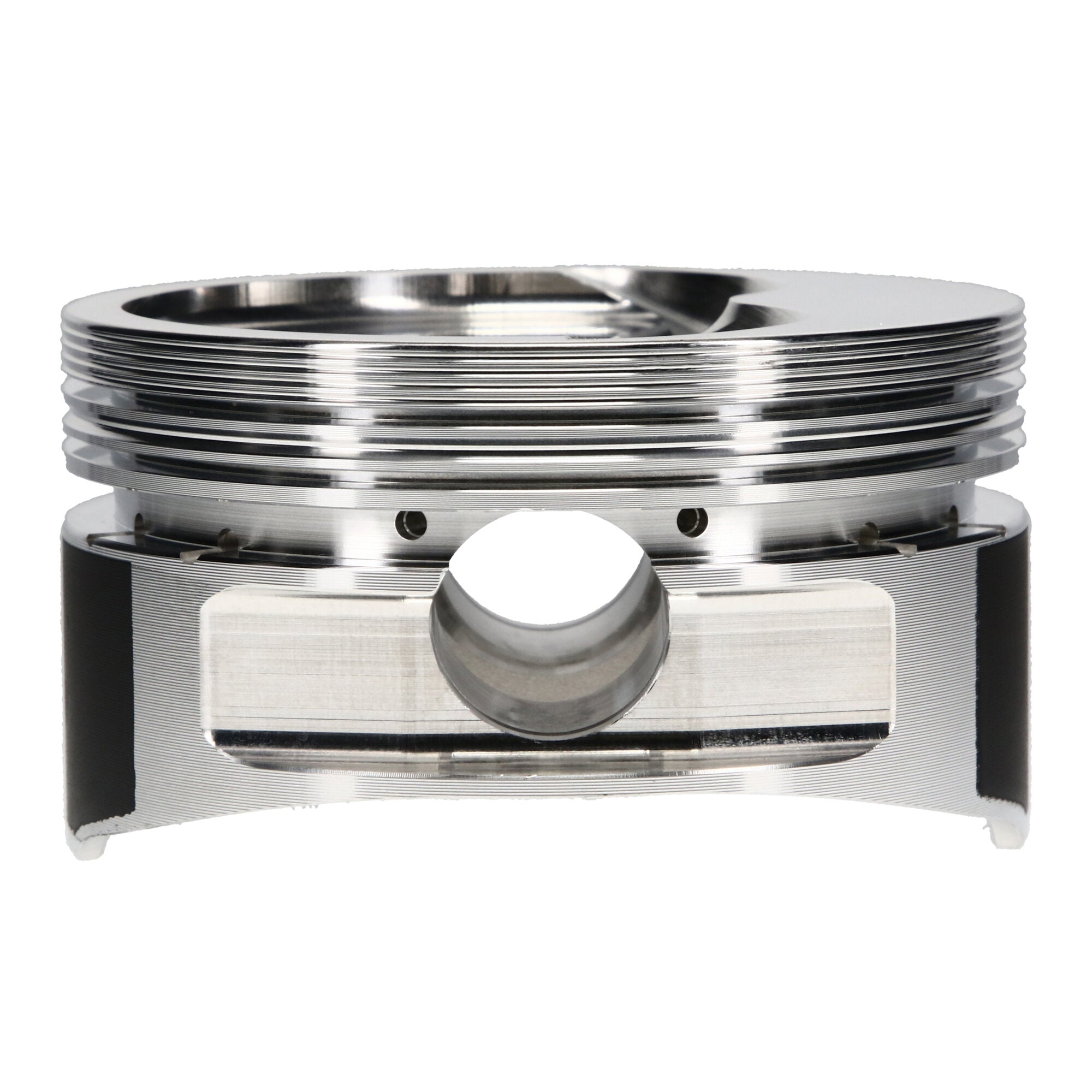

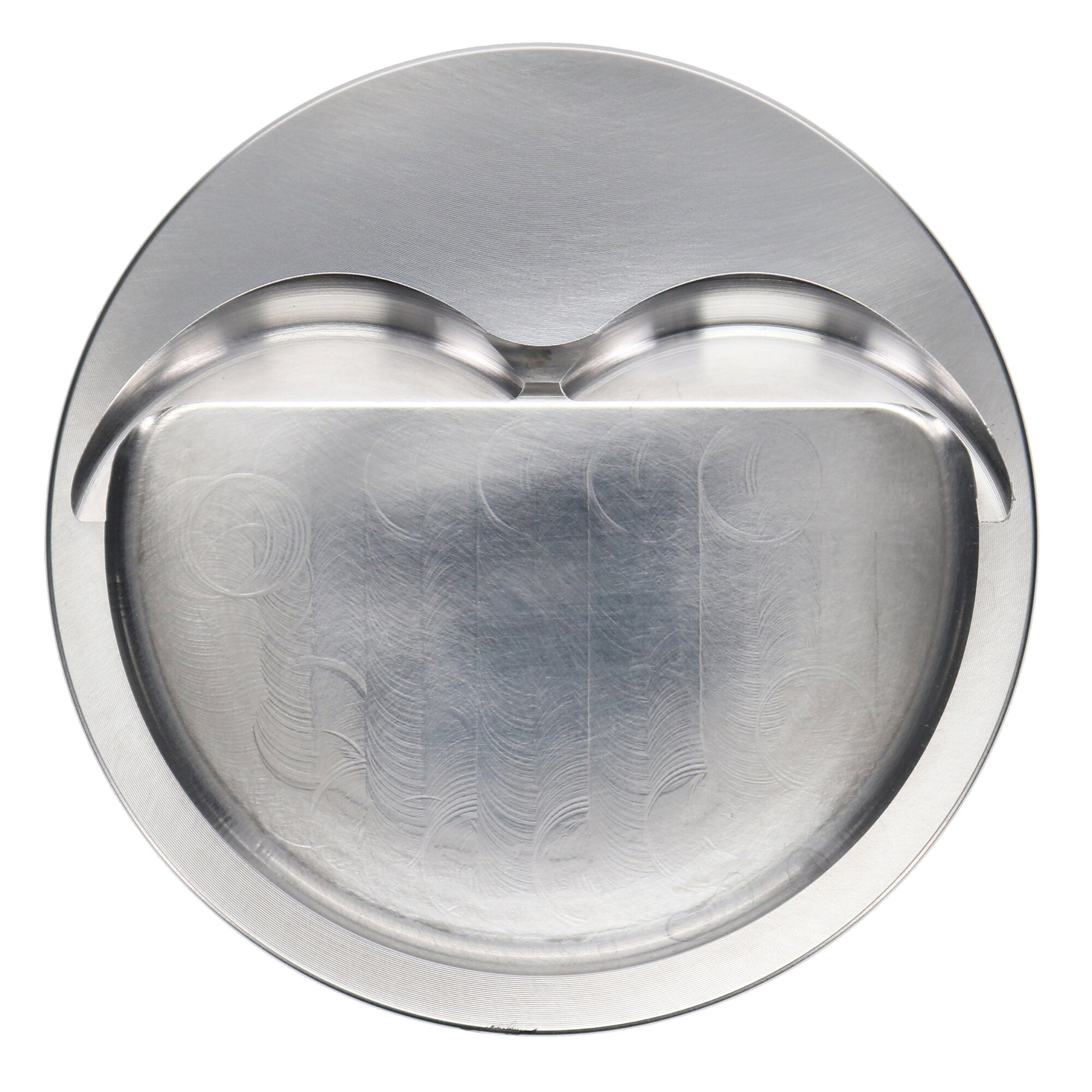

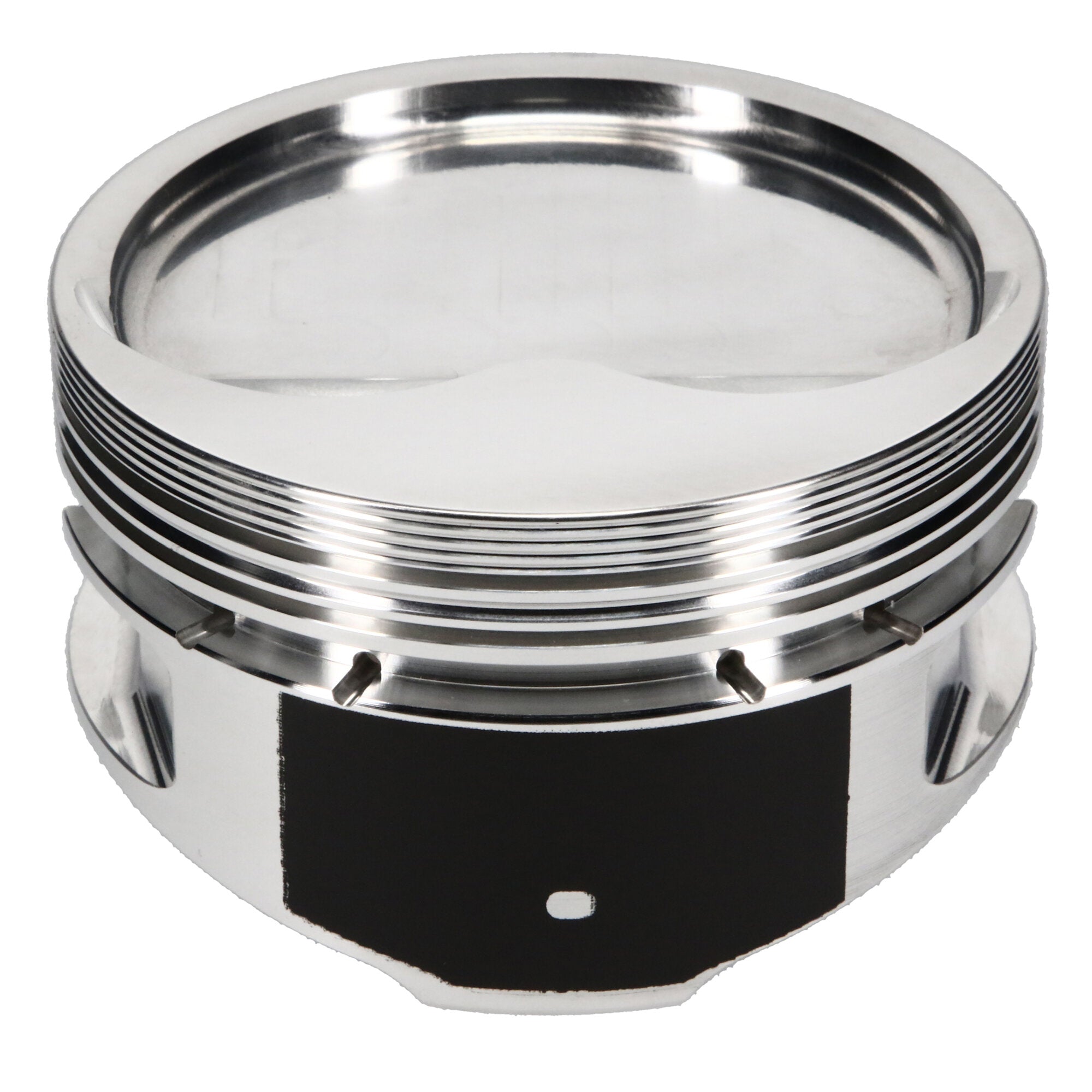

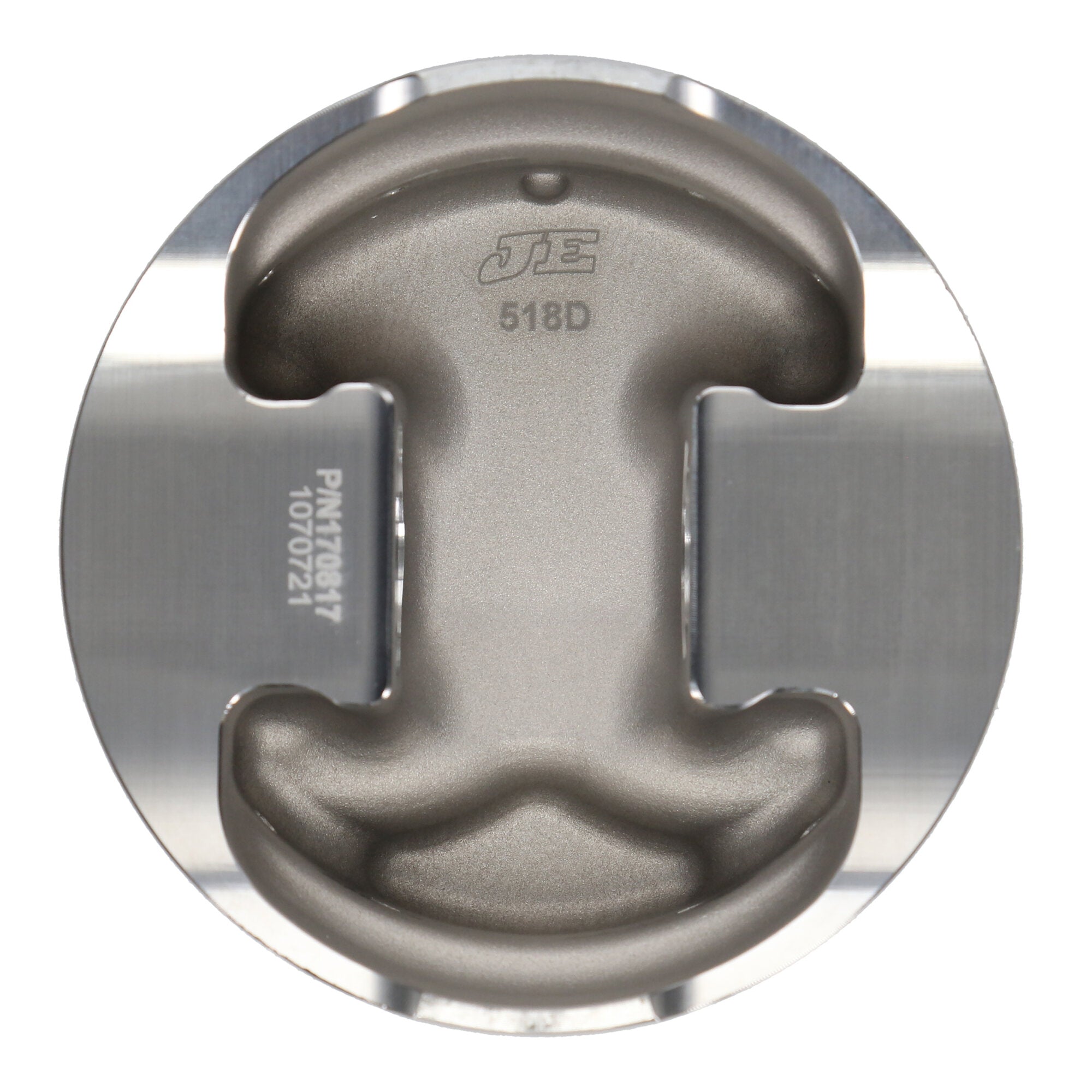

Piston Set, 2618, Inv Dome/Dish, 4.000 Bore, 1.270 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.000 in. Bore, 1.270 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.000 Bore, Dish, Set of 8 |
| Piston Average Weight |
473 |
| Prop 65 (C, R or CR) |
CR |
| Bore Diameter |
4.000 |
| Piston Pin Length |
2.950 |
| Piston Quantity |
8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Wrist Pin Length |
2.950 |
| Piston Material |
2618 |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-26.00 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.000 in. Bore - 1.270 in. CH, -26.00 CC |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Series |
JE Pistons |
| Piston Head Type |
Dish |
| Make |
CHEVROLET |
| Piston Pin Material |
5115 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.000 in. Bore, Piston Kit |
| Ringset Included |
No |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
J100F8-4000-5 |
| Engine Type |
ICE |
| Add-On |
927-042-CS |
| Add-On |
927-2950-15-51S |
| Make - Web |
Chevrolet |
| Forging Type |
Round |
| Top Compression Ring Thickness |
0.0640 |
| Engine |
Small Block |
| Compression Height |
1.270 |
| Piston Pin Wall Thickness |
0.150 |
| Oil Ring Thickness |
0.218 |
| Product Market |
Domestic |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
