As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351W Windsor Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

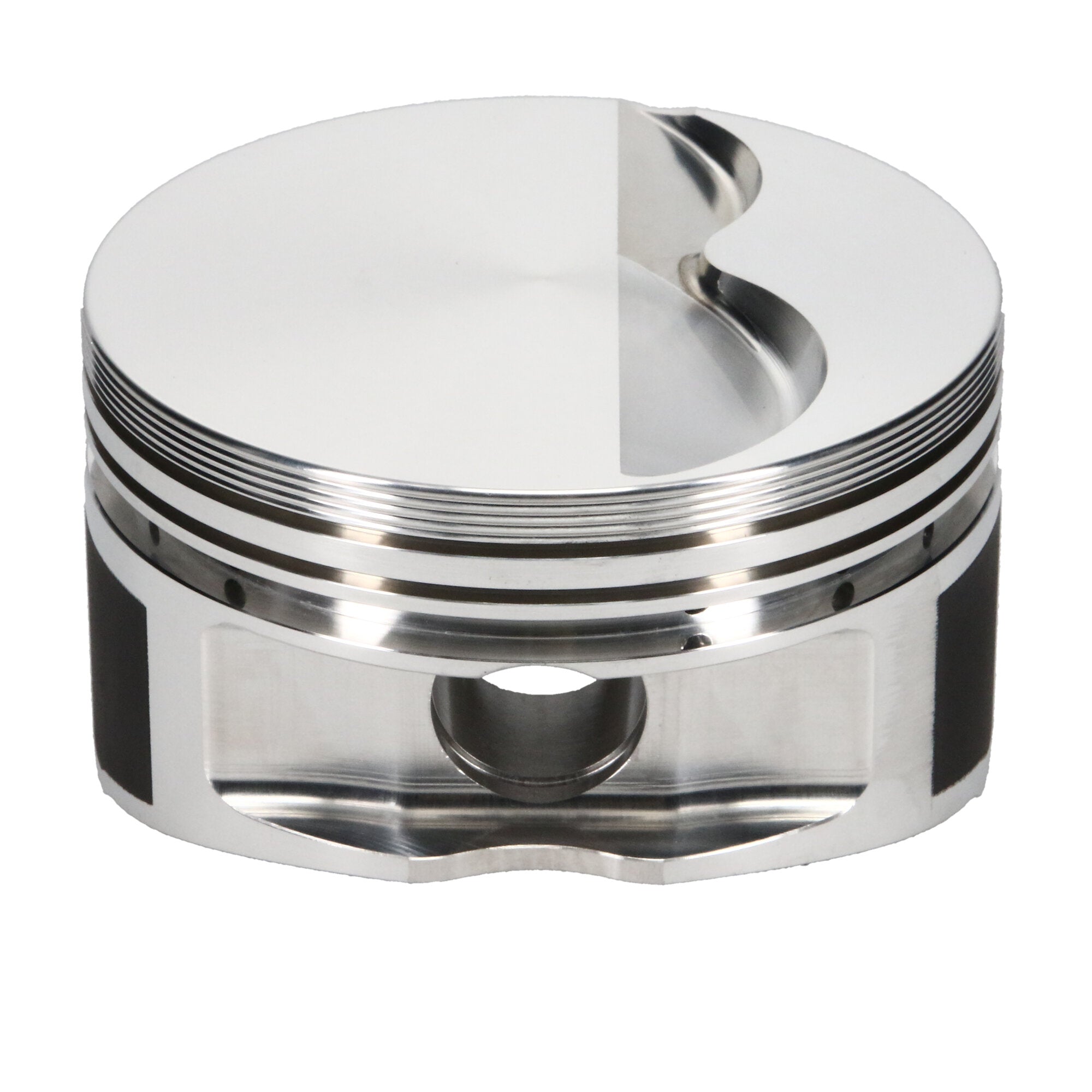

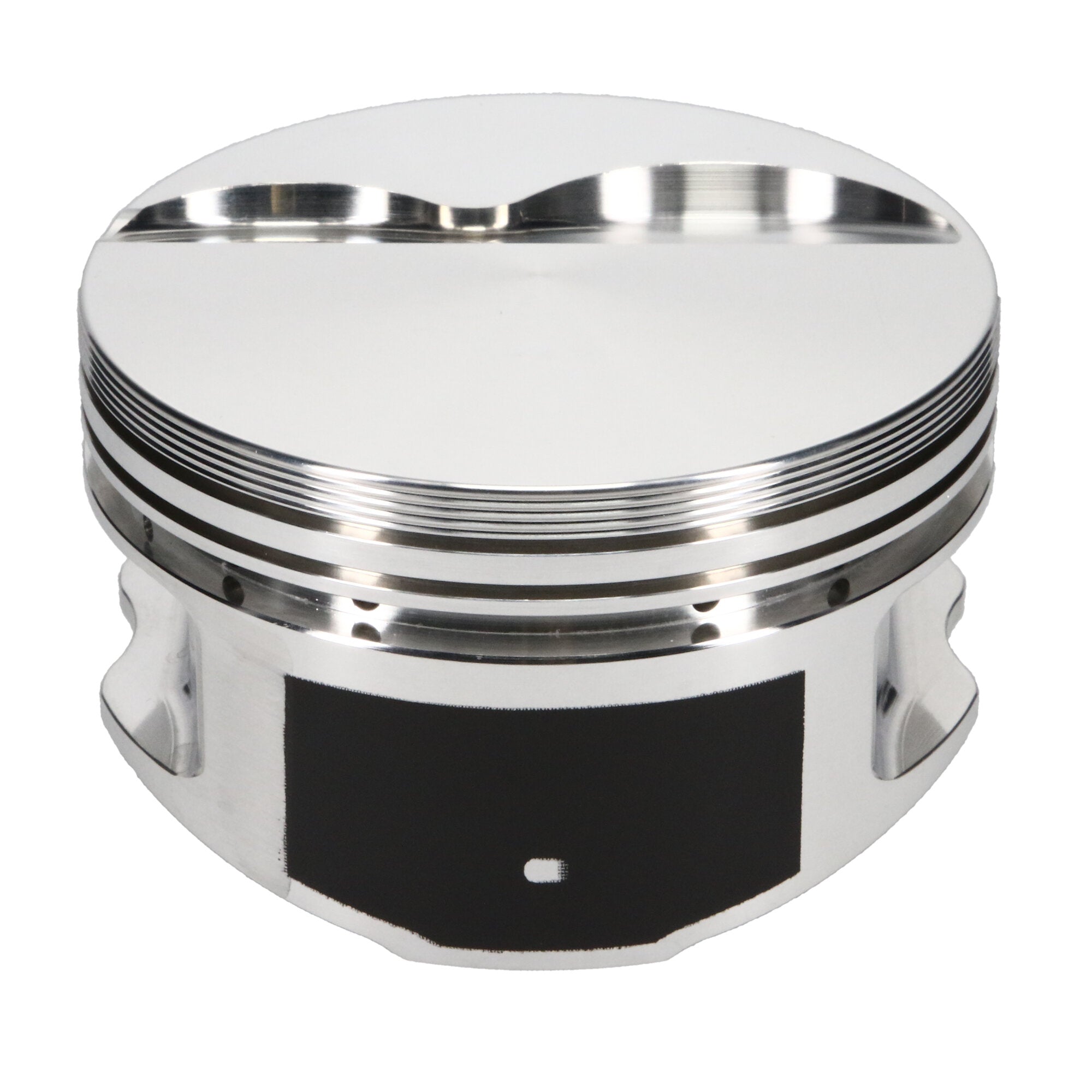

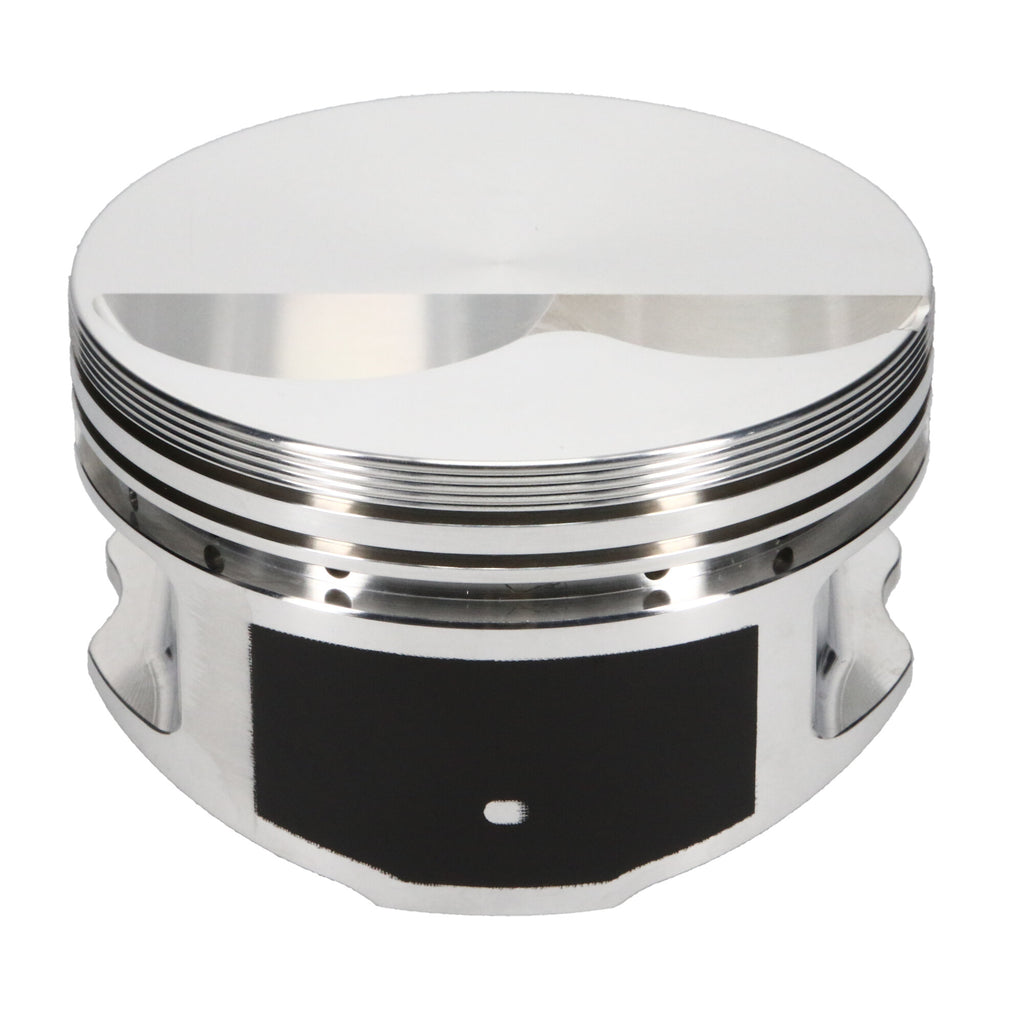

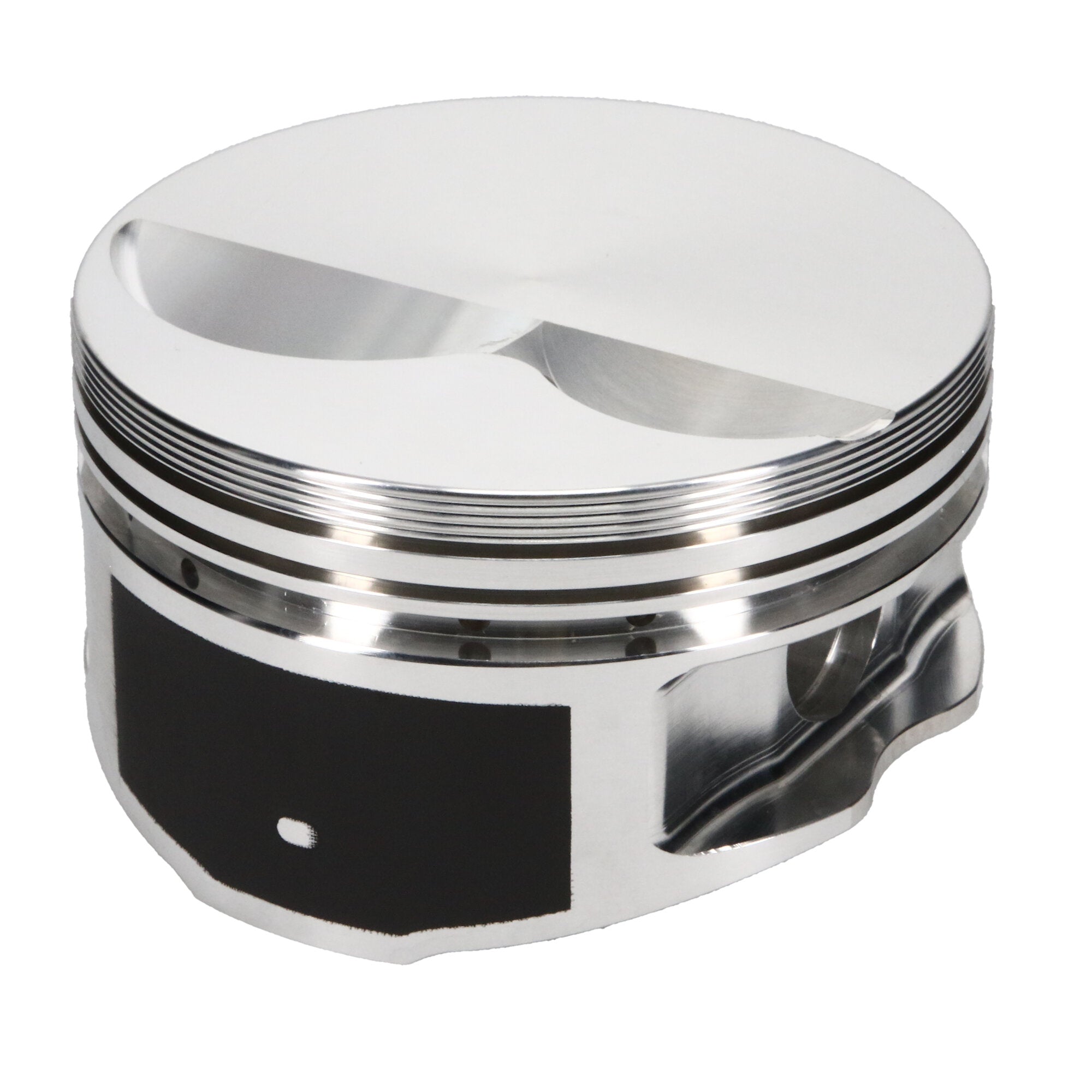

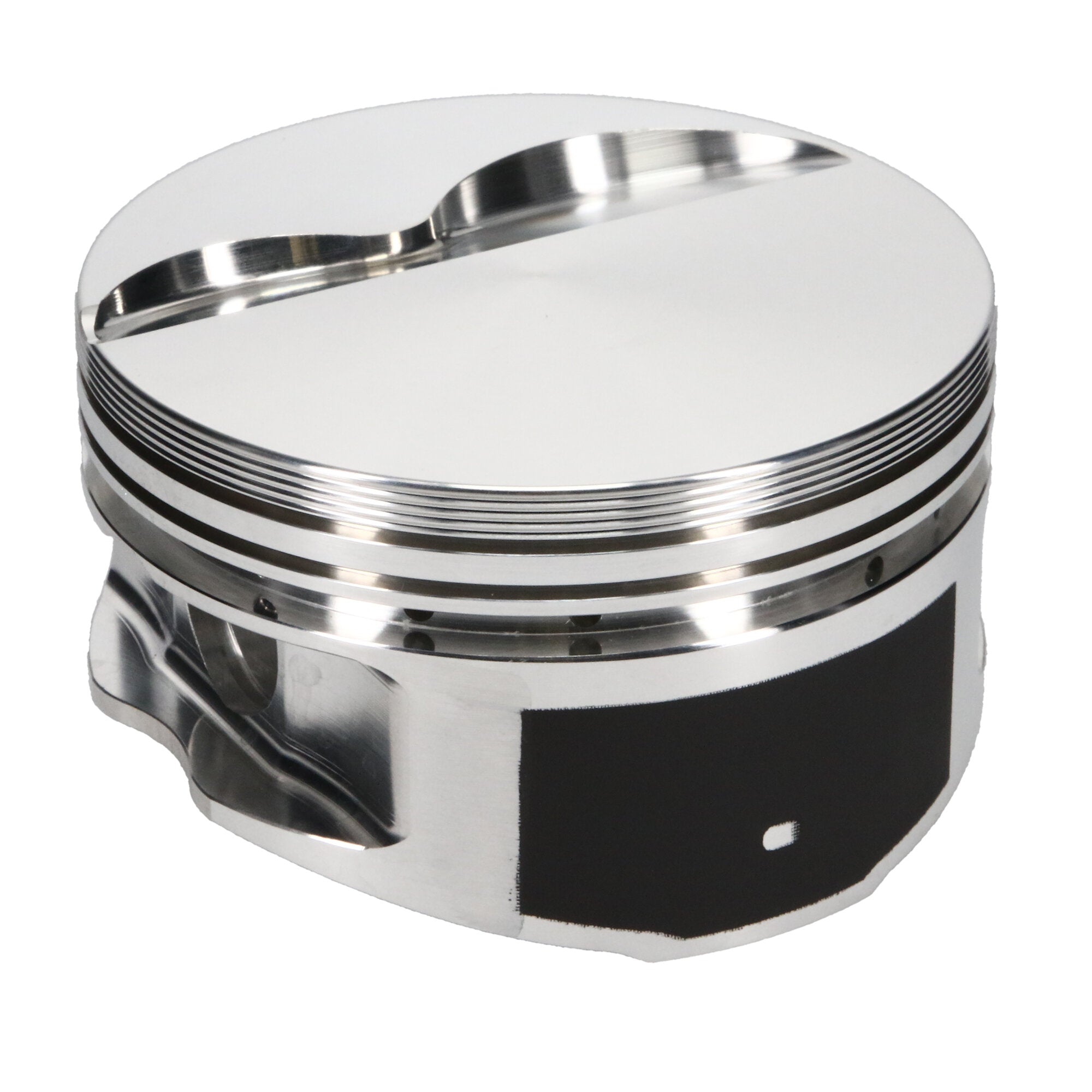

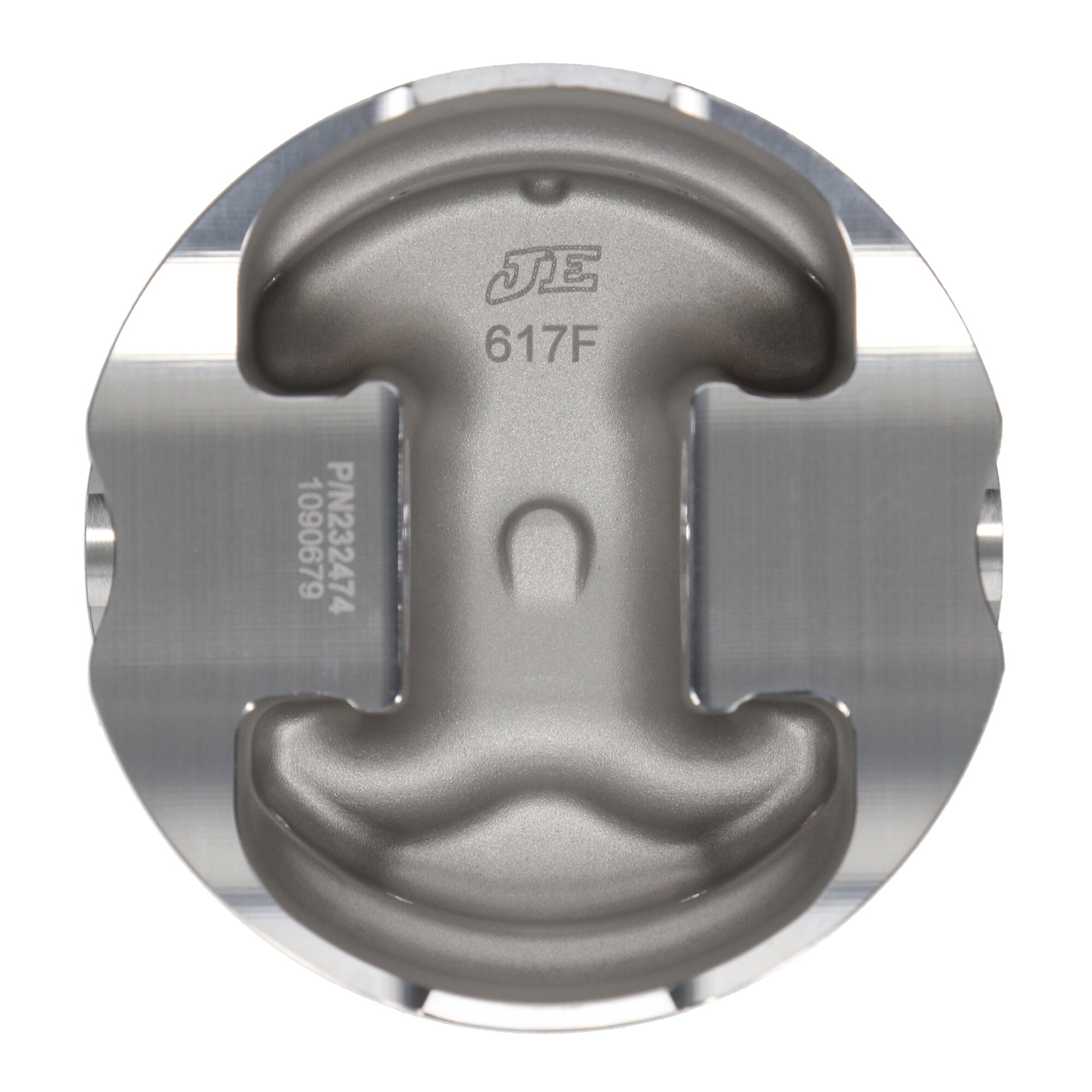

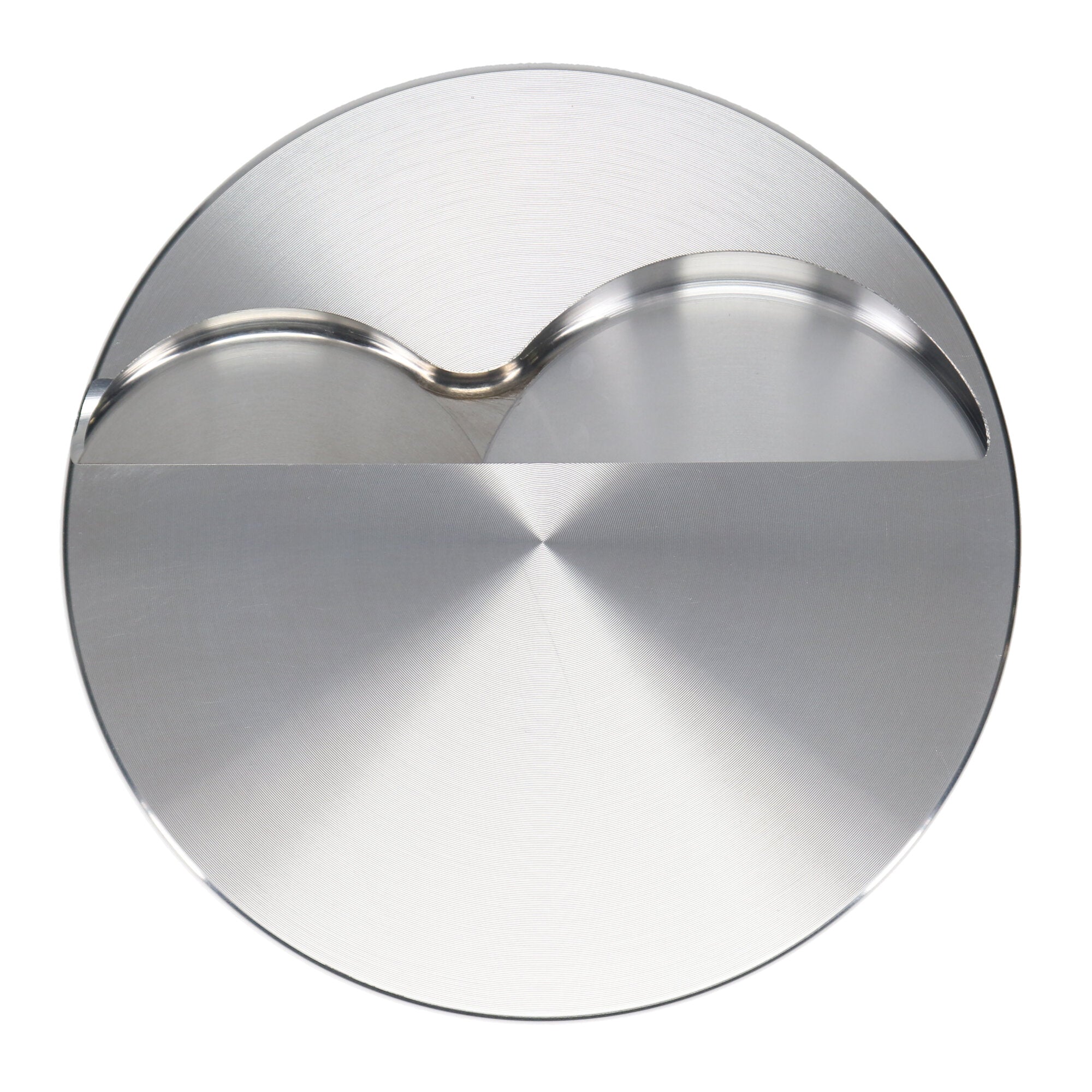

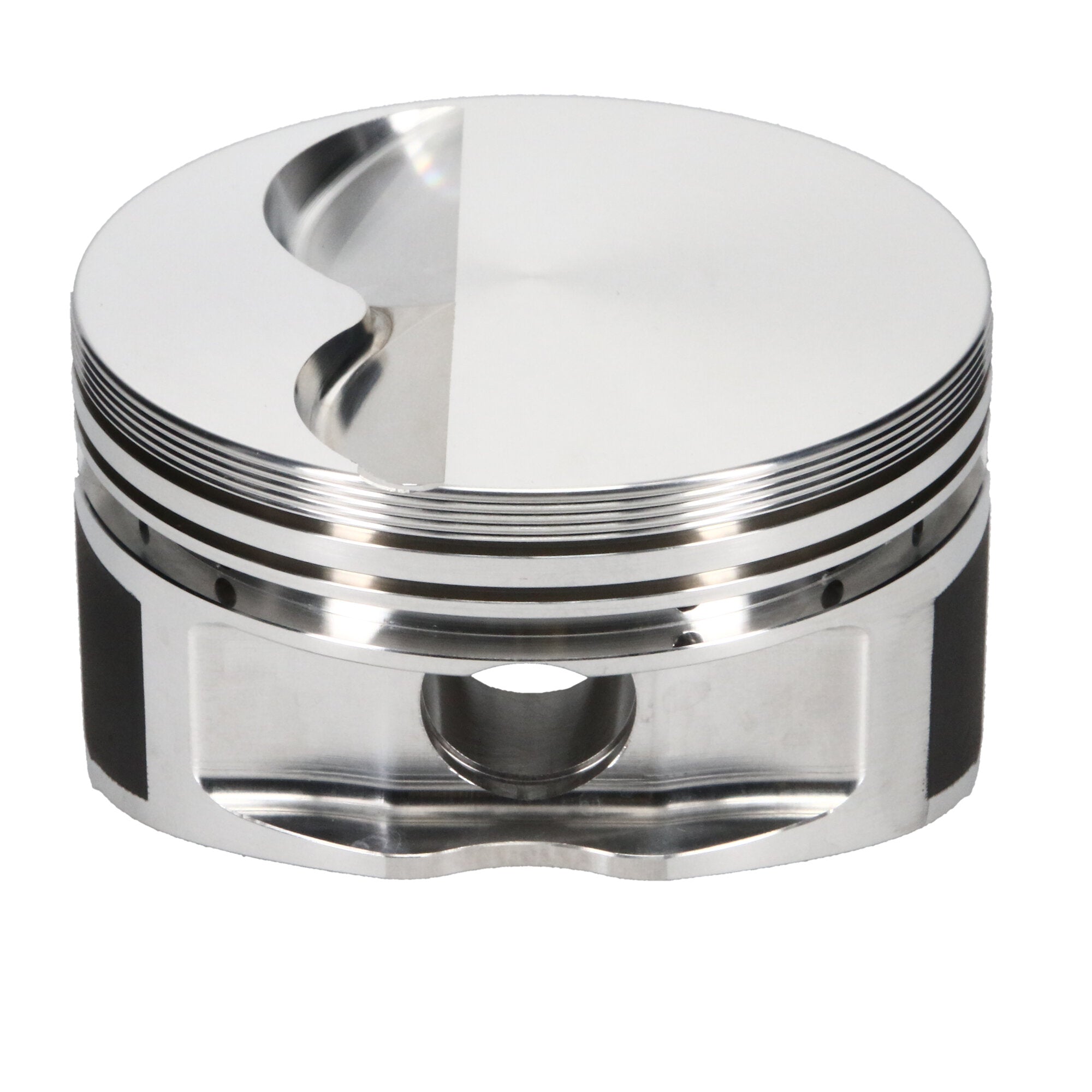

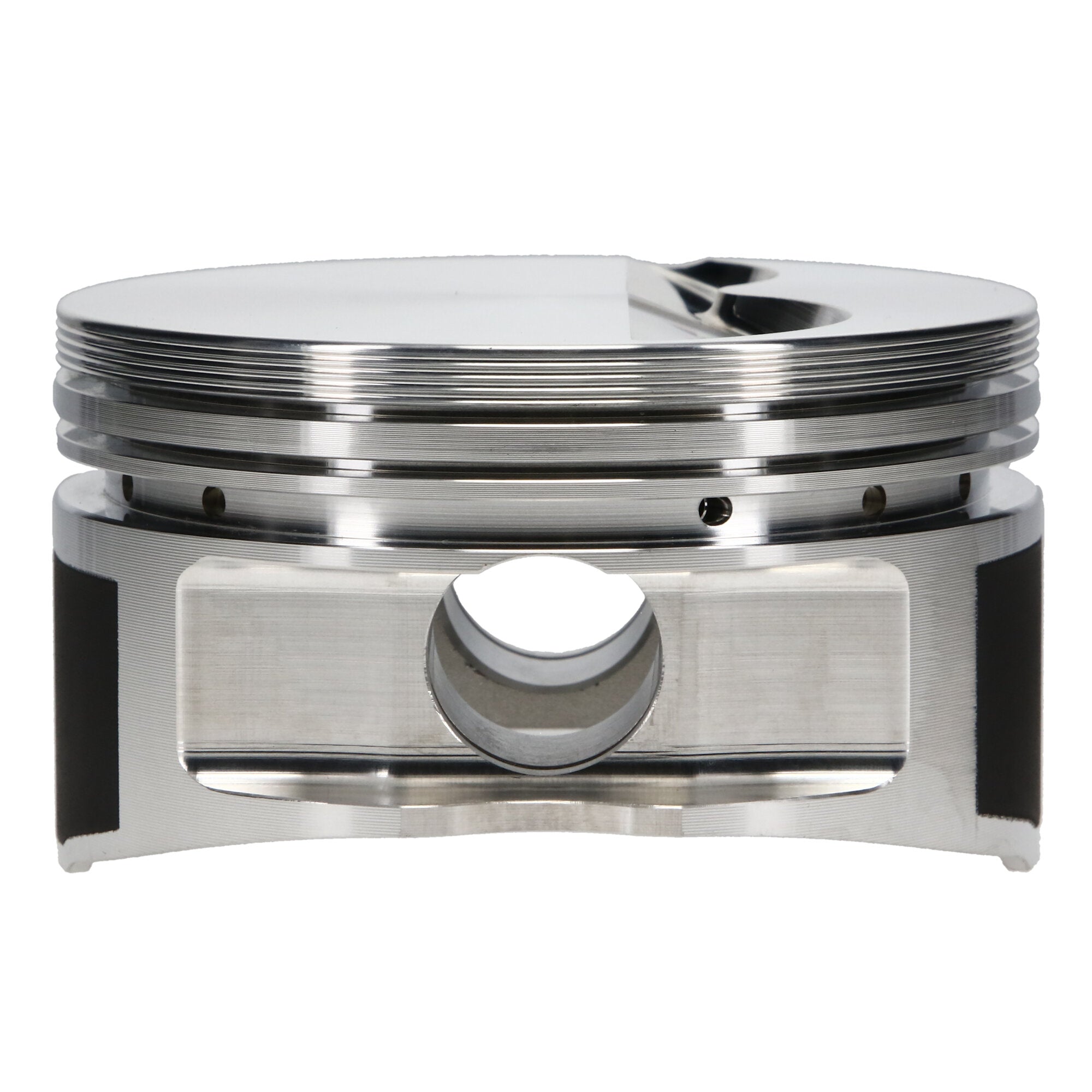

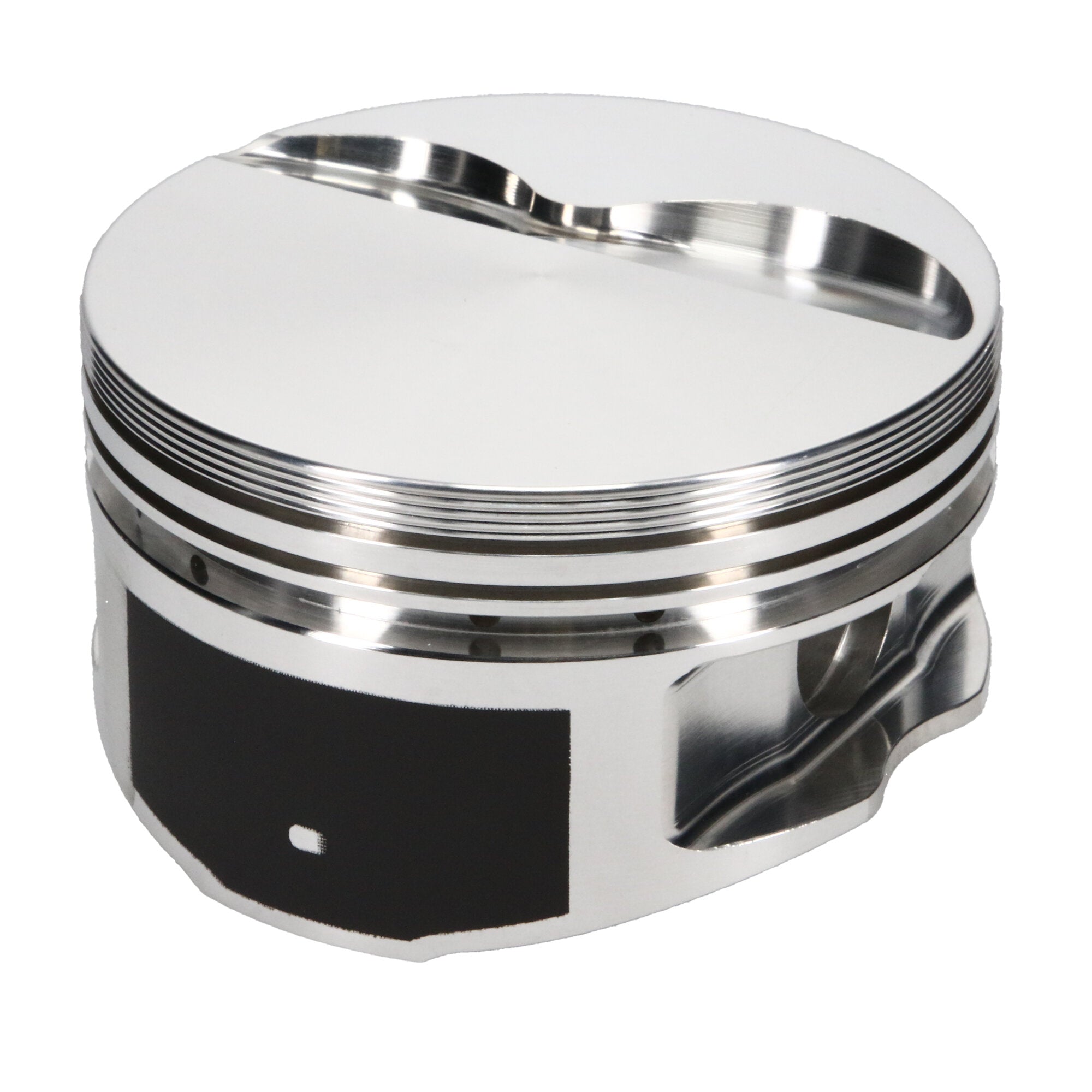

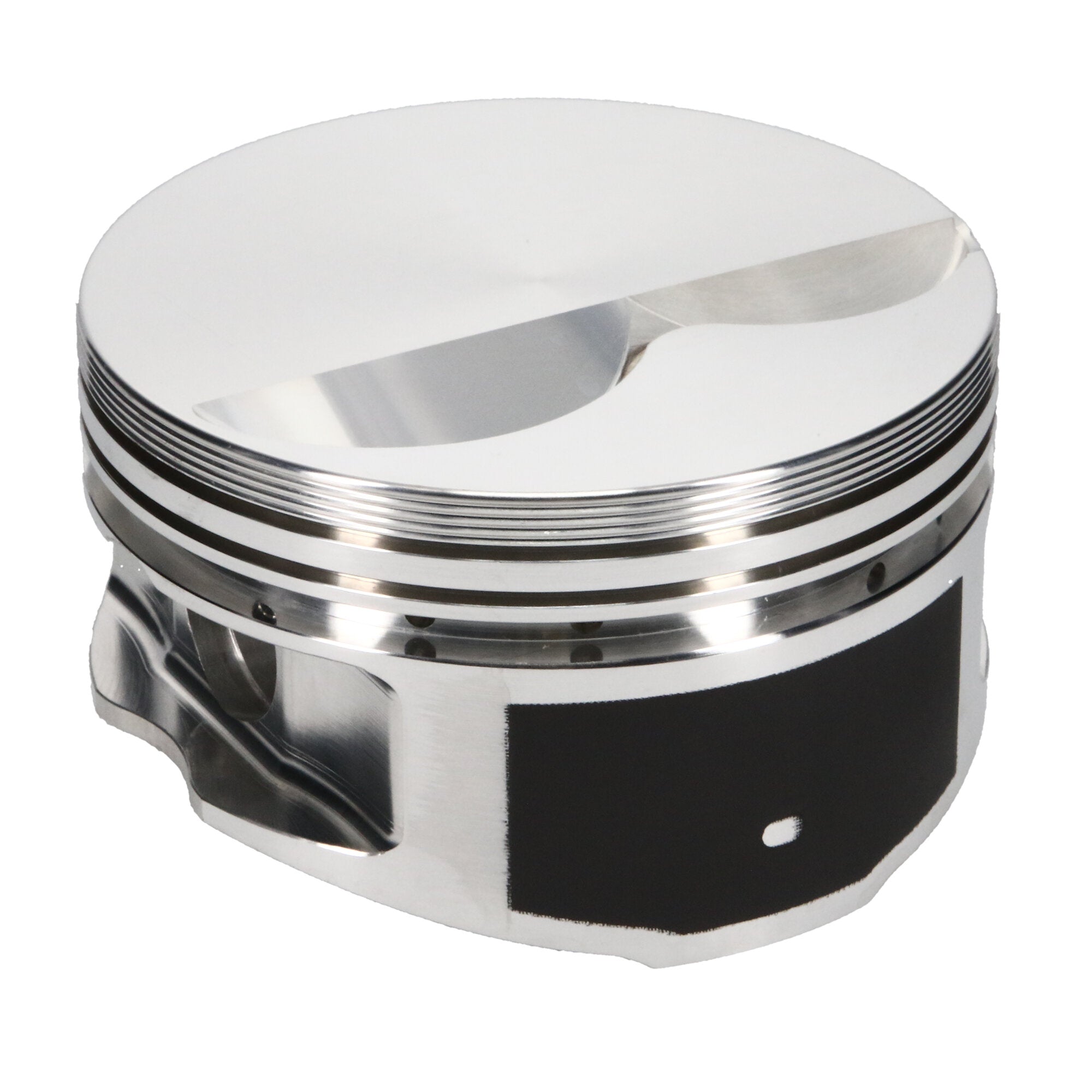

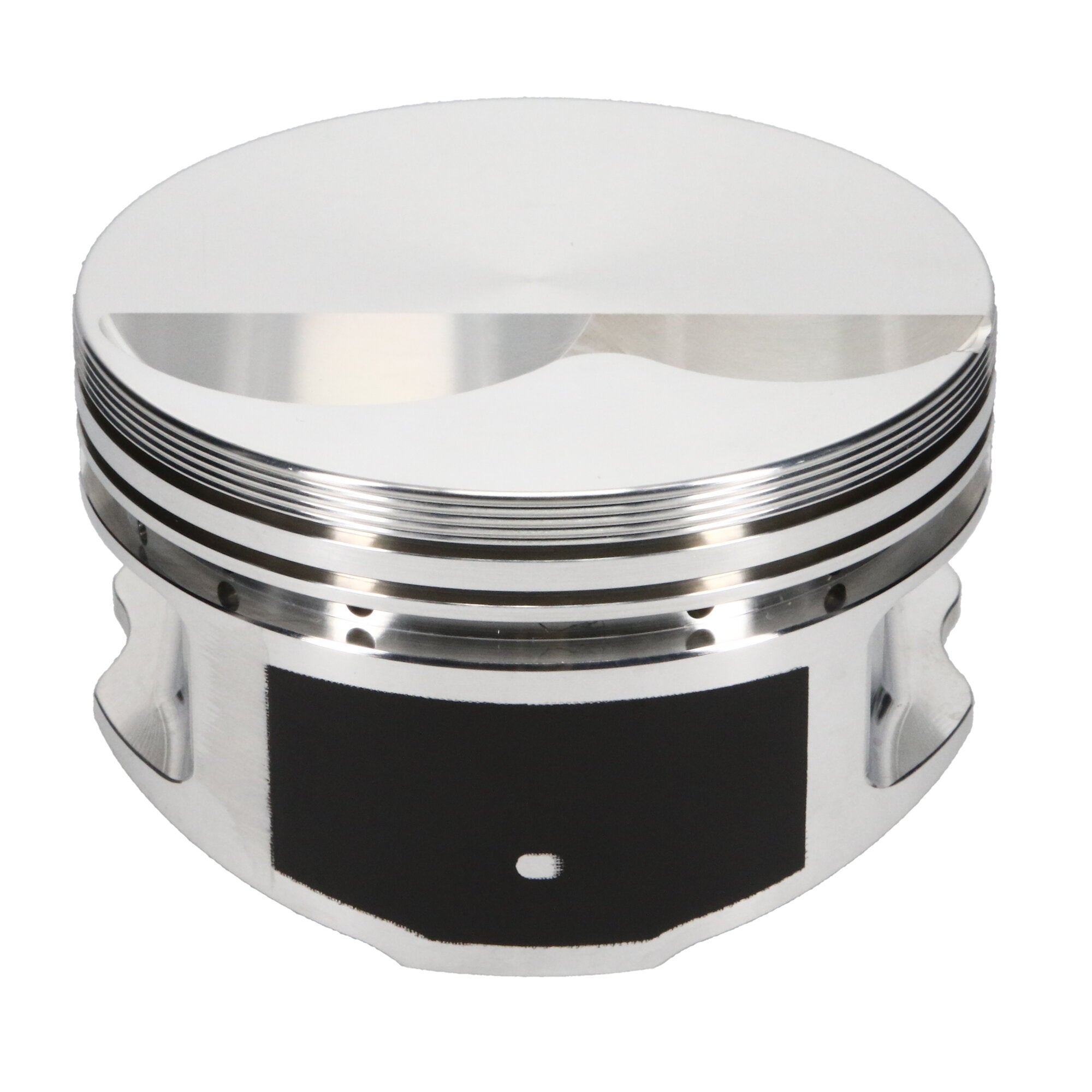

Piston Set, 2618, Flat Top, 4.125 Bore, 1.280 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.125 in. Bore, 1.280 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 351 Windsor, 4.125 Bore, Flat, Set of 8 |
| Description_SHO |
Piston Kit |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Out of Stock Message |
Call for Availability |
| Make - Web |
Ford |
| Second Compression Ring Thickness |
0.0640 |
| Industry |
Automotive |
| Piston Material |
2618 |
| Add-On |
J10008-4125-5 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
-5.00 |
| Add-On |
927-2750-15-51S |
| Add-On |
927-042-CS |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.125 in. Bore - 1.280 in. CH, -5.00 CC |
| Piston Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Product Market |
Domestic |
| Piston Average Weight |
490 |
| Top Compression Ring Thickness |
0.0640 |
| Compression Height |
1.280 |
| Oil Ring Thickness |
0.188 |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Ford, Small Block, 4.125 in. Bore, Piston Kit |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Head Type |
Flat |
| Piston Pin Material |
5115 |
| Bore Diameter |
4.125 |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
Round |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
