As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 Stroker |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |

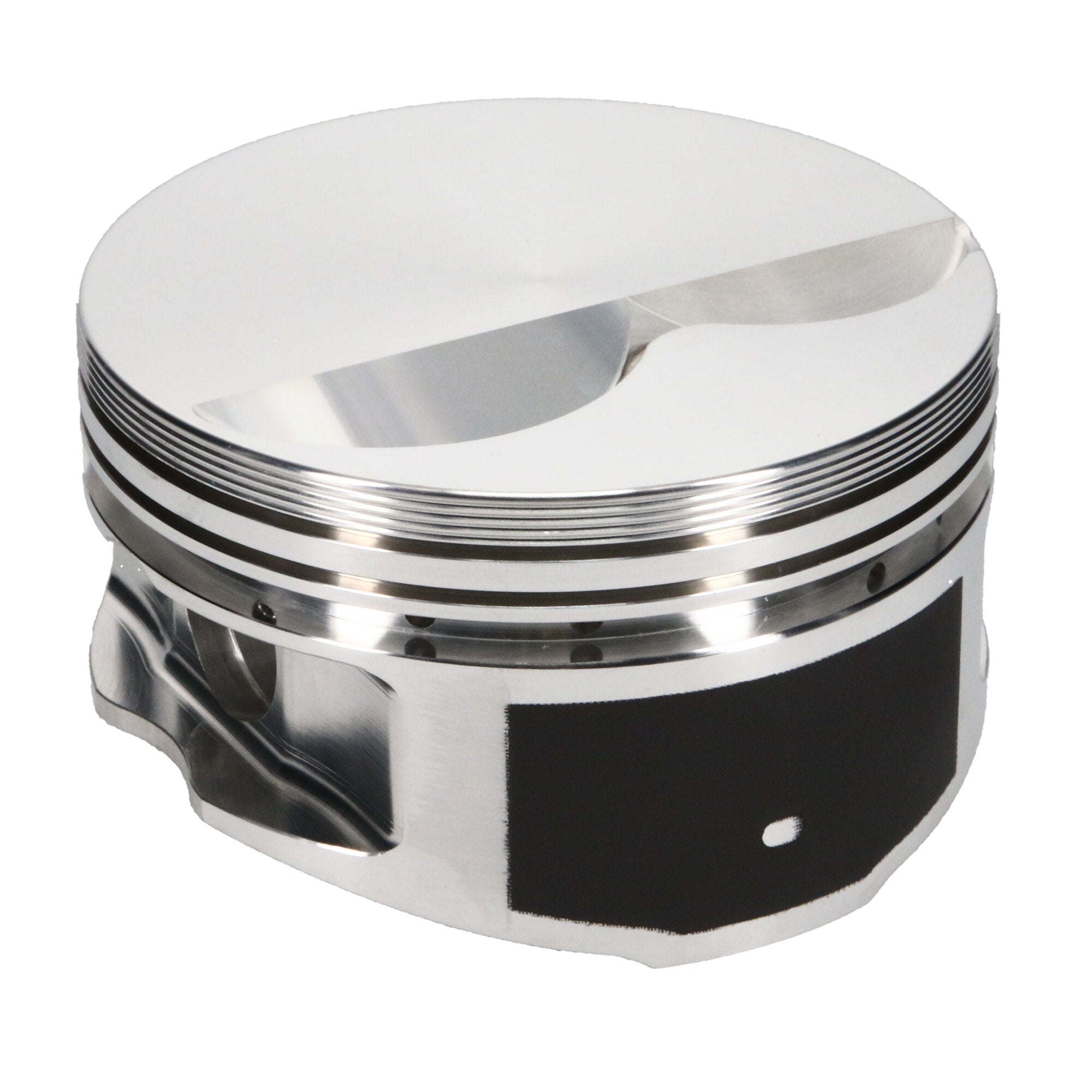

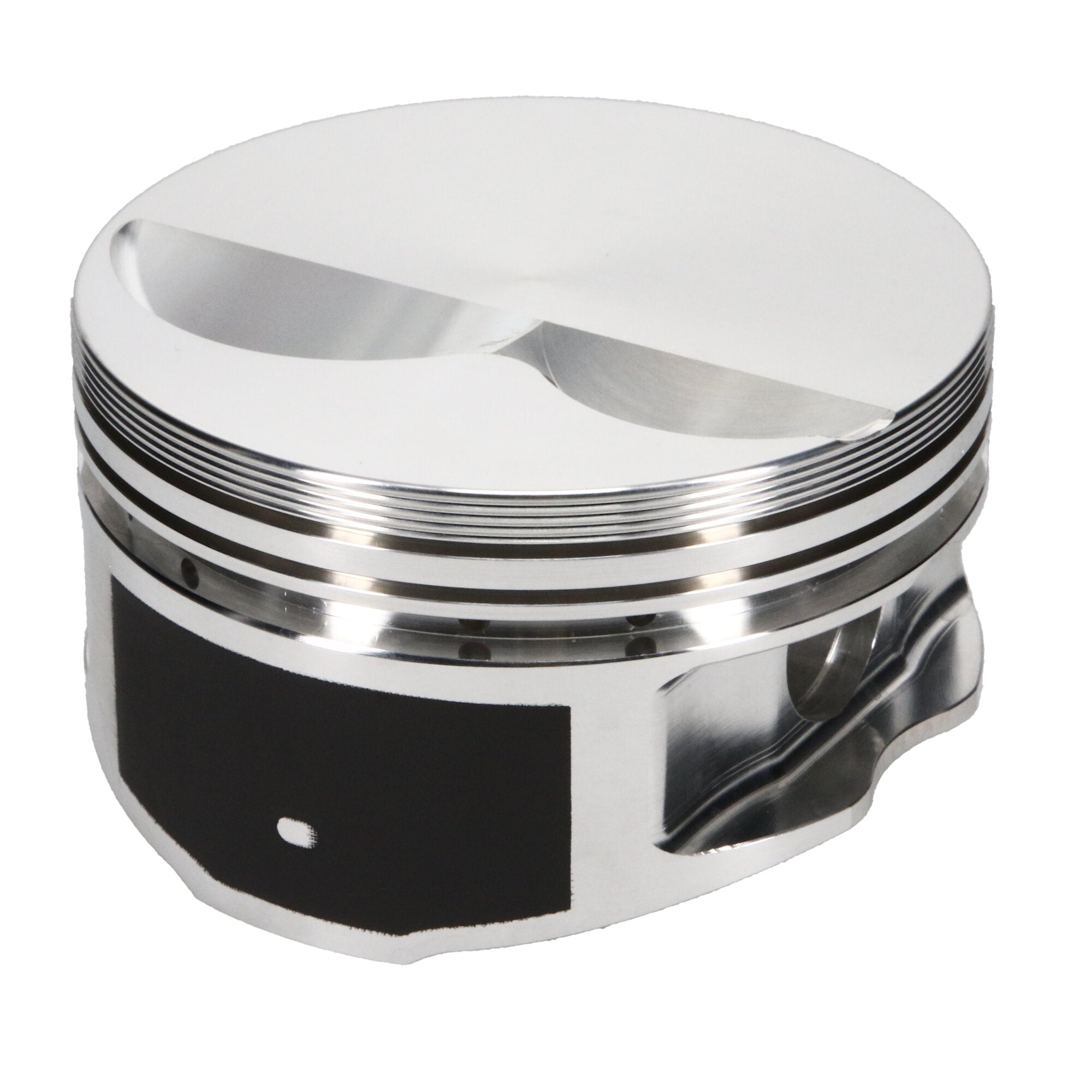

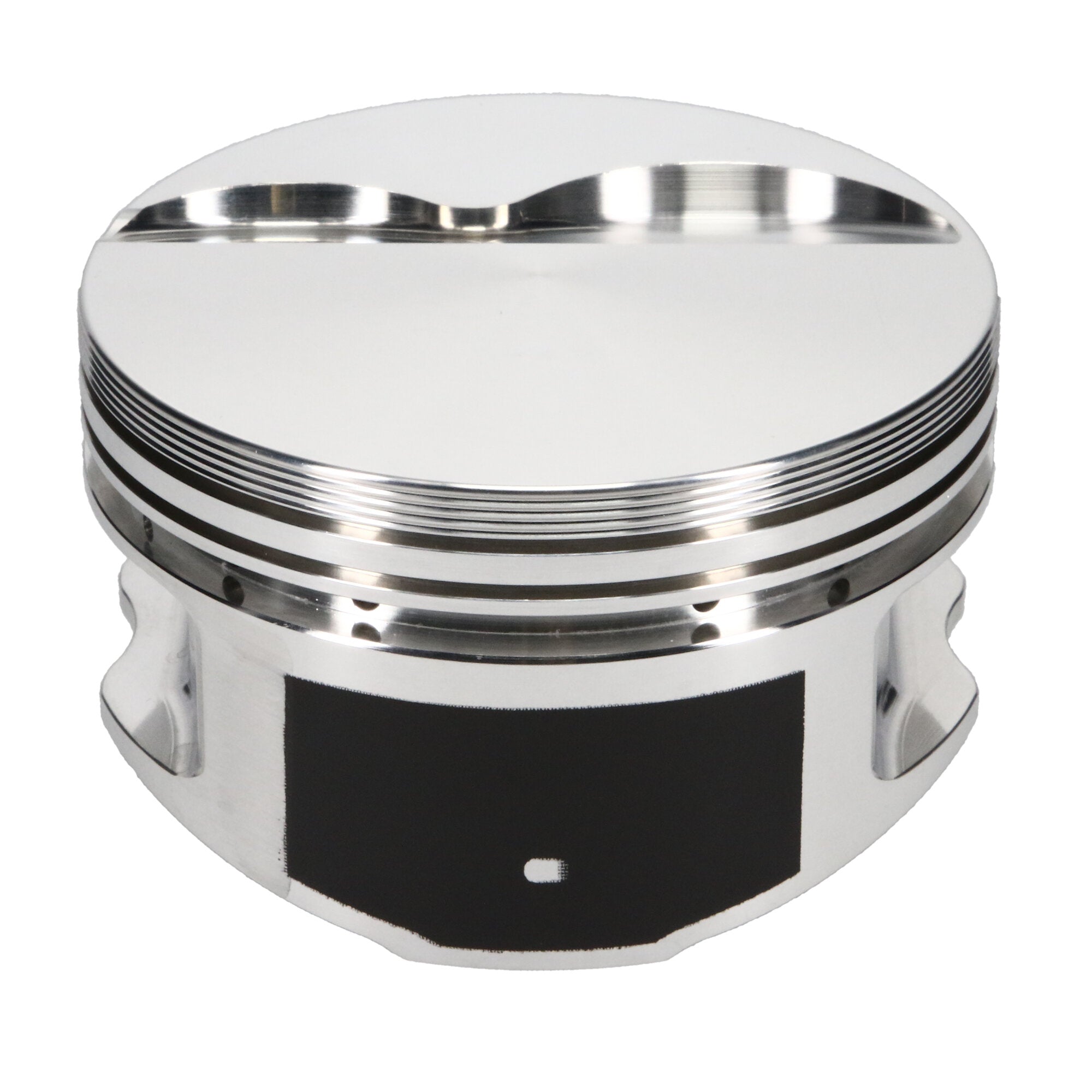

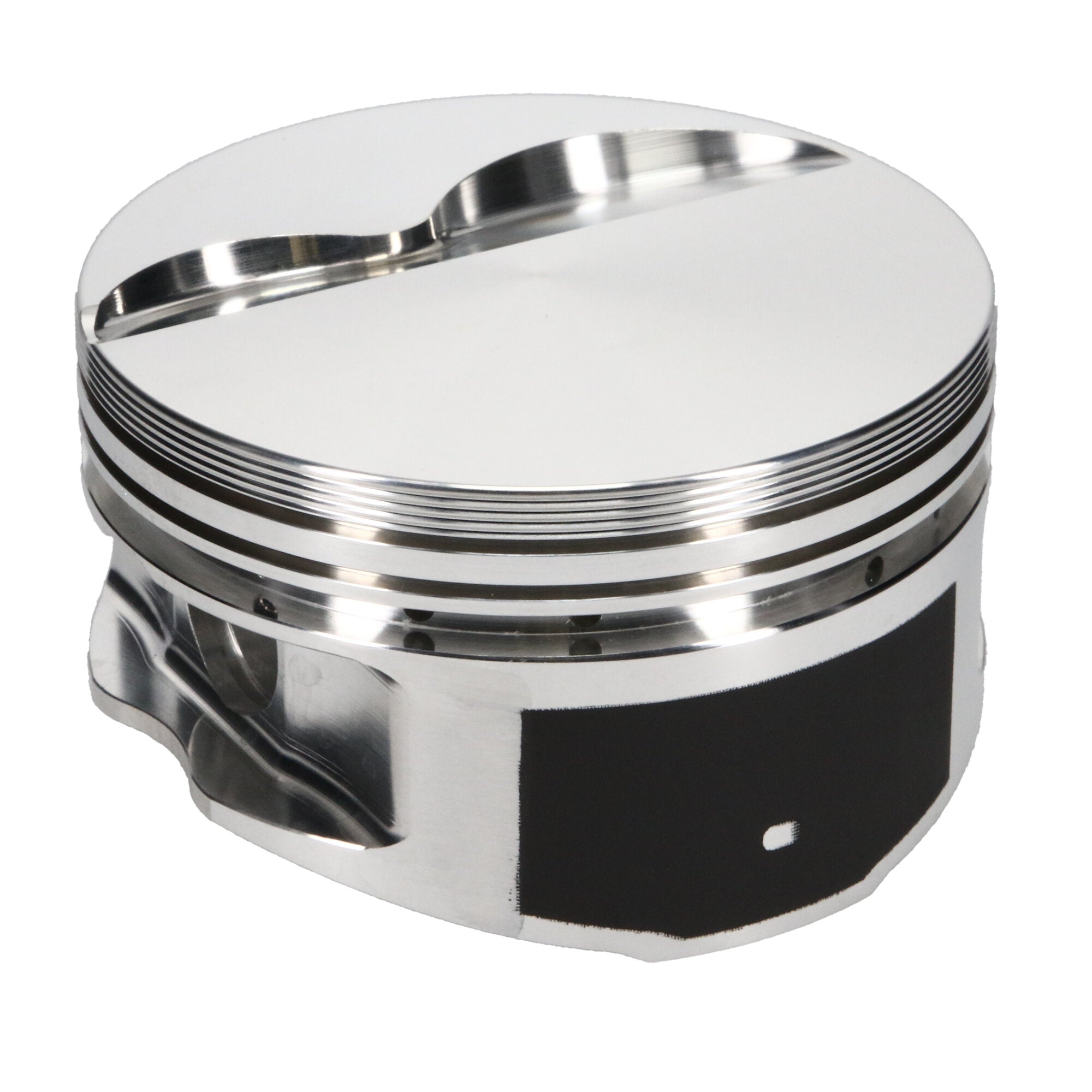

JE, Ford, Small Block Ford, 4.125 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_DES |

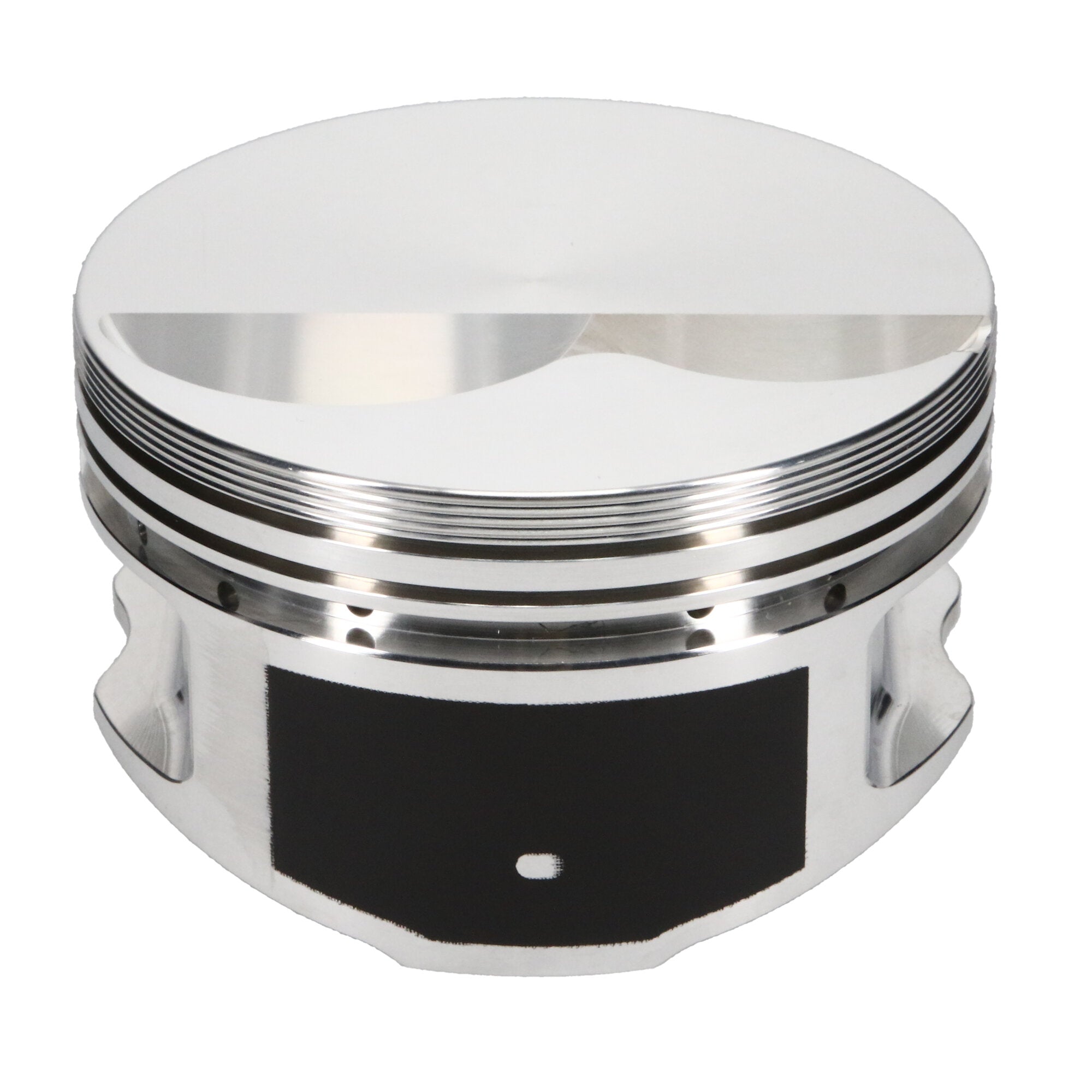

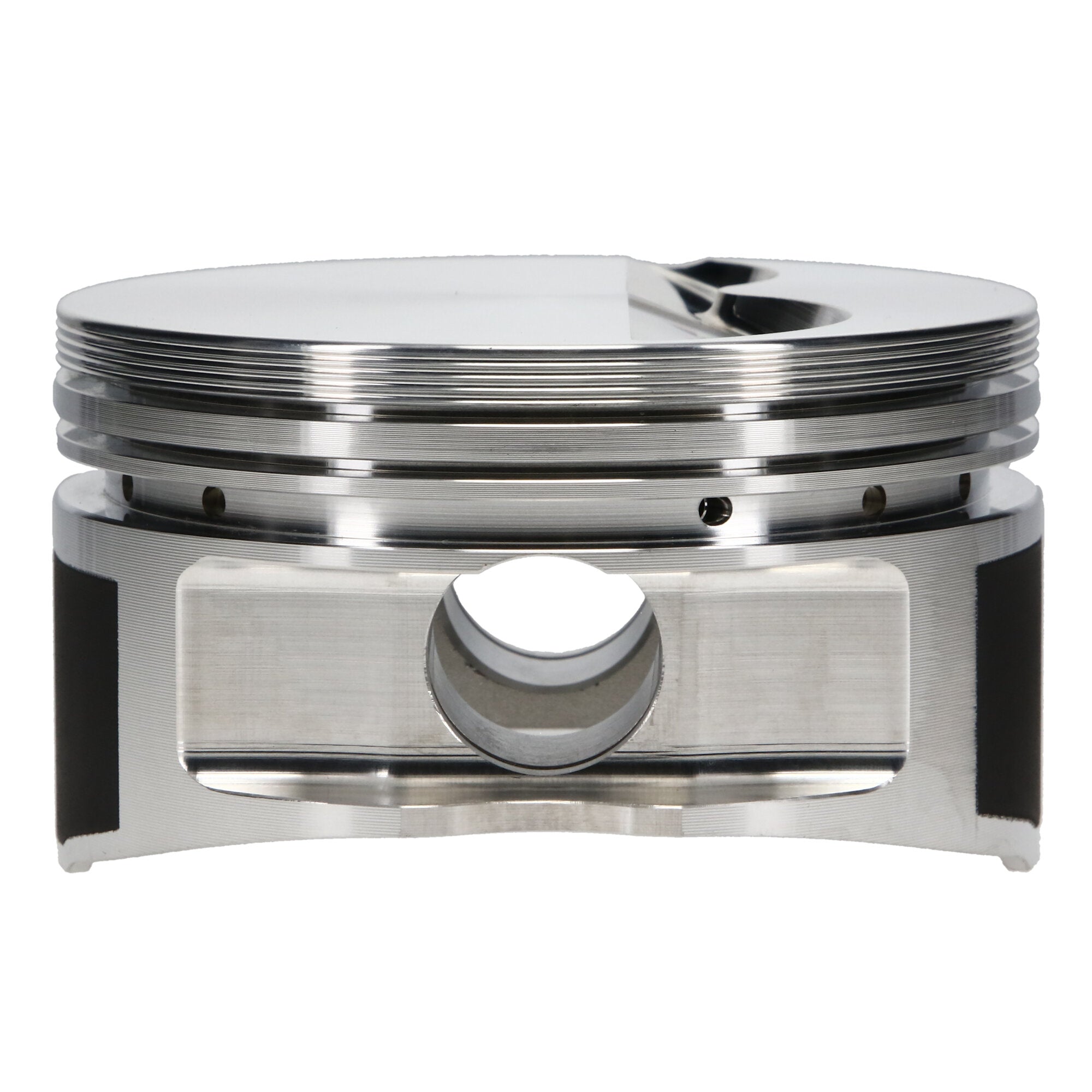

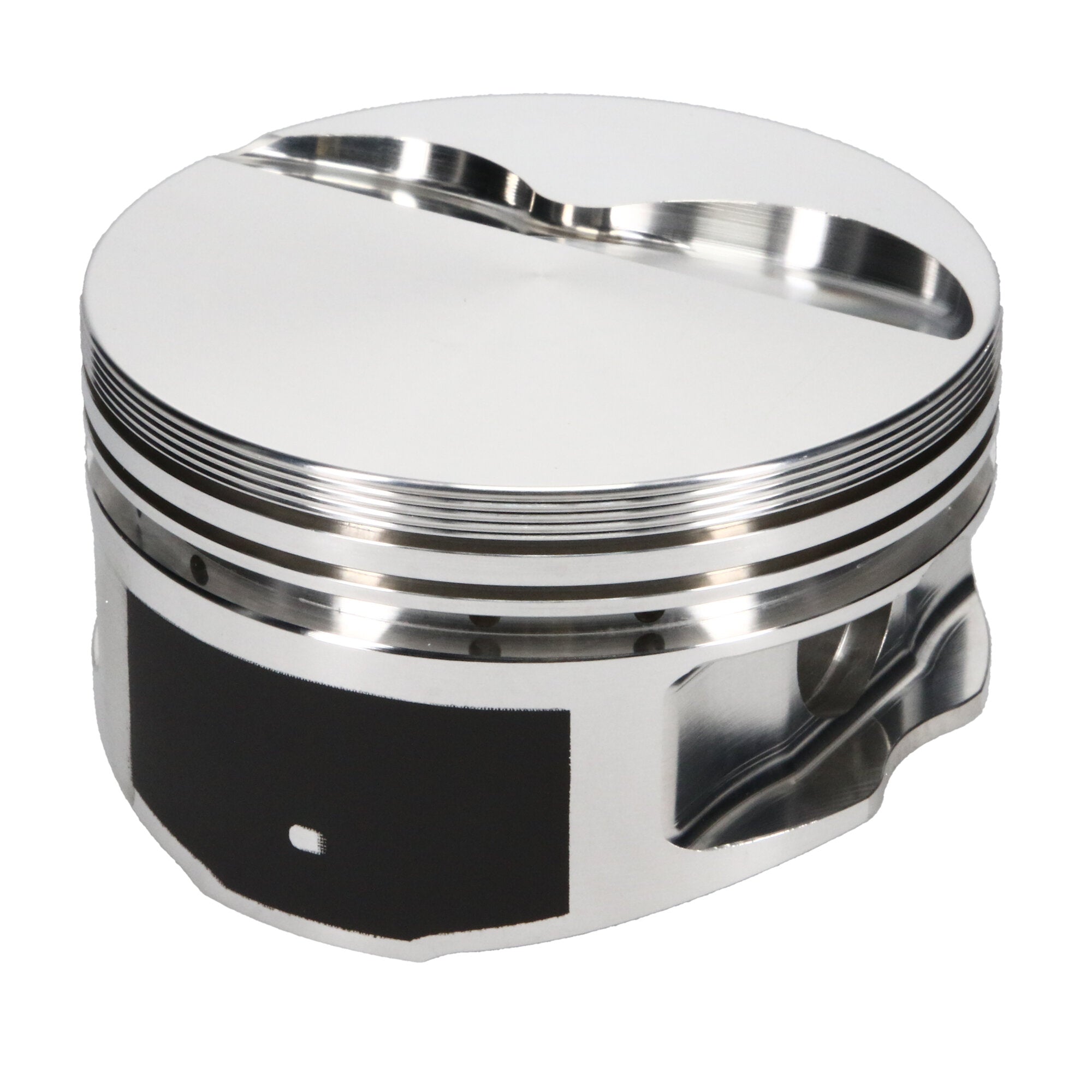

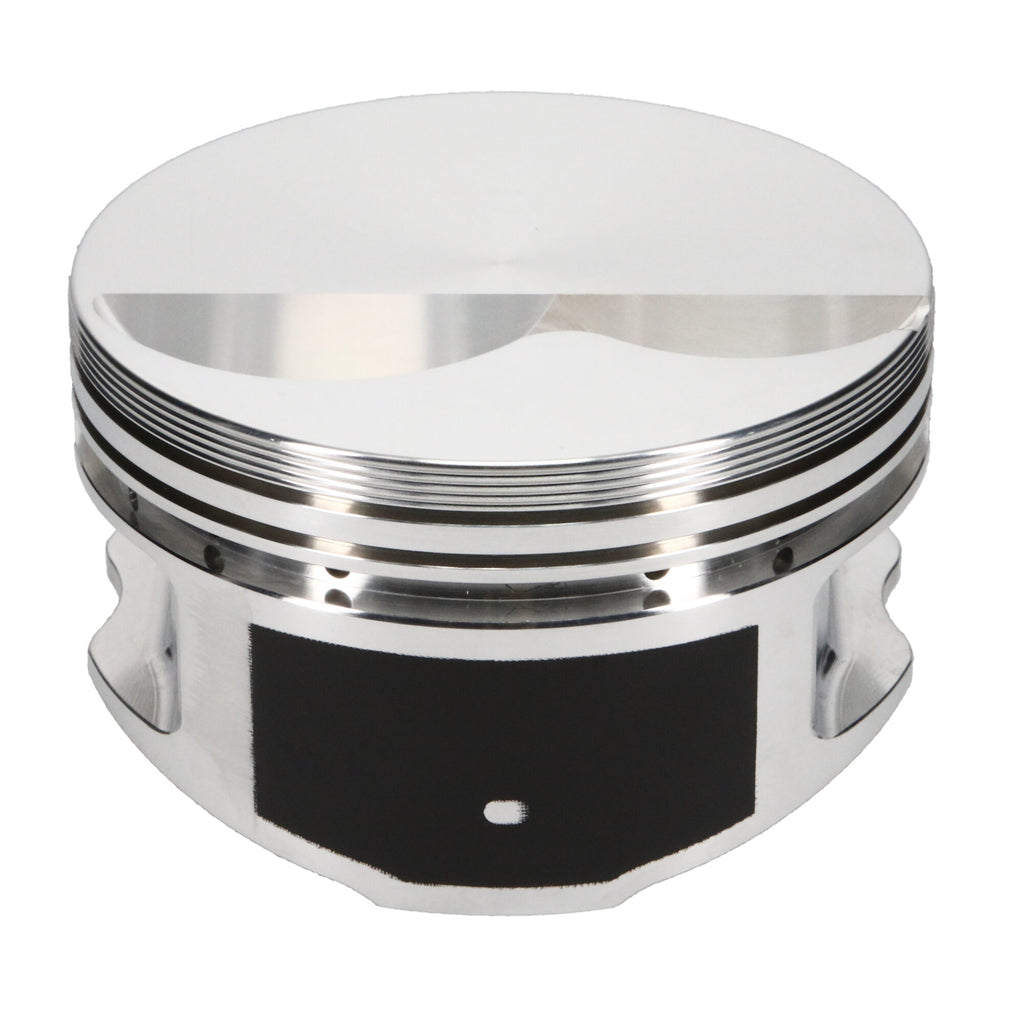

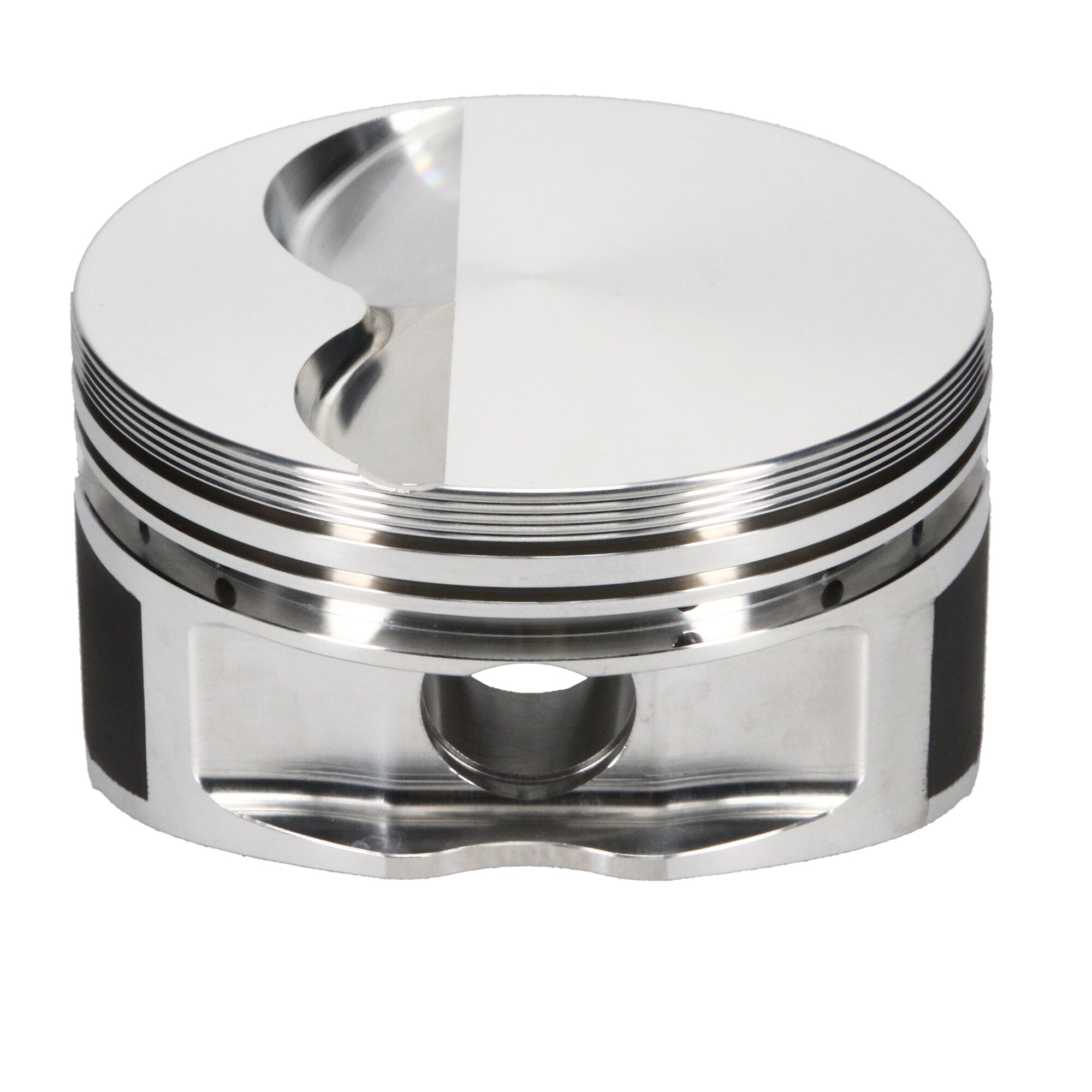

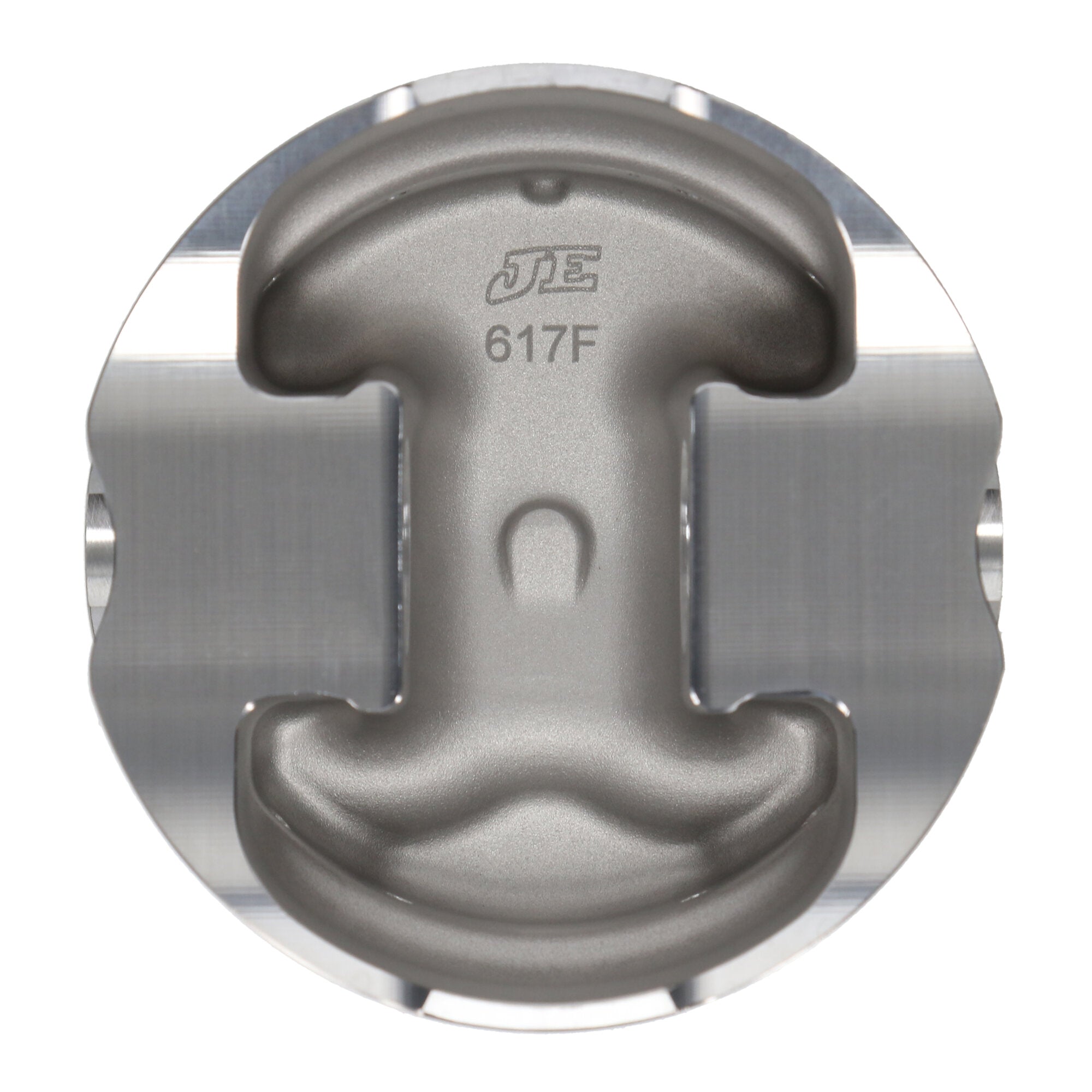

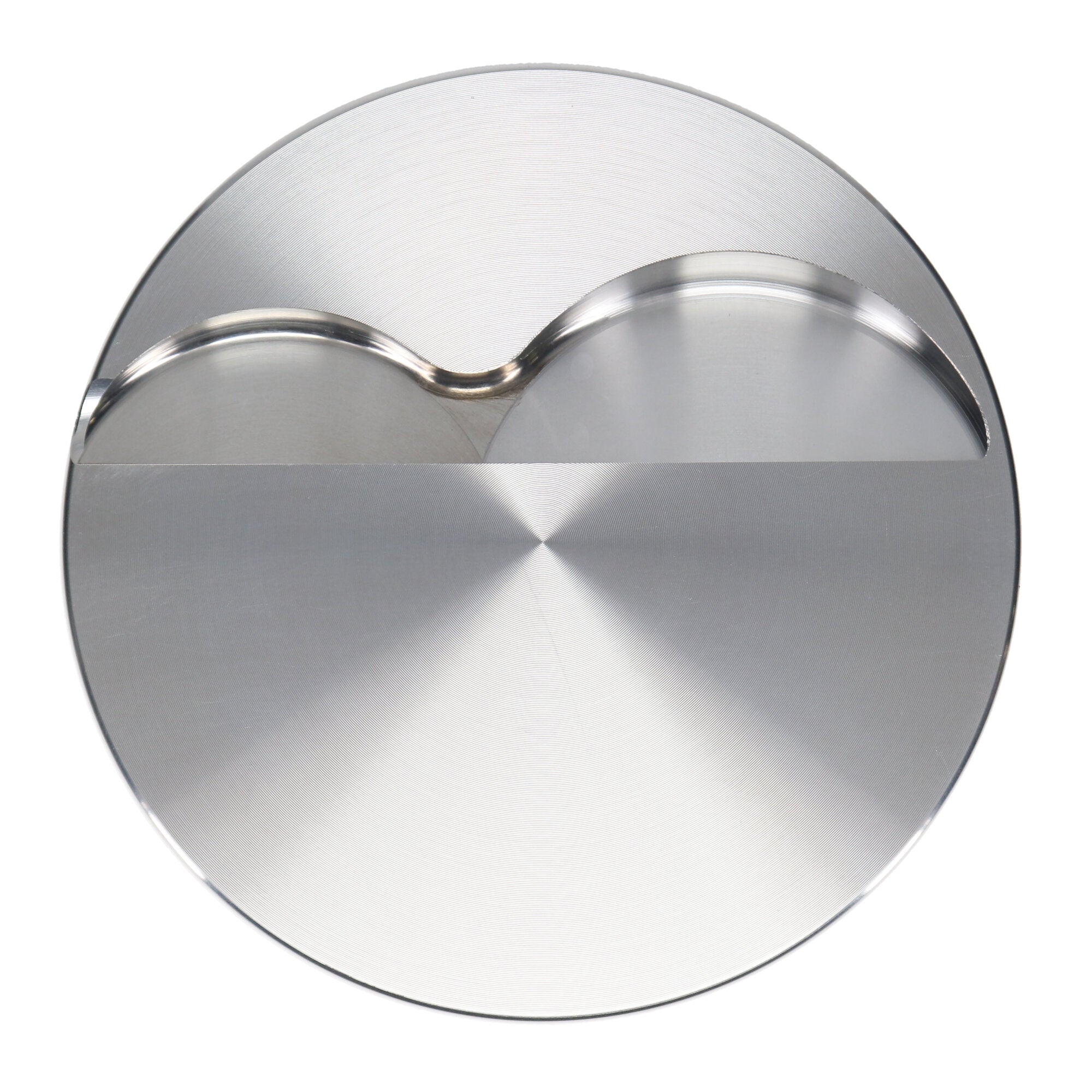

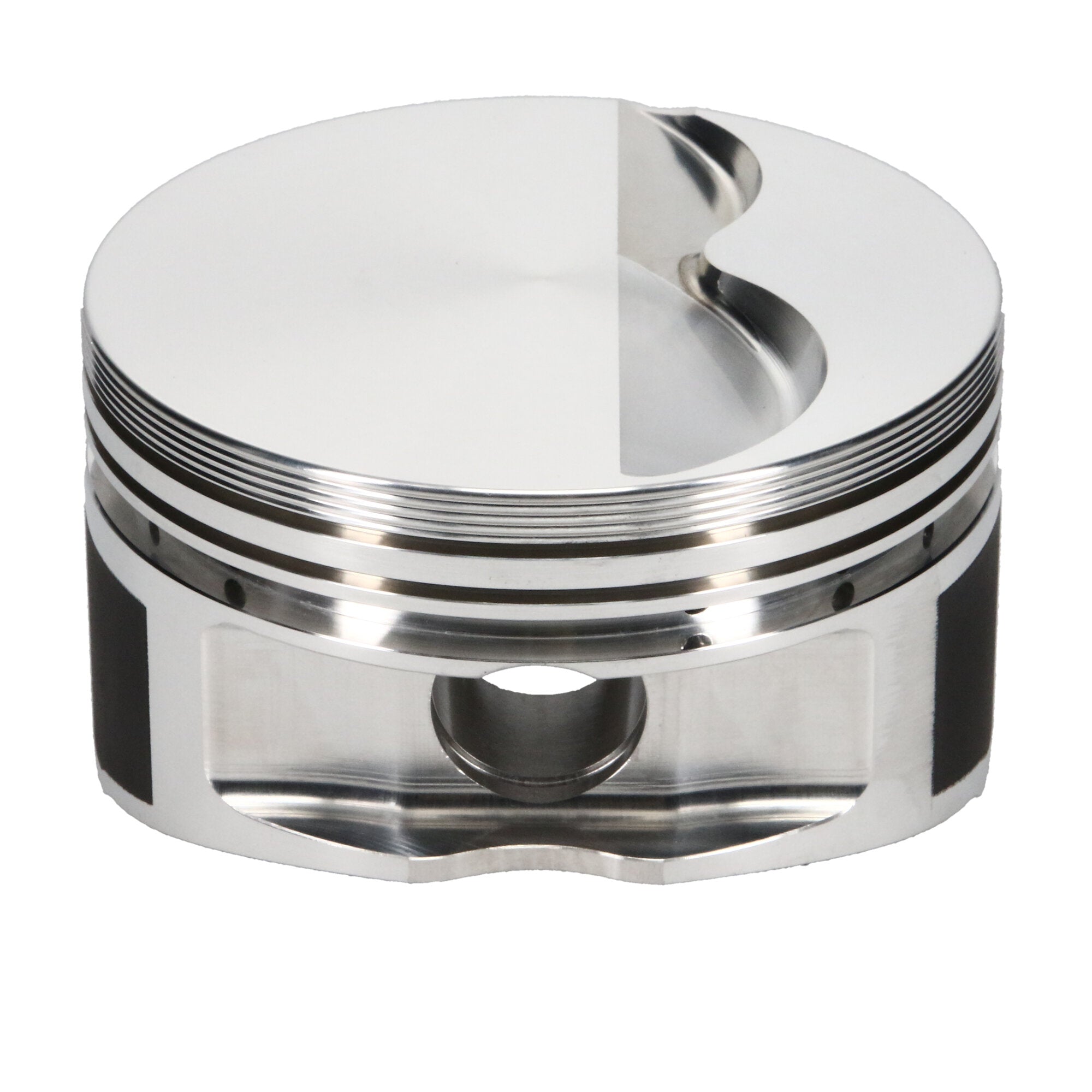

Piston Set, 2618, Flat Top, 4.125 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Ford 302 Stroker, 4.125 Bore, Flat, Set of 8 |
| Ring Set Included |
No |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Top Compression Ring Thickness |
0.0640 |
| Wrist Pin Length |
2.750 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Product Market |
Domestic |
| Piston Average Weight |
438 |
| Compression Height |
1.100 |
| Piston Quantity |
8 |
| Title |
JE Pistons - Ford, Small Block, 4.125 in. Bore, Piston Kit |
| Piston Volume |
-5.00 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Engine - Web |
Small Block |
| Add-On |
927-042-CS |
| Bore Diameter |
4.125 |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J10008-4125-5 |
| Piston Material |
2618 |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.125 in. Bore - 1.100 in. CH, -5.00 CC |
| Add-On |
927-2750-15-51S |
| Second Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Flat |
| Forging Type |
Round |
| Ringset Included |
No |
| Engine |
Small Block |
| Make |
FORD |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.218 |
| Piston Series |
JE Pistons |
| Piston Pin Material |
5115 |
| Piston Pin Length |
2.750 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
