As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_DEF |
Engine Piston Kit |
| Description_ASM |
Ford Small Block 302 |
| Description_DES |

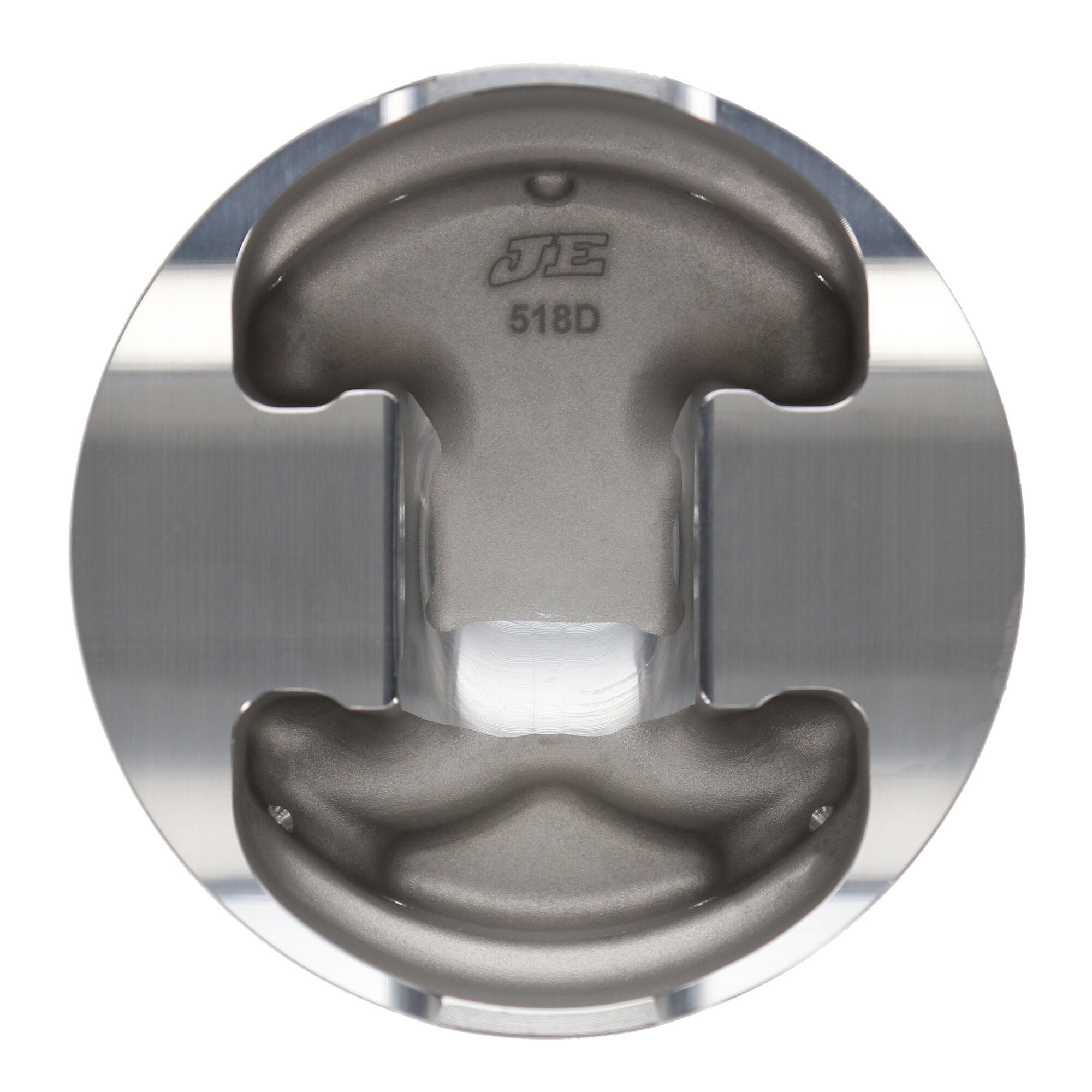

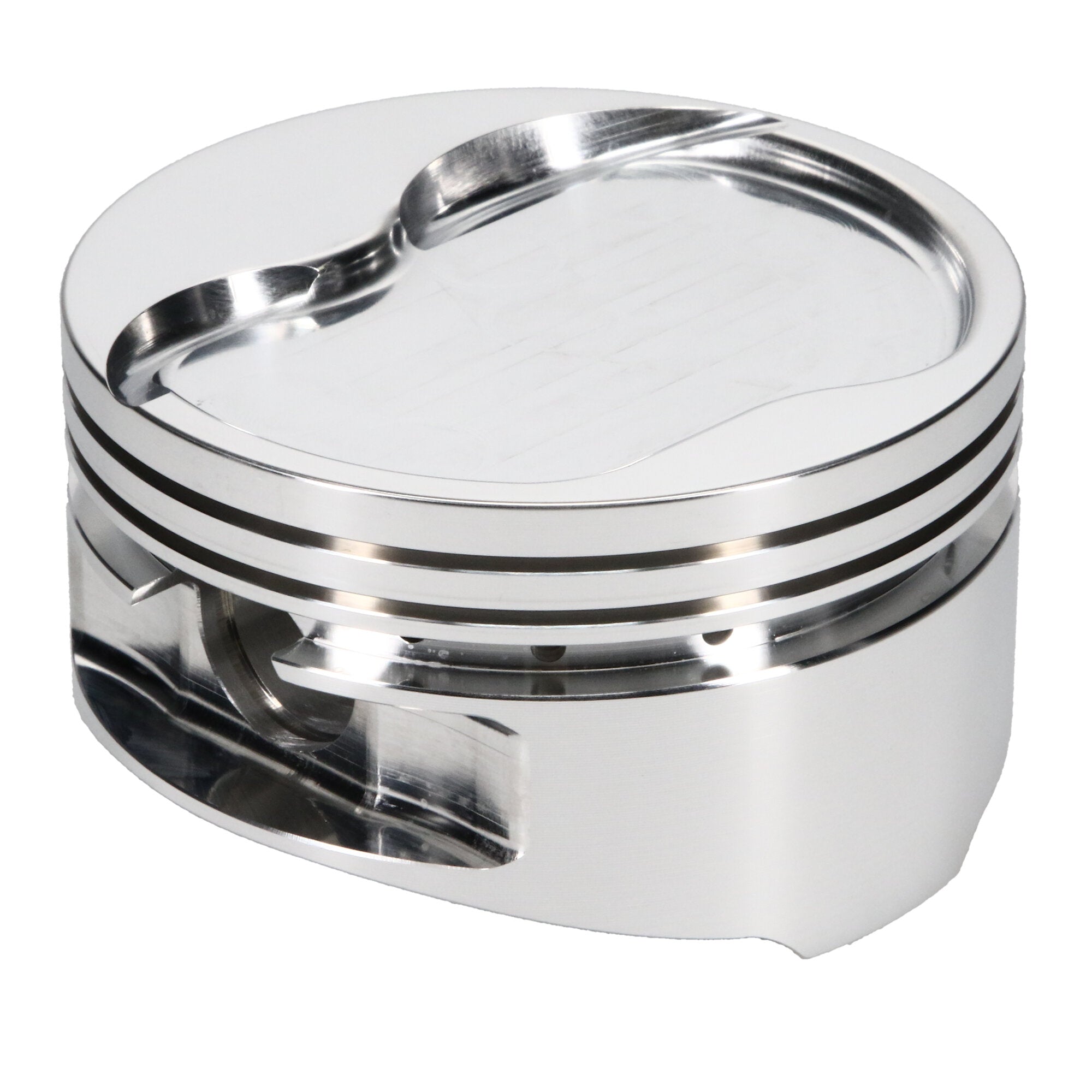

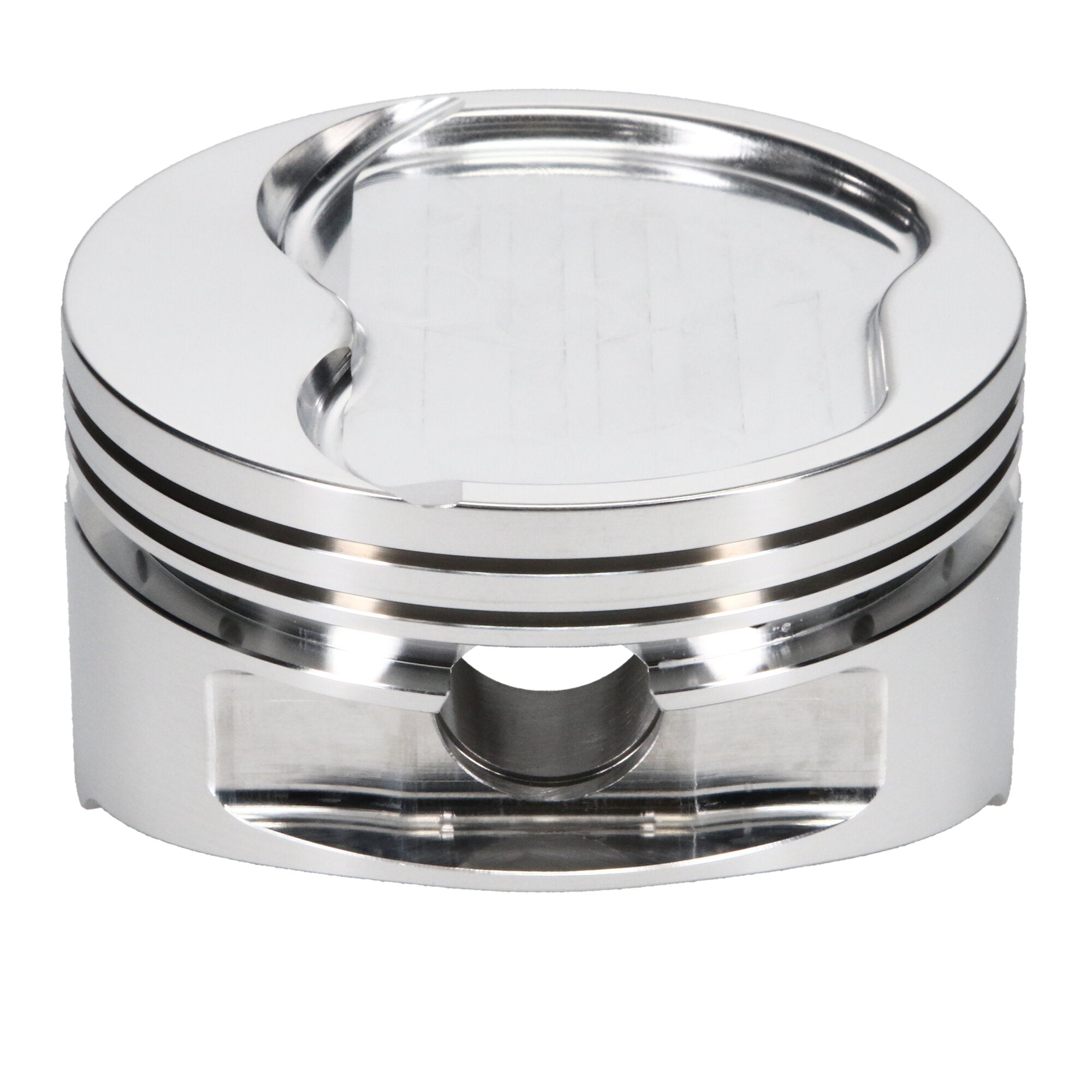

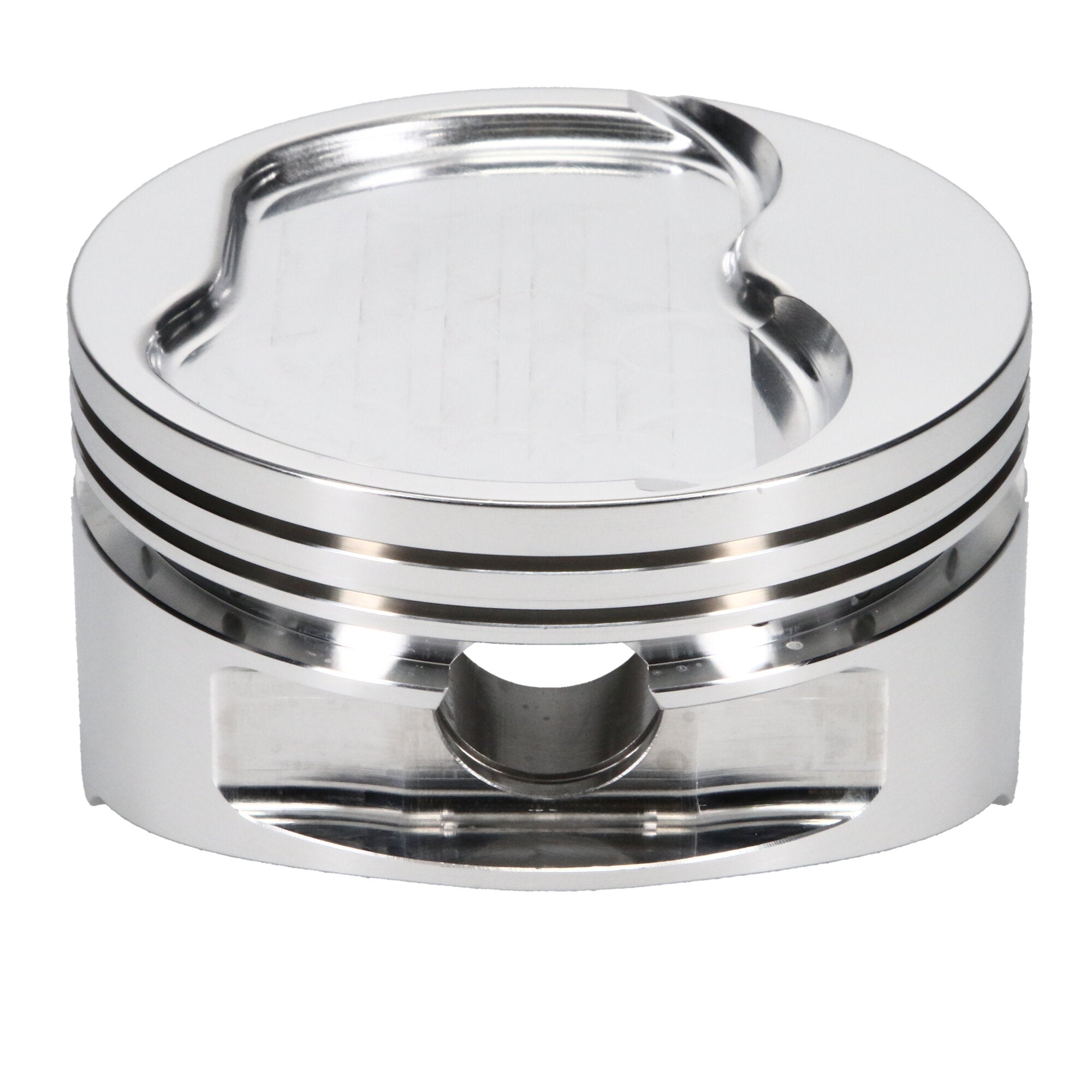

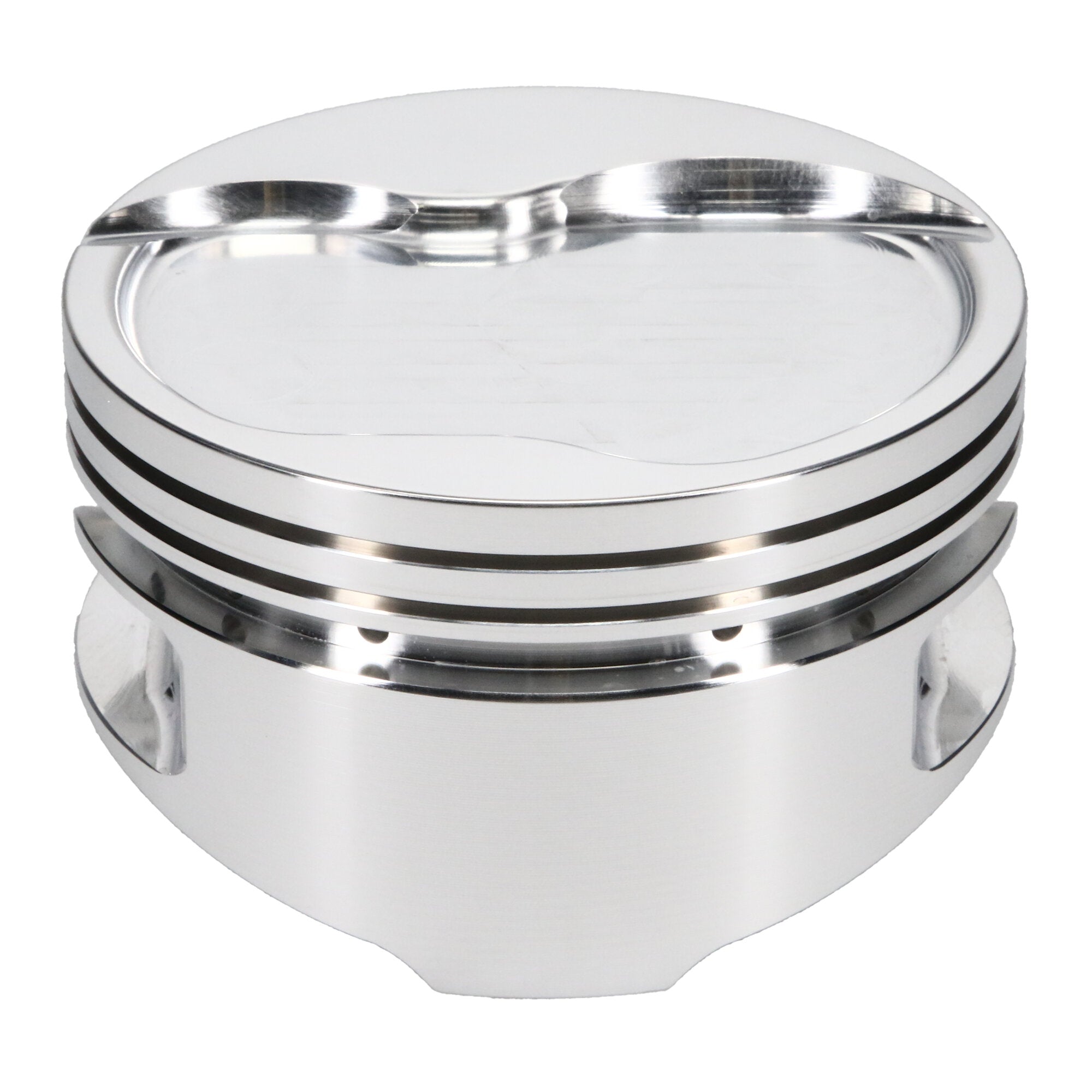

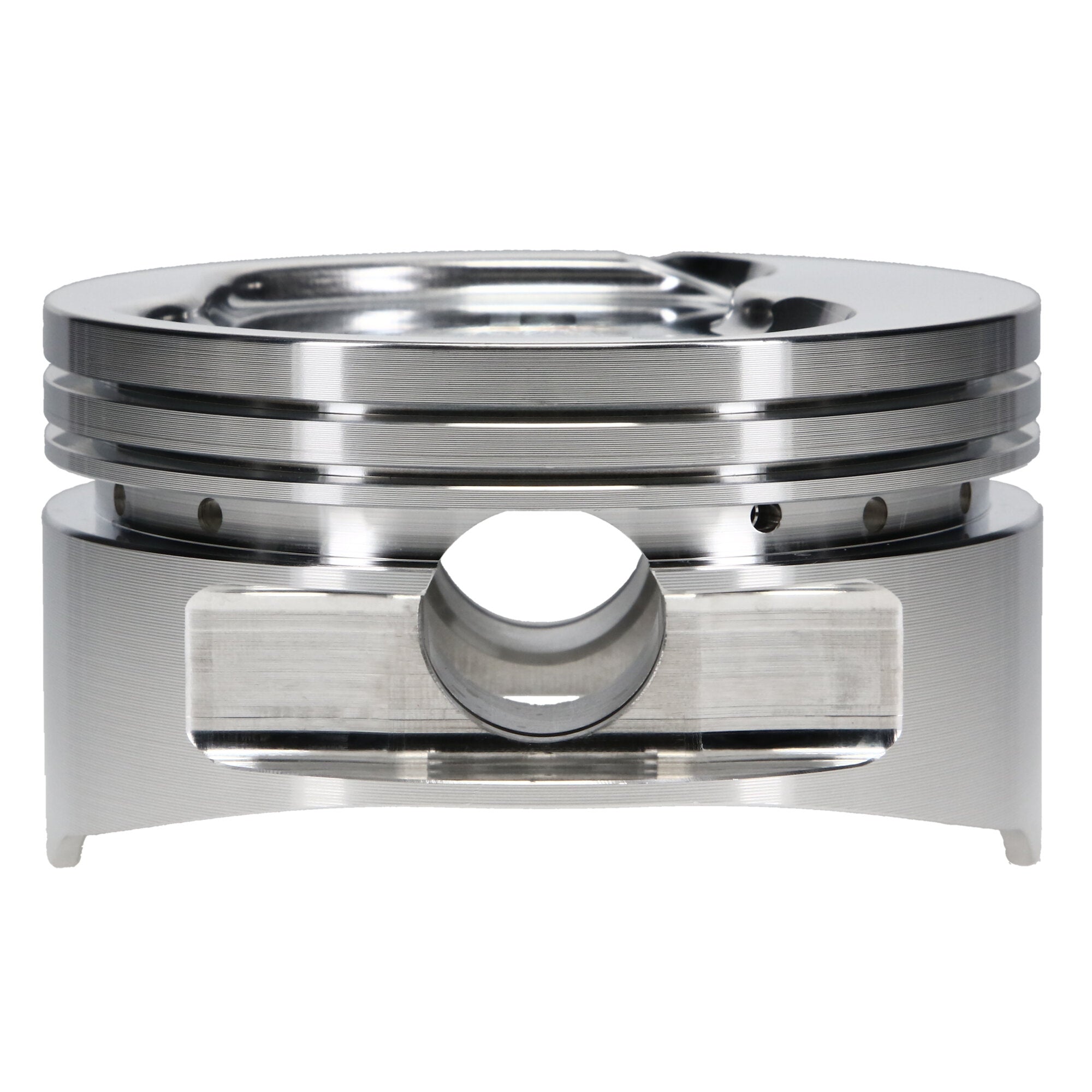

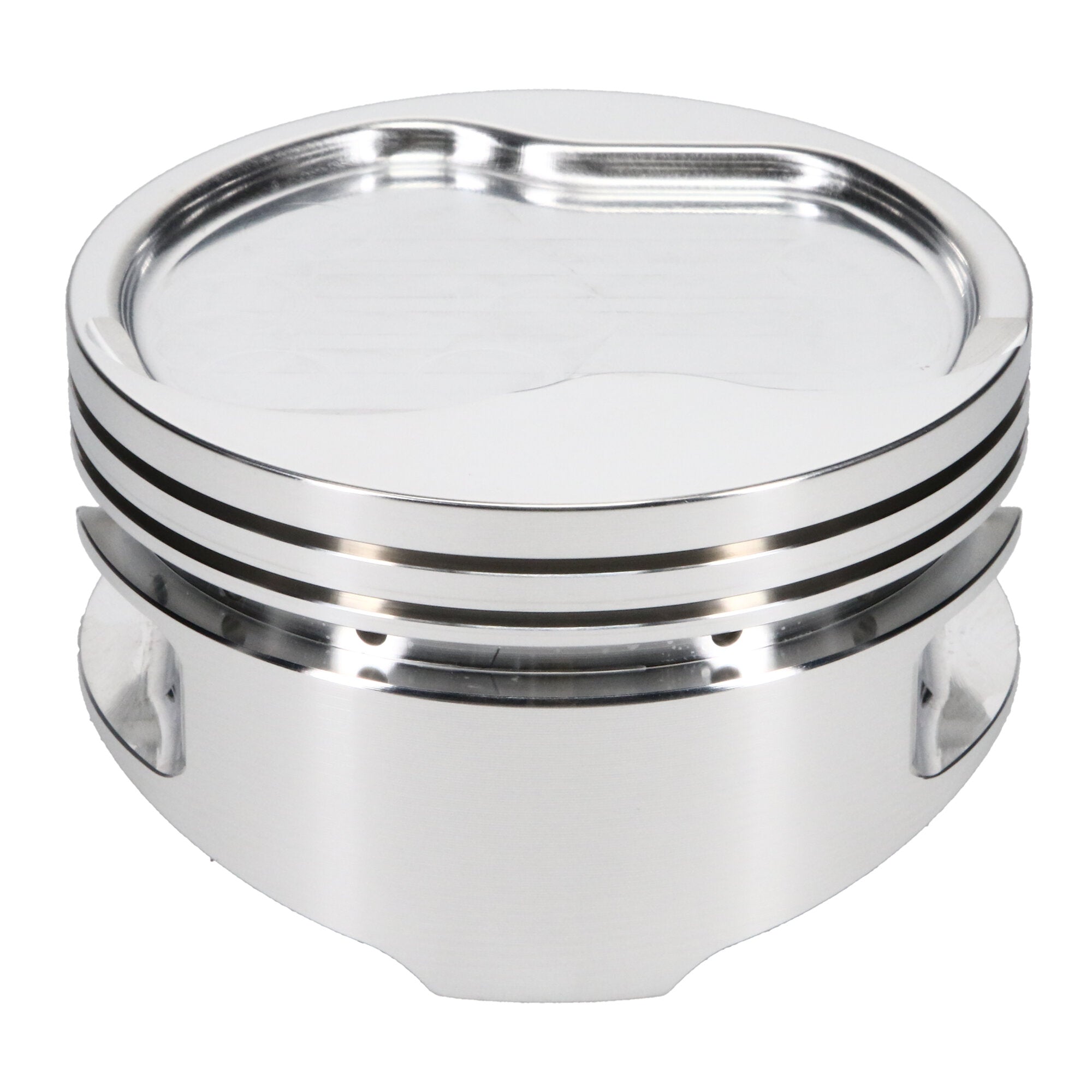

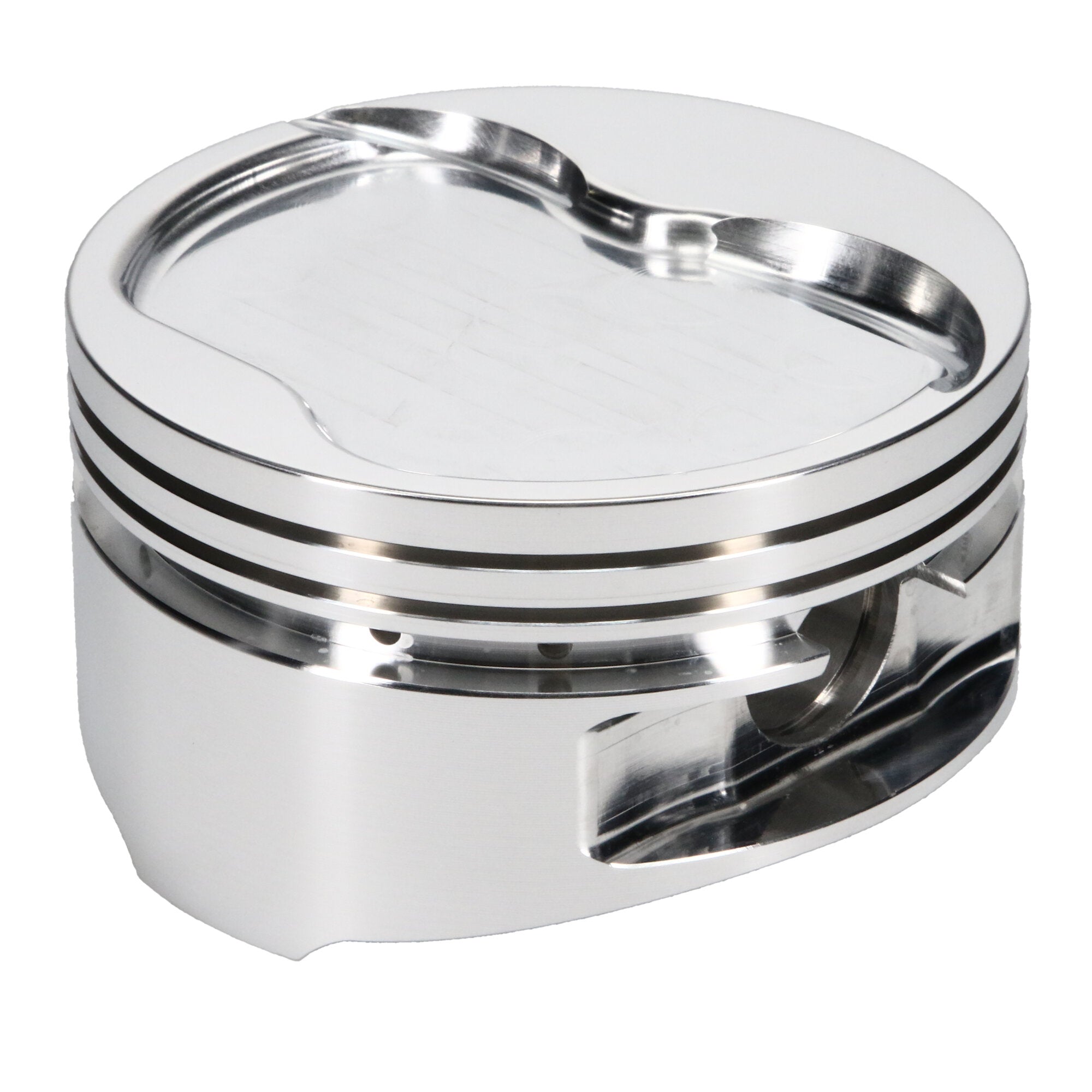

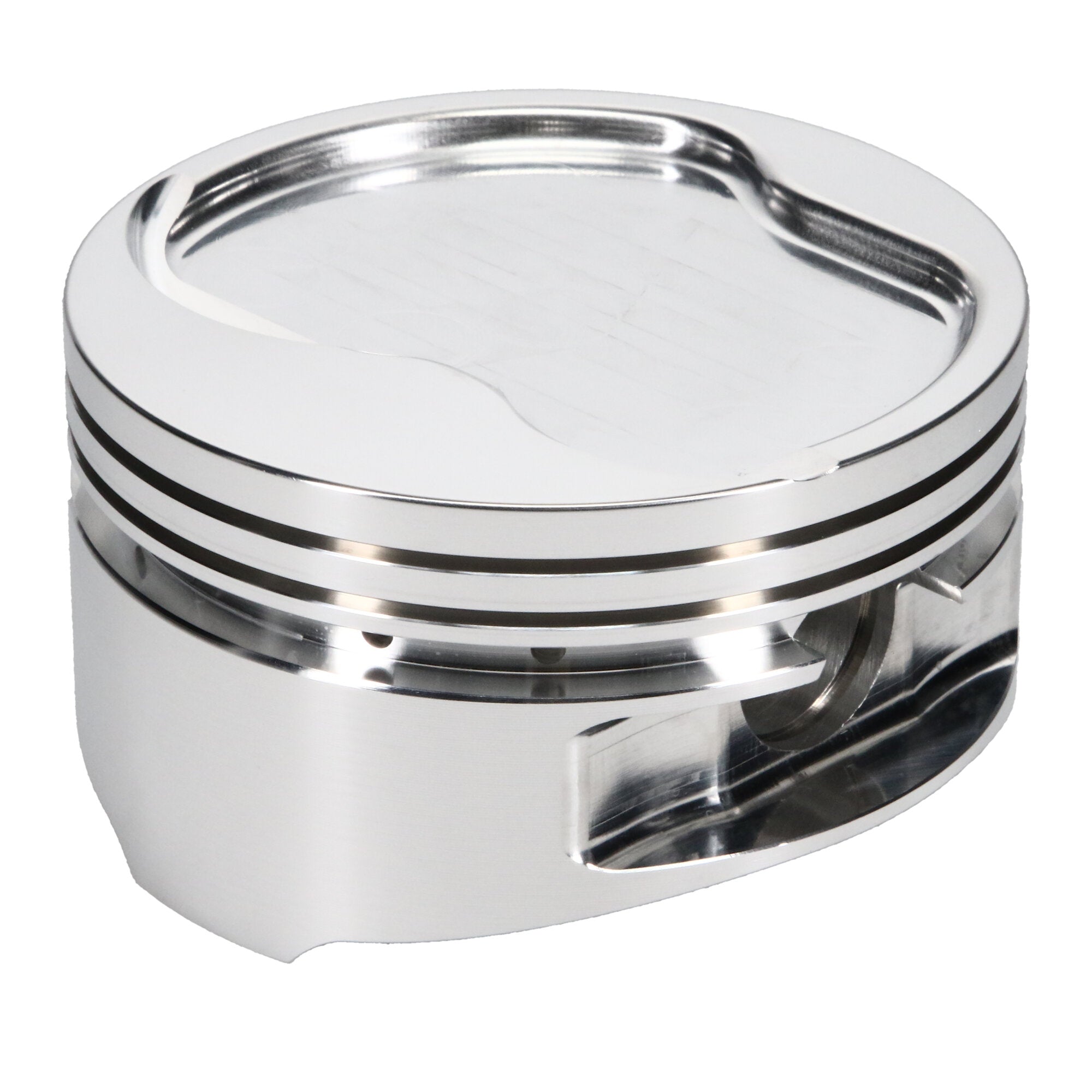

Piston Set, 2618, Inv Dome/Dish, 4.030 Bore, 1.175 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Small Block Ford, 4.030 in. Bore, 1.175 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Ford 302, 4.030 Bore, Dish, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Wrist Pin Length |
2.750 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Outside Diameter |
0.927 |
| Piston Average Weight |
439 |
| Make |
FORD |
| Title |
JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Compression Height |
1.175 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.030 |
| Engine - Web |
Small Block |
| Out of Stock Message |
Call for Availability |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Piston Volume |
-11.00 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-2750-15-51S |
| Add-On |
927-042-CS |
| Add-On |
J10008-4030-5 |
| Cylinder Head |
TWISTED WEDGE SMALL BLOCK FORD |
| Industry |
Automotive |
| Ring Set Included |
No |
| Engine |
Small Block |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Piston Head Type |

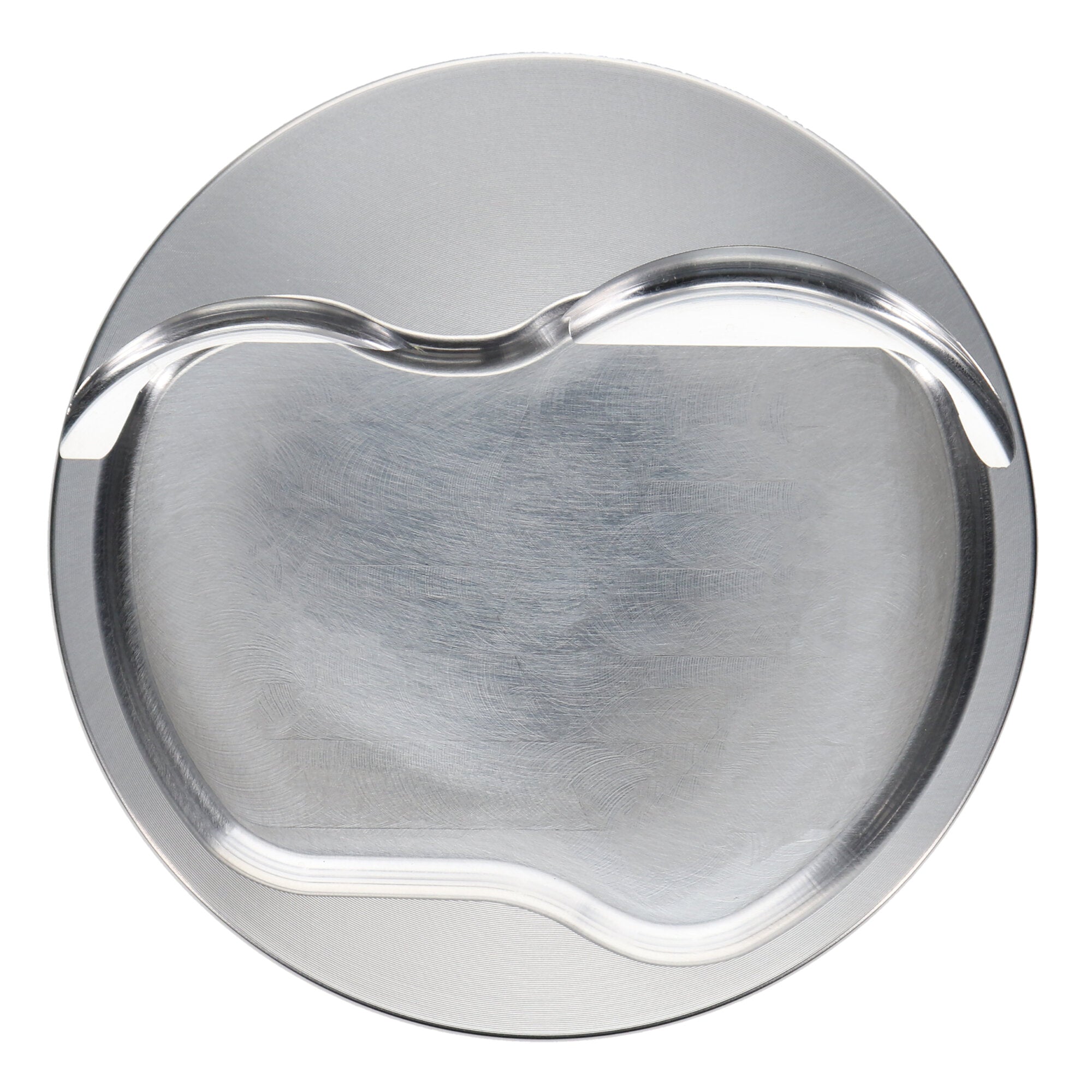

Dish |
| Piston Pin Length |
2.750 |
| Oil Ring Thickness |
0.218 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.175 in. CH, -11.00 CC |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
