As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

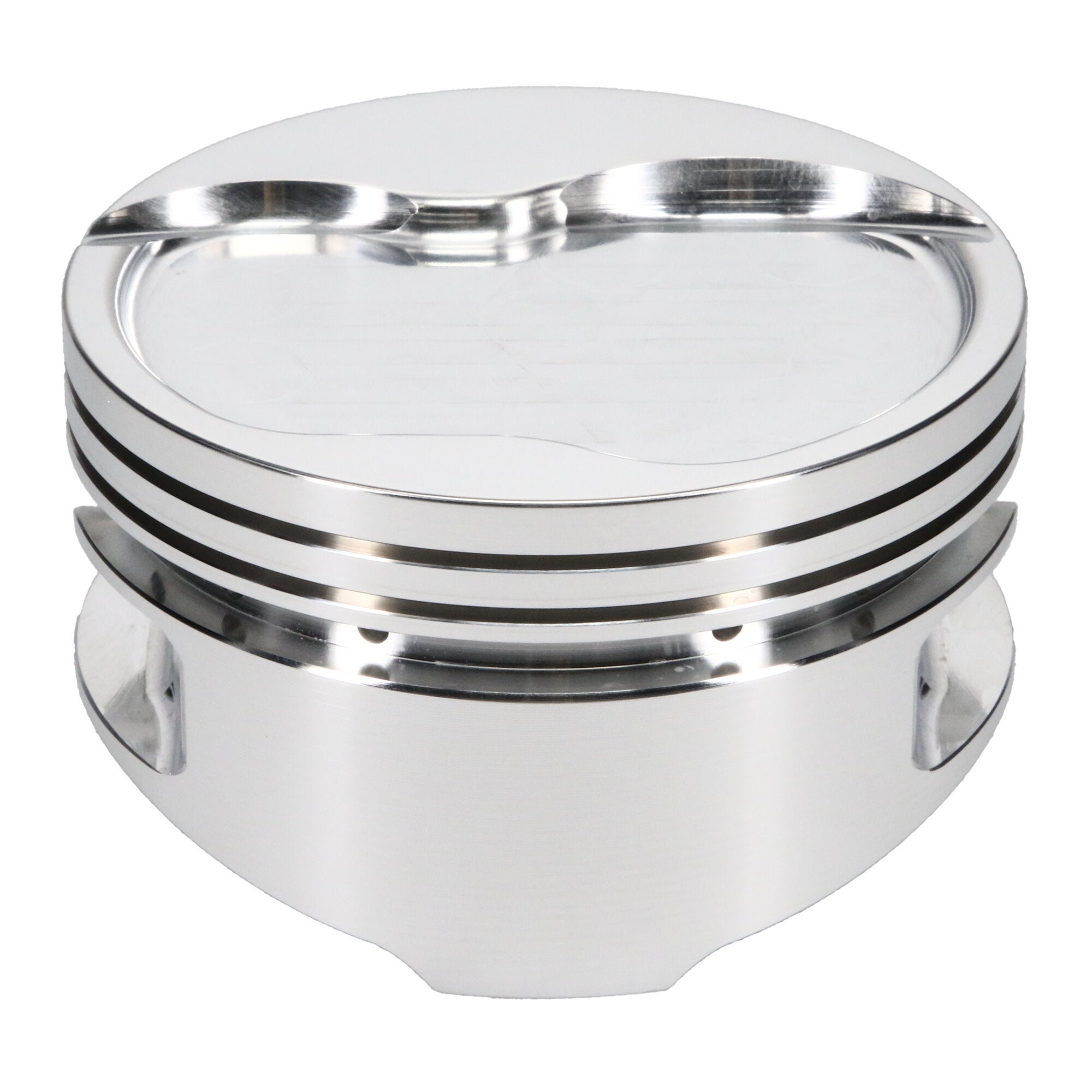

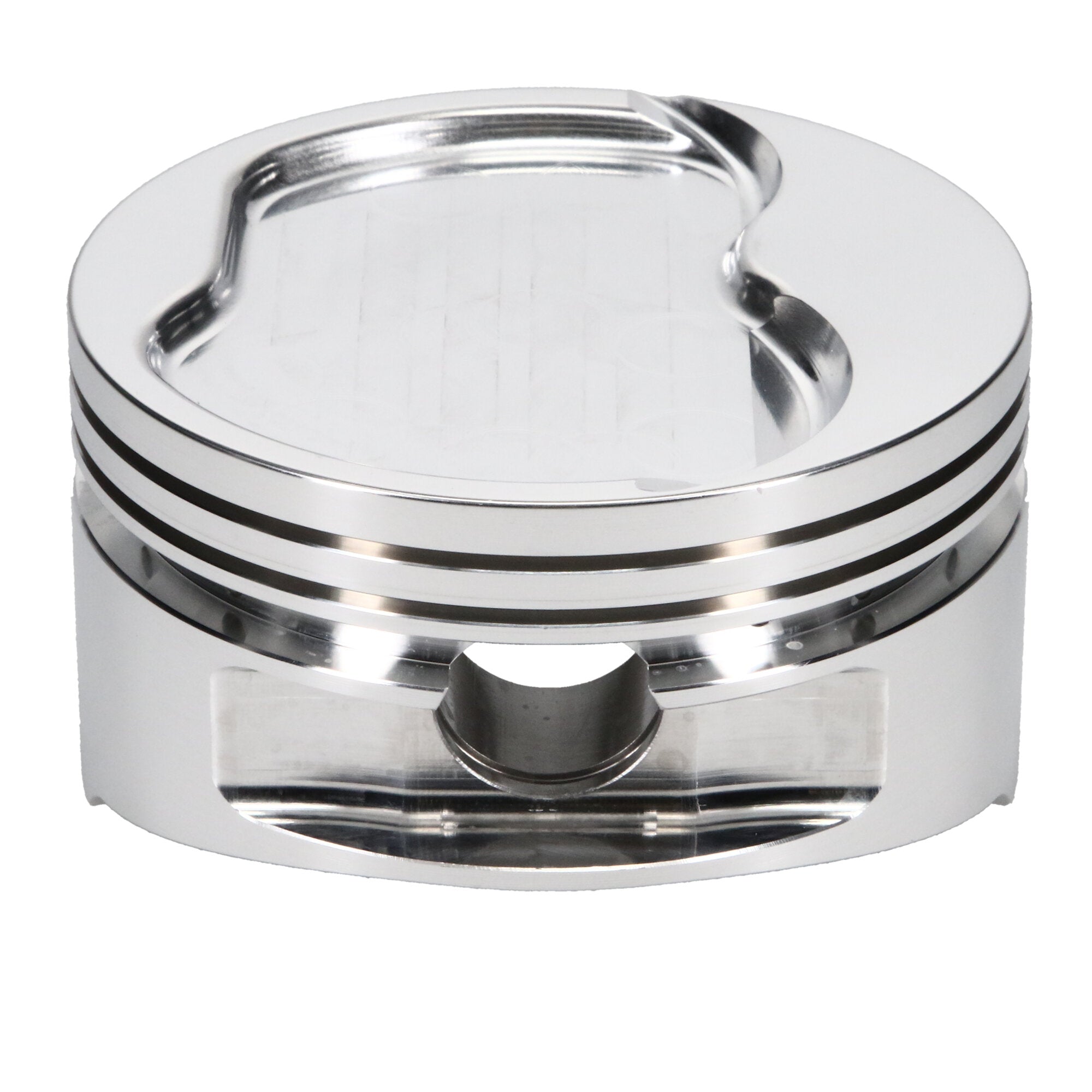

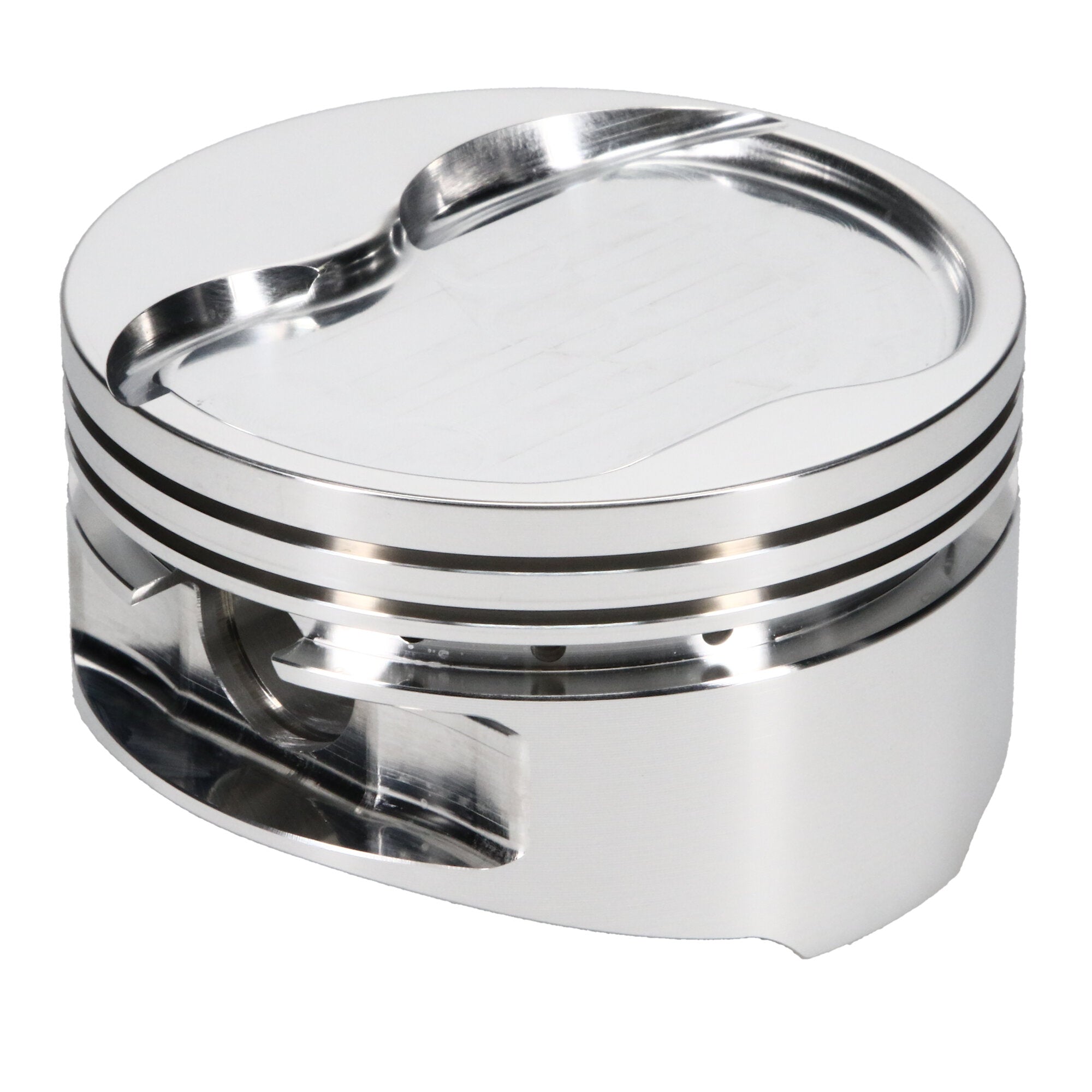

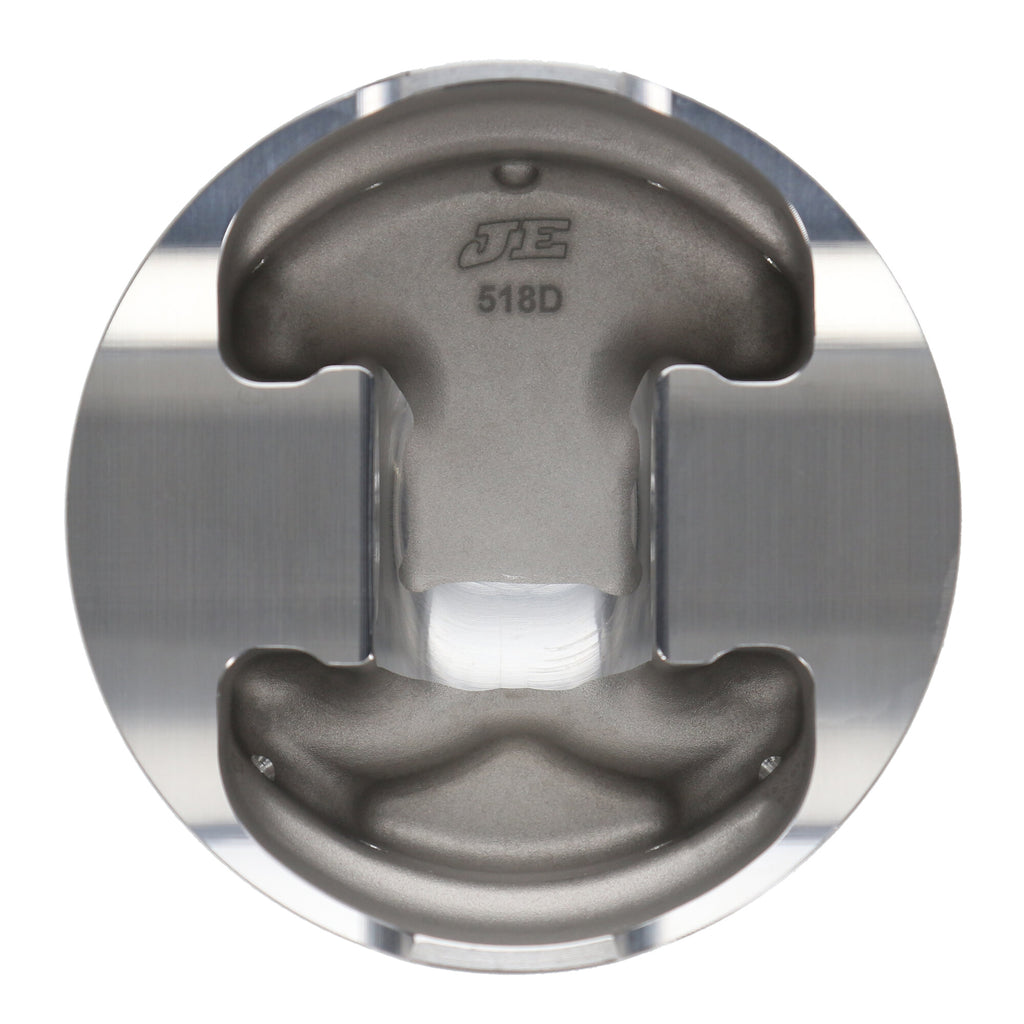

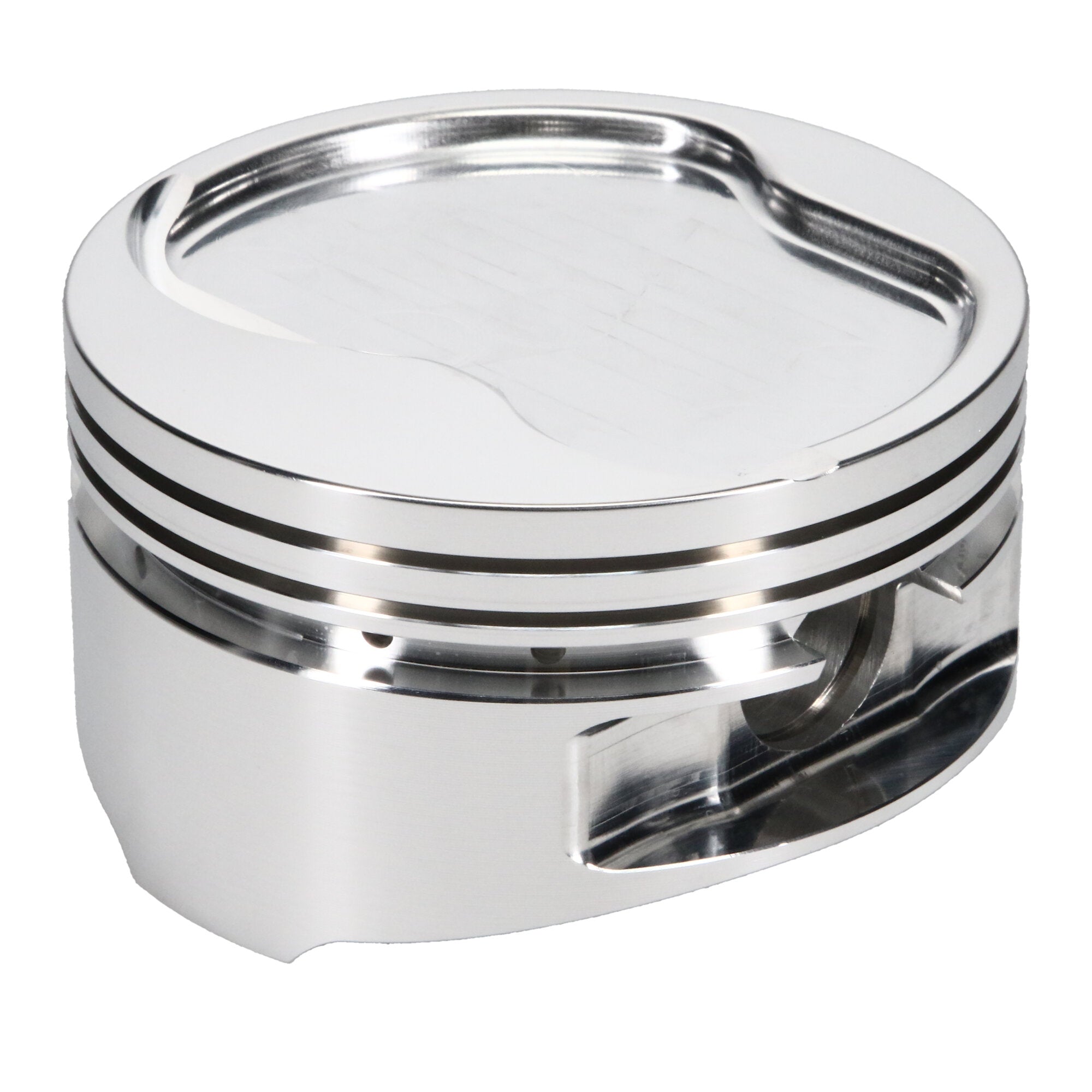

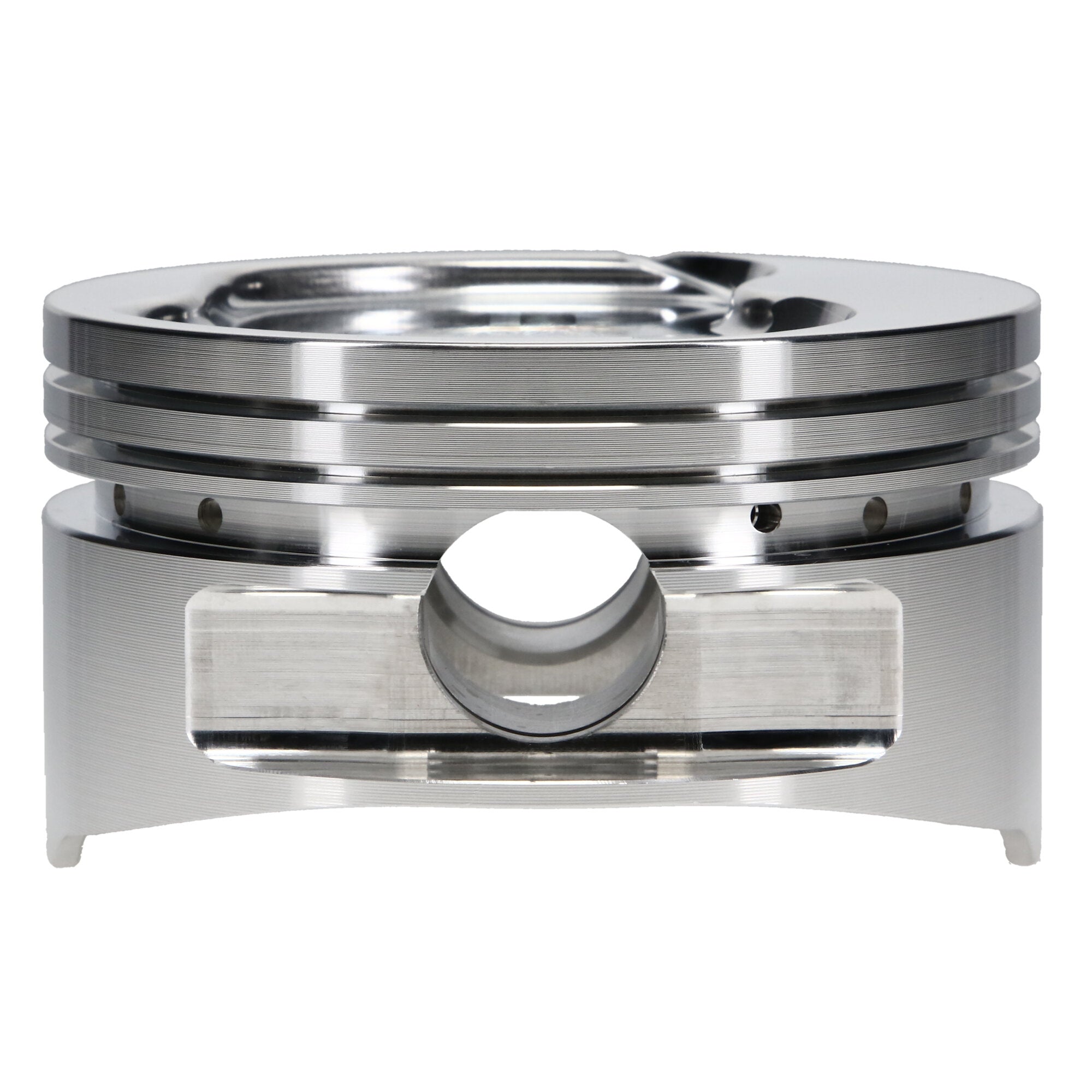

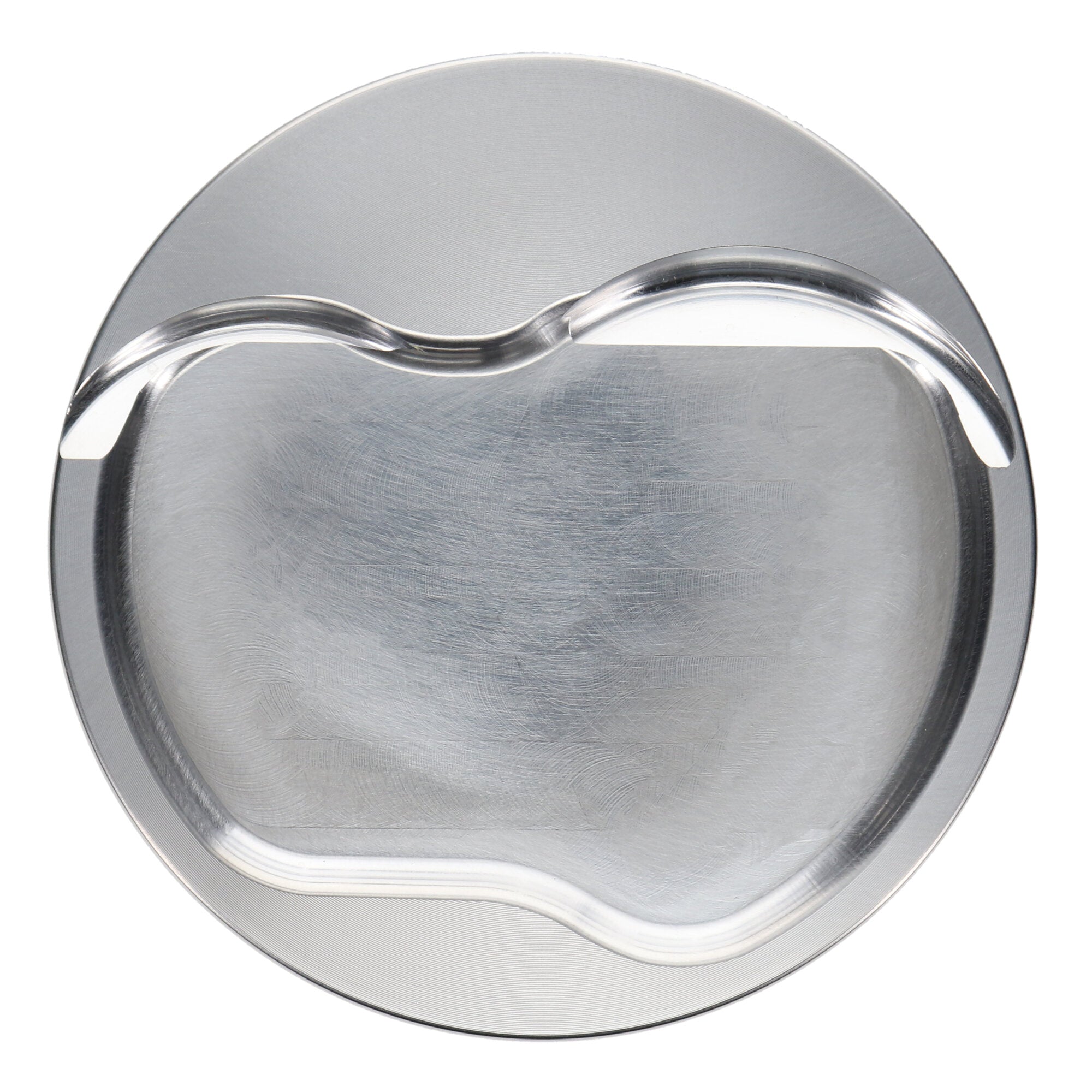

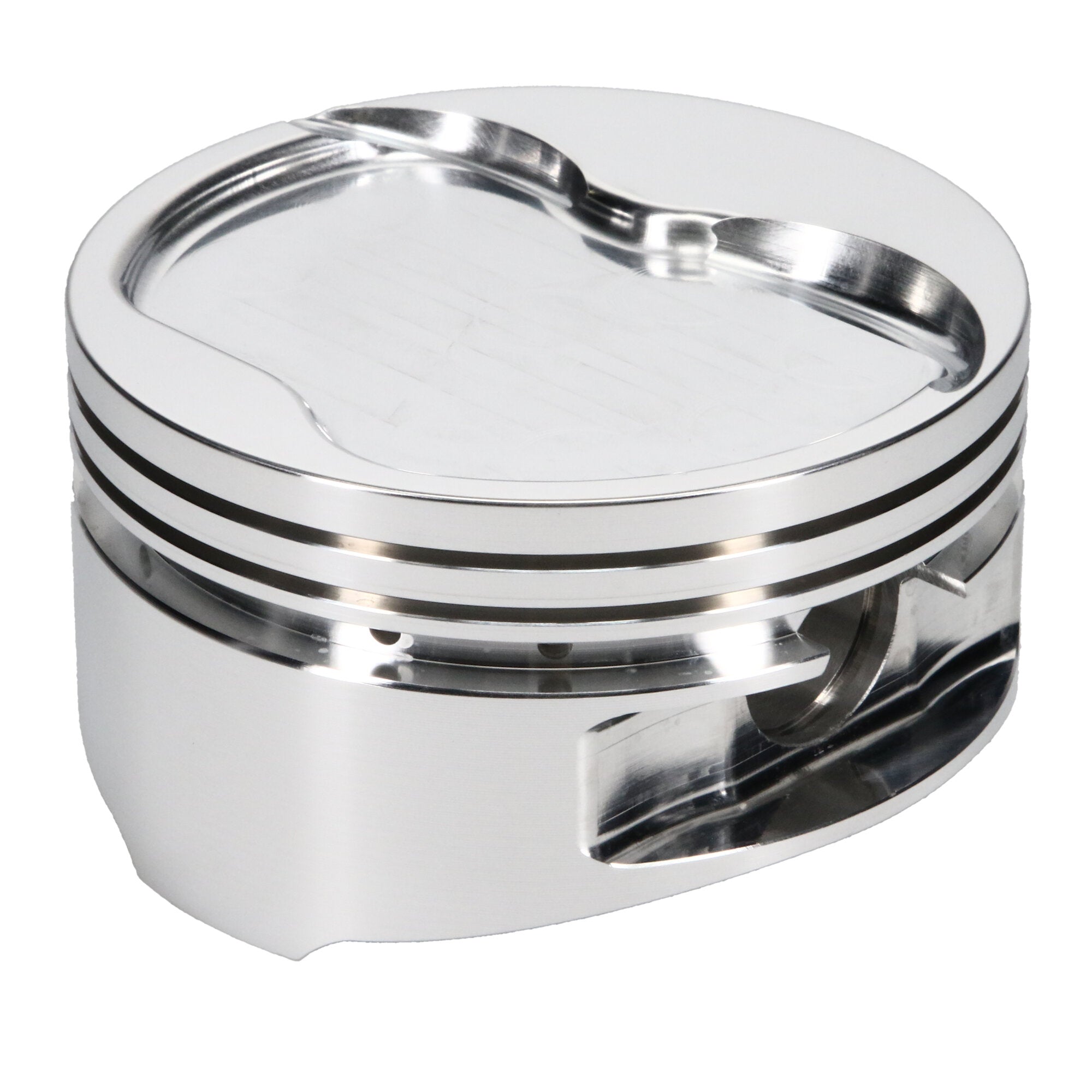

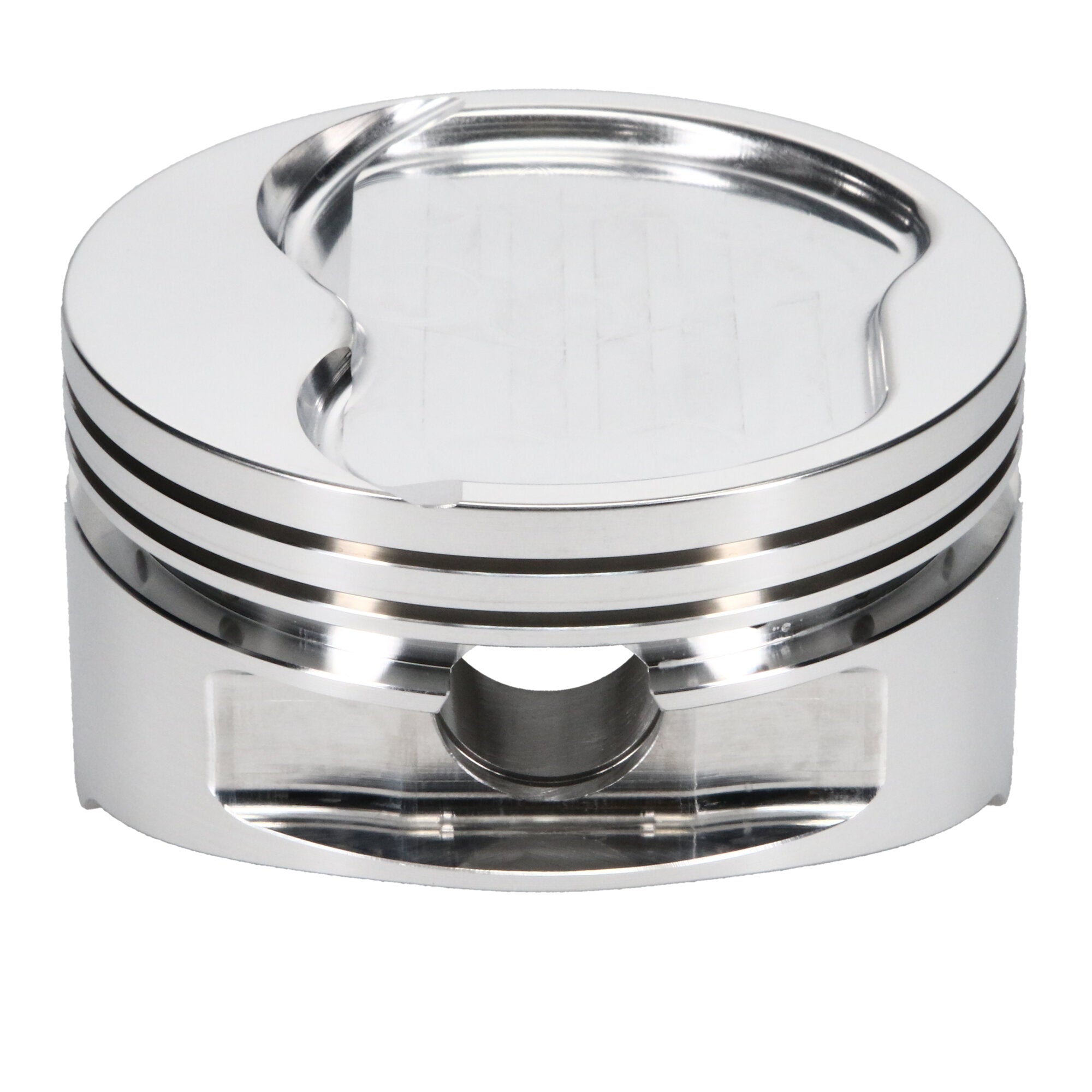

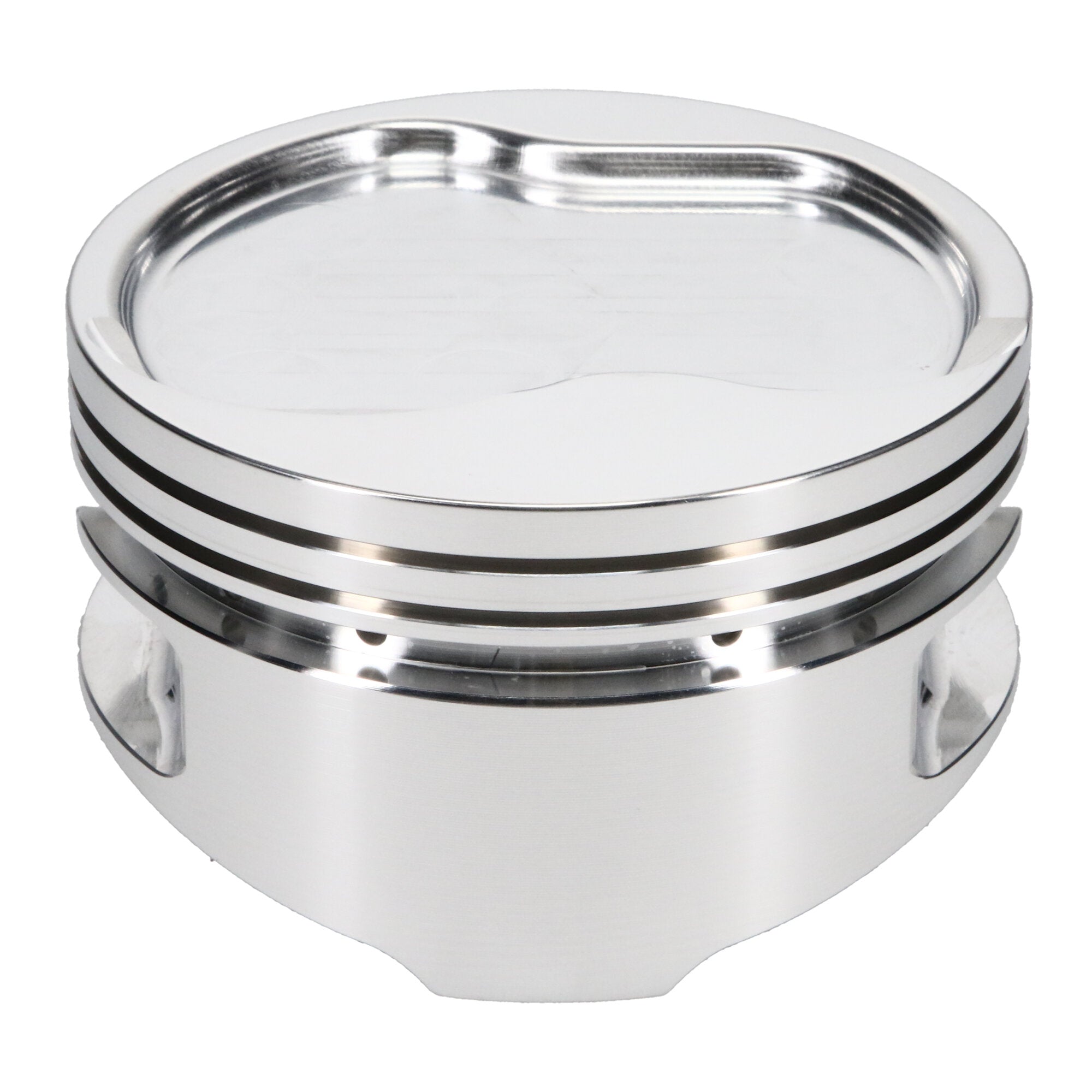

Piston Set, 2618, Inv Dome/Dish, 4.040 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.040 in. Bore, 1.100 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Ford 302, 4.040 Bore, Dish, Set of 8 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Material |
2618 |
| Add-On |
927-2750-15-51S |
| Piston Volume |
-22.00 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Add-On |
927-042-CS |
| Add-On |
J100F8-4040-5 |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Product Type |
Engine Piston Kit |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Ford |
| Piston Pin Length |
2.750 |
| Engine |
Small Block |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.040 in. Bore - 1.100 in. CH, -22.00 CC |
| Ringset Included |
No |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Title |
JE Pistons - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Bore Diameter |
4.040 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Dish |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Piston Average Weight |
432 |
| Product Market |
Domestic |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Oil Ring Thickness |
0.218 |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Ring Set Included |
No |
| Piston Pin Outside Diameter |
0.927 |
| Make |
FORD |
| Compression Height |
1.100 |
| Engine - Web |
Small Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
