As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

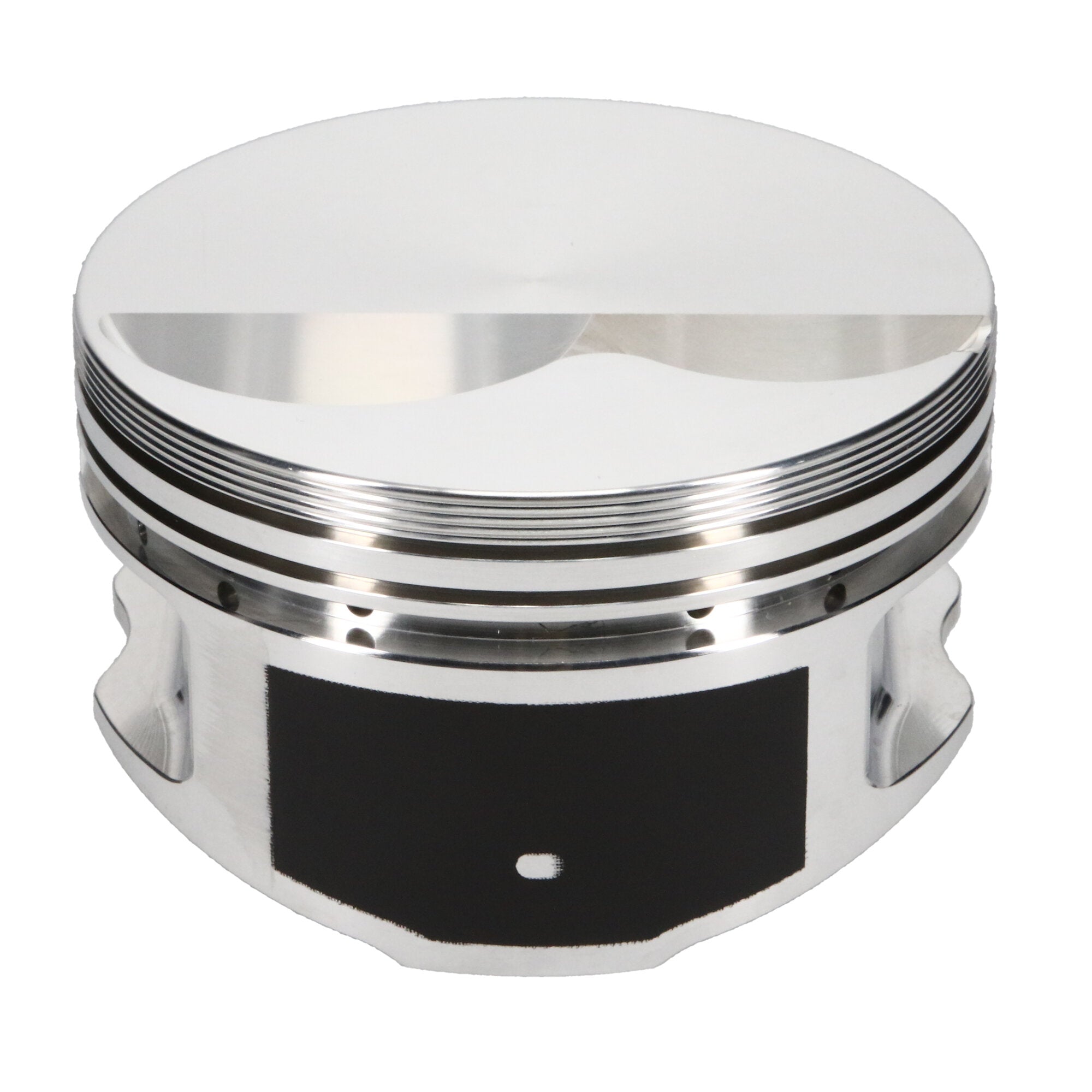

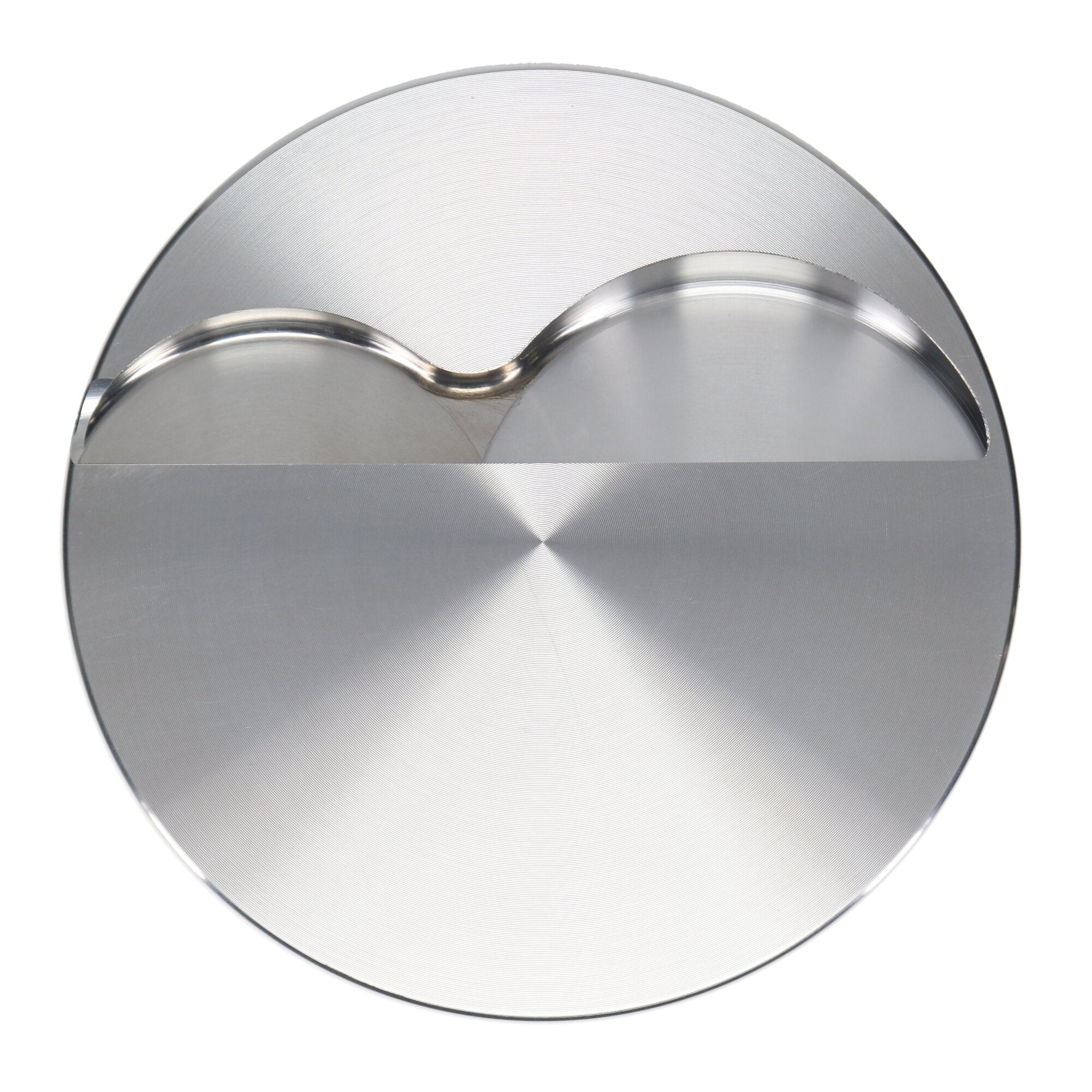

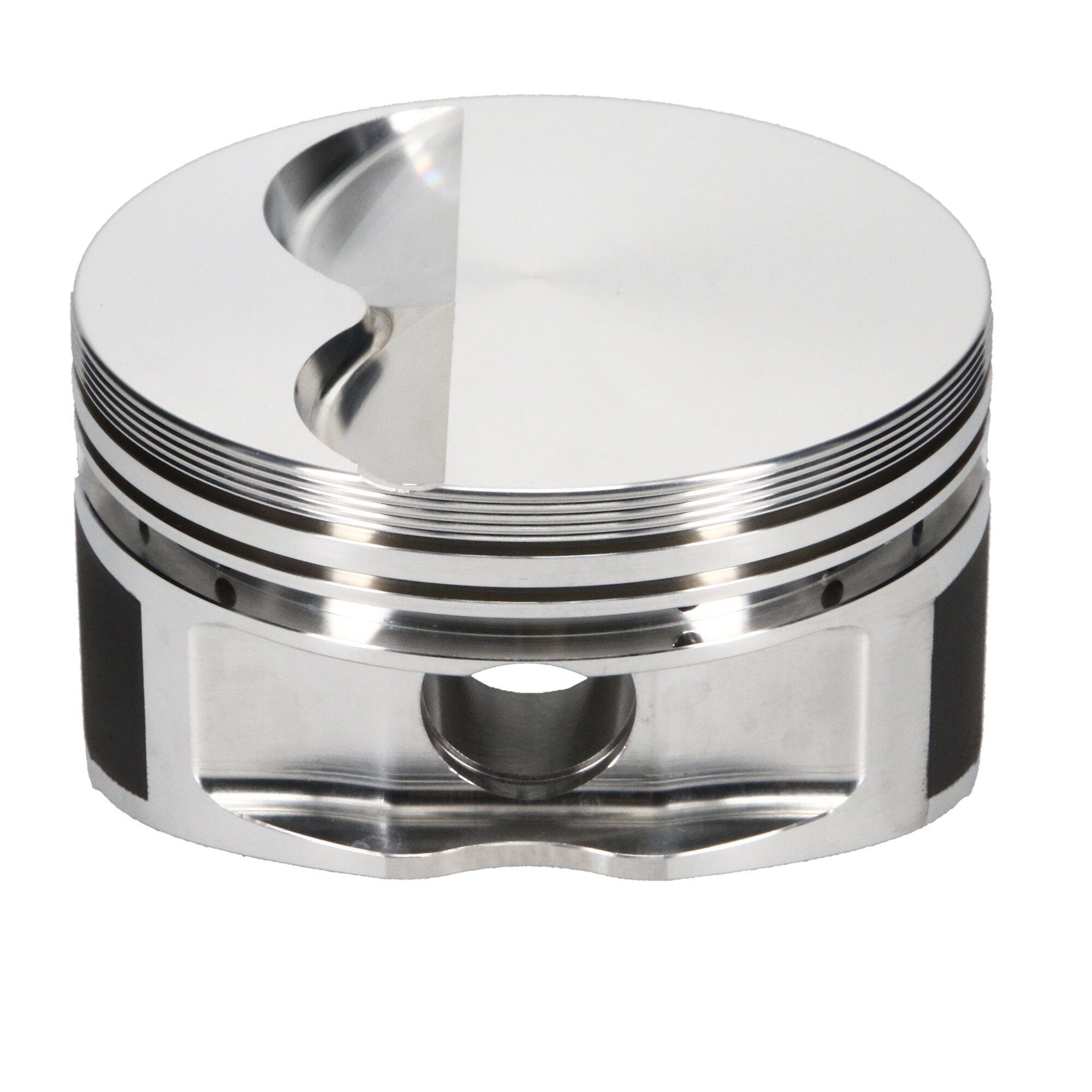

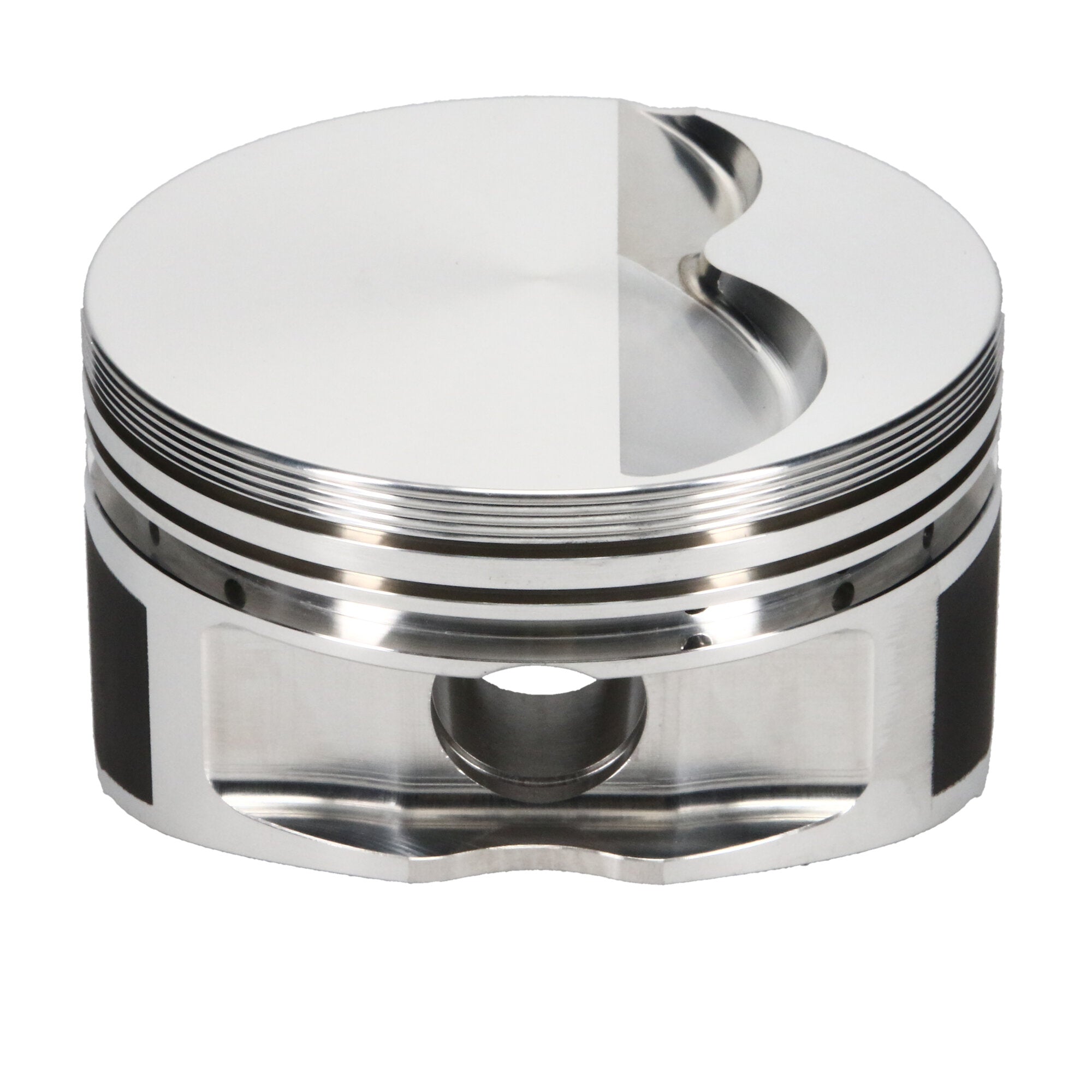

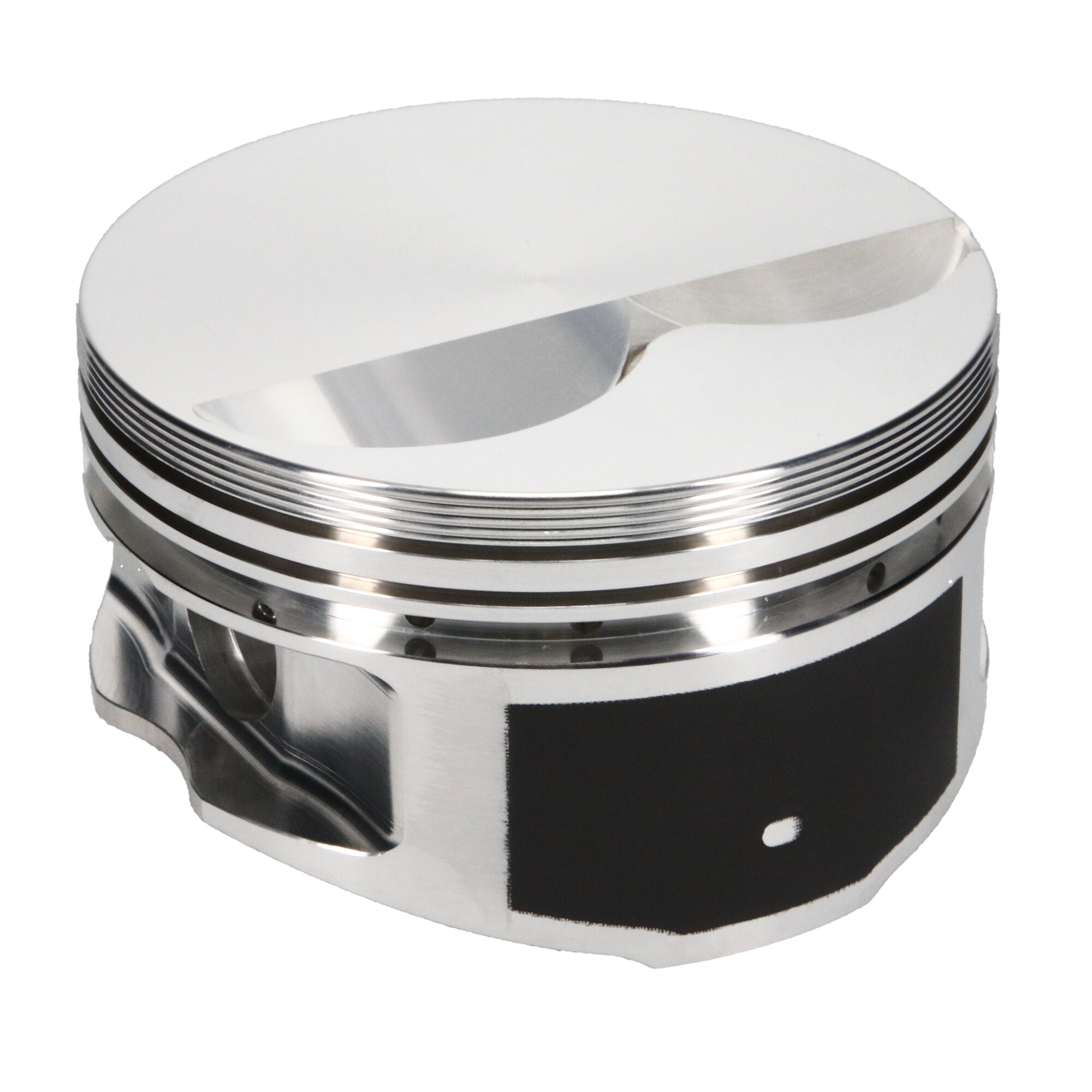

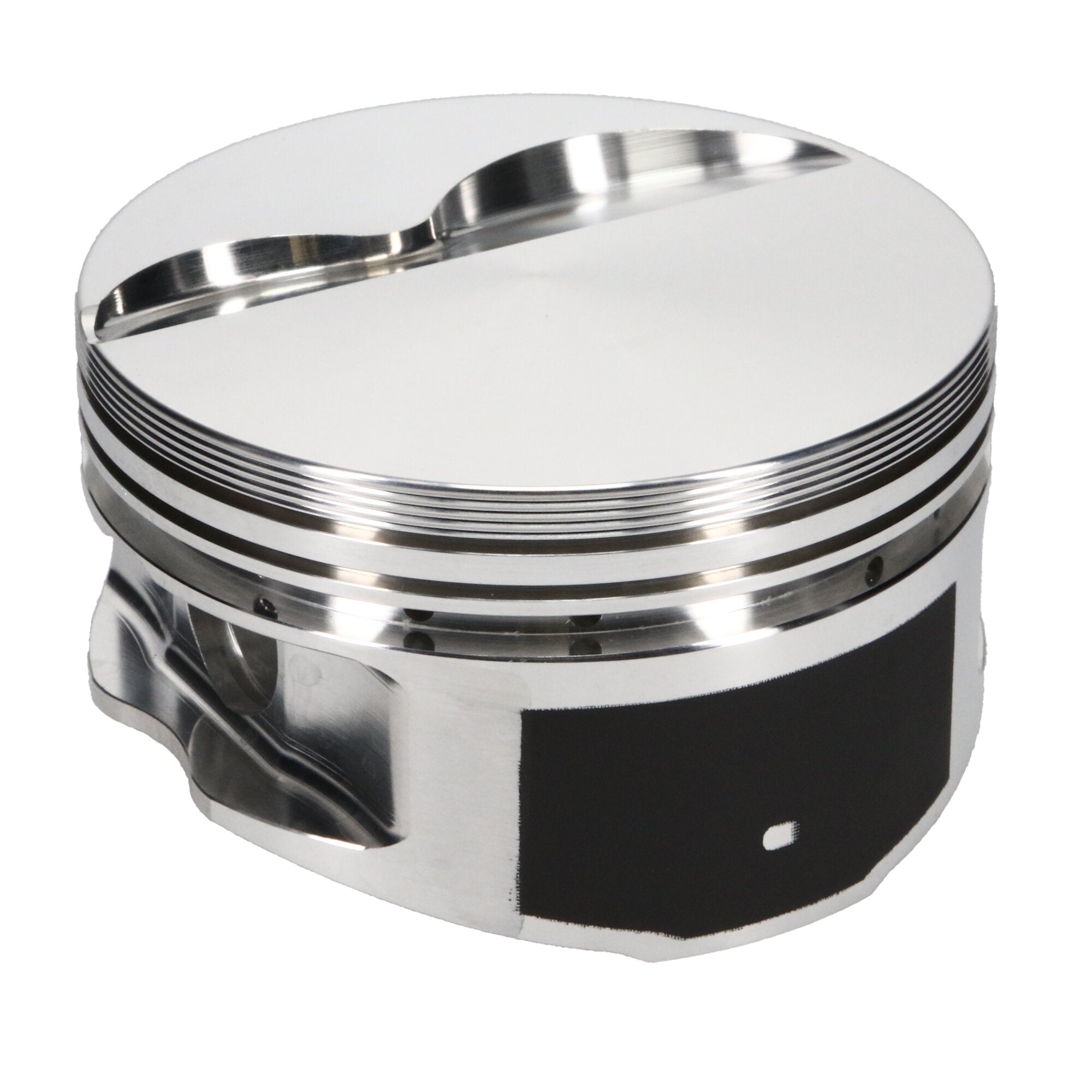

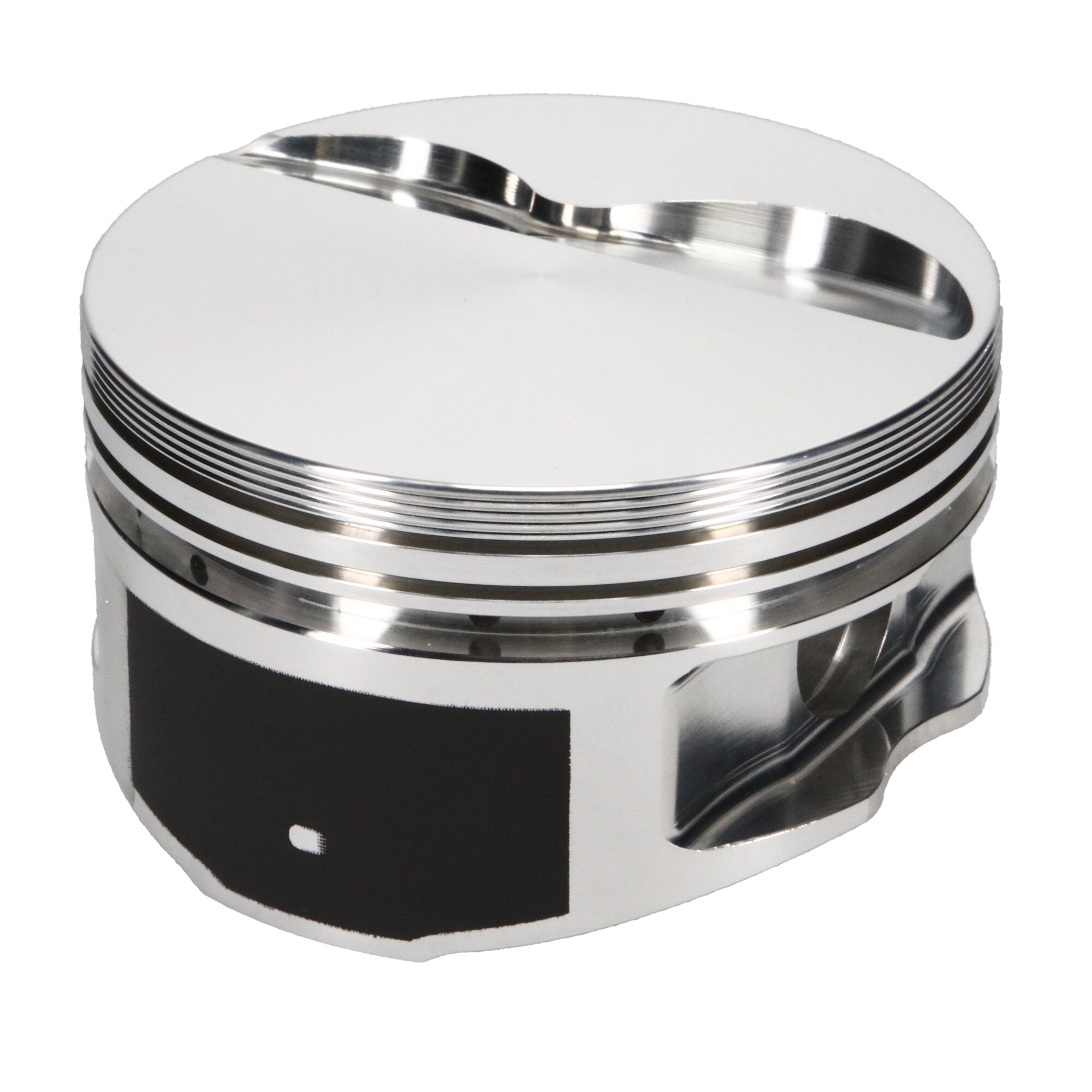

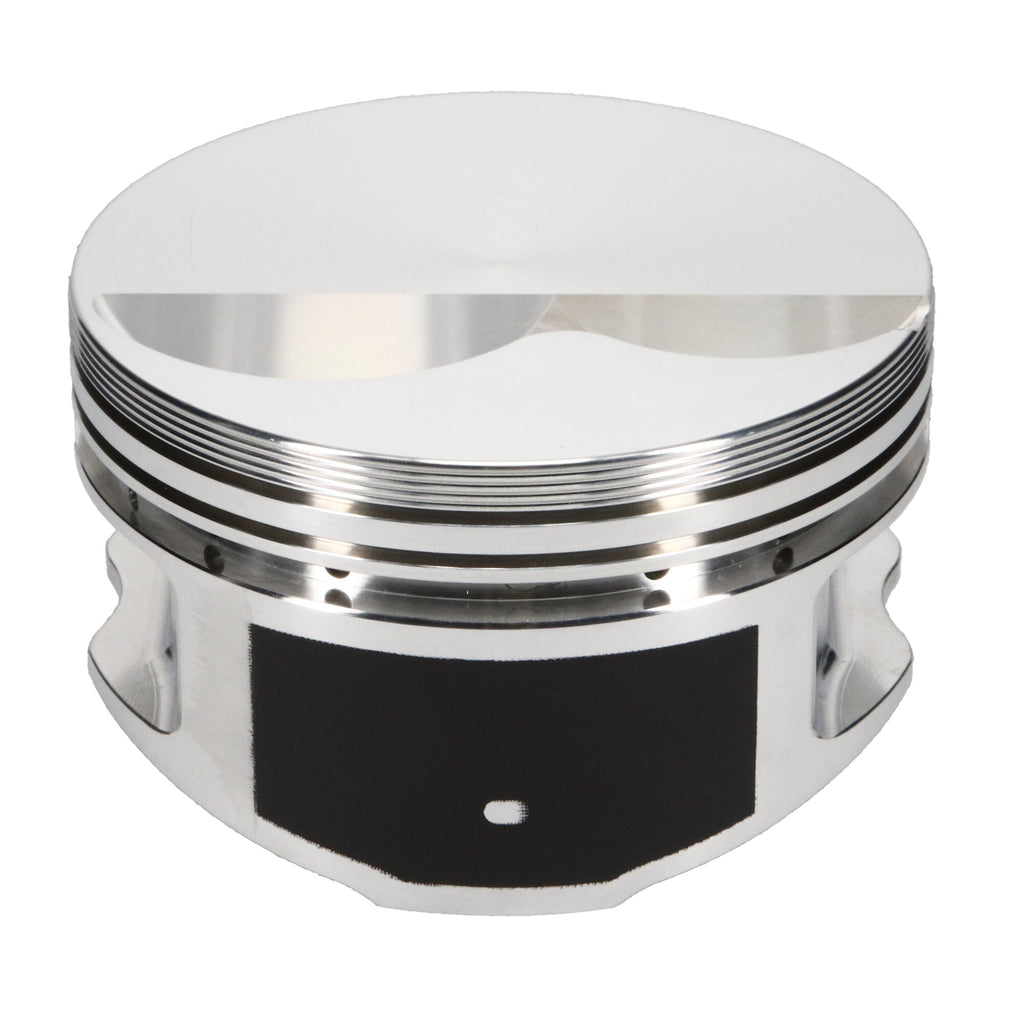

Piston Set, 2618, Flat Top, 4.040 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.040 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.040 Bore, Flat, Set of 8 |
| Piston Head Type |
Flat |
| Top Compression Ring Thickness |
0.0640 |
| Title |
JE Pistons - Ford, Small Block, 4.040 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.218 |
| Bore Diameter |
4.040 |
| Product Market |
Domestic |
| Piston Series |
JE Pistons |
| Piston Average Weight |
444 |
| Ringset Included |
No |
| Compression Height |
1.100 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Wall Thickness |
0.150 |
| Make |
FORD |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Engine - Web |
Small Block |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.040 in. Bore - 1.100 in. CH, -5.00 CC |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Second Compression Ring Thickness |
0.0640 |
| Piston Pin Length |
2.750 |
| Forging Type |
Round |
| Add-On |
J10008-4040-5 |
| Piston Volume |
-5.00 |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Add-On |
927-2750-15-51S |
| Prop 65 Yes/No |
Yes |
| Piston Pin Material |
5115 |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availability |
| Industry |
Automotive |
| Add-On |
927-042-CS |
| Cylinder Head |
TWISTED WEDGE SMALL BLOCK FORD |
| Ring Set Included |
No |
| Make - Web |
Ford |
| Wrist Pin Length |
2.750 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
