As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

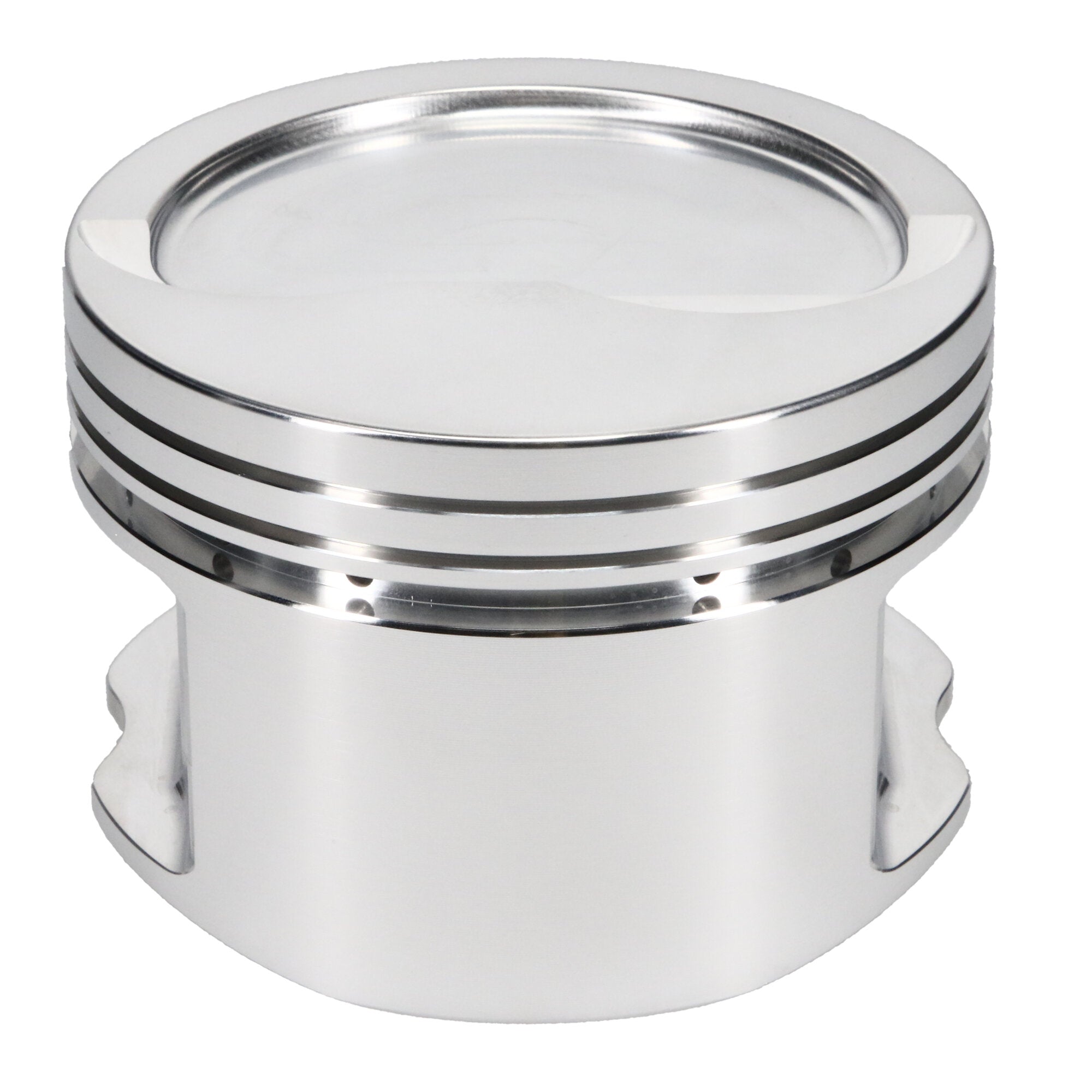

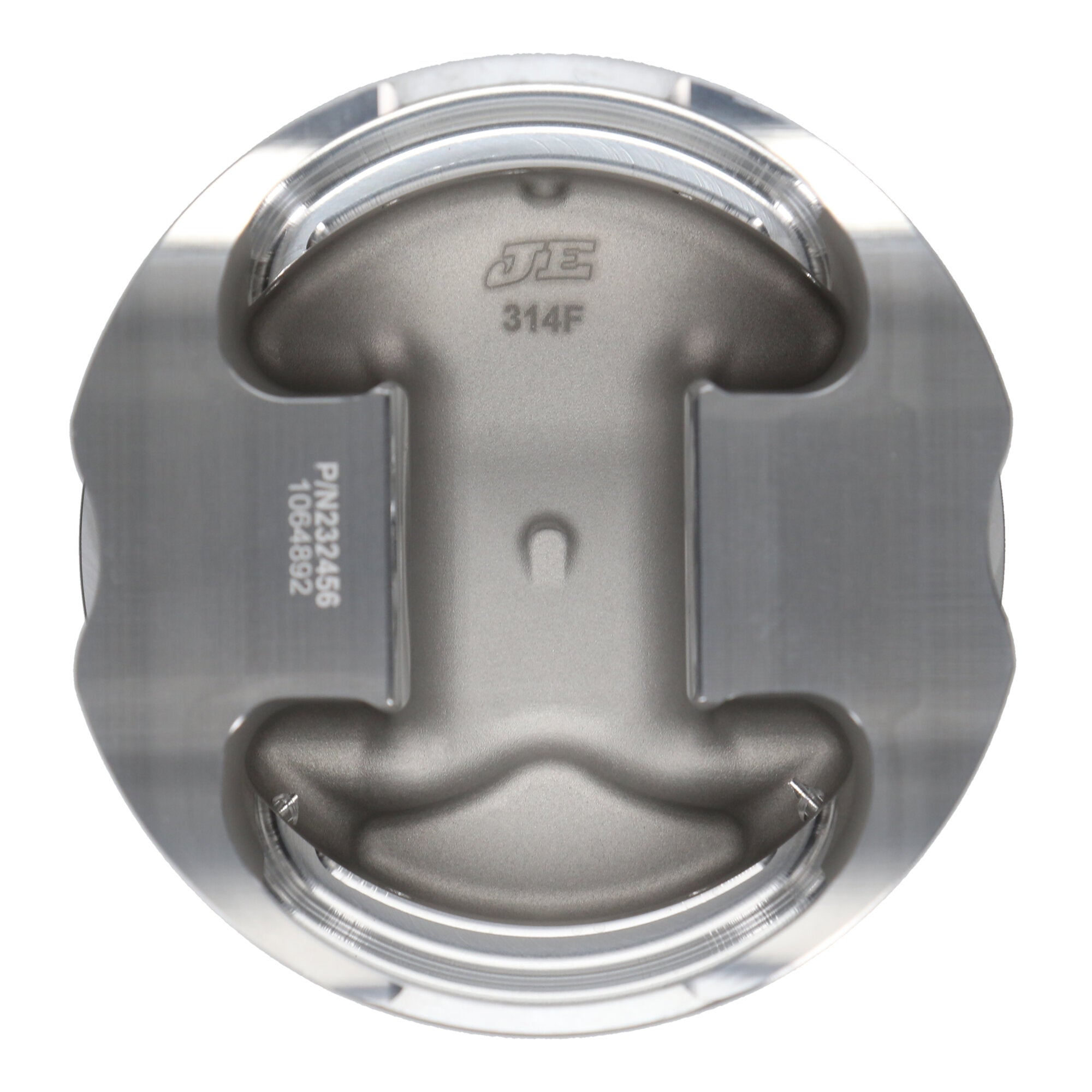

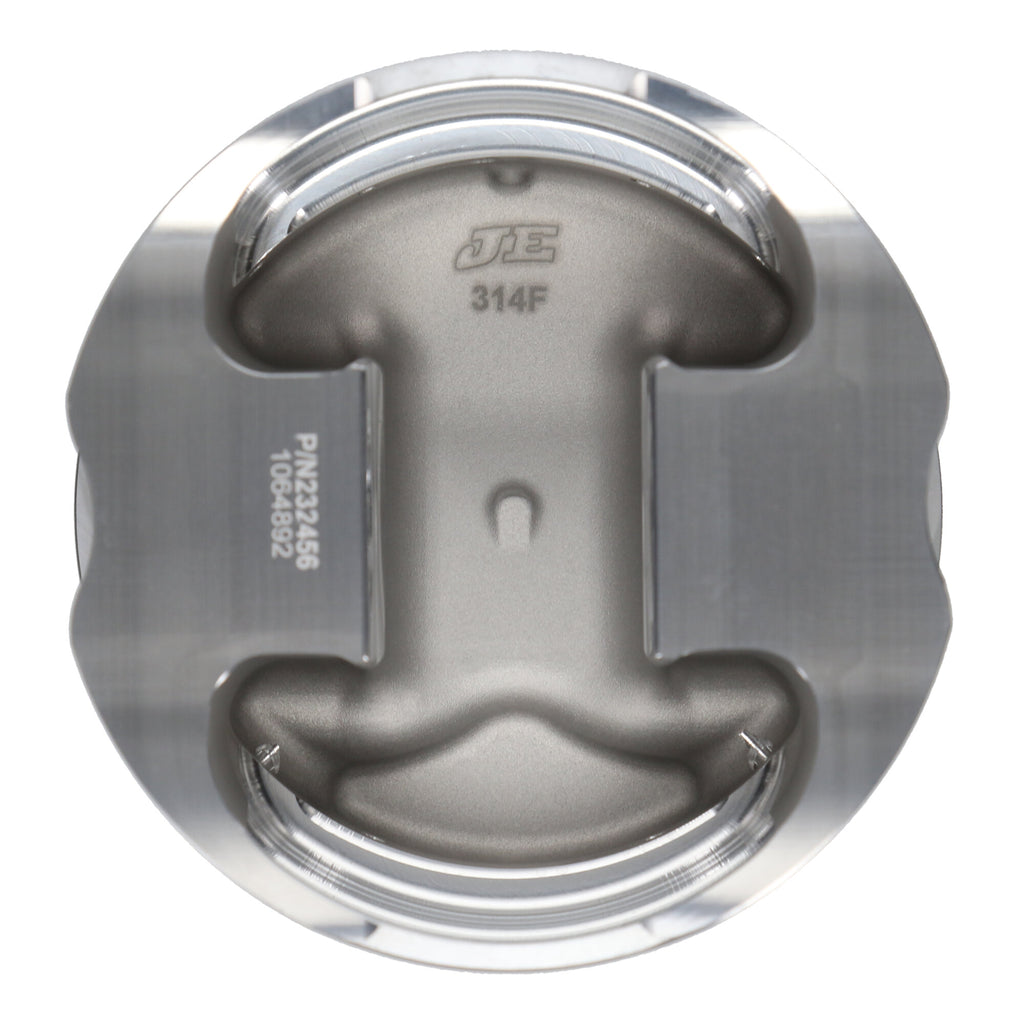

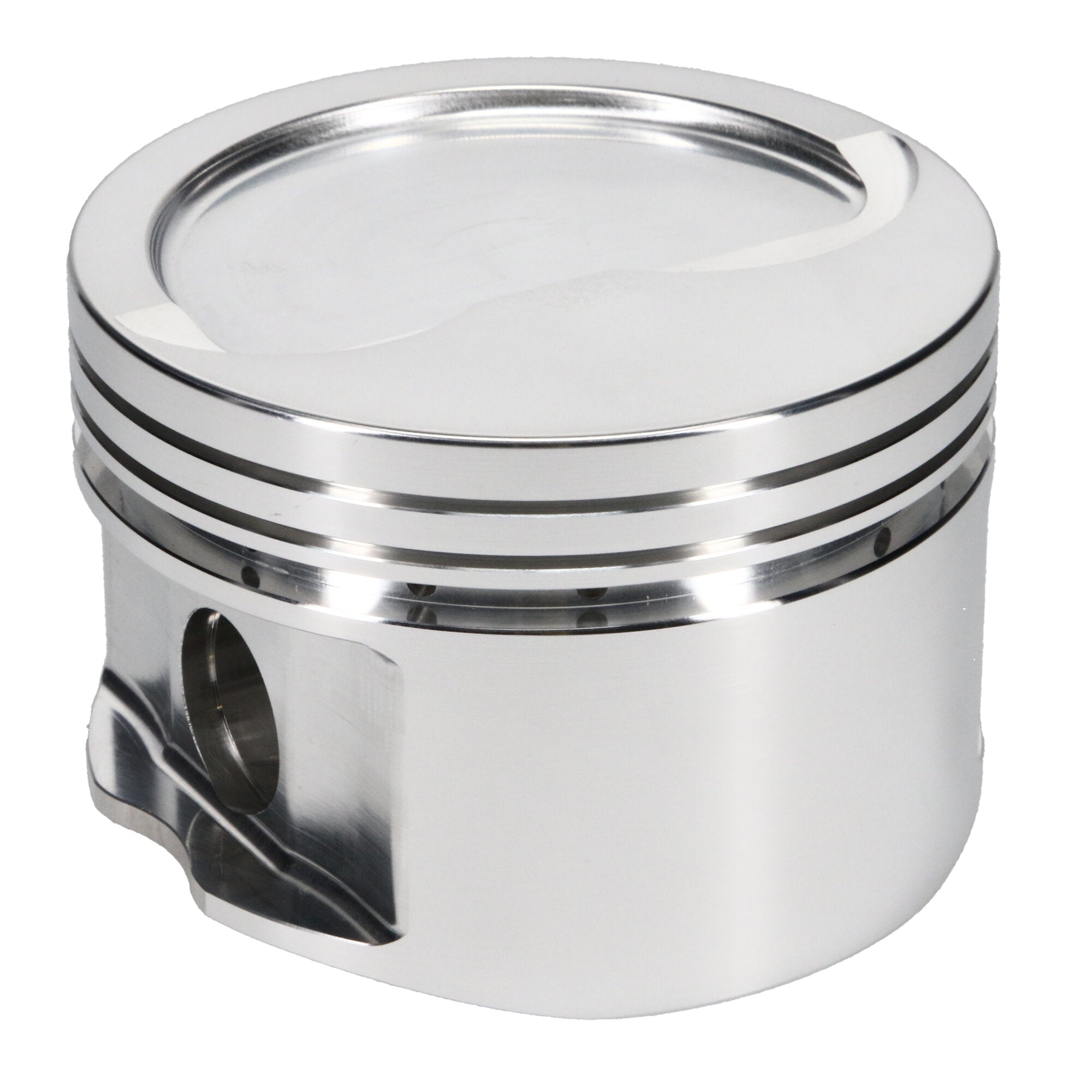

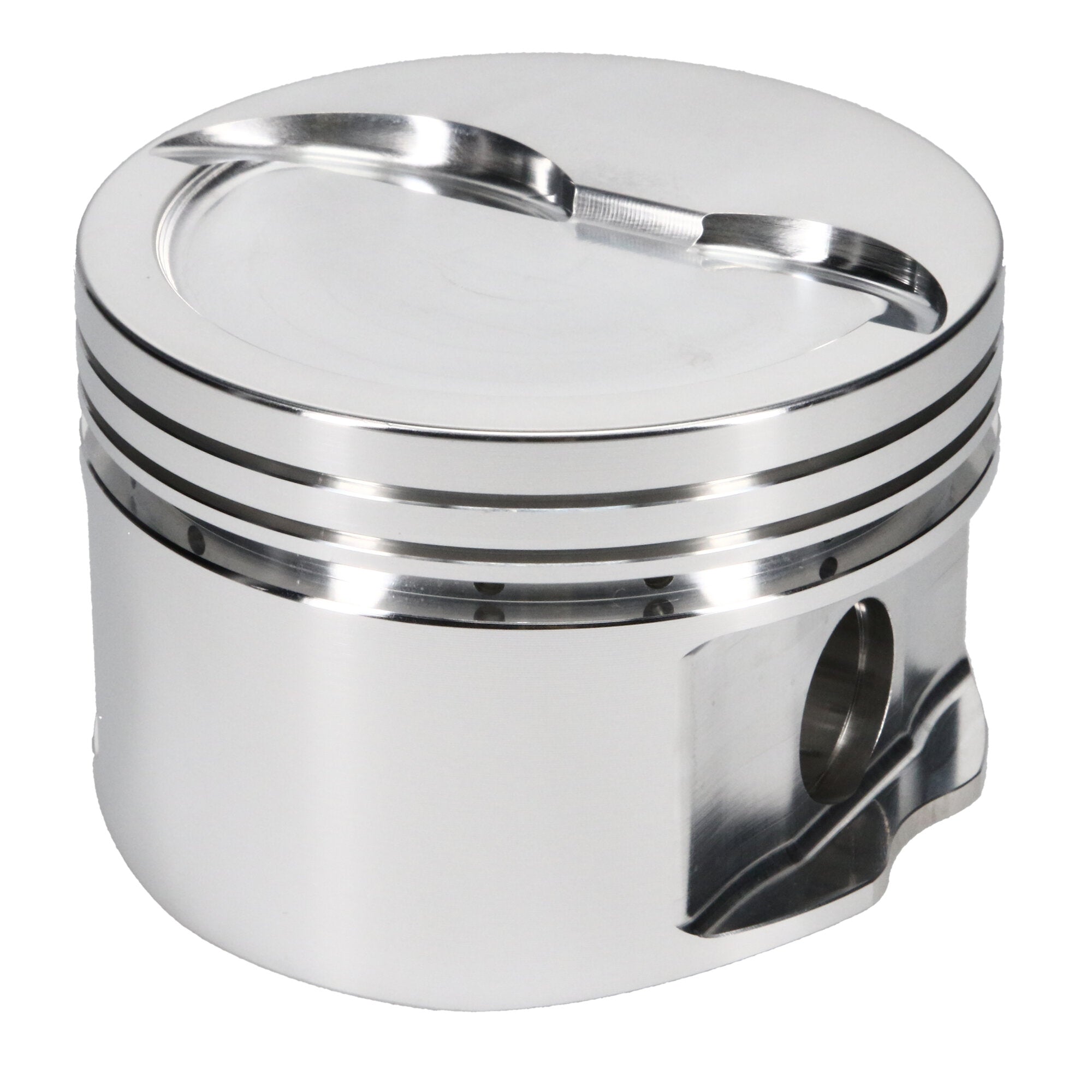

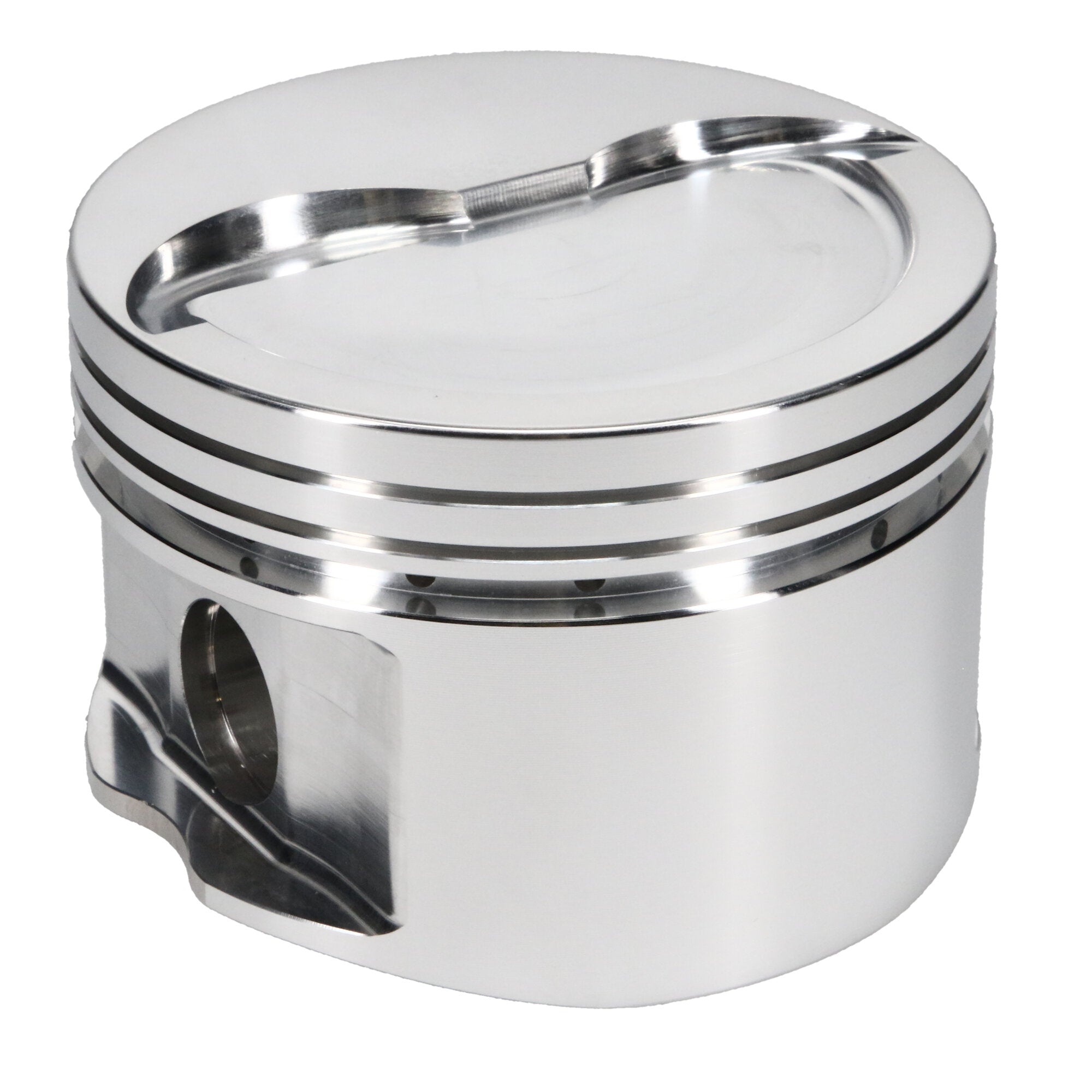

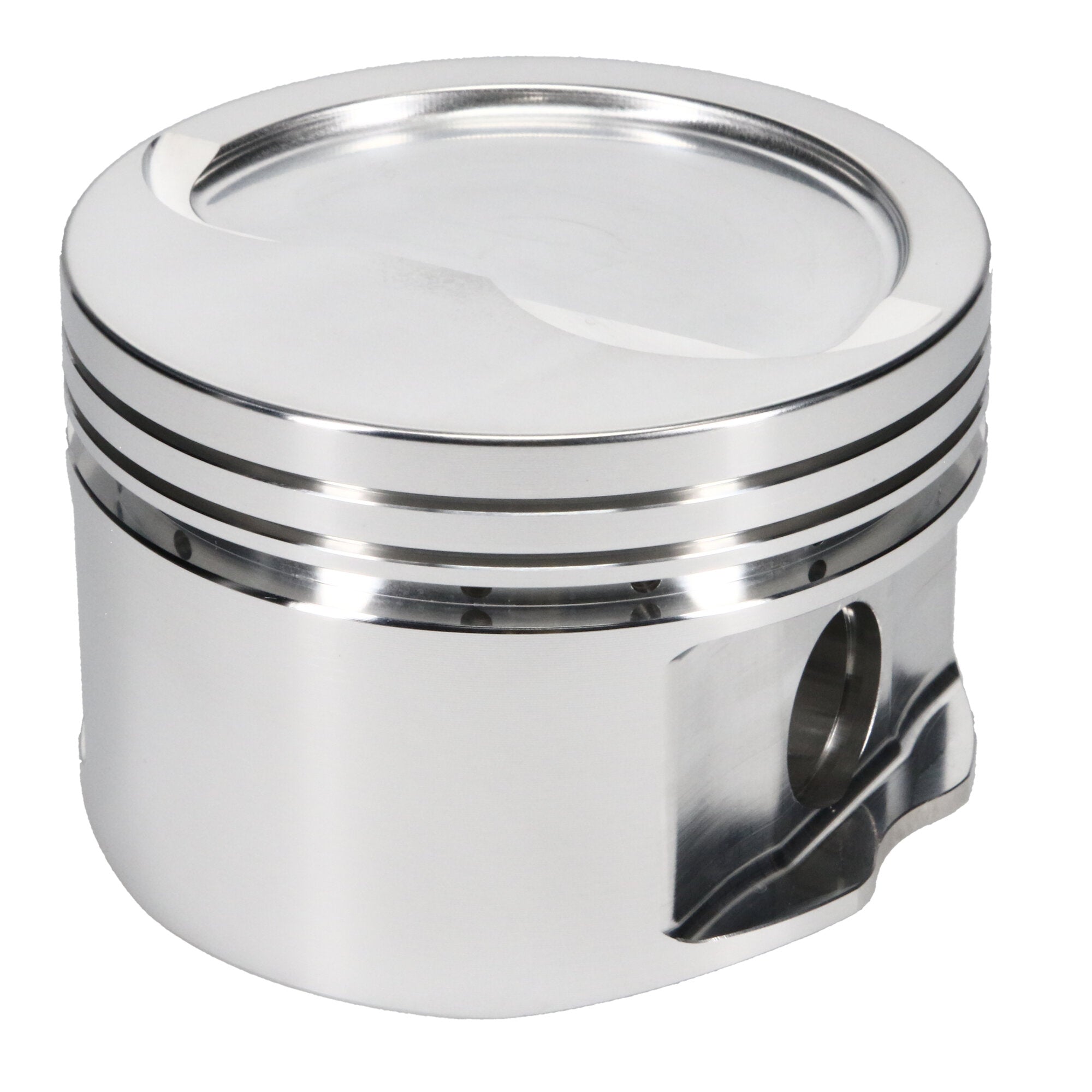

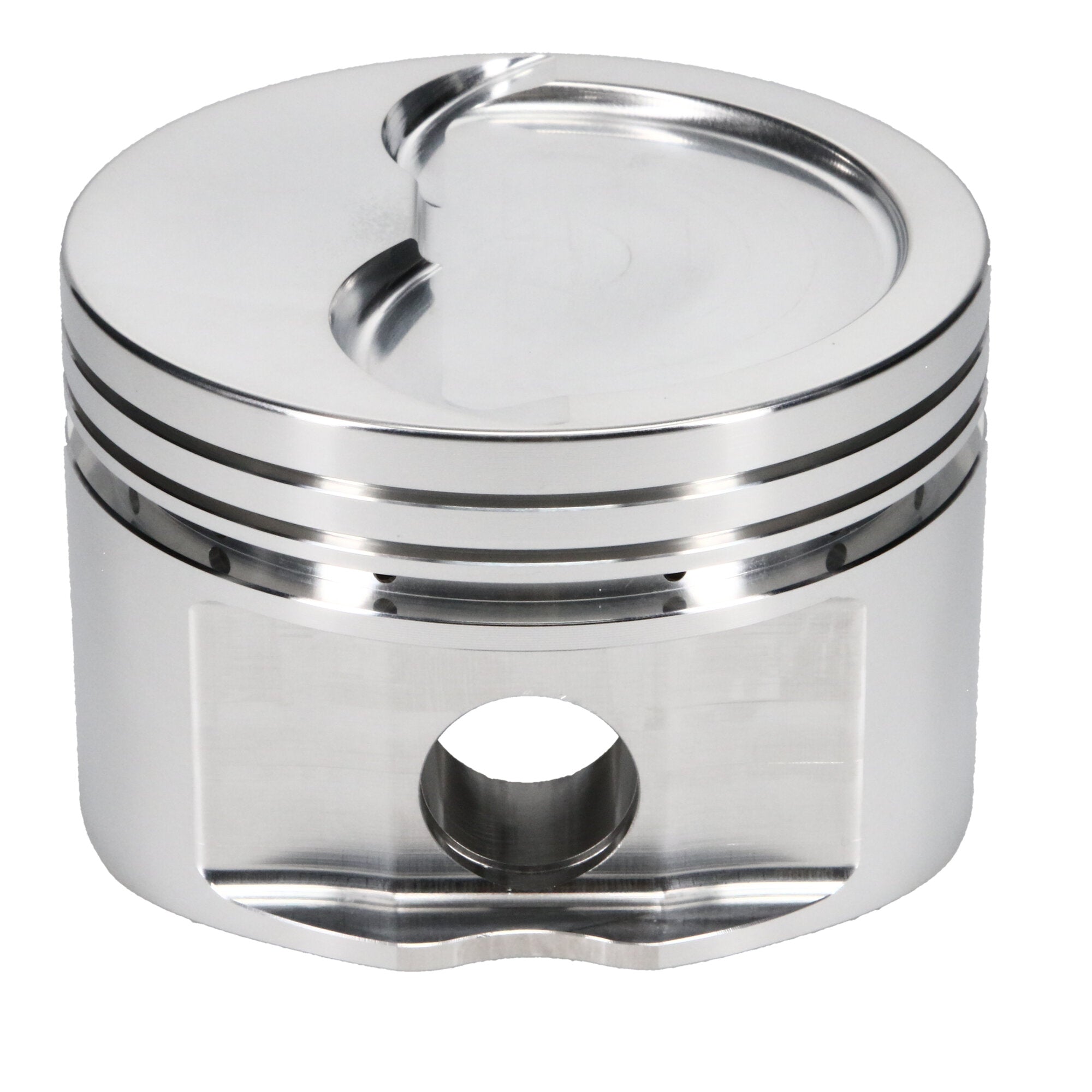

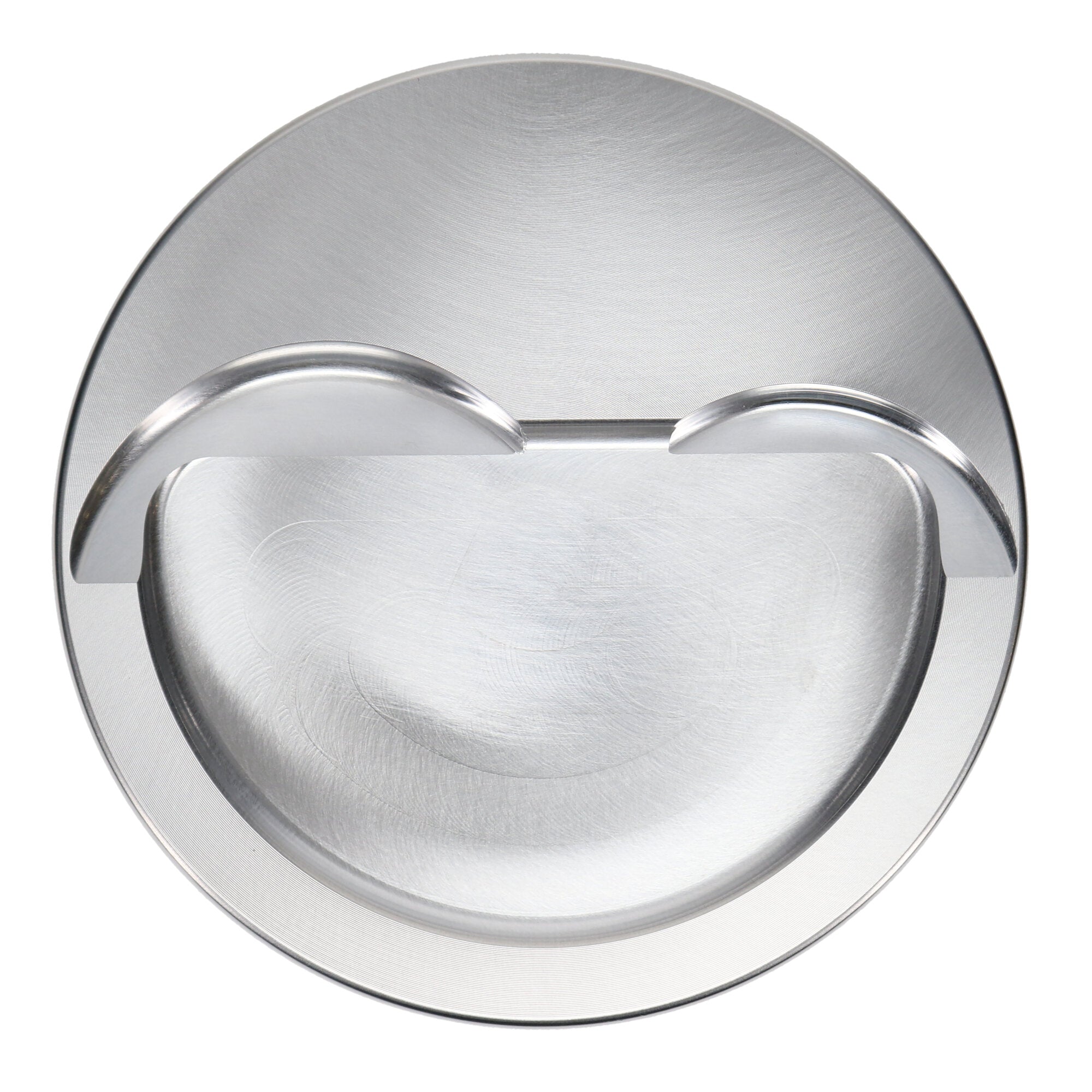

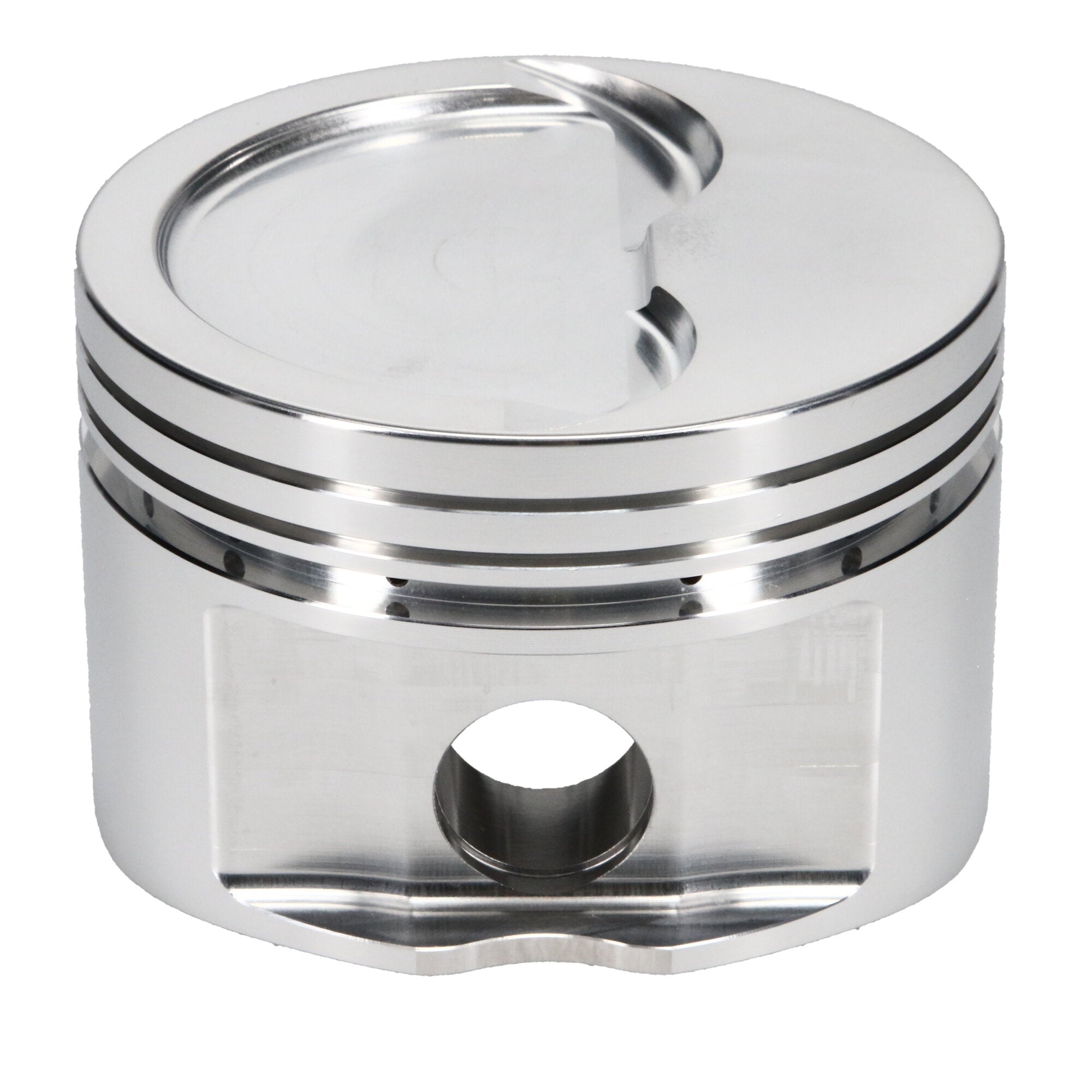

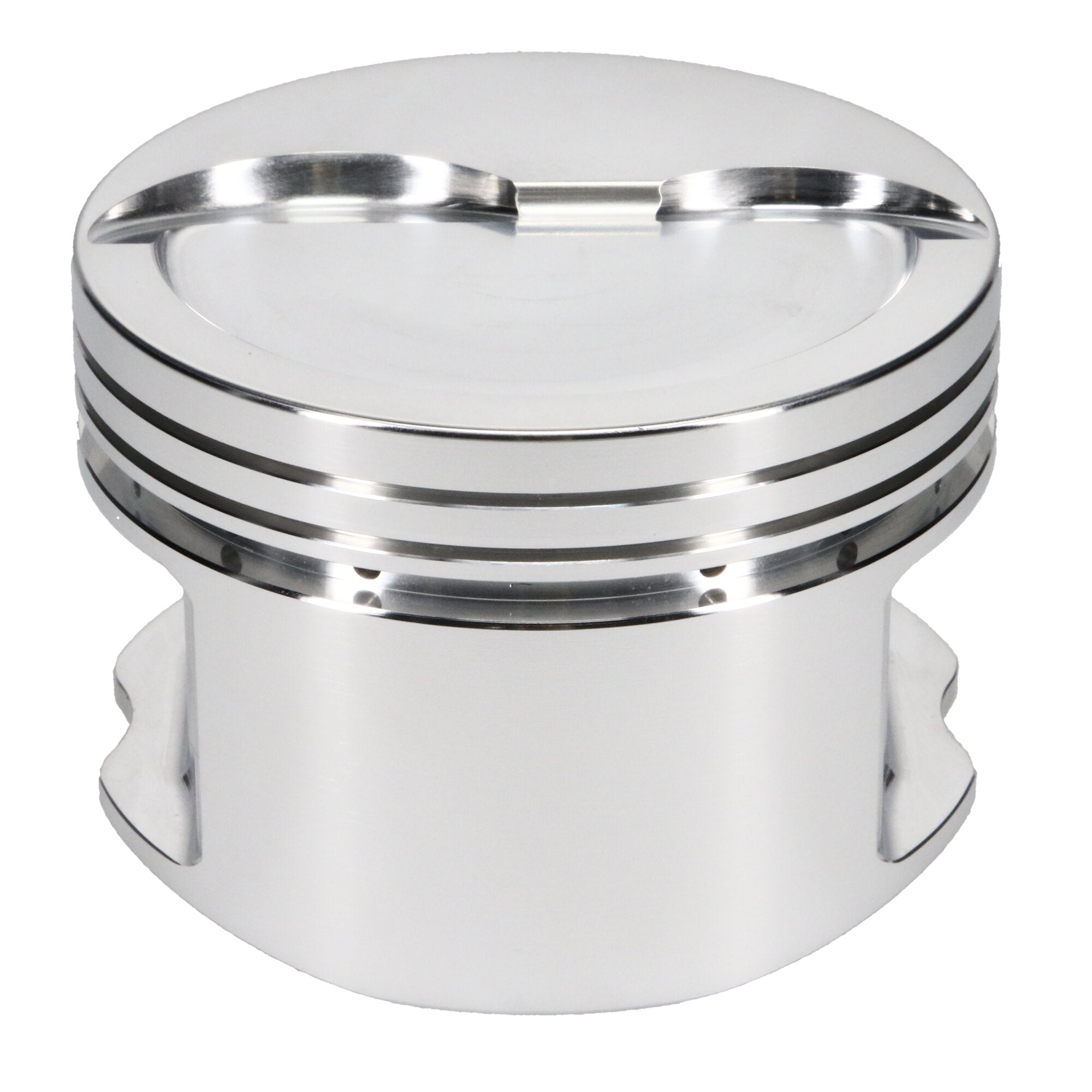

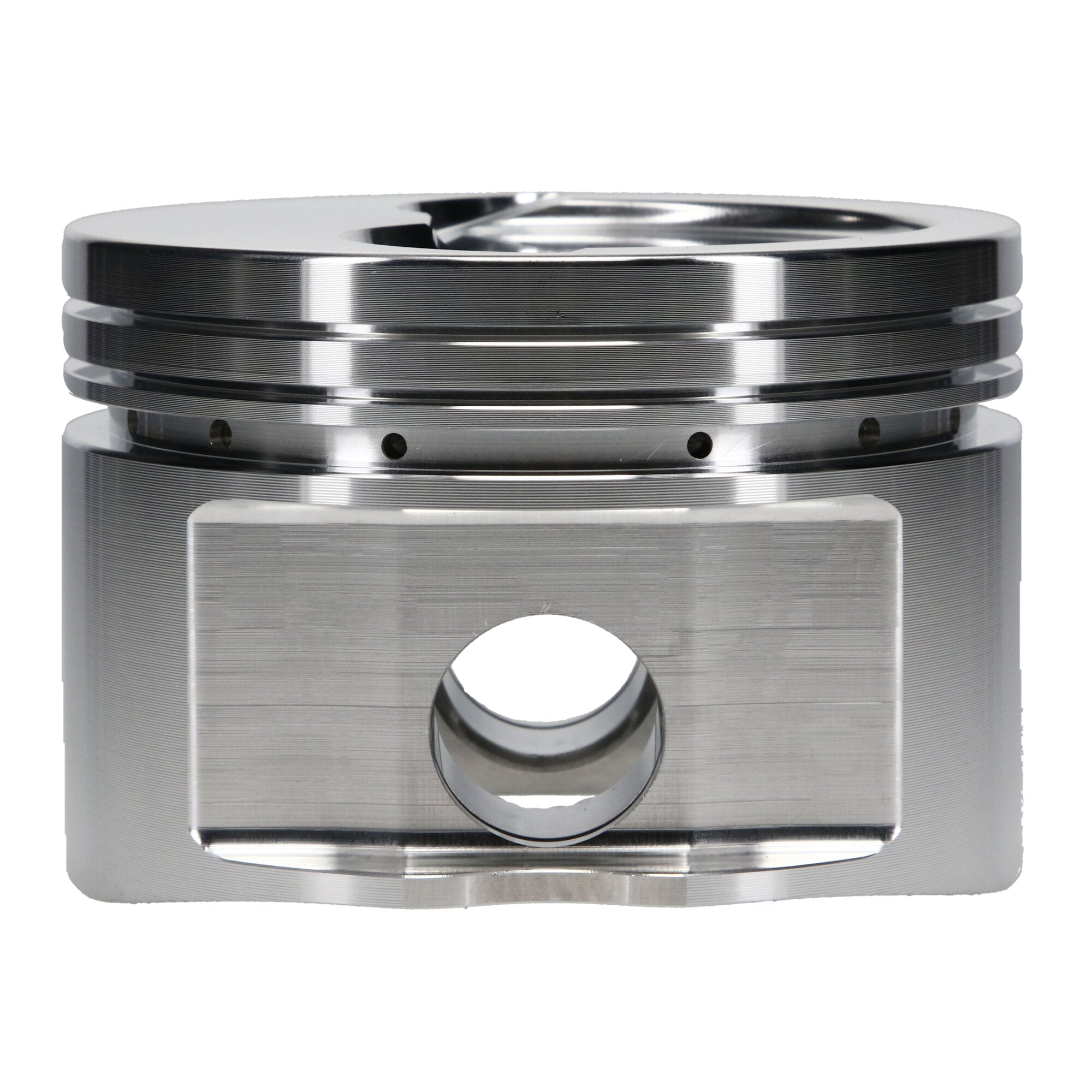

Piston Set, 2618, Inv Dome/Dish, 4.350 Bore, 2.058 CD, 0.990 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Mopar, Big Block Chrysler, 4.350 in. Bore, 2.058 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 440, 4.350 Bore, Dish, Set of 8 |
| Engine |
Big Block |
| Oil Ring Thickness |
0.188 |
| Compression Height |
2.058 |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Length |
2.930 |
| Piston Head Type |
Dish |
| Engine - Web |
Big Block |
| Title |
JE Pistons - Mopar, Big Block, 4.350 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Make |
MOPAR |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Product Market |
Domestic |
| Engine Type |
ICE |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.990 |
| Industry |
Automotive |
| Add-On |
990-042-CS |
| Add-On |
990-2930-15-51S |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.0640 |
| Top Compression Ring Thickness |
0.0640 |
| Product Type |
Engine Piston Kit |
| Cylinder Head |
440 WEDGE |
| Piston Volume |
-19.00 |
| Piston Pin Outside Diameter |
0.990 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.350 |
| Title - Web |
JE Pistons Mopar Big Block Piston Kit - 4.350 in. Bore - 2.058 in. CH, -19.00 CC |
| Piston Material |
2618 |
| Piston Average Weight |
745 |
| Add-On |
J10008-4350-5 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Mopar |
| Wrist Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
17.0000 |
