As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Big Block 460 A460 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

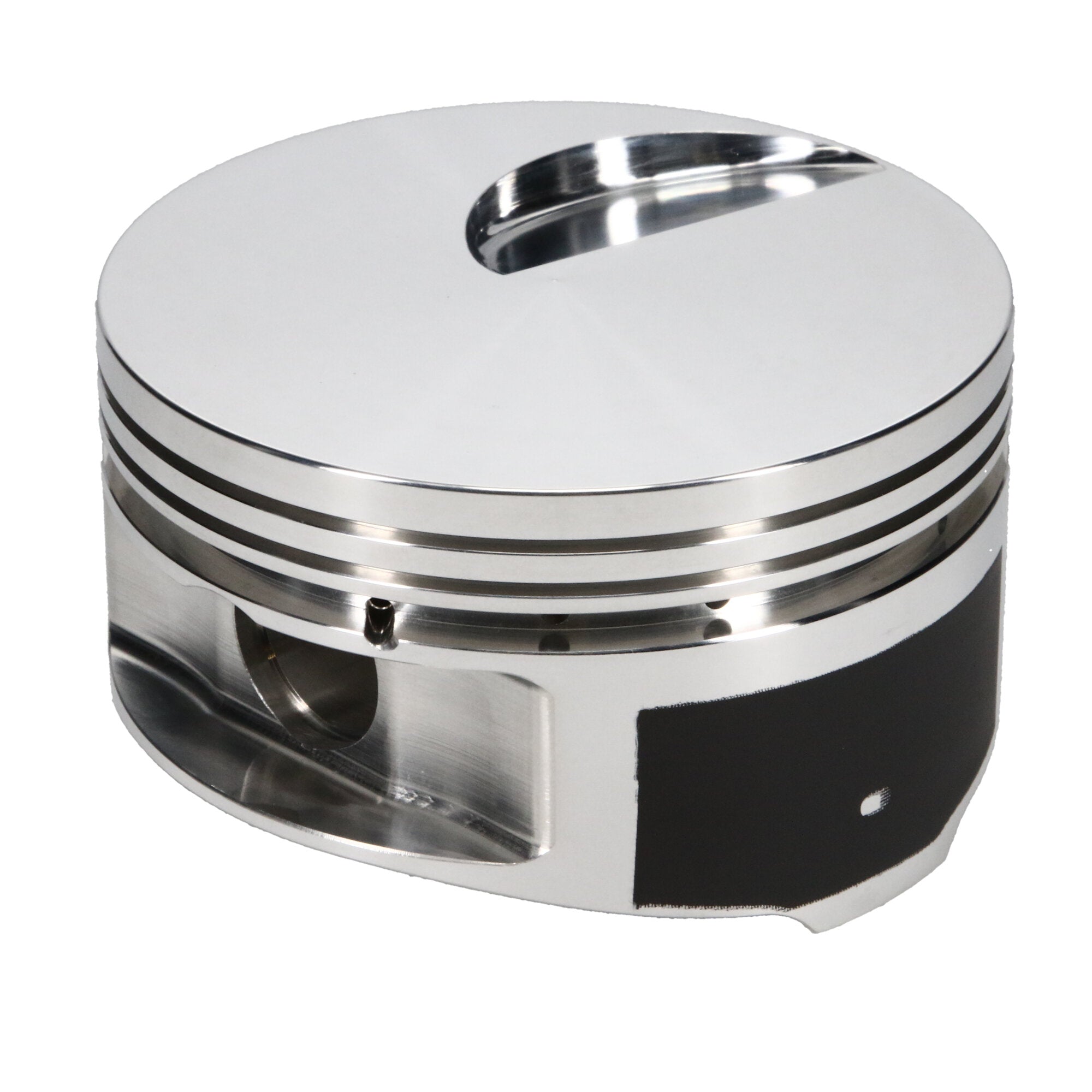

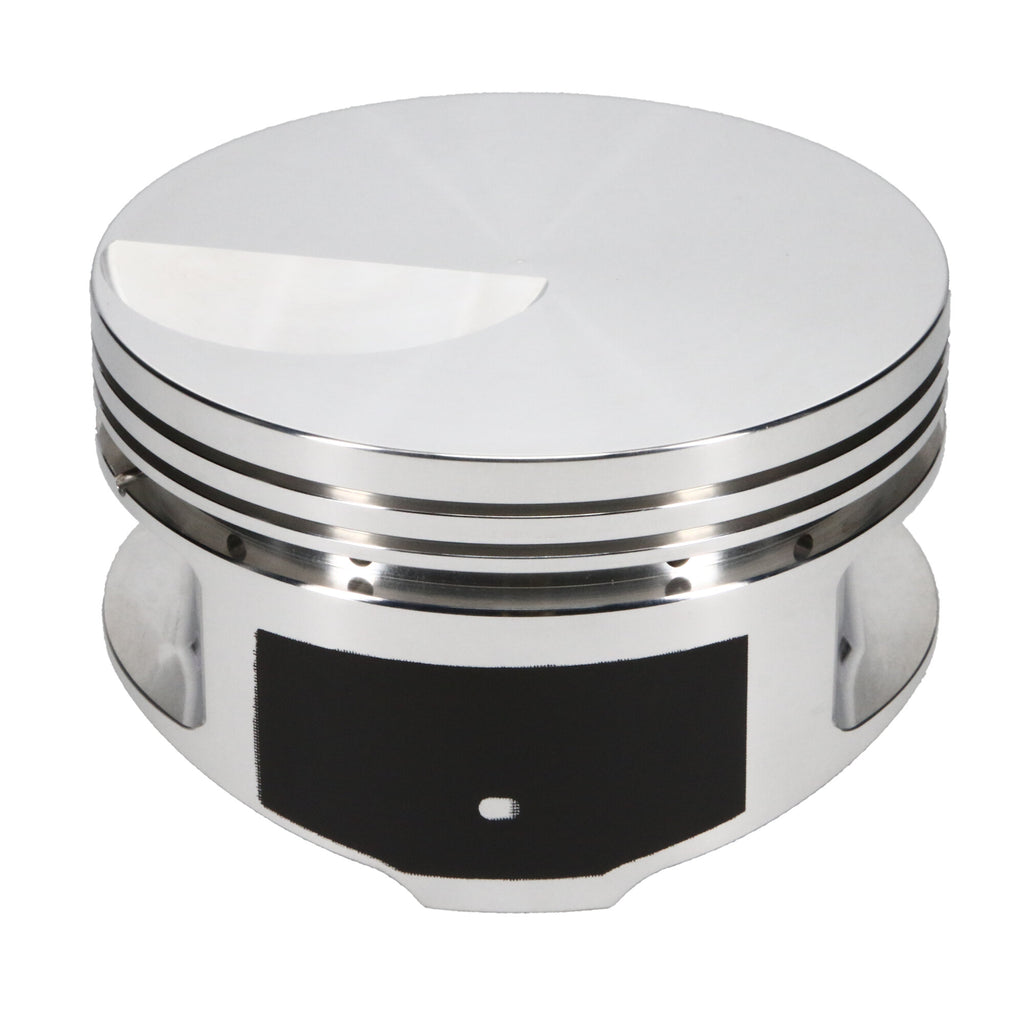

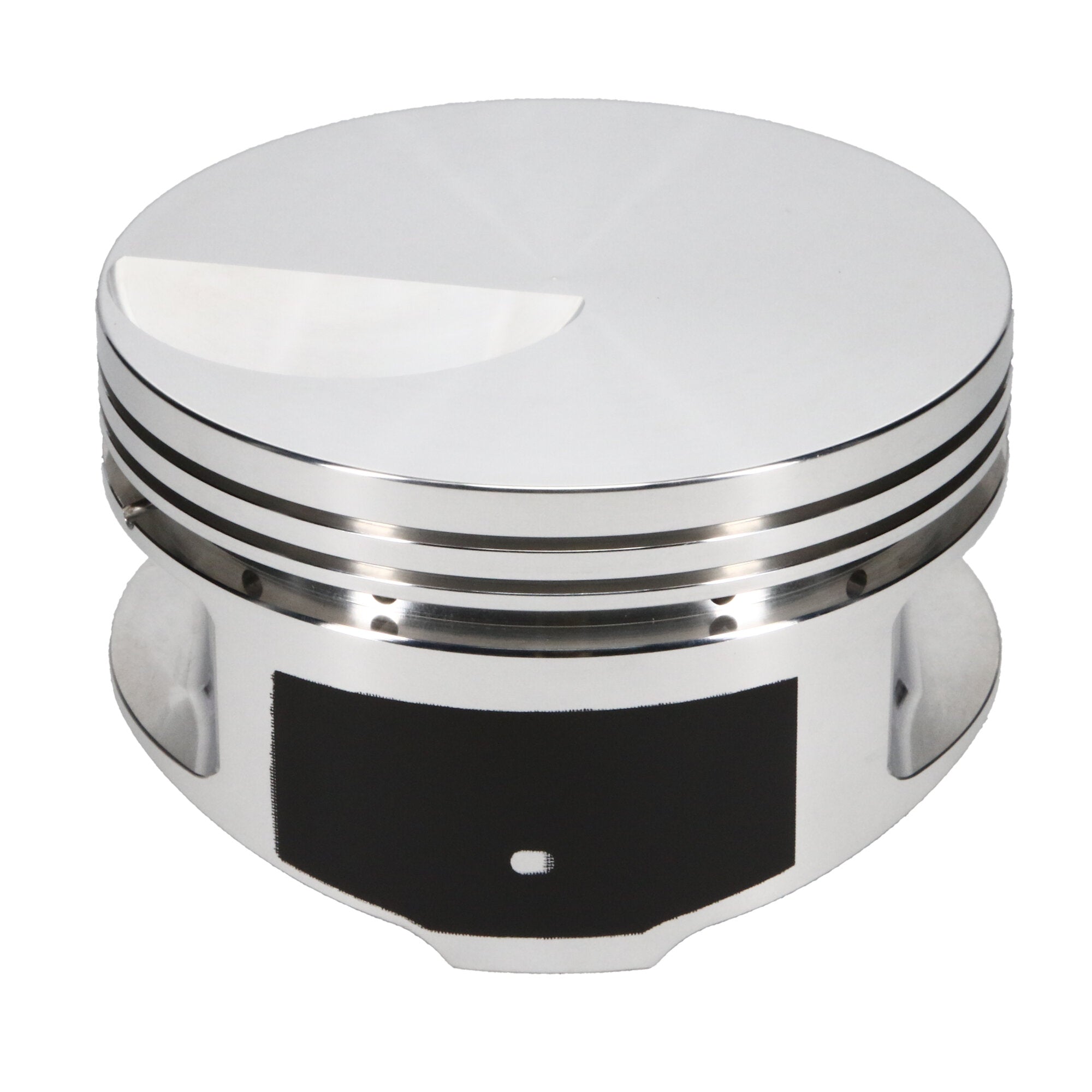

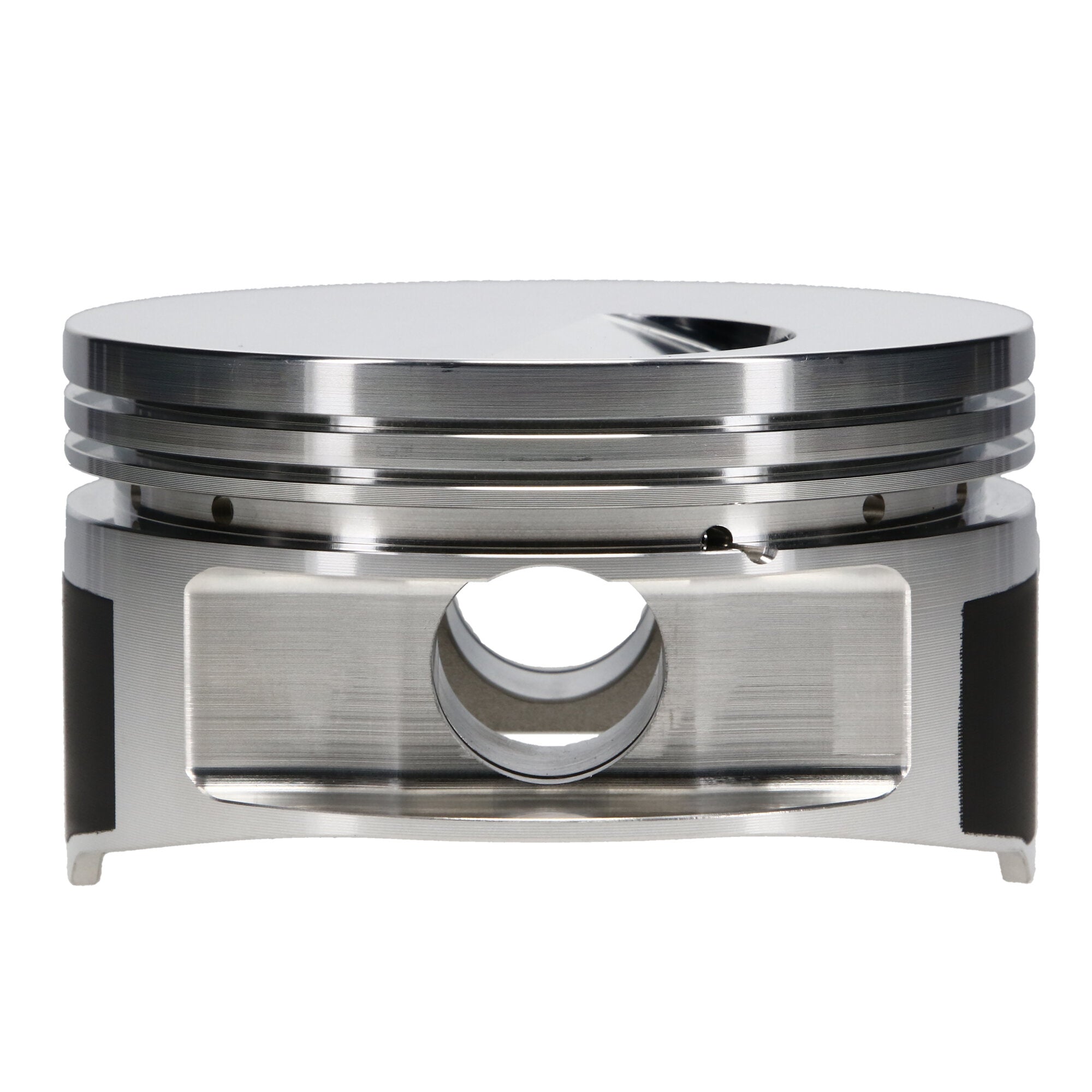

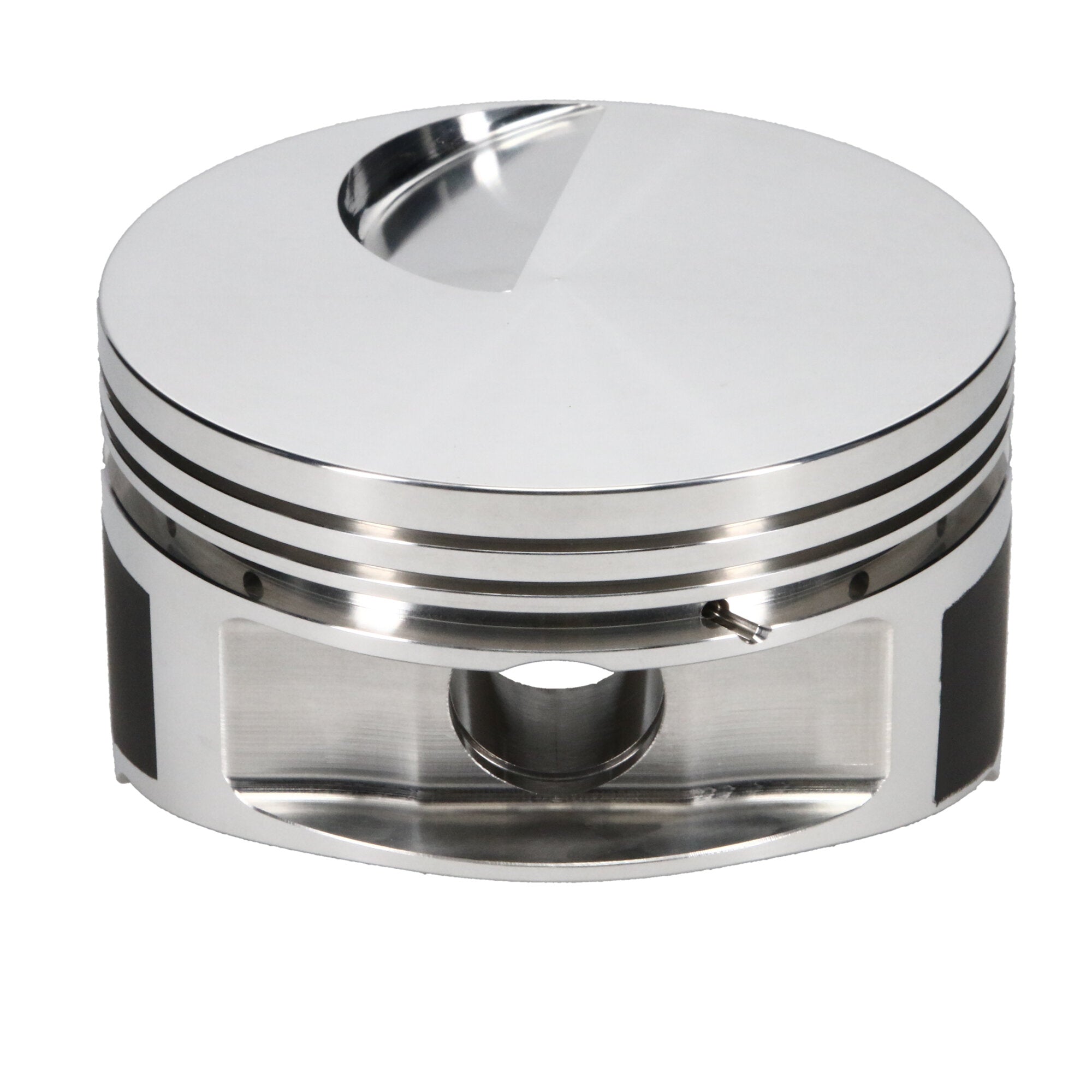

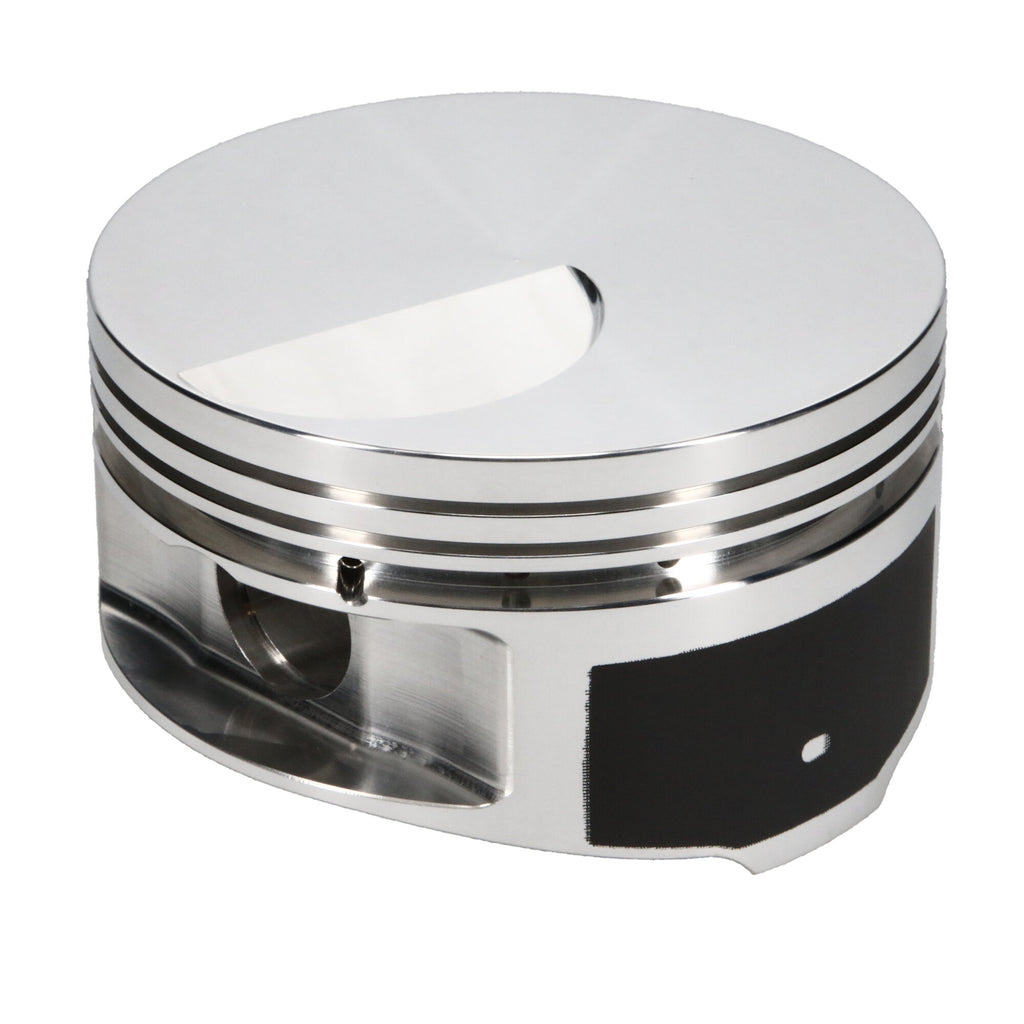

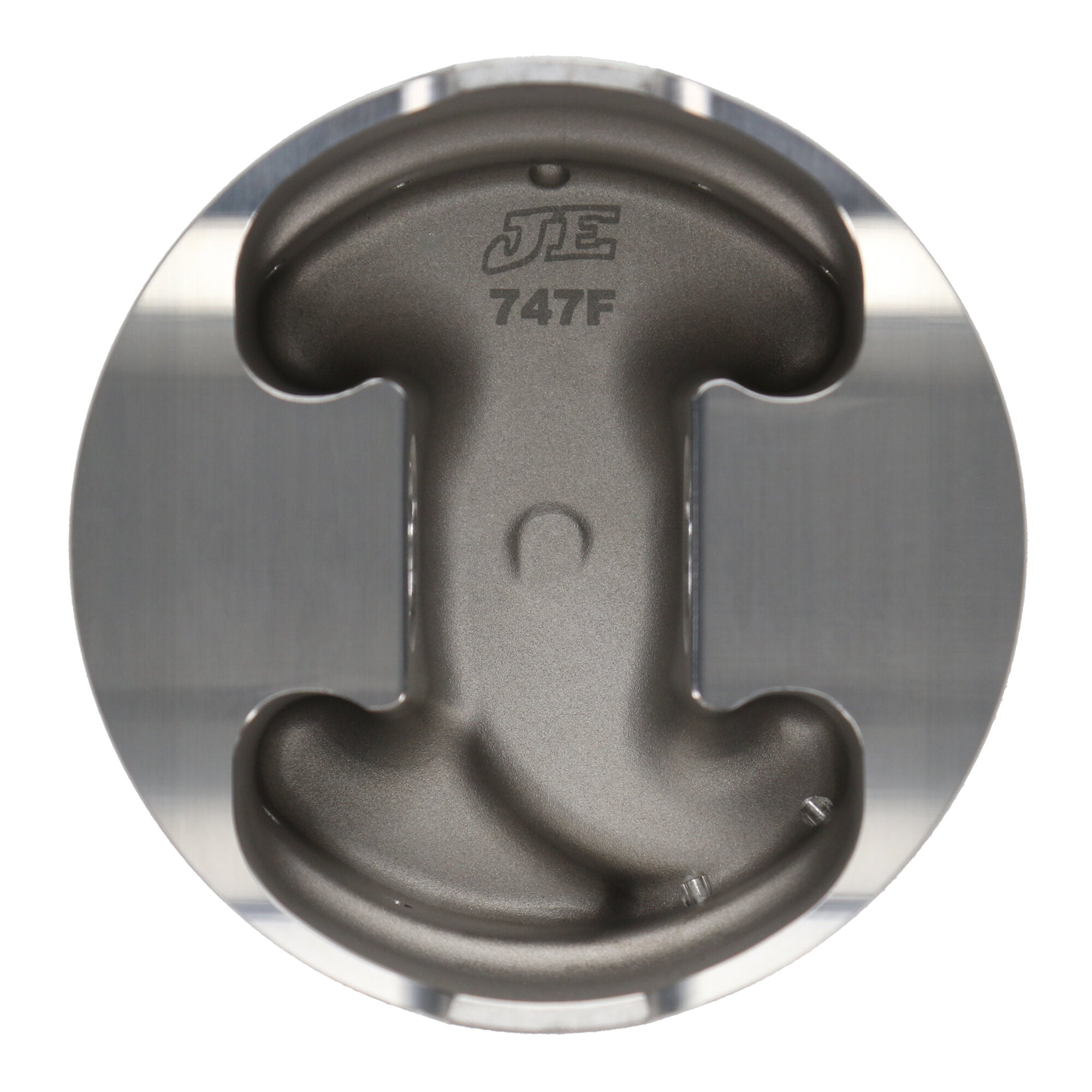

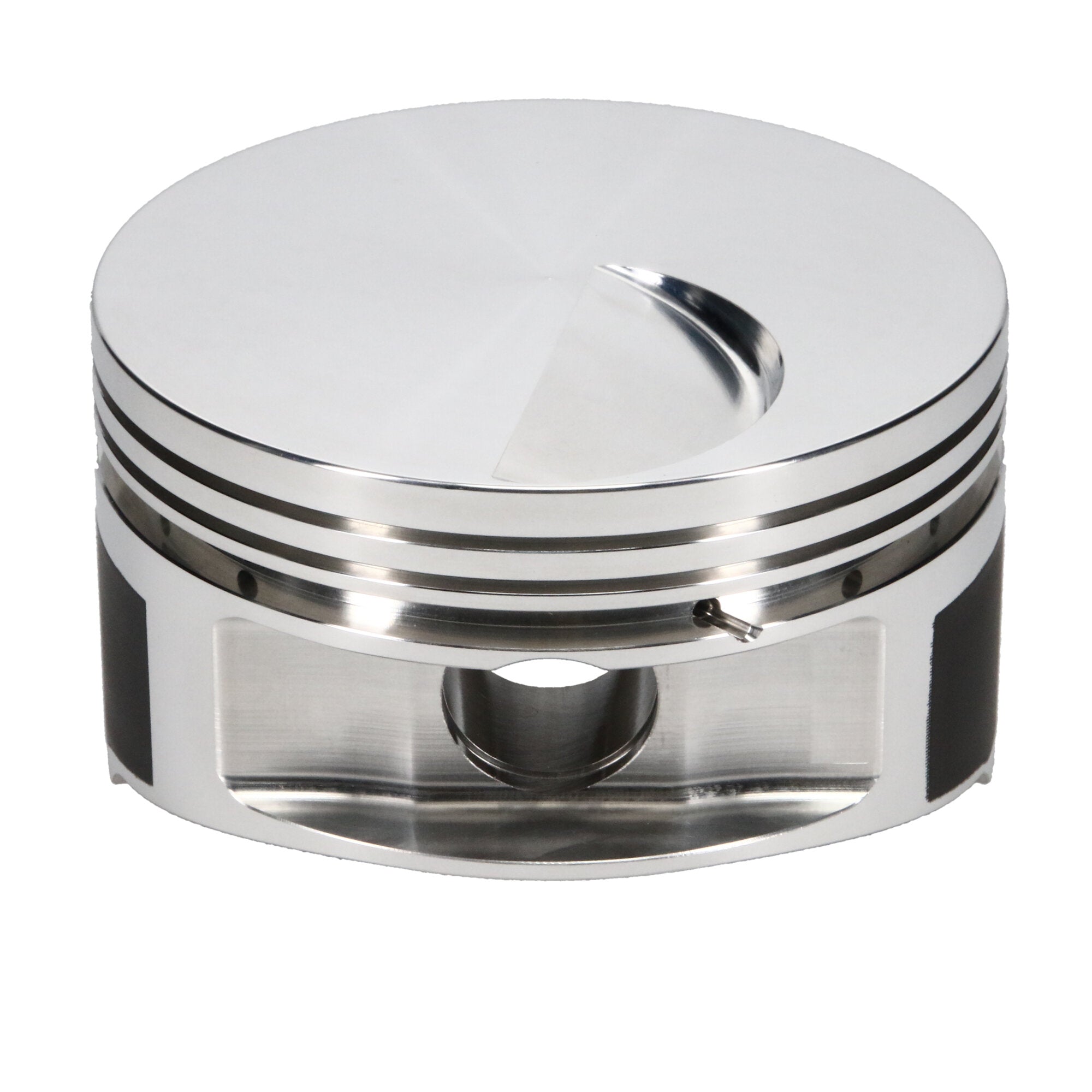

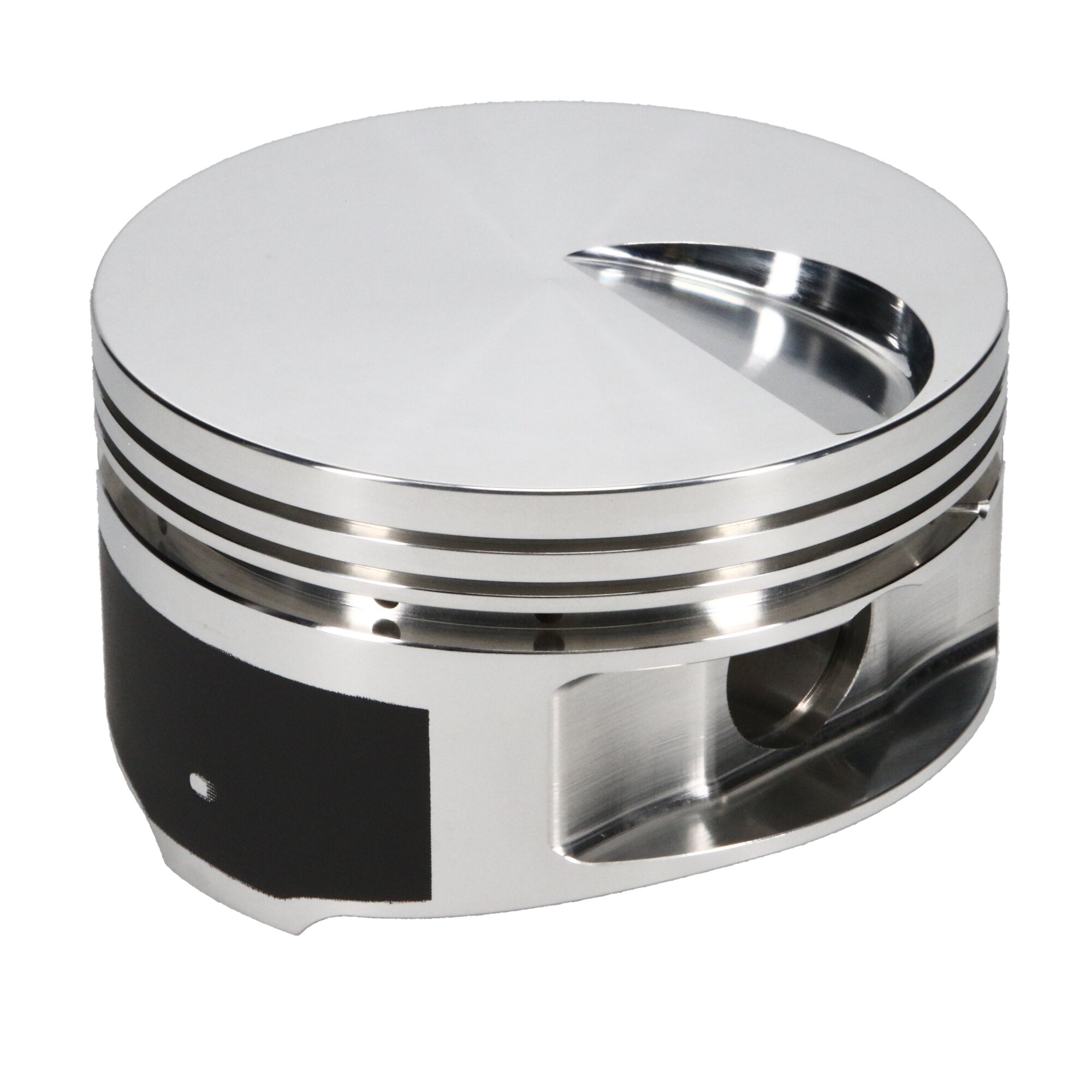

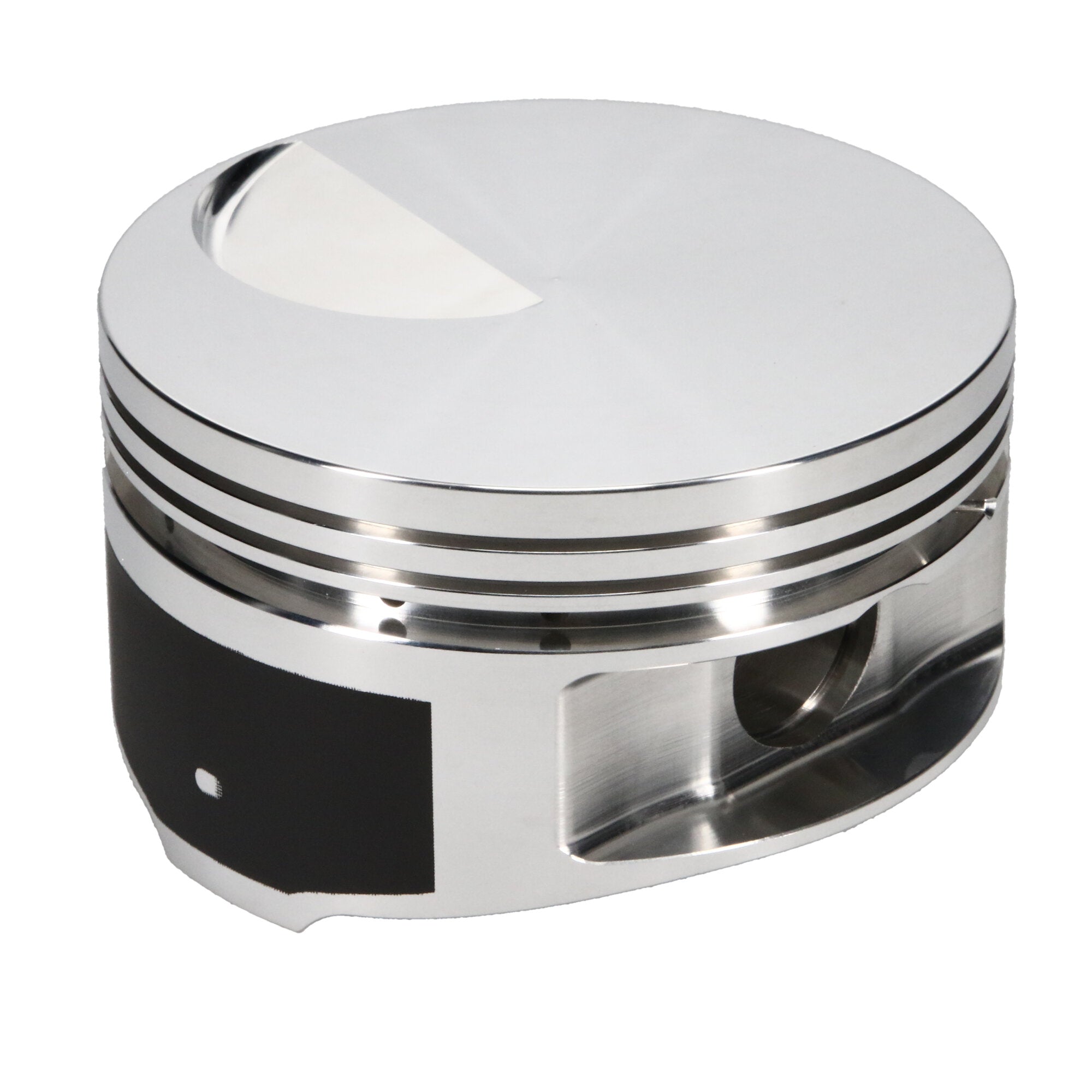

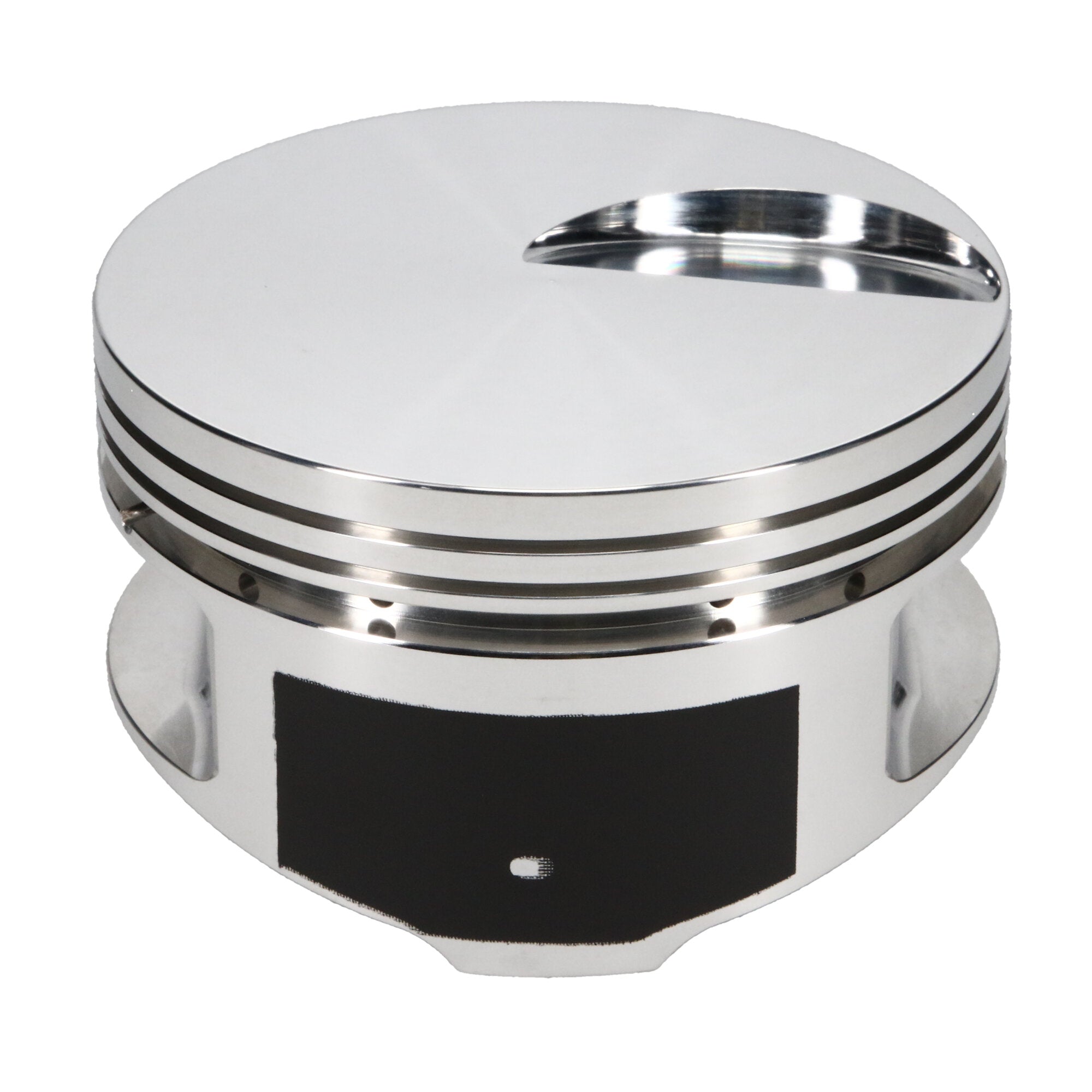

Piston Set, 2618, Flat Top, 4.440 Bore, 1.350 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Big Block Ford, 4.440 in. Bore, 1.350 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 460, 4.440 Bore, Flat, Set of 8 |
| Prop 65 (C, R or CR) |
CR |
| Make - Web |
Ford |
| Wrist Pin Length |
2.930 |
| Prop 65 Yes/No |
Yes |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.990 |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Big Block |
| Piston Material |
2618 |
| Piston Average Weight |
577 |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-3.00 |
| Title |
JE Pistons - Ford, Big Block, 4.440 in. Bore, Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Ford Big Block Piston Kit - 4.440 in. Bore - 1.350 in. CH, -3.00 CC |
| Second Compression Ring Thickness |
0.0640 |
| Bore Diameter |
4.440 |
| Ring Set Included |
No |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
J10008-4440-5 |
| Engine |
Big Block |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Forging Type |
Round |
| Product Market |
Domestic |
| Piston Pin Length |
2.930 |
| Add-On |
990-2930-15-51S |
| Piston Pin Material |
5115 |
| Cylinder Head |
TFS BBF A460 |
| Engine Type |
ICE |
| Ringset Included |
No |
| Compression Height |
1.350 |
| Add-On |
990-042-CS |
| Oil Ring Thickness |
0.188 |
| Industry |
Automotive |
| Make |
FORD |

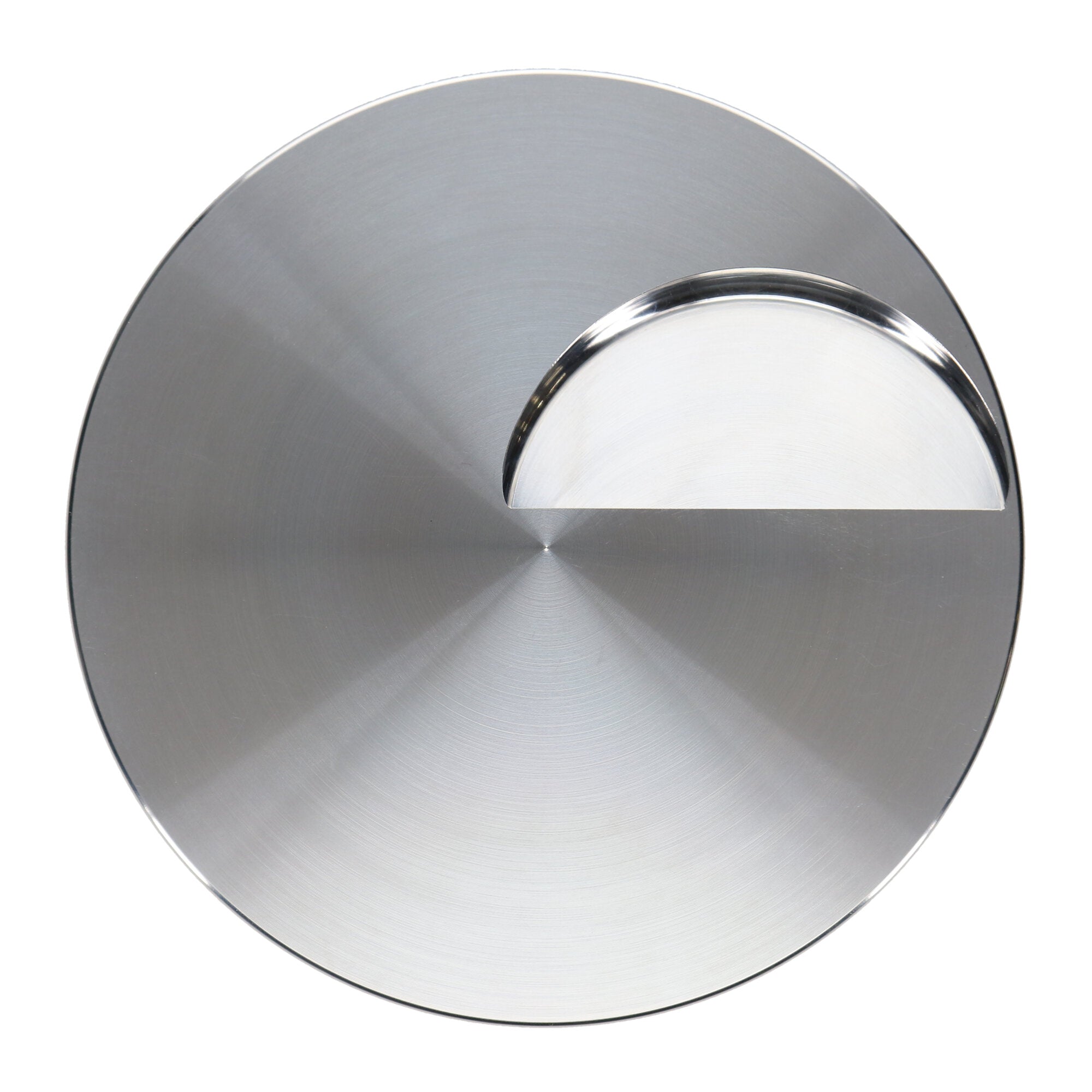

| Piston Head Type |
Flat |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.990 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Series |
JE Pistons |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
