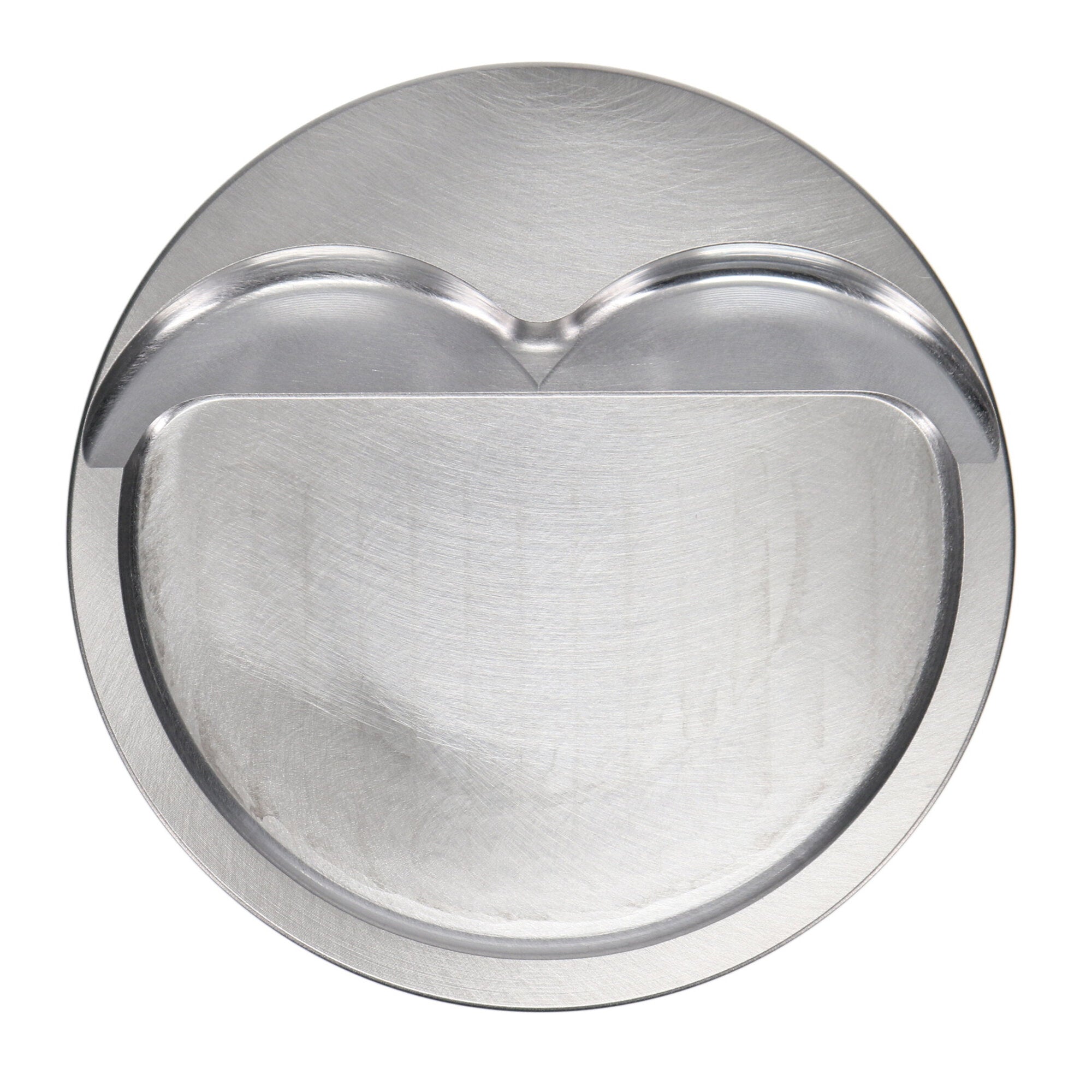

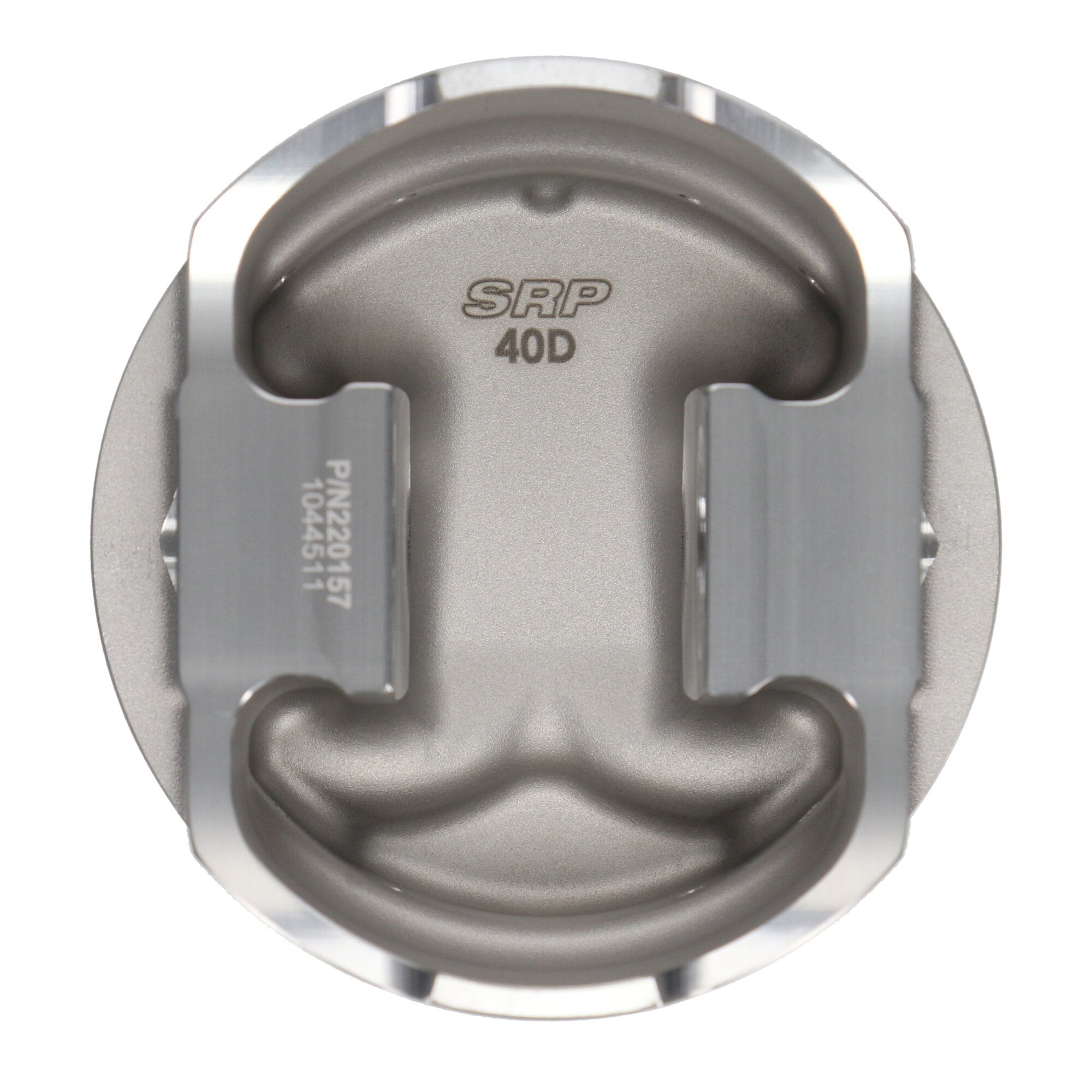

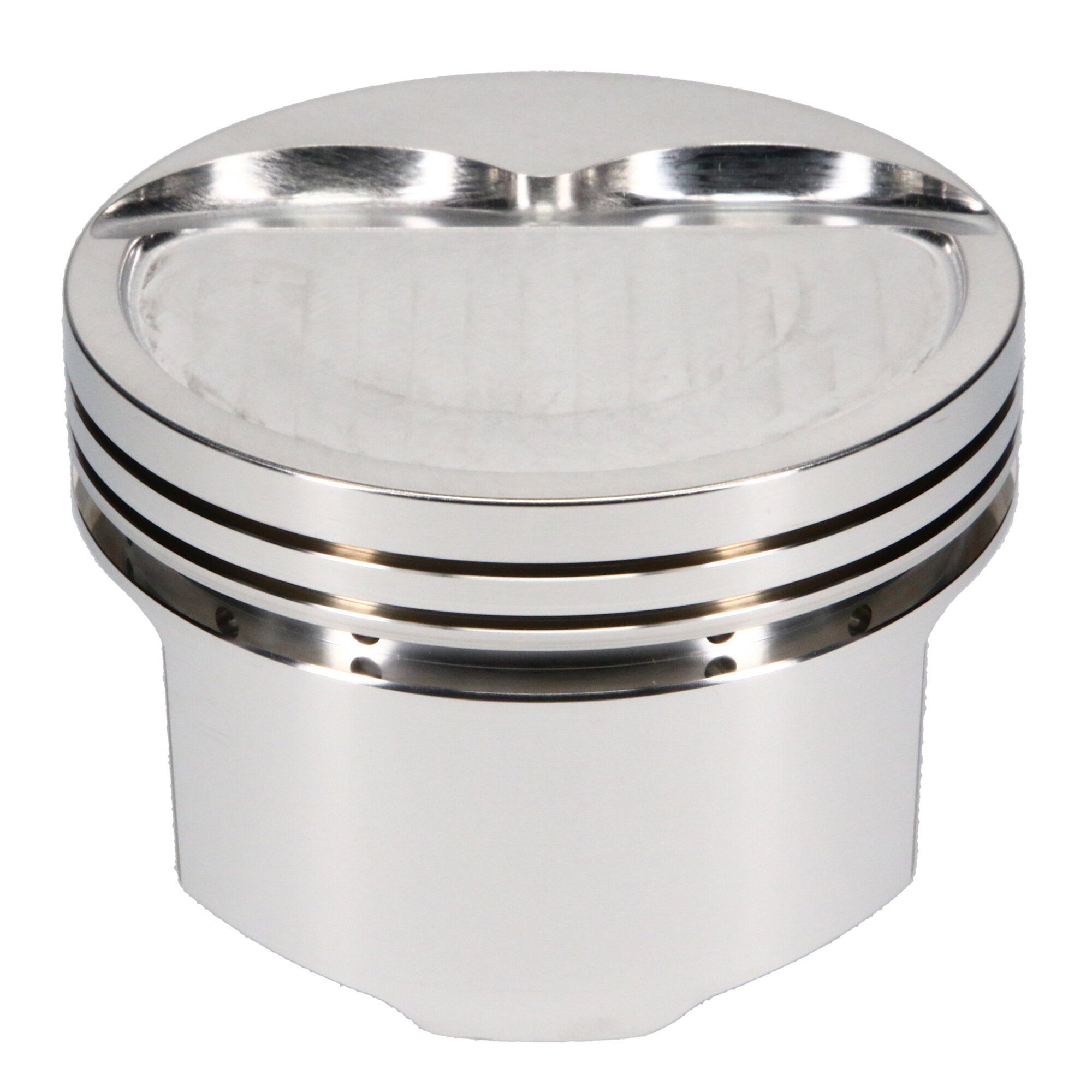

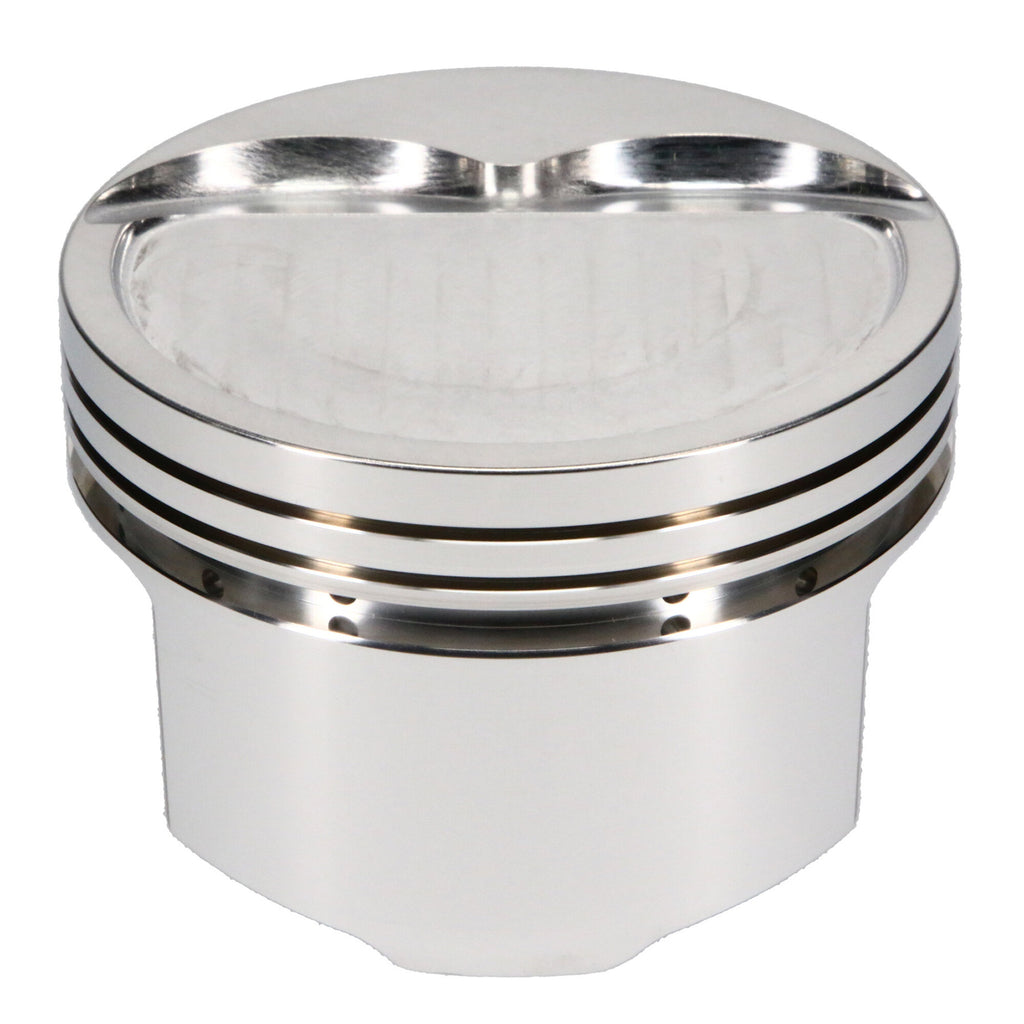

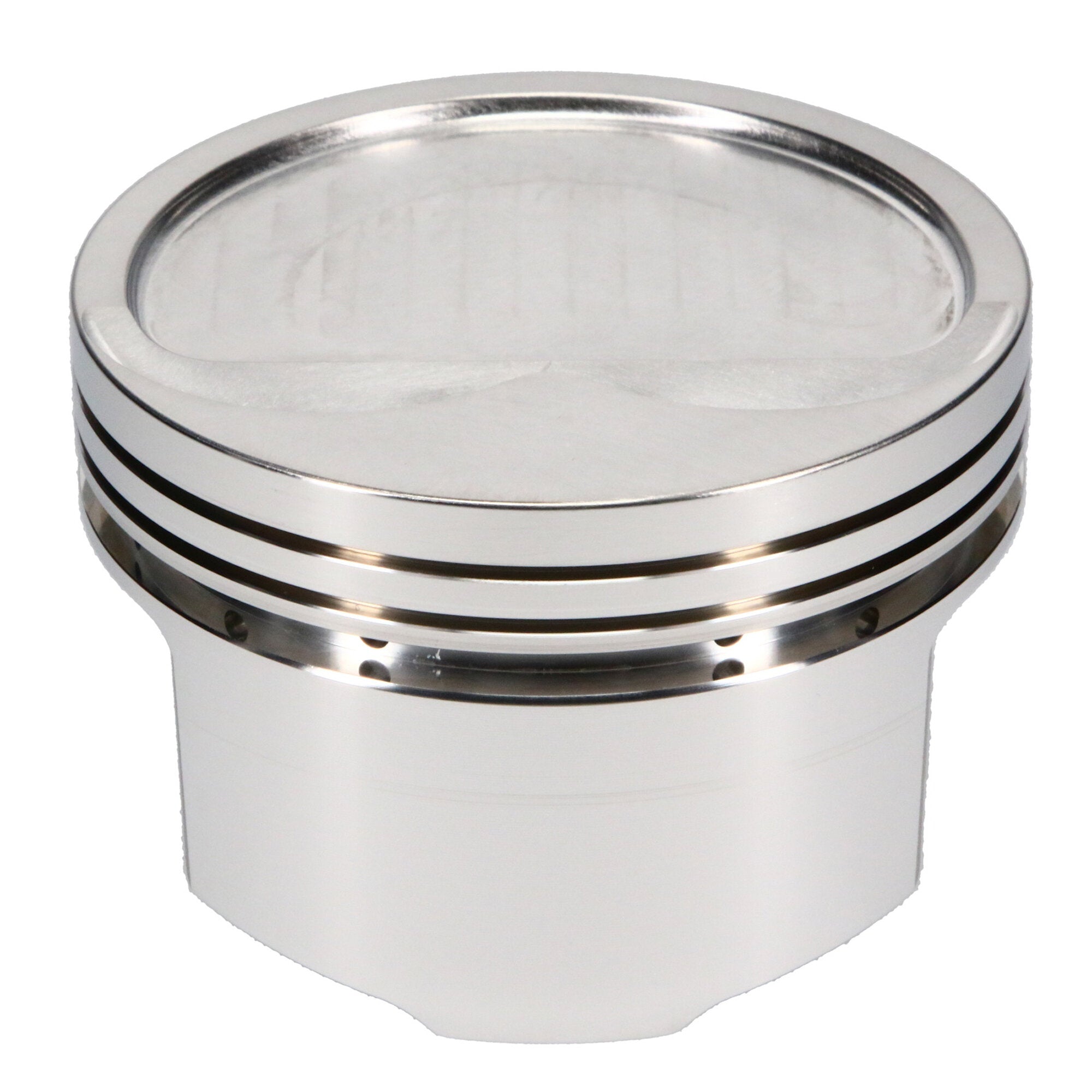

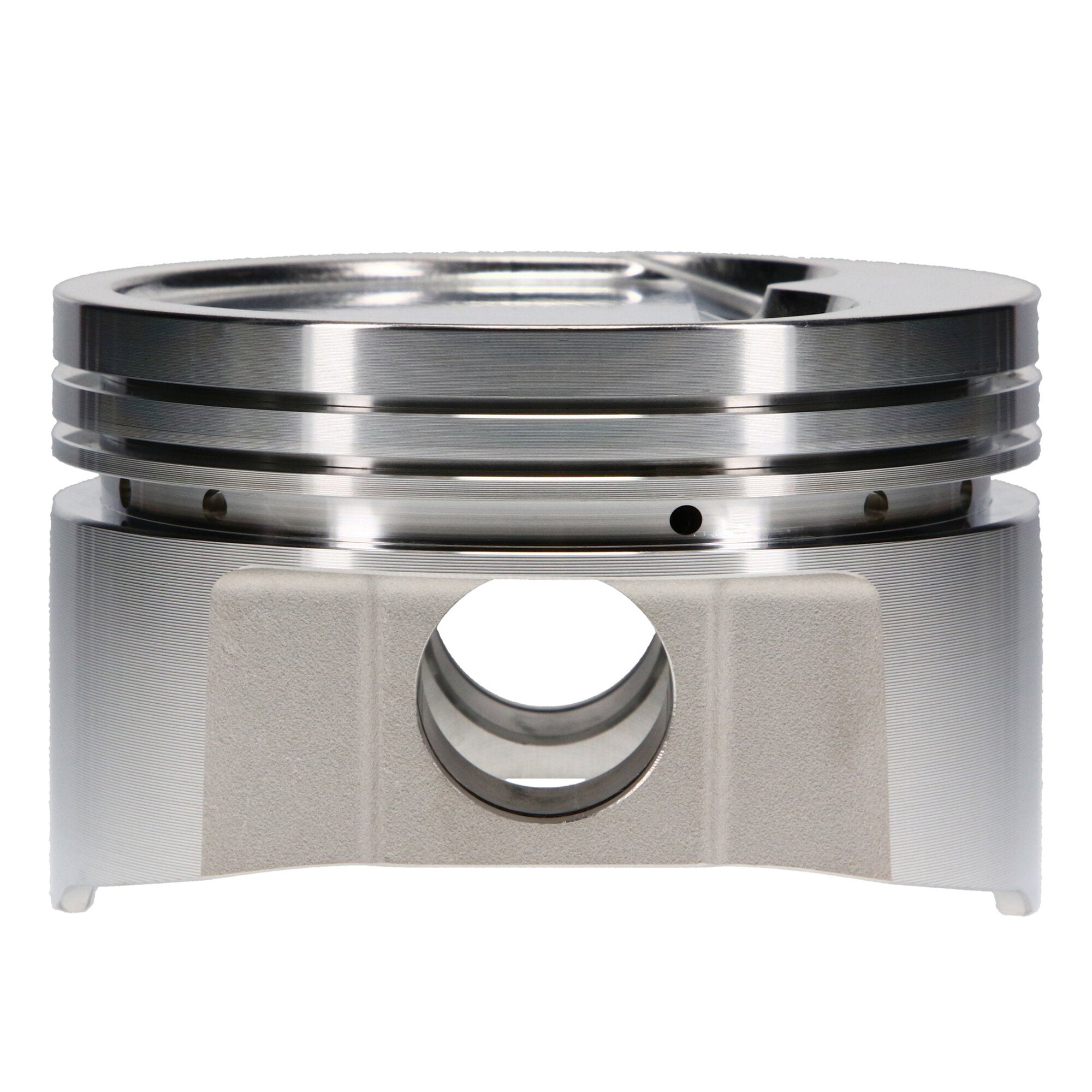

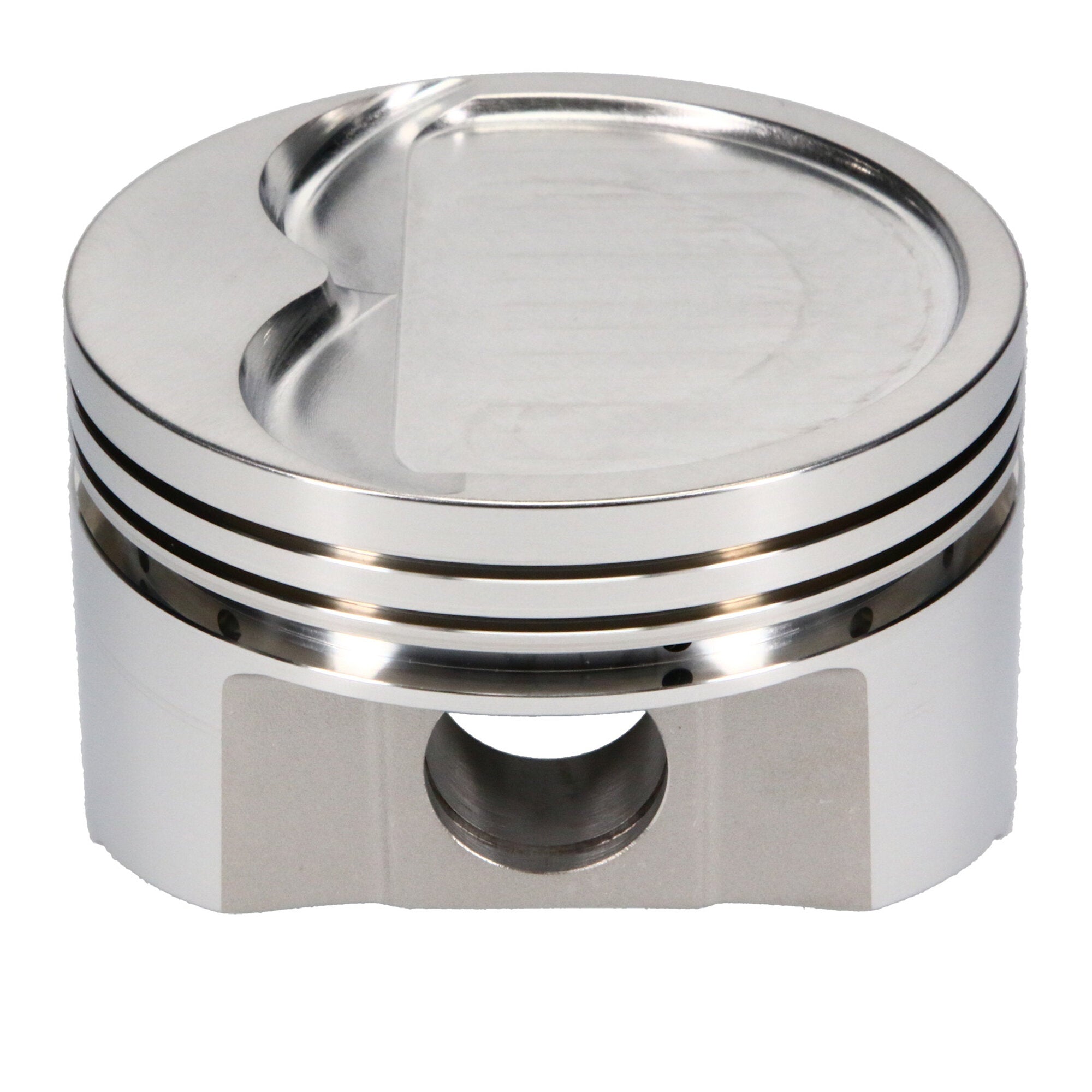

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chrysler Small Block 340 |
| Description_DES |
Piston Set, 4032, Inv Dome/Dish, 4.040 Bore, 1.460 CD, 0.984 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chrysler, Small Block Chrysler, 4.040 in. Bore, 1.460 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chrysler 340, 4.040 Bore, Dish, Set of 8 |
| Forging Type |
FSR |
| Piston Pin Material |
5115 |
| Make |
CHRYSLER |
| Piston Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Engine Type |
ICE |
| Piston Head Type |
Dish |
| Piston Series |
SRP |
| Ring Set Included |
No |
| Wrist Pin Length |
2.750 |
| Wrist Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Compression Height |
1.460 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Average Weight |
462 |
| Oil Ring Thickness |
0.188 |
| Bore Diameter |
4.040 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Volume |
-17.00 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.984 |
| Title - Web |
SRP Chrysler Small Block Piston Kit - 4.040 in. Bore - 1.460 in. CH, -17.00 CC |
| Add-On |
990-042-CS |
| Piston Pin Outside Diameter |
0.984 |
| Piston Pin Length |
2.750 |
| Title |
SRP - Chrysler, Small Block, 4.040 in. Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Engine |
Small Block |
| Ringset Included |
No |
| Add-On |
S100S8-4040-5 |
| Add-On |
984-2750-15-51S |
| Cylinder Head |
340 WEDGE |
| Out of Stock Message |
Call for Availability |
| Piston Material |
4032 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chrysler |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
