As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

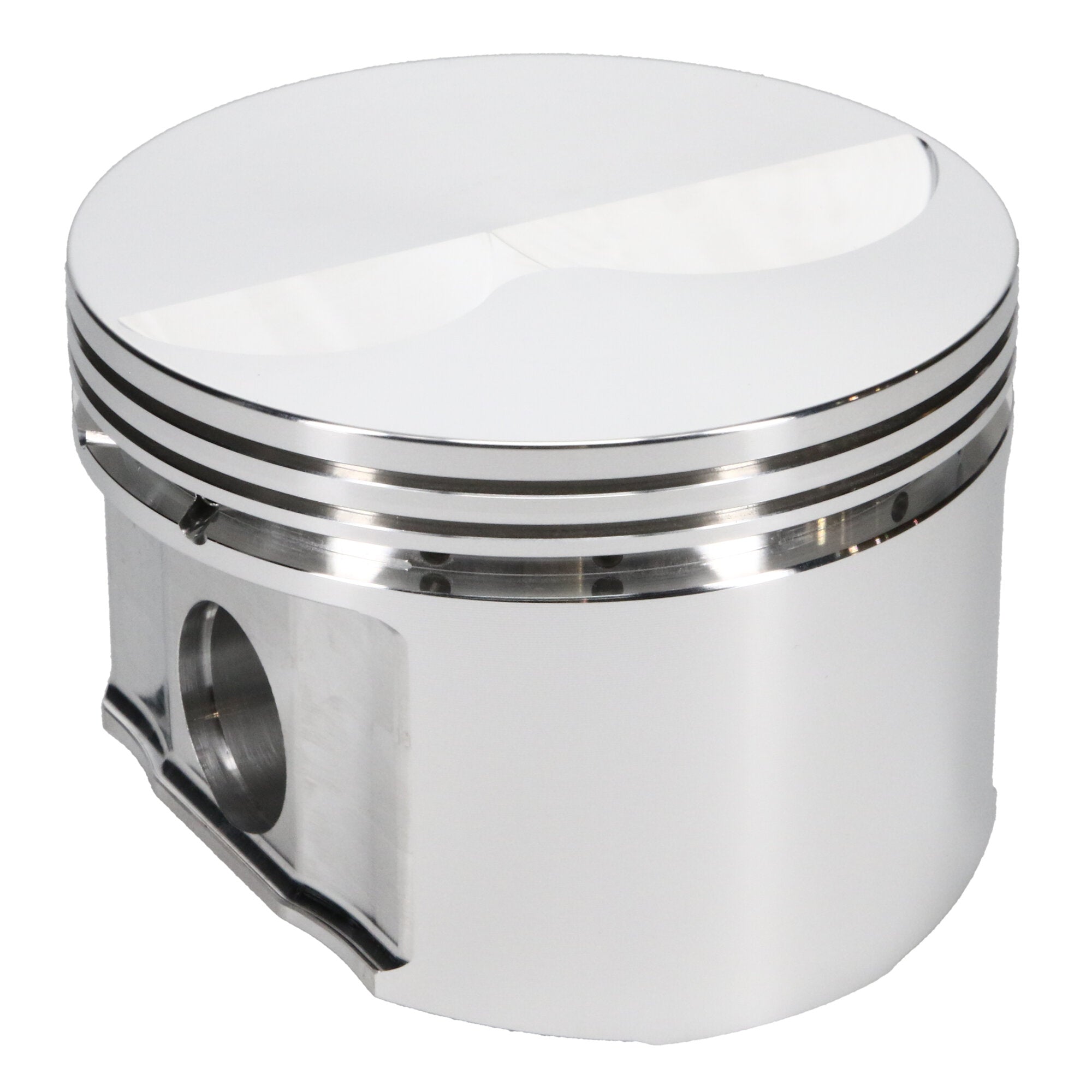

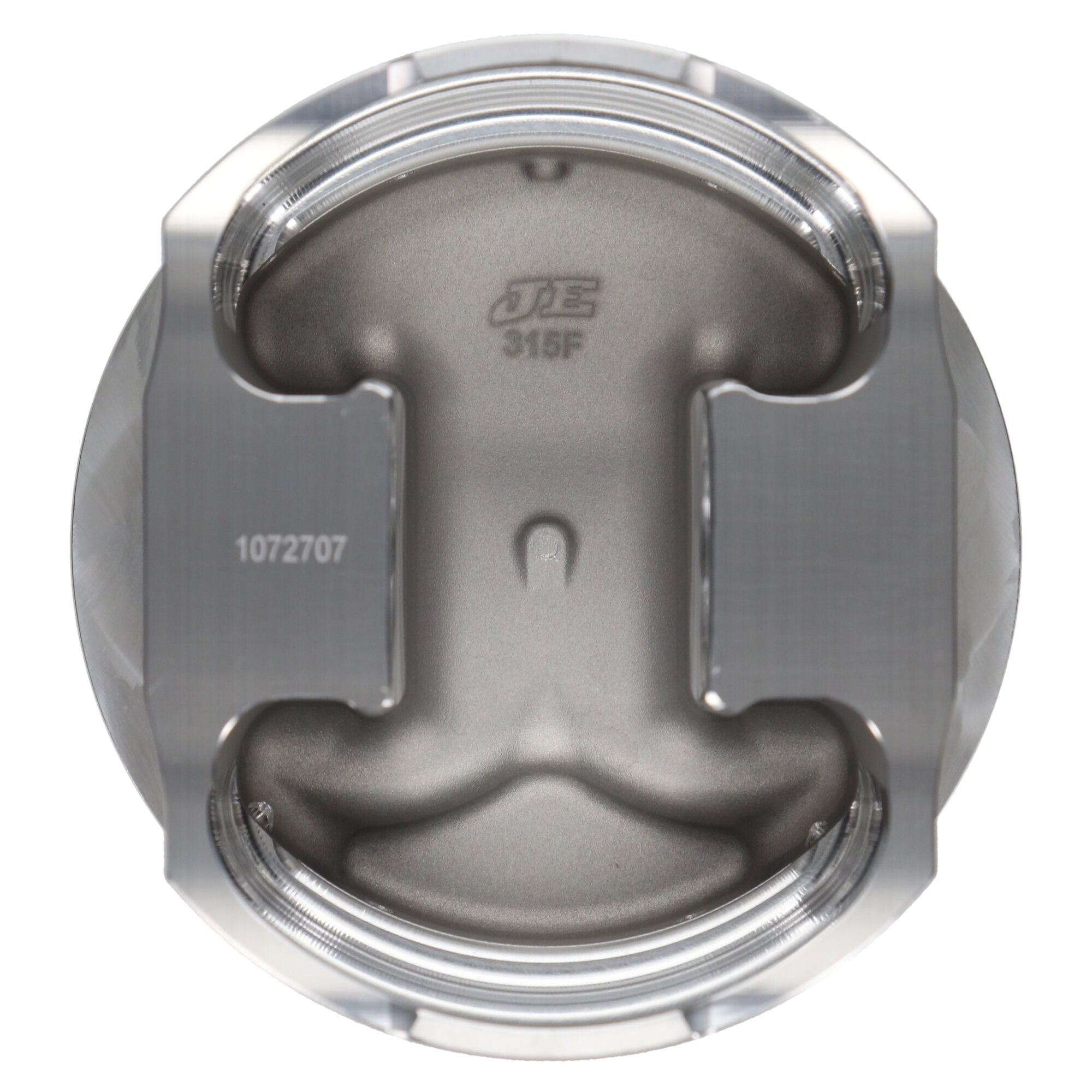

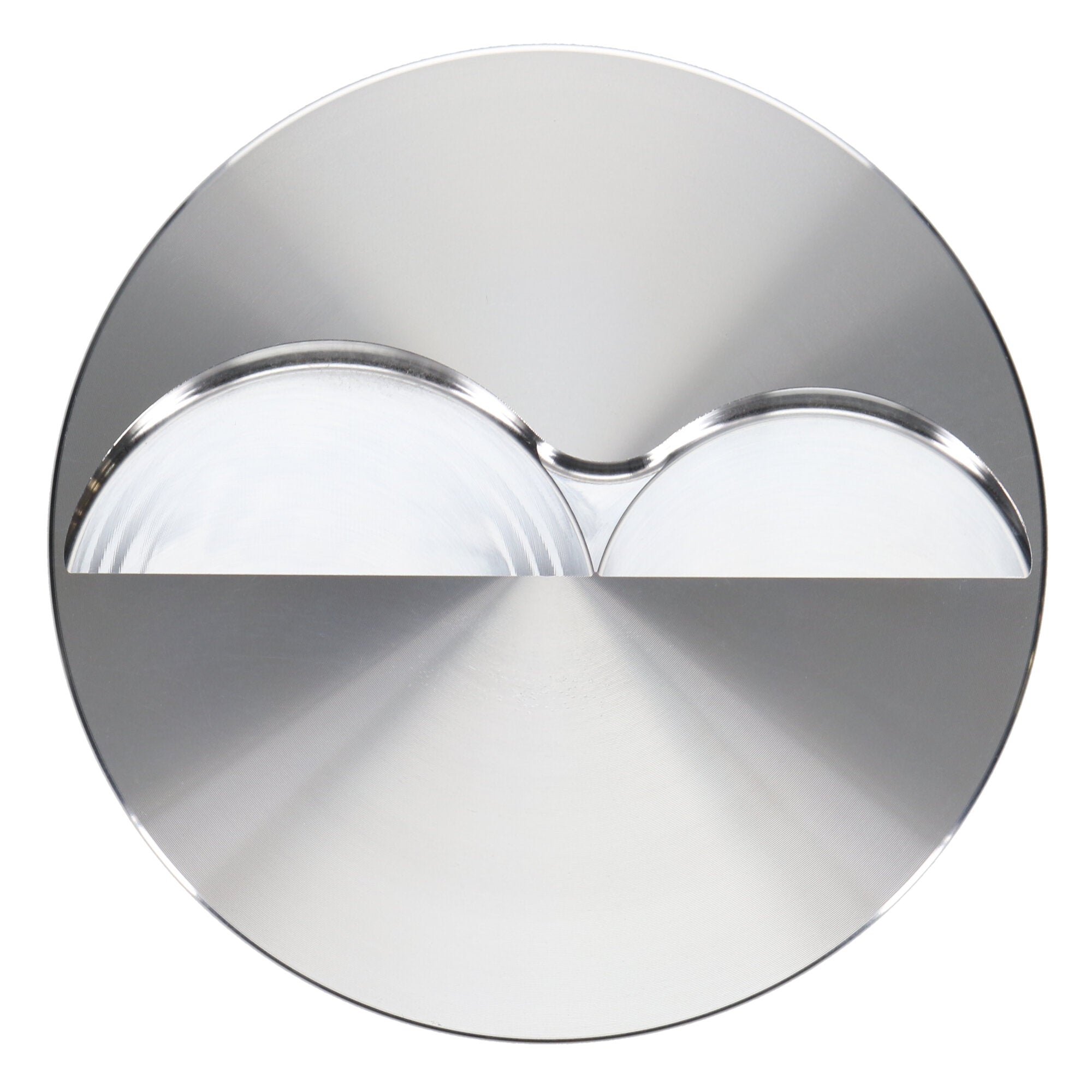

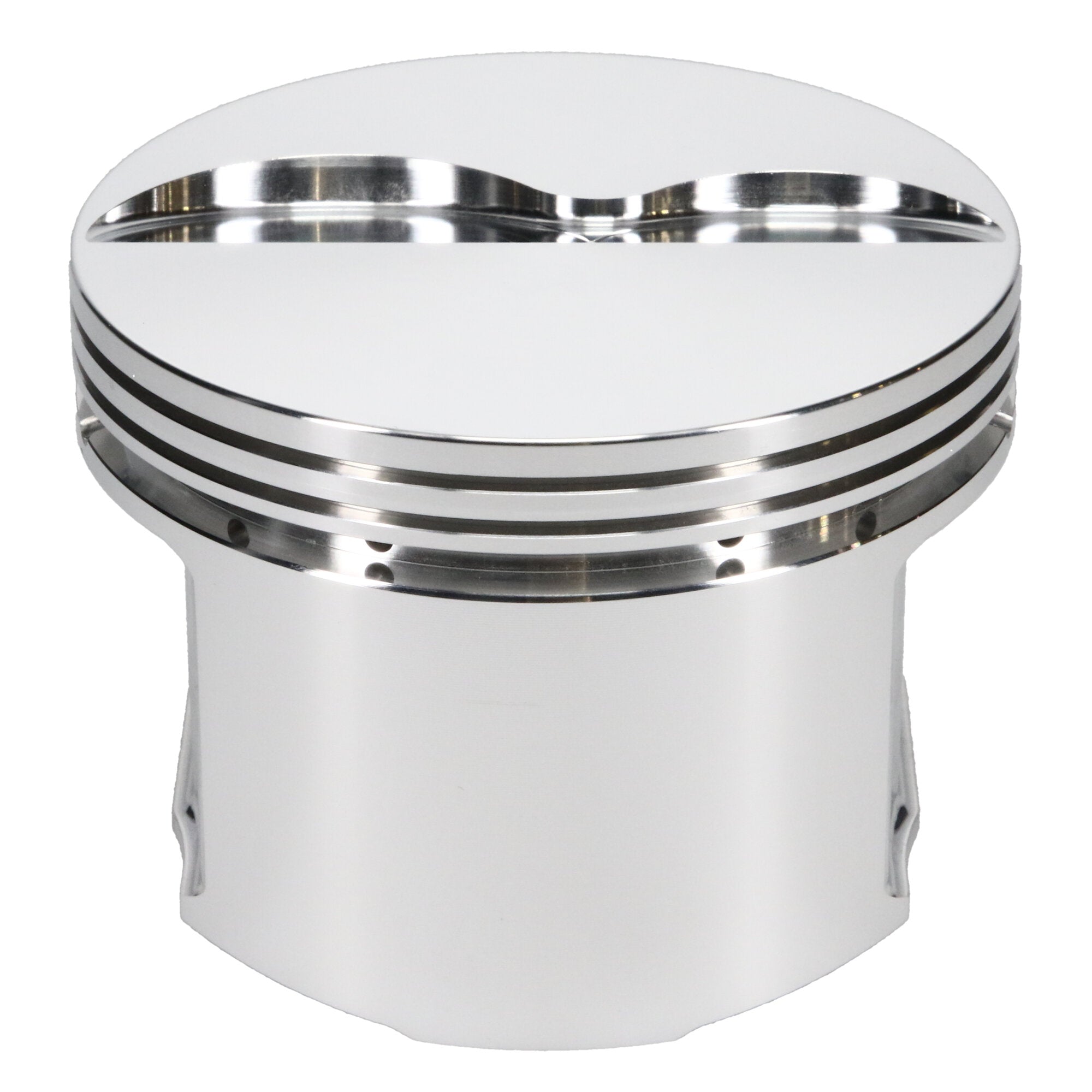

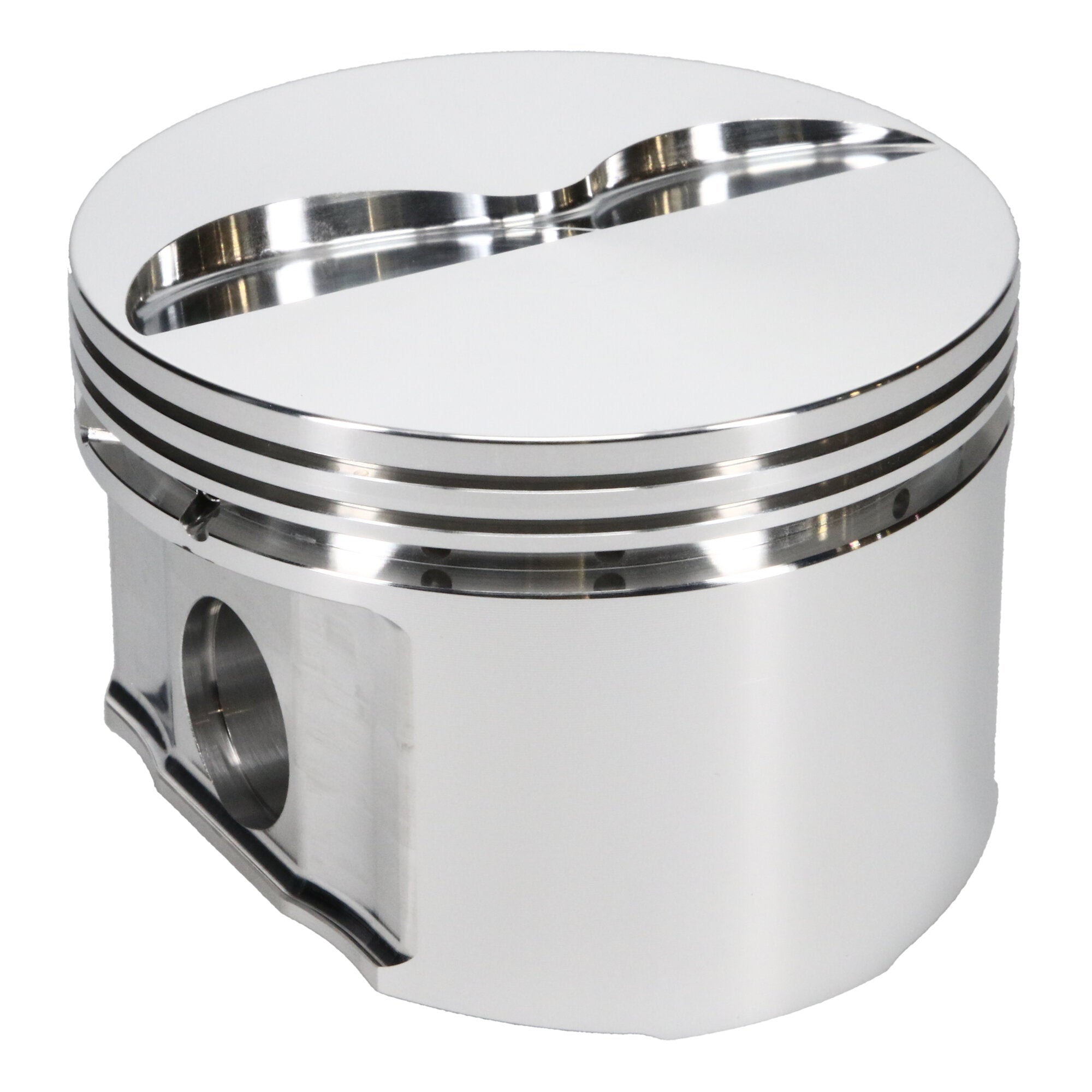

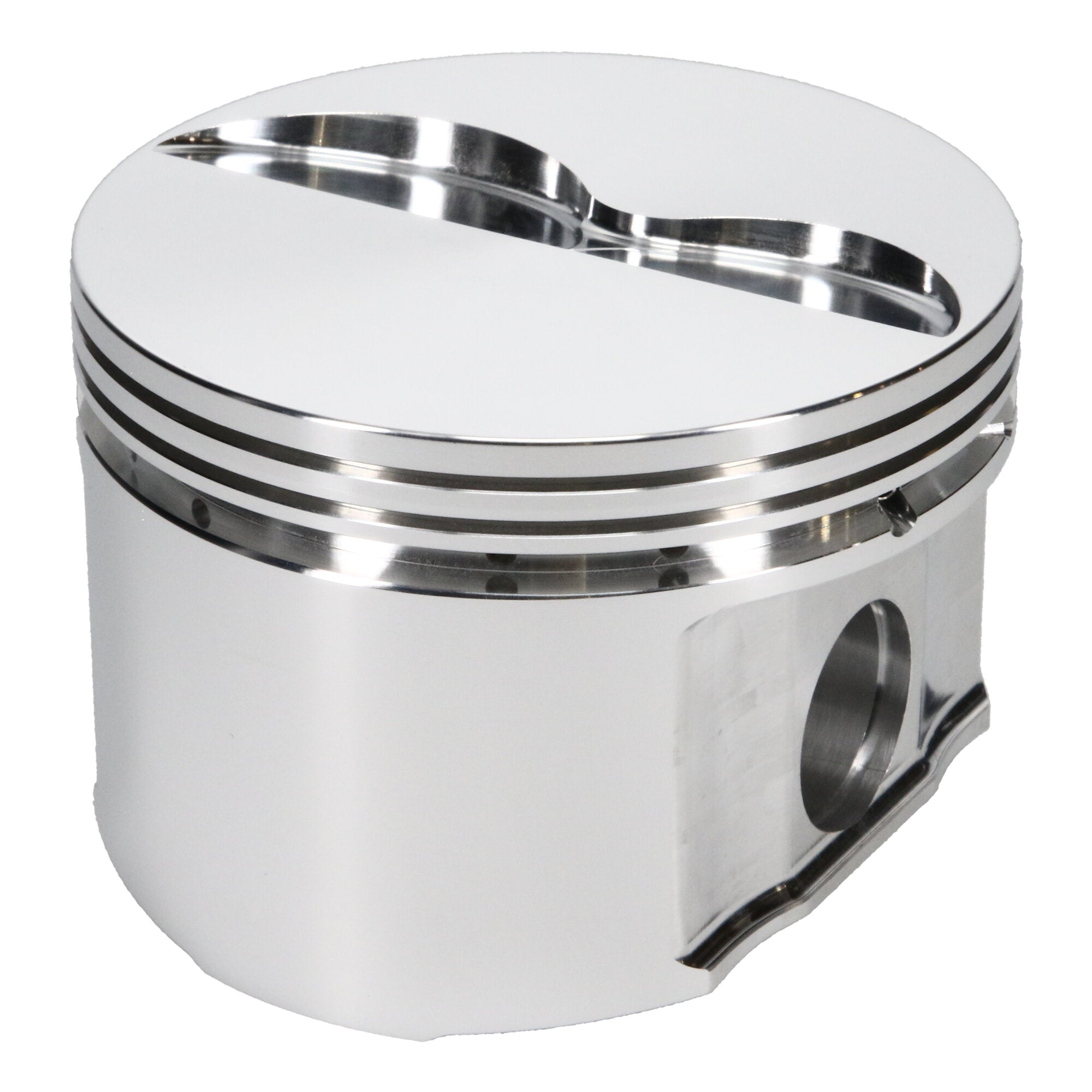

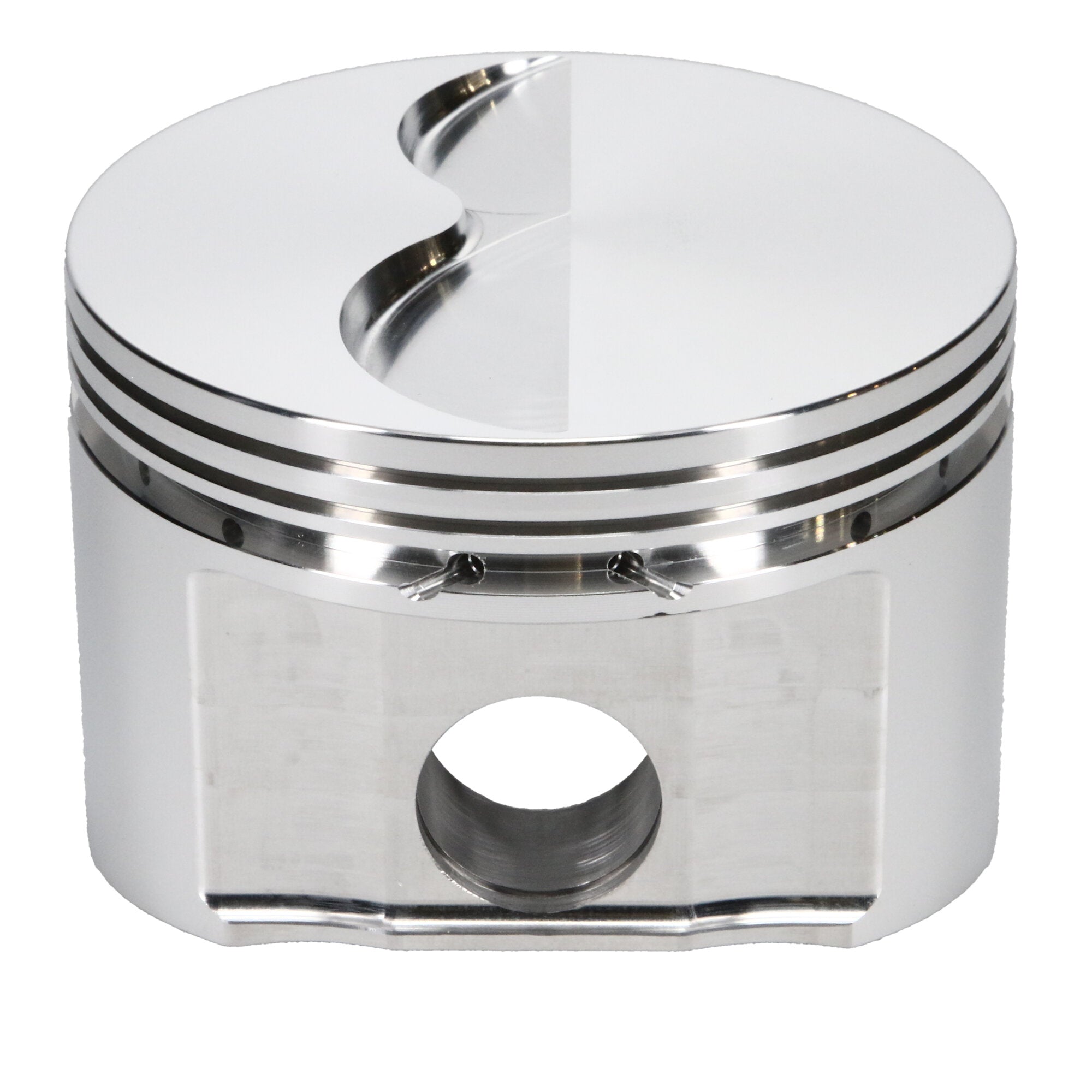

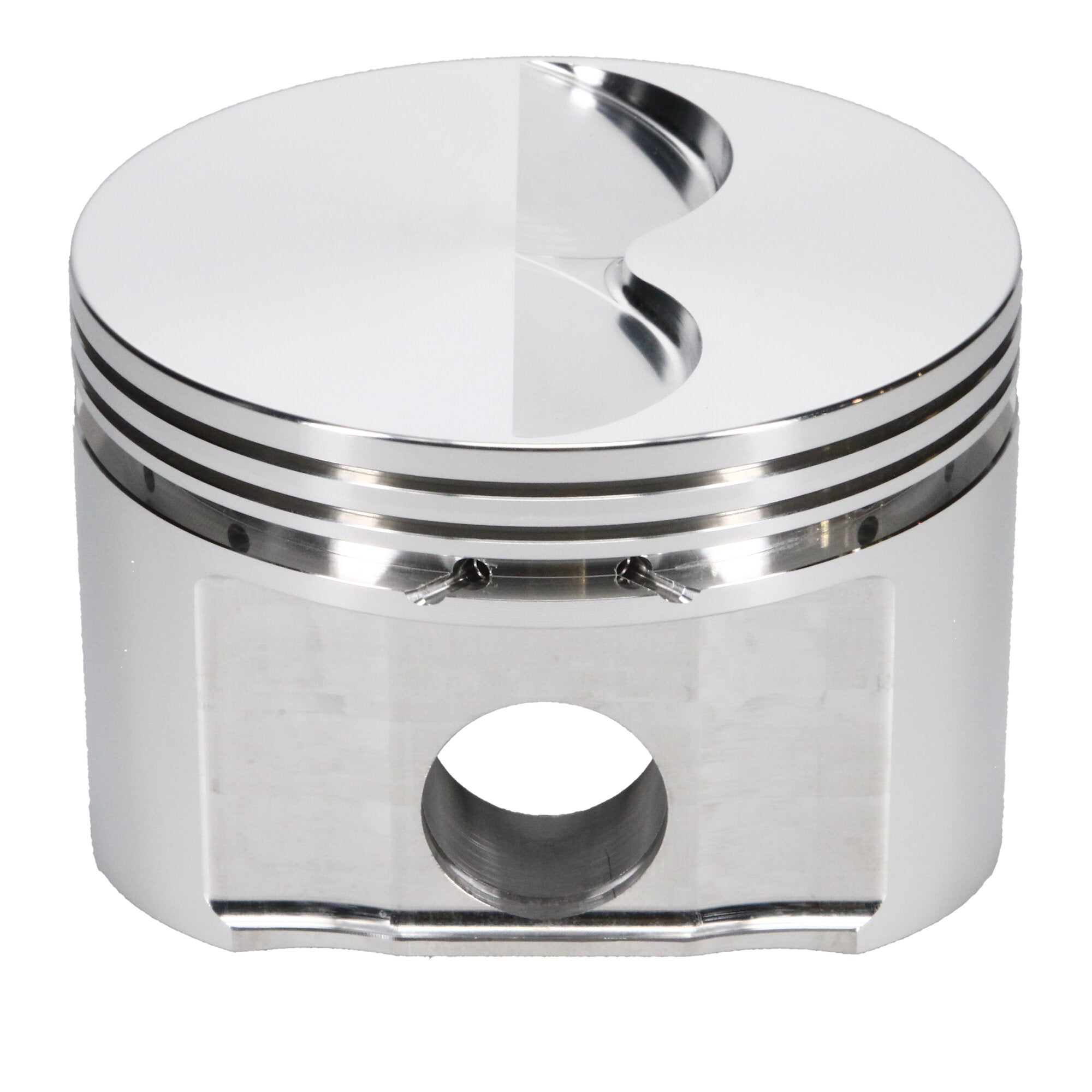

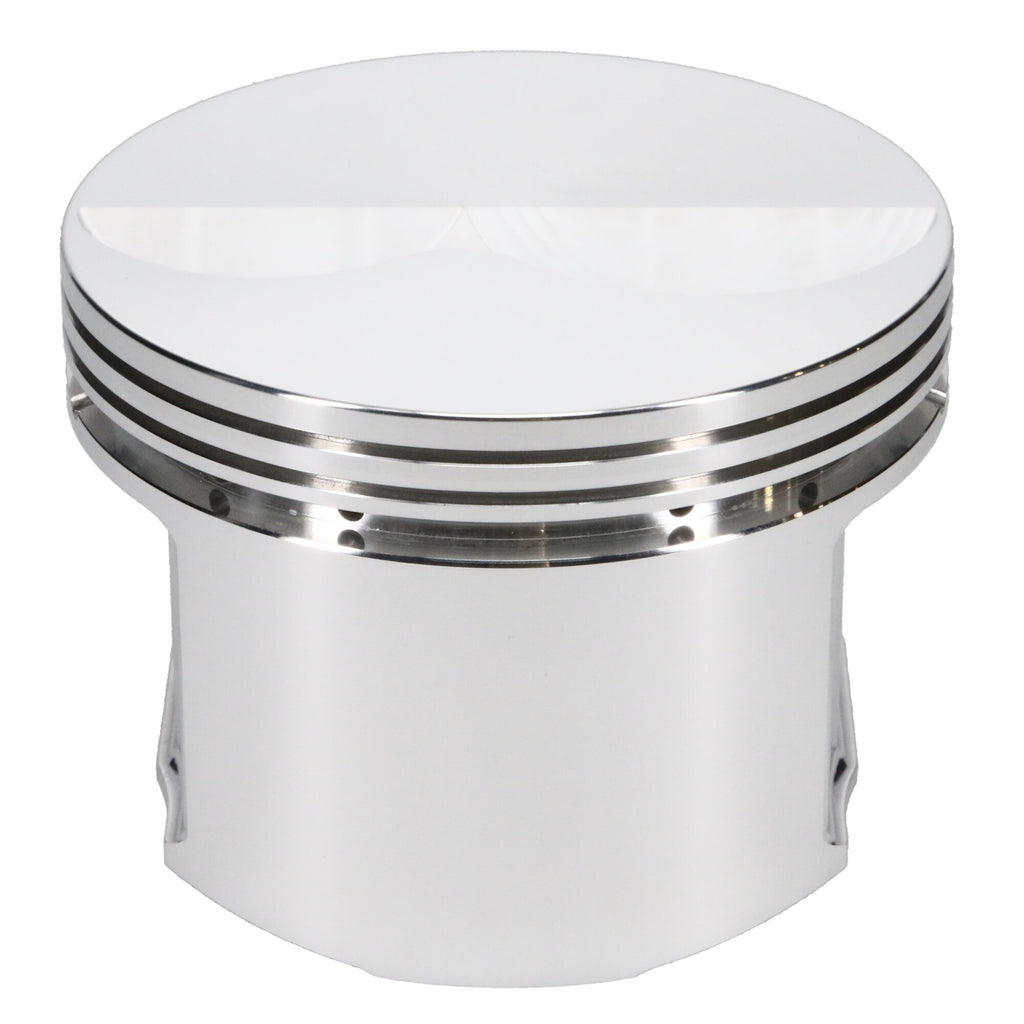

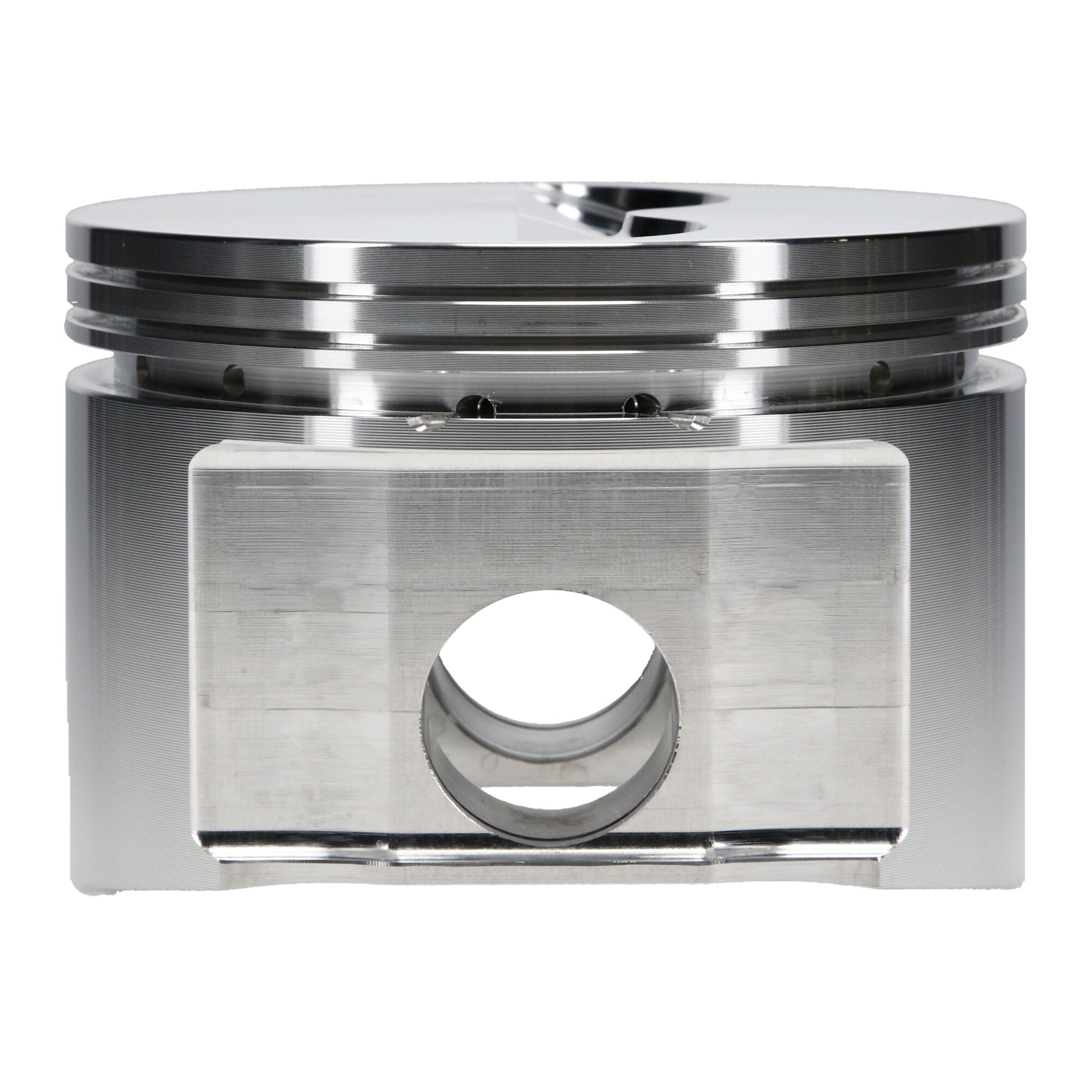

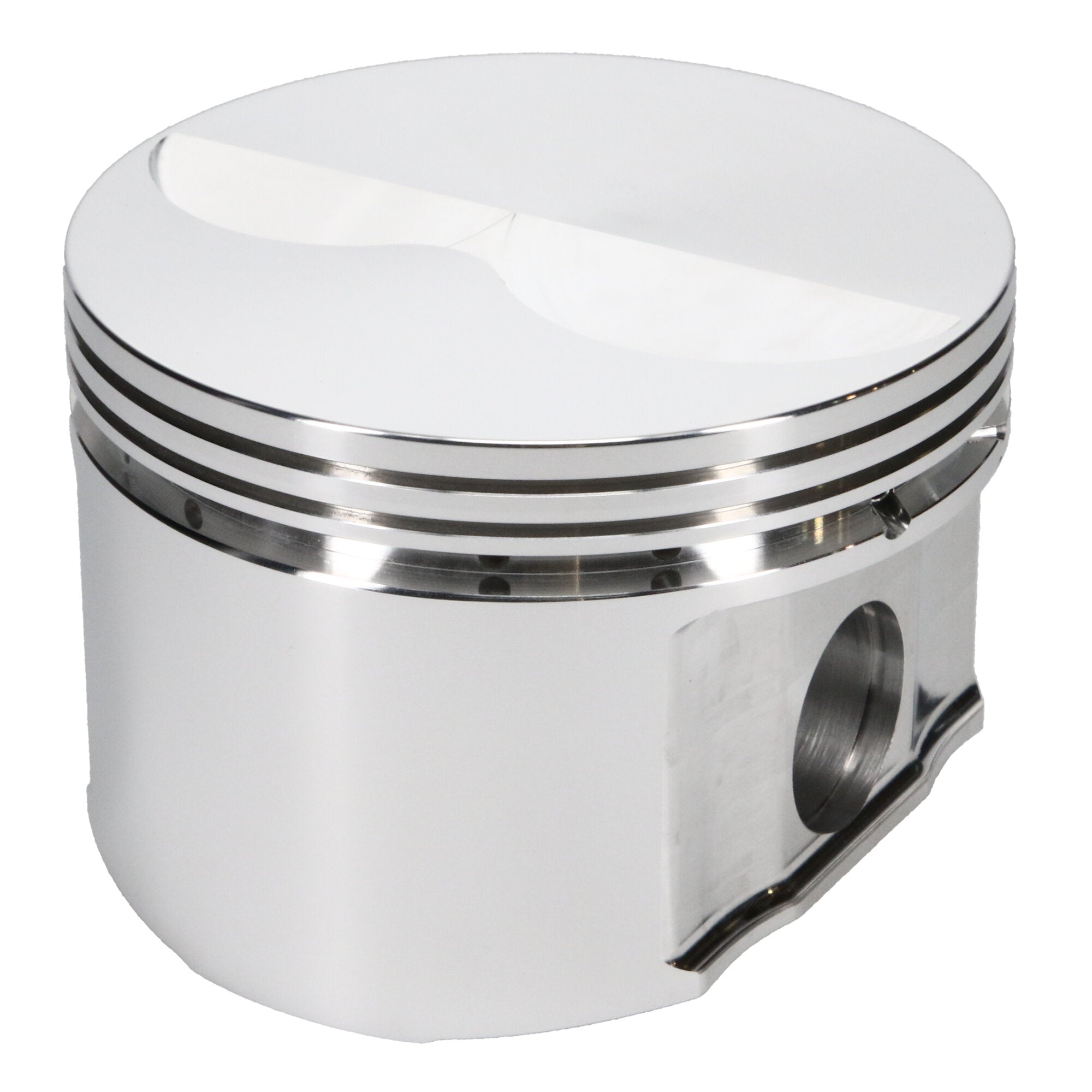

Piston Set, 2618, Flat Top, 4.350 Bore, 2.058 CD, 0.990 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Mopar, Big Block Chrysler, 4.350 in. Bore, 2.058 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 440, 4.350 Bore, Flat, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Second Compression Ring Thickness |
0.0640 |
| Cylinder Head |
440 WEDGE |
| Piston Pin Length |
2.930 |
| Make - Web |
Mopar |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
No |
| Title - Web |
JE Pistons Mopar Big Block Piston Kit - 4.350 in. Bore - 2.058 in. CH, -3.00 CC |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Compression Height |
2.058 |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.990 |
| Piston Quantity |
8 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Add-On |
990-2930-15-51S |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Mopar, Big Block, 4.350 in. Bore, Piston Kit |
| Make |
MOPAR |
| Add-On |
990-042-CS |
| Engine |
Big Block |
| Piston Average Weight |
653 |
| Add-On |
J10008-4350-5 |
| Piston Head Type |
Flat |
| Forging Type |
Round |
| Ring Set Included |
No |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Length |
2.930 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Volume |
-3.00 |
| Bore Diameter |
4.350 |
| Oil Ring Thickness |
0.188 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Top Compression Ring Thickness |
0.0640 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Wall Thickness |
0.150 |
| Engine - Web |
Big Block |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
