As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Mopar Big Block 440 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

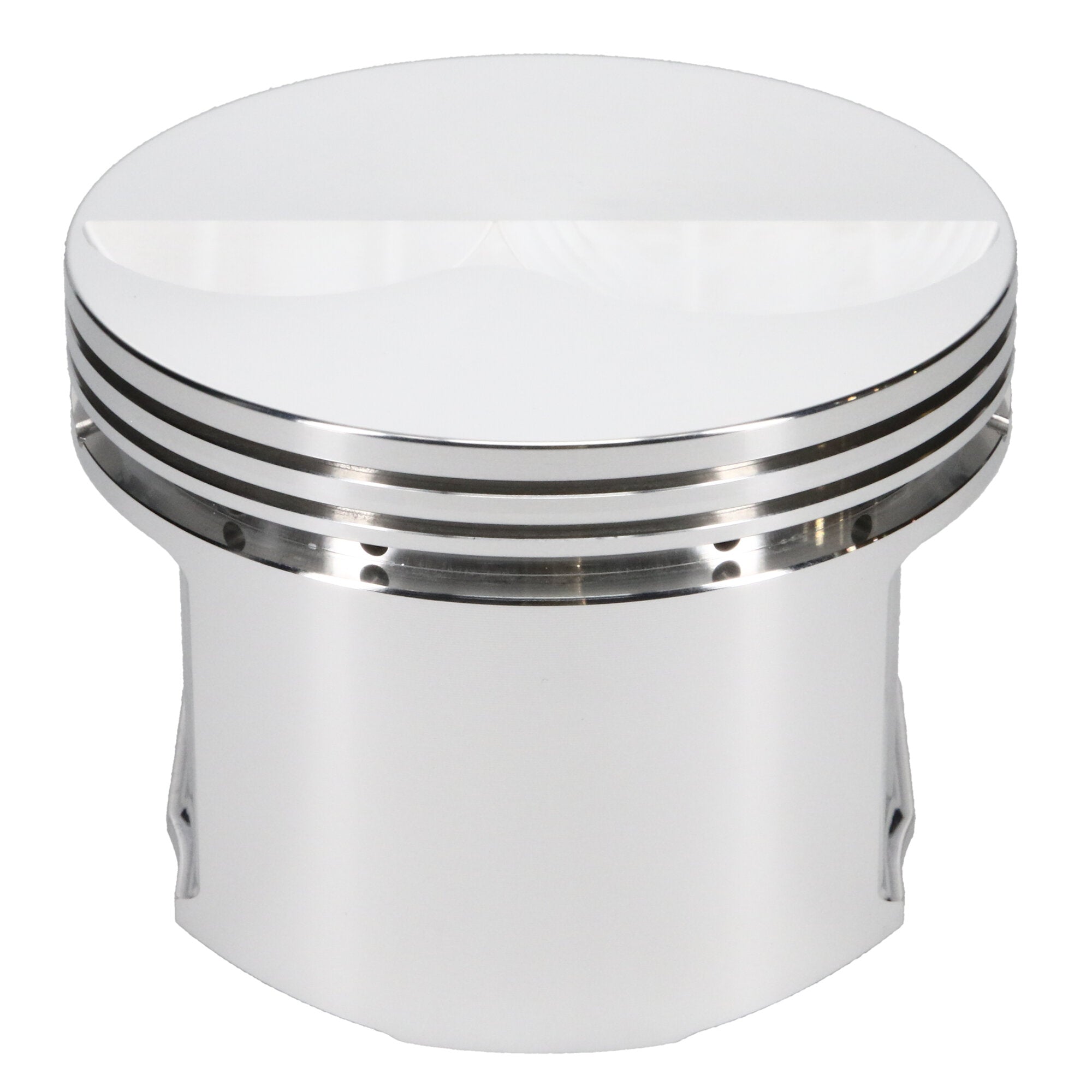

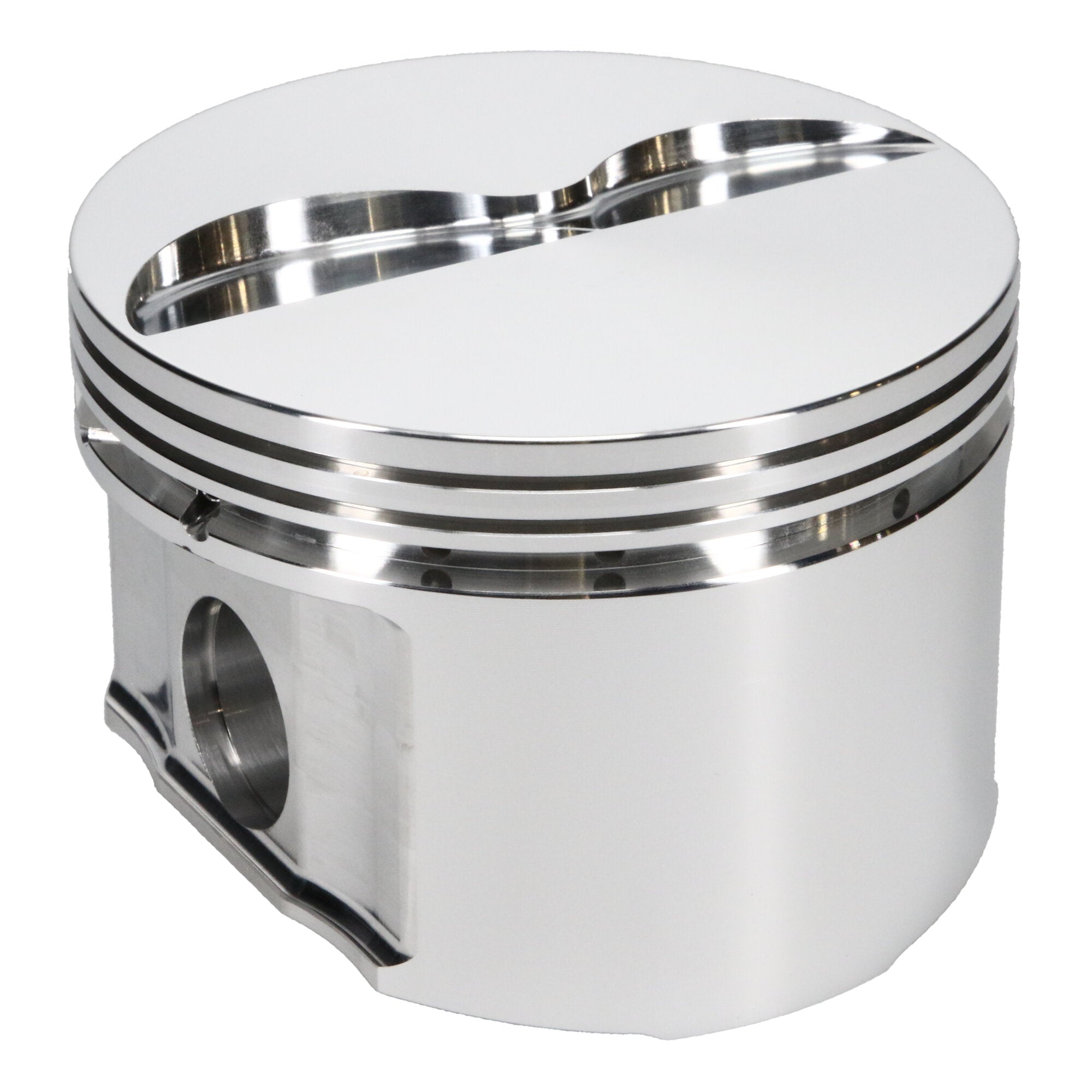

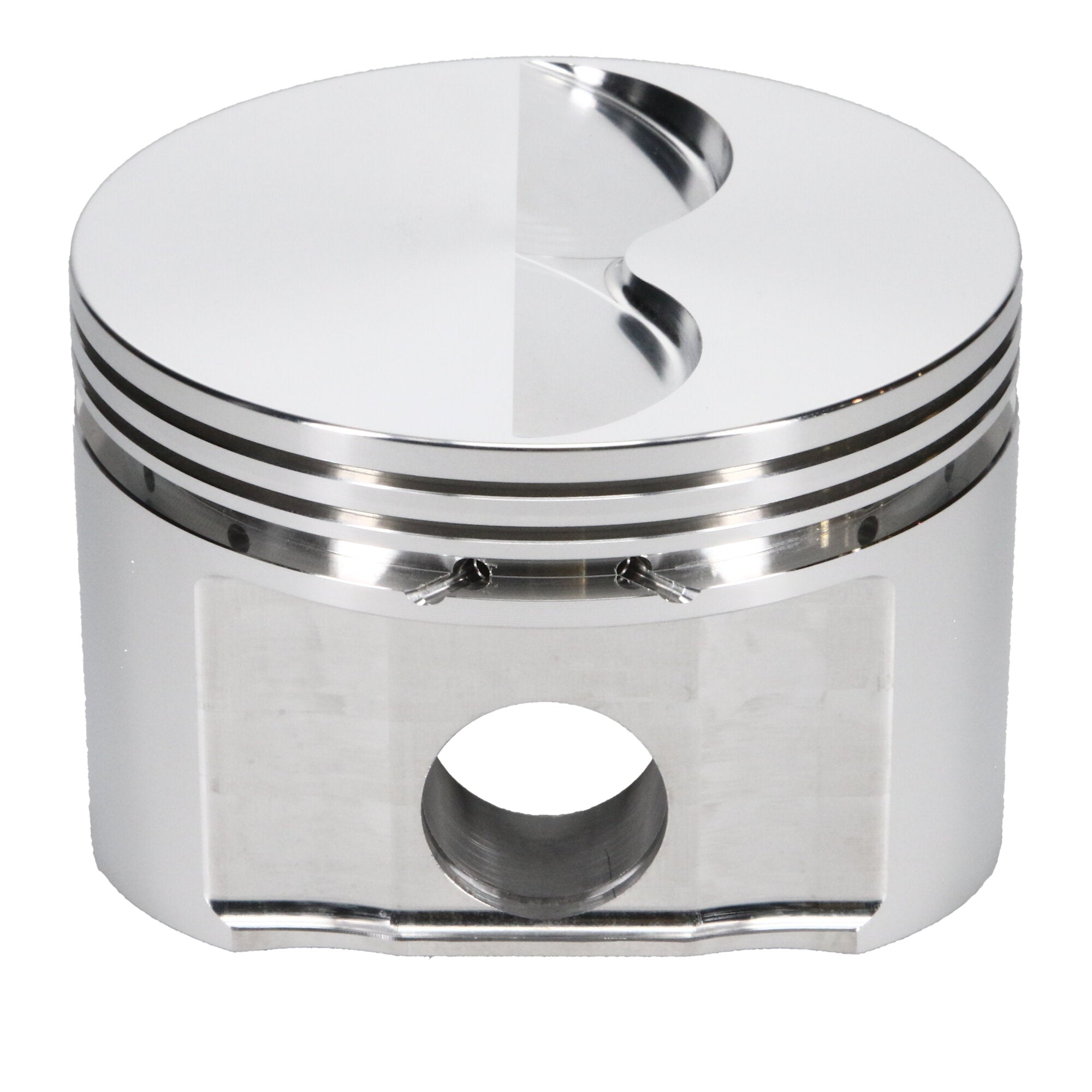

Piston Set, 2618, Flat Top, 4.375 Bore, 1.858 CD, 0.990 Pin, Set of 8. |
| Description_EXT |
JE, Mopar, Big Block Chrysler, 4.375 in. Bore, 1.858 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
MOPAR 440, 4.375 Bore, Flat, Set of 8 |
| Piston Quantity |
8 |
| Piston Volume |
-3.00 |
| Piston Pin Outside Diameter |
0.990 |
| Prop 65 Yes/No |
Yes |
| Prop 65 (C, R or CR) |
CR |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Piston Material |
2618 |
| Bore Diameter |
4.375 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Add-On |
990-042-CS |
| Out of Stock Message |
Call for Availability |
| Piston Average Weight |
625 |
| Add-On |
J10008-4375-5 |
| Title - Web |
JE Pistons Mopar Big Block Piston Kit - 4.375 in. Bore - 1.858 in. CH, -3.00 CC |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
990-2930-15-51S |
| Cylinder Head |
440 WEDGE |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Mopar |
| Compression Height |
1.858 |
| Engine Type |
ICE |
| Engine |
Big Block |
| Piston Pin Wall Thickness |
0.150 |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Product Market |
Domestic |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Mopar, Big Block, 4.375 in. Bore, Piston Kit |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Make |
MOPAR |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.188 |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
