As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston |
| Description_DES |

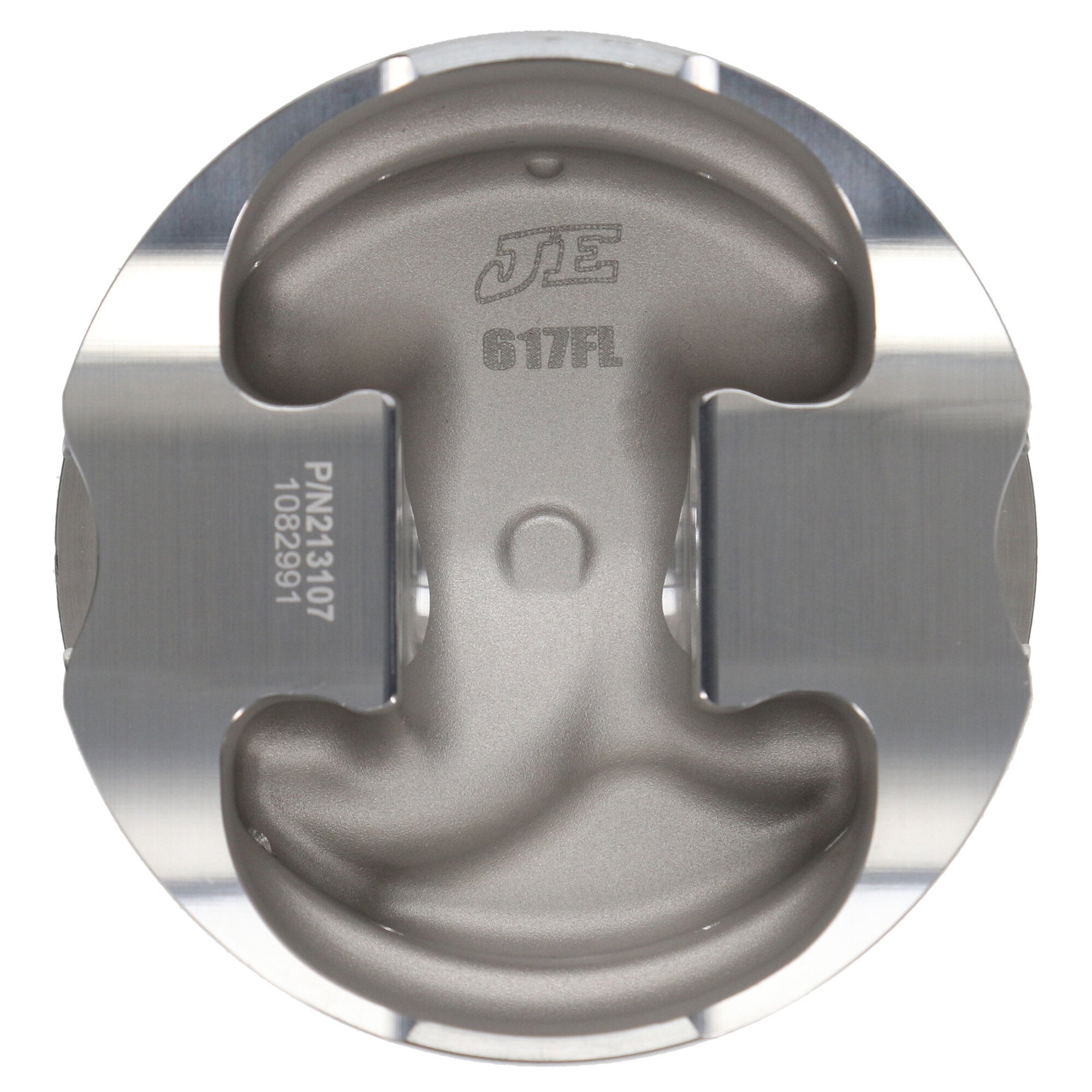

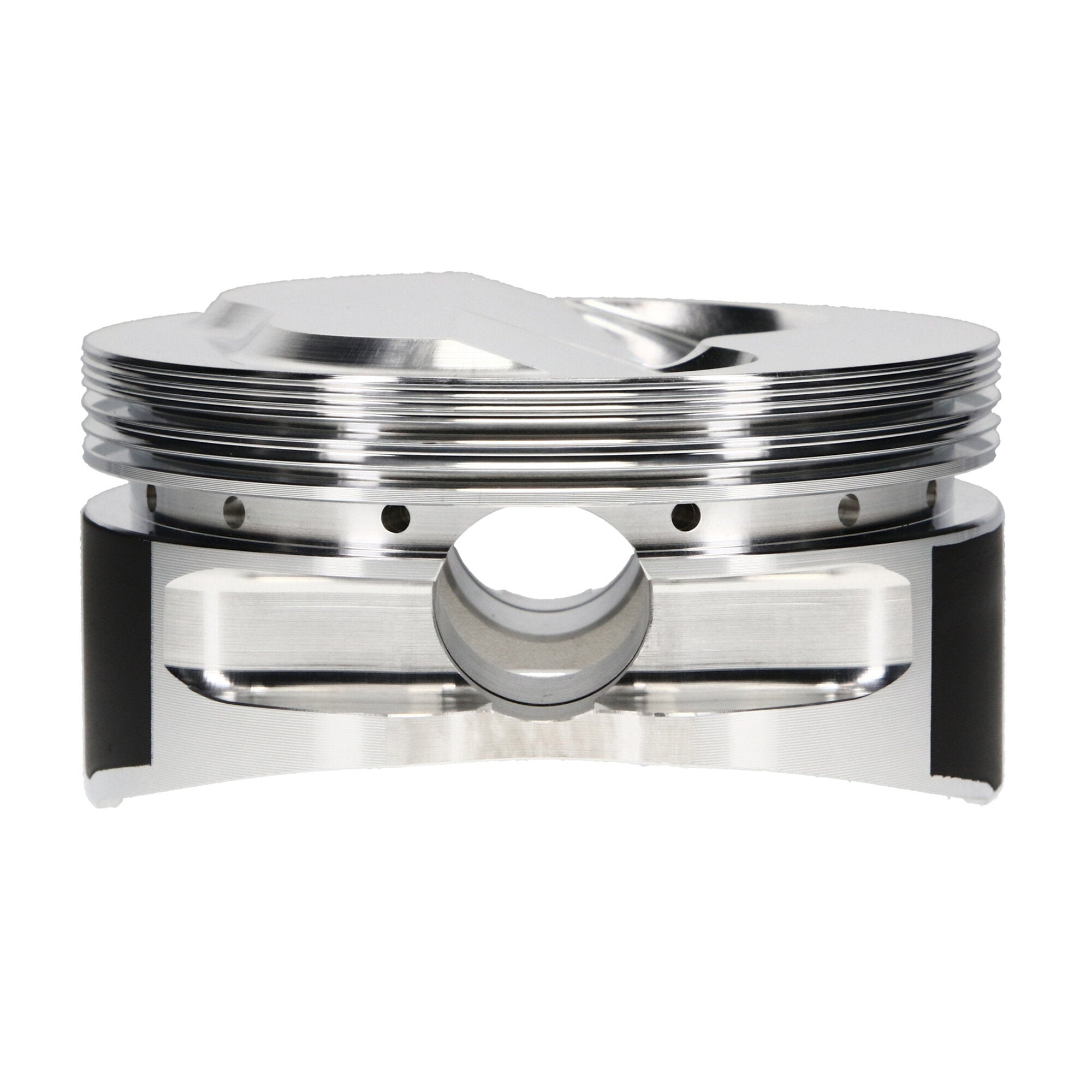

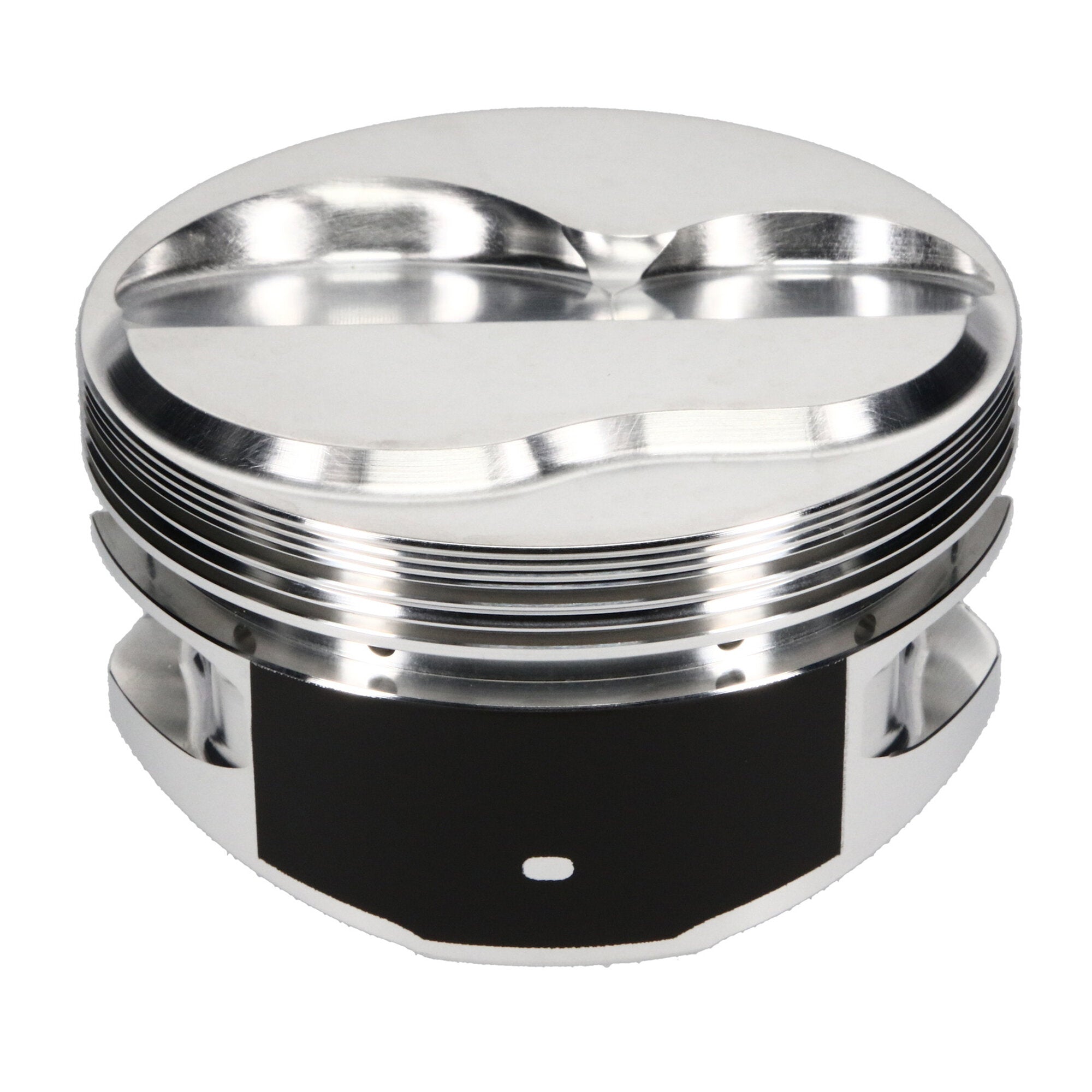

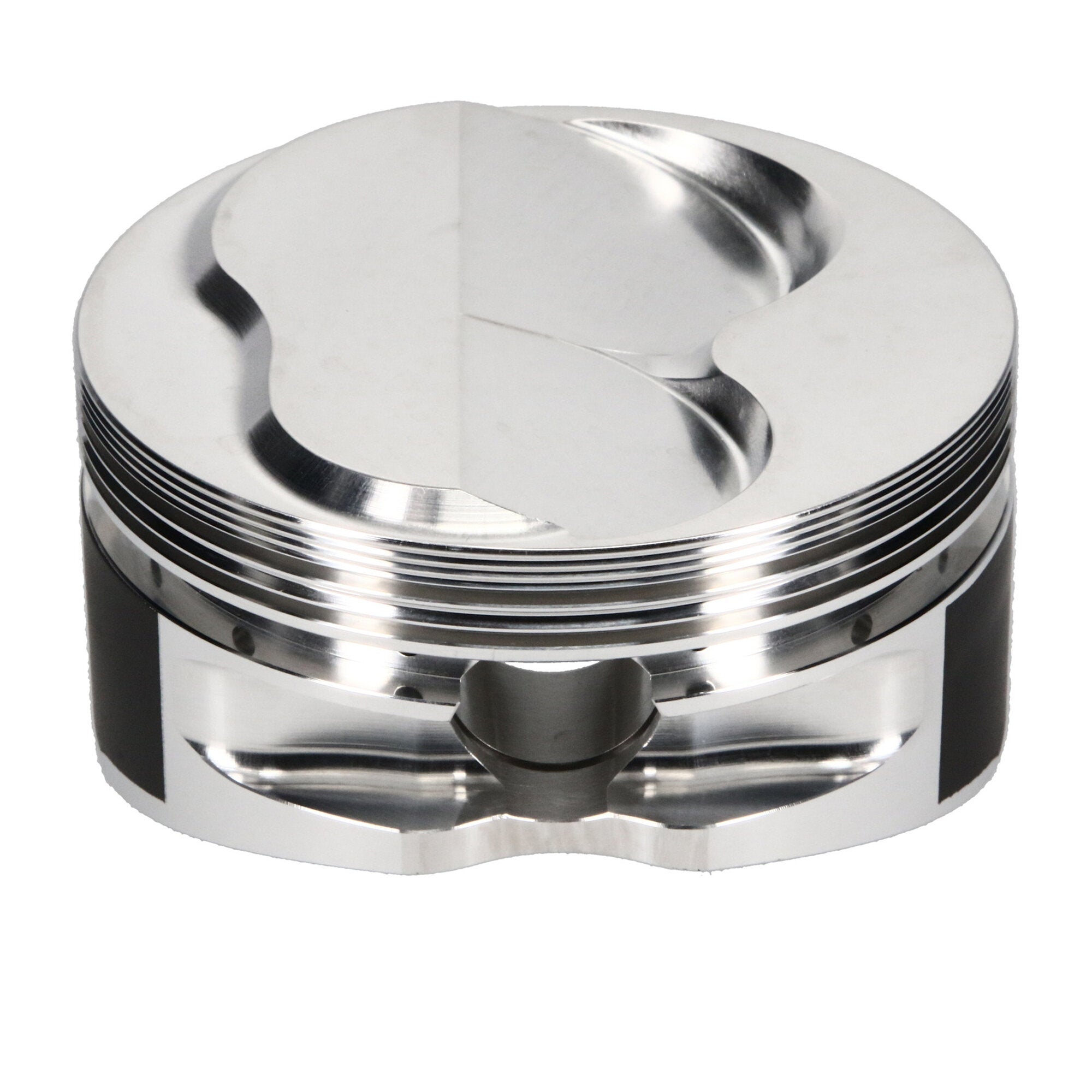

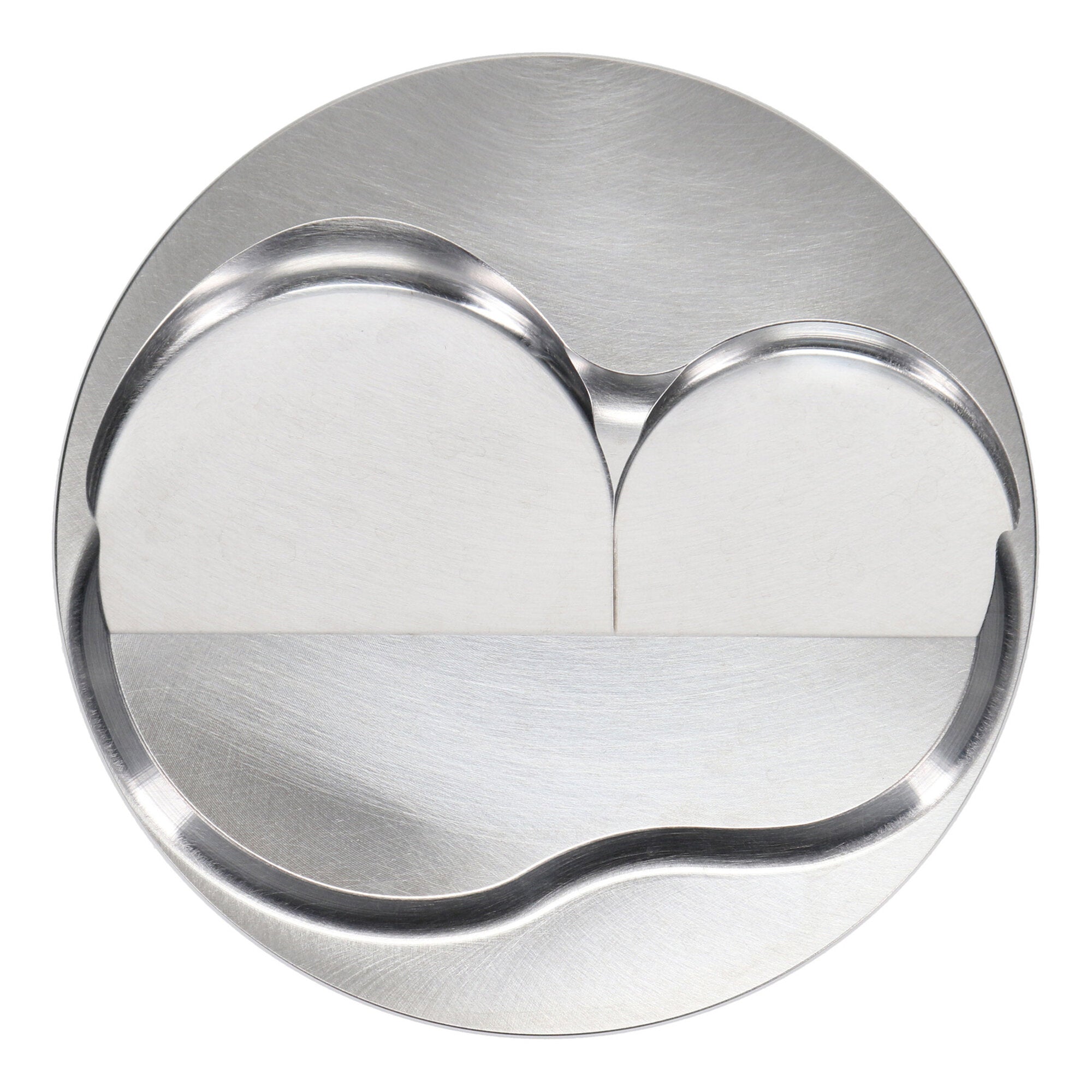

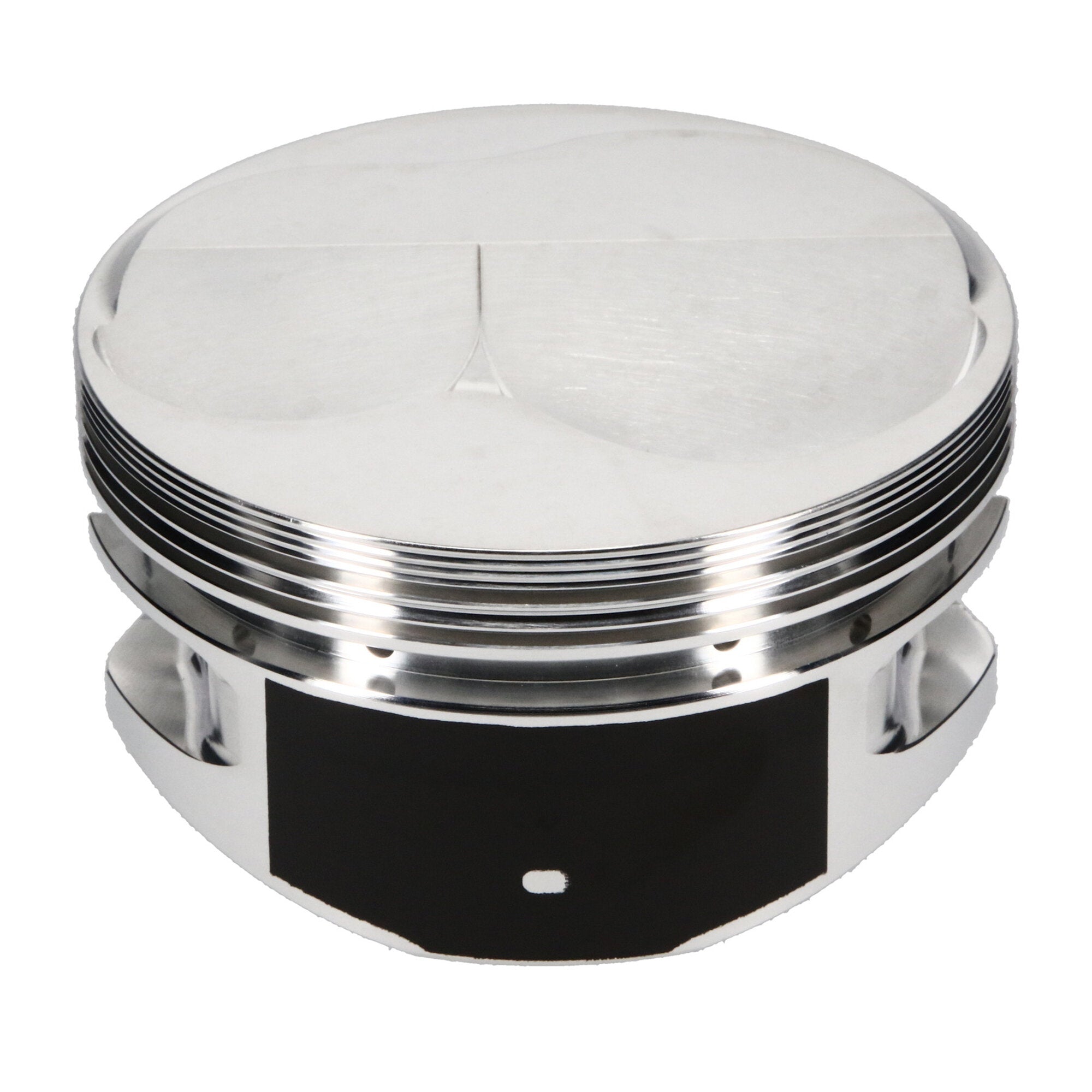

Piston Single, 2618, Dome, 4.135 Bore, 1.125 CD, 0.927 Pin, Set of 1. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.125 CD, Dome, Left Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Dome, Set of 1 |
| Add-On |
927-2750-15-51S |
| Add-On |
J10008-4135-5 |
| Add-On |
927-073-AS |
| Compression Height |
1.125 |
| Out of Stock Message |
Call for Availability |
| Title - Web |
JE Pistons Chevrolet Small Block Piston - 4.135 in. Bore - 1.125 in. CH, 3.30 CC |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Piston Average Weight |
464 |
| Top Compression Ring Thickness |
0.0640 |
| Bore Diameter |
4.135 |
| Piston Orientation |
Left |
| Piston Quantity |
1 |
| Industry |
Automotive |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston |
| Piston Pin Outside Diameter |
0.927 |
| Product Market |
Domestic |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Product Type |
Engine Piston |
| Piston Material |
2618 |
| Cylinder Head |
CHEVROLET 18 DEG |
| Piston Volume |
3.30 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.750 |
| Engine |
Small Block |
| Piston Pin Length |
2.750 |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Piston Head Type |
Dome |
| Make |
CHEVROLET |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Oil Ring Thickness |
0.218 |
| Piston Pin Wall Thickness |
0.150 |
| Forging Type |
Round |
| Wrist Pin Wall Thickness |
0.150 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
2.0000 |
