As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 400 |
| Description_DEF |
Engine Piston |
| Description_DES |

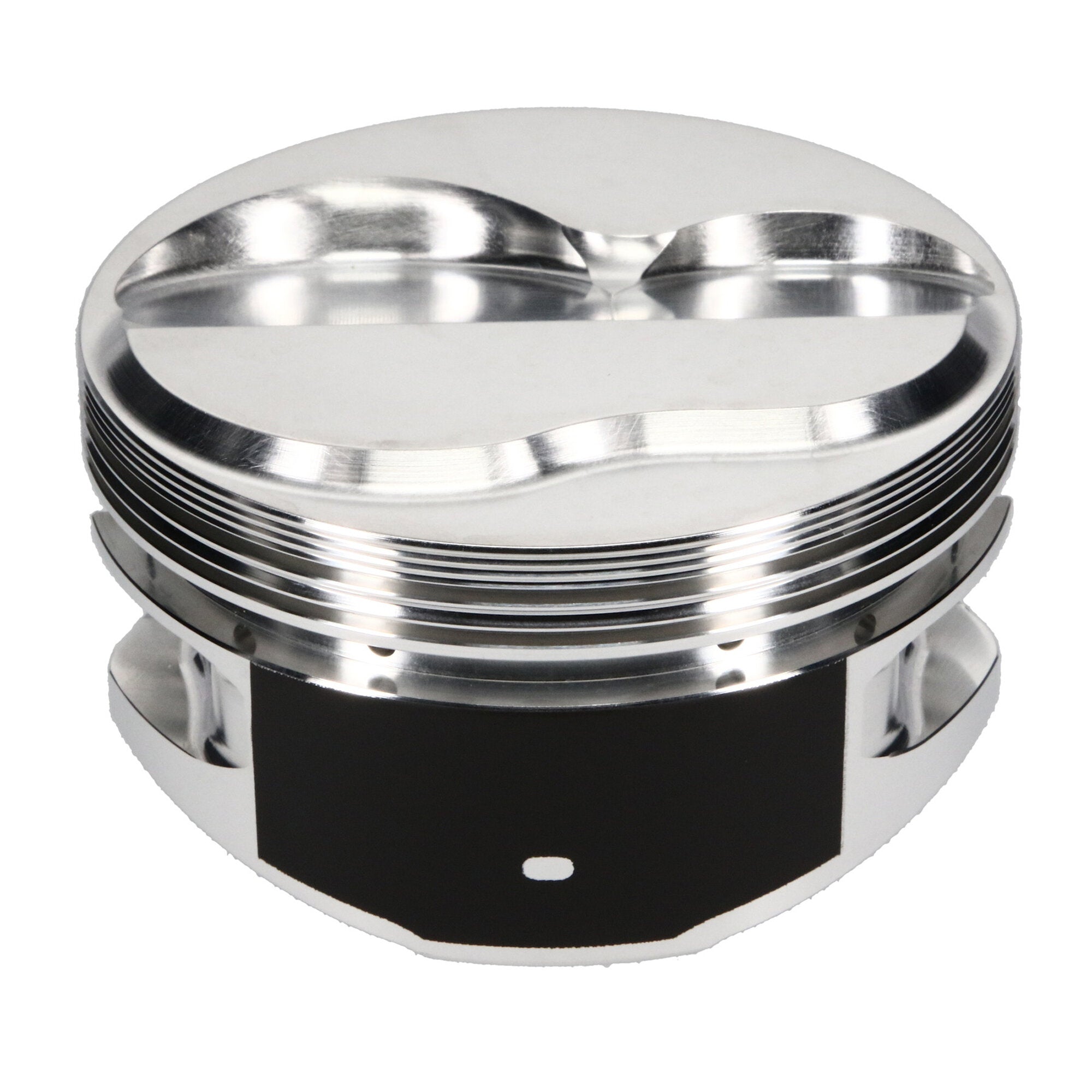

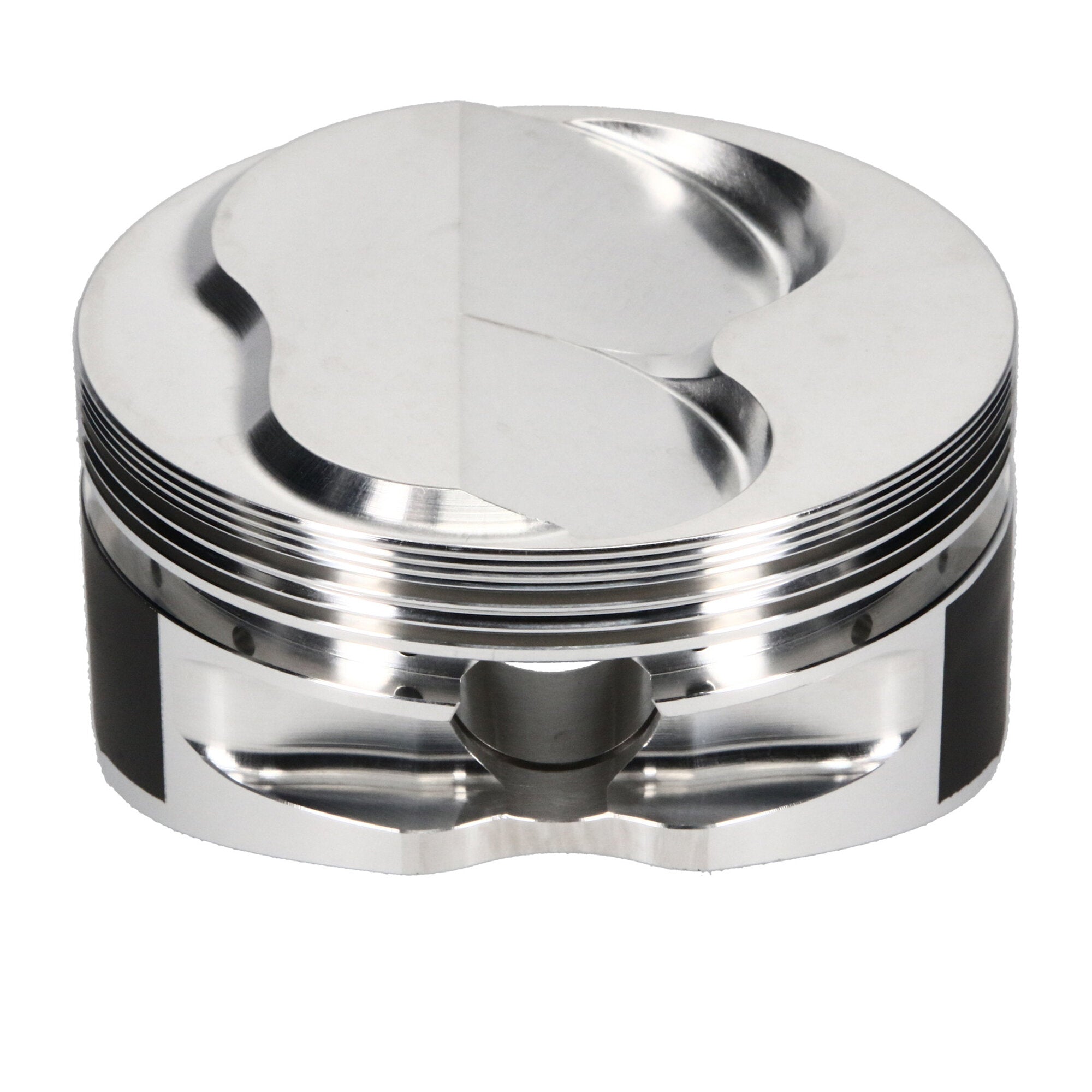

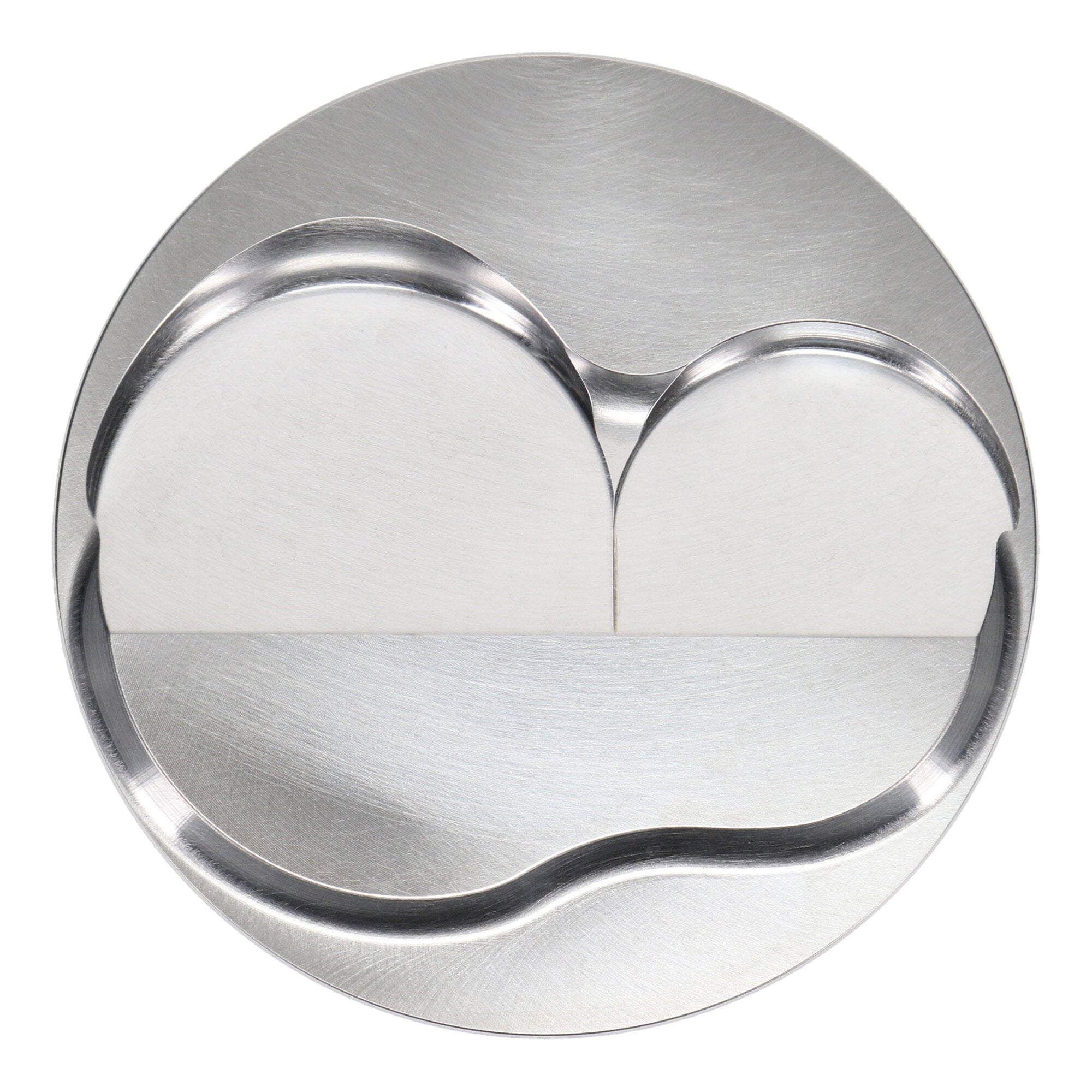

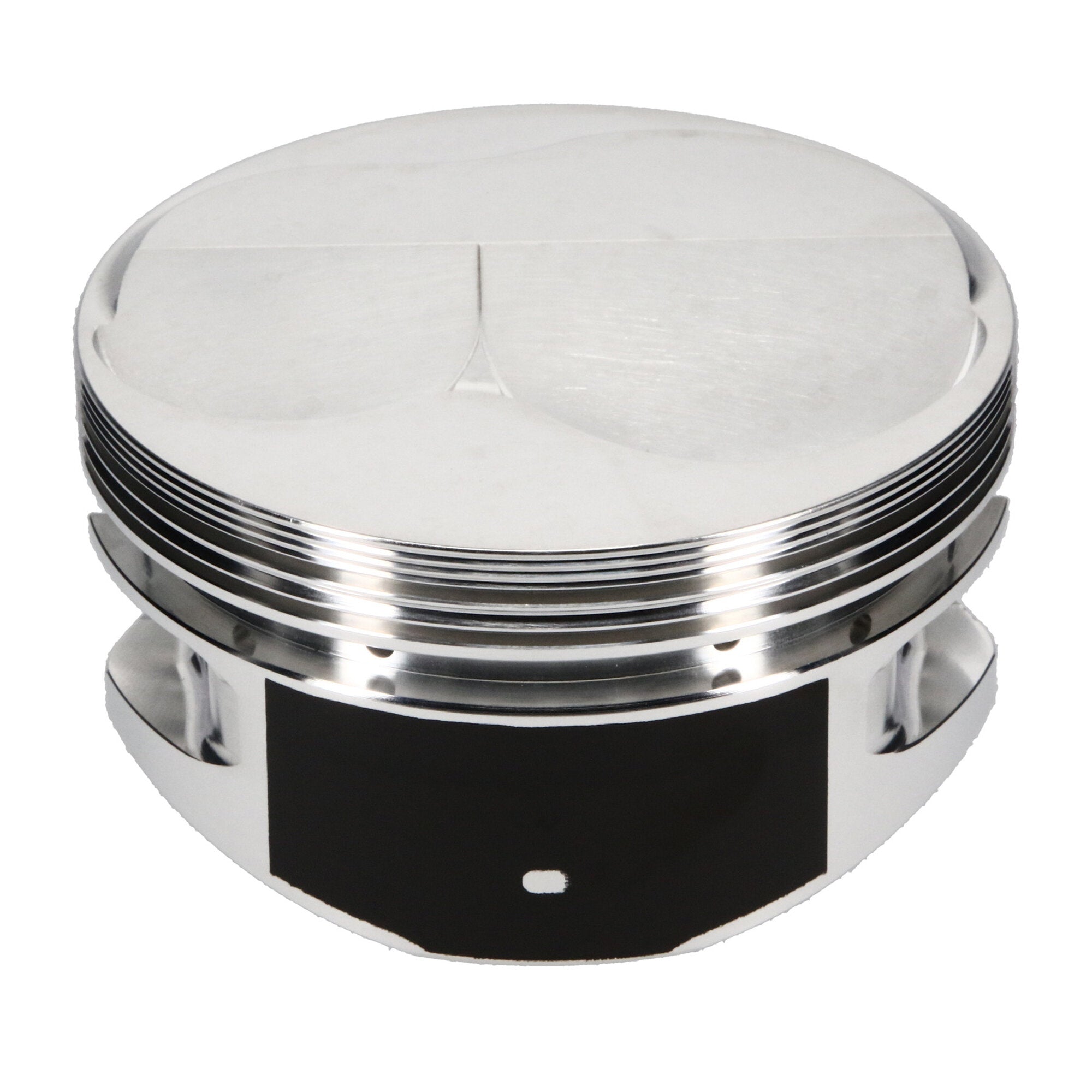

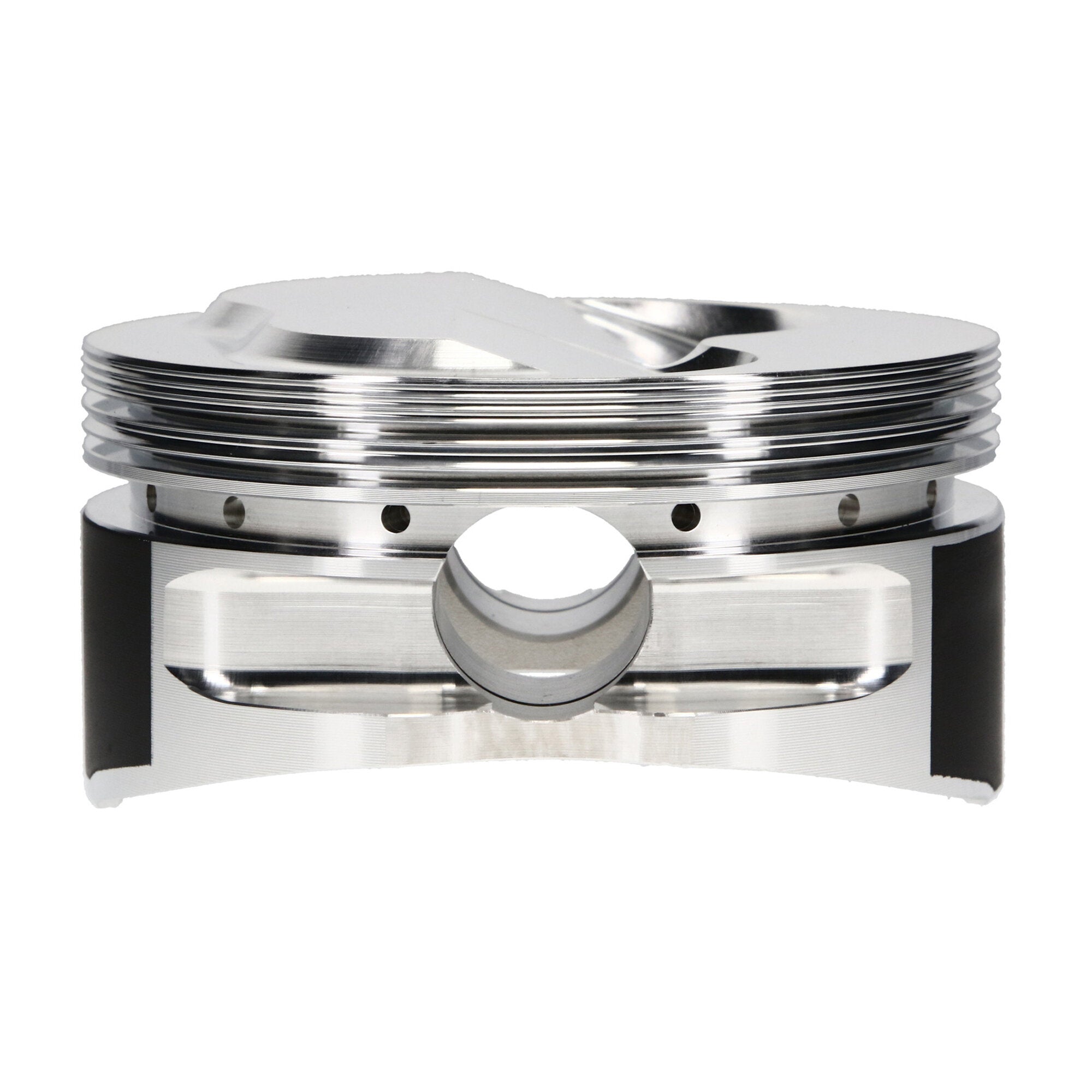

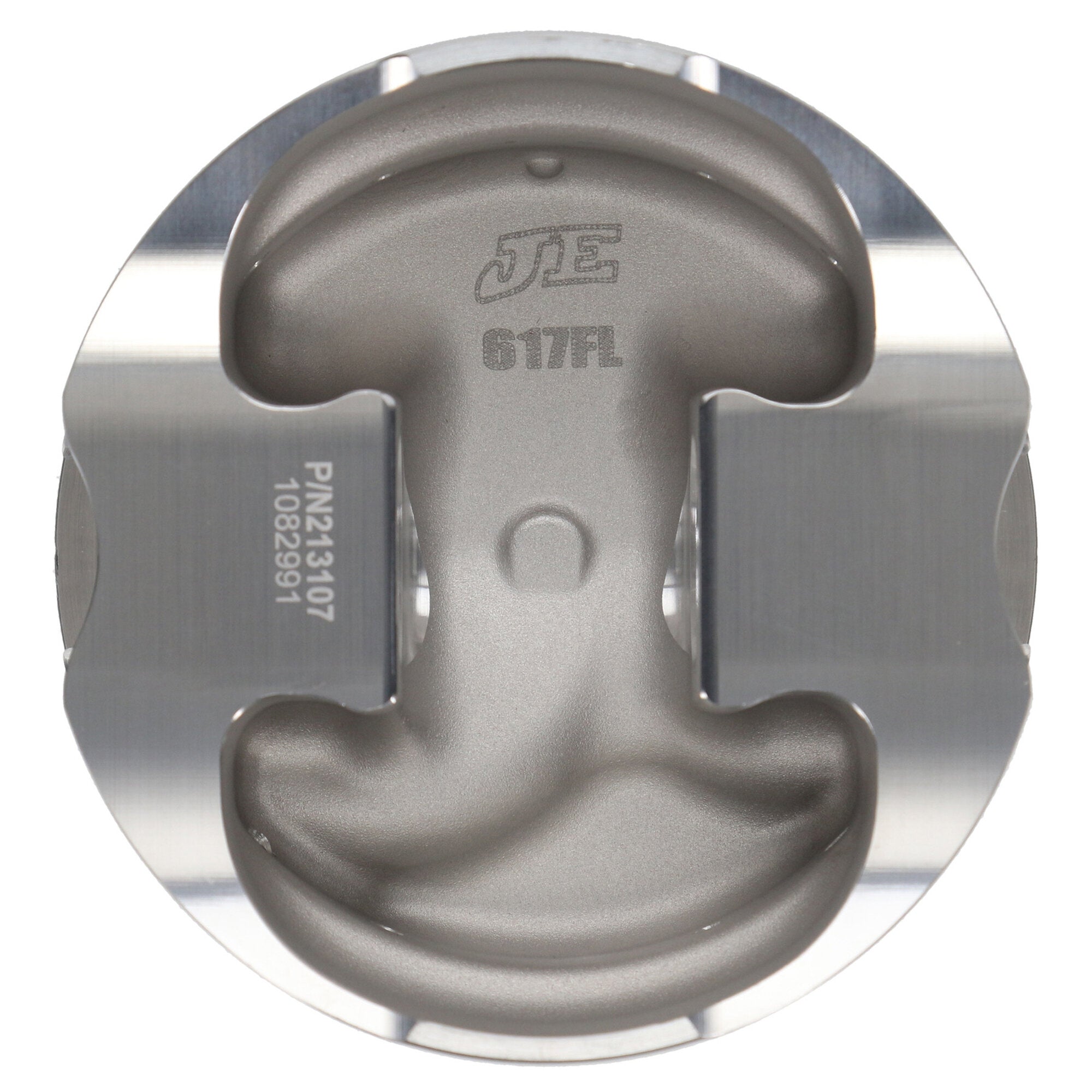

Piston Single, 2618, Dome, 4.135 Bore, 1.000 CD, 0.927 Pin, Set of 1. |
| Description_INV |
JE Pistons, Piston |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.135 in. Bore, 1.000 CD, Dome, Right Piston |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400, 4.135 Bore, Dome, Set of 1 |
| Out of Stock Message |
Call for Availability |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Length |
2.750 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston - 4.135 in. Bore - 1.000 in. CH, 3.30 CC |
| Piston Material |
2618 |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Category Hierarchy |
Auto>JE Pistons>Single Replacement Pistons>Domestic |
| Cylinder Head |
CHEVROLET 18 DEG |
| Piston Volume |
3.30 |
| Ring Set Included |
No |
| Product Type |
Engine Piston |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Add-On |
J10008-4135-5 |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Add-On |
927-2750-15-51S |
| Ringset Included |
No |
| Compression Height |
1.000 |
| Piston Quantity |
1 |
| Piston Series |
JE Pistons |
| Add-On |
927-073-AS |
| Engine |
Small Block |
| Piston Pin Length |
2.750 |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Piston Orientation |
Right |
| Piston Pin Outside Diameter |
0.927 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.135 in. Bore, Piston |
| Piston Average Weight |
434 |
| Oil Ring Thickness |
0.218 |
| Piston Pin Material |
5115 |
| Make |
CHEVROLET |
| Top Compression Ring Thickness |
0.0640 |
| Forging Type |
Round |
| Product Market |
Domestic |
| Bore Diameter |
4.135 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
5.0000 |
| Weight |
2.0000 |
