Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DES |

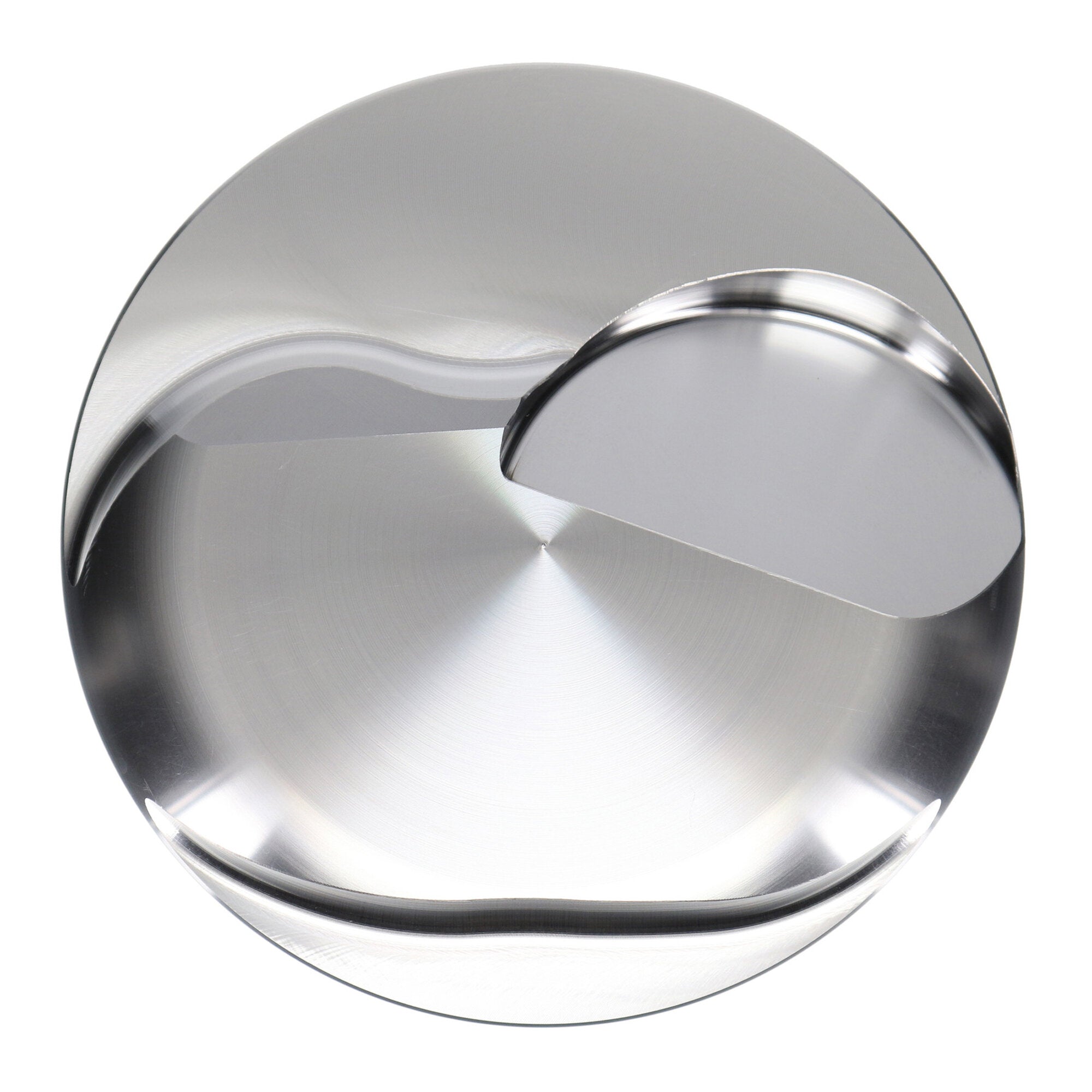

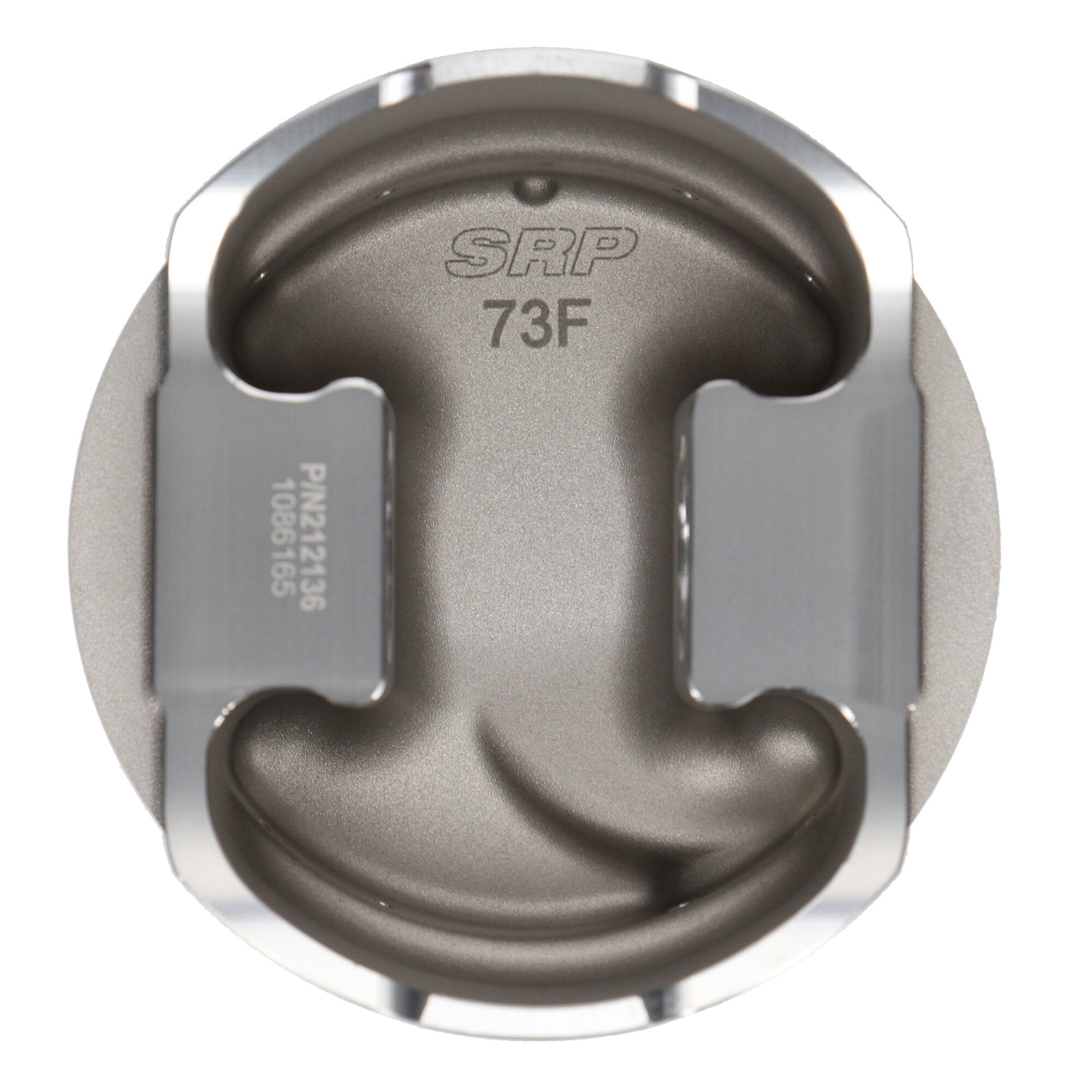

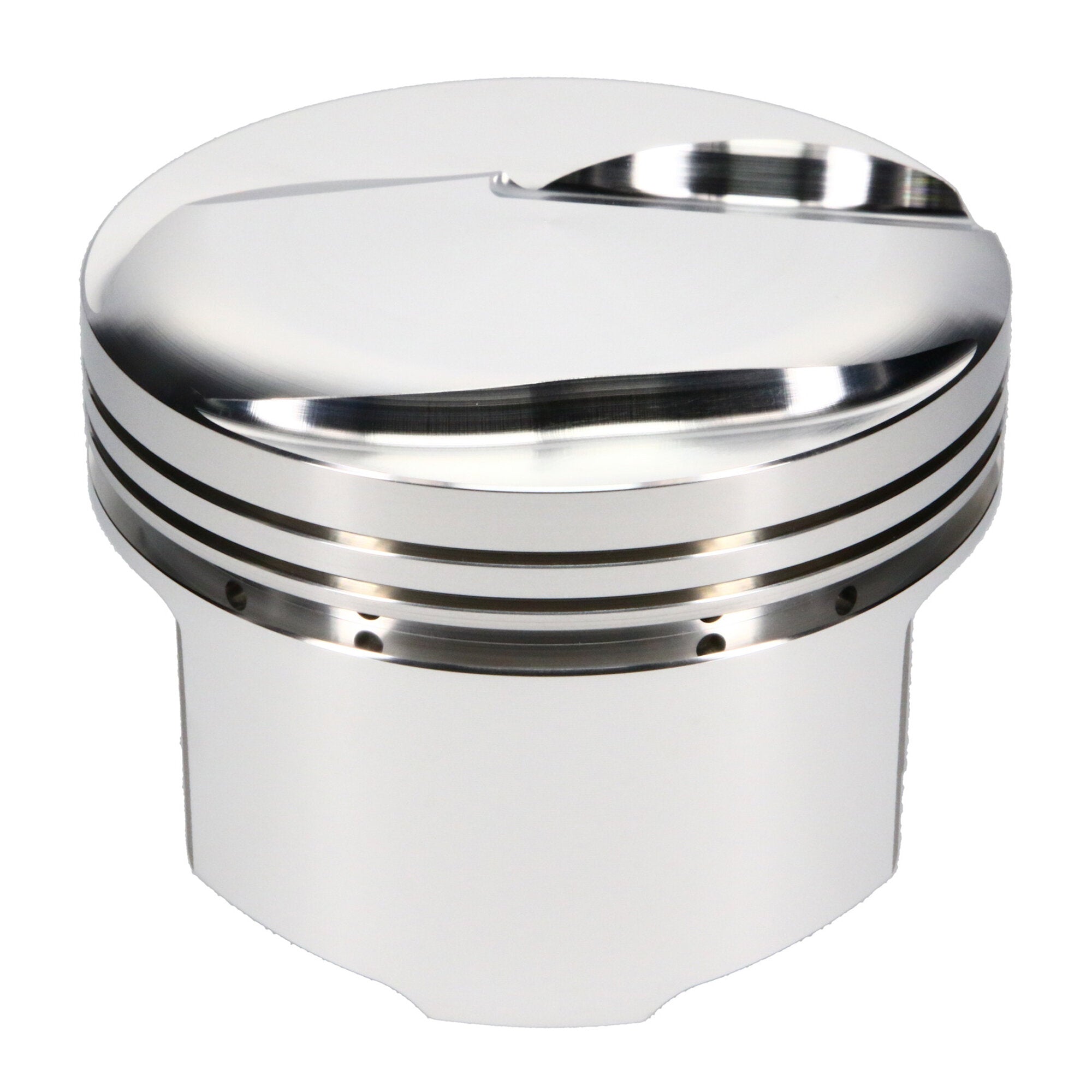

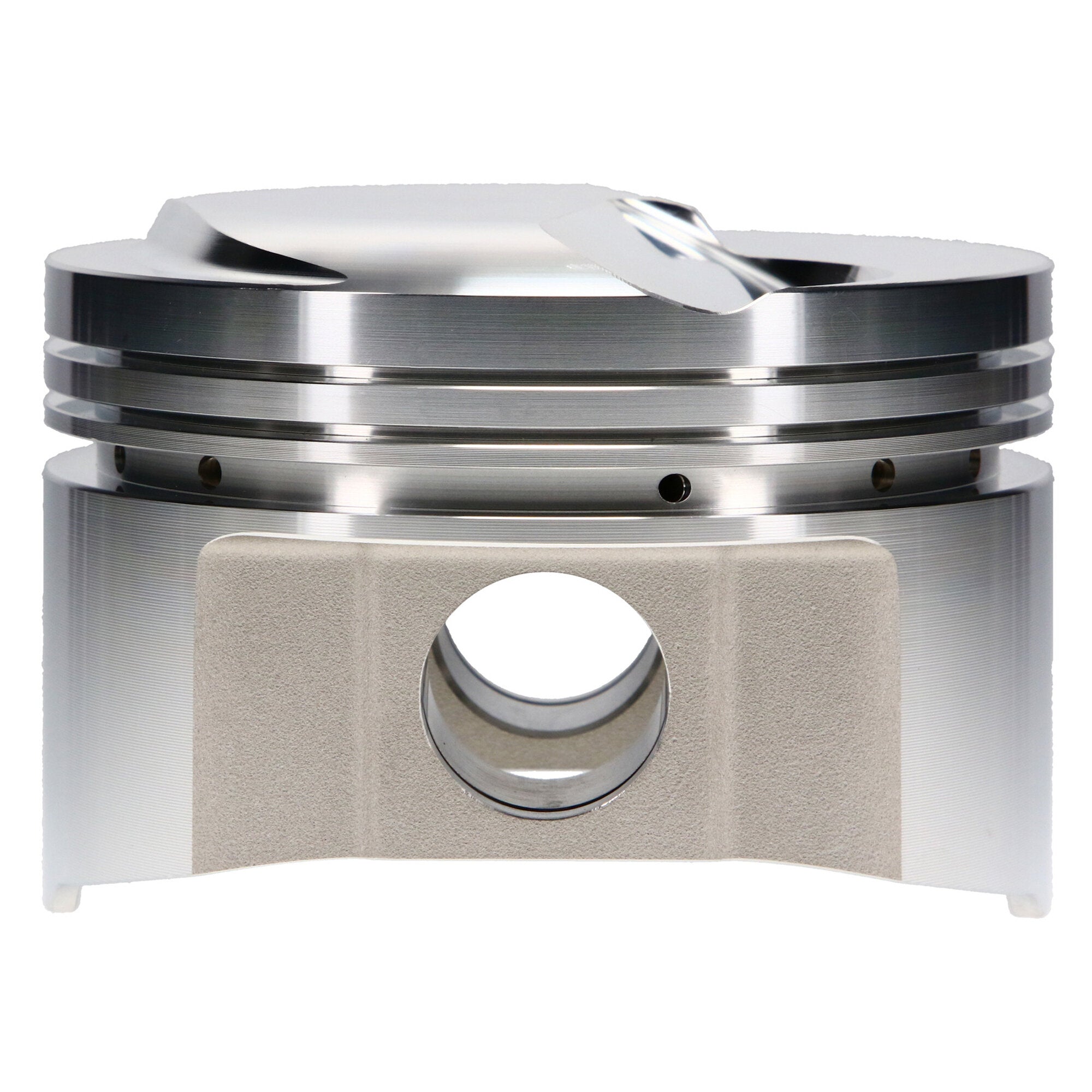

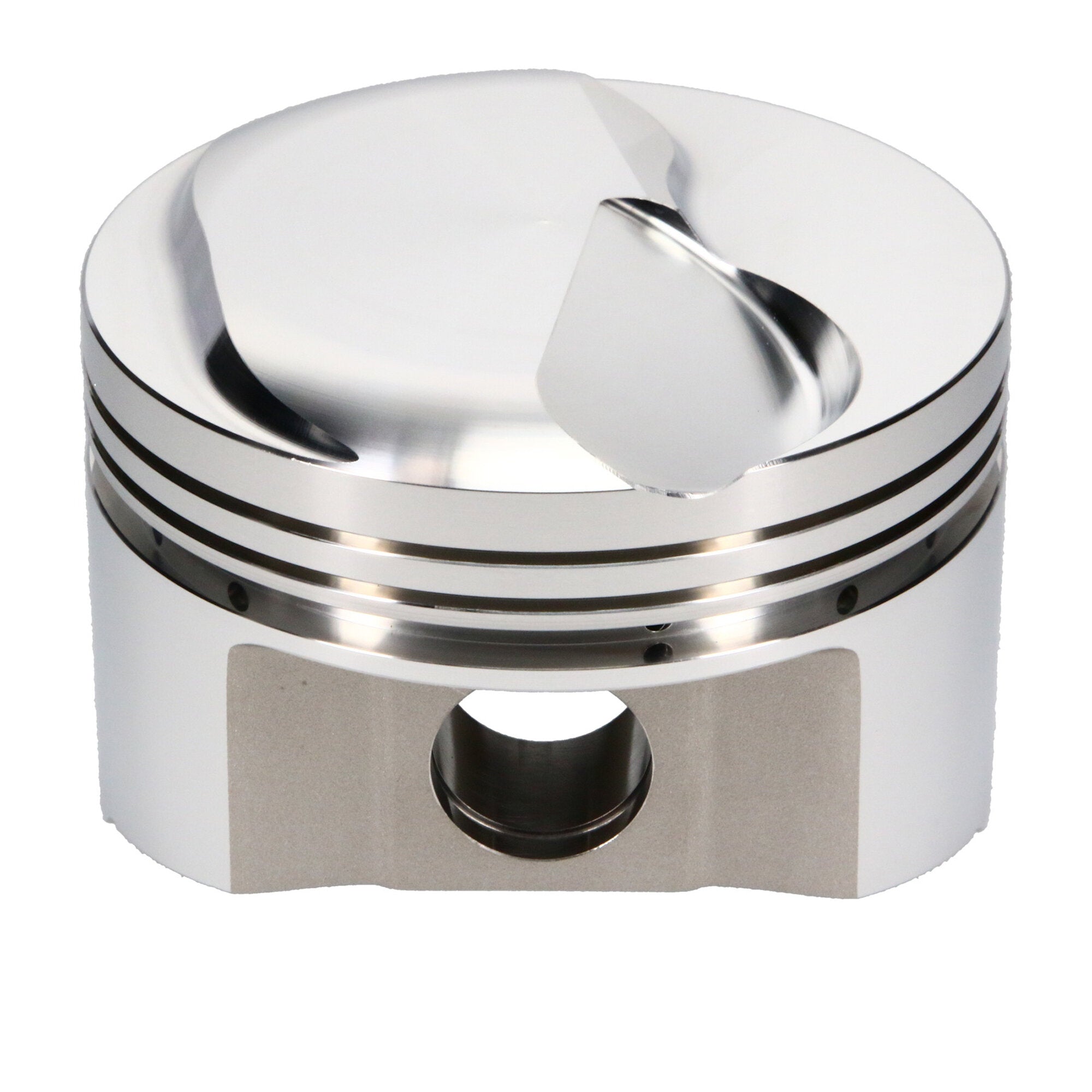

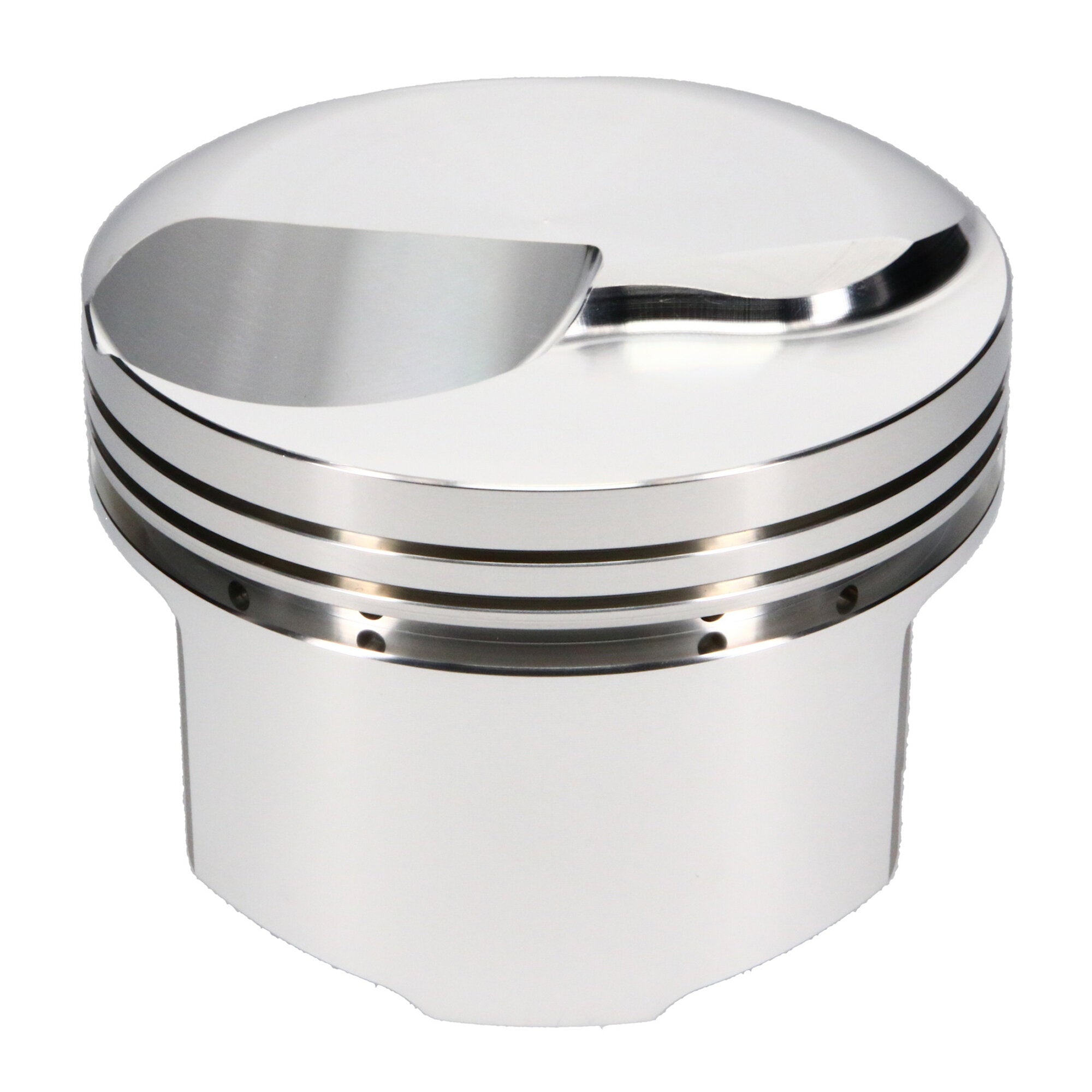

Piston Set, 4032, Dome, 4.350 Bore, 1.270 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.350 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 454, 4.350 Bore, Dome, Set of 8 |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Oil Ring Thickness |
0.218 |
| Ringset Included |
No |
| Piston Pin Length |
2.930 |
| Engine |
Big Block |
| Make - Web |
Chevrolet |
| Piston Series |
SRP |
| Title |
SRP - Chevrolet, Big Block, 4.350 in. Bore, Piston Kit |
| Forging Type |
FSR |
| Out of Stock Message |
Call for Availability |
| Engine Type |
ICE |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.350 in. Bore - 1.270 in. CH, 18.00 CC |
| Piston Head Type |
Dome |
| Industry |
Automotive |
| Make |
CHEVROLET |
| Add-On |
990-2930-15-51S |
| Add-On |
990-042-CS |
| Product Type |
Engine Piston Kit |
| Top Compression Ring Thickness |
0.0640 |
| Piston Material |
4032 |
| Compression Height |
1.270 |
| Bore Diameter |
4.350 |
| Product Market |
Domestic |
| Piston Pin Material |
5115 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.990 |
| Prop 65 (C, R or CR) |
CR |
| Piston Average Weight |
579 |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Volume |
18.00 |
| Add-On |
S100S8-4350-5 |
| Cylinder Head |
OPEN CHAMBER |
| Wrist Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.990 |
| Engine - Web |
Big Block |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
