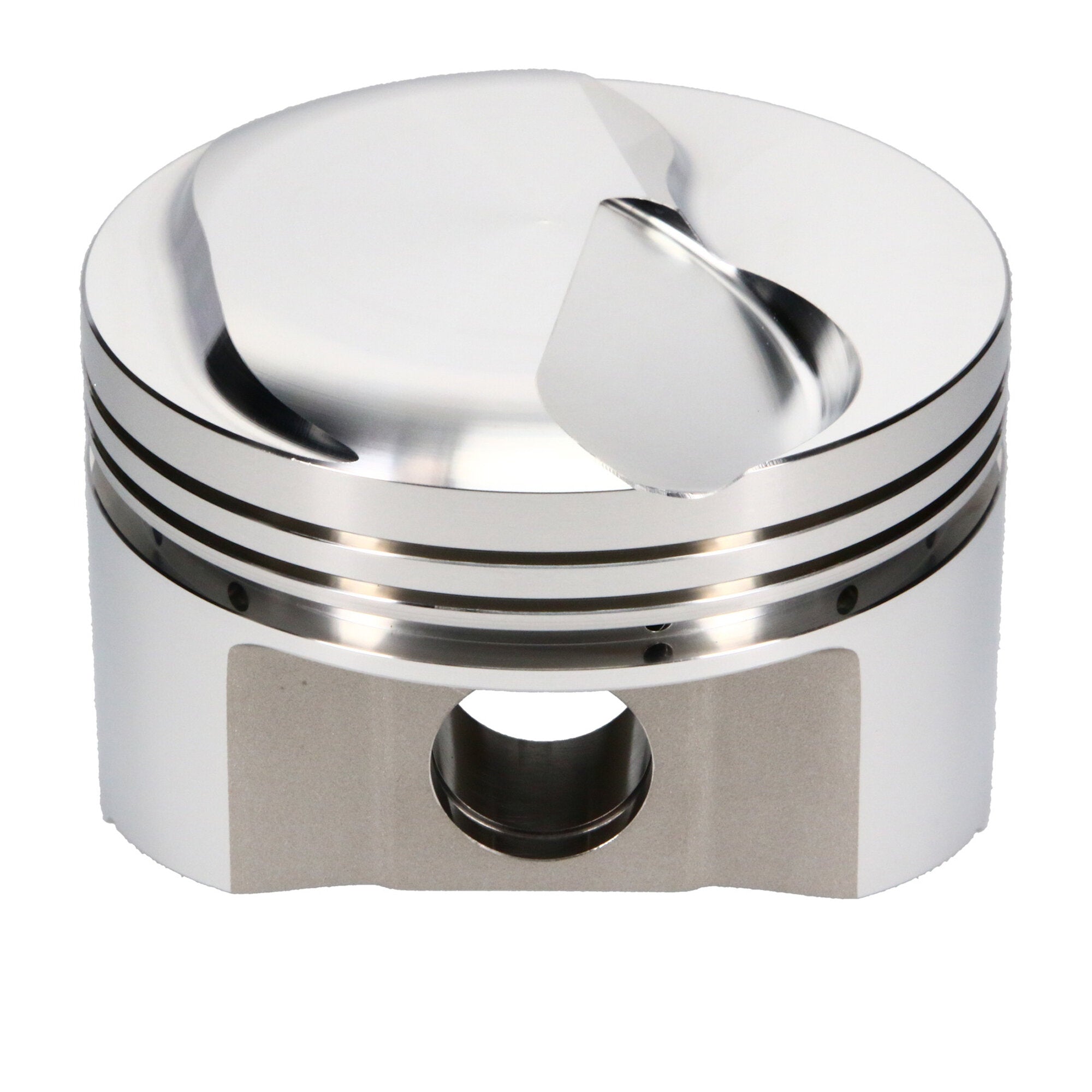

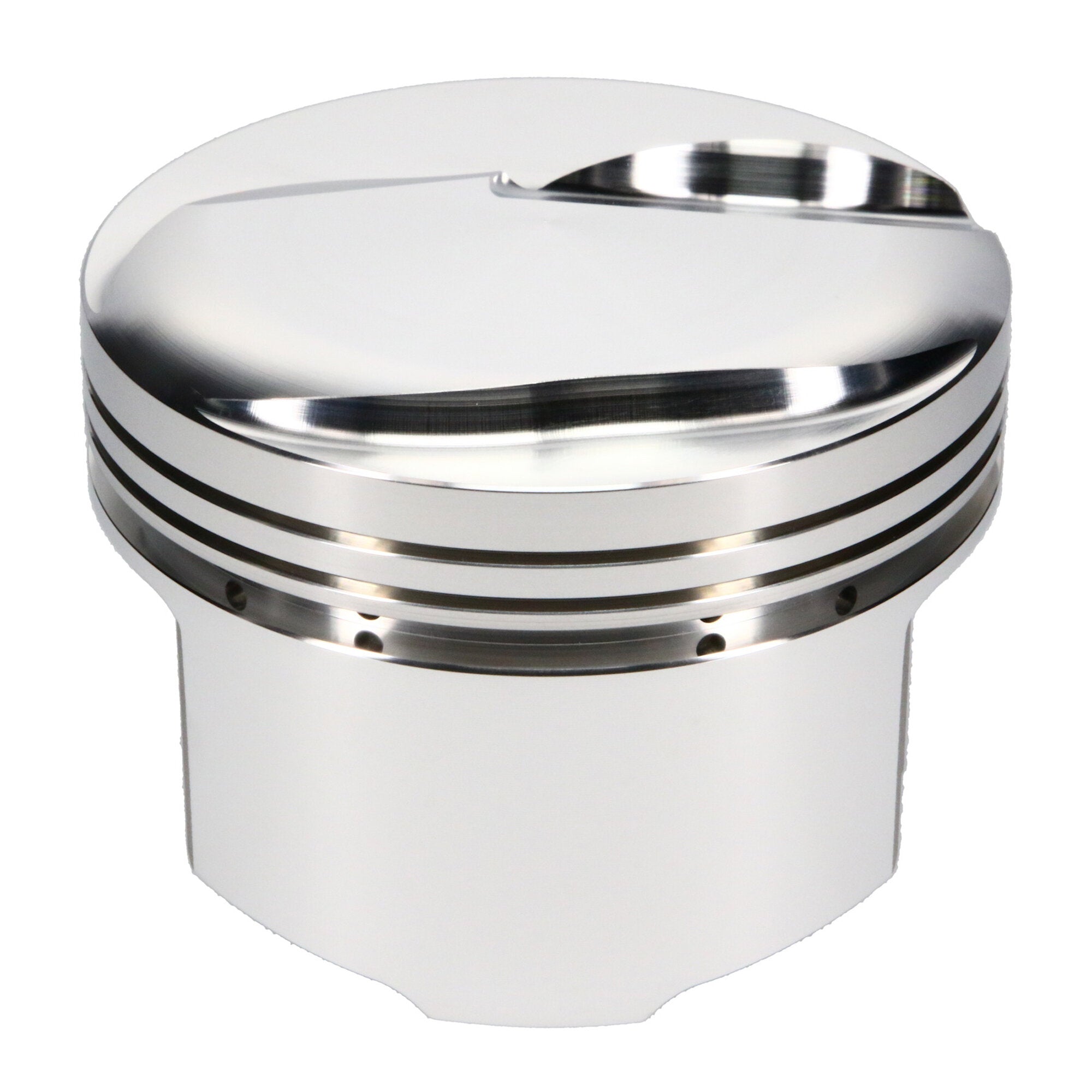

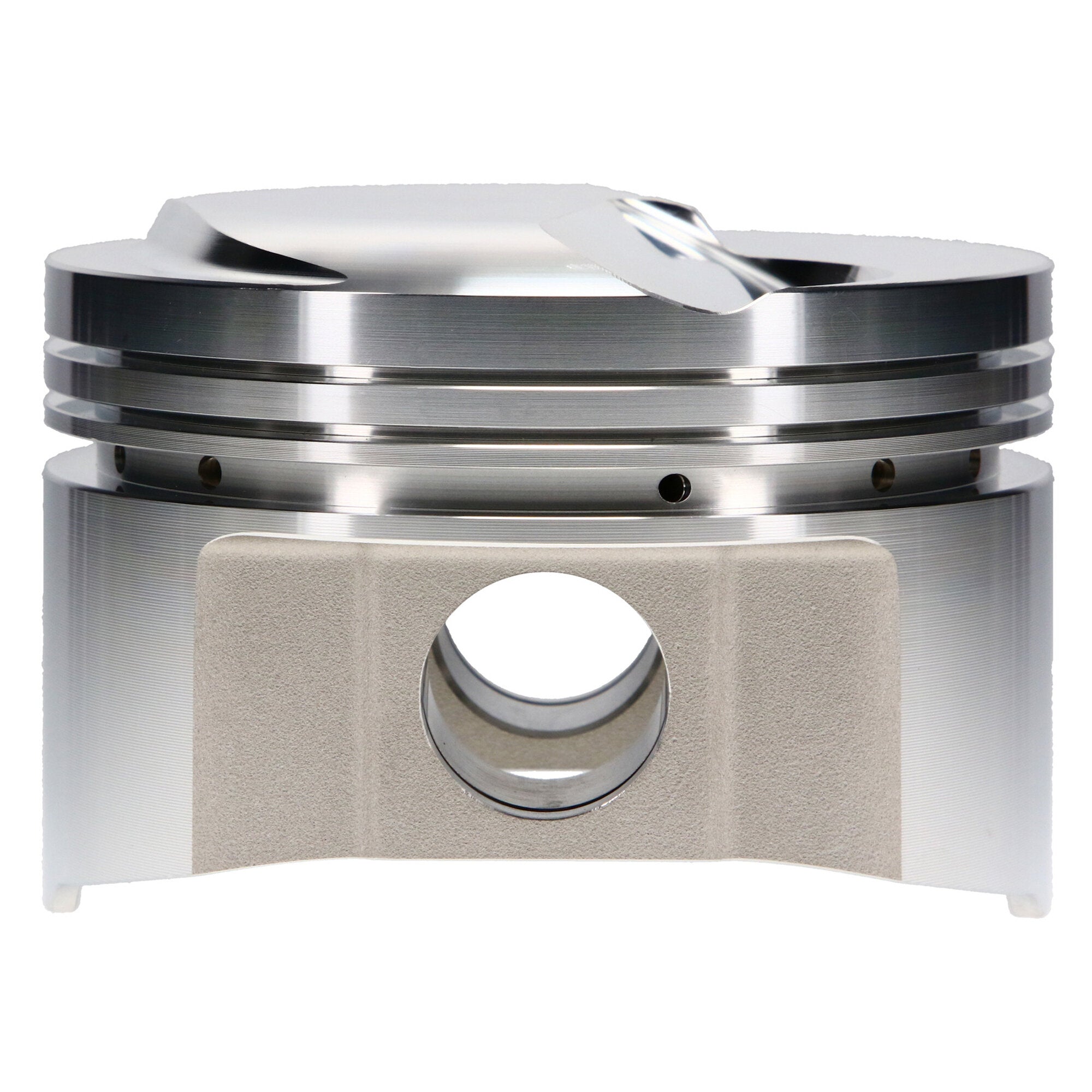

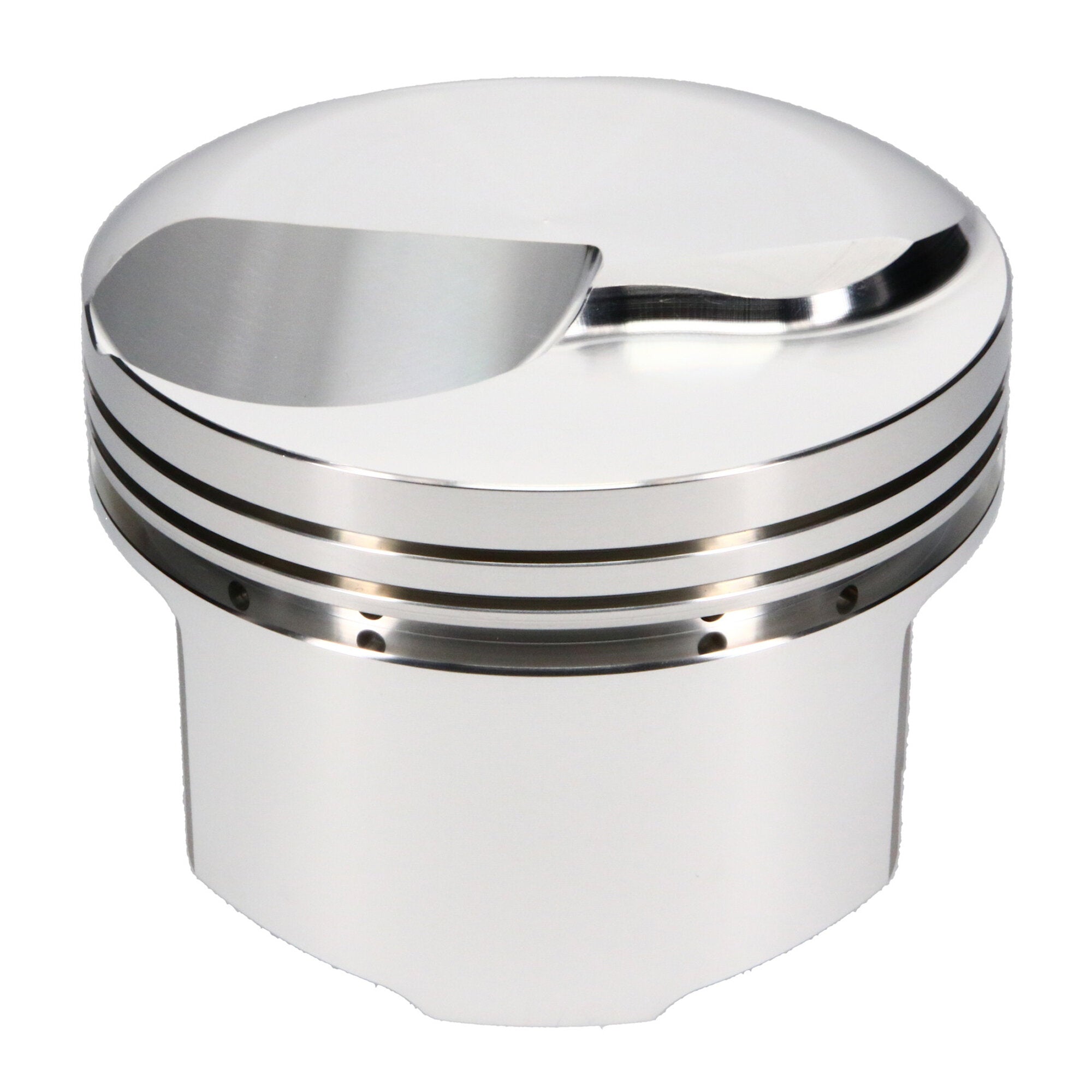

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 454 |
| Description_DES |
Piston Set, 4032, Dome, 4.500 Bore, 1.520 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.500 in. Bore, 1.520 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet 454, 4.500 Bore, Dome, Set of 8 |
| Product Type |
Engine Piston Kit |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.500 in. Bore - 1.520 in. CH, 6.00 CC |
| Piston Volume |
6.00 |
| Industry |
Automotive |
| Piston Material |
4032 |
| Wrist Pin Length |
2.930 |
| Ring Set Included |
No |
| Add-On |
990-2930-15-51S |
| Add-On |
990-042-CS |
| Second Compression Ring Thickness |
0.0640 |
| Prop 65 Yes/No |
Yes |
| Add-On |
S100S8-4500-5 |
| Cylinder Head |
OPEN CHAMBER |
| Piston Pin Length |
2.930 |
| Out of Stock Message |
Call for Availability |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Piston Pin Material |
5115 |
| Ringset Included |
No |
| Compression Height |
1.520 |
| Piston Average Weight |
640 |
| Title |
SRP - Chevrolet, Big Block, 4.500 in. Bore, Piston Kit |
| Engine |
Big Block |
| Top Compression Ring Thickness |
0.0640 |

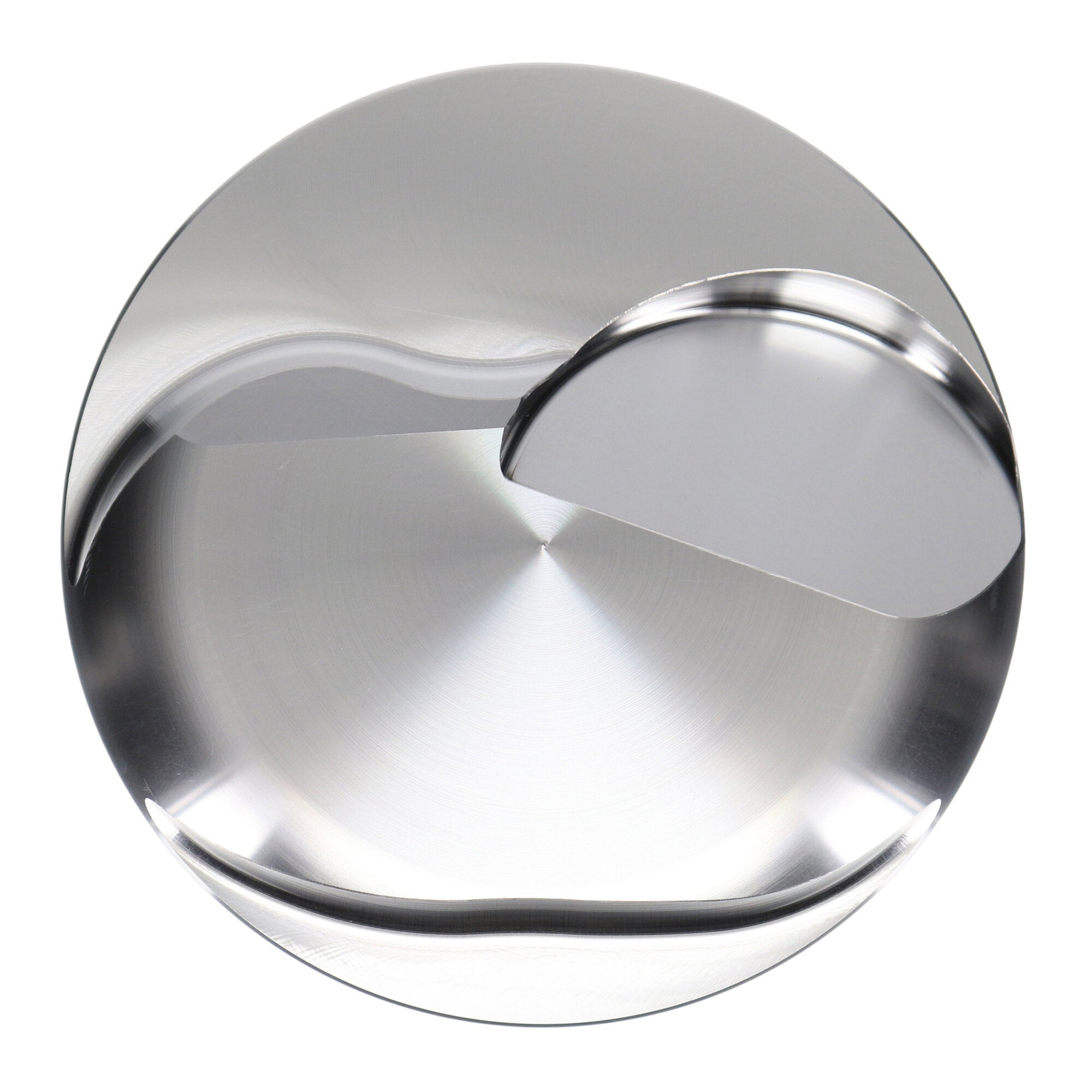

| Piston Head Type |
Dome |
| Piston Series |
SRP |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
Domestic |
| Make - Web |
Chevrolet |
| Engine - Web |
Big Block |
| Wrist Pin Wall Thickness |
0.150 |
| Make |
CHEVROLET |
| Oil Ring Thickness |
0.188 |
| Bore Diameter |
4.500 |
| Forging Type |
FSR |
| Piston Pin Outside Diameter |
0.990 |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.990 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
15.0000 |
