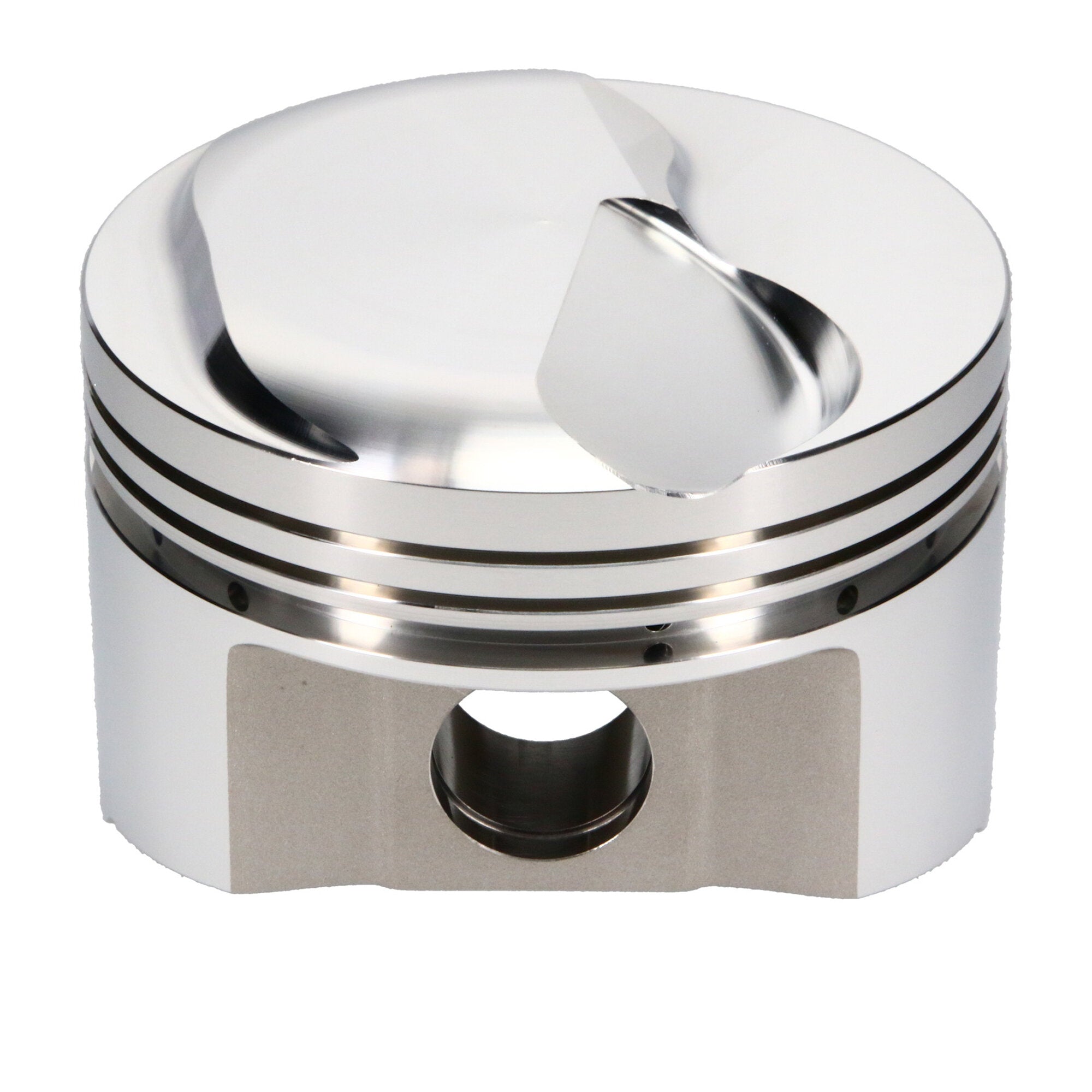

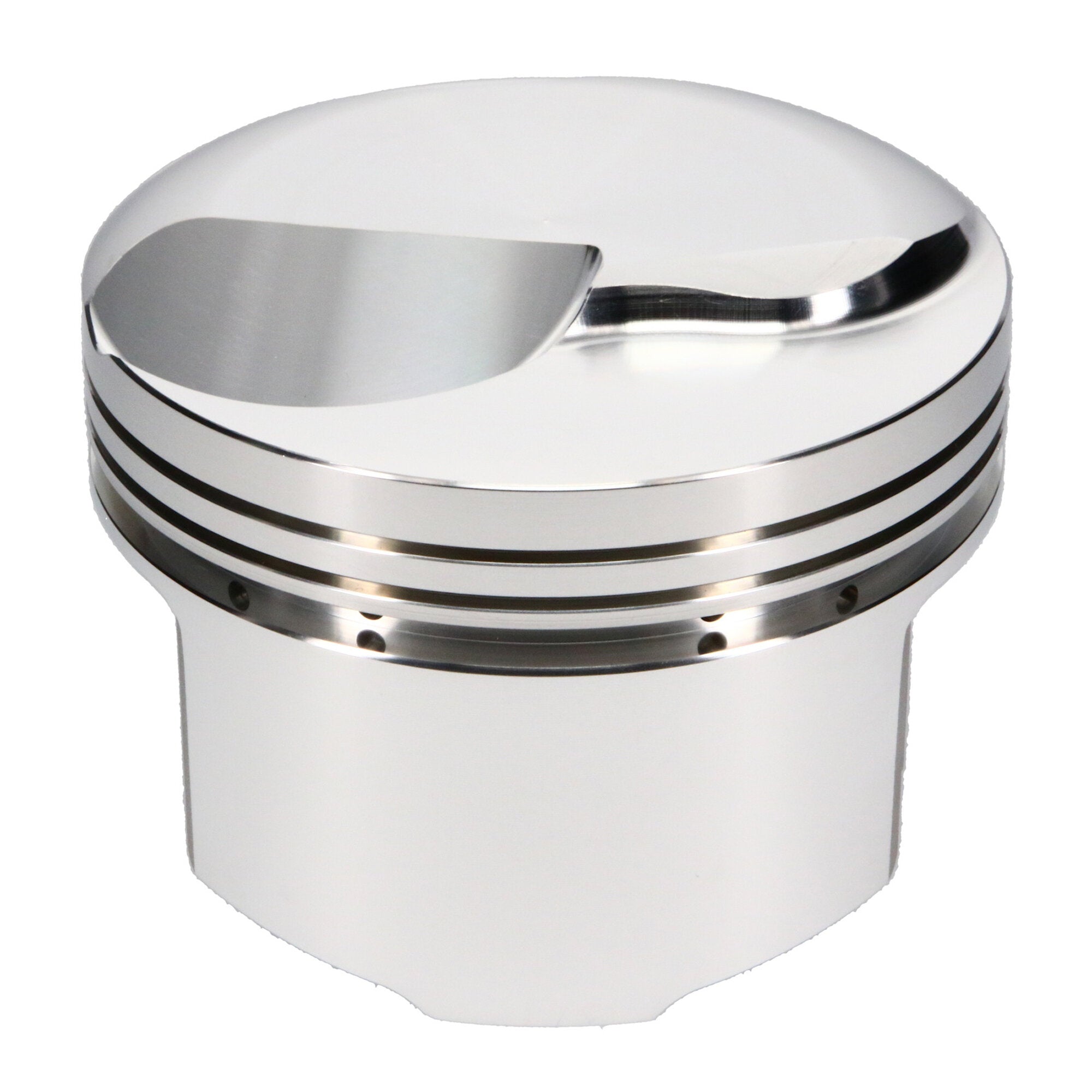

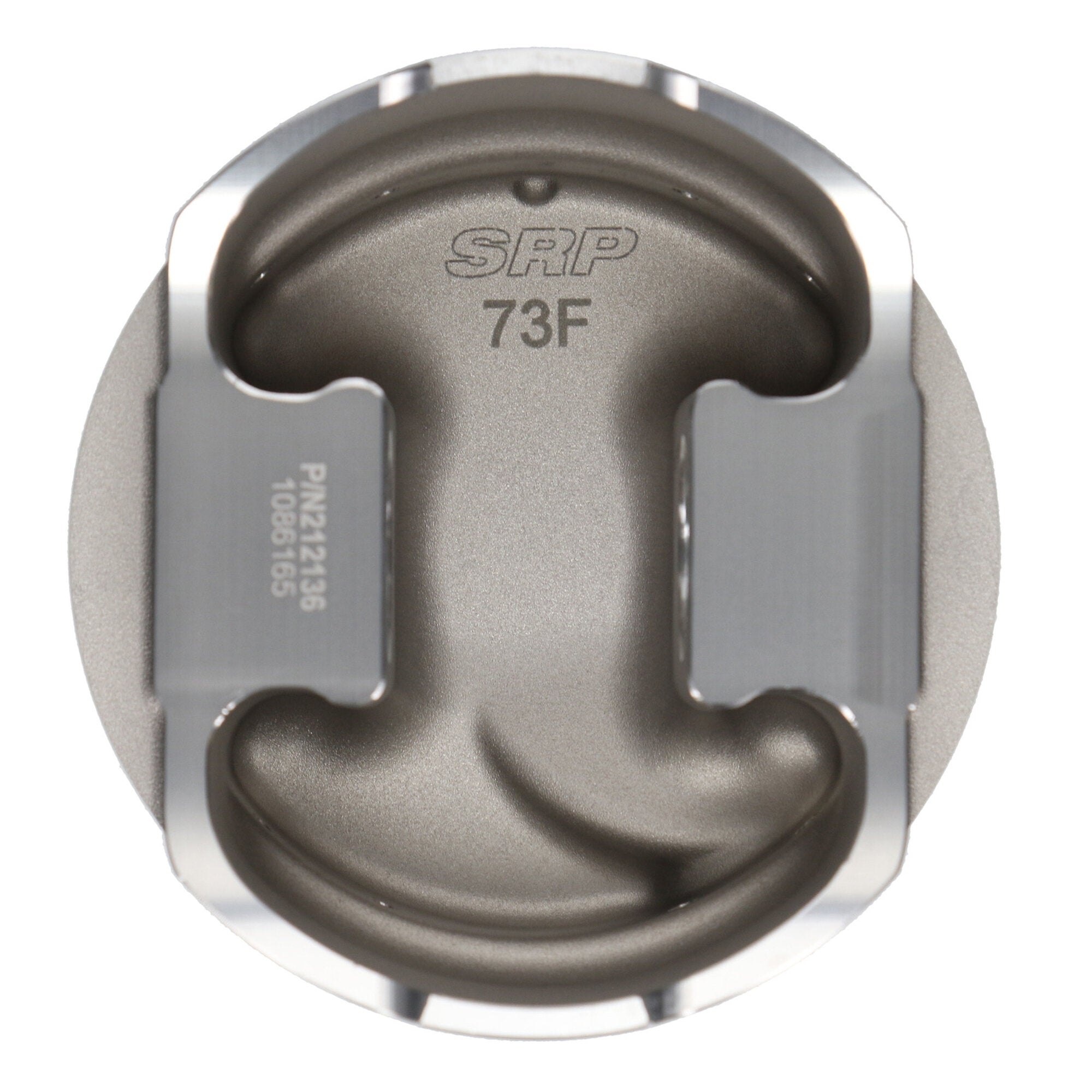

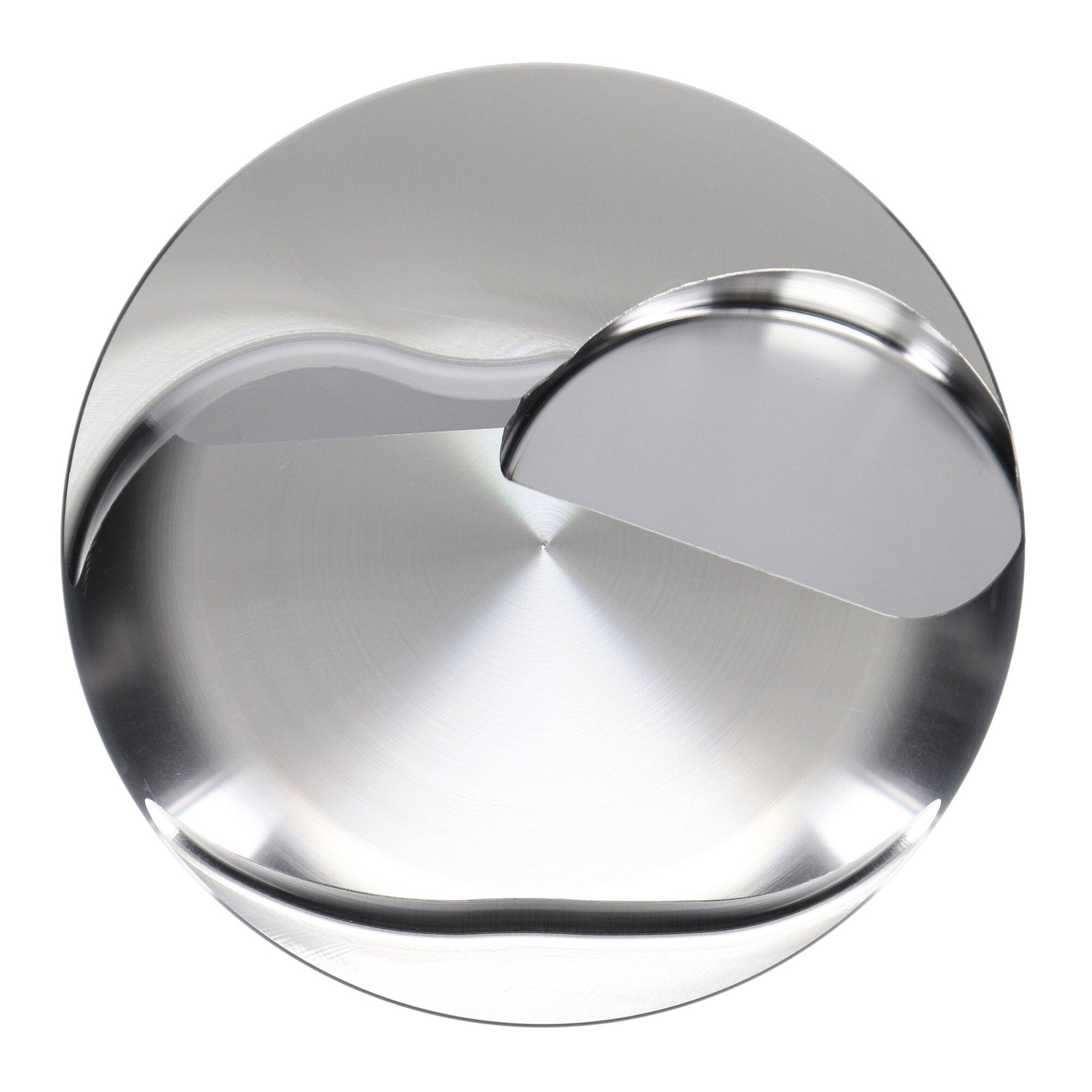

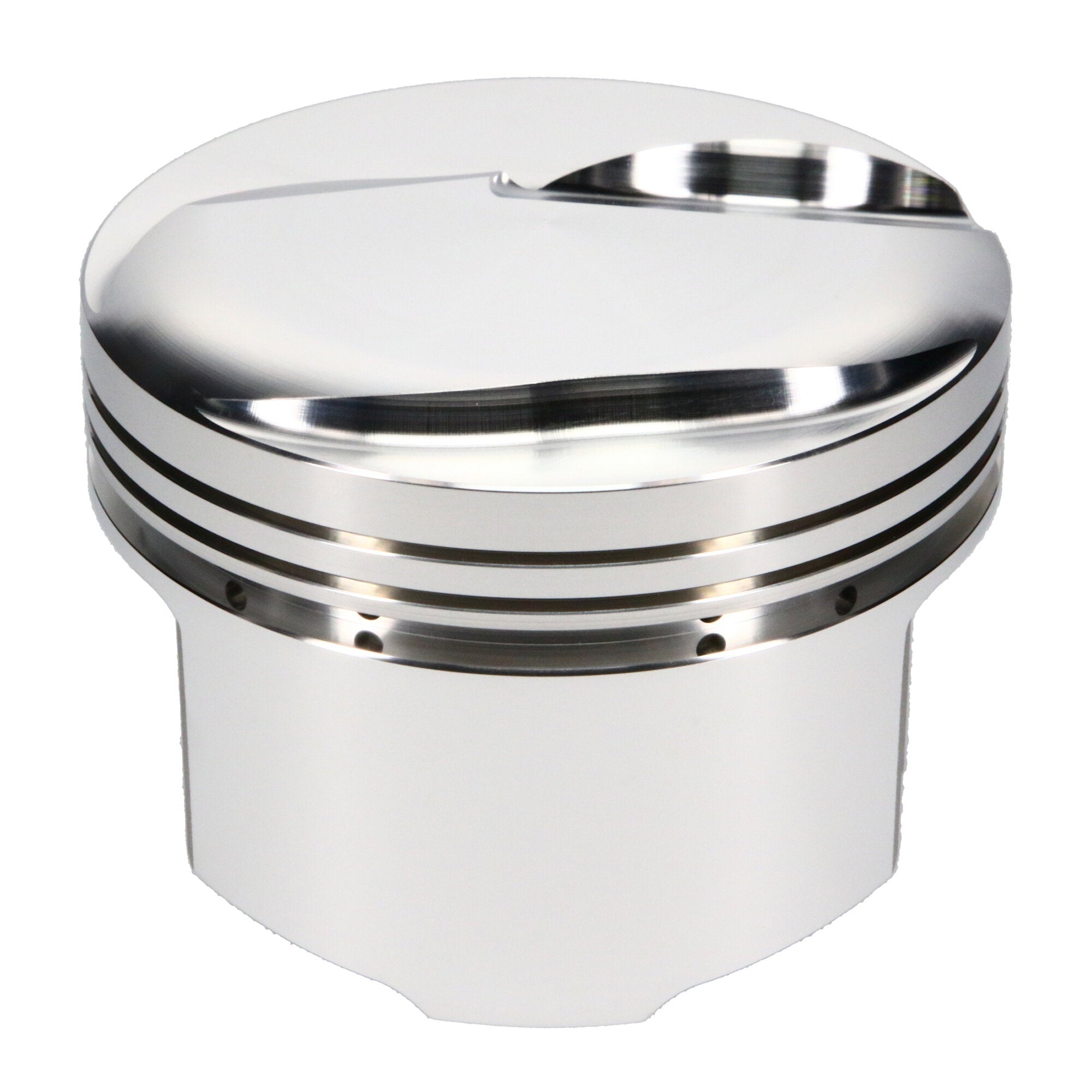

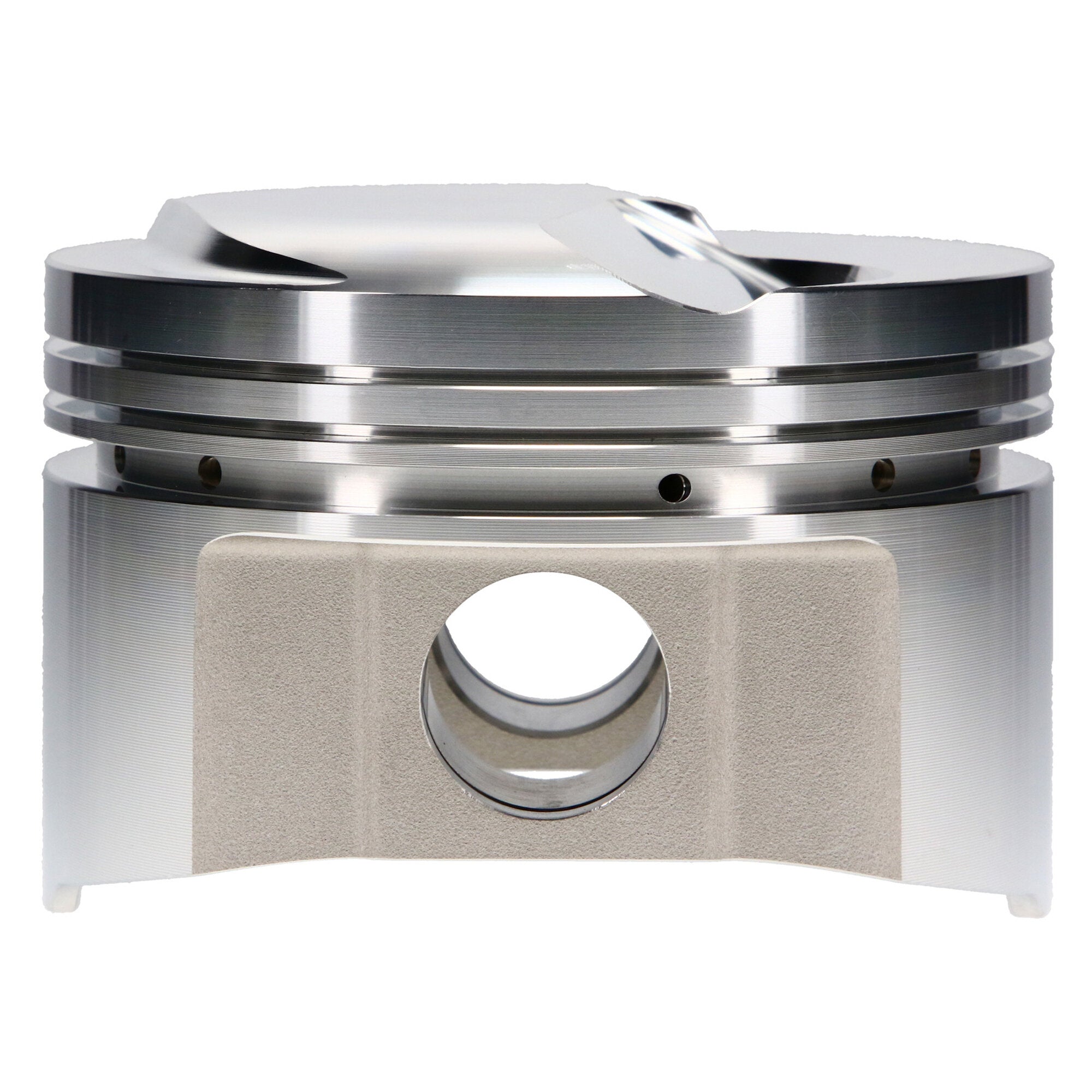

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet Big Block 427 |
| Description_DES |
Piston Set, 4032, Dome, 4.310 Bore, 1.765 CD, 0.990 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Dedicated forging helps optimize strength and weight throughout the piston design
- Perfect for street/strip applications
- Forced pin oiling for improved pin lubrication
- Made 100% in the USA
|
| Description_INV |
SRP, Piston Set |
| Description_EXT |
SRP, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.765 CD, Dome, 8 Cyl. Piston Kit |
| Description_MKT |
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 427, 4.310 Bore, Dome, Set of 8 |
| Compression Height |
1.765 |
| Ringset Included |
No |
| Piston Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Series |
SRP |
| Engine - Web |
Big Block |
| Piston Average Weight |
682 |
| Product Market |
Domestic |
| Piston Head Type |
Dome |
| Bore Diameter |
4.310 |
| Title |
SRP - Chevrolet, Big Block, 4.310 in. Bore, Piston Kit |
| Oil Ring Thickness |
0.188 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Material |
5115 |
| Forging Type |
FSR |
| Wrist Pin Outer Diameter |
0.990 |
| Wrist Pin Wall Thickness |
0.150 |
| Product Type |
Engine Piston Kit |
| Piston Volume |
29.00 |
| Title - Web |
SRP Chevrolet Big Block Piston Kit - 4.310 in. Bore - 1.765 in. CH, 29.00 CC |
| Cylinder Head |
OPEN CHAMBER |
| Make |
CHEVROLET |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.990 |
| Industry |
Automotive |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>SRP Pistons>SRP>Piston Kits |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
4032 |
| Second Compression Ring Thickness |
0.0640 |
| Wrist Pin Length |
2.930 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Ring Set Included |
No |
| Add-On |
S100S8-4310-5 |
| Add-On |
990-2930-15-51S |
| Piston Pin Length |
2.930 |
| Add-On |
990-042-CS |
| Engine |
Big Block |
| Make - Web |
Chevrolet |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
16.0000 |
