As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler Top Fuel |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

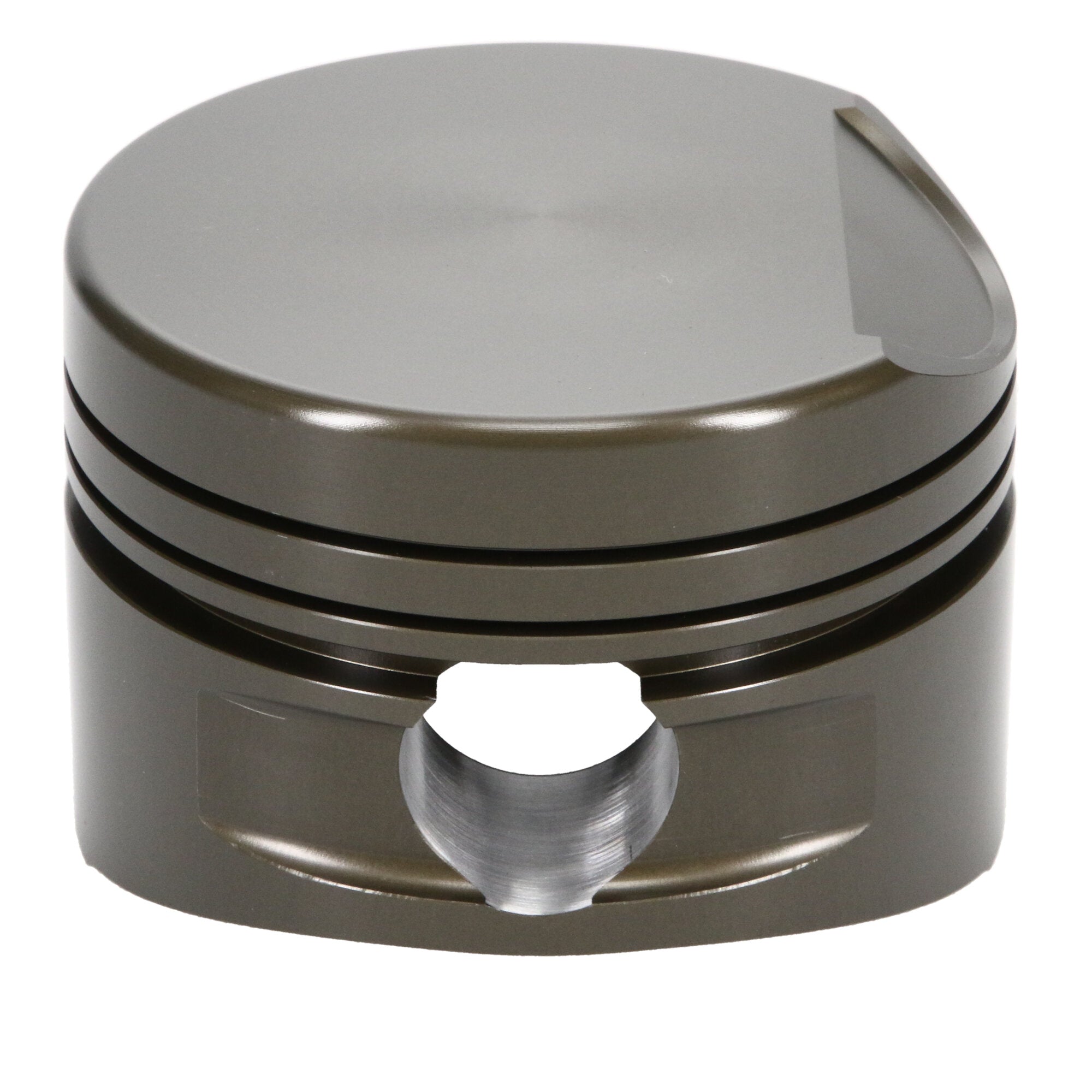

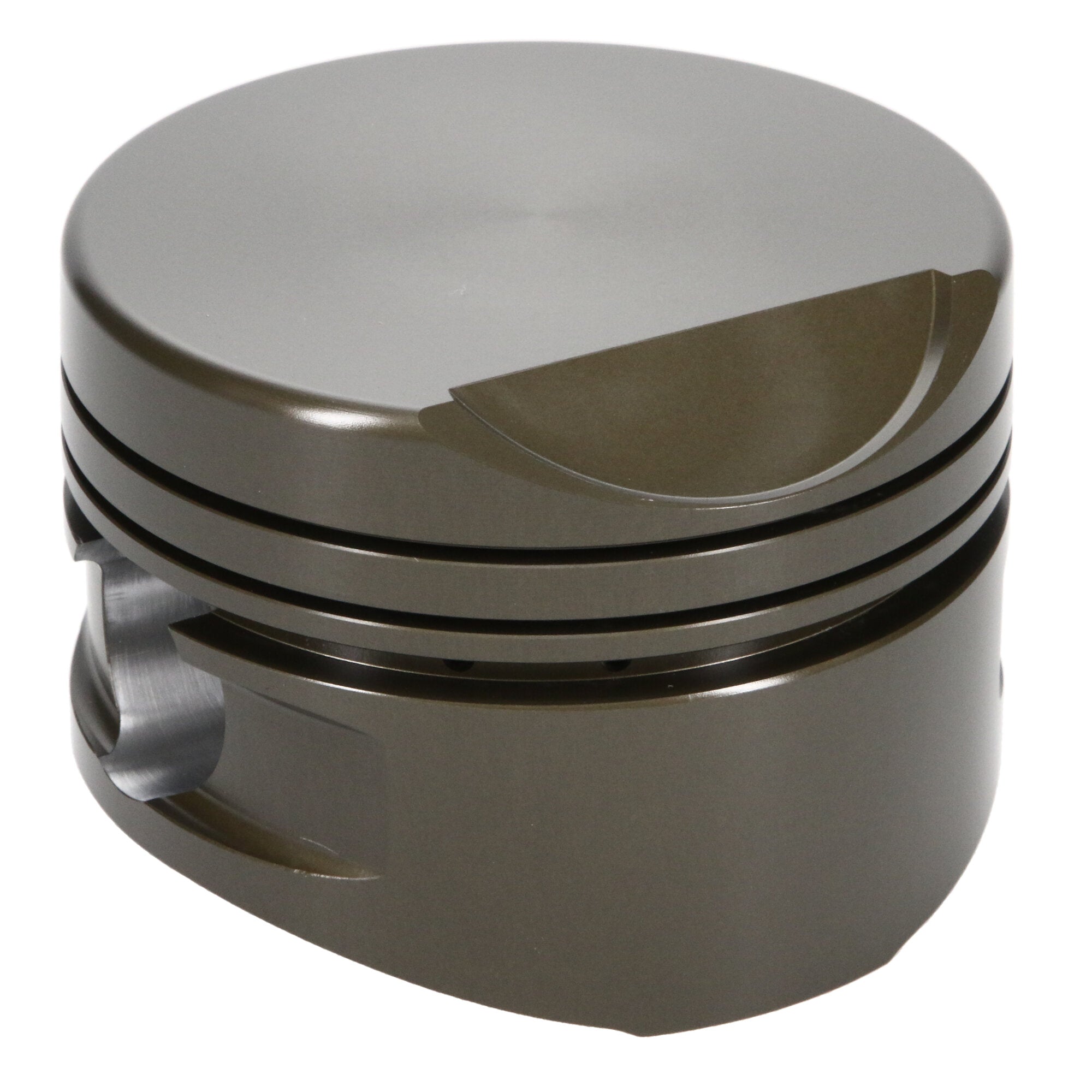

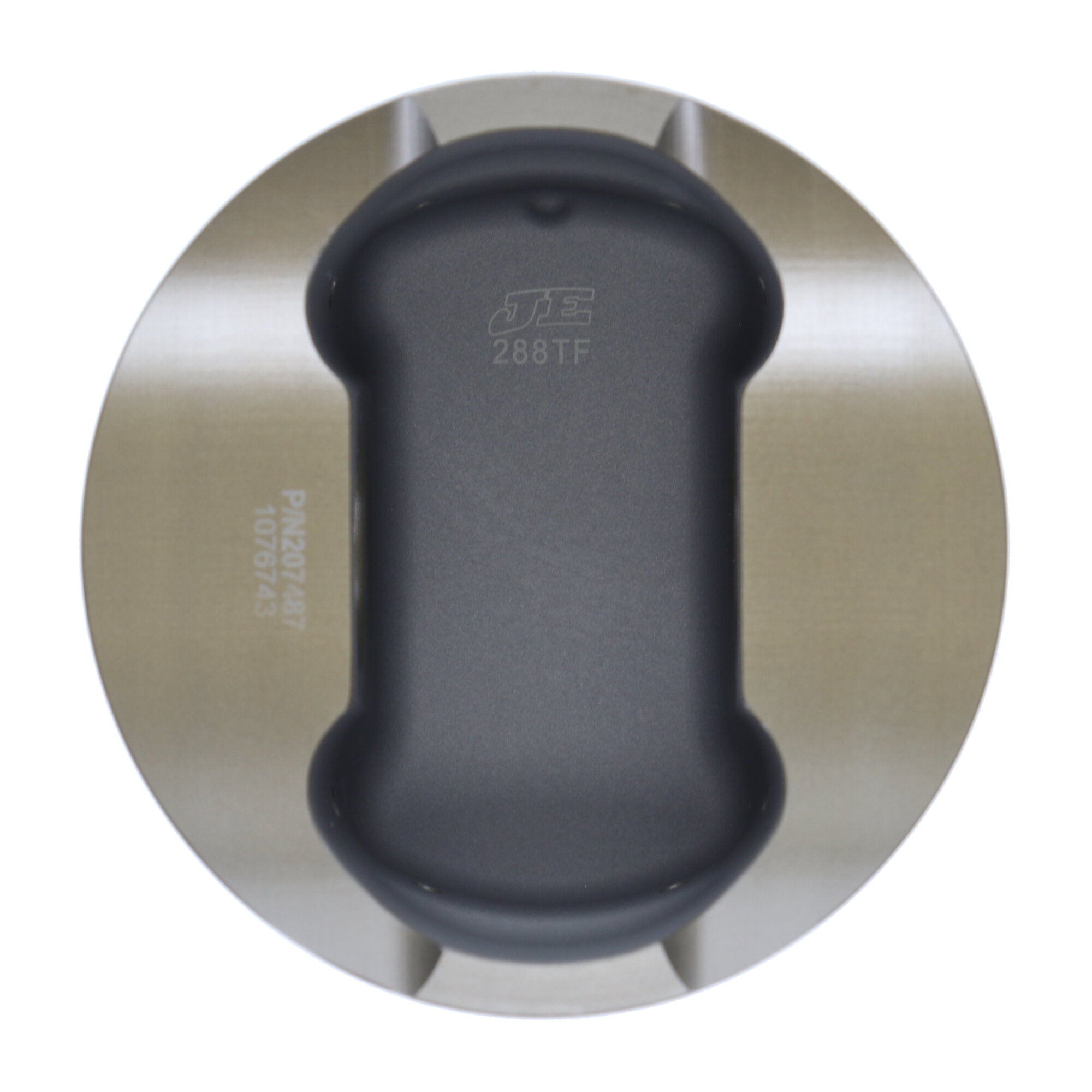

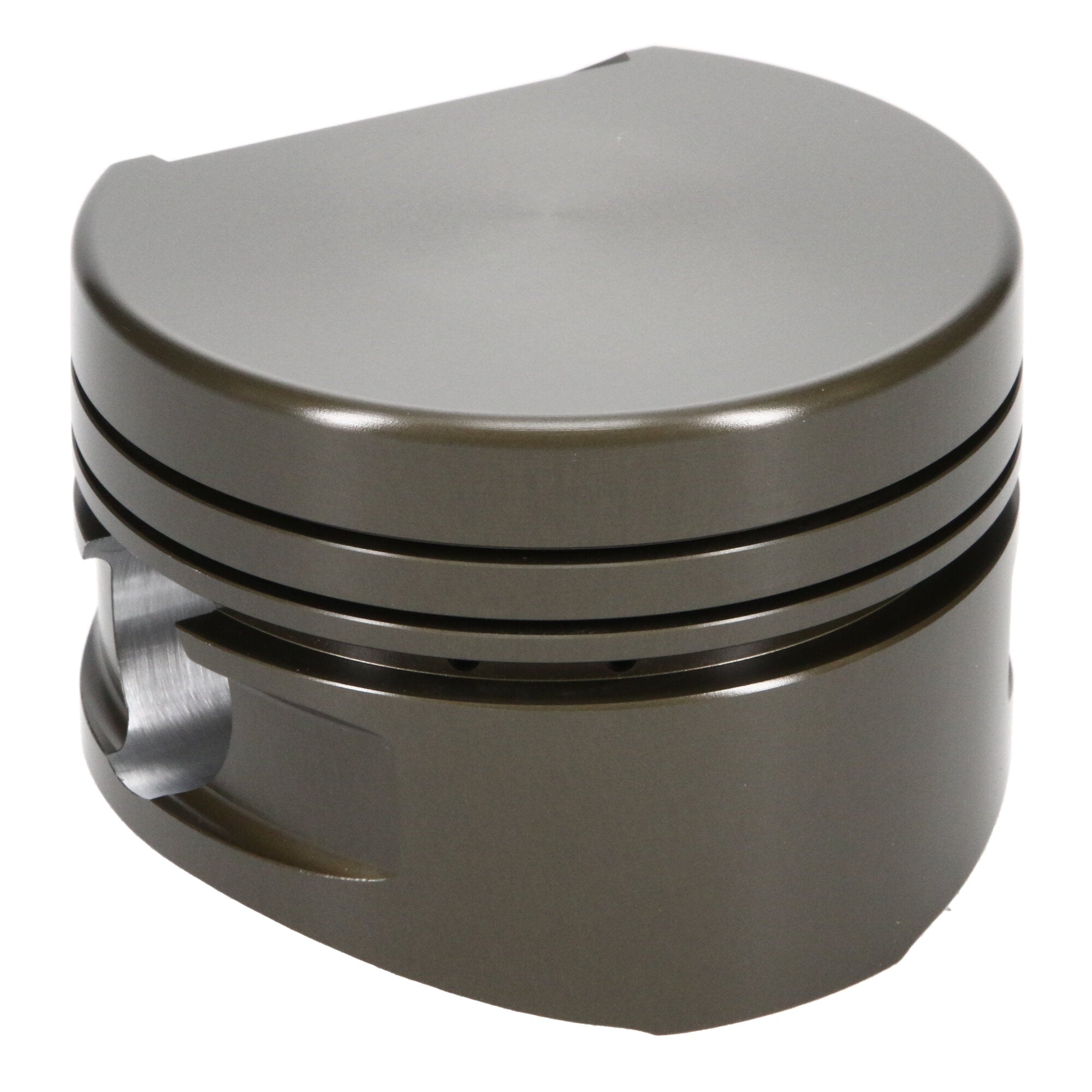

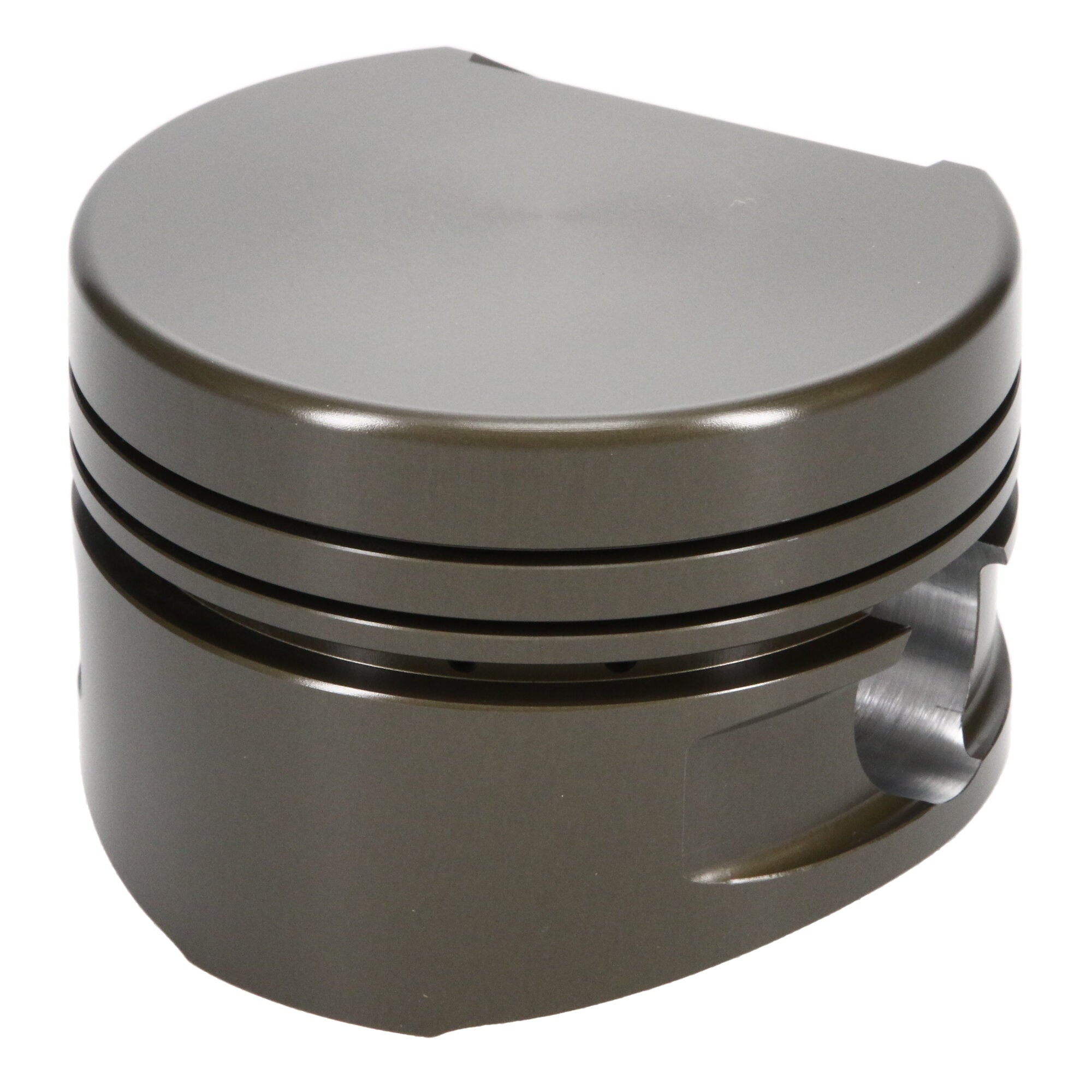

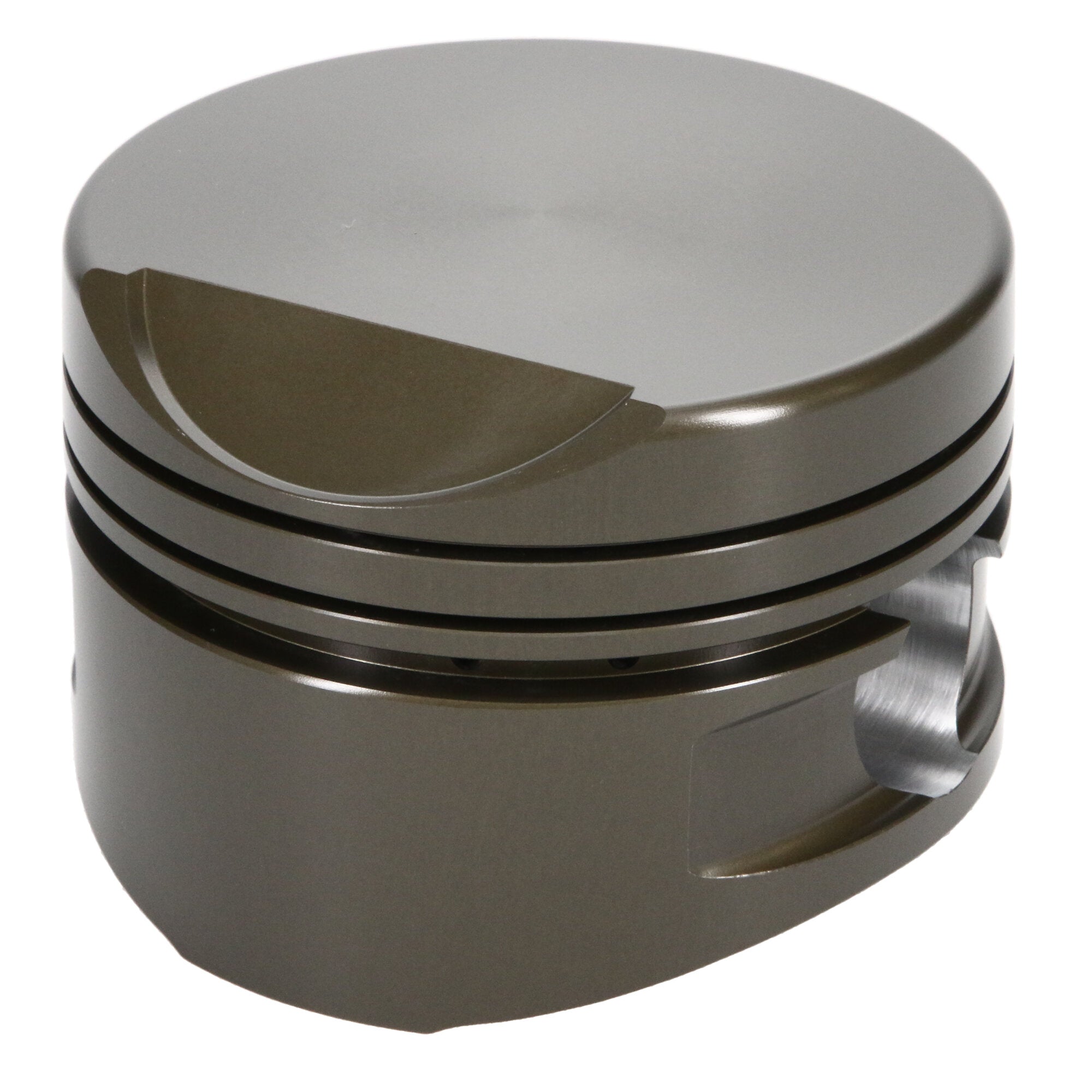

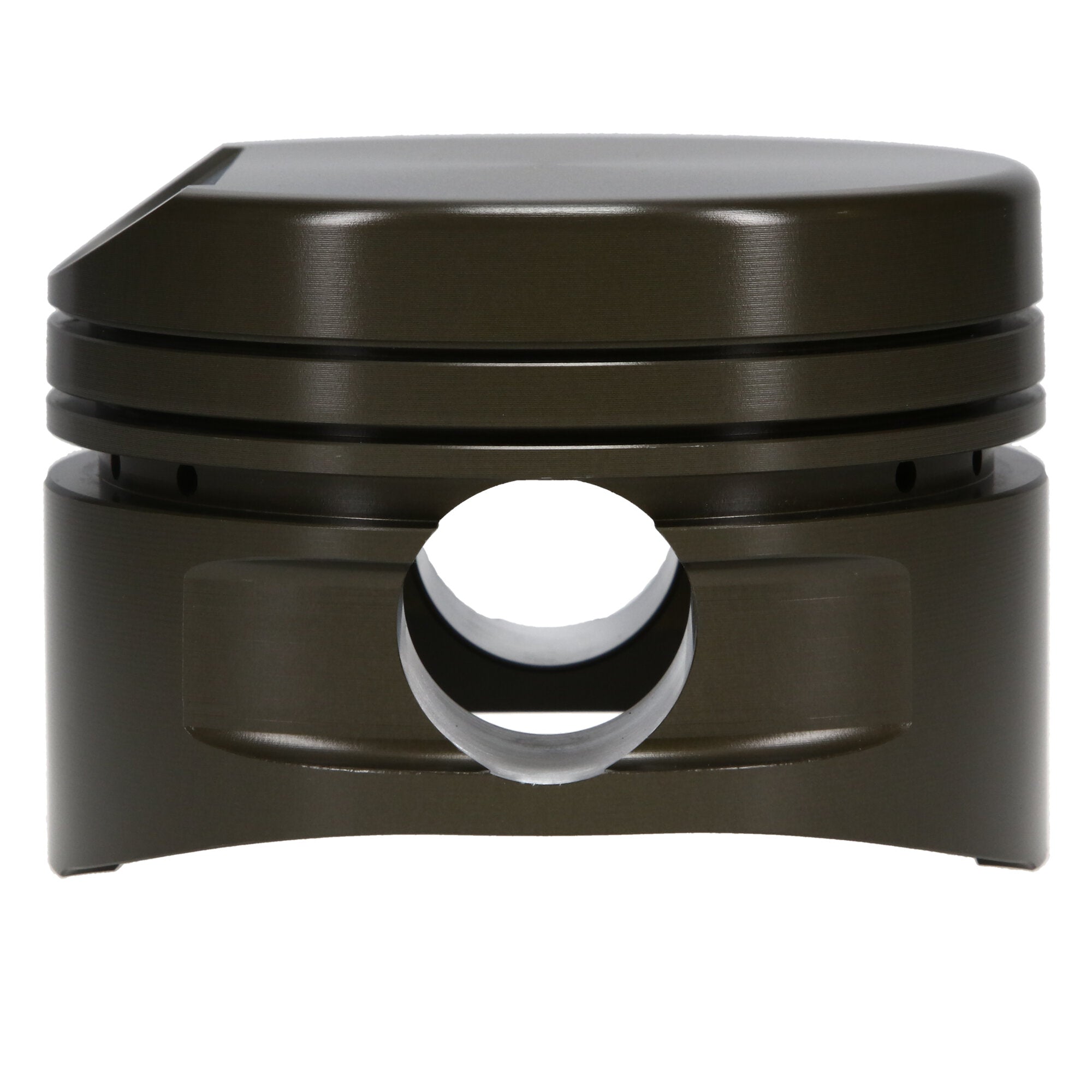

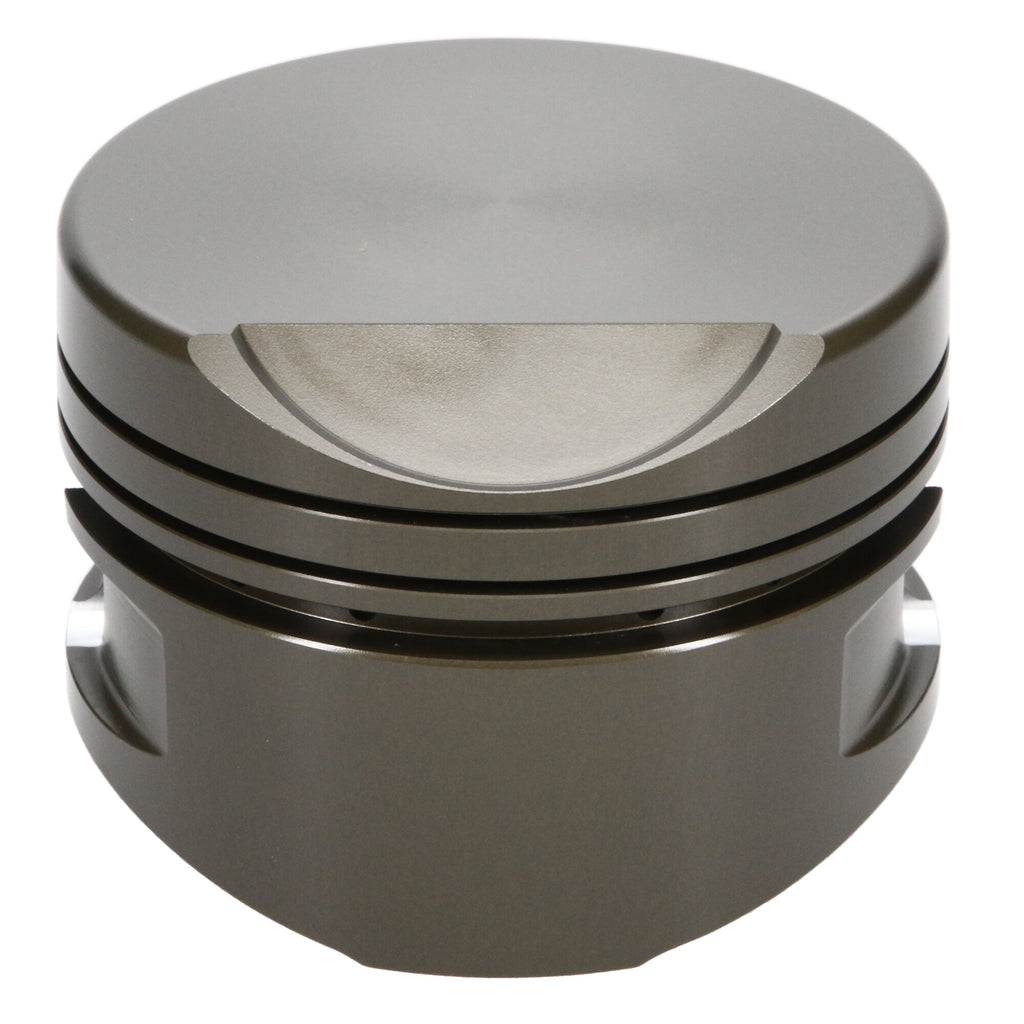

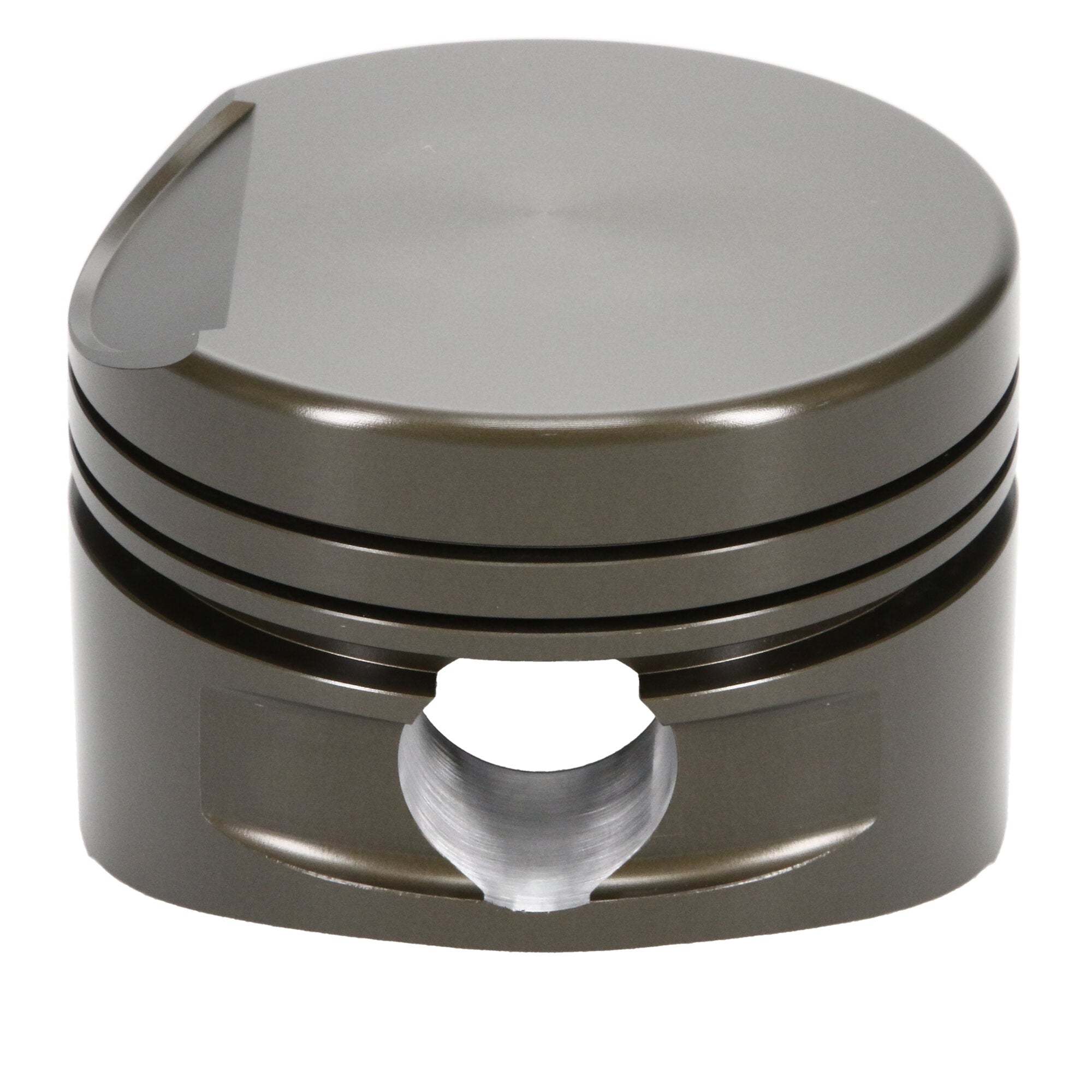

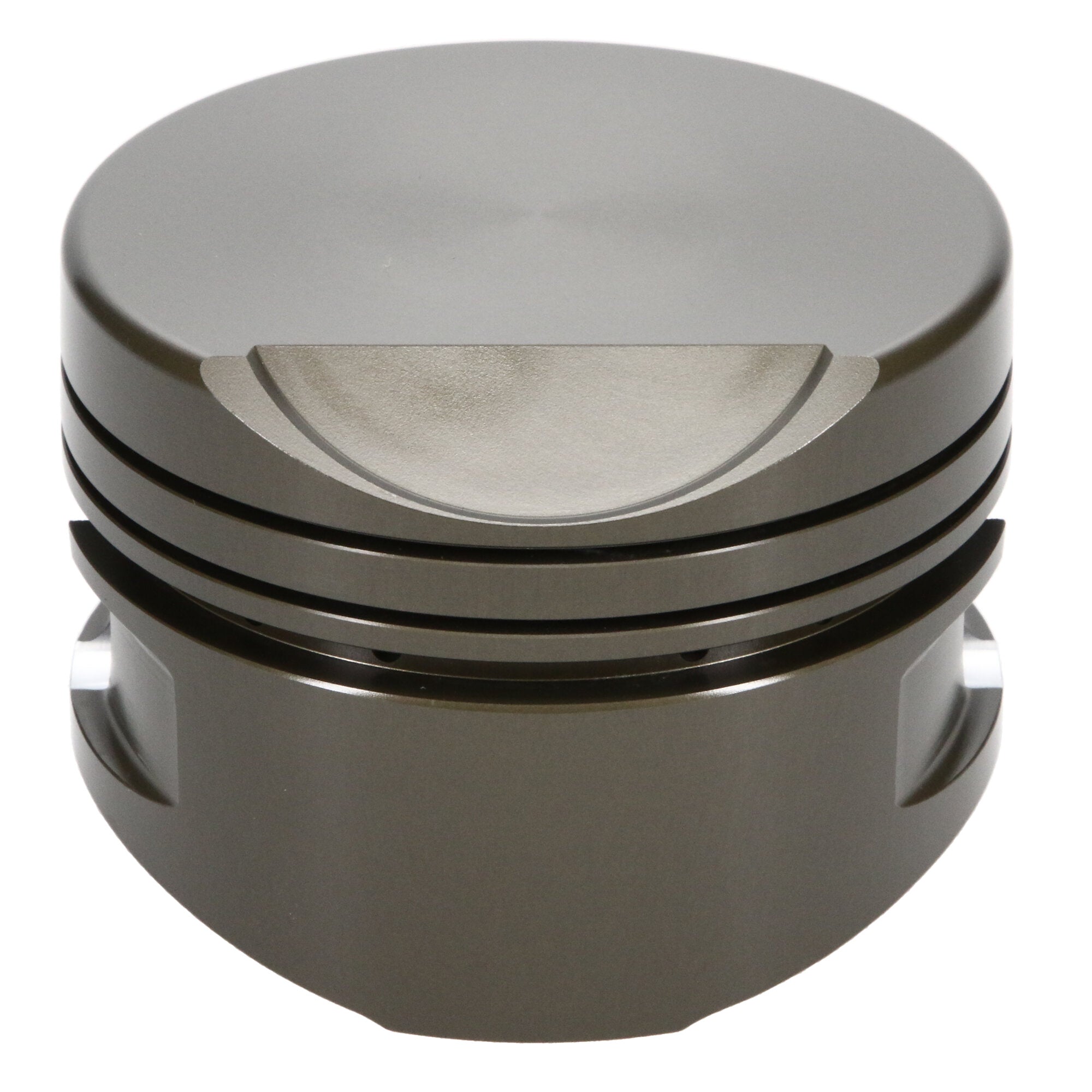

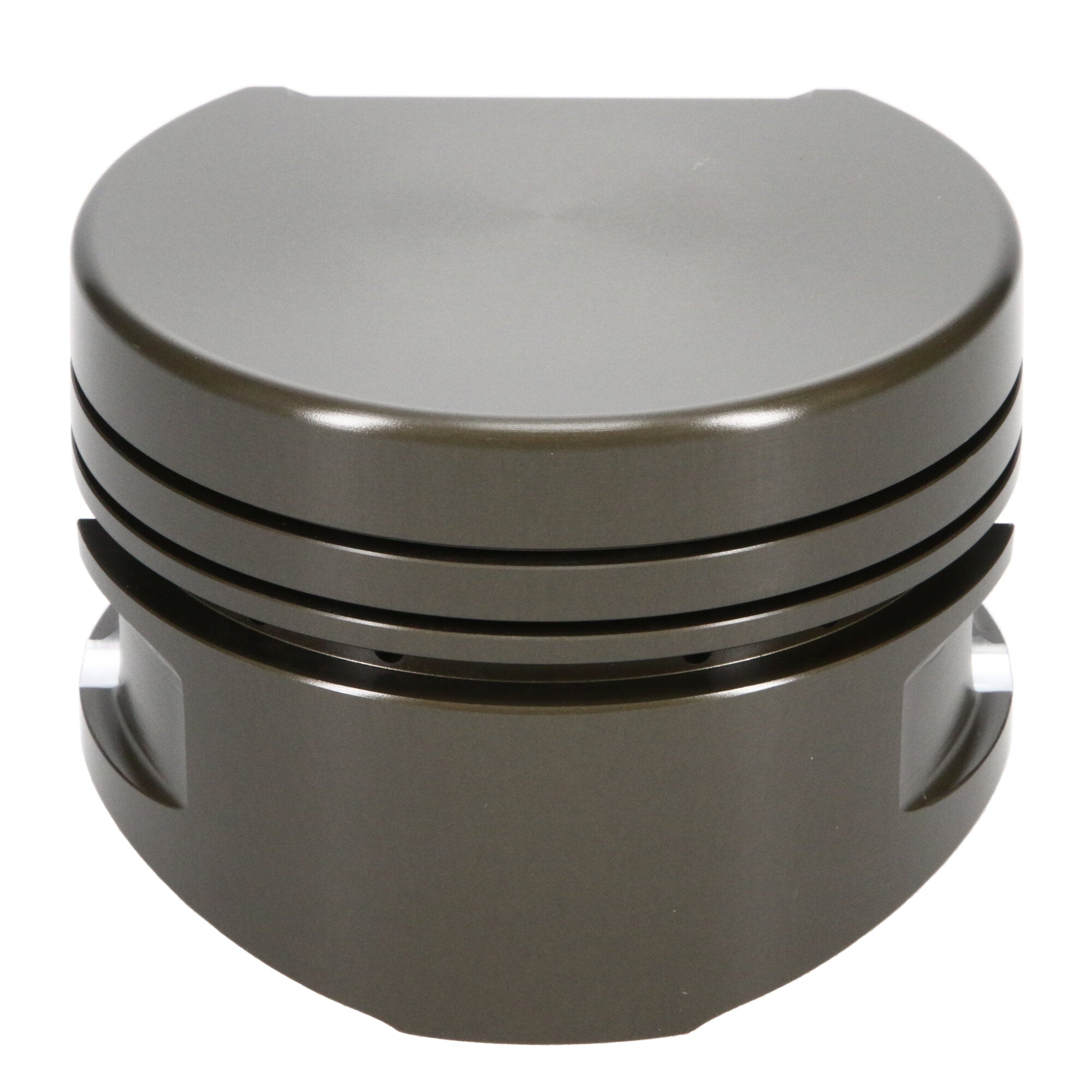

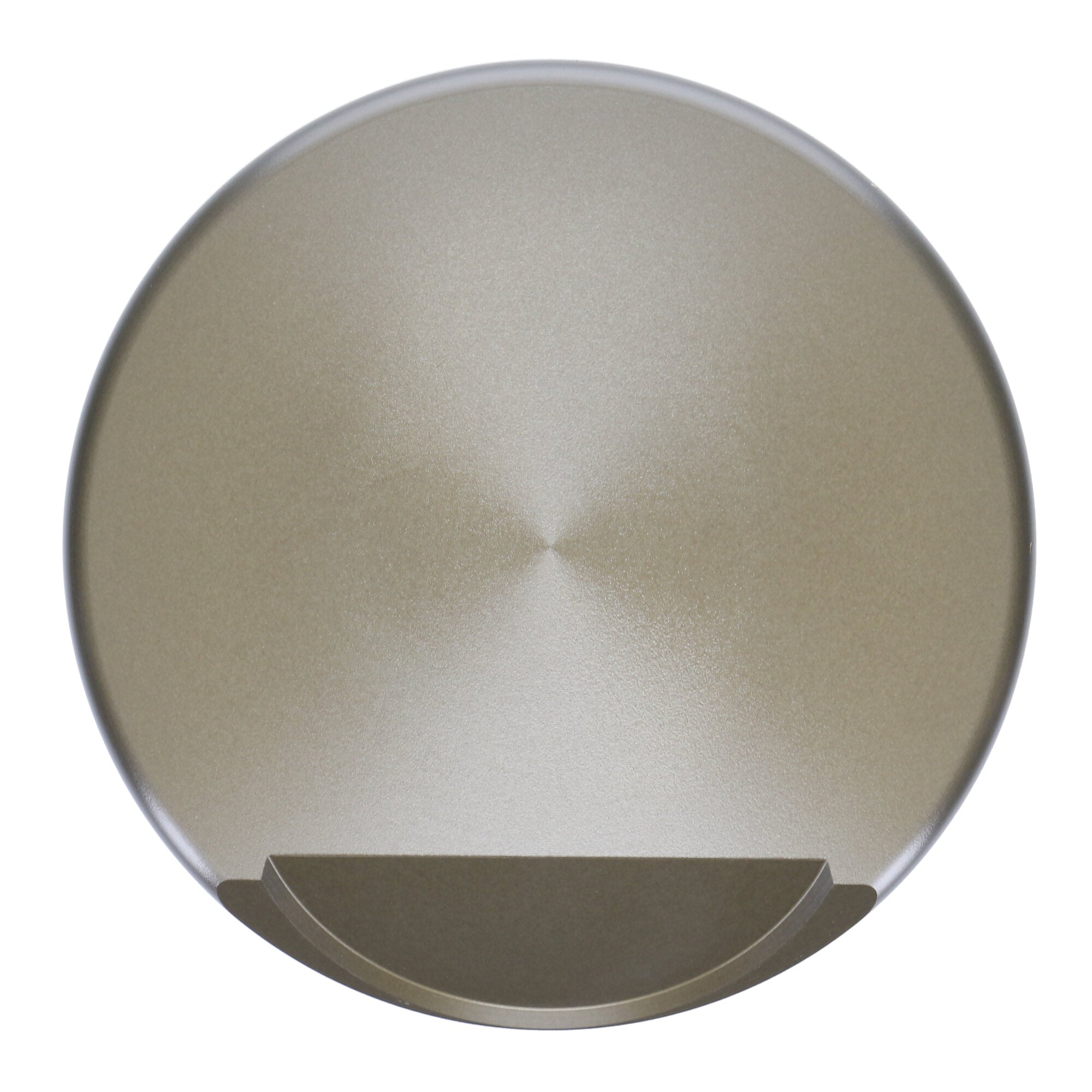

Piston Set, 2618, Flat Top, 4.187 Bore, 1.660 CD, 1.156 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chrysler, Top Fuel, 4.187 in. Bore, 1.660 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chrysler Top Fuel, 4.187 Bore, Flat, Set of 8 |
| Wrist Pin Outer Diameter |
1.156 |
| Make |
CHRYSLER |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Forging Type |
Round |
| Oil Ring Thickness |
0.19 |
| Piston Head Type |
Flat |
| Piston Pin Length |
3.900 |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Engine Type |
ICE |
| Engine |
TOP FUEL |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Chrysler, Top Fuel, 4.187 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
1.156 |
| Cylinder Head |
426 HEMI |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availability |
| Bore Diameter |
4.187 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J14185-5-017HPD |
| Industry |
Automotive |
| Piston Volume |
0.00 |
| Top Compression Ring Thickness |
0.0750 |
| Piston Average Weight |
799 |
| Title - Web |
JE Pistons Chrysler Top Fuel Piston Kit - 4.187 in. Bore - 1.660 in. CH, 0.00 CC |
| Compression Height |
1.660 |
| Piston Material |
2618 |
| Second Compression Ring Thickness |
0.0660 |
| Prop 65 Yes/No |
Yes |
| Engine - Web |
Top Fuel |
| Make - Web |
Chrysler |
| Wrist Pin Length |
3.900 |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
19.0000 |
