As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chrysler Top Fuel |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

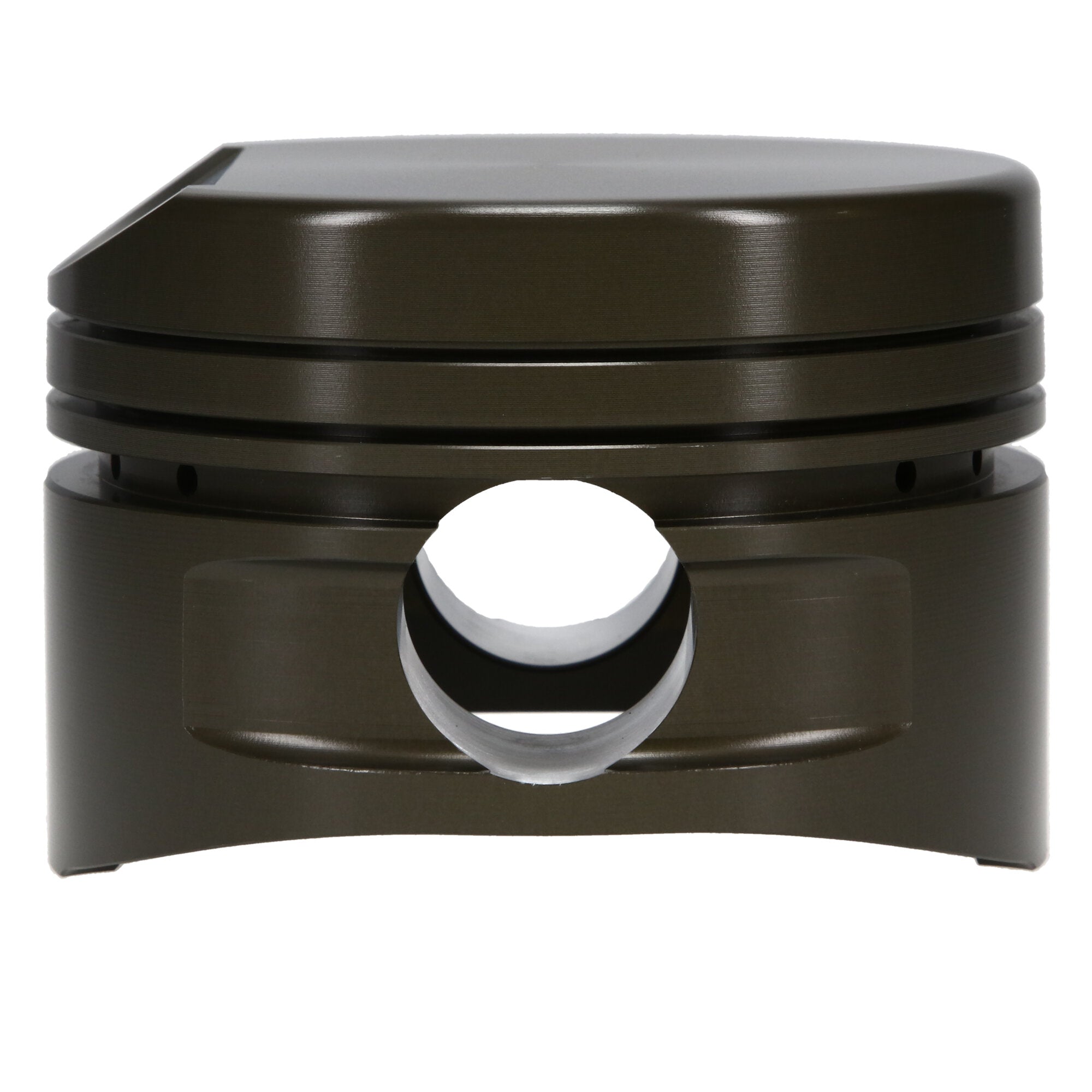

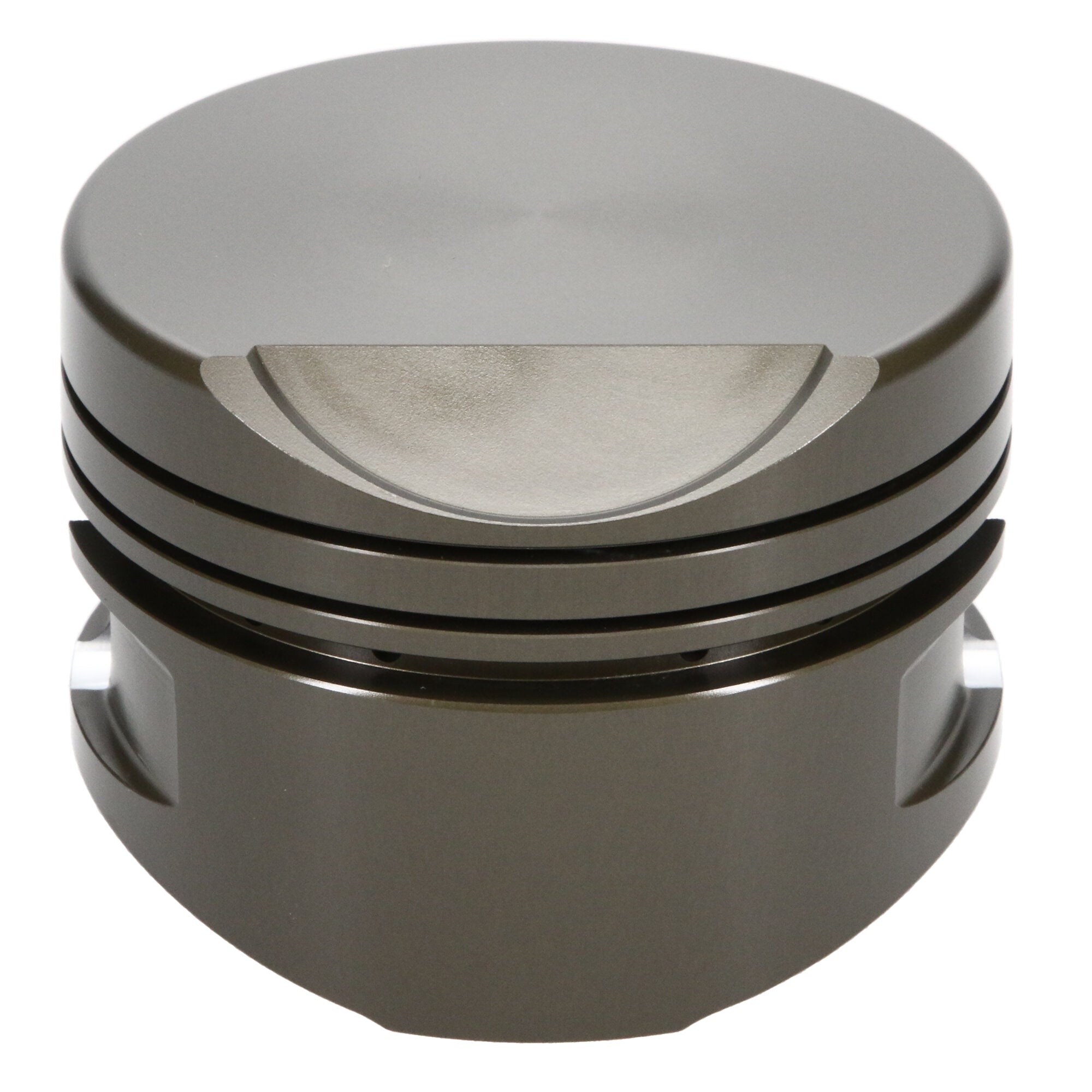

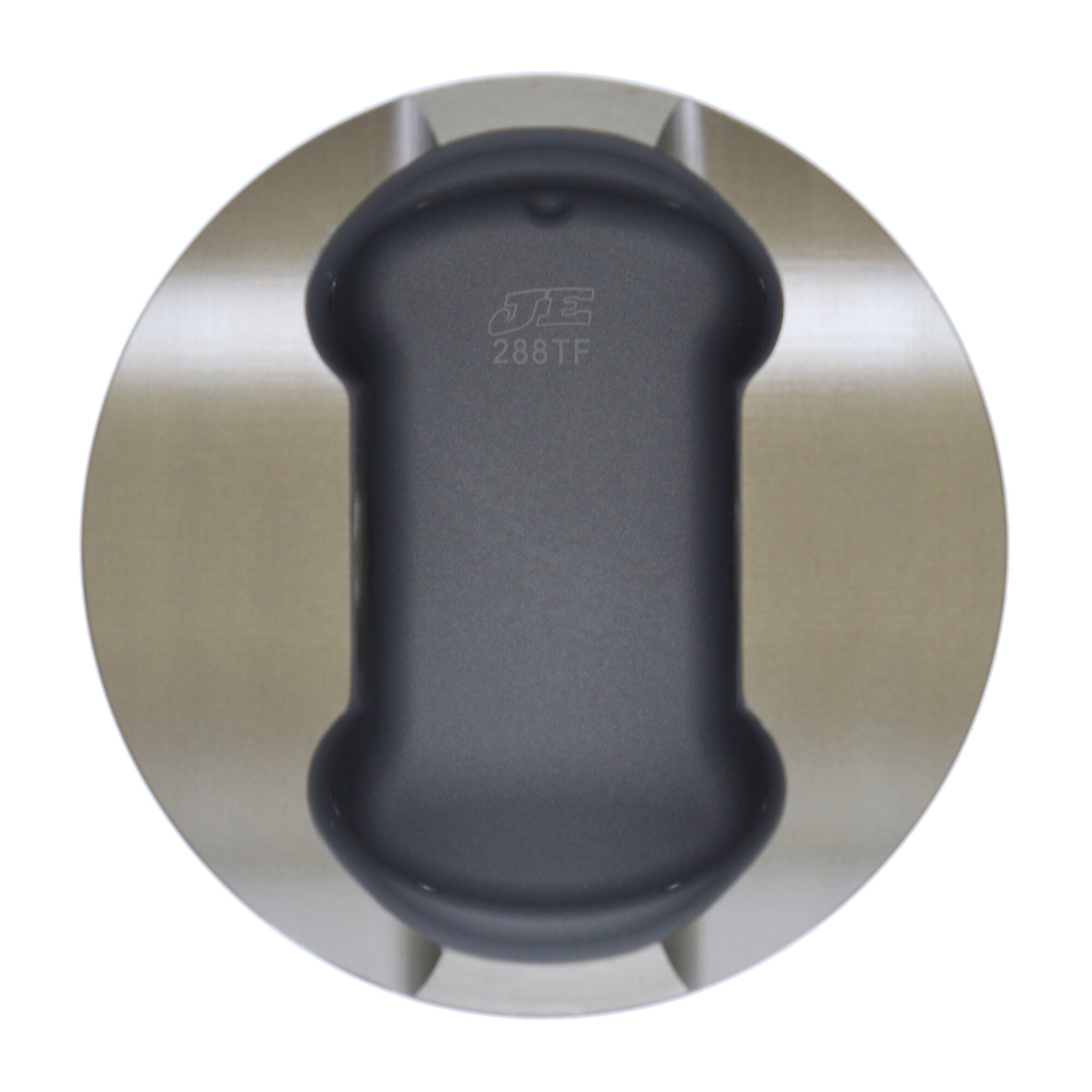

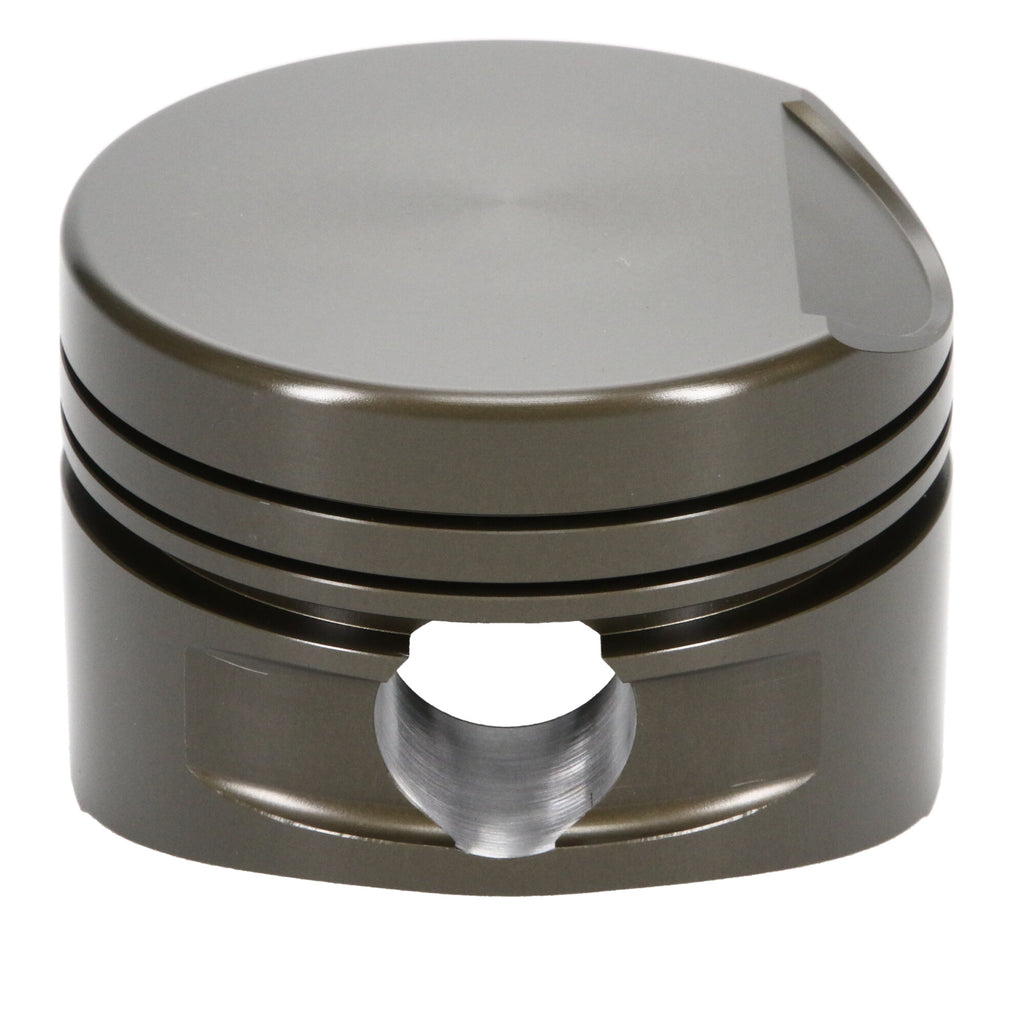

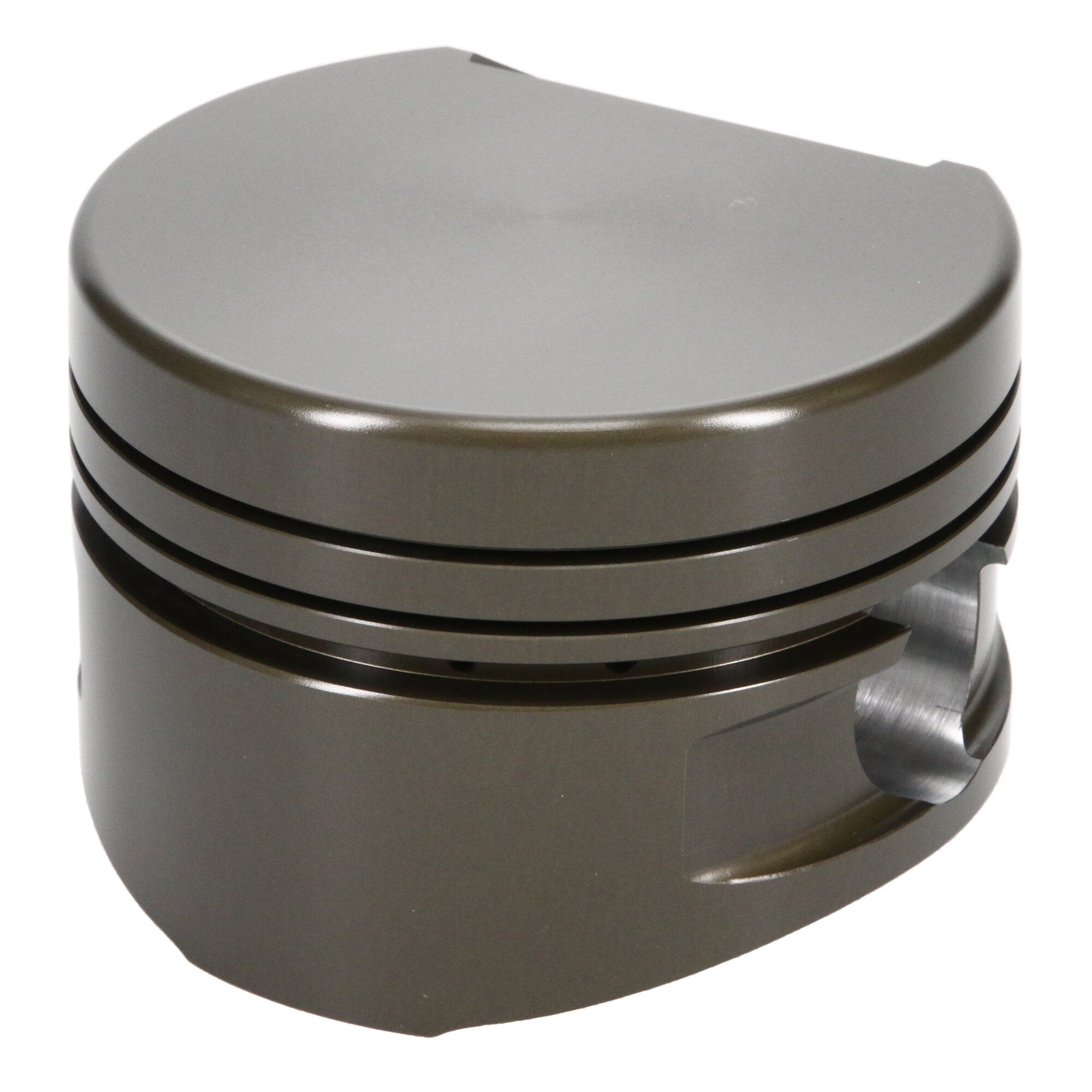

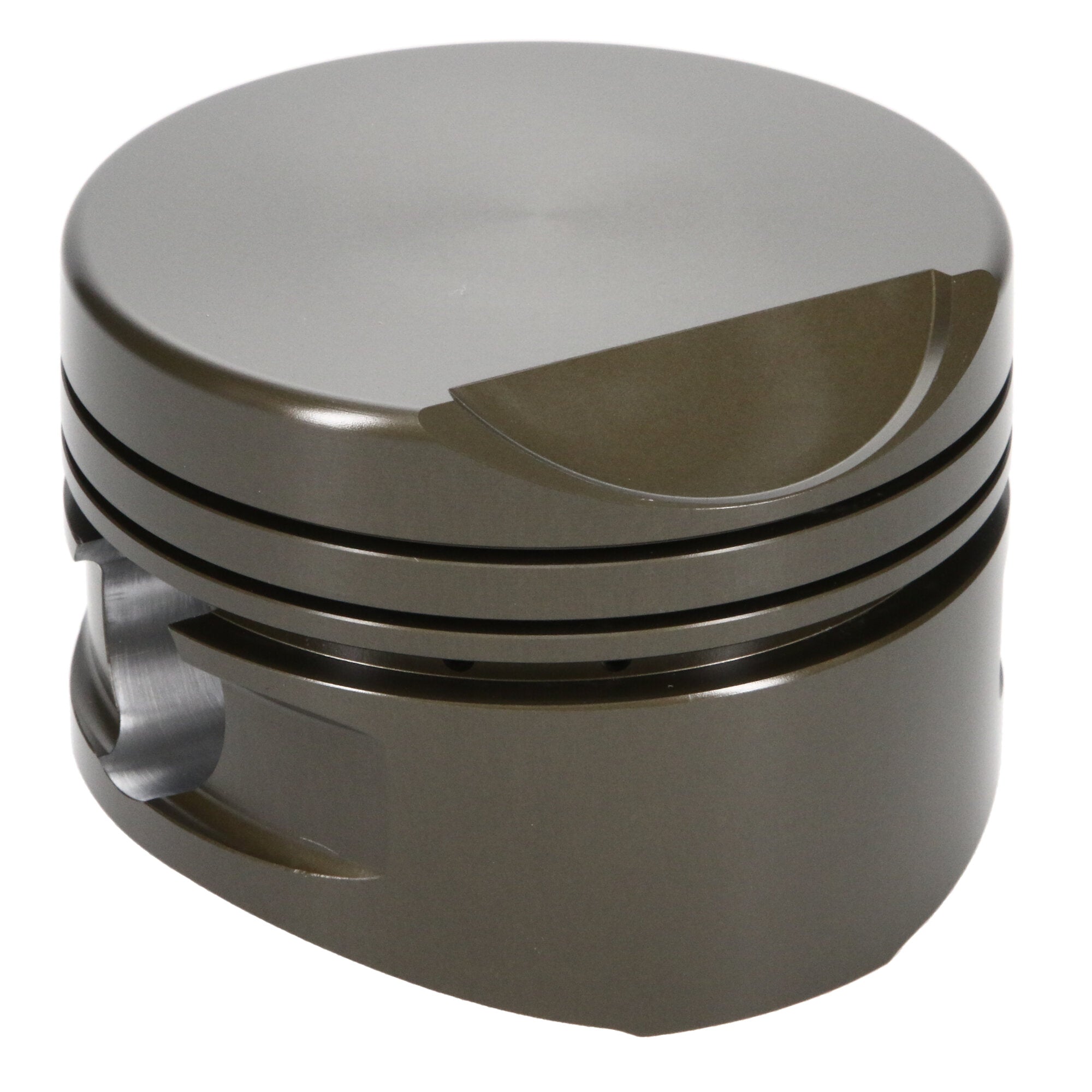

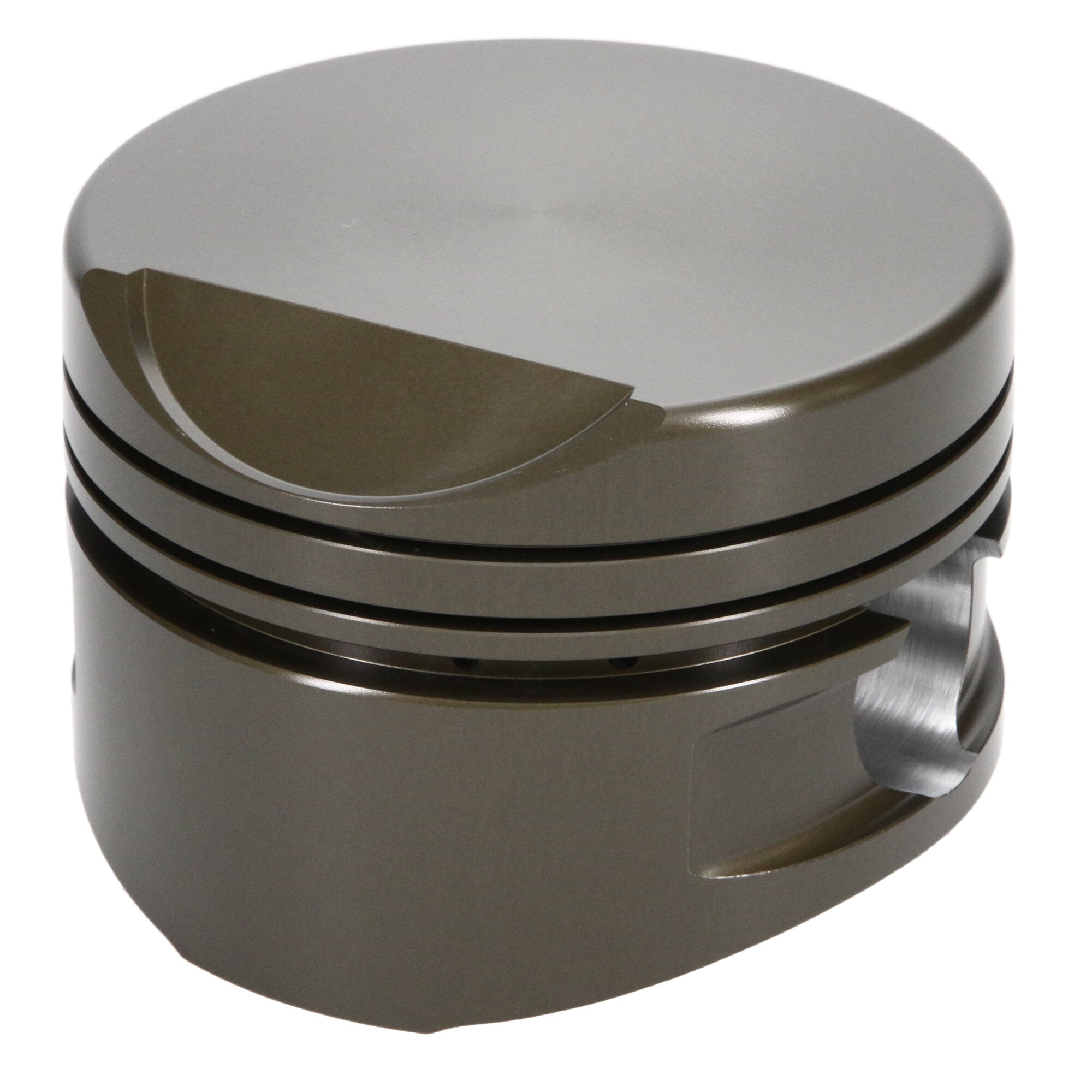

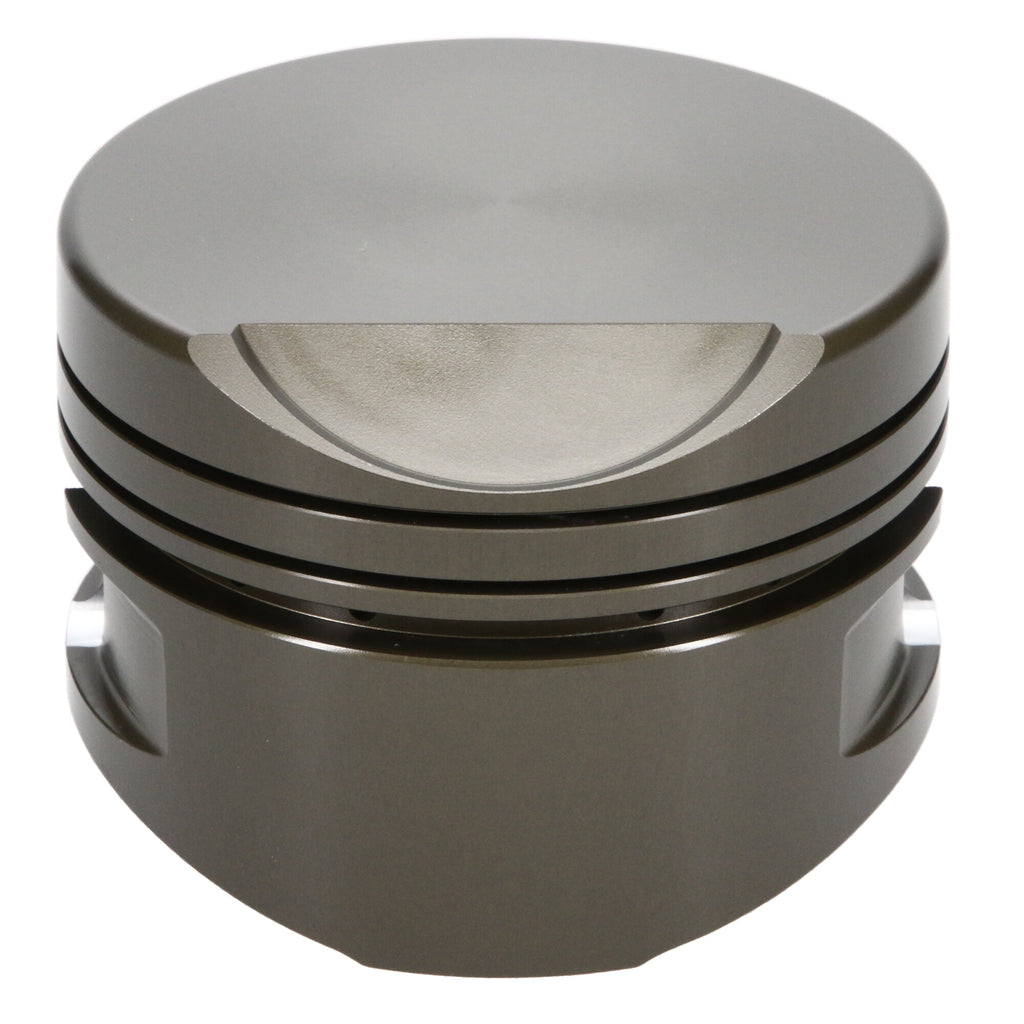

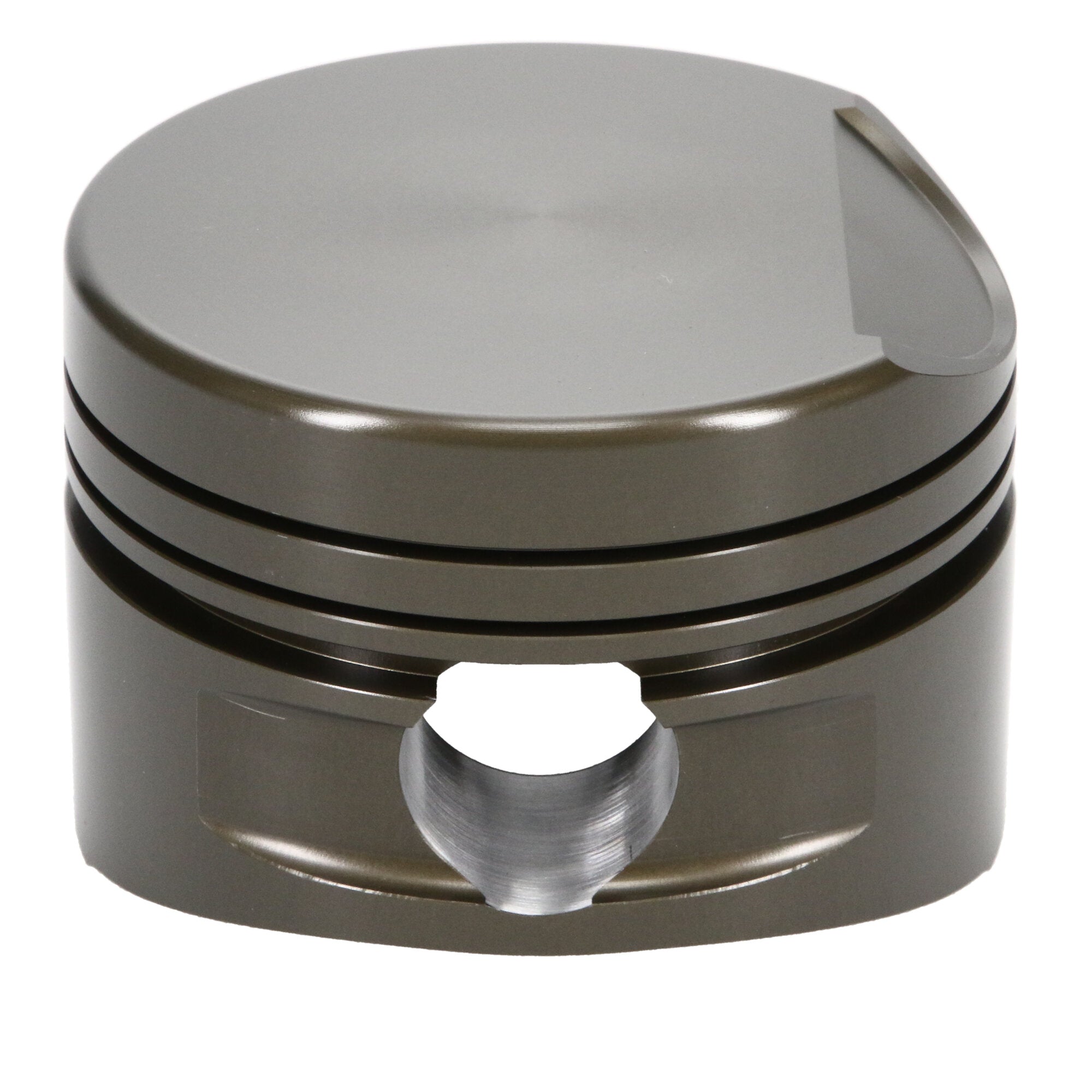

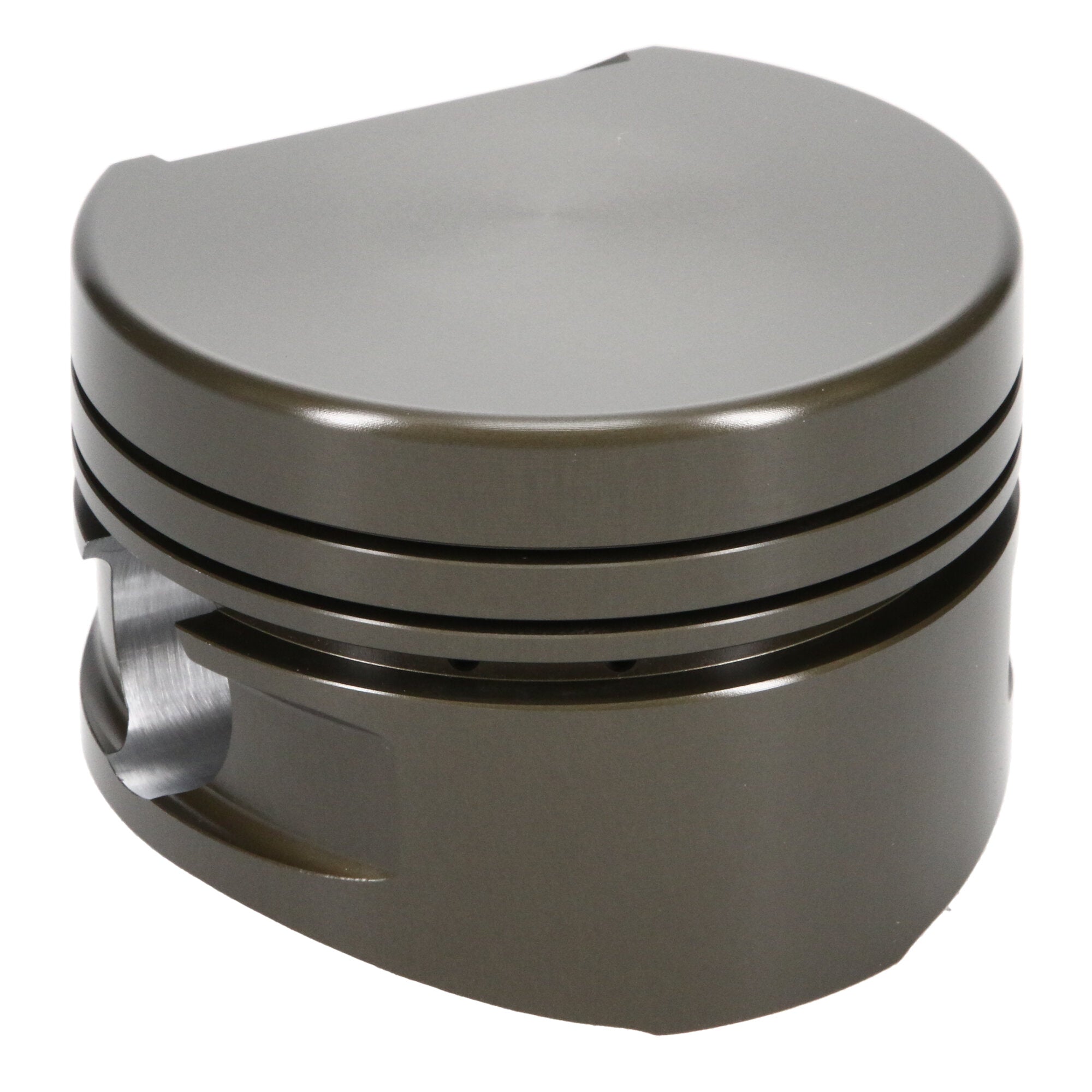

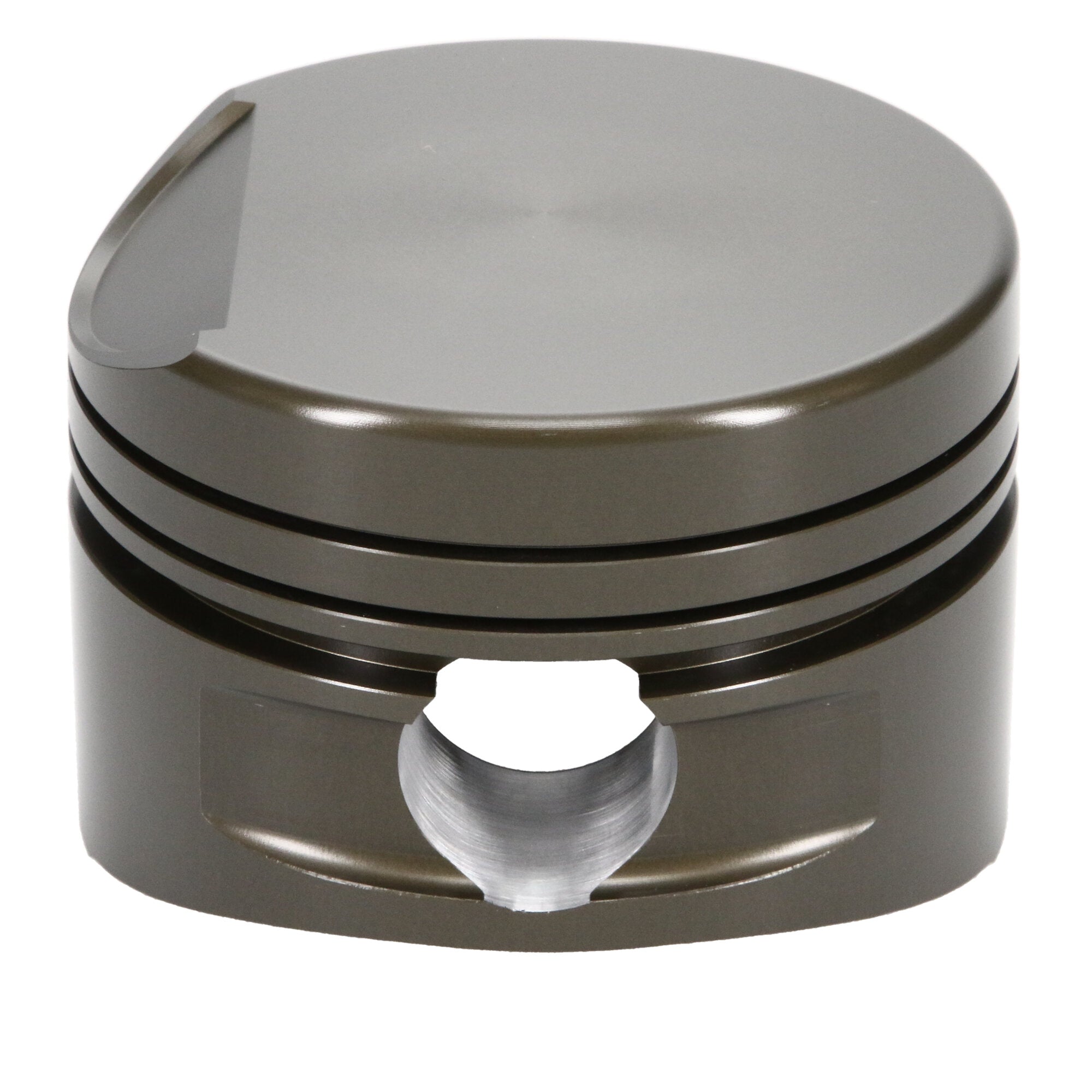

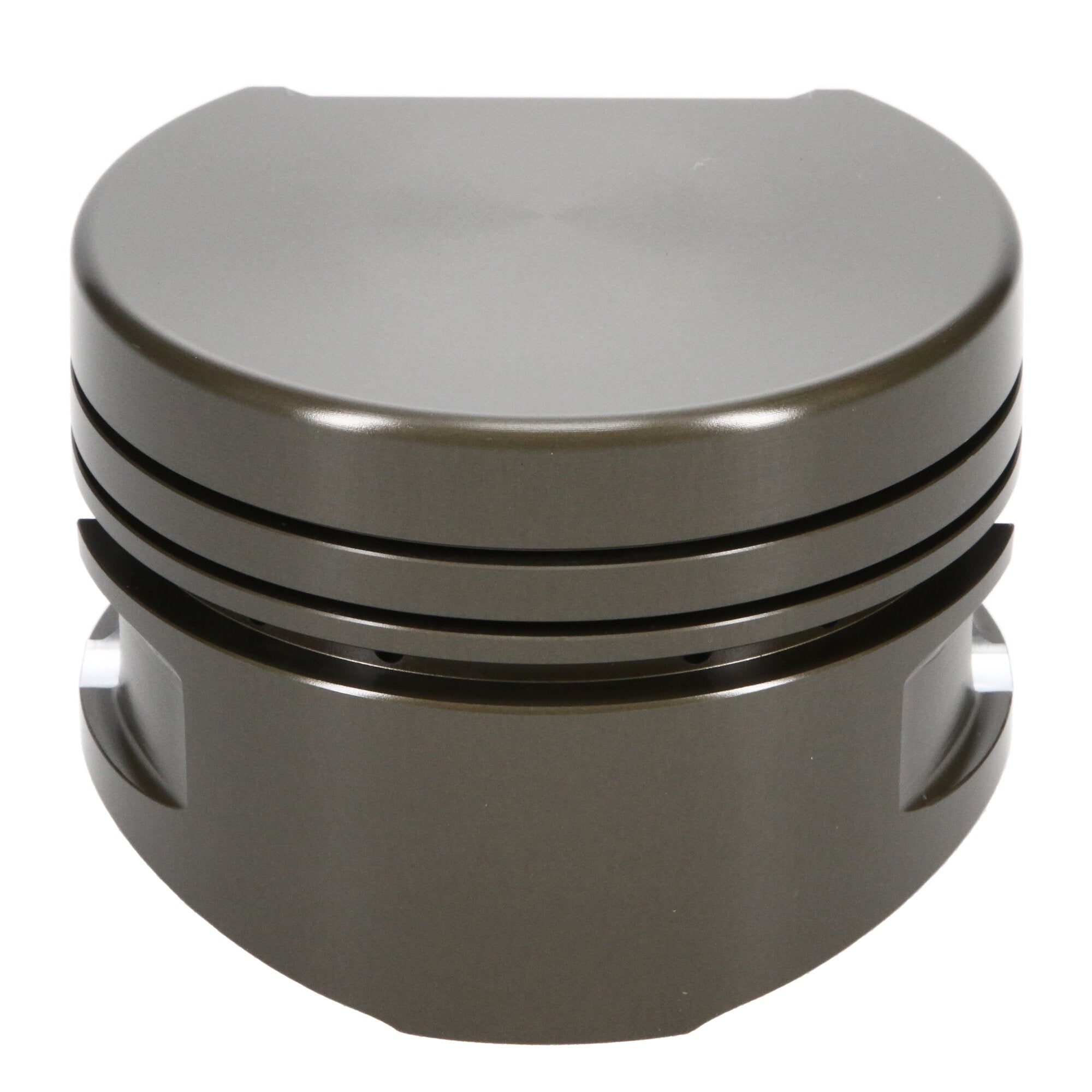

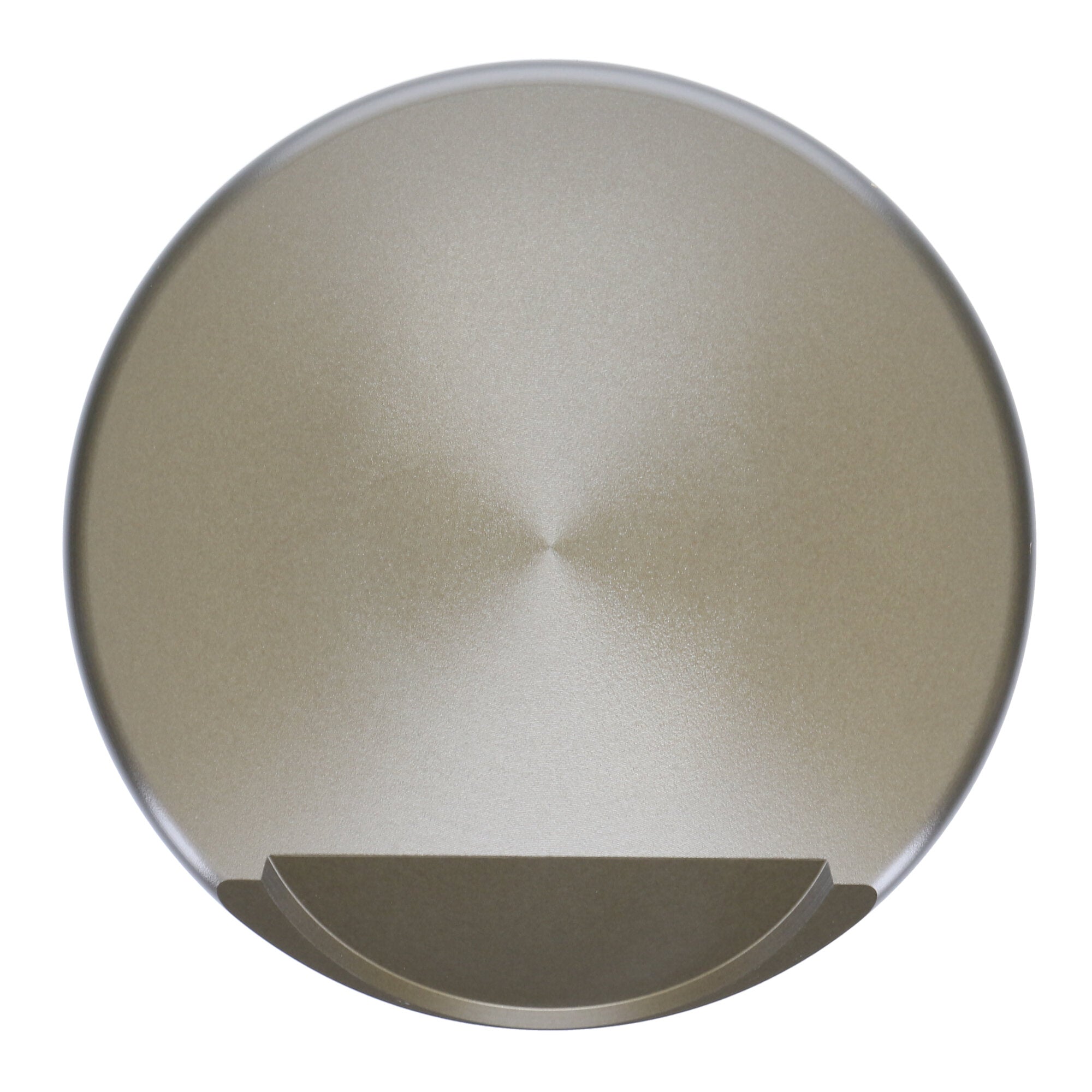

Piston Set, 2618, Flat Top, 4.187 Bore, 1.630 CD, 1.156 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chrysler, Top Fuel, 4.187 in. Bore, 1.630 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chrysler Top Fuel, 4.187 Bore, Flat, Set of 8 |
| Top Compression Ring Thickness |
0.0750 |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Piston Quantity |
8 |
| Compression Height |
1.630 |
| Engine - Web |
Top Fuel |
| Piston Average Weight |
784 |
| Engine Type |
ICE |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Outside Diameter |
1.156 |
| Bore Diameter |
4.187 |
| Piston Head Type |
Flat |
| Title |
JE Pistons - Chrysler, Top Fuel, 4.187 in. Bore, Piston Kit |
| Product Market |
Domestic |
| Wrist Pin Outer Diameter |
1.156 |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Title - Web |
JE Pistons Chrysler Top Fuel Piston Kit - 4.187 in. Bore - 1.630 in. CH, 0.00 CC |
| Piston Volume |
0.00 |
| Industry |
Automotive |
| Product Type |
Engine Piston Kit |
| Make |
CHRYSLER |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
426 HEMI |
| Oil Ring Thickness |
0.19 |
| Engine |
TOP FUEL |
| Forging Type |
Round |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
3.900 |
| Ring Set Included |
No |
| Add-On |
J14185-5-017HPD |
| Piston Pin Length |
3.900 |
| Second Compression Ring Thickness |
0.0660 |
| Make - Web |
Chrysler |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
19.0000 |
