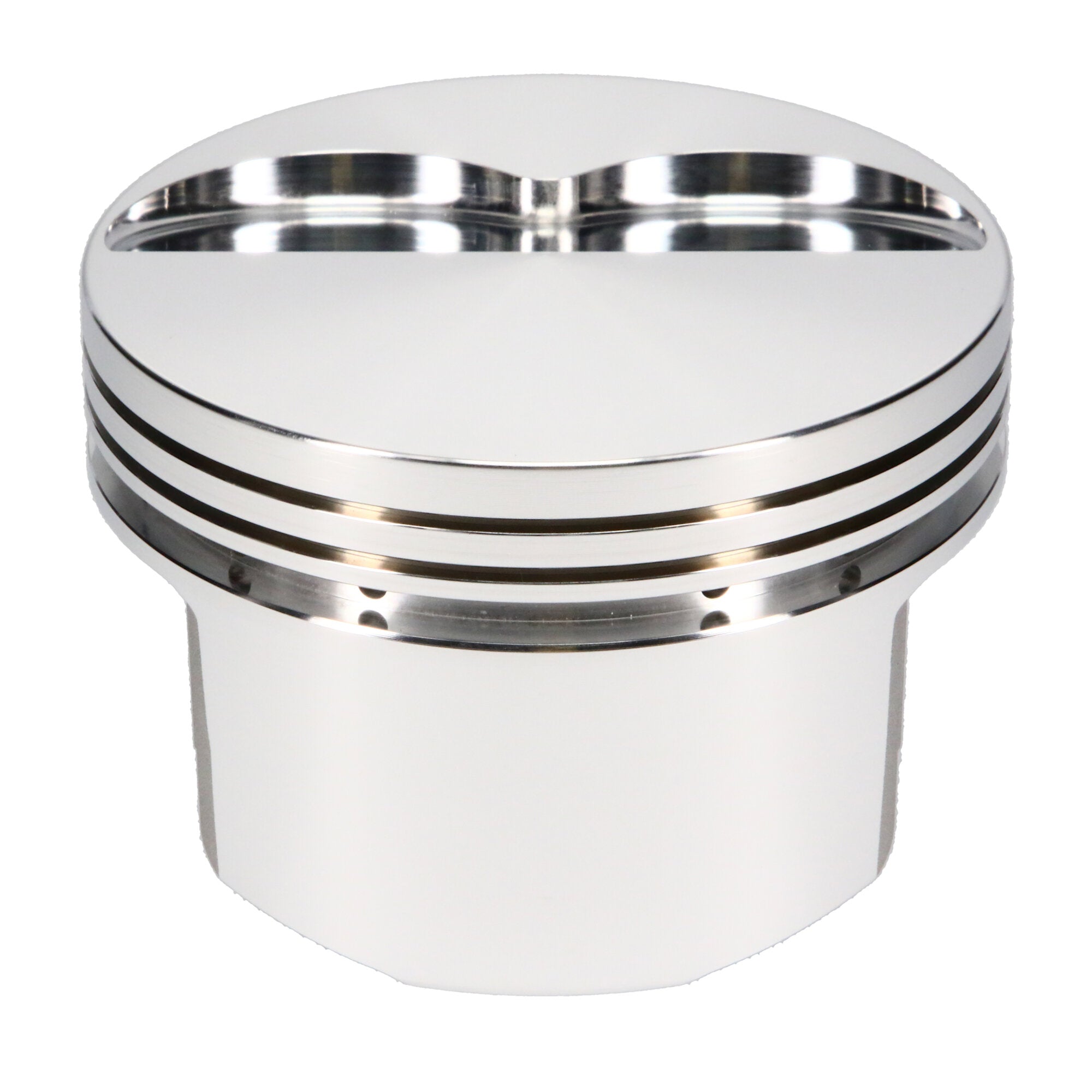

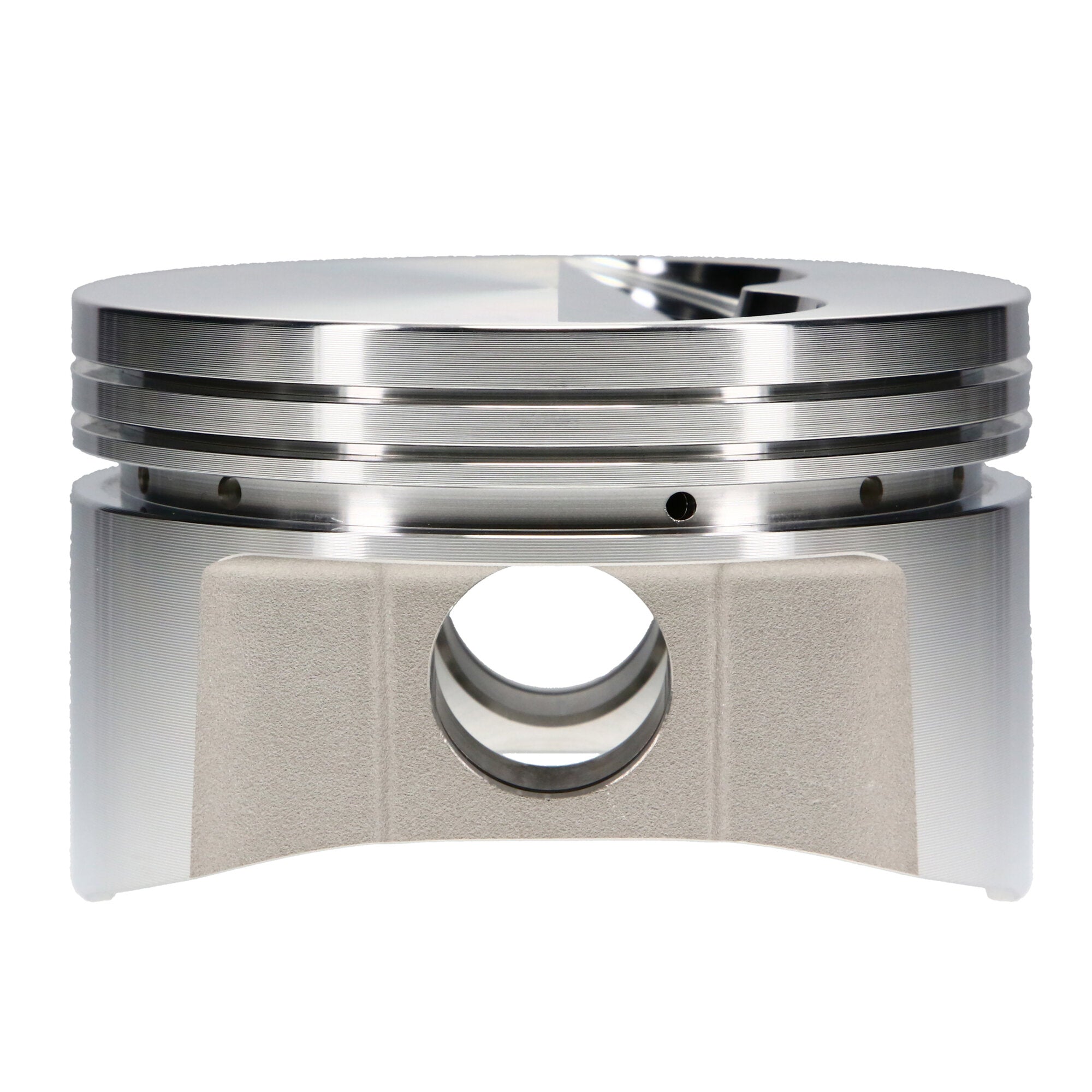

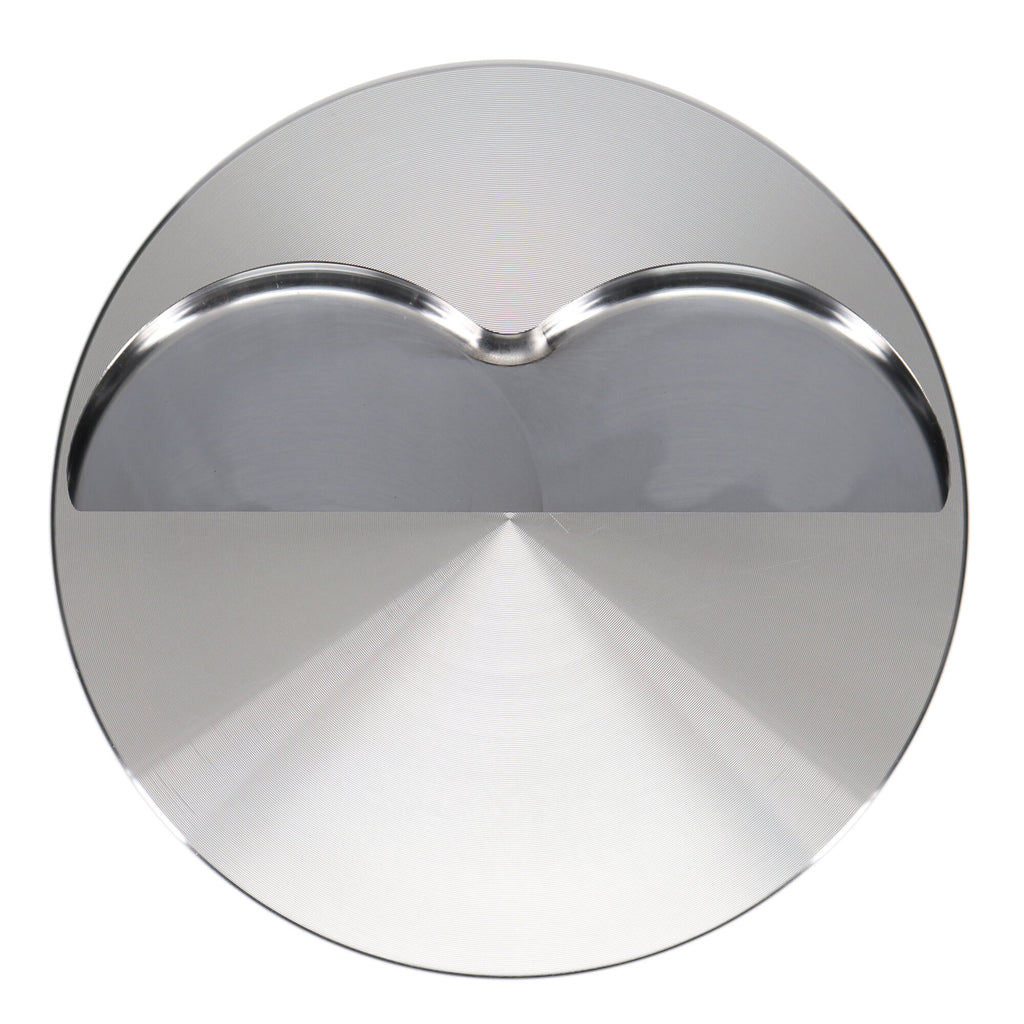

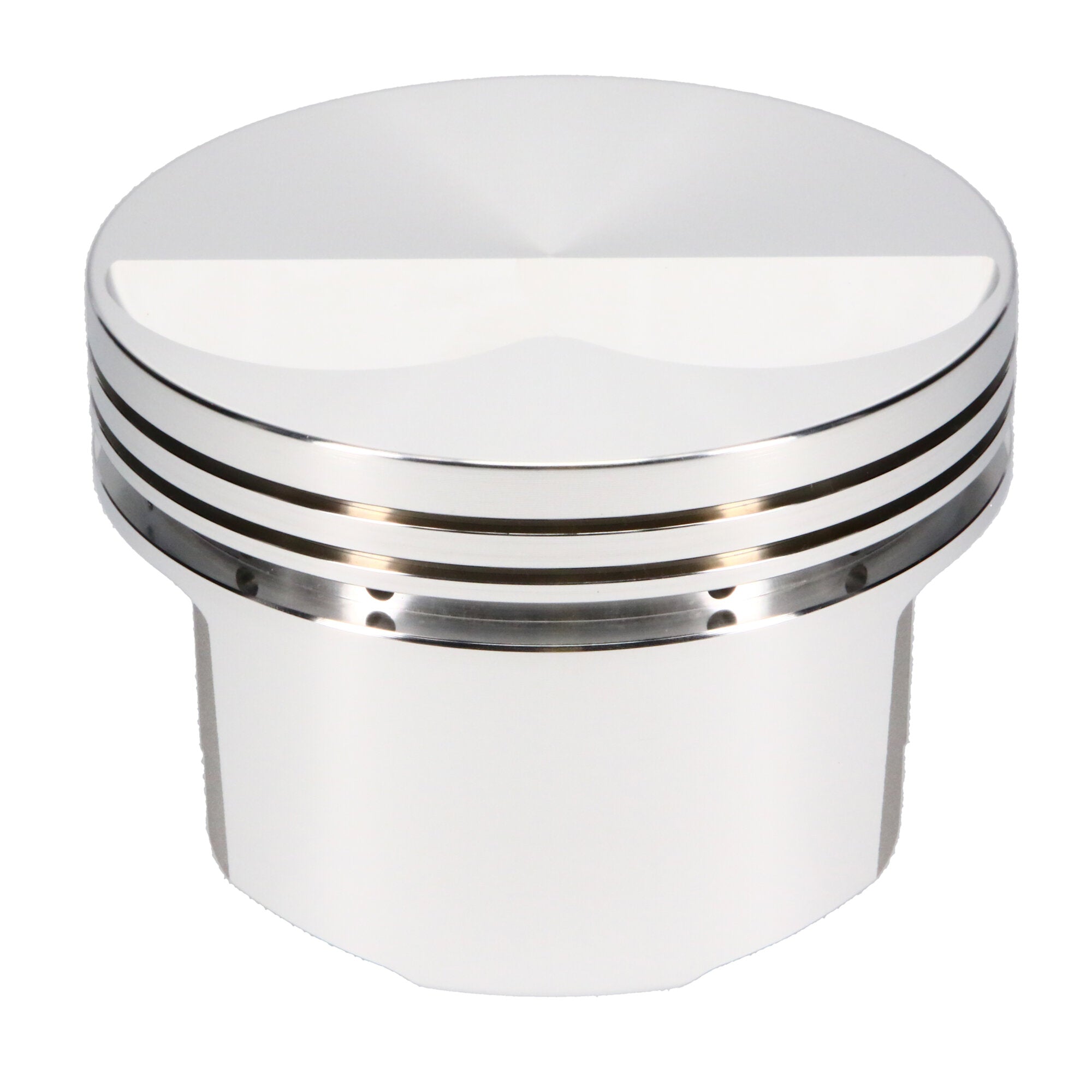

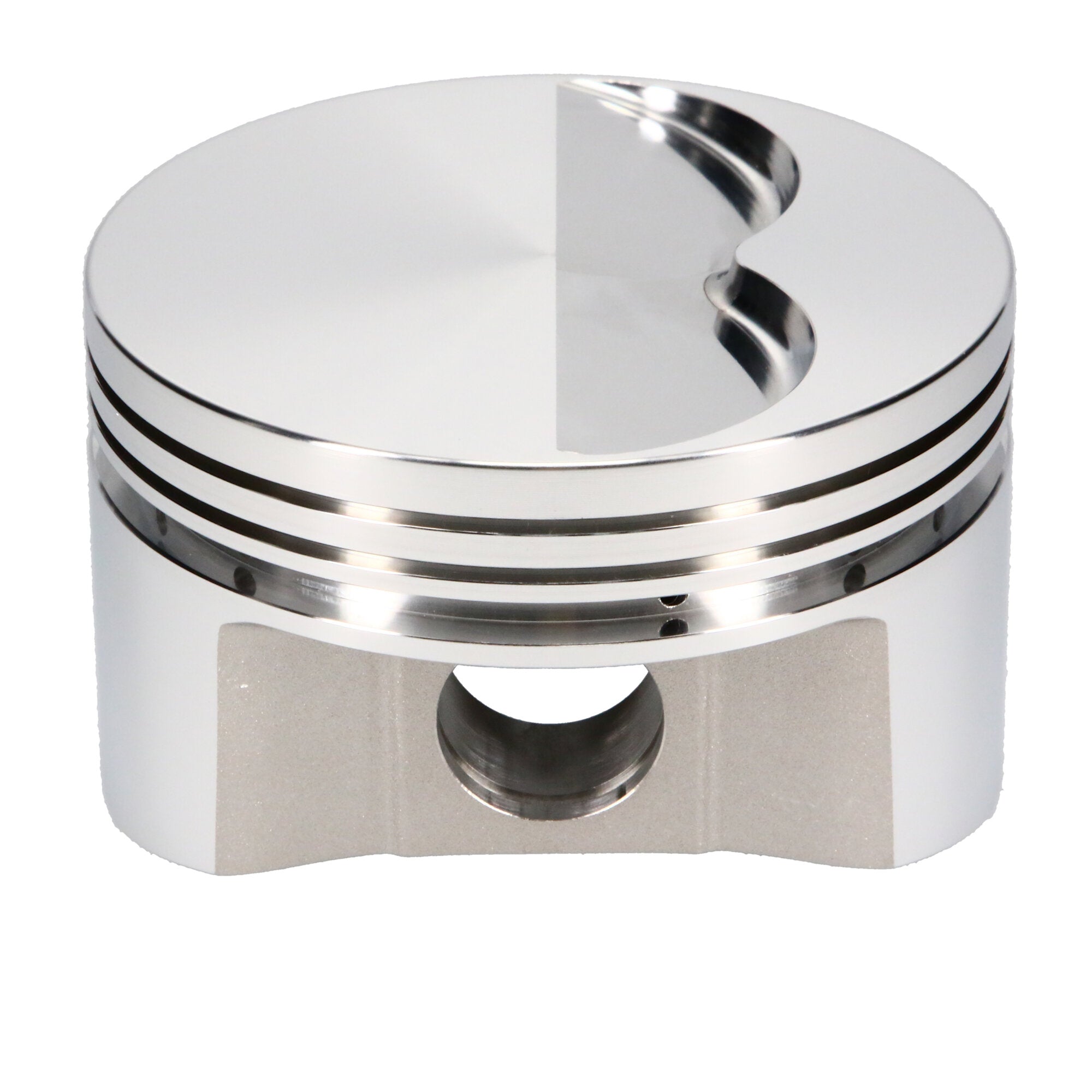

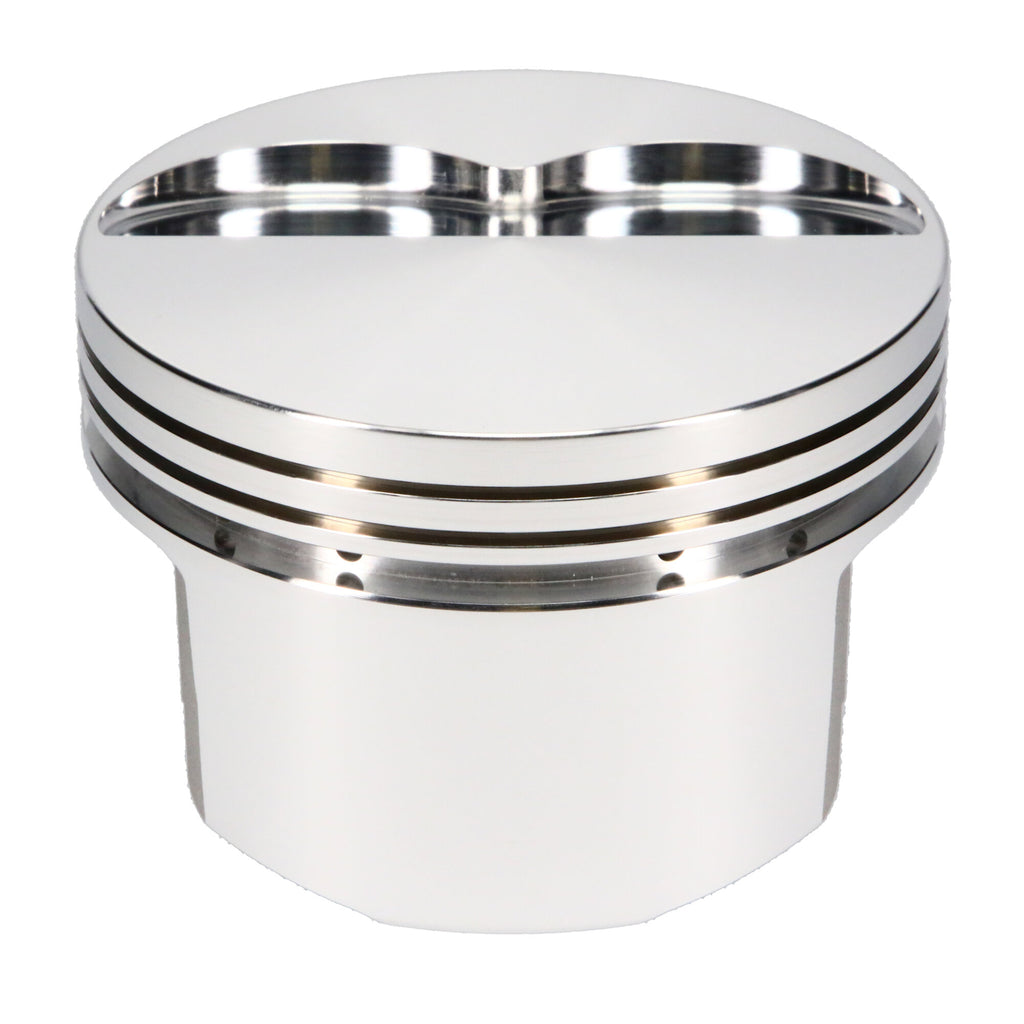

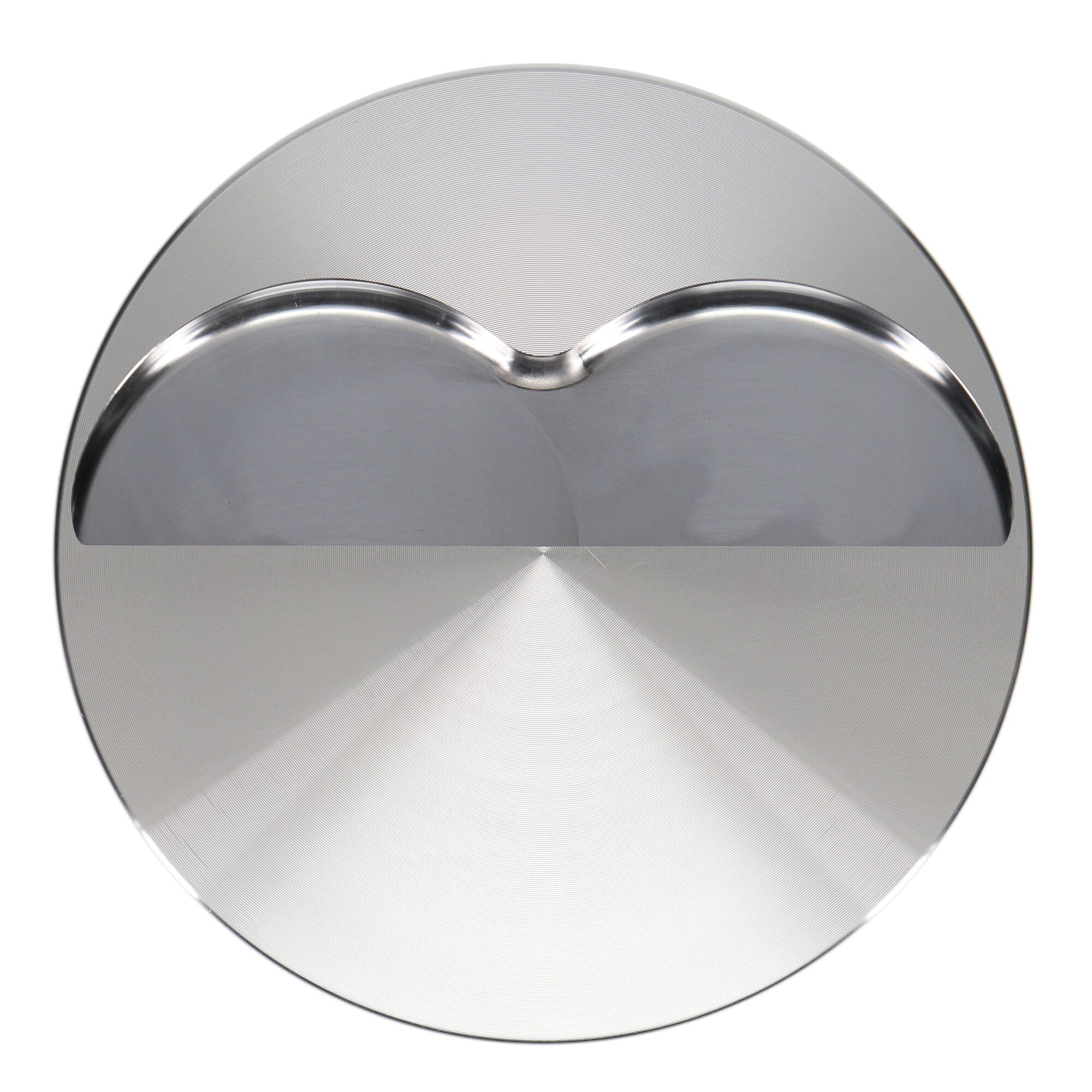

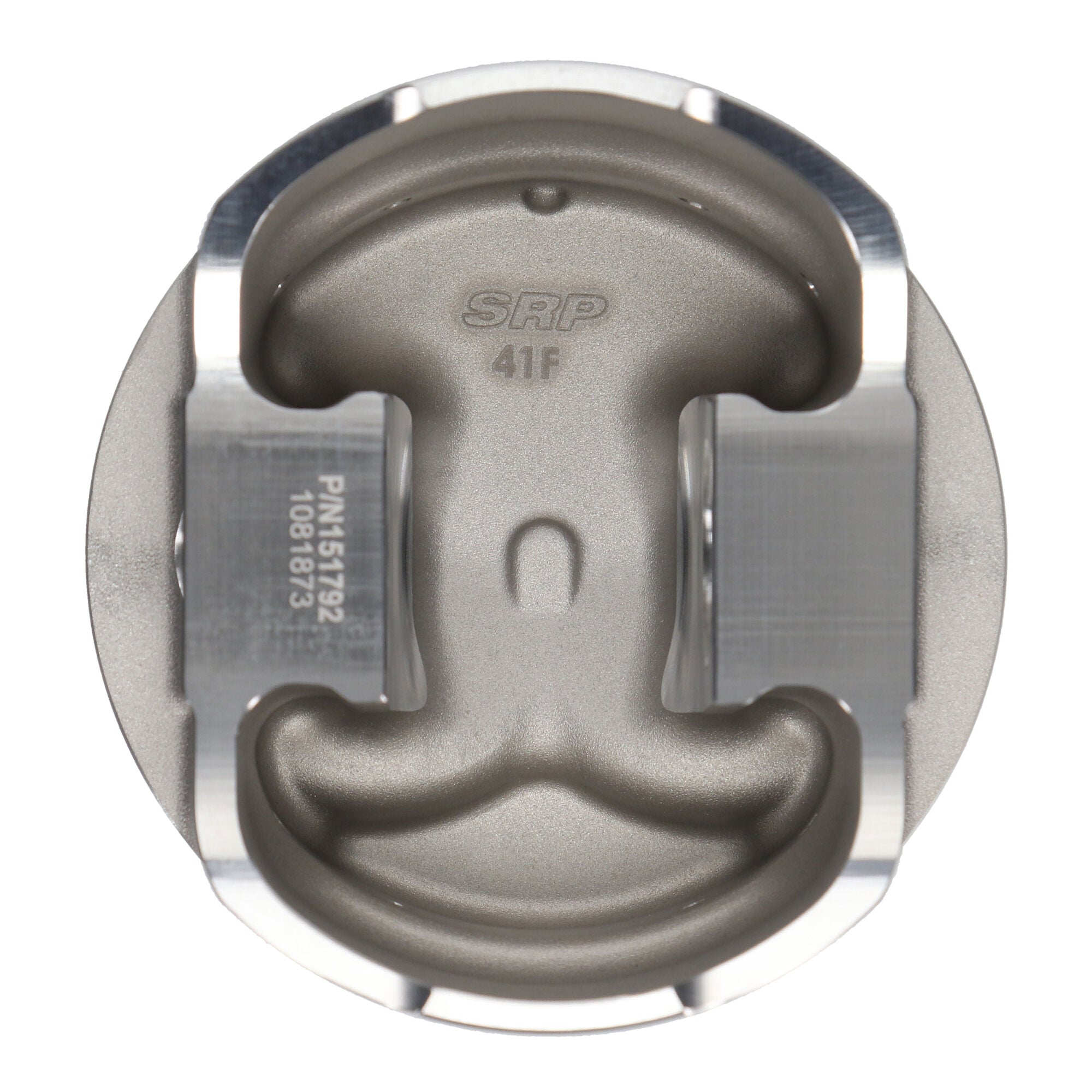

JE Pistons 196831S Piston Single, 4032, Flat Top, 4.155 Bore, 1.286 CD, 0.990 Pin, Set of 1.

2 sold in last 8 days
JE Pistons
ds_BHXG_196831S
Engine Piston
$234.45
customers are viewing this product
Crown Automotive J8134441 Standard Piston and Pin for 79-90 Misc. CJs, YJ, SJ, J-Series w/ 4.2L Engine
Crown Automotive J8134441 Standard Piston and Pin for 79-90 Misc. CJs, YJ, SJ, J-Series w/ 4.2L Engine
$96.91
JE Pistons 194952R Piston Single, 2618, Dome, 4.165 Bore, 1.125 CD, 0.927 Pin, Set of 1.
JE Pistons 194952R Piston Single, 2618, Dome, 4.165 Bore, 1.125 CD, 0.927 Pin, Set of 1.
$321.46
JE Pistons 196831S Piston Single, 4032, Flat Top, 4.155 Bore, 1.286 CD, 0.990 Pin, Set of 1.
Details

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Specifications:

Description_ASM Pontiac 455 Stroker
Description_DEF Engine Piston
Description_DES Piston Single, 4032, Flat Top, 4.155 Bore, 1.286 CD, 0.990 Pin, Set of 1.
Description_EXT SRP, Pontiac, Big Block Pontiac, 4.155 in. Bore, 1.286 CD, Flat Top, Single Piston
Description_INV SRP, Piston
Description_FAB
  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Description_TLE Pontiac 455, 4.155 Bore, Flat, Set of 1
Description_SHO Piston
Description_MKT Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Piston Head Type Flat
Category Hierarchy Auto>SRP Pistons>SRP>Single Replacement Pistons
Piston Pin Material 5115
Title SRP - Pontiac, Big Block, 4.155 in. Bore, Piston
Oil Ring Thickness 0.218
Compression Height 1.286
Ringset Included No
Piston Average Weight 456
Bore Diameter 4.155
Top Compression Ring Thickness 0.0640
Piston Series SRP
Product Market Domestic
Second Compression Ring Thickness 0.0640
Product Type Engine Piston
Add-On 990-042-CS
Make PONTIAC
Piston Pin Outside Diameter 0.990
Cylinder Head PONTIAC 455
Piston Pin Wall Thickness 0.150
Out of Stock Message Call for Availability
Forging Type FSR
Add-On 990-2750-15-51S
Add-On S100S8-4155-5
Engine Type ICE
Wrist Pin Outer Diameter 0.990
Wrist Pin Wall Thickness 0.150
Wrist Pin Length 2.750
Engine - Web Big Block
Make - Web Pontiac
Ring Set Included No
Industry Automotive
Piston Volume -5.00
Piston Pin Length 2.750
Engine Big Block
Prop 65 (C, R or CR) CR
Piston Material 4032
Prop 65 Yes/No Yes
Title - Web SRP Pontiac Big Block Piston - 4.155 in. Bore - 1.286 in. CH, -5.00 CC
Prop 65 - Short Label Prop 65 Warning Label.JPG
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Length 5.0000
Width 5.0000
Height 5.0000
Weight 2.0000
