As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 302 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

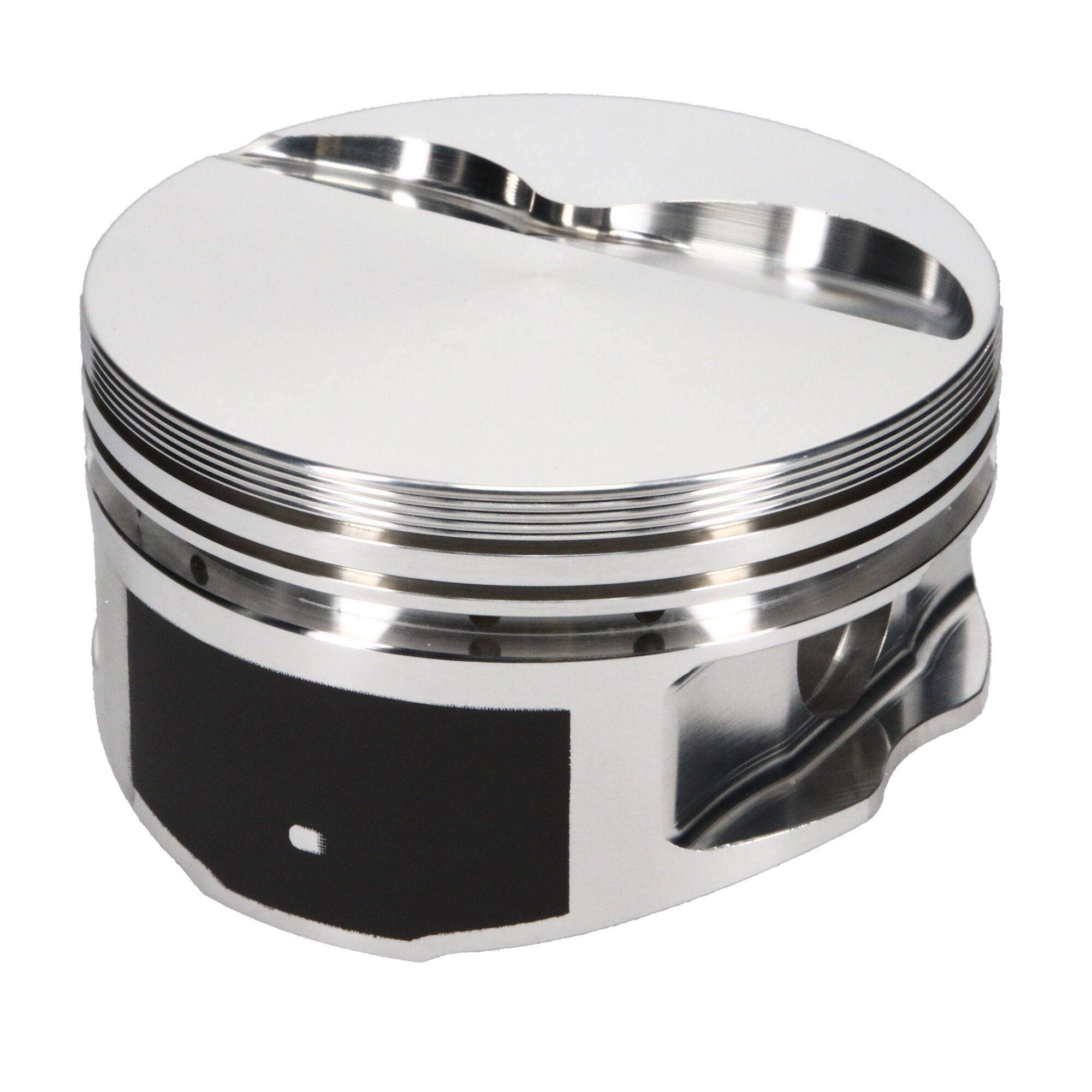

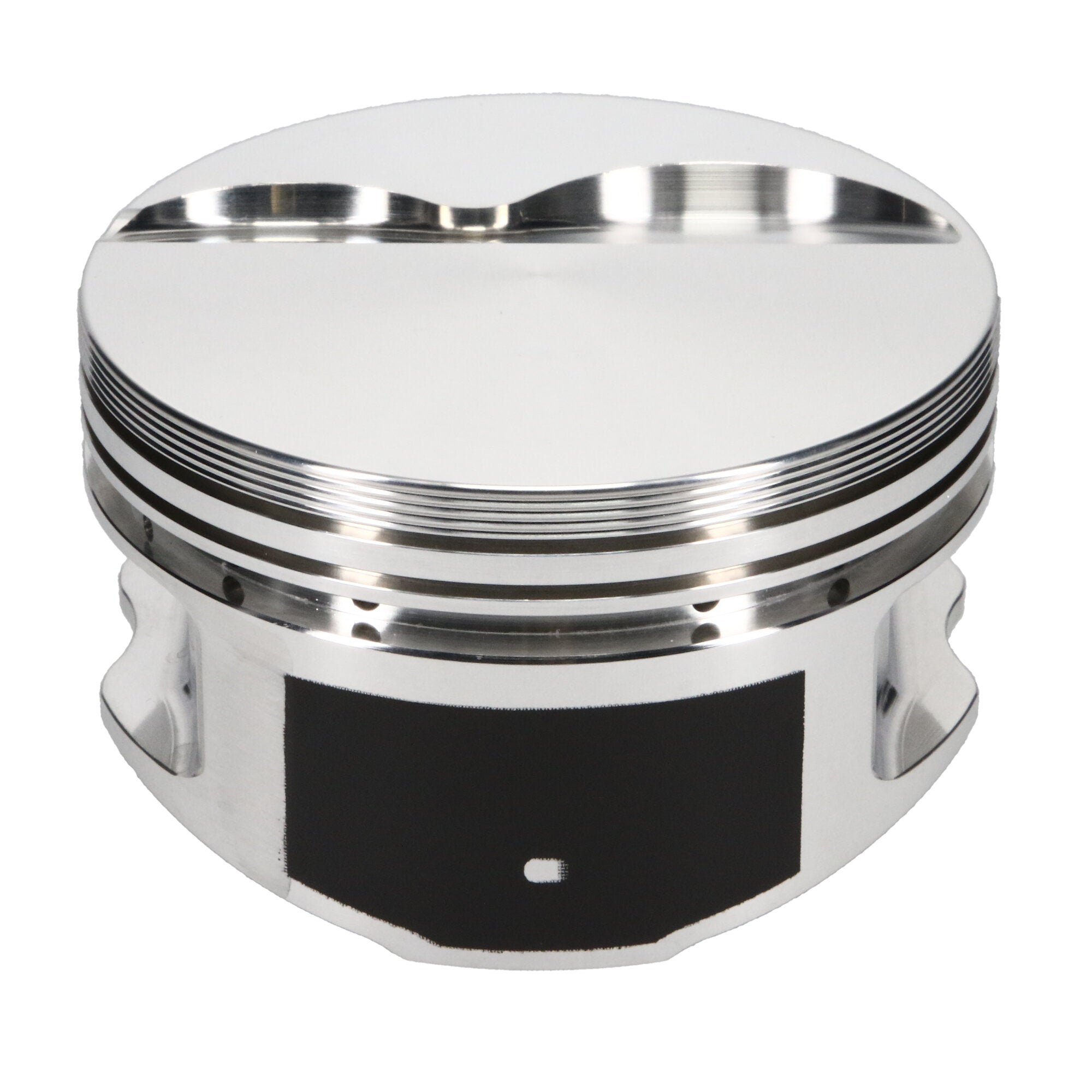

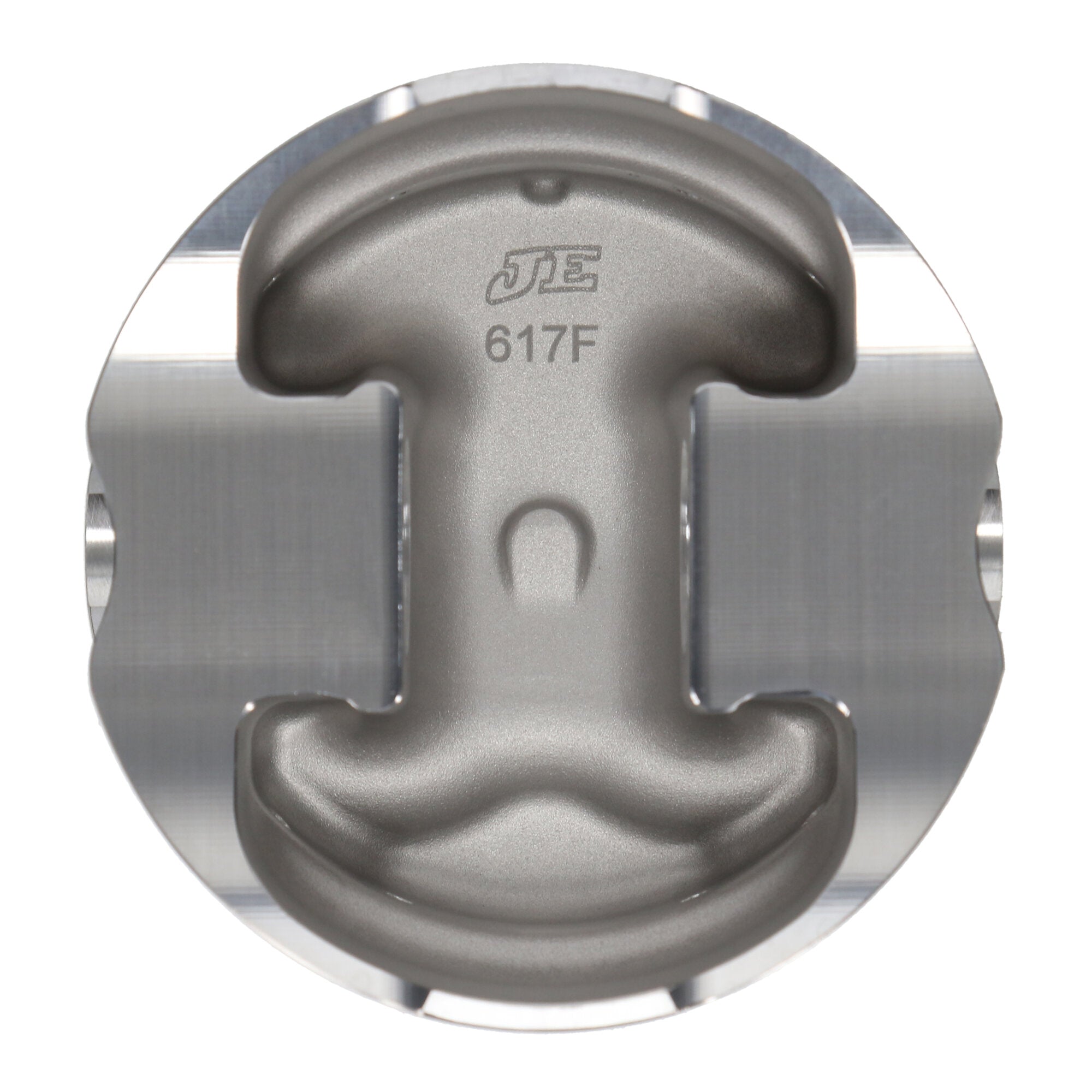

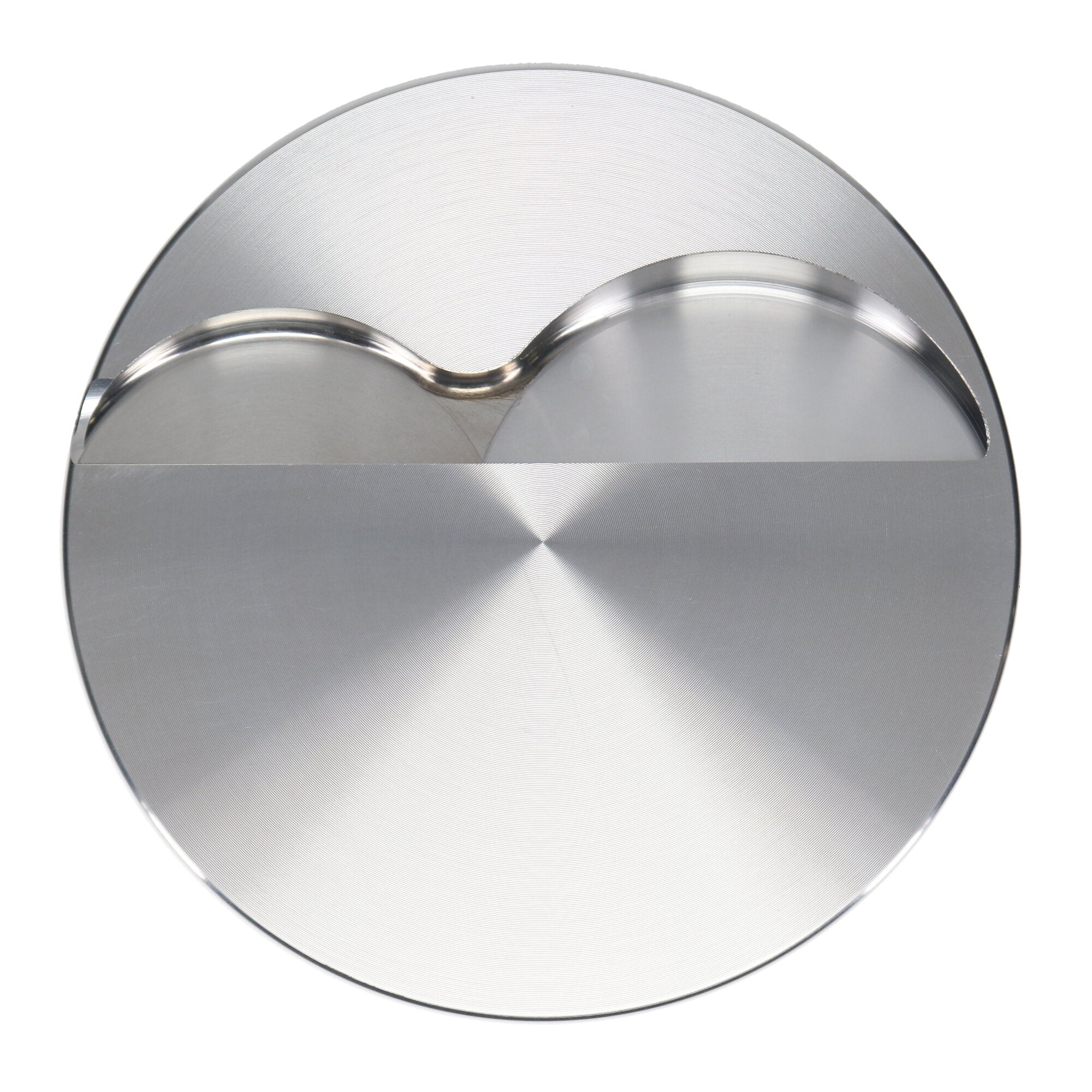

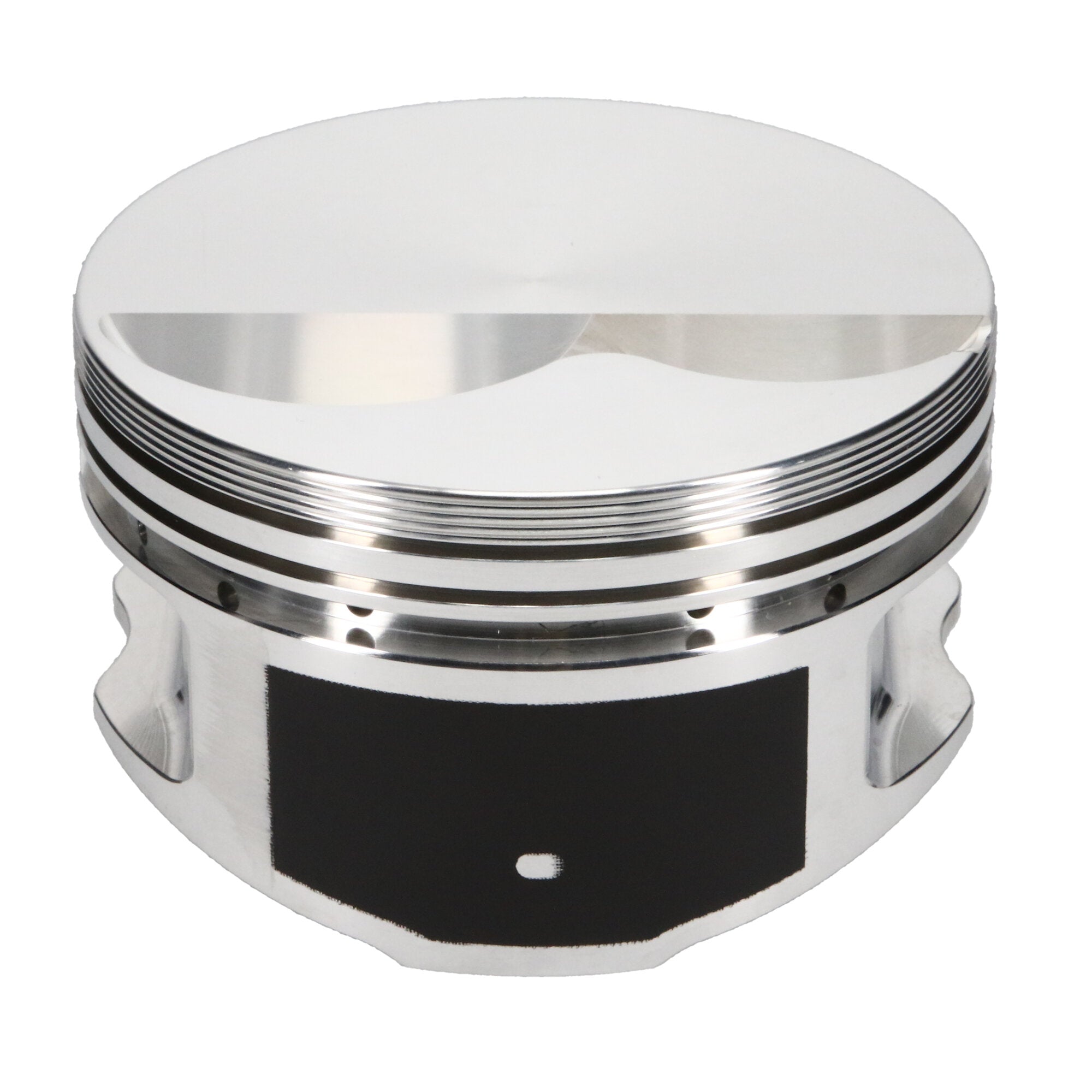

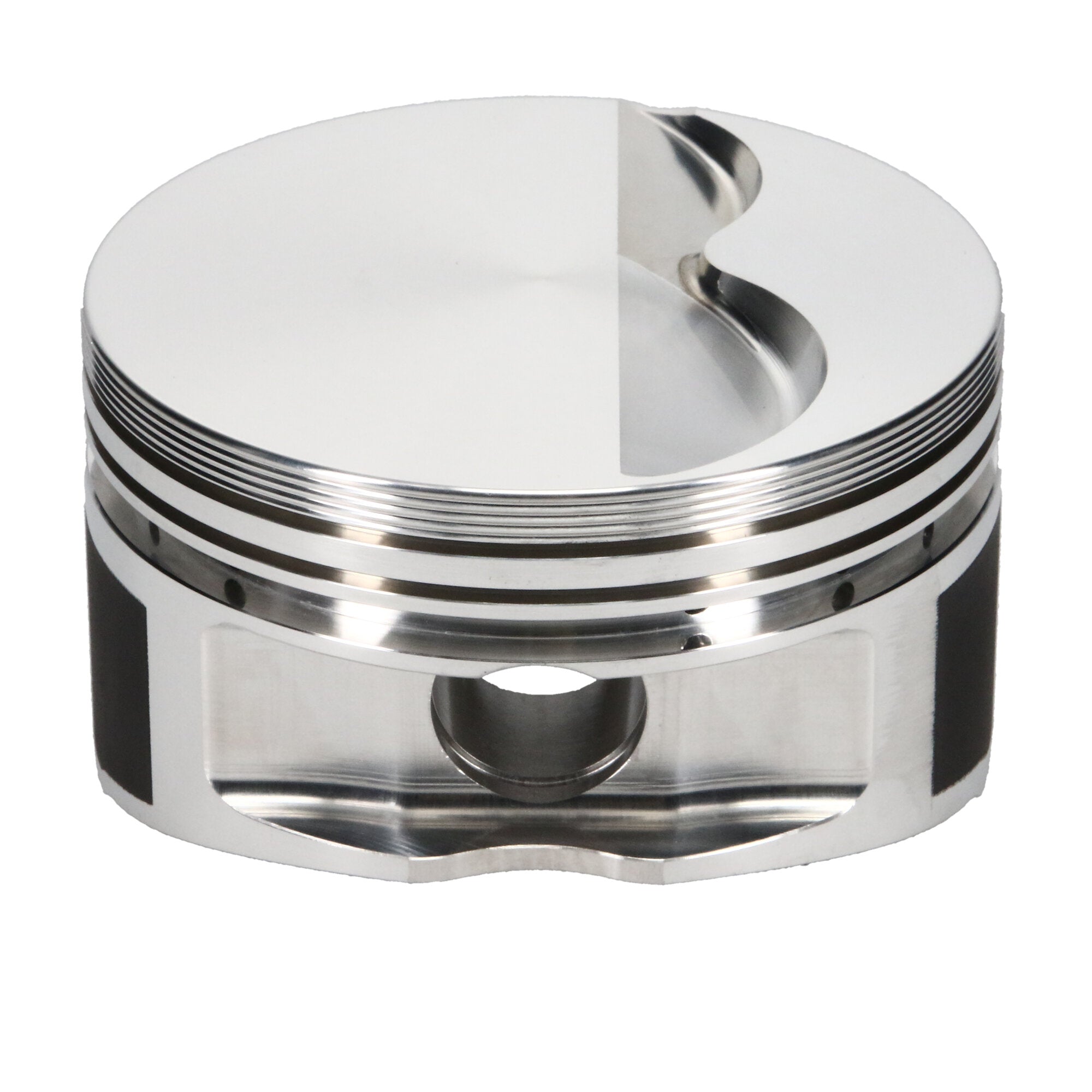

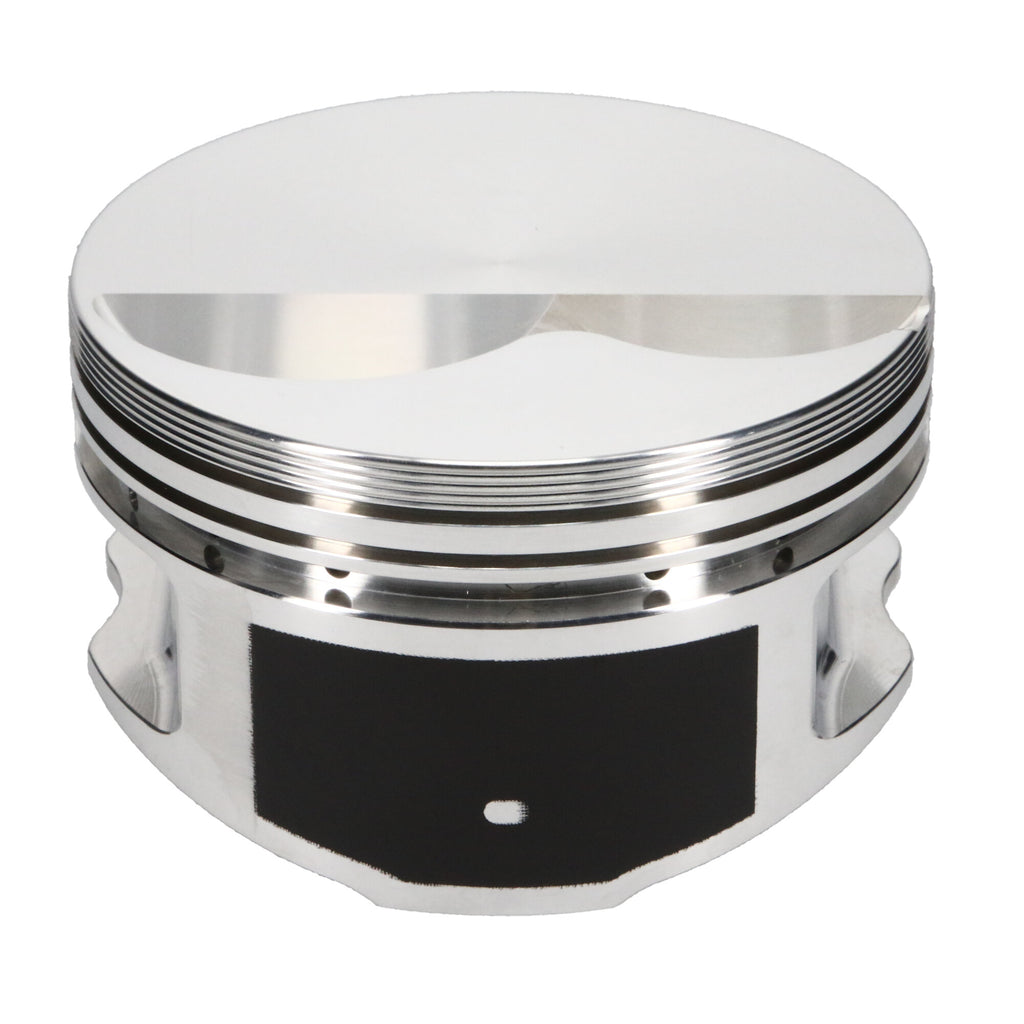

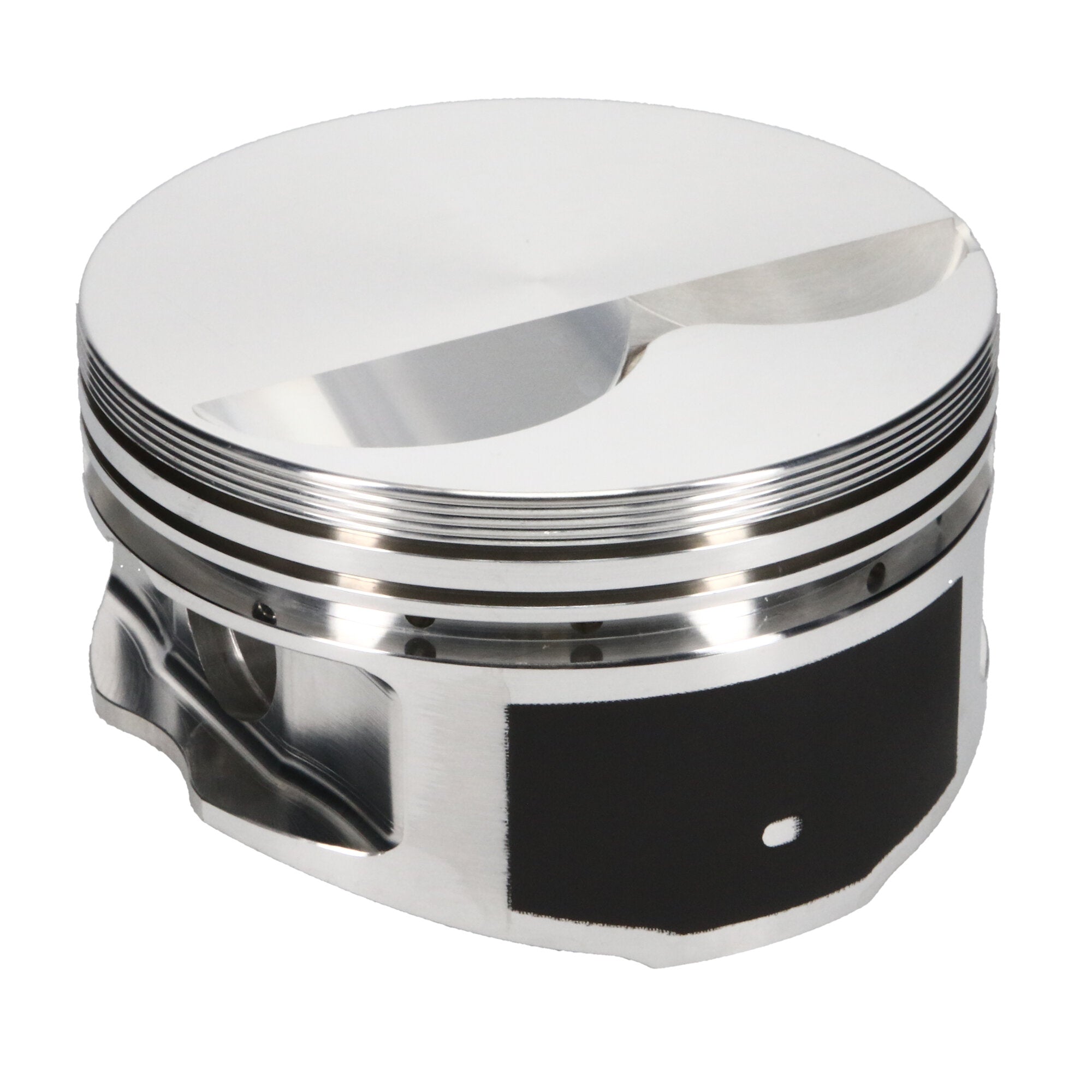

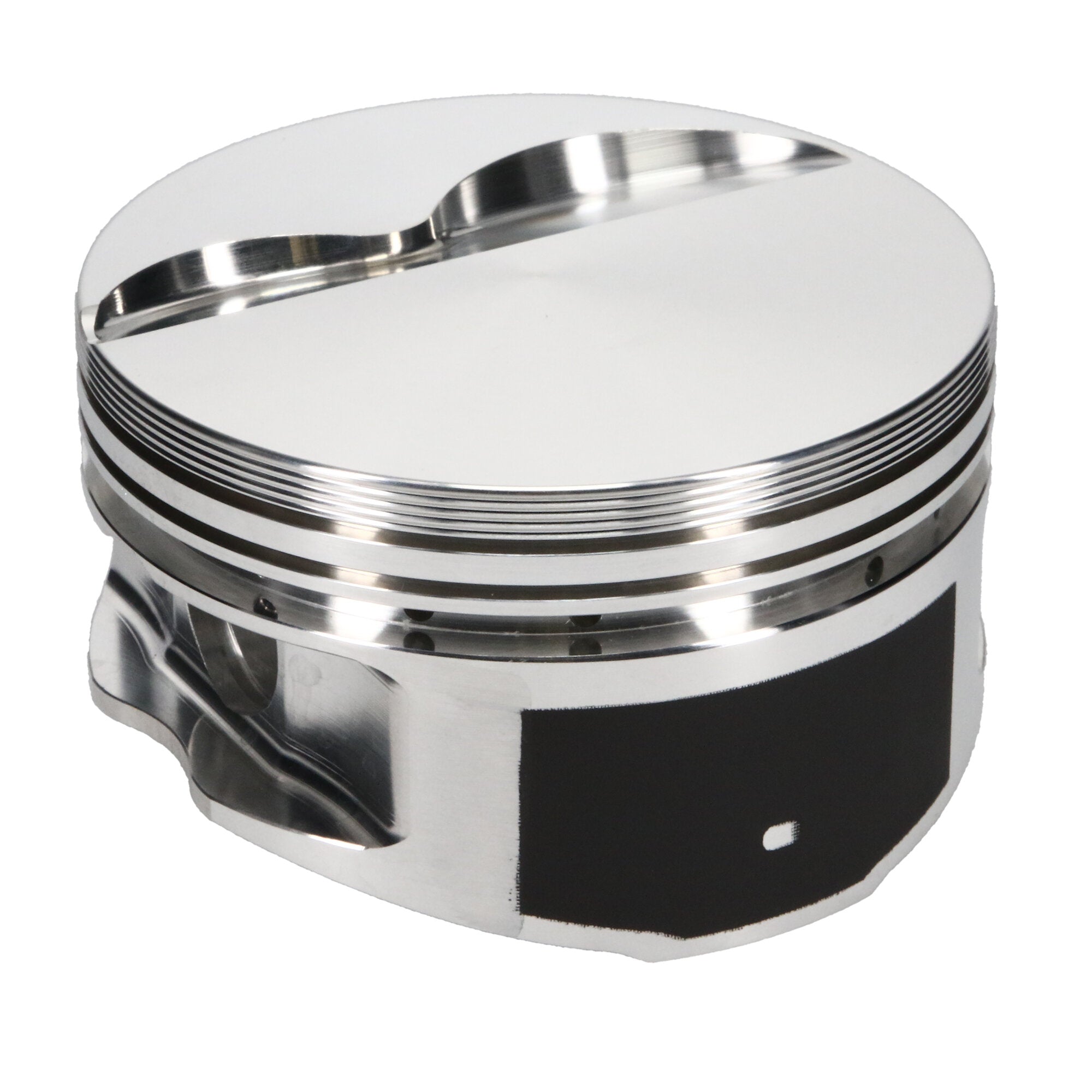

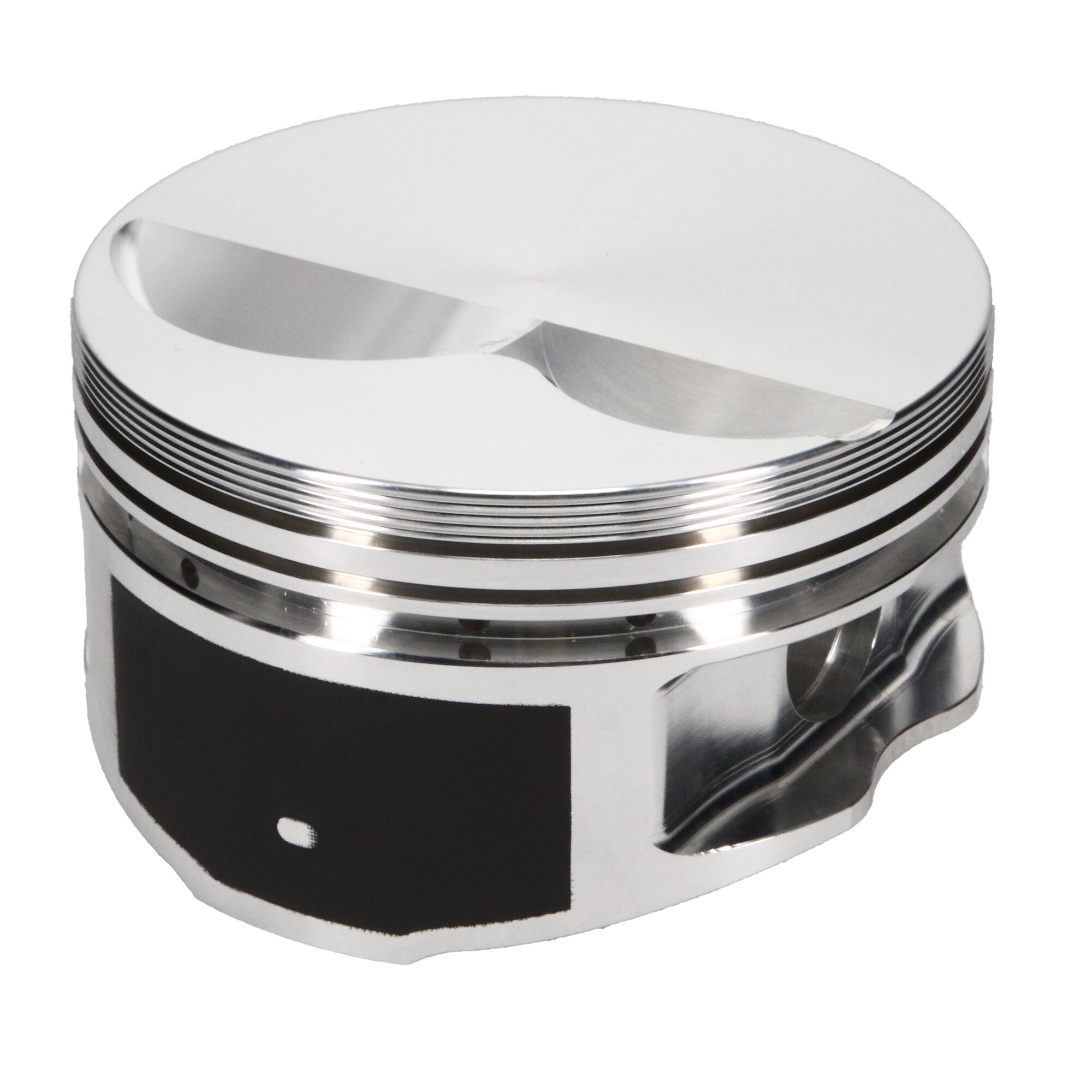

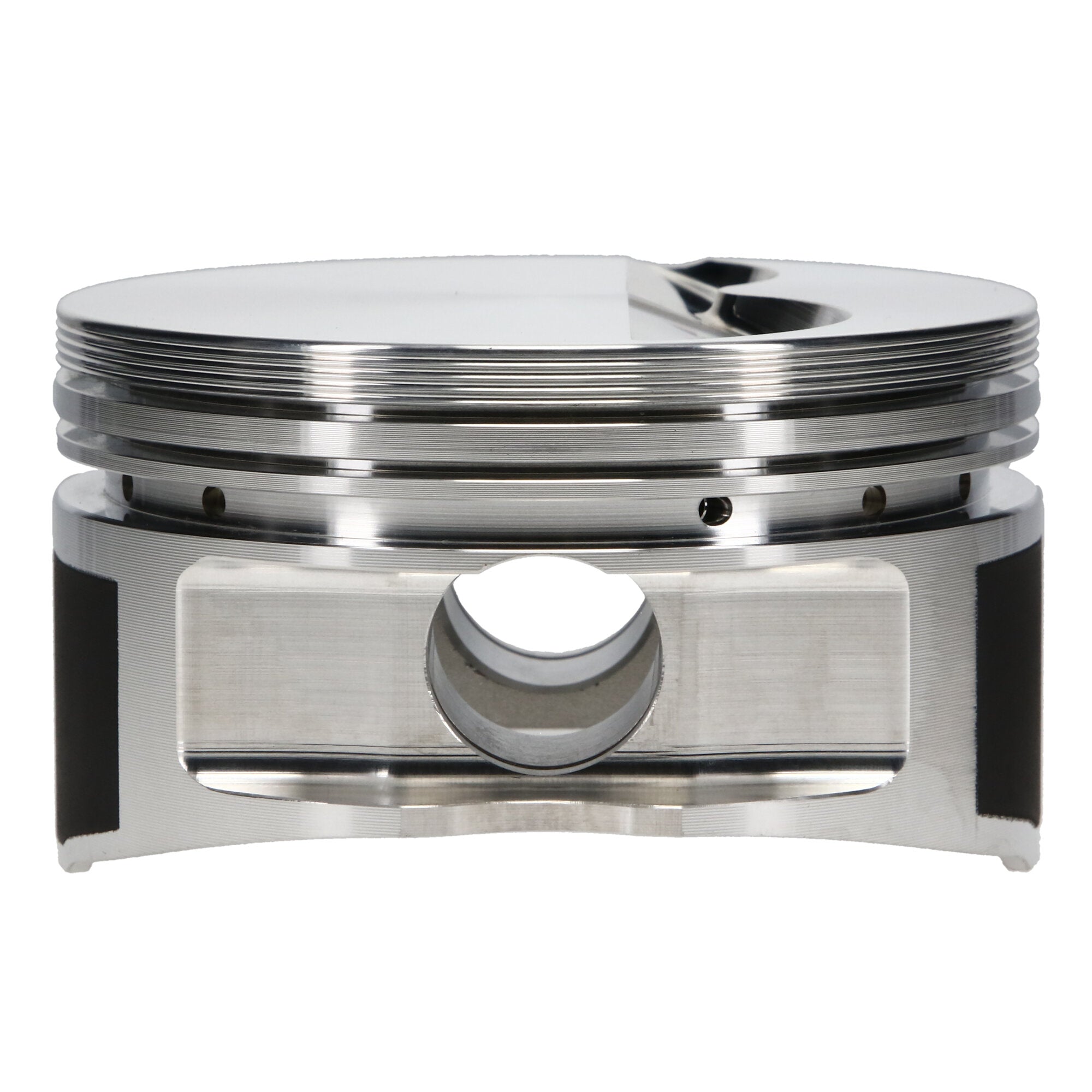

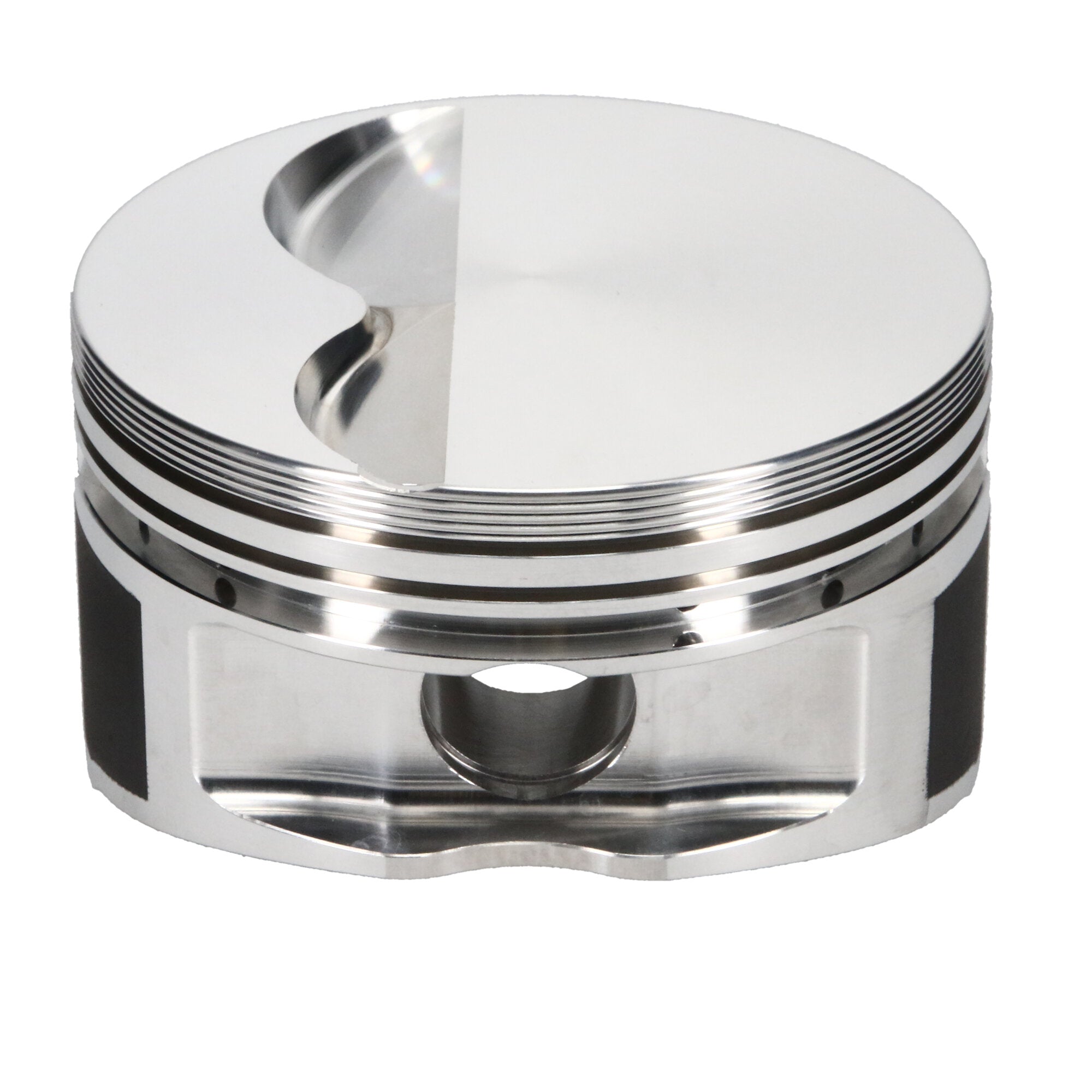

Piston Set, 2618, Flat Top, 4.030 Bore, 1.100 CD, 0.927 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.030 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 302, 4.030 Bore, Flat, Set of 8 |
| Bore Diameter |
4.030 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Ring Set Included |
No |
| Piston Average Weight |
438 |
| Top Compression Ring Thickness |
0.0640 |
| Cylinder Head |
TWISTED WEDGE SMALL BLOCK FORD |
| Prop 65 (C, R or CR) |
CR |
| Piston Volume |
-5.00 |
| Product Type |
Engine Piston Kit |
| Piston Quantity |
8 |
| Wrist Pin Length |
2.750 |
| Prop 65 Yes/No |
Yes |
| Make |
FORD |
| Second Compression Ring Thickness |
0.0640 |
| Add-On |
927-2750-15-51S |
| Piston Material |
2618 |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Add-On |
J10008-4030-5 |
| Industry |
Automotive |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.100 in. CH, -5.00 CC |
| Make - Web |
Ford |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine Type |
ICE |
| Piston Pin Material |
5115 |
| Oil Ring Thickness |
0.218 |
| Piston Head Type |
Flat |
| Piston Pin Wall Thickness |
0.150 |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Pin Length |
2.750 |
| Forging Type |
Round |
| Ringset Included |
No |
| Piston Pin Outside Diameter |
0.927 |
| Engine |
Small Block |
| Product Market |
Domestic |
| Compression Height |
1.100 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
