As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350/400 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

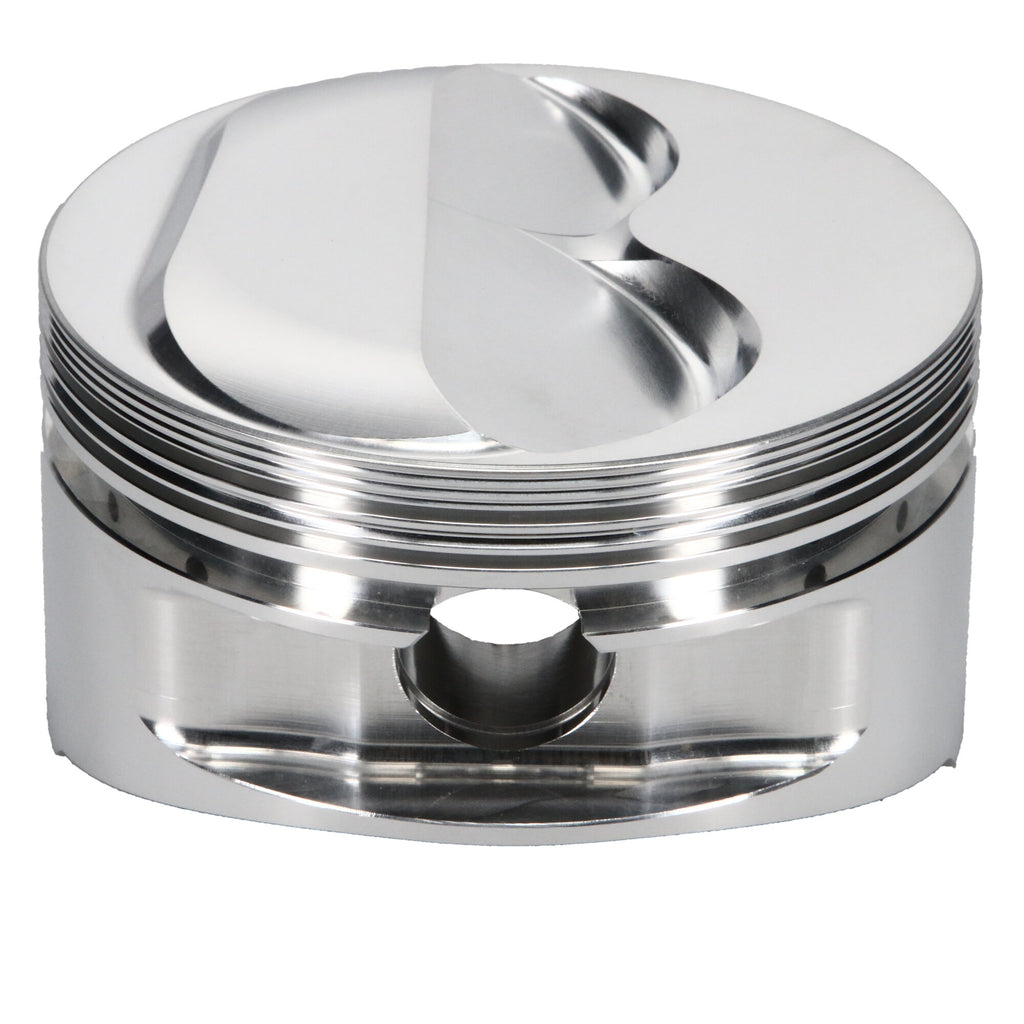

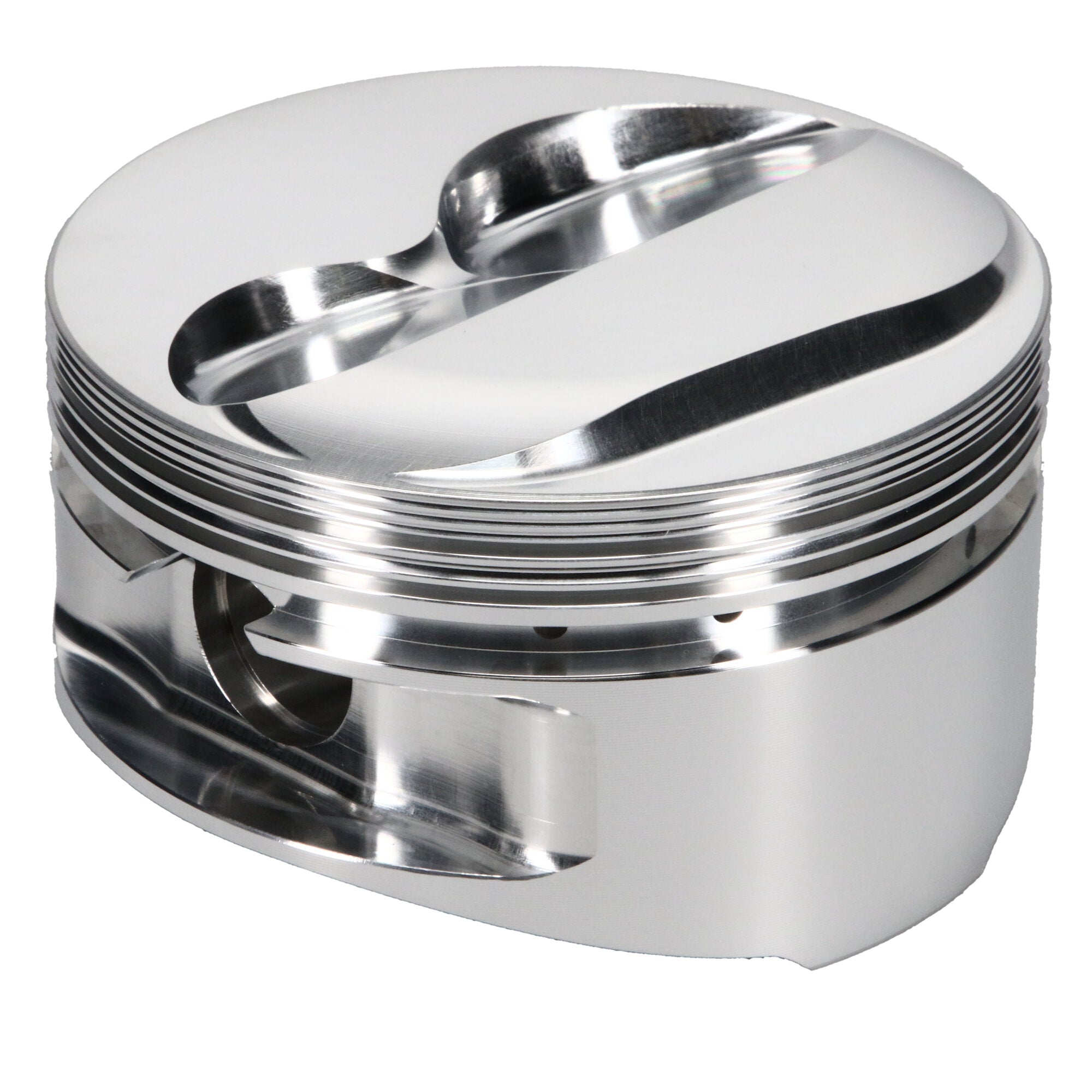

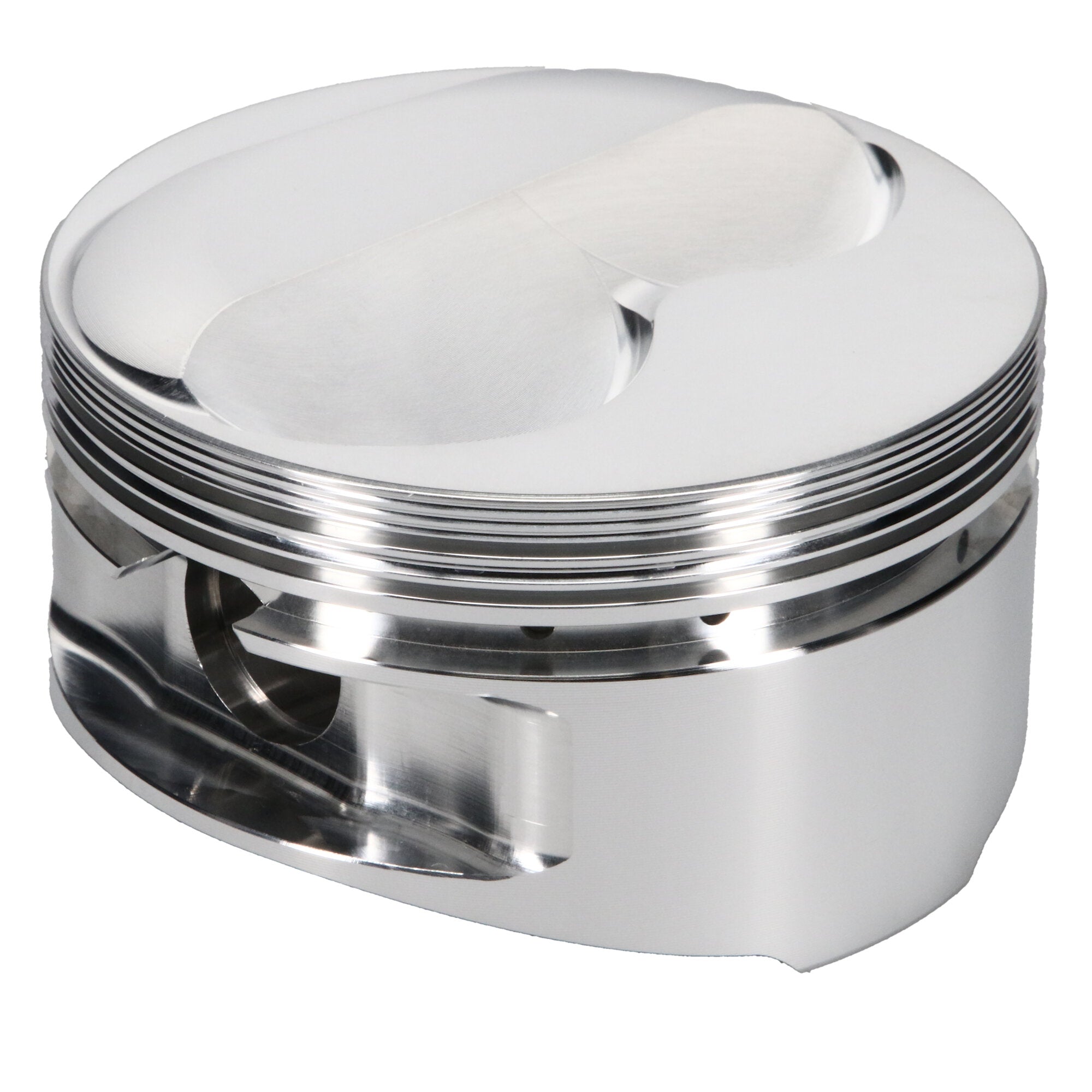

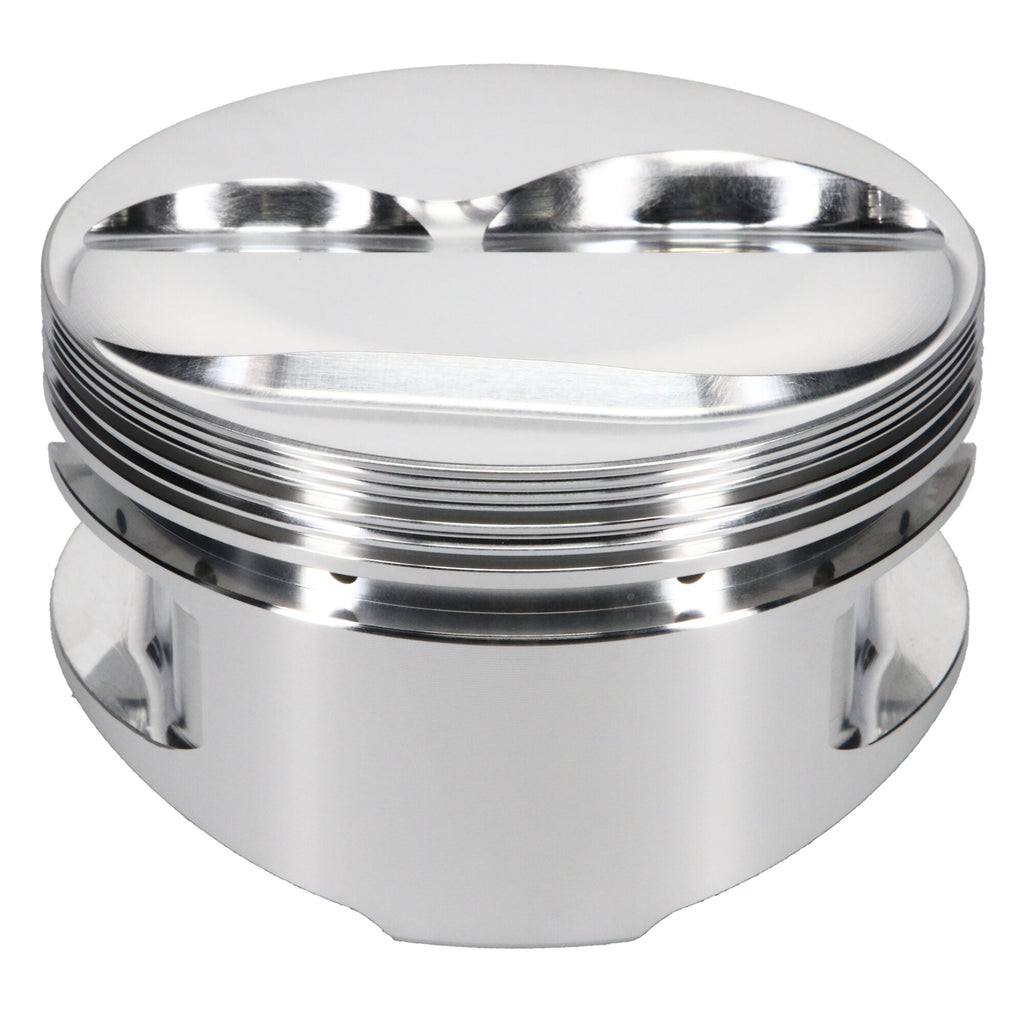

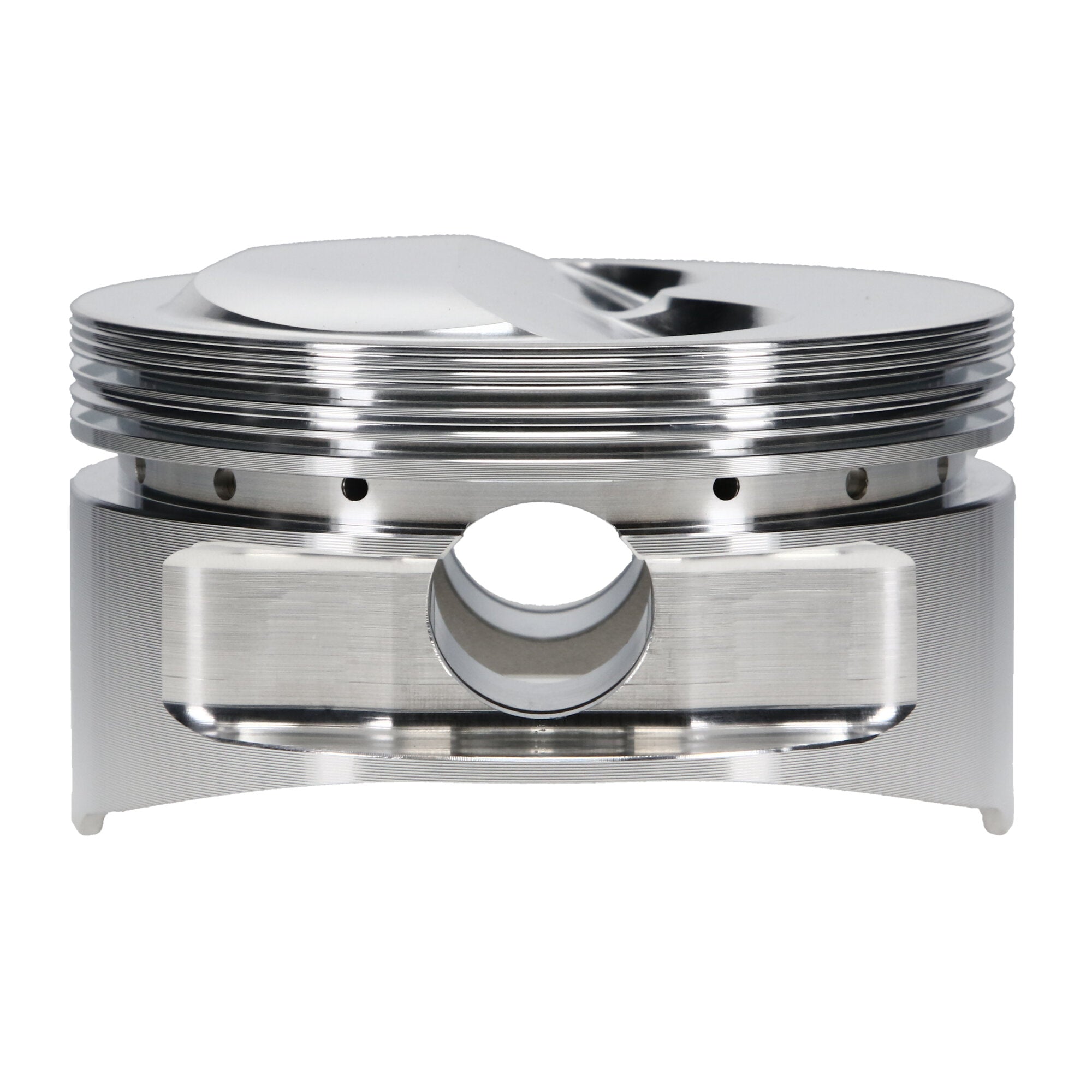

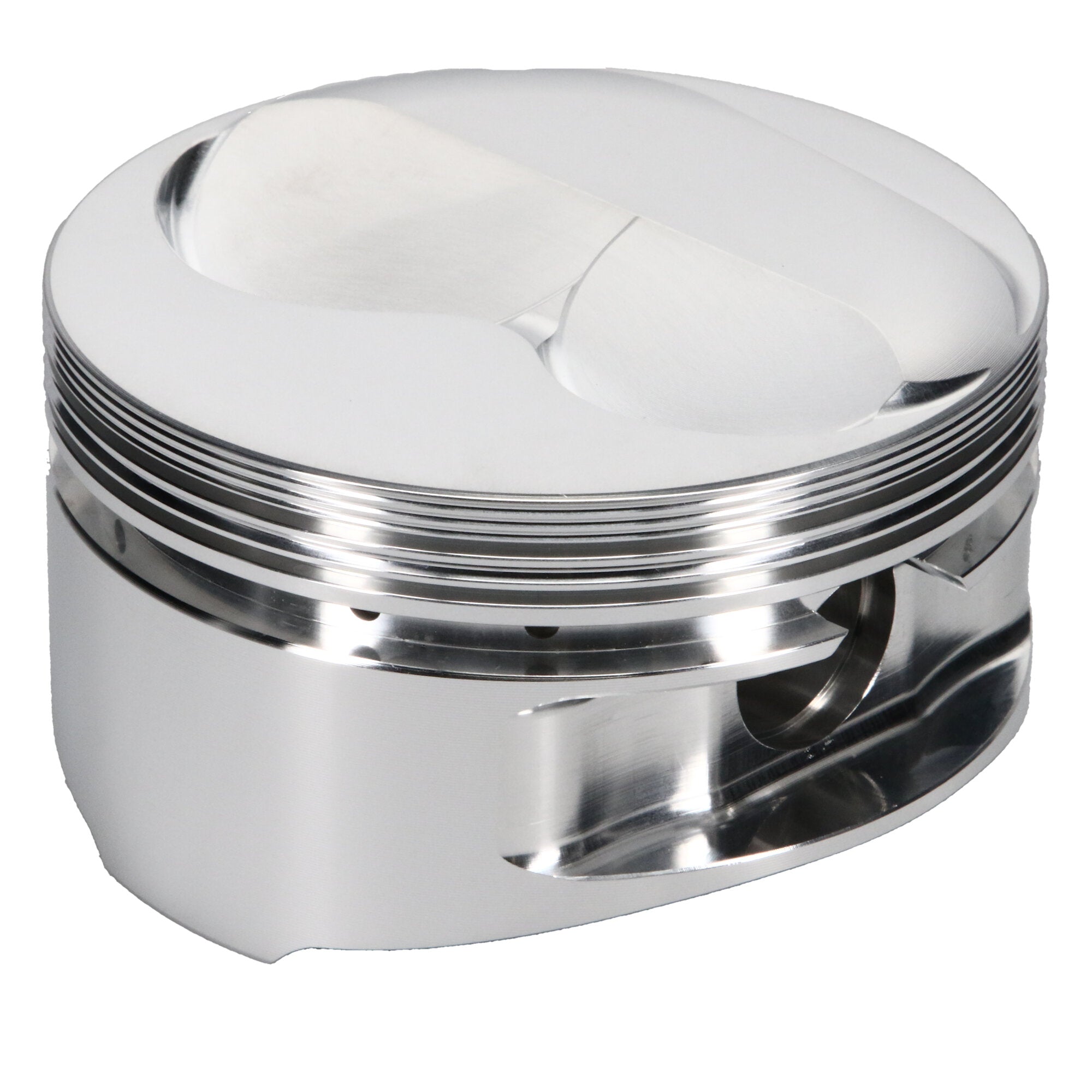

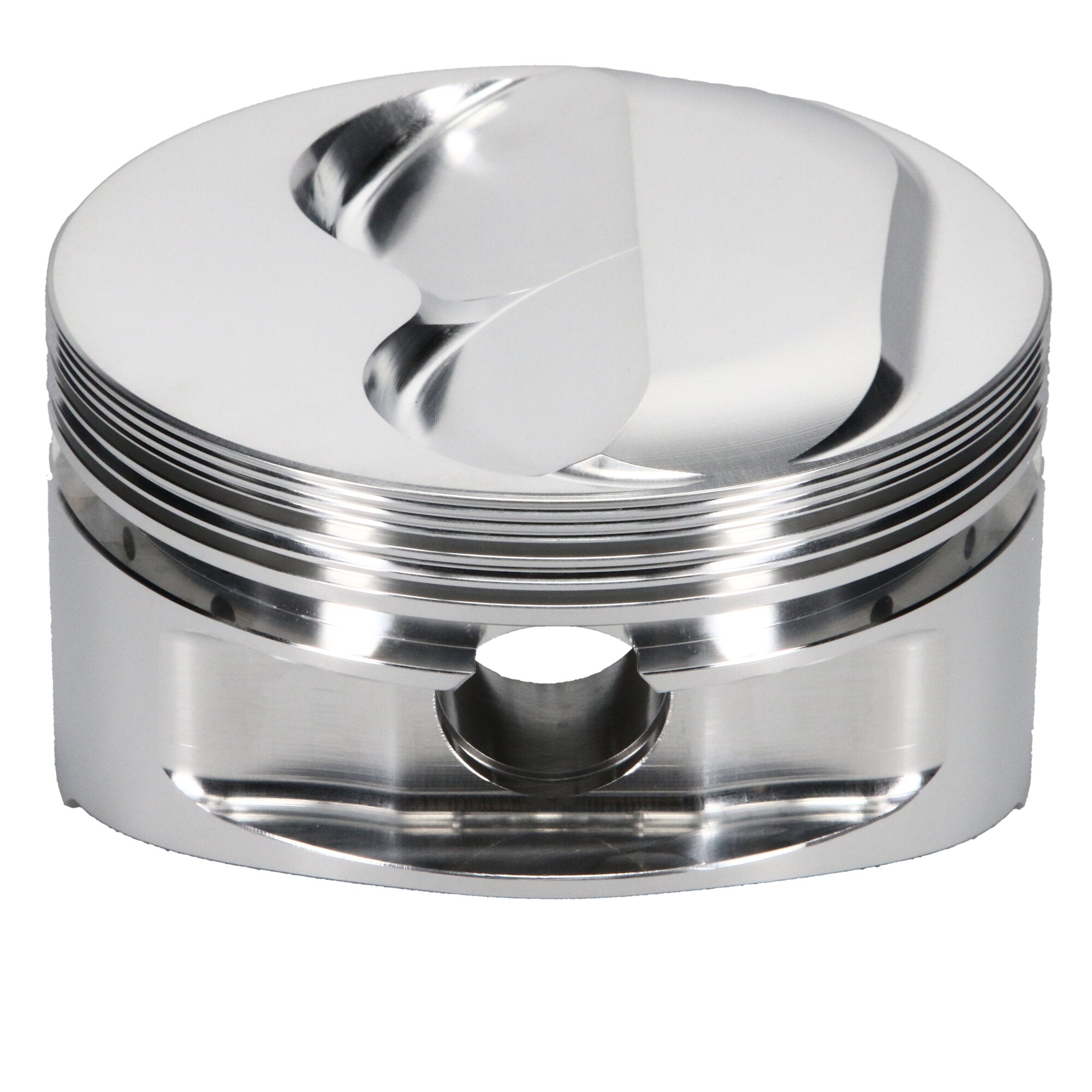

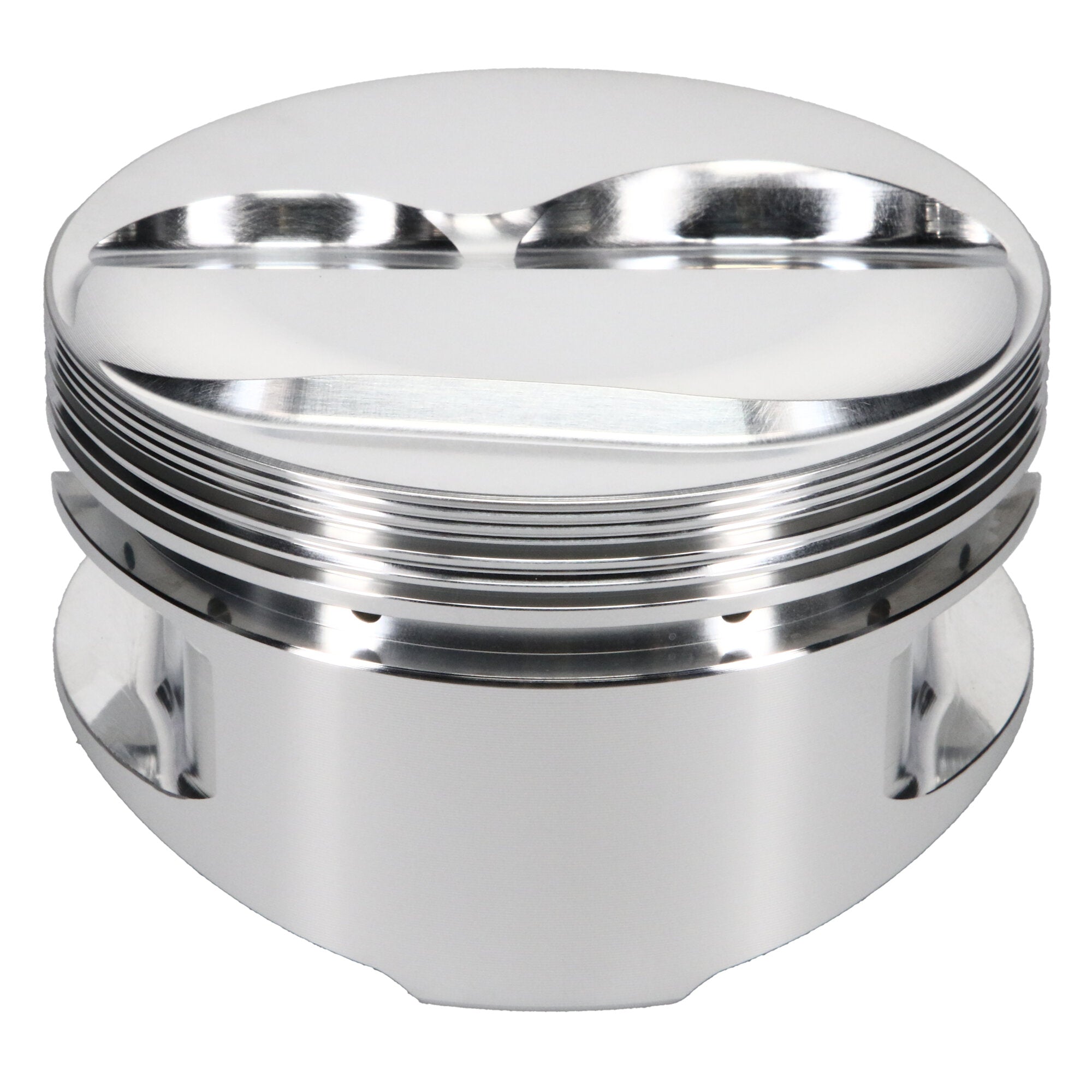

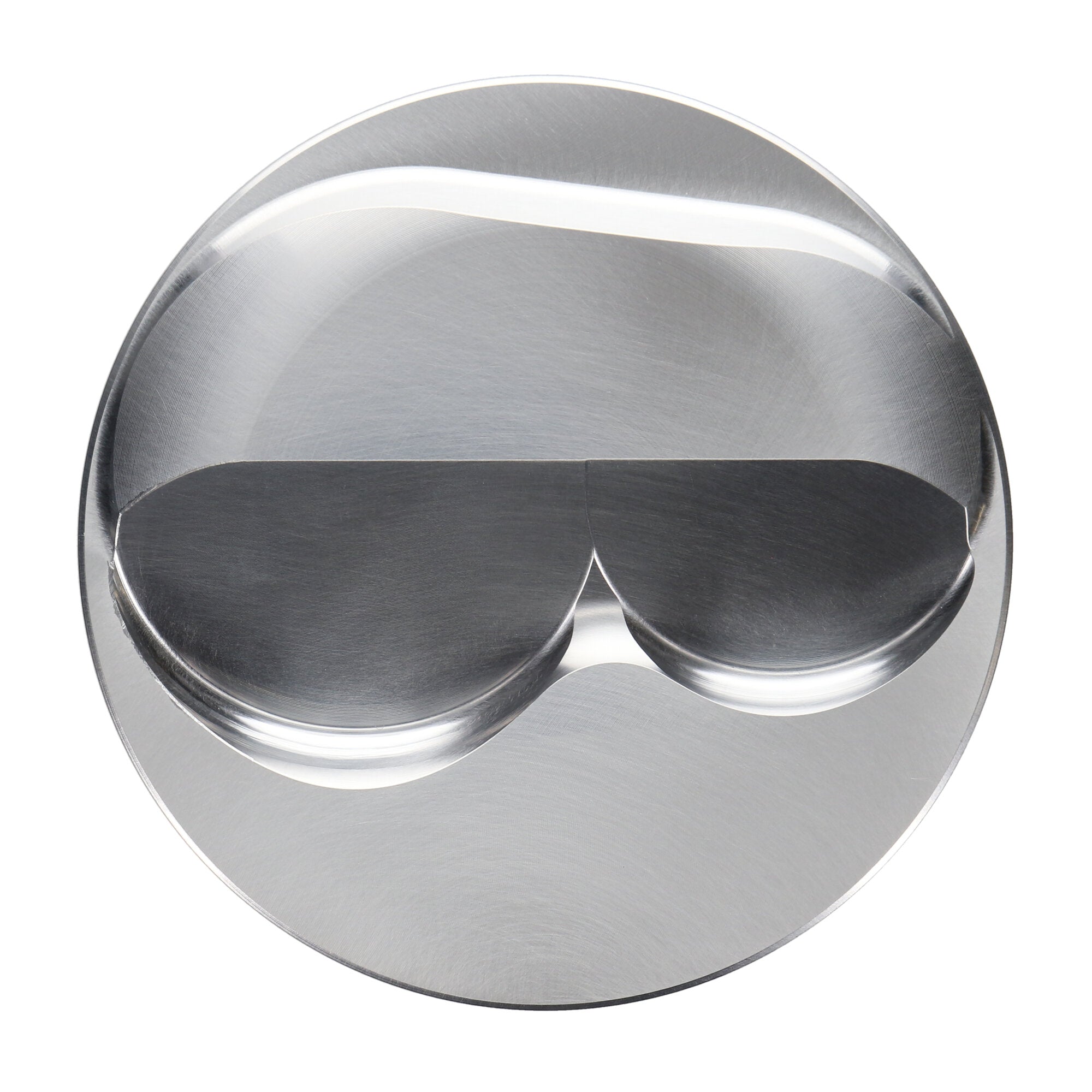

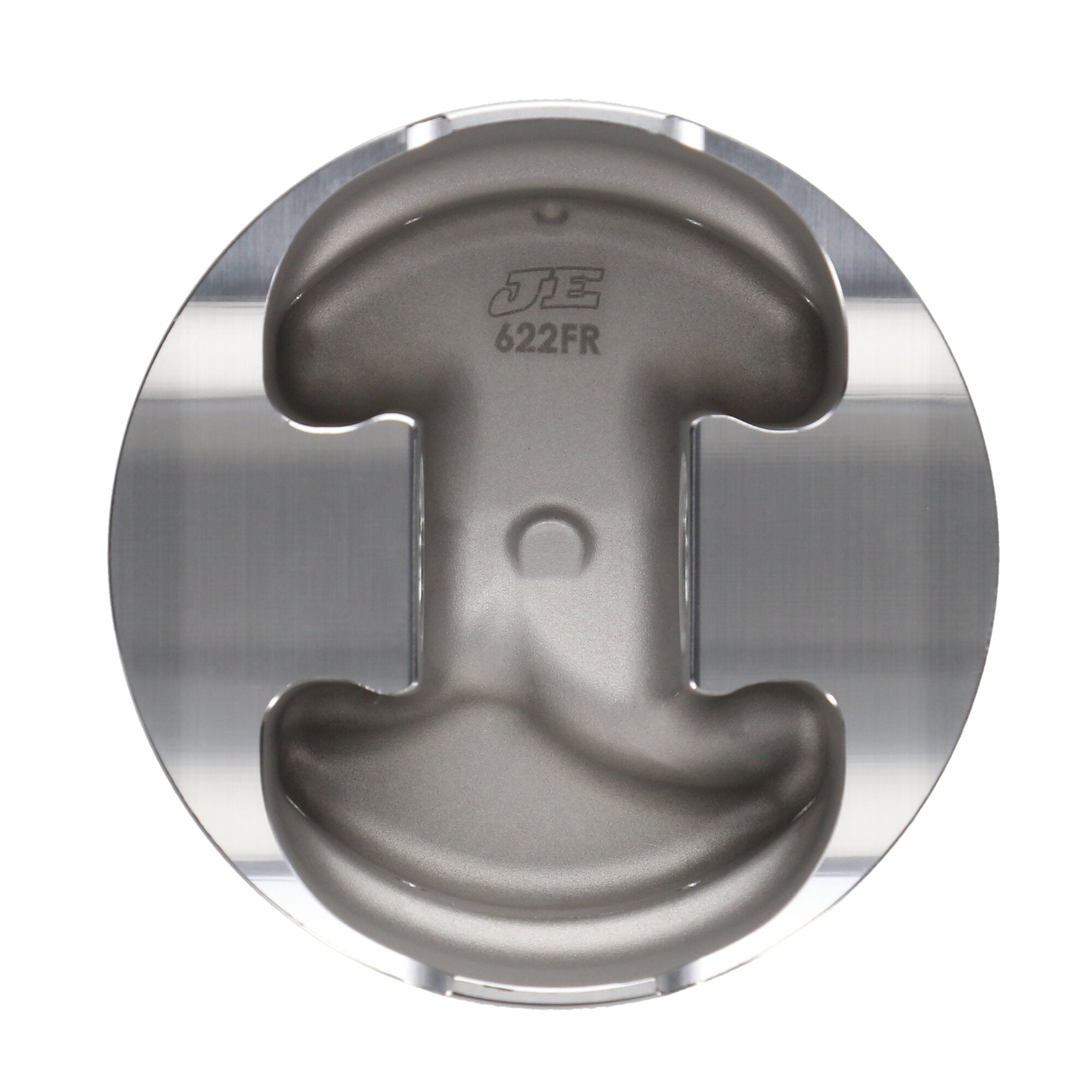

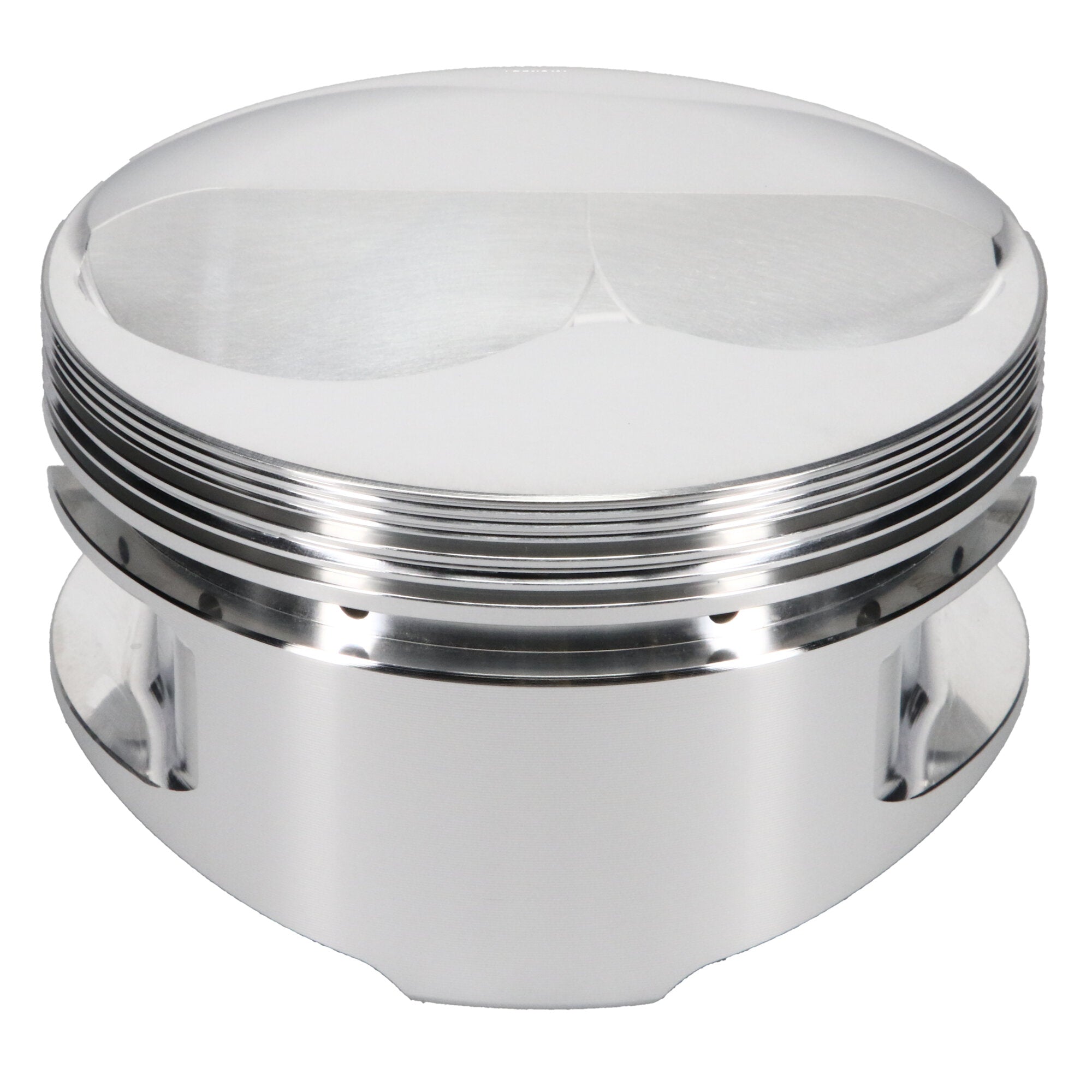

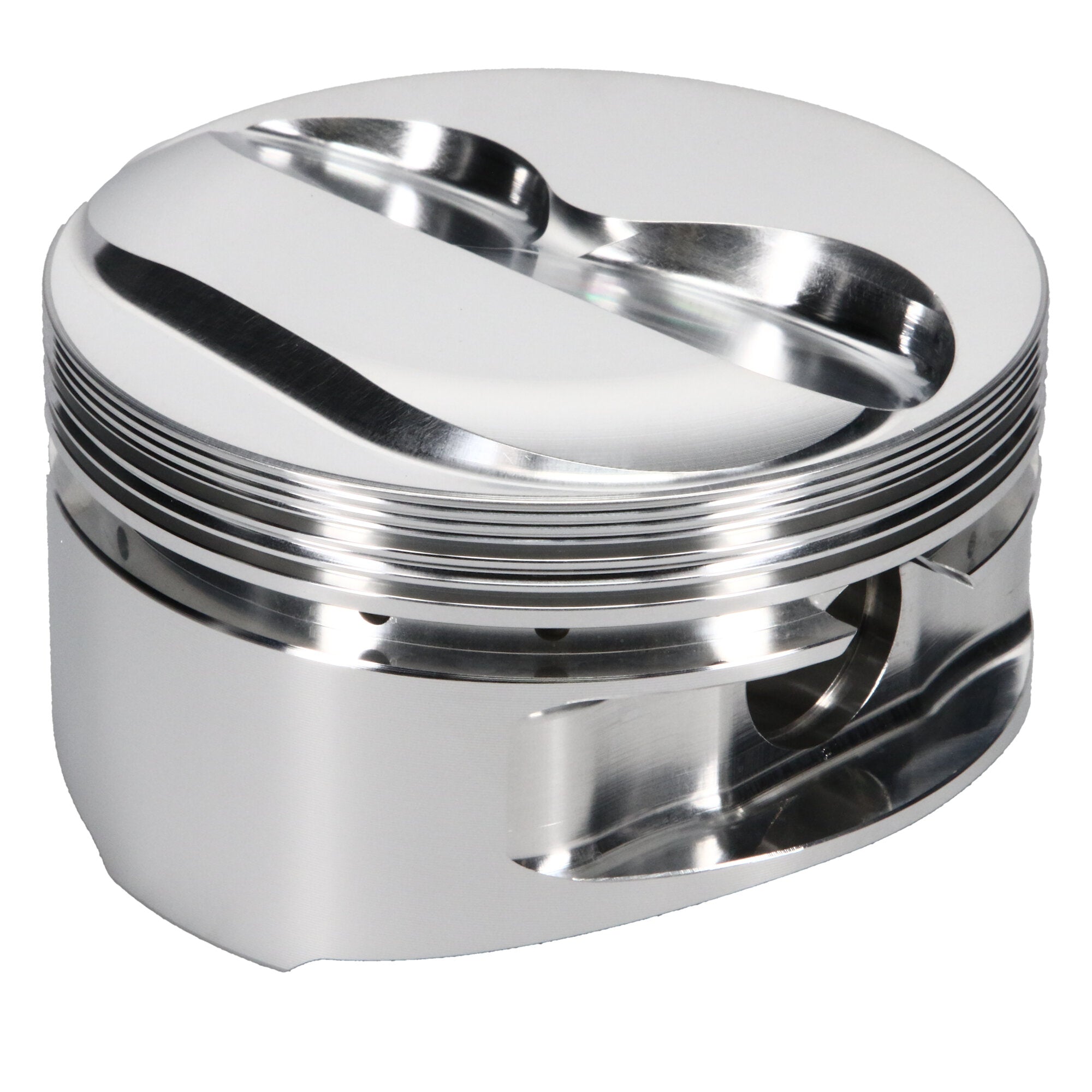

Piston Set, 2618, Dome, 4.060 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.250 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350/400, 4.060 Bore, Dome, Set of 8 |
| Second Compression Ring Thickness |
0.0640 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.060 in. Bore - 1.250 in. CH, 14.00 CC |
| Engine |
Small Block |
| Piston Series |
JE Pistons |
| Prop 65 Yes/No |
Yes |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Piston Head Type |
Dome |
| Forging Type |
Round |
| Piston Quantity |
8 |
| Ringset Included |
No |
| Piston Pin Length |
2.950 |
| Oil Ring Thickness |
0.218 |
| Piston Pin Material |
5115 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Industry |
Automotive |
| Add-On |
J100F8-4060-5 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Title |
JE Pistons - Chevrolet, Small Block, 4.060 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.150 |
| Piston Volume |
14.00 |
| Add-On |
927-042-CS |
| Out of Stock Message |
Call for Availability |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Compression Height |
1.250 |
| Prop 65 (C, R or CR) |
CR |
| Make |
CHEVROLET |
| Piston Average Weight |
521 |
| Add-On |
927-2950-15-51S |
| Piston Material |
2618 |
| Bore Diameter |
4.060 |
| Top Compression Ring Thickness |
0.0640 |
| Wrist Pin Length |
2.950 |
| Ring Set Included |
No |
| Wrist Pin Wall Thickness |
0.150 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
