As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

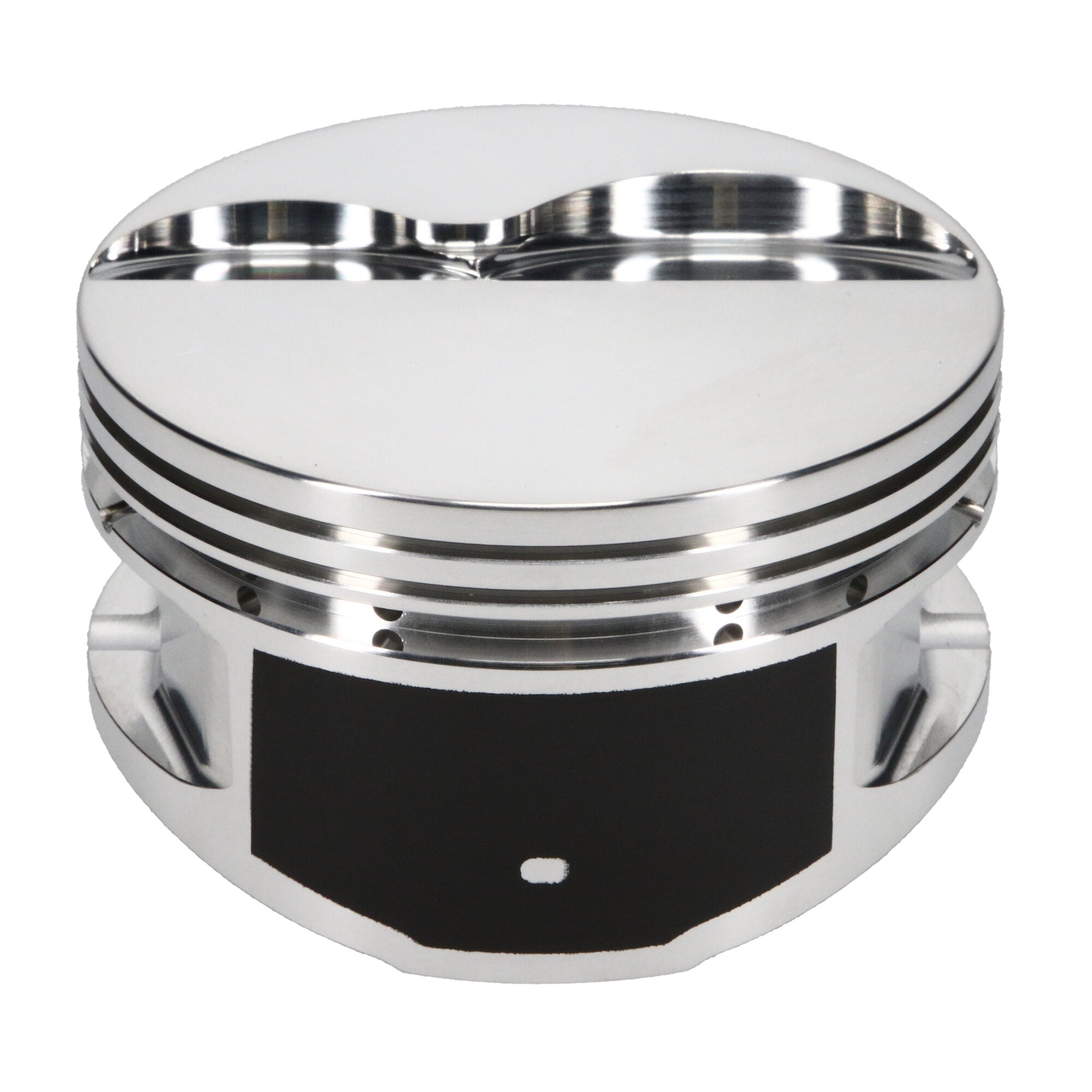

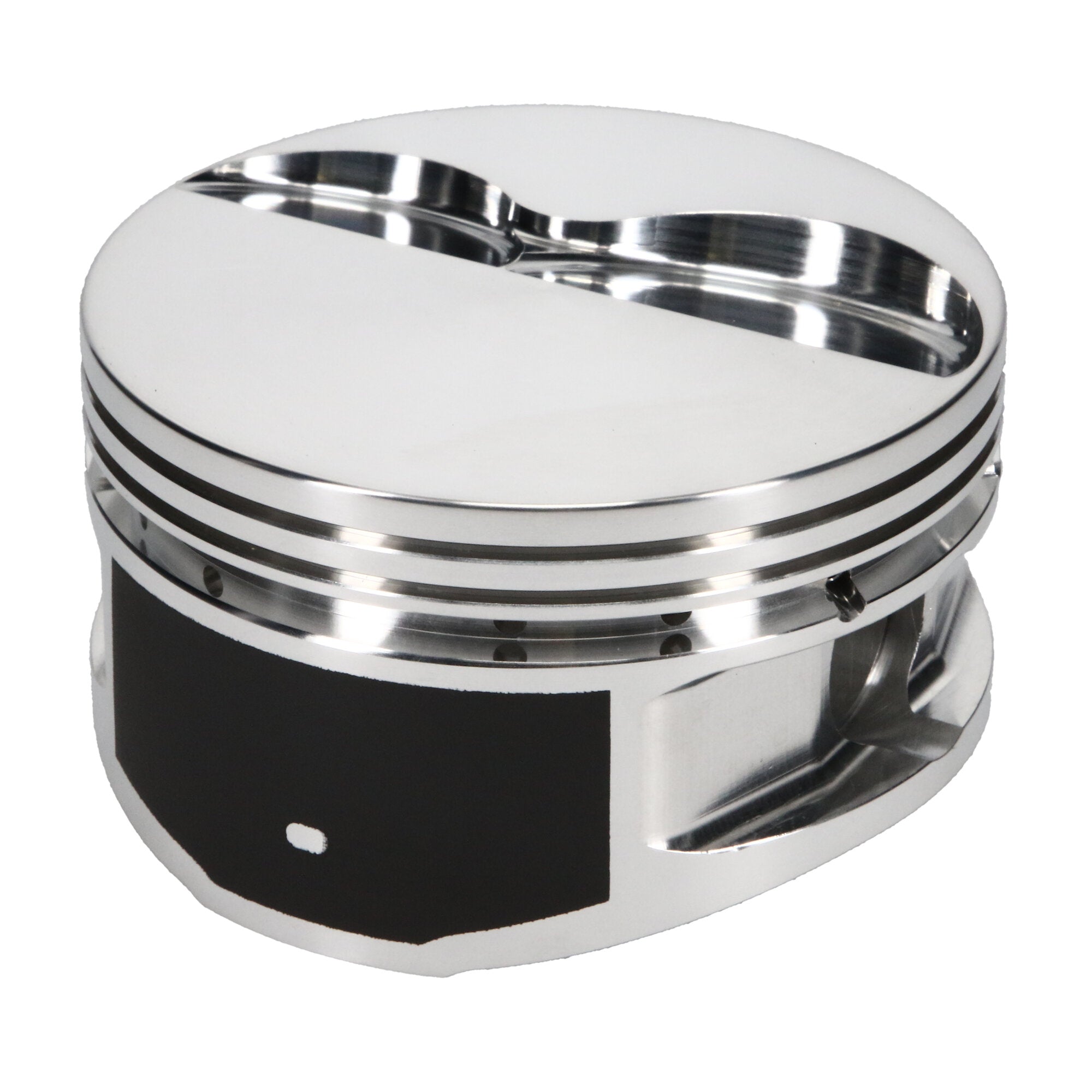

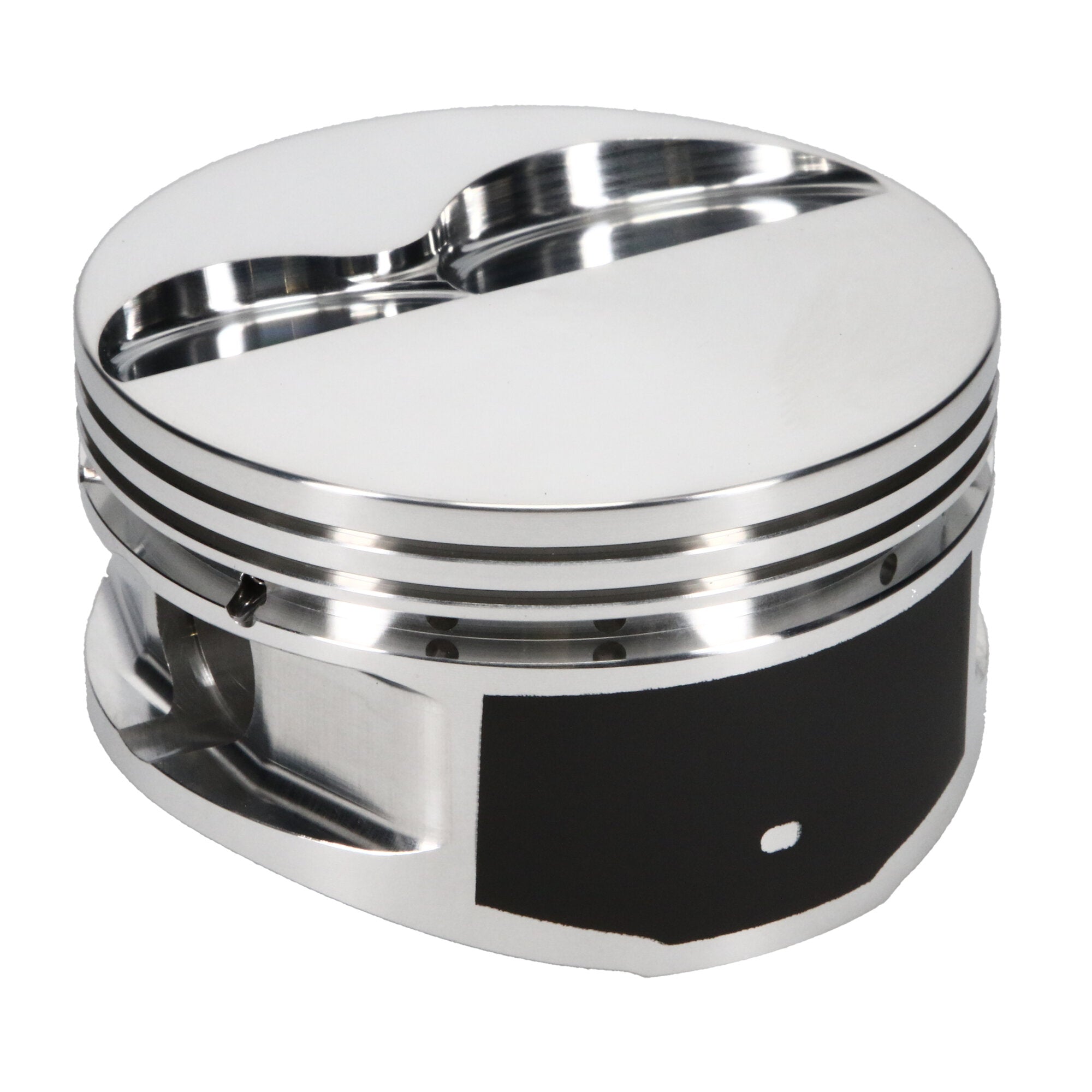

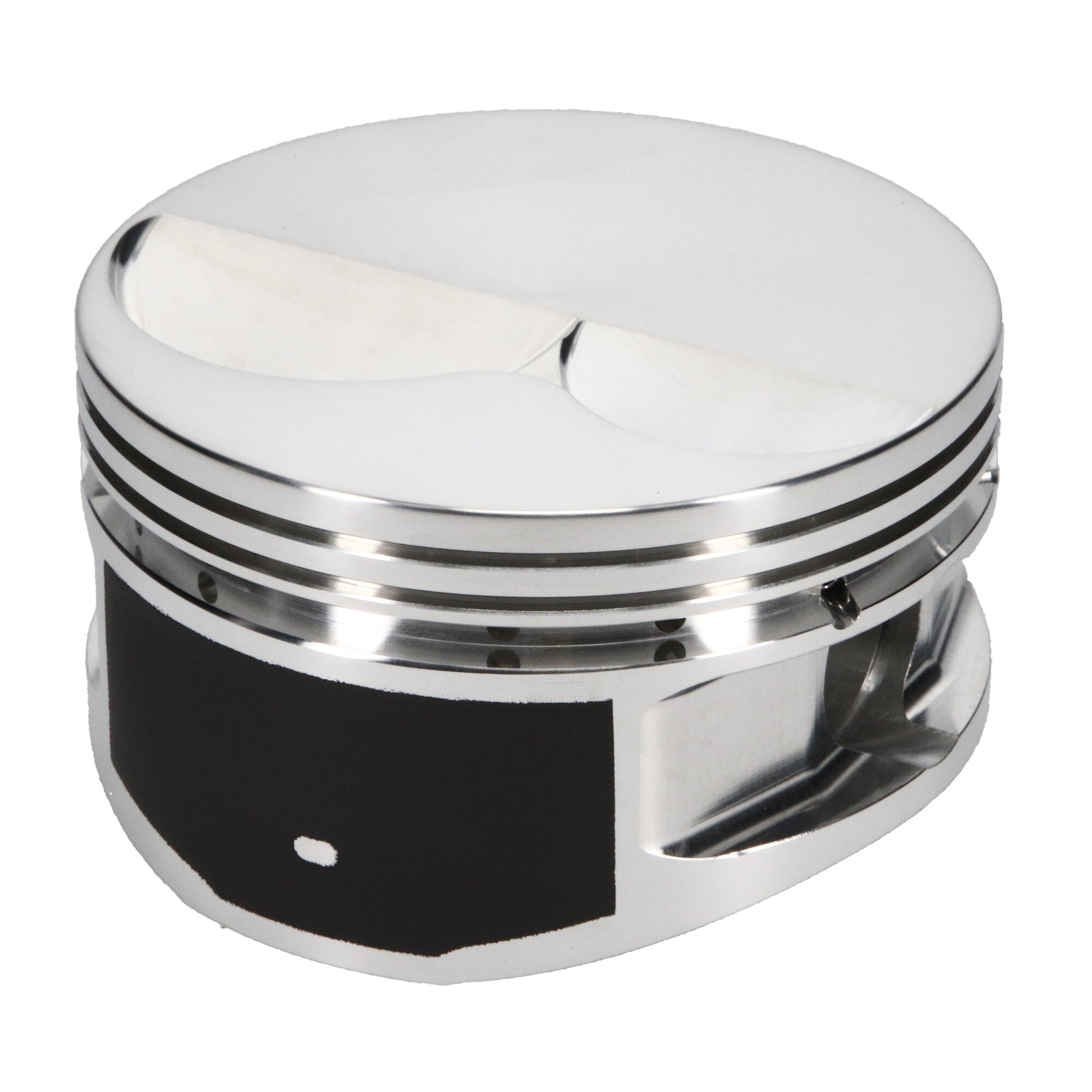

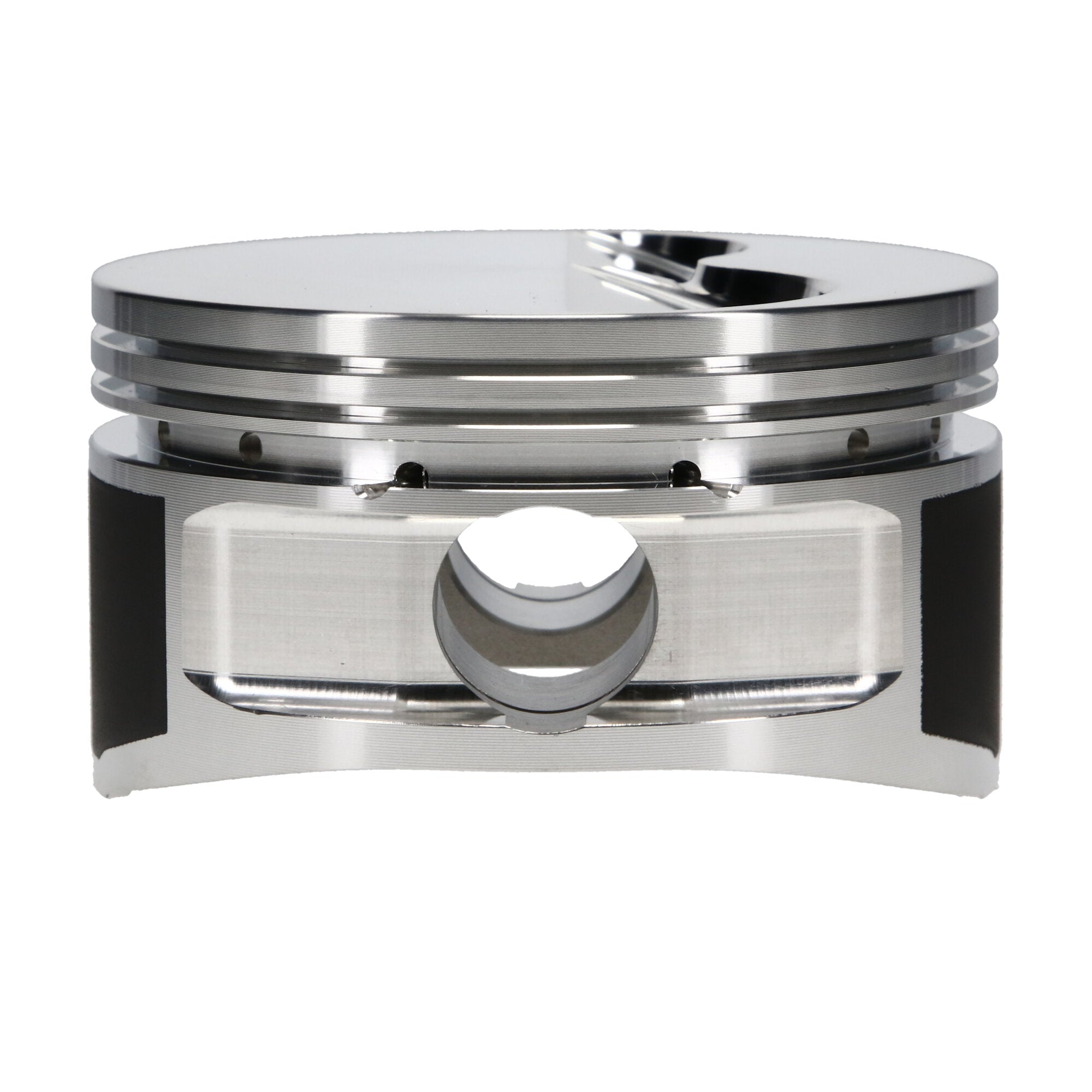

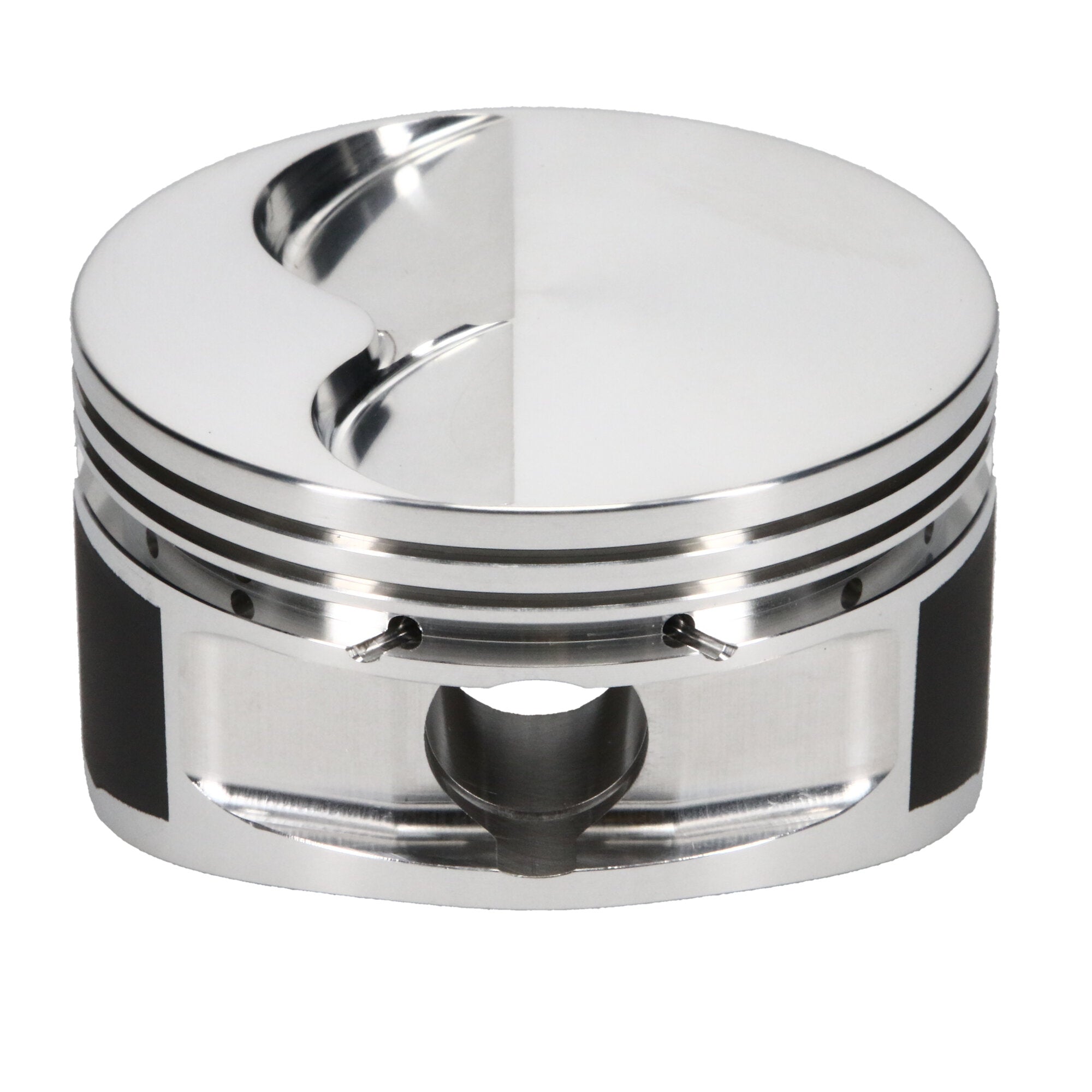

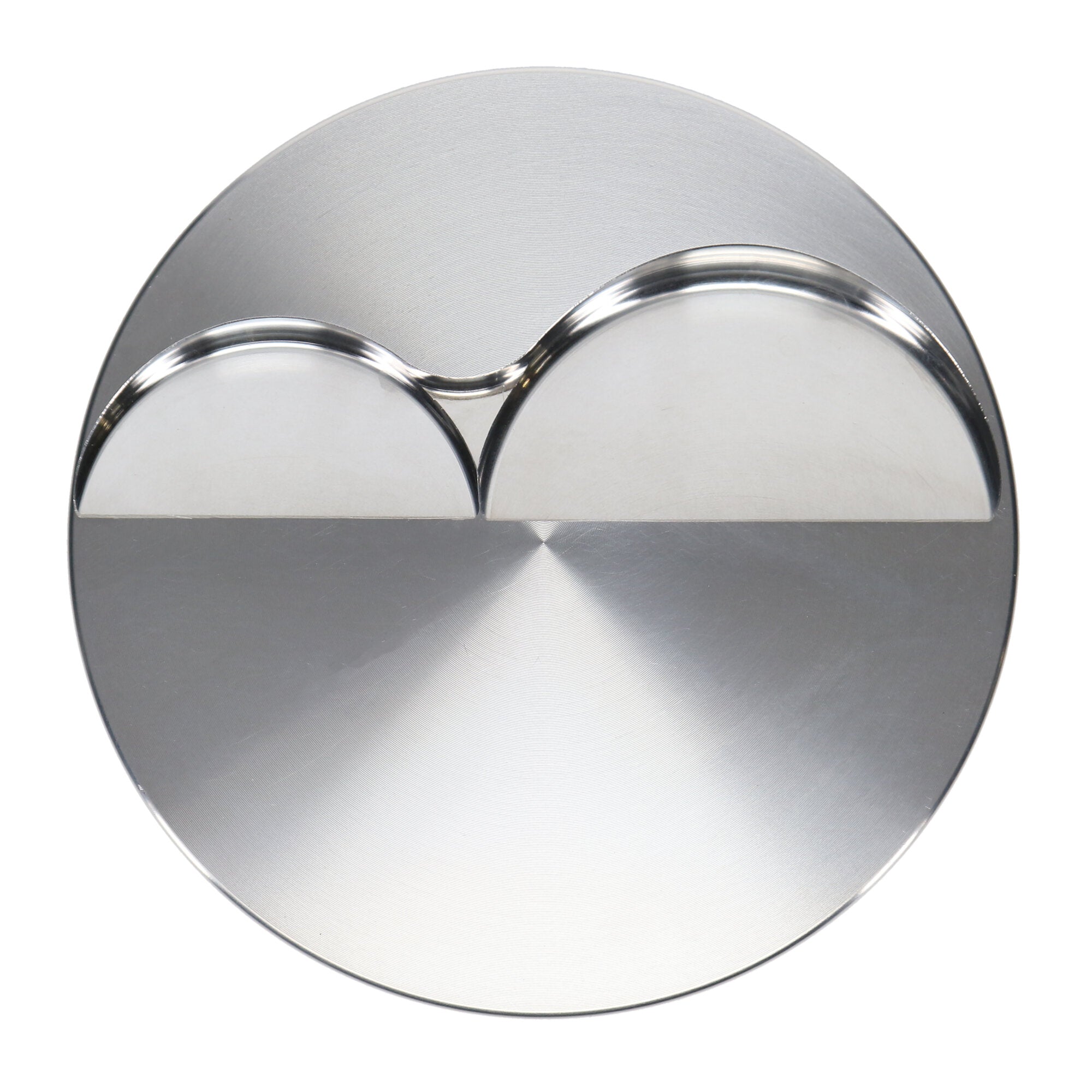

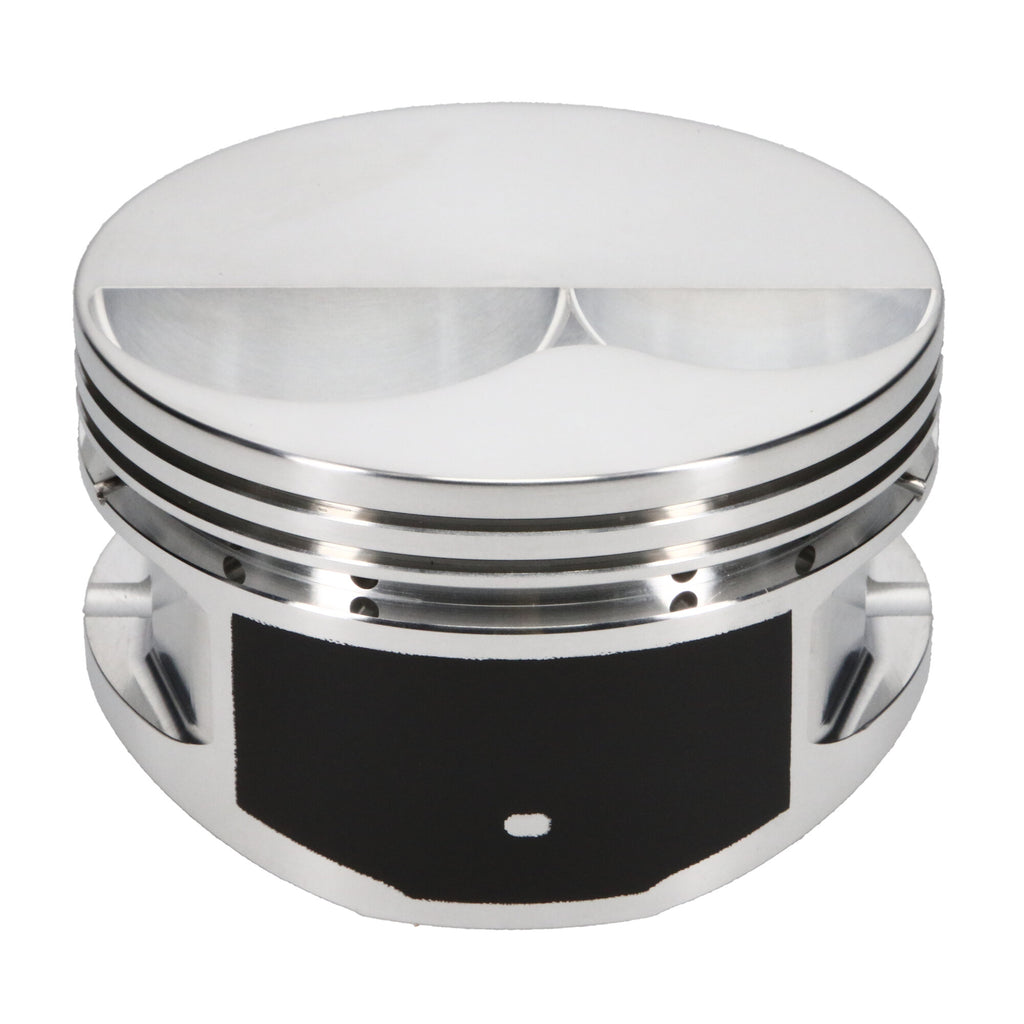

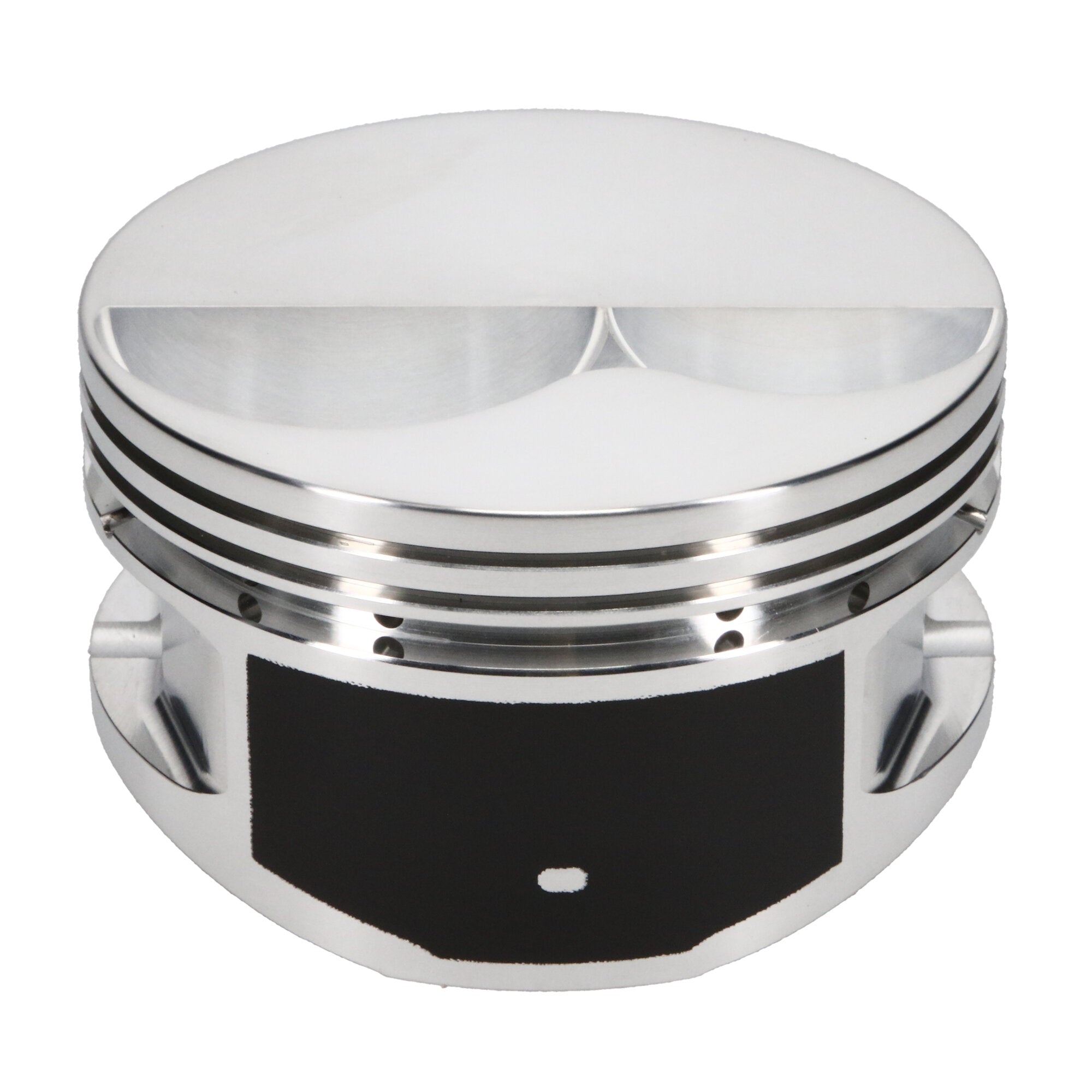

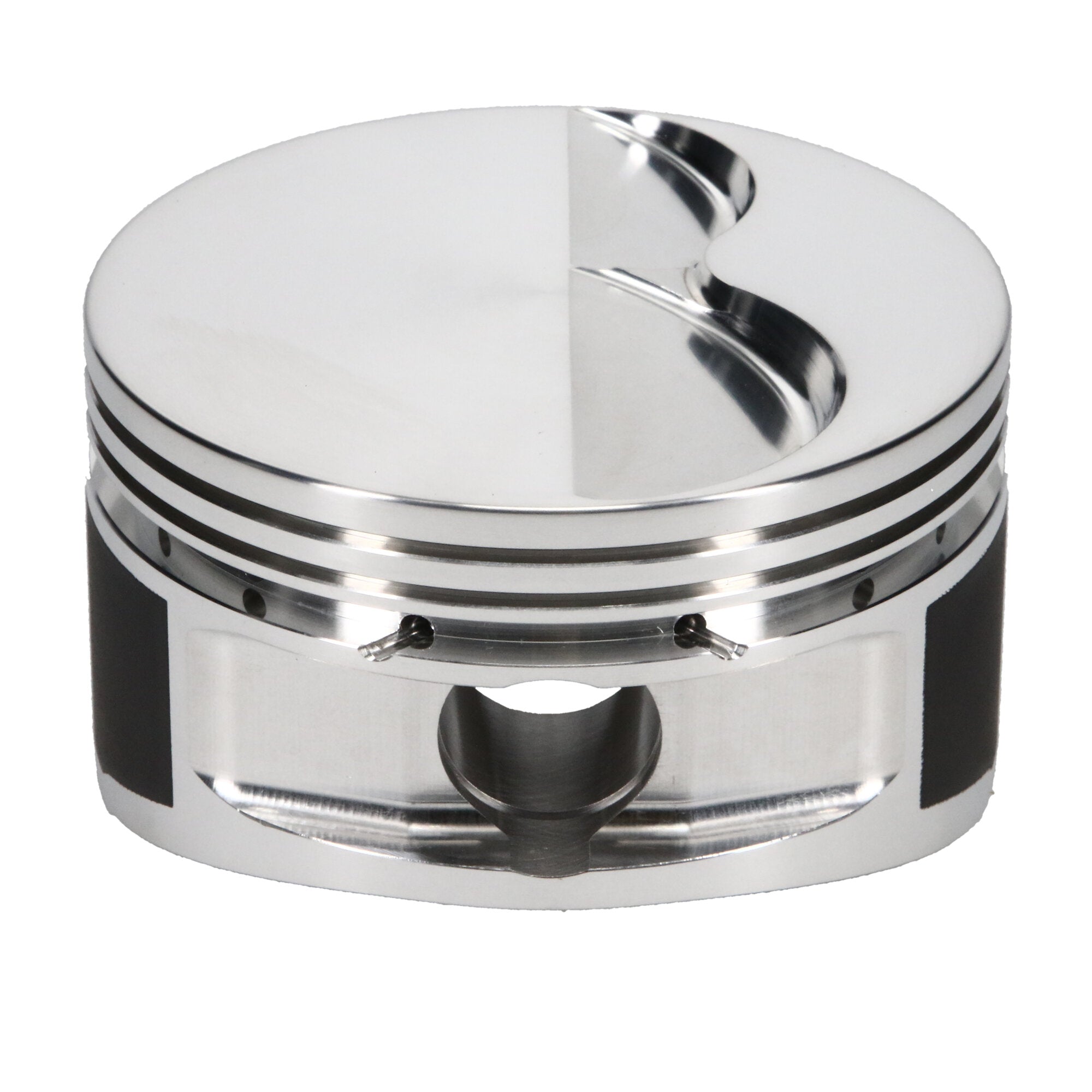

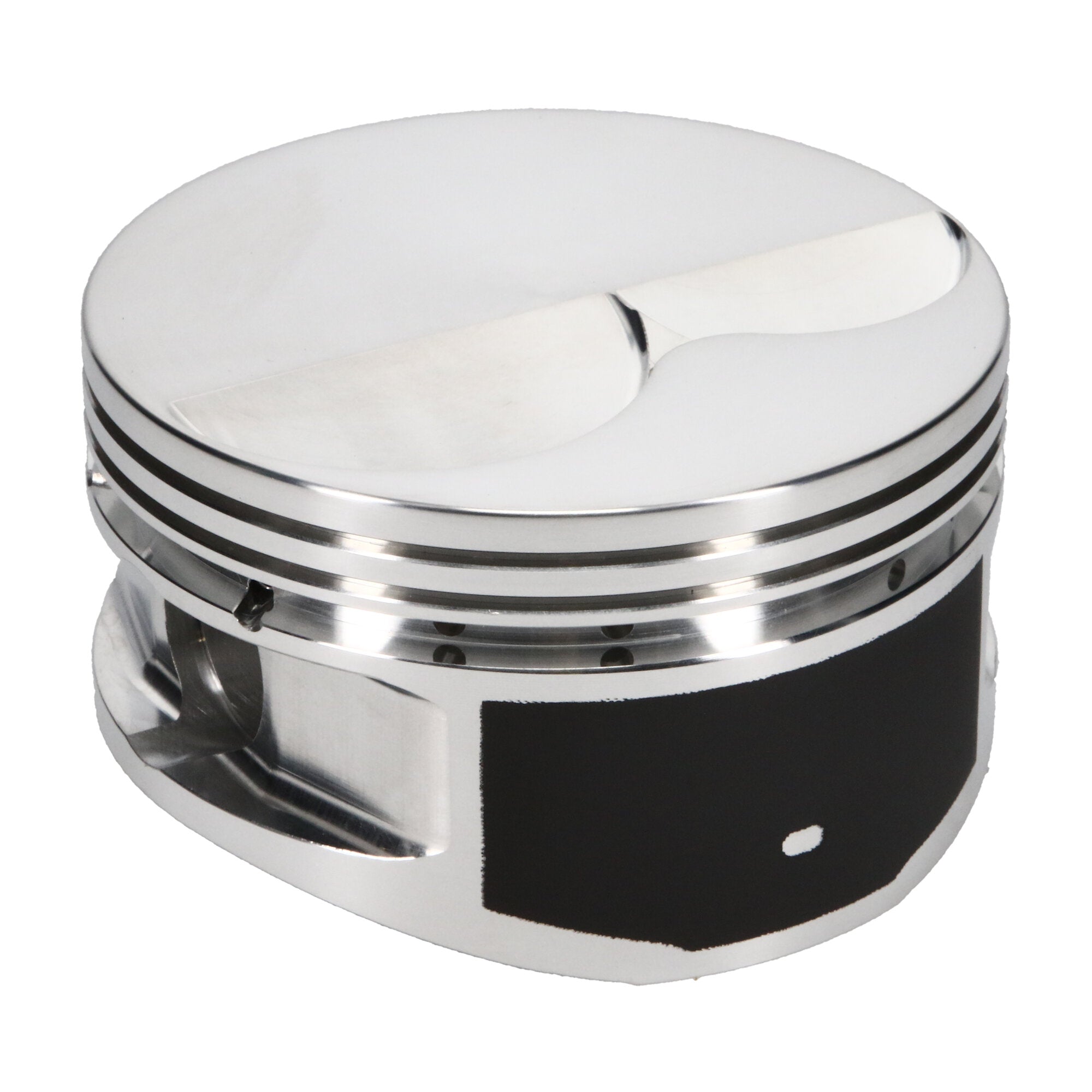

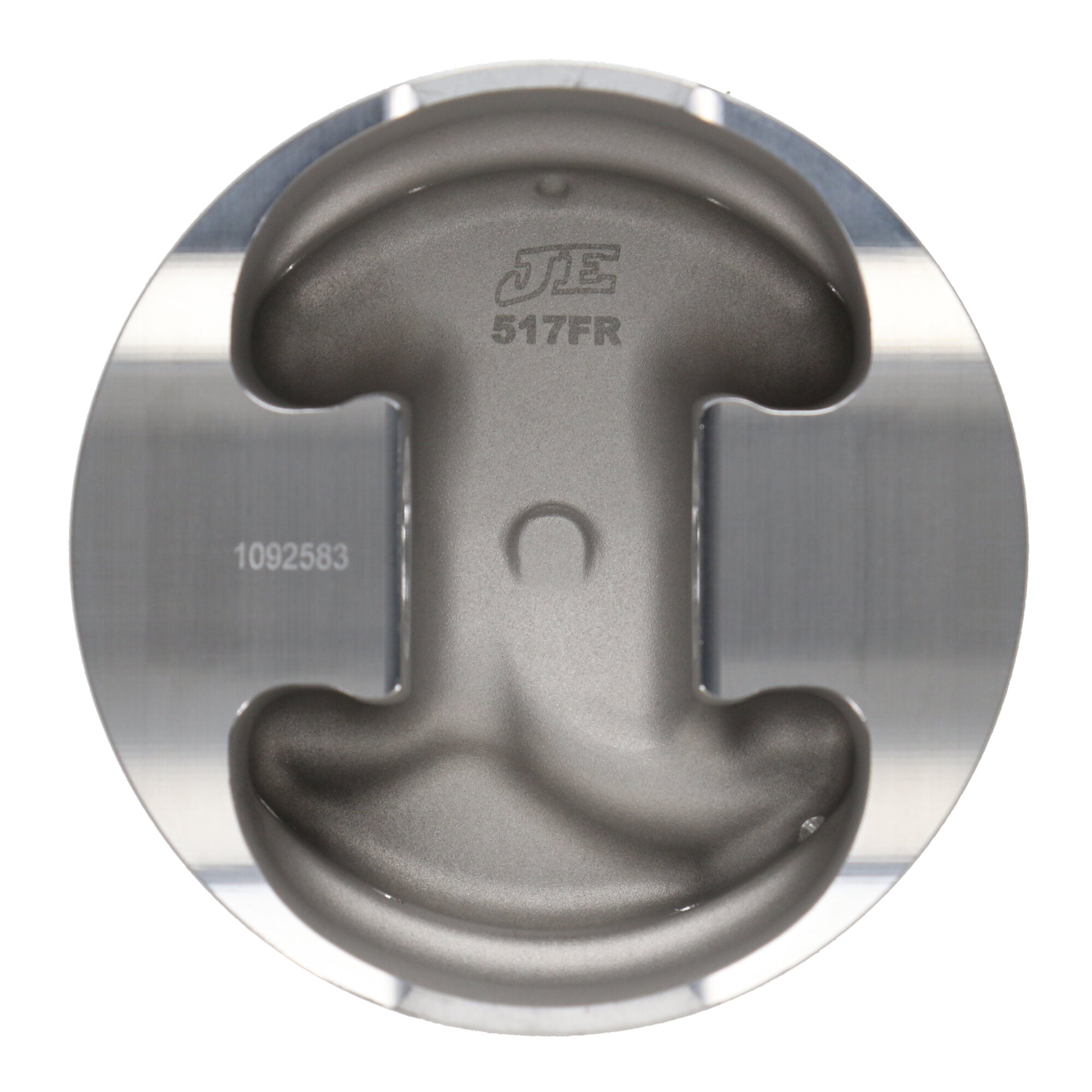

Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Top Compression Ring Thickness |
0.0640 |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.927 |
| Make |
CHEVROLET |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Compression Height |
1.250 |
| Engine - Web |
Small Block |
| Industry |
Automotive |
| Piston Material |
2618 |
| Add-On |
927-2950-15-51S |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Piston Average Weight |
448 |
| Cylinder Head |
CHEVROLET 18 DEG |
| Piston Pin Material |
5115 |
| Piston Volume |
-6.00 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
J100F8-4030-5 |
| Bore Diameter |
4.030 |
| Add-On |
927-073-AS |
| Wrist Pin Wall Thickness |
0.150 |
| Ring Set Included |
No |
| Piston Pin Length |
2.950 |
| Out of Stock Message |
Call for Availability |
| Engine |
Small Block |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.250 in. CH, -6.00 CC |
| Prop 65 Yes/No |
Yes |
| Engine Type |
ICE |
| Second Compression Ring Thickness |
0.0640 |
| Piston Head Type |
Flat |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length |
2.950 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Forging Type |
Round |
| Oil Ring Thickness |
0.188 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
