As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Small Block 351W Windsor |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

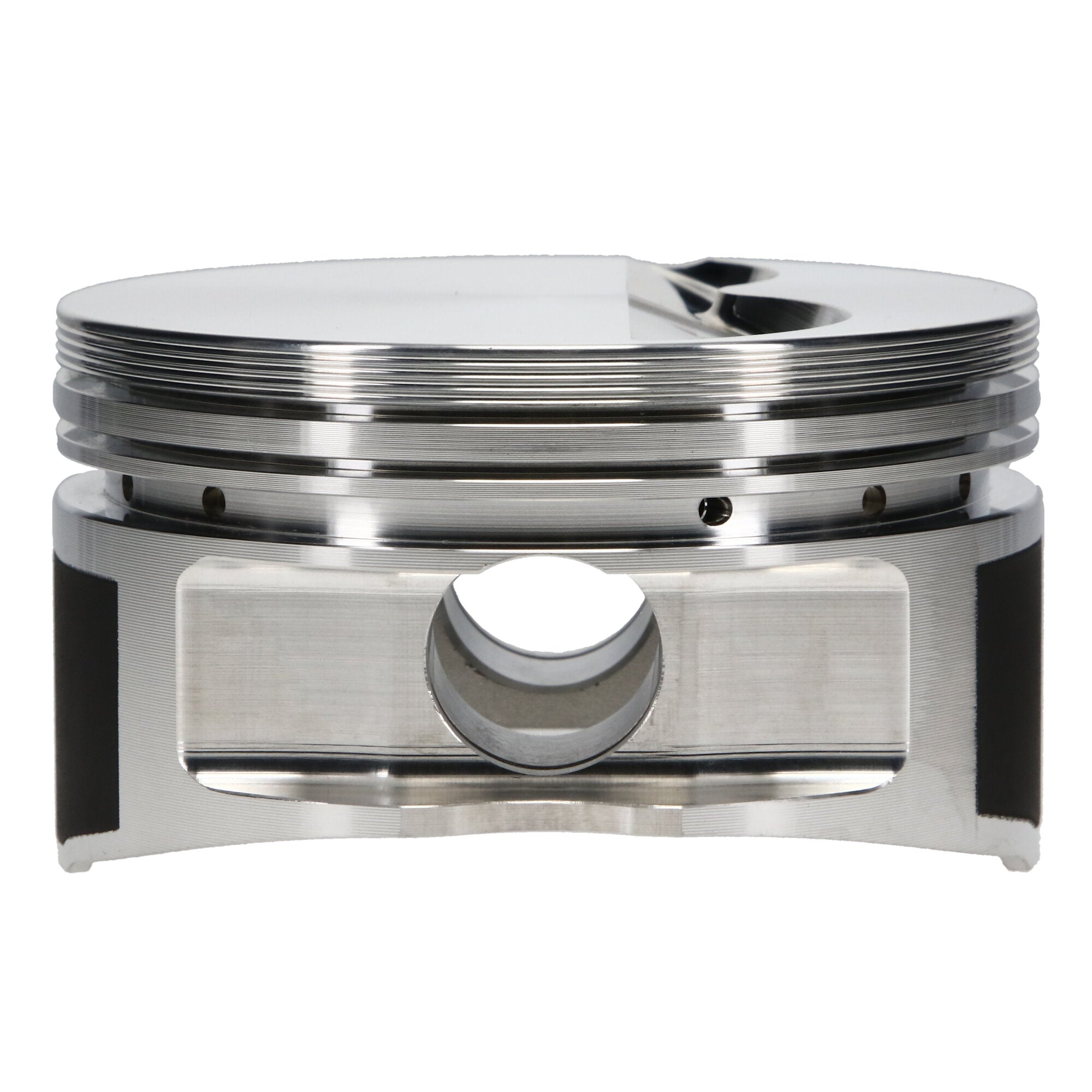

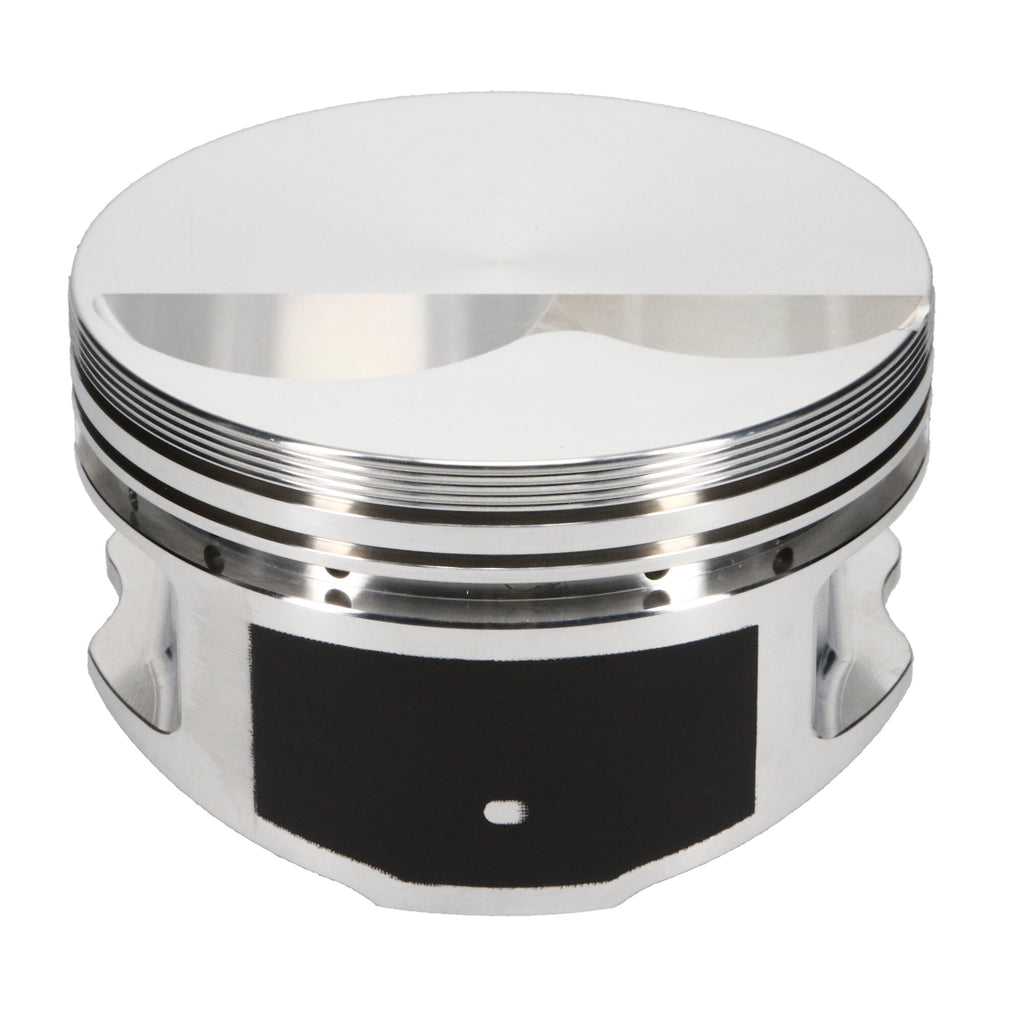

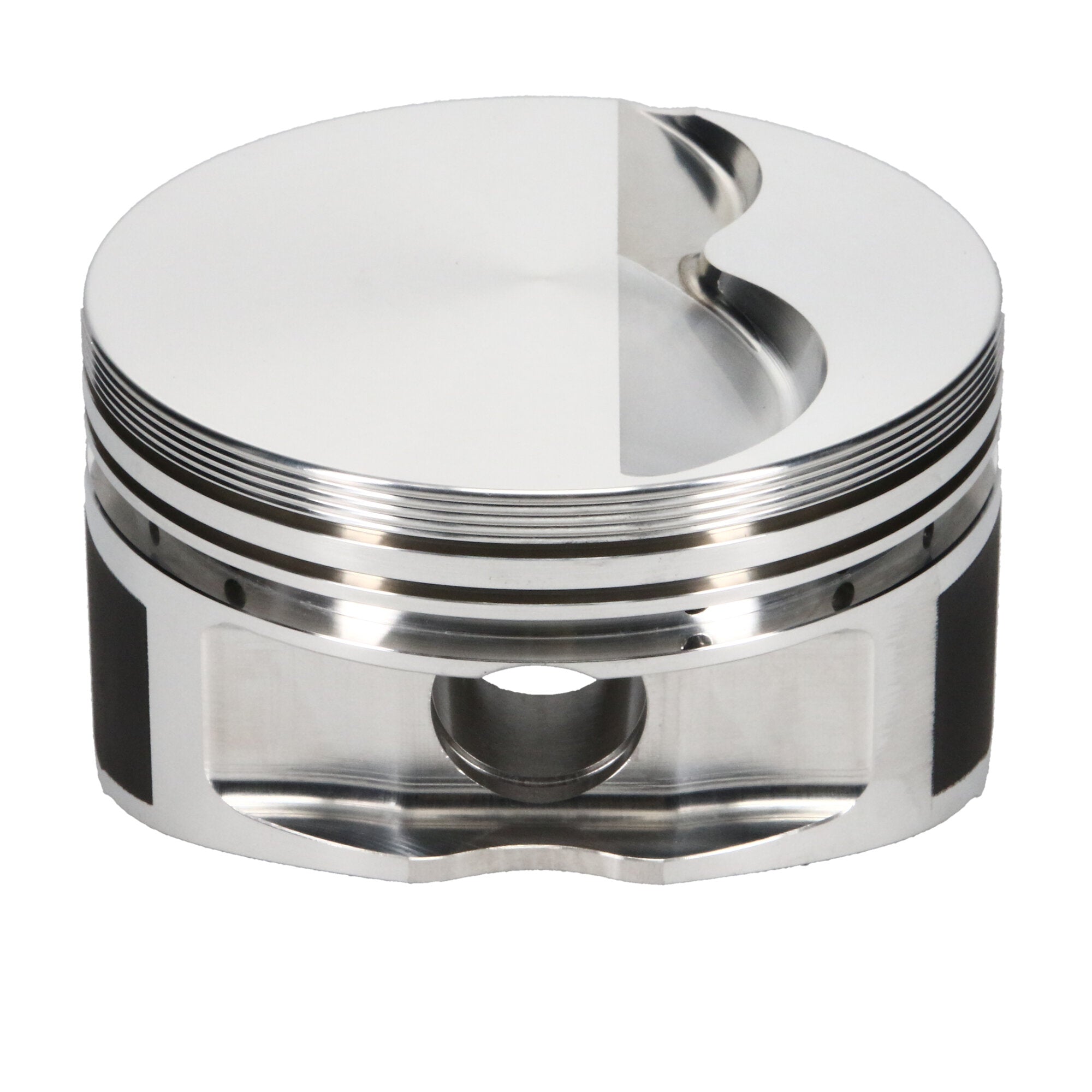

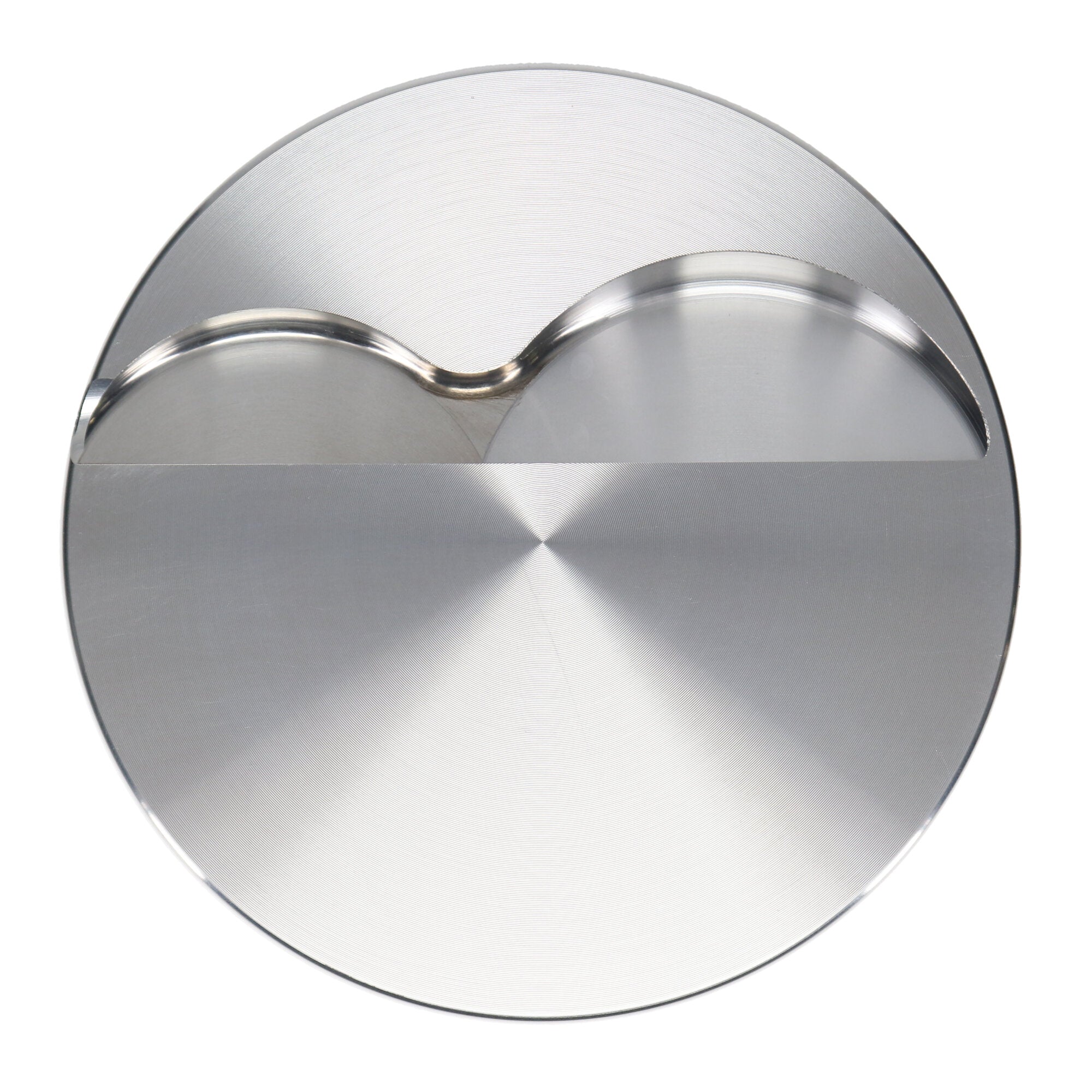

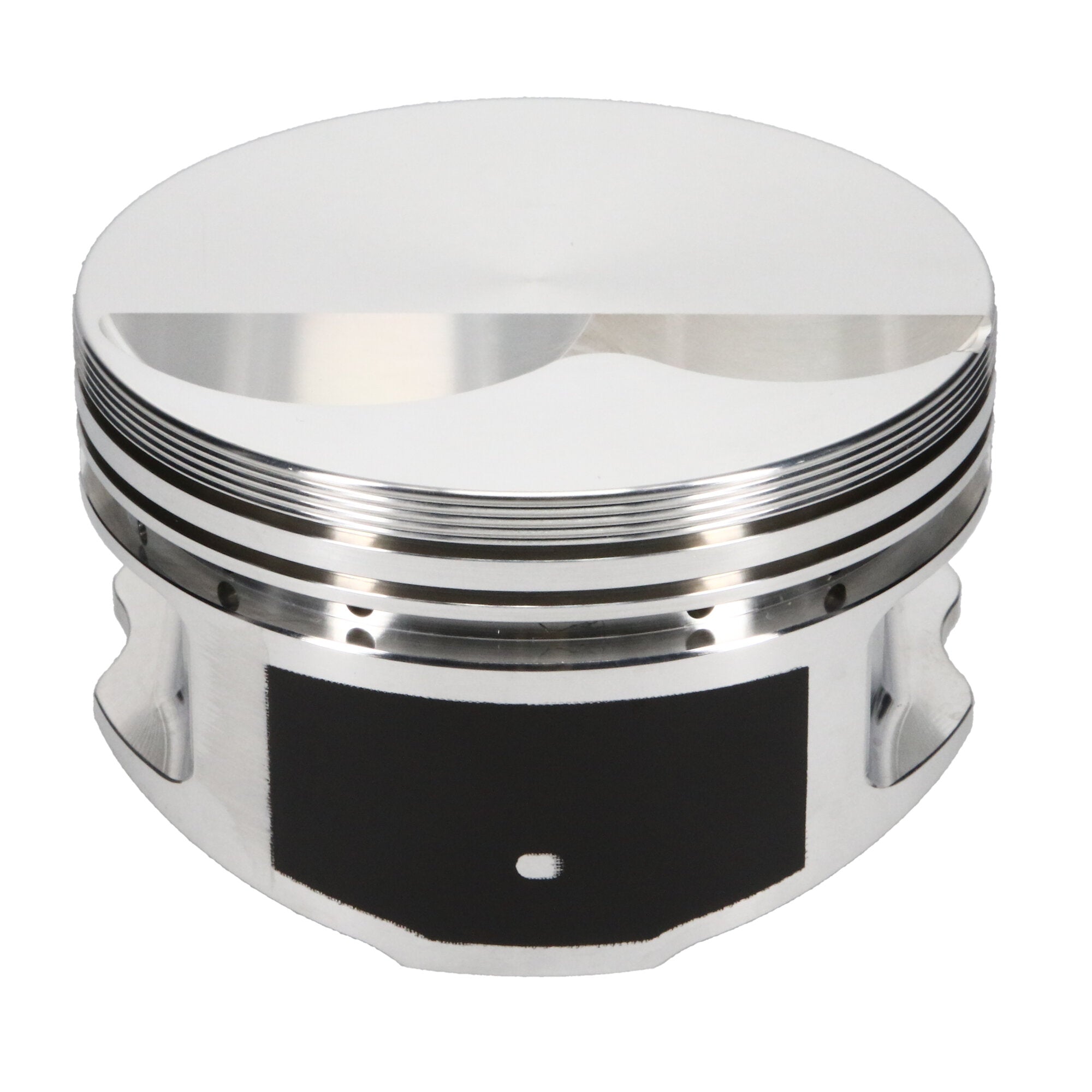

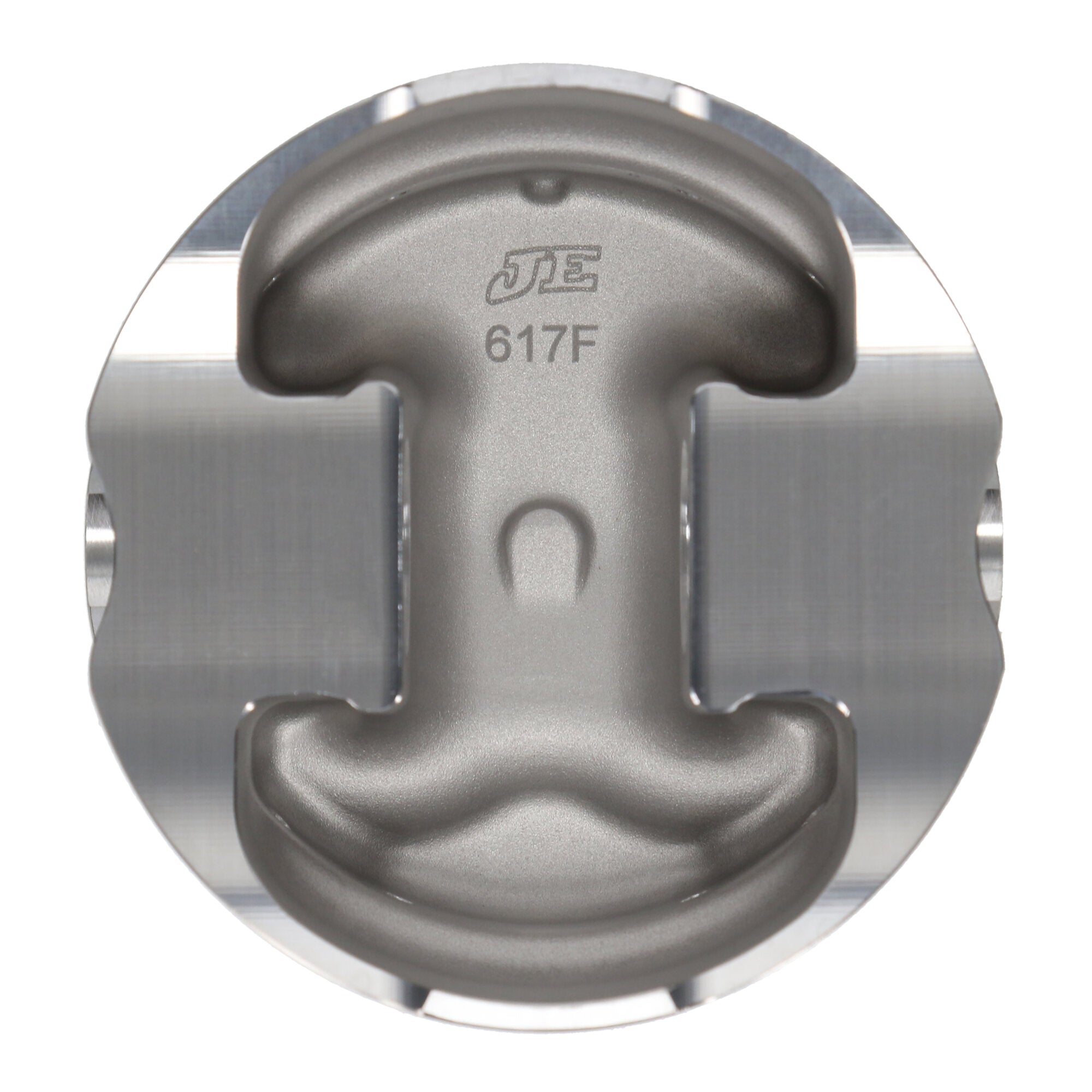

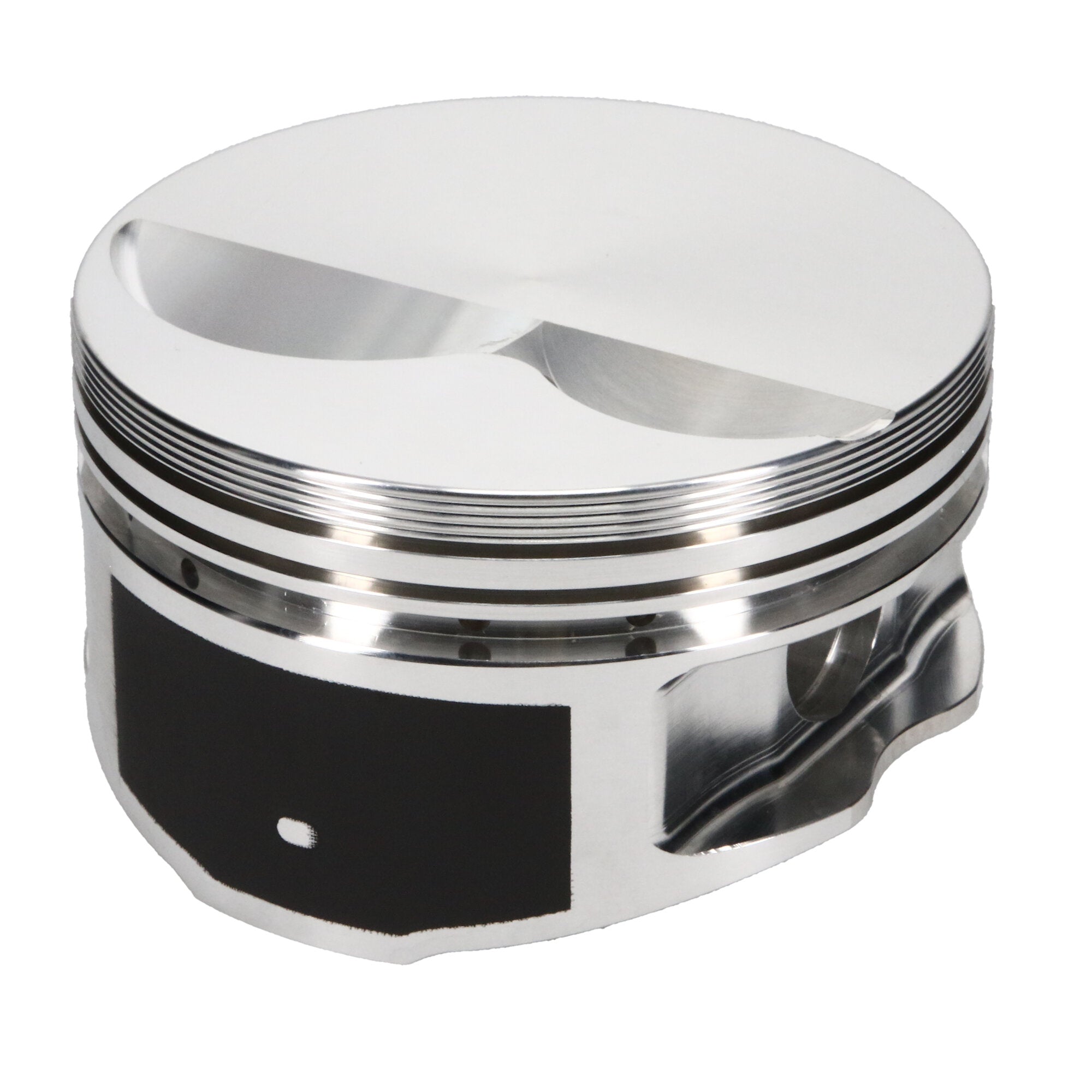

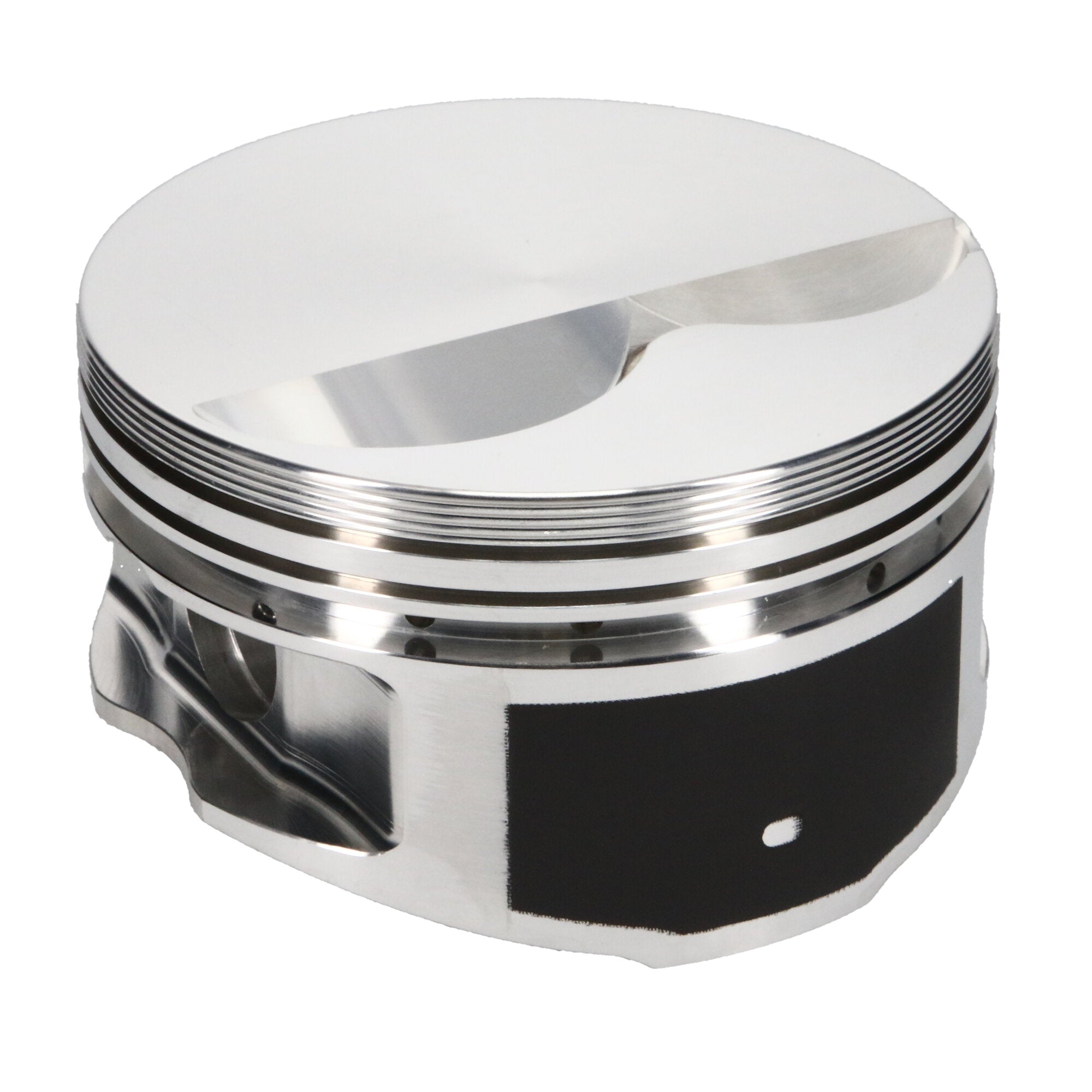

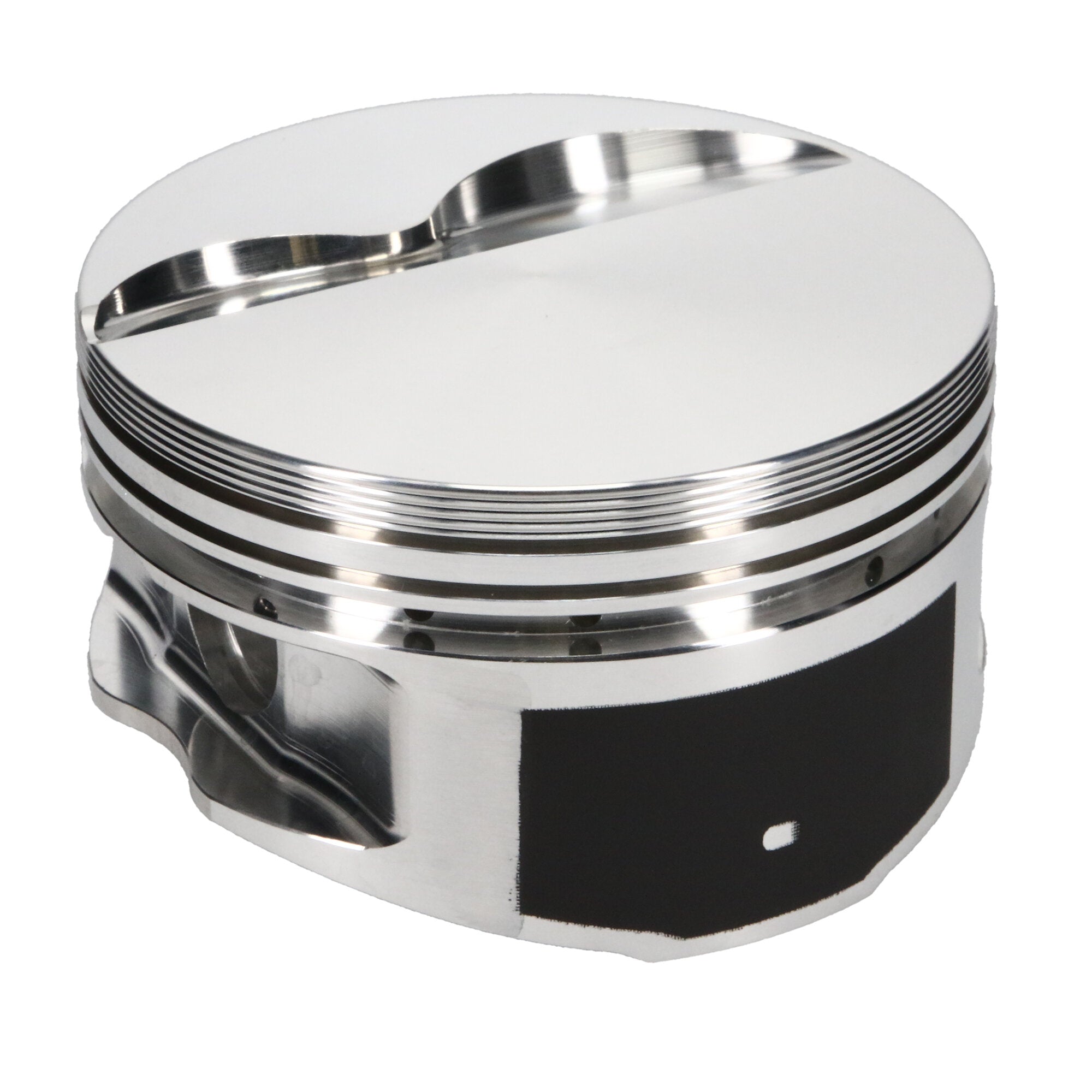

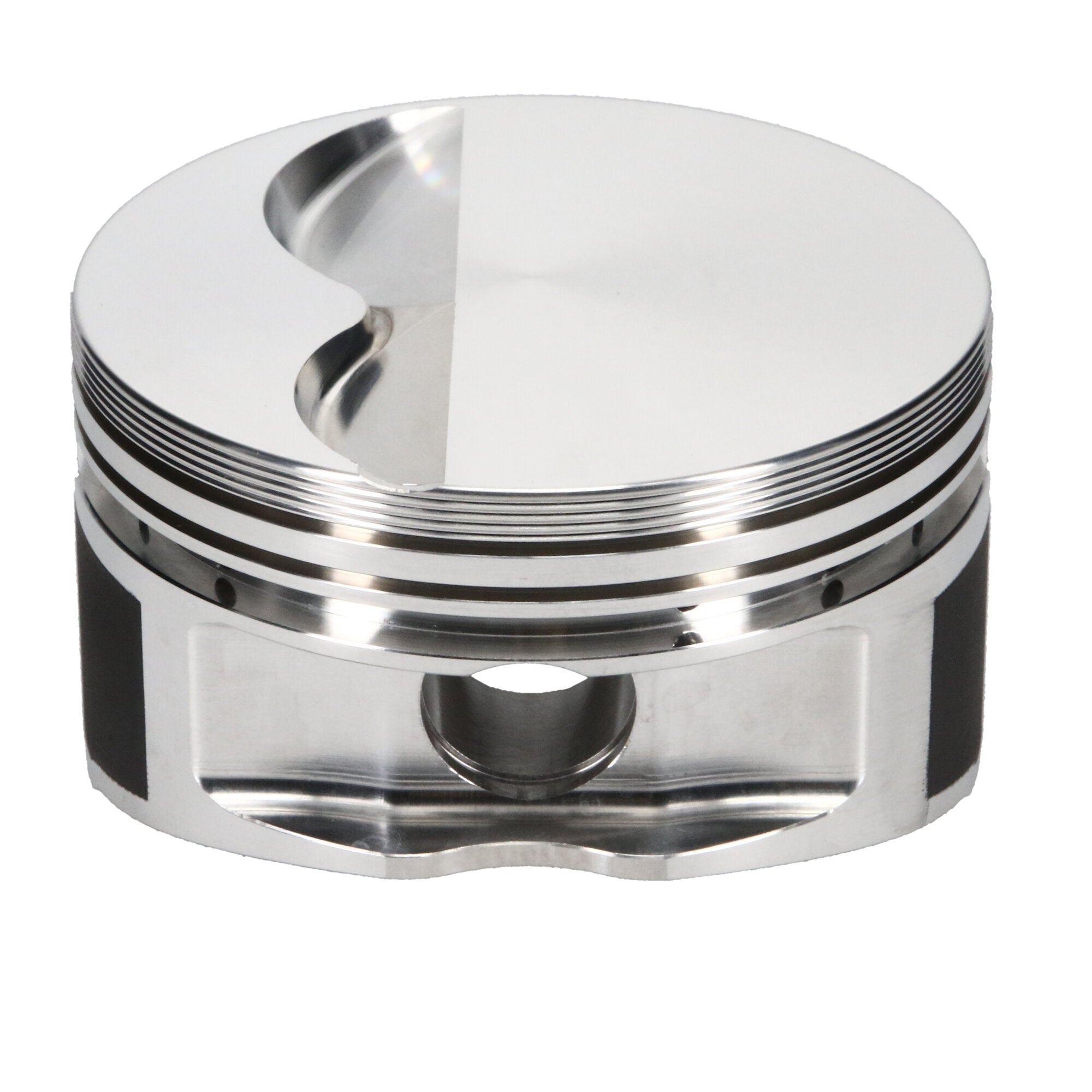

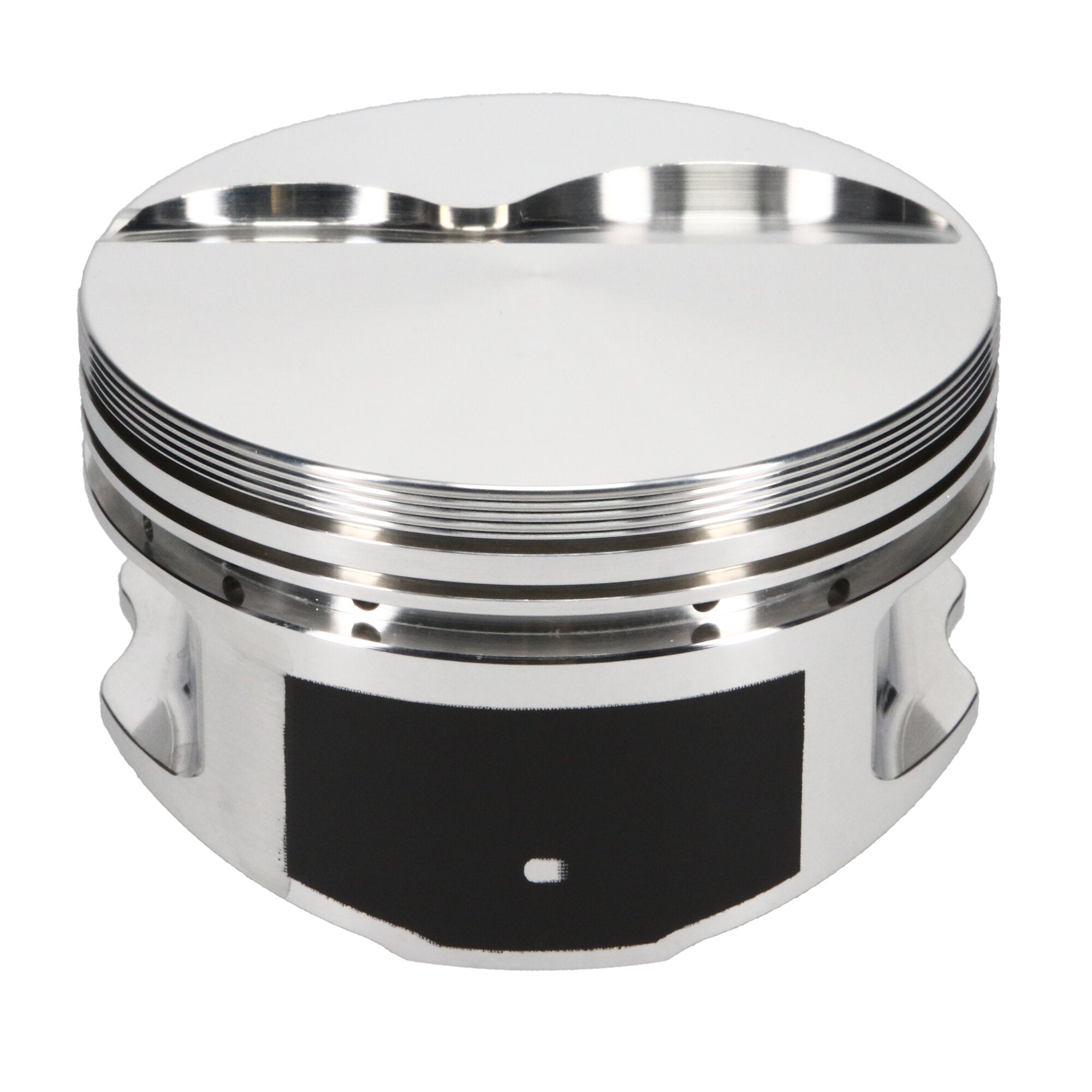

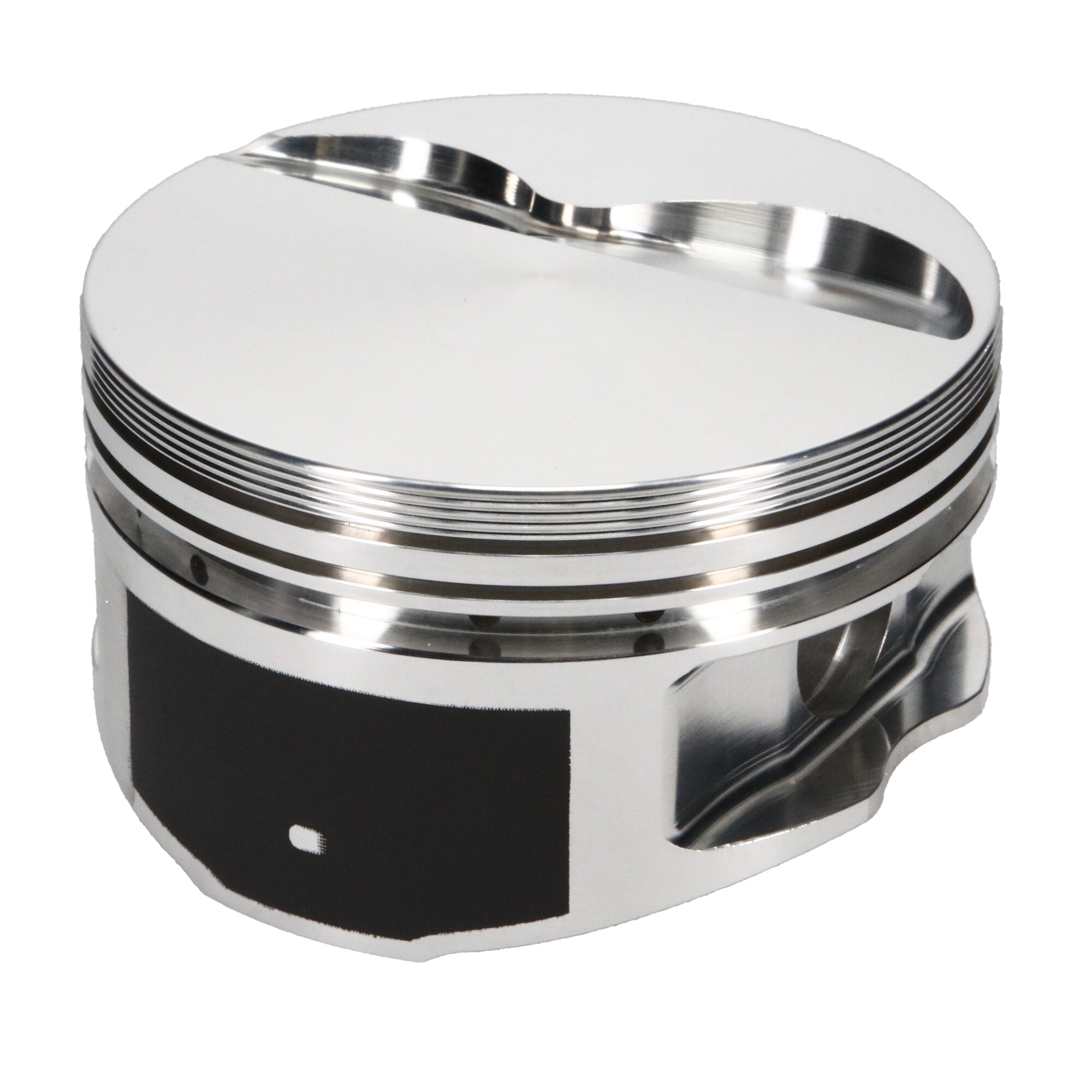

Piston Set, 2618, Flat Top, 4.030 Bore, 1.250 CD, 0.927 Pin, Set of 8. |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Small Block Ford, 4.030 in. Bore, 1.250 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford 351 Windsor, 4.030 Bore, Flat, Set of 8 |
| Product Market |
Domestic |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Ringset Included |
No |
| Bore Diameter |
4.030 |
| Compression Height |
1.250 |
| Title |
JE Pistons - Ford, Small Block, 4.030 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Engine |
Small Block |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Head Type |
Flat |
| Oil Ring Thickness |
0.188 |
| Cylinder Head |
SMALL BLOCK FORD 20 DEG |
| Industry |
Automotive |
| Make |
FORD |
| Piston Pin Wall Thickness |
0.150 |
| Add-On |
J10008-4030-5 |
| Top Compression Ring Thickness |
0.0640 |
| Add-On |
927-042-CS |
| Piston Average Weight |
438 |
| Piston Quantity |
8 |
| Add-On |
927-2750-15-51S |
| Piston Pin Outside Diameter |
0.927 |
| Engine - Web |
Small Block |
| Wrist Pin Wall Thickness |
0.150 |
| Title - Web |
JE Pistons Ford Small Block Piston Kit - 4.030 in. Bore - 1.250 in. CH, -5.00 CC |
| Piston Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Prop 65 Yes/No |
Yes |
| Second Compression Ring Thickness |
0.0640 |
| Out of Stock Message |
Call for Availability |
| Piston Volume |
-5.00 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Product Type |
Engine Piston Kit |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Wrist Pin Length |
2.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Ring Set Included |
No |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
12.0000 |
