As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.0L JH 8V 93-99 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

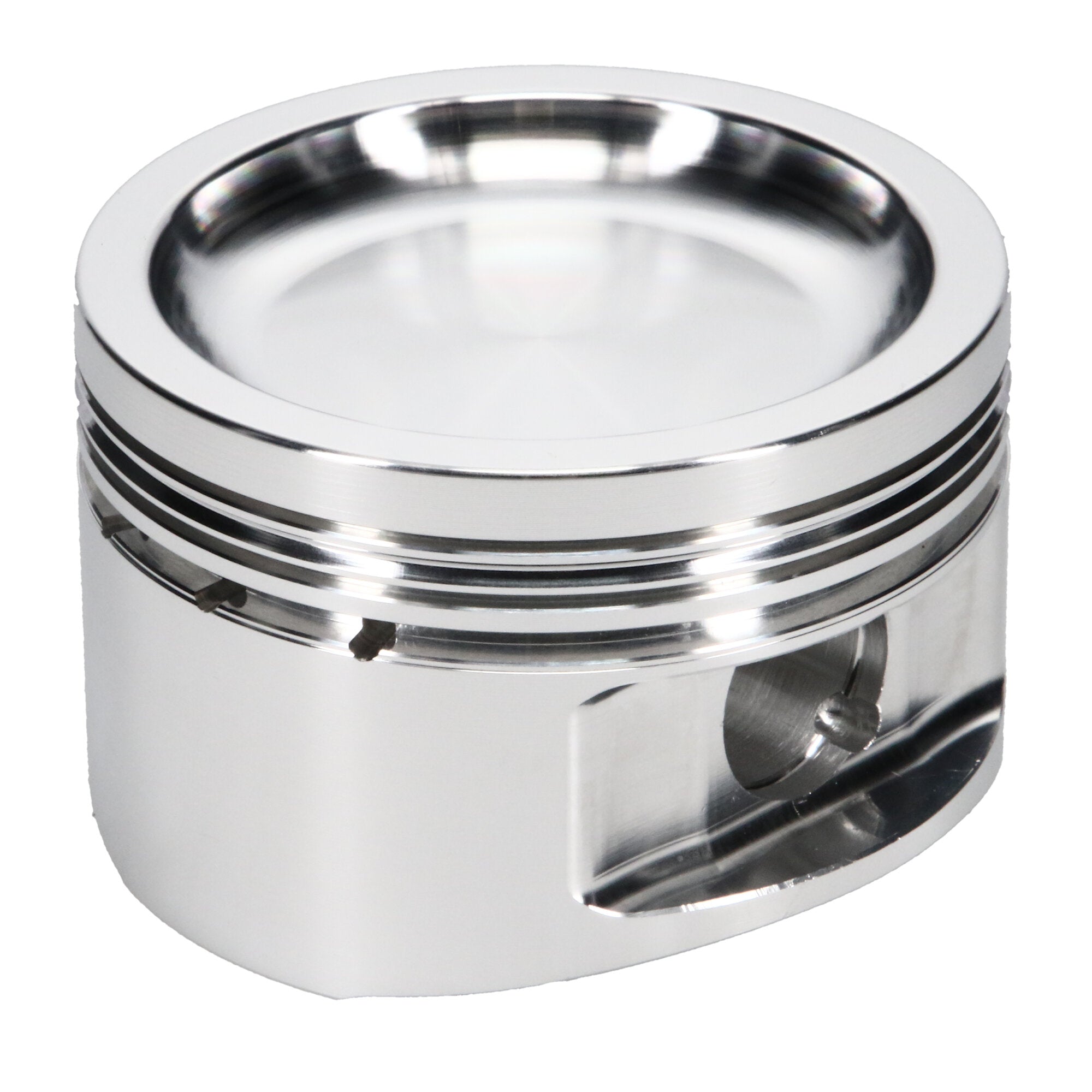

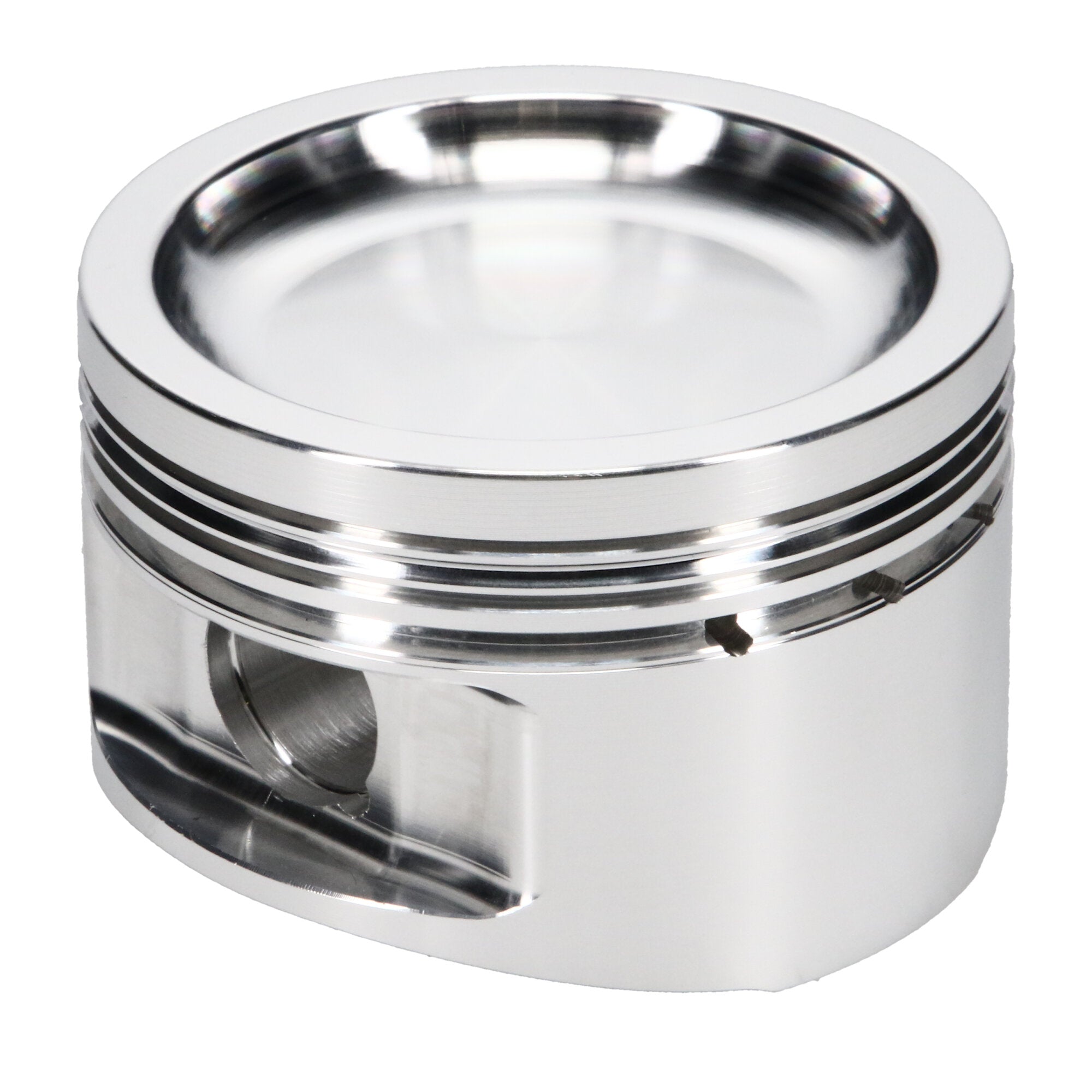

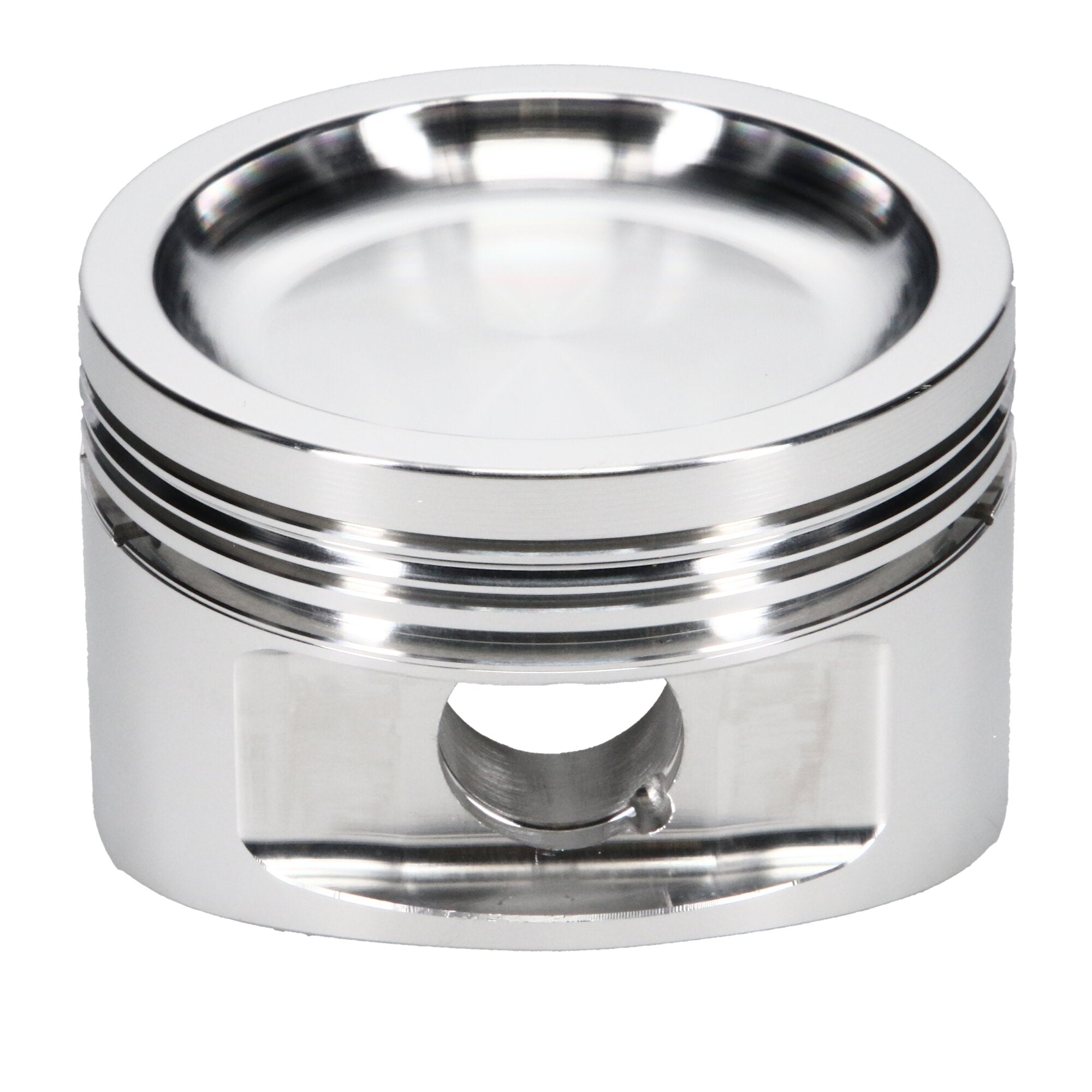

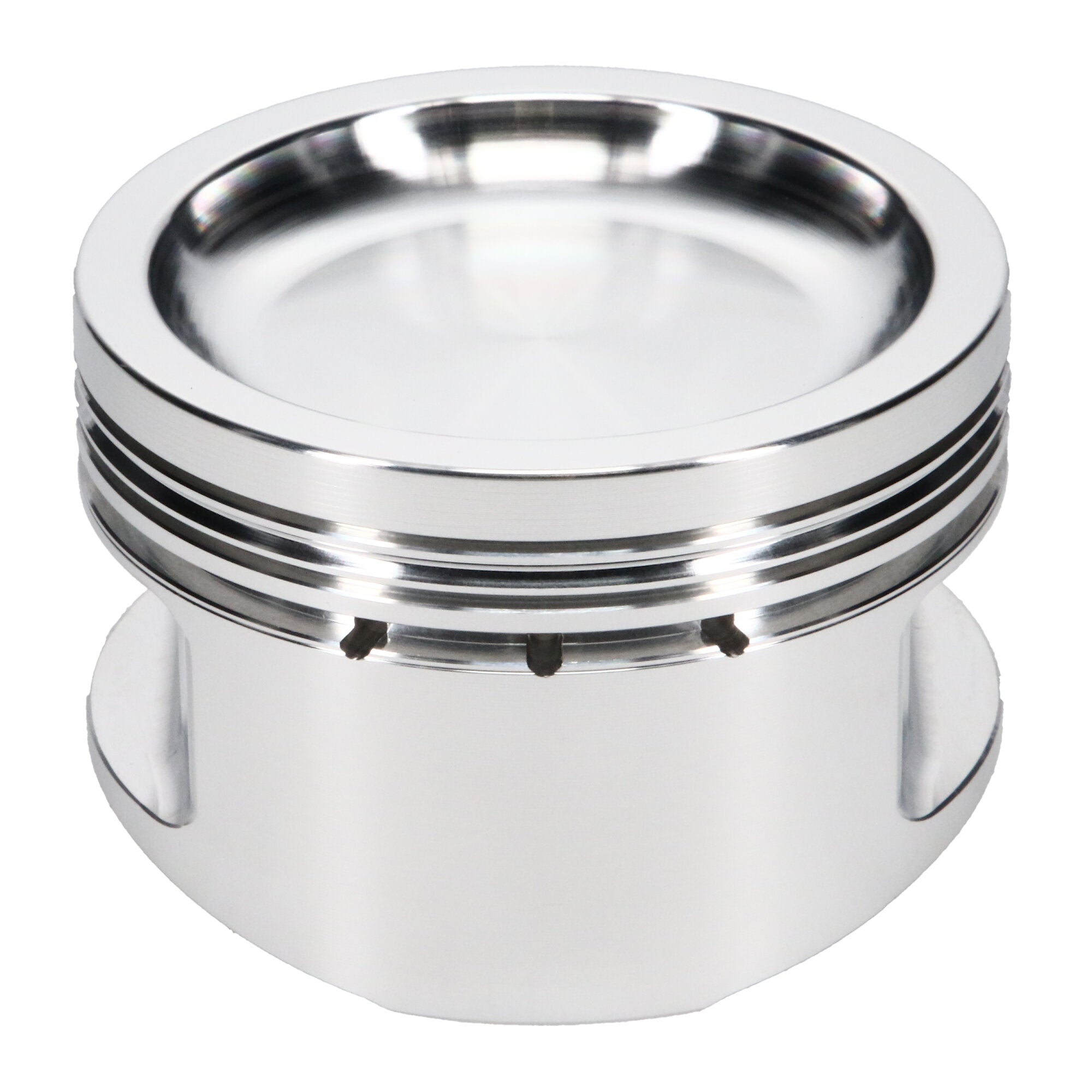

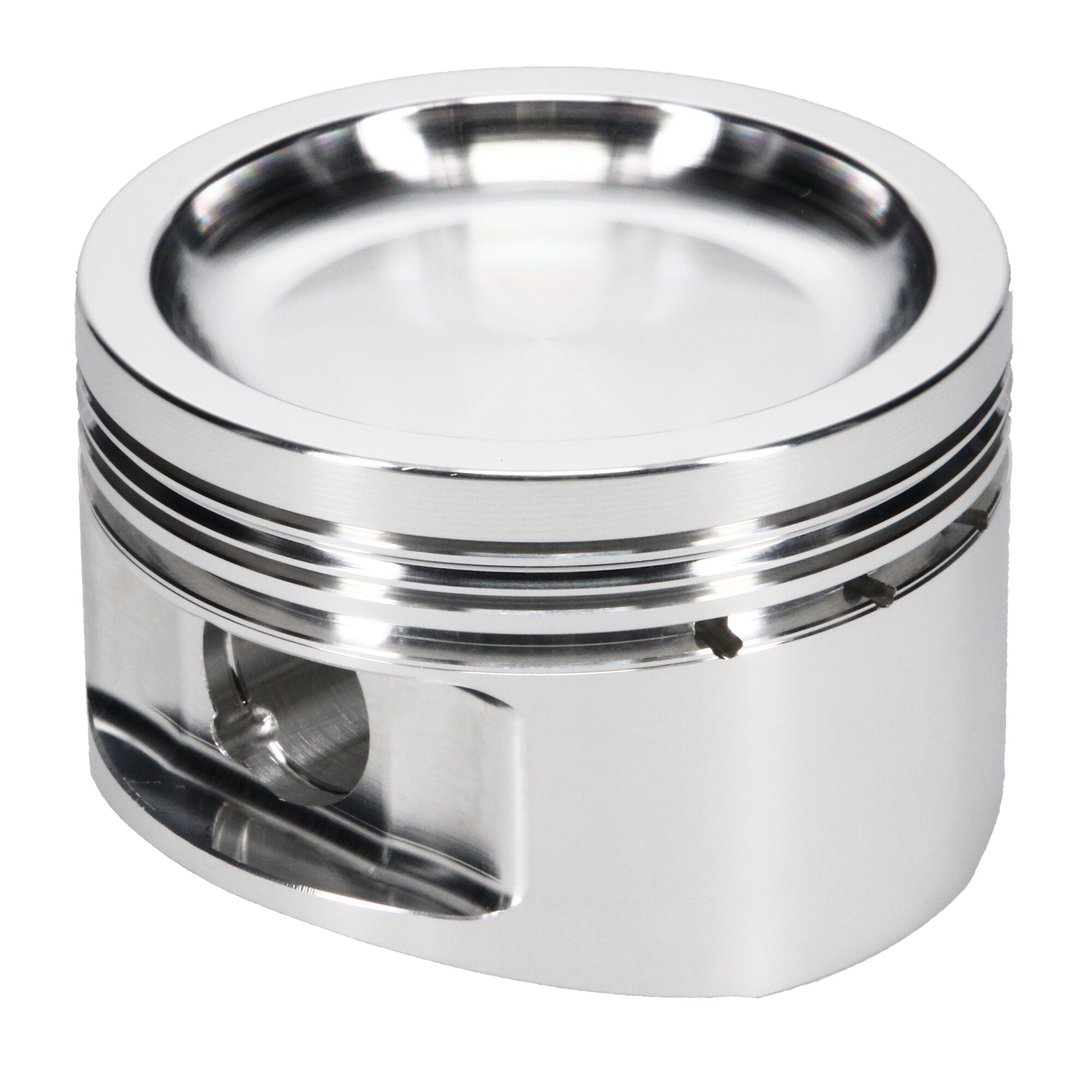

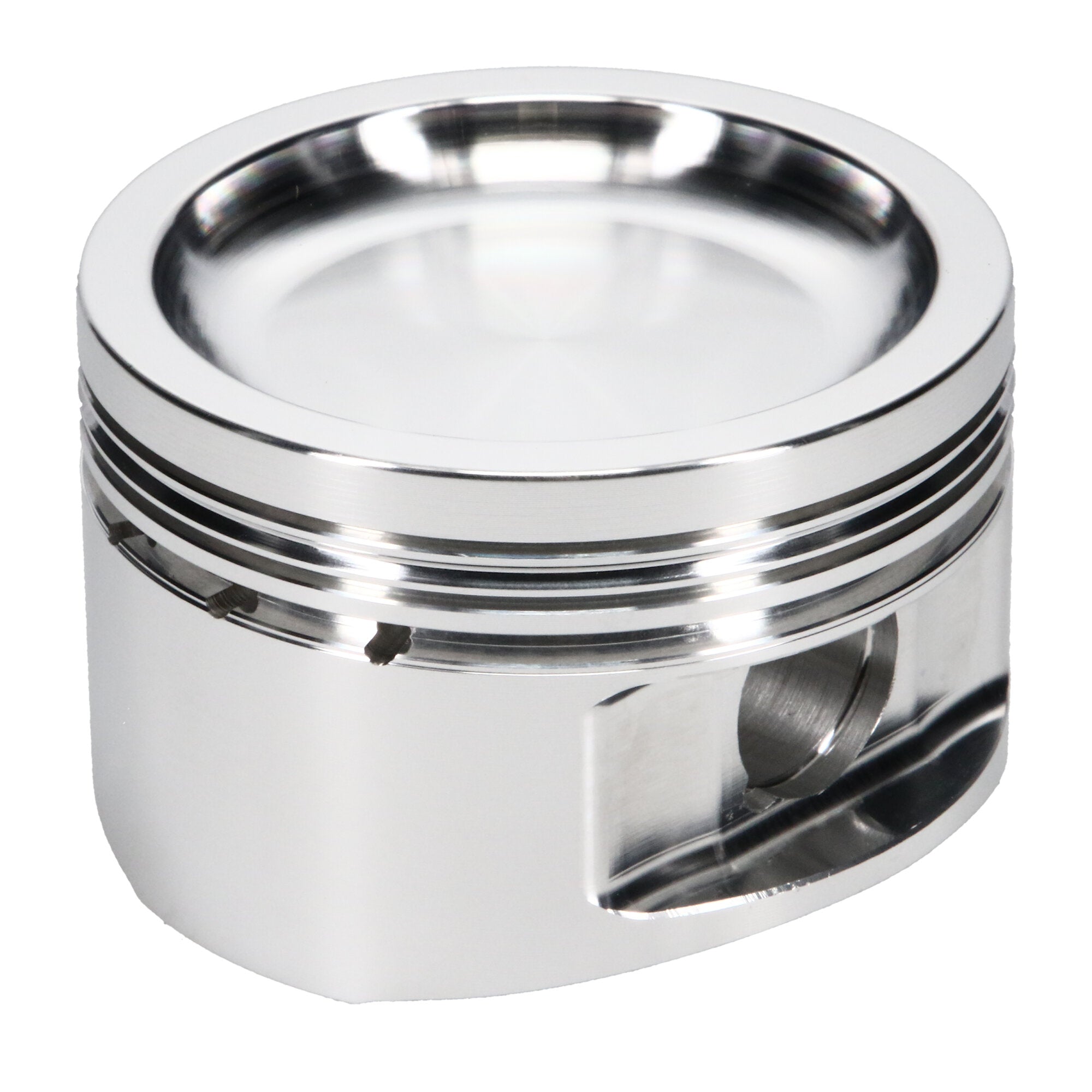

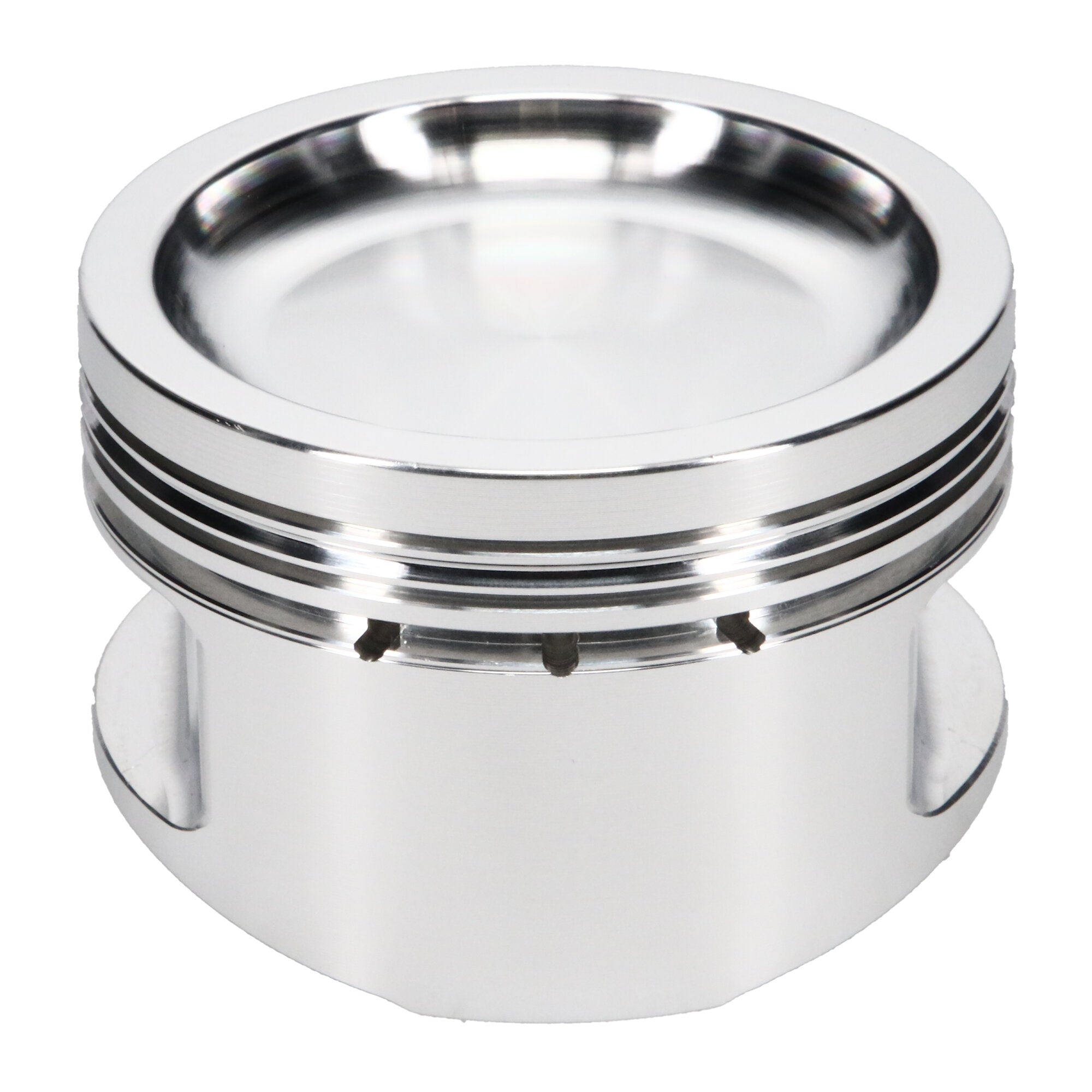

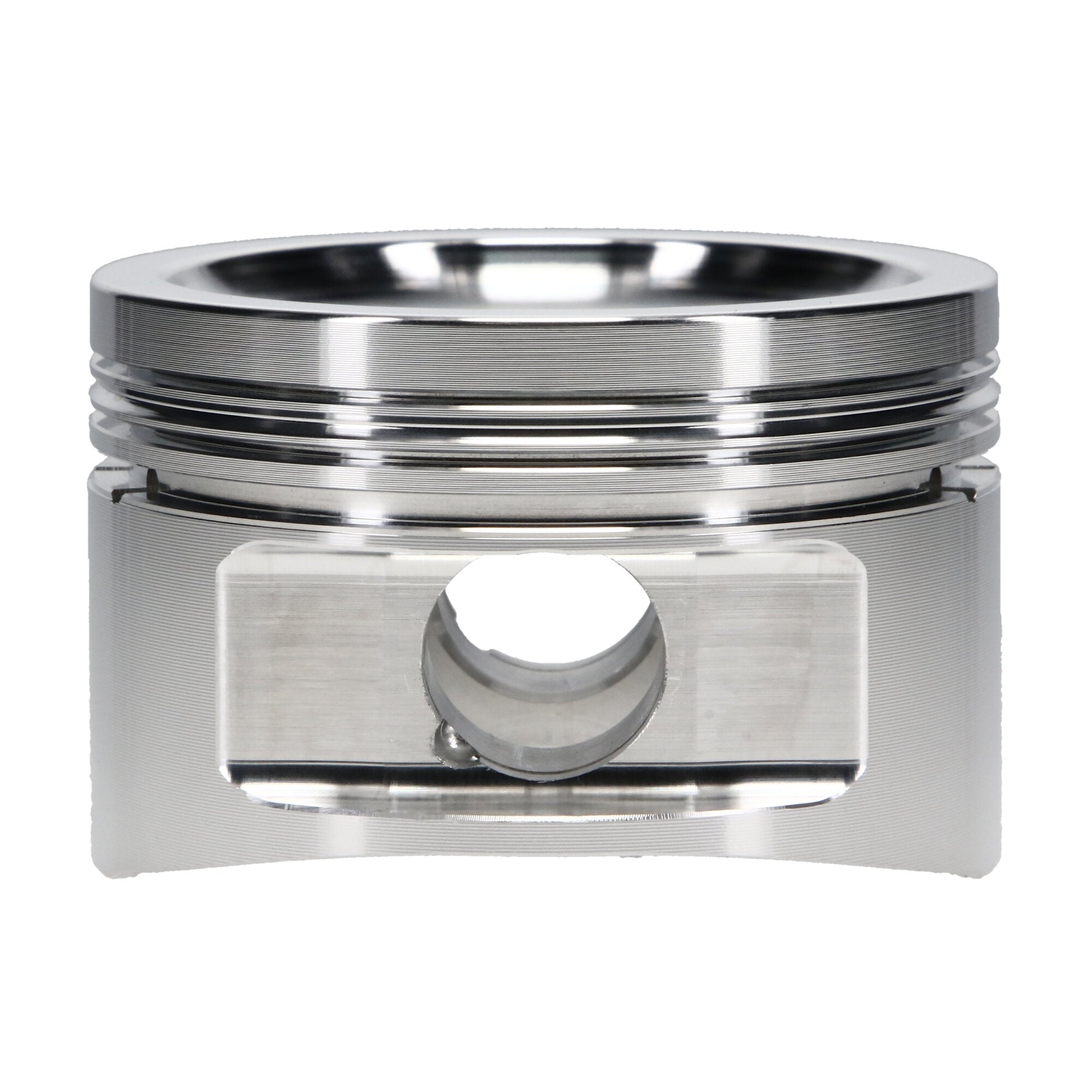

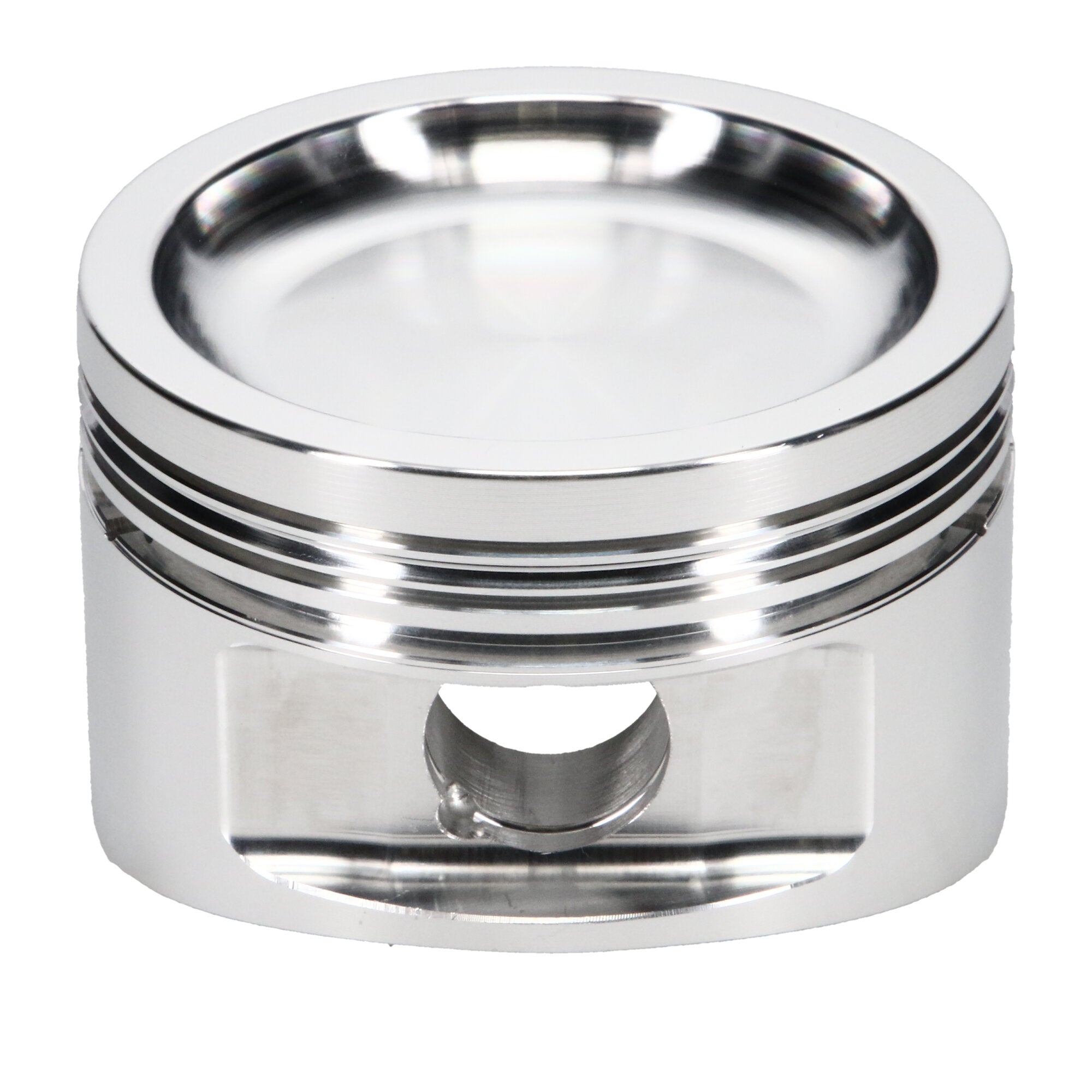

Piston Set, 2618, Inv Dome/Dish, 3.268 Bore, 1.213 CD, 0.827 Pin, Set of 4. |
| Description_EXT |
JE, VW, JH 8V 2.0L, 3.268 in. Bore, 9.60:1, Inverted Dome/Dish, 4 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

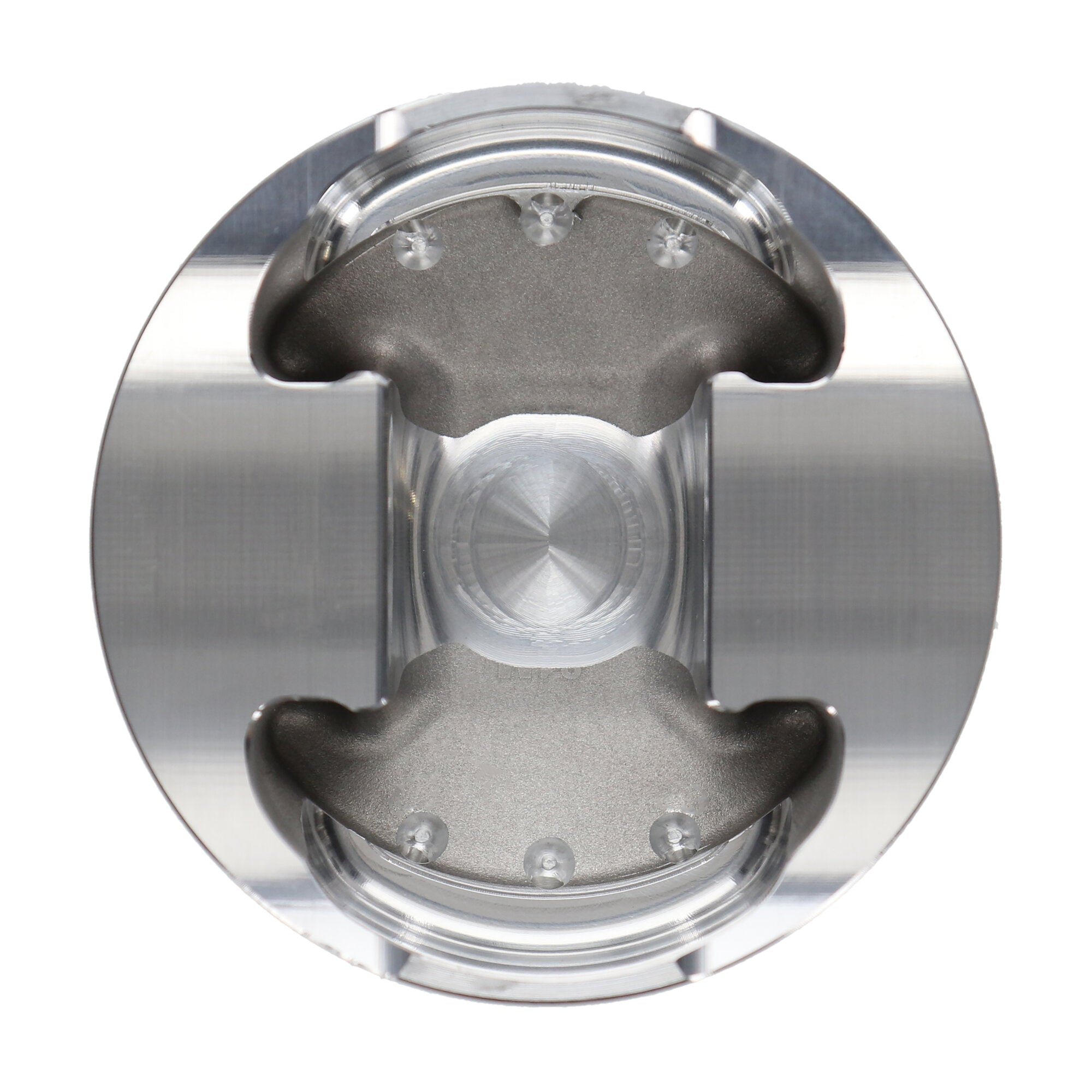

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Volkswagen 2L 8V, 83.00 Bore, Dish, Set of 4 |
| Add-On |
JG1001-3268 |
| Add-On |
827-2250-15-51C |
| Add-On |
827-063-MW |
| Title - Web |
JE Pistons Volkswagen JH 8V 2.0L Piston Kit - 83.00 mm Bore - 1.213 in. CH, -19.30 CC |
| Engine |
JH 8V 2.0L |
| Second Compression Ring Thickness |
0.0480 |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Volkswagen |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Engine Type |
ICE |

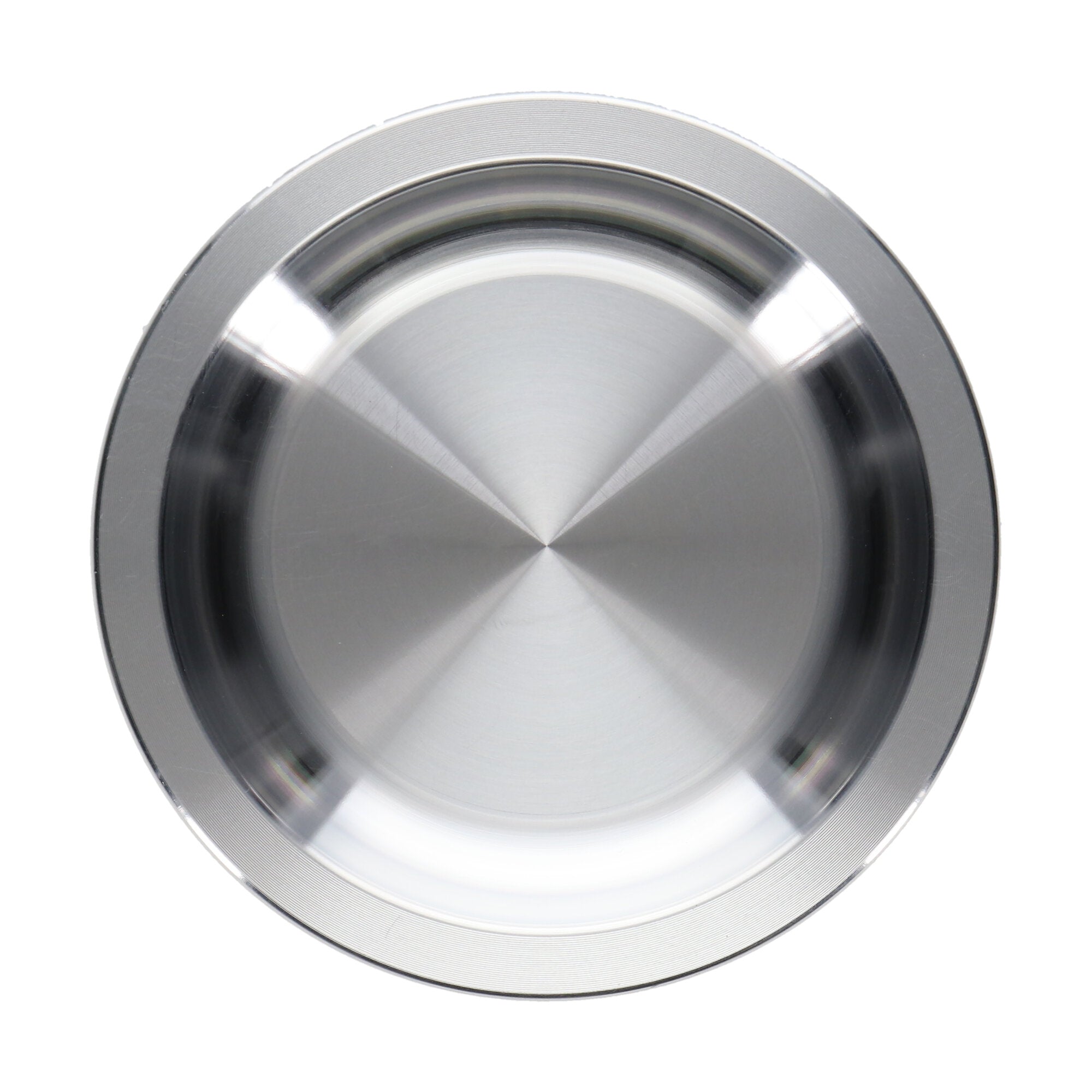

| Piston Head Type |
Dish |
| Industry |
Automotive |
| Piston Pin Length |
2.250 |
| Compression Height |
1.213 |
| Piston Series |
JE Pistons |
| Forging Type |
Round |
| Cylinder Head |
9A |
| Piston Average Weight |
258 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Piston Pin Material |
5115 |
| Bore Diameter |
83.00 |
| Piston Quantity |
4 |
| Make |
VOLKSWAGEN |
| Piston Pin Outside Diameter |
0.827 |
| Piston Volume |
-19.30 |
| Title |
JE Pistons - Volkswagen, JH 8V 2.0L, 83.00 mm Bore, Piston Kit |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Oil Ring Thickness |
0.111 |
| Piston Pin Wall Thickness |
0.150 |
| Product Market |
European |
| Top Compression Ring Thickness |
0.0400 |
| Wrist Pin Outer Diameter |
0.827 |
| Wrist Pin Length |
2.250 |
| Wrist Pin Wall Thickness |
0.150 |
| Engine - Web |
JH 8V 2.0L |
| Ring Set Included |
Yes |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
5.0000 |
| Weight |
7.0000 |
