As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Volkswagen 2.8L VR6 12V 92-99 |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, VW, 2.8L VR6 12V, 3.268 in. Bore, 9.00:1, Dome, 6 Cyl. Piston Kit |
| Description_DES |

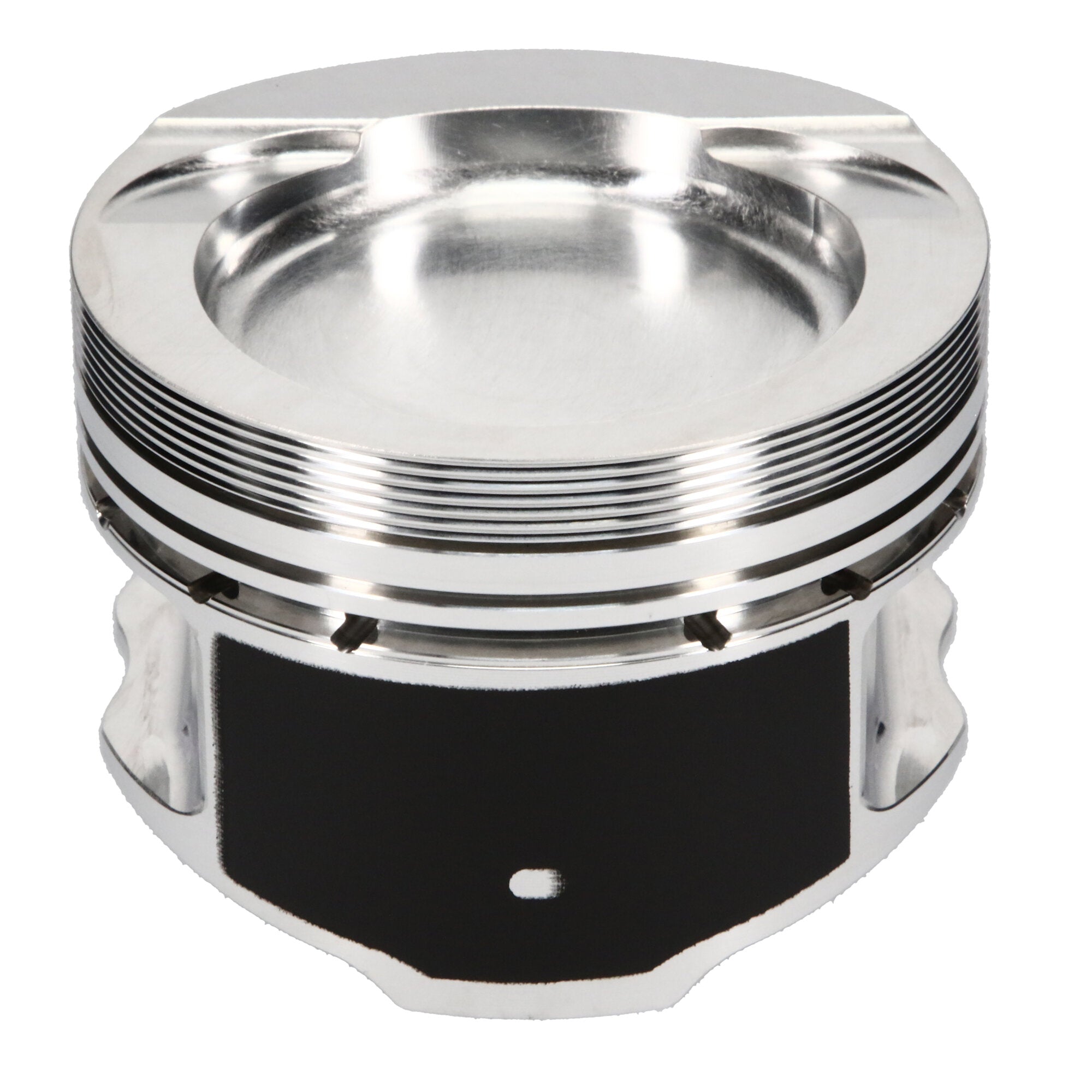

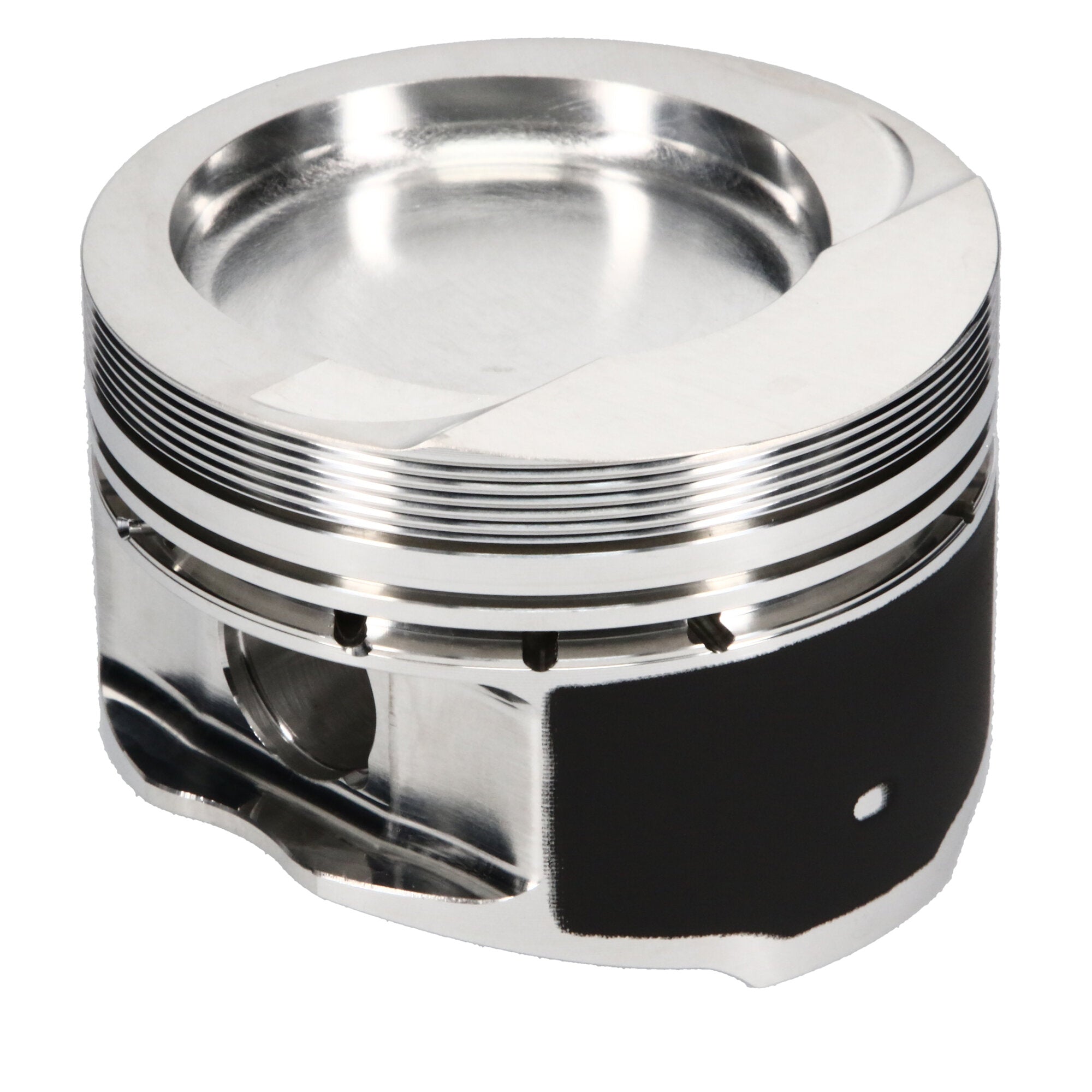

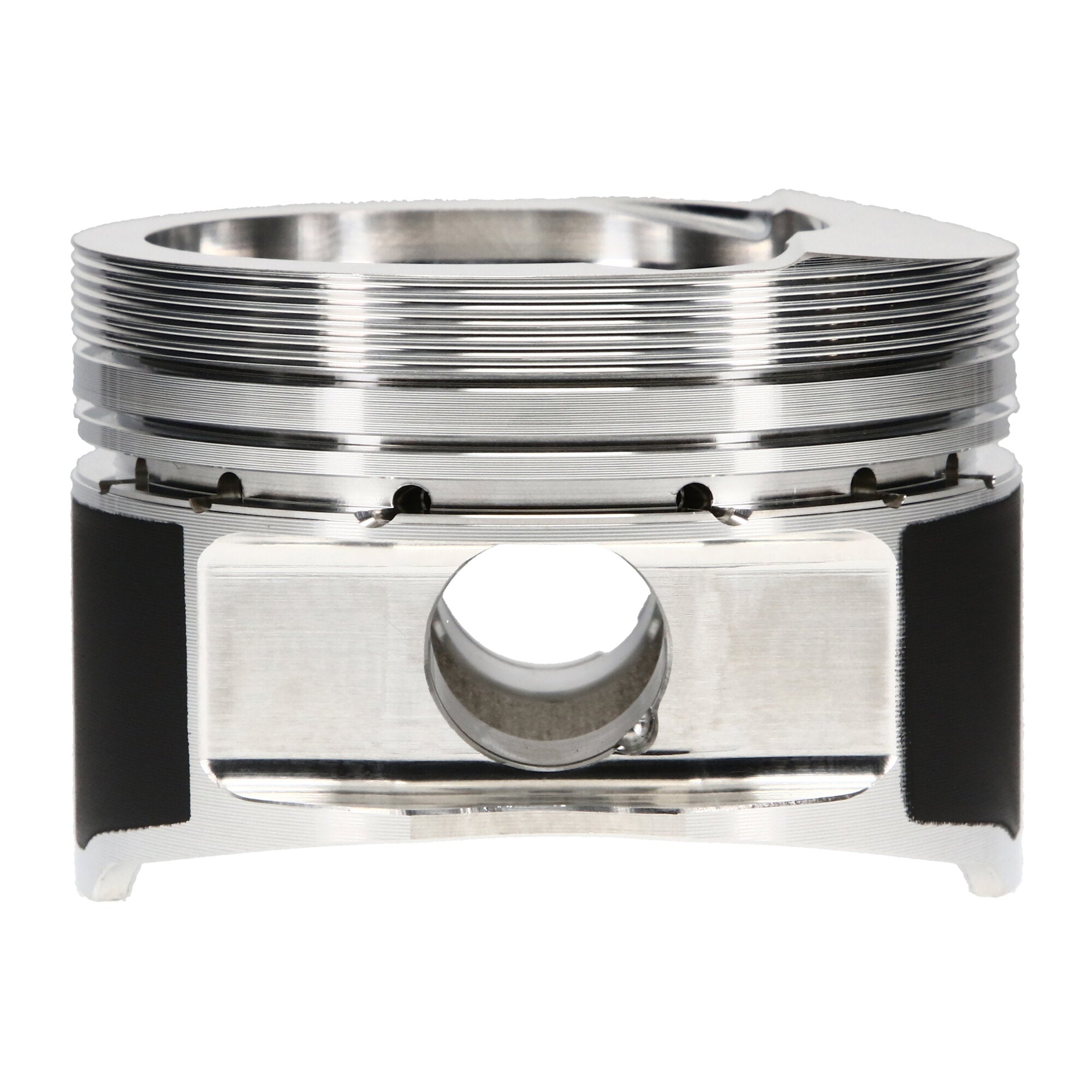

Piston Set, 2618, Dome, 3.268 Bore, 1.275 CD, 0.787 Pin, Set of 6. |
| Description_SHO |
Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Volkswagen 2.8L 12V VR6, 83.00 Bore, Dome, Set of 6 |
| Piston Quantity |
6 |
| Piston Pin Length |
2.250 |
| Bore Diameter |
83.00 |
| Piston Volume |
-11.50 |
| Industry |
Automotive |
| Piston Average Weight |
306 |
| Add-On |
JG1001-3268 |
| Add-On |
787-2250-18-51C |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>European |
| Cylinder Head |
VR6 |
| Second Compression Ring Thickness |
0.0480 |
| Title - Web |
JE Pistons Volkswagen 2.8L VR6 12V Piston Kit - 83.00 mm Bore - 1.275 in. CH, -11.50 CC |
| Top Compression Ring Thickness |
0.0400 |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
787-050-MW |
| Piston Head Type |
Dome |
| Out of Stock Message |
Call for Availability |
| Piston Pin Outside Diameter |
0.787 |
| Prop 65 Yes/No |
Yes |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Wrist Pin Length |
2.250 |
| Make - Web |
Volkswagen |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Outer Diameter |
0.787 |
| Ring Set Included |
Yes |
| Product Market |
European |
| Engine Type |
ICE |
| Oil Ring Thickness |
0.111 |
| Ringset Included |
Yes |
| Make |
VOLKSWAGEN |
| Piston Pin Material |
5115 |
| Compression Height |
1.275 |
| Piston Pin Wall Thickness |
0.180 |
| Engine |
2.8L VR6 12V |
| Forging Type |
Round |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Volkswagen, 2.8L VR6 12V, 83.00 mm Bore, Piston Kit |
| Engine - Web |
2.8L VR6 12V |
| Wrist Pin Wall Thickness |
0.180 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
7.0000 |
